2AUVM-CIR415ABluetooth Contactless Smart Card Reader

Subject to change without prior notice [email protected] www.abcircle.com CIR415A Bluetooth® Contactless Smart Card Reader User Manual CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 2 of 12 Driver installation Procedure * Driver signed by Microsoft and WHQL, user can install the driver with Window Update. In case that cannot install via Window Update, please process the below steps to Manual installation Hardware requires: ❖ CIR415A ❖ PC with OS windows 7 or above Software requires: ❖ CIR415 Driver Package Steps: 1. Connect CIR415A to PC 2. On PC, open “Control Panel > System” 3. Open “Device Manager” 4. Select and open “Smart card readers” if it is shown “Microsoft Usbccid ... (WUDF)”, please continue with step 5) CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 3 of 12 if it is shown “CIR415 CL & 1S” mean driver install completed 5. Right click then select “Update driver” 6. Select “Browse my computer for driver software...” 7. 選擇 “Let me pick from a list ...” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 4 of 12 8. Select “Have Disk...” 9. Select “Browse...” Select “CIR415.inf”, then press “Open” and “OK” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 5 of 12 10. Select “CIR415 CL & 1S” then “Next” 11. Waiting until below screen shown, Press “Close” to complete 12. Double click to ensure the device changed to “CIR415 CL & 1S” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 6 of 12 13. Done Operation Example Hardware requires: ❖ CIR415A ❖ PC with OS windows 7 or above ❖ Mifare 1k Test Card Software requires: ❖ Any PCSC Application (e.g. APDU.exe) Steps: 1. Plug in the reader into the PC CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 7 of 12 2. Open “APDU.exe” 3. Click “1. Select reader”, Chose “Circle CIR415 CL & 1S PICC 0”, then click “OK” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 8 of 12 4. Tag ISO14443 Test card on CIR415A Select “T1”, Message = “90 0a 00 00 01 00 00” 5. Press “2. Connect” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 9 of 12 6. Press “3. Transmit” 7. Result will be shown on the “Answer from the card:” CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 10 of 12 Parameter Sheet Physical Characteristics Dimensions......................................................... 95.0 mm (L) x 61.0 mm (W) x 6.0 mm (H) Casing ................................................................ White PC Universal Serial Bus Interface Specification ....................................................... USB 2.0 Type C Type ................................................................... Four lines: +5V, GND, D+ and D- Speed ................................................................. USB 2.0 Full Speed Device, 12 Mbps Supply Voltage ................................................... Regulated 5V DC (Range from 4.75V to 5.25V) Supply Current ................................................... <500mA Cable Length ...................................................... 1m Contactless Interface Standard ............................................................. ISO14443, ISO18092, FeliCa®, ISO15693 Protocol .............................................................. T=CL for ISO14443-4–compliant cards, T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 11 of 12 Carrier Frequency .............................................. 13.56MHz Operating Baud Rate ......................................... 106kbps, 212kbps, 424kbps, 848kbps (Default: 424kbps) Antenna Size ...................................................... 53.0 mm x 32.0 mm SAM Smart Card Interface Standard ............................................................. ISO 7816 3/4 Class A Protocol Support ................................................ T=0 and T=1 Supply Current ................................................... Max. 50mA Smart Card Voltage ............................................ 5V Operating Baud Rat ........................................... 9600 – 125kbps Clock Frequency ................................................ 4.0 MHz Card Connector Type ......................................... Contact Human Interface LED .................................................................... 3 LED: 1 Red & Green Bi-colour (Power & Charging status) 1 Blue & Green Bi-colour (Bluetooth & USB mode) 1 Blue (PICC operation) Buzzer ................................................................ Optional Operating Conditions Temperature ....................................................... 0 – 60 °C (when battery is not charging) 0 – 45 °C (when battery is charging) Humidity ............................................................. <85% Compliances/Certifications Systems/ Standards ........................................... USB 2.0 Full Speed, CCID, Microsoft® WHQL, Bluetooth 5.0 Regulatory/ Environmental ................................. EN 62368/IEC 62368, CE, FCC, VCCI, RoHS, REACH, MIC, TELEC Operational Environment Compatible Operating System ........................... Windows® 7, 8, 8,1, 10, Linux®, Mac OS® 10.11 and above, Android™ 7.0 and above, IOS 8.0 and above CIR415A – User Manual [email protected] Version 0.00.02 www.abcircle.com Page 12 of 12 NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested …

Text truncated - open the document above for the full version.

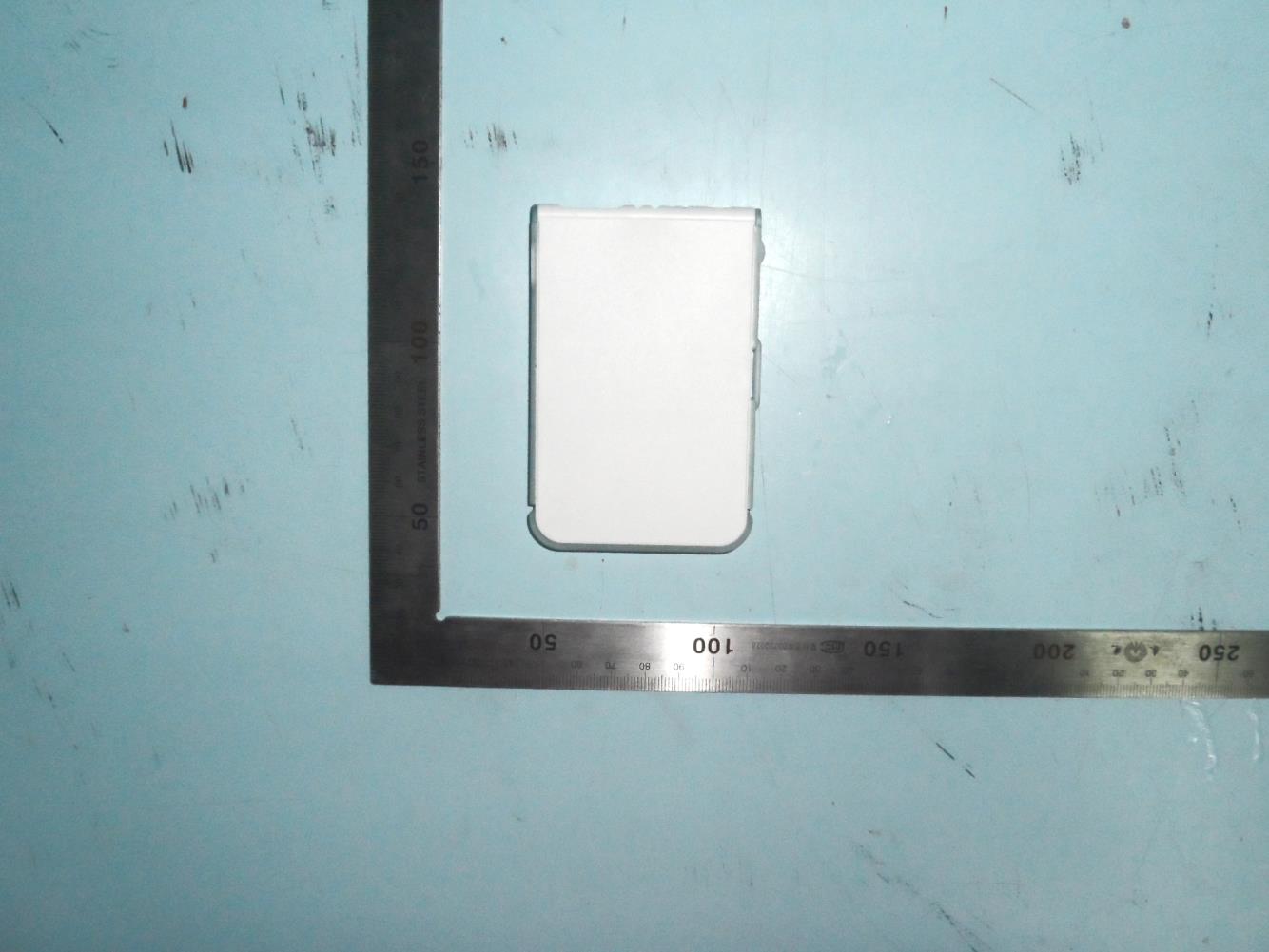

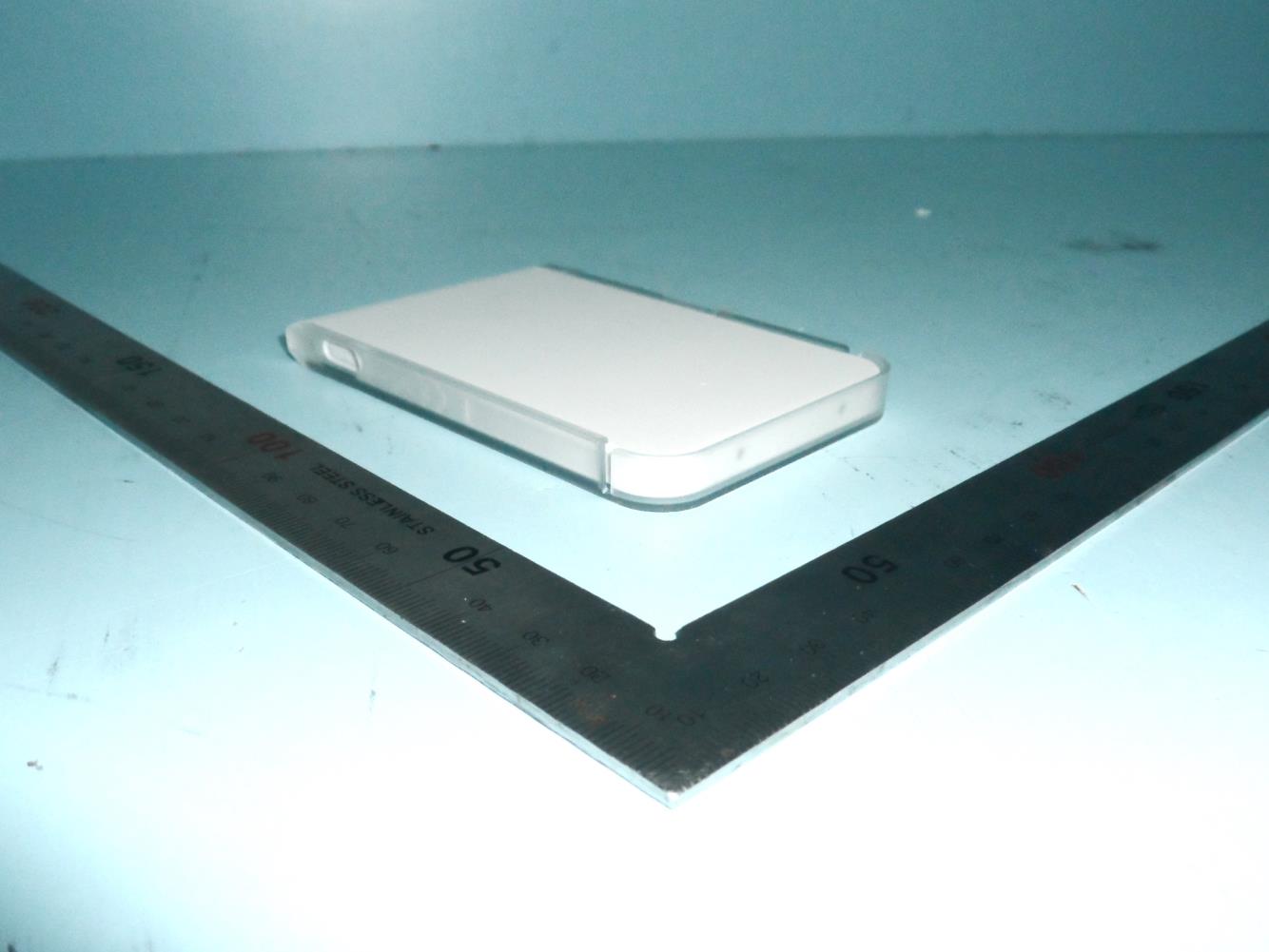

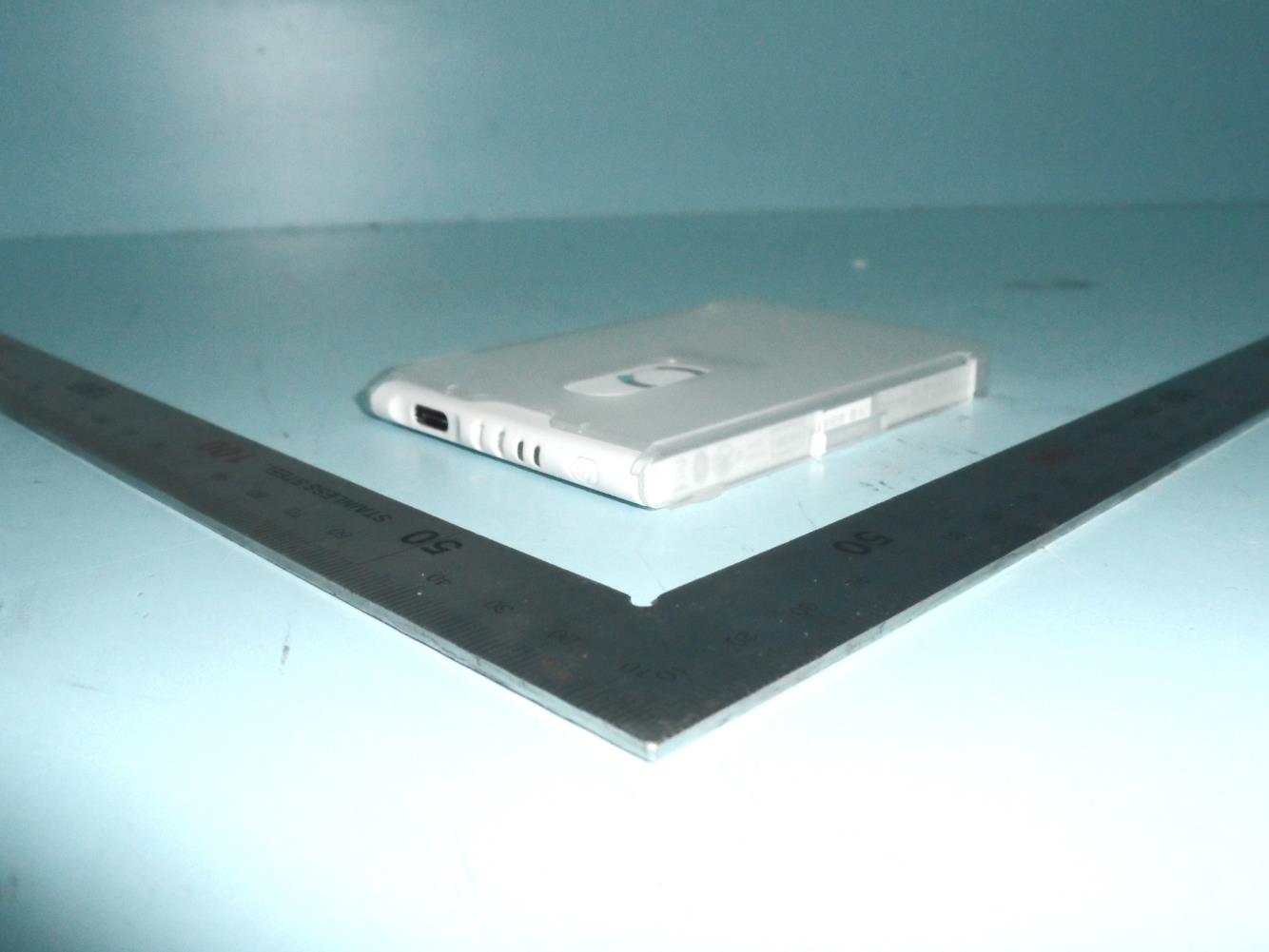

FCC ID: 2AUVM-CIR415A EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 3 FCC ID: 2AUVM-CIR415A EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 3 FCC ID: 2AUVM-CIR415A EXTERNAL PHOTOGRAPH OF THE PRODUCT Page 3 of 3

FCC ID: 2AUVM-CIR415A INTERNAL PHOTOGRAPH OF THE PRODUCT Page 1 of 3 FCC ID: 2AUVM-CIR415A INTERNAL PHOTOGRAPH OF THE PRODUCT Page 2 of 3 FCC ID: 2AUVM-CIR415A INTERNAL PHOTOGRAPH OF THE PRODUCT Page 3 of 3

Test Report Date : 2020-07-29 Page 1 of 22 No. : HM20070002 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Description of Sample(s): Product: Contactless Smart Card Reader Brand Name: AB Circle Limited Model Number: CIR415A FCC ID: 2AUVM-CIR415A Date Sample(s) Received: 2020-07-02 Date Tested: 2020-07-09 to 2020-07-19 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 and ANSI C63.10:2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): RFID only _______________________________ LEUNG Kwun Hang, Joey Authorized Signatory Test Report Date : 2020-07-29 Page 2 of 22 No. : HM20070002 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 22 Content Page 2 of 22 1.0 General Details 1.1 Equipment Under Test [EUT] Page 3 of 22 Description of EUT operation 1.2 Description of EUT Operation 1.3 Date of Order Page 3 of 22 1.4 Submitted Sample Page 3 of 22 1.5 Test Duration Page 3 of 22 1.6 Country of Origin Page 3 of 22 2.0 Technical Details 2.1 Investigations Requested Page 4 of 22 2.2 Test Standards and Results Summary Page 4 of 22 3.0 Test Results 3.1 Emission Page 5-21 of 22 Appendix A List of Measurement Equipment Page 22 of 22 Test Report Date : 2020-07-29 Page 3 of 22 No. : HM20070002 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Product: Contactless Smart Card Reader Manufacturer: AB CIRCLE LIMITED Room 609, Cross Office Uchisaiwaicho, 1-18-6, Nishi-Shimbashi, Minatoku, Tokyo, Japan 105-003 Brand Name: AB Circle Limited Model Number: CIR415A Rating: 5Vd.c of USB port of EUT PC=120Va.c. 1.2 Description of EUT Operation The Equipment Under Test (EUT) is 13.56MHz RFID Card reader, which is 13.56MHz transceiver fixed transmit at 13.56MHz, the modulation is ASK type which is provided by IC. The Carrier frequency of the EUT will continuous 1.3 Date of Order 2020-07-02 1.4 Submitted Sample(s): 3 Samples 1.5 Test Duration 2020-07-09 to 2020-07-19 1.6 Country of Origin China Test Report Date : 2020-07-29 Page 4 of 22 No. : HM20070002 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2017 Regulations and ANSI C63.10:2013 for FCC Certification. 2.2 Test Standards and Results Summary Tables Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail Field Strength of Fundamental & Harmonics Emissions FCC 47CFR 15.225(a-d) ANSI C63.10:2013 N/A The Frequency Tolerance of Carrier Signal FCC 47CFR 15.225(e) ANSI C63.10:2013 N/A 20 dB Bandwidth FCC 47CFR 15.215 ANSI C63.10:2013 N/A Radio Frequency powered Tags FCC 47CFR 15.225(f) ANSI C63.10:2013 N/A N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10:2013 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A AC power-line conducted emissions FCC 47CFR 15.207 ANSI C63.10:2013 N/A Note: N/A - Not Applicable Test Report Date : 2020-07-29 Page 5 of 22 No. : HM20070002 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 3.0 Test Results 3.1 Emission 3.1.1 Field Strength of Fundamental & Harmonics Emissions Test Requirement: FCC 47CFR 15.225 a to d Test Method: ANSI C63.10:2013 Test Date: 2020-07-09 Mode of Operation: On mode connected to PC Test Method: For emission measurements at …
