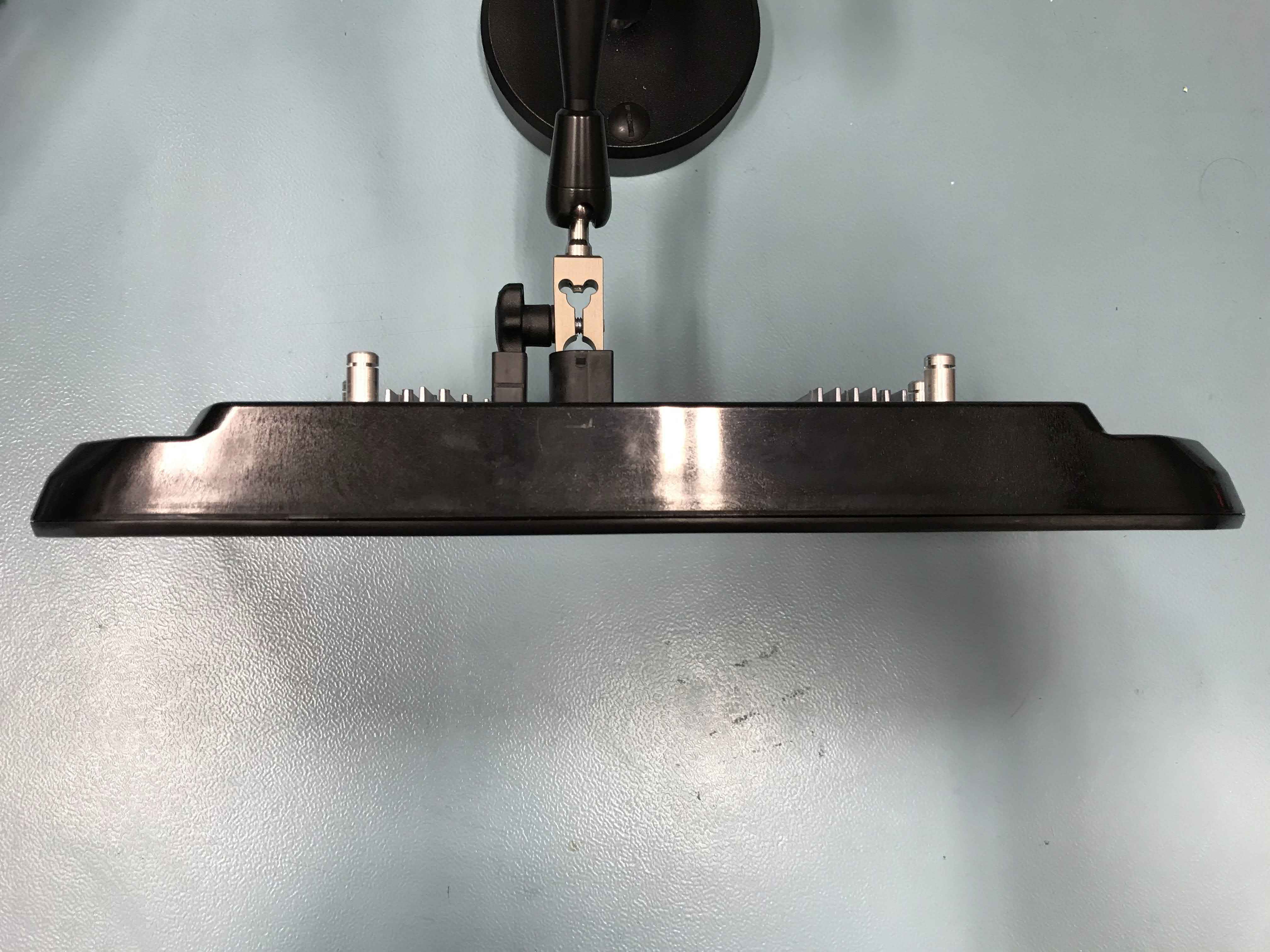

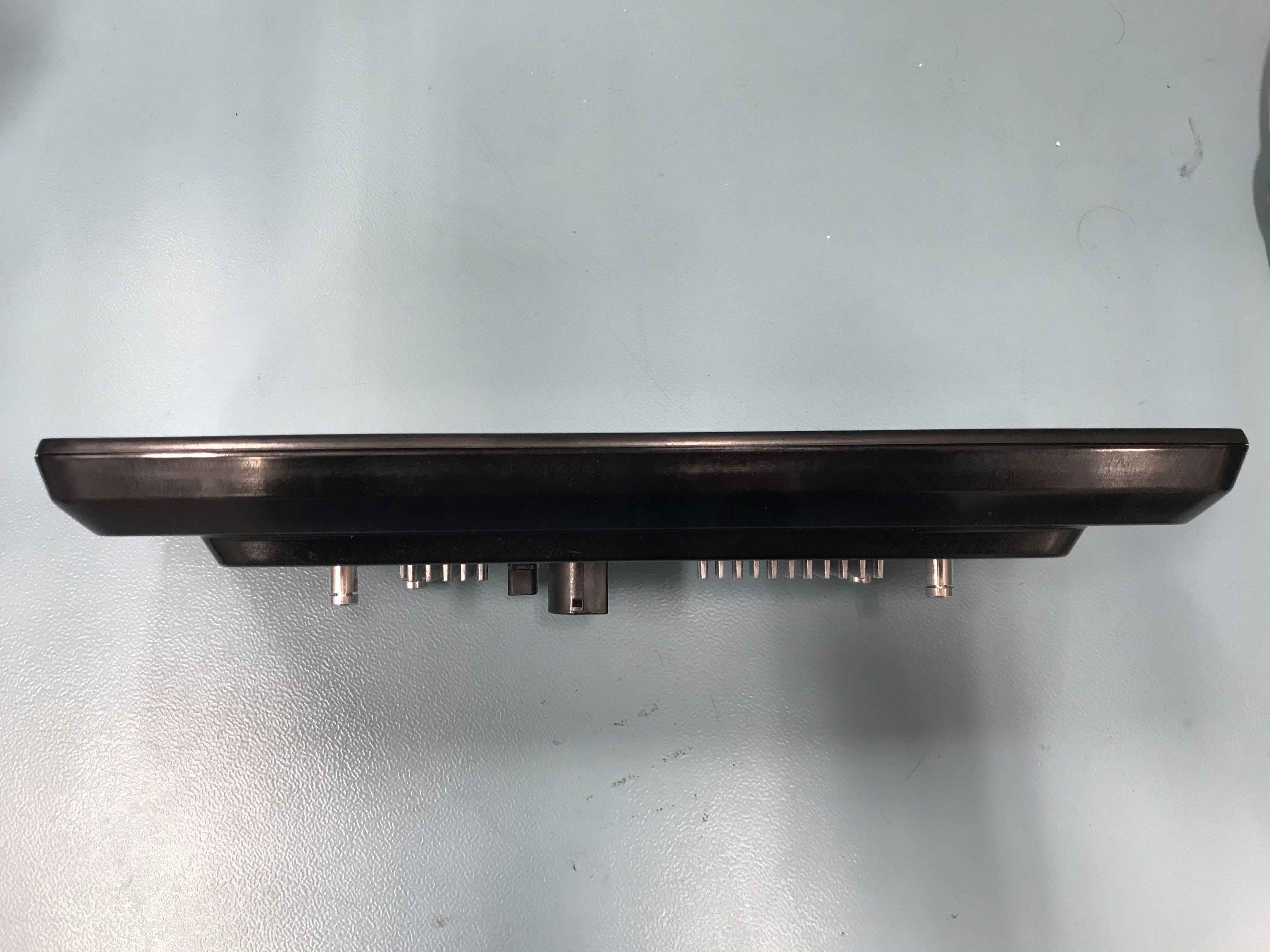

2AUXS-ICC10IN1Connected Instrumentation Cluster for Motorcycle

Rider'smanual R1250GS BMW Motorrad Vehicle data/dealership details Vehicle data Model Vehicle Identification Number Colour code Date of first registration Registration number Dealership details Person to contact in Service department Ms/Mr Phone number Dealership address/phone number (com- pany stamp) Welcome to BMW We congratulate you on your choice of a vehicle from BMW Motorrad and welcome you to the community of BMW riders. Familiarise yourself with your new vehicle so that you can ride it safely and confidently in all traffic situations. About this Rider's Manual Please read this Rider's Manual carefully before starting to use your new BMW. It contains im- portant information on how to operate the controls and how to make the best possible use of all your BMW's technical features. In addition, it contains informa- tion on maintenance and care to help you maintain your vehicle's reliability and safety, as well as its value. This record of the maintenance work you have had performed on your vehicle is a precondition for generous treatment of goodwill claims. If the time comes to sell your BMW, please remember to hand over this Rider's Manual to the new owner. It is an important part of the vehicle. Suggestions and criticism If you have questions concern- ing your vehicle, your authorised BMW Motorrad dealer will gladly provide advice and assistance. We hope you will enjoy riding your BMW and that all your jour- neys will be pleasant and safe BMW Motorrad. 01 40 9 446 631 *01409446631* *01409446631* *01409446631* Table of Contents 1 General instructions .... 5 Overview . . . . . . . . . . . . . . . . . . . . . 6 Abbreviations and symbols . . . . . . . . . . . . . . . . . . . . . . 6 Equipment . . . . . . . . . . . . . . . . . . . 7 Technical data . . . . . . . . . . . . . . . 7 Currentness . . . . . . . . . . . . . . . . . . 8 Additional sources of informa- tion . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Certificates and operating li- cences . . . . . . . . . . . . . . . . . . . . . . . 8 Data memory. . . . . . . . . . . . . . . . . 8 Intelligent emergency call system . . . . . . . . . . . . . . . . . . . . . . 12 2 General views ........... 17 General view, left side . . . . . . . 19 General view, right side . . . . . 21 Underneath the seat . . . . . . . . 22 Multifunction switch, left . . . . 23 Multifunction switch, right . . . . . . . . . . . . . . . . . . . . . . . . . 25 Instrument panel . . . . . . . . . . . . 26 3 Status indicators ....... 27 Indicator and warning lights . . . . . . . . . . . . . . . . . . . . . . . . 28 TFT display in Pure Ride view . . . . . . . . . . . . . . . . . . . . . . . . . 29 TFT display in view menu. . . . . . . . . . . . . . . . . . . . . . . . 31 Warnings . . . . . . . . . . . . . . . . . . . . 32 4 Operation................ 61 Ignition switch/steering lock . . . . . . . . . . . . . . . . . . . . . . . . . 62 Ignition with Key- less Ride . . . . . . . . . . . . . . . . . . . . 64 Emergency off switch (kill switch) . . . . . . . . . . . . . . . . . . . . . . 68 Intelligent emergency call . . . . . . . . . . . . . . . . . . . . . . . . . . 69 Lights . . . . . . . . . . . . . . . . . . . . . . . 71 Day run lights . . . . . . . . . . . . . . . 73 Hazard warning lights sys- tem . . . . . . . . . . . . . . . . . . . . . . . . . 75 Turn indicators . . . . . . . . . . . . . . 75 Antilock Brake System (ABS). . . . . . . . . . . . . . . . . . . . . . . . 76 Traction control (ASC/ DTC) . . . . . . . . . . . . . . . . . . . . . . . . 78 Electronic Suspension Ad- justment (D­ESA) . . . . . . . . . . . 80 Riding mode . . . . . . . . . . . . . . . . 83 PRO riding mode . . . . . . . . . . . 85 Cruise-control system . . . . . . . 87 Hill Start Control . . . . . . . . . . . . 90 Anti-theft alarm (DWA) . . . . . . 93 Tyre pressure monitoring (RDC) . . . . . . . . . . . . . . . . . . . . . . . 96 Heated handlebar grips . . . . . 96 Front and rear seats. . . . . . . . . 97 5 TFT display ........... 101 General instructions . . . . . . . 102 Principle . . . . . . . . . . . . . . . . . . . 103 Pure Ride view . . . . . . . . . . . . 109 General settings . . . . . . . . . . . 111 Bluetooth. . . . . . . . . . . . . . . . . . 112 My vehicle . . . . . . . . . . . . . . . . 115 Navigation . . . . . . . . . . . . . . . . . 118 Media . . . . . . . . . . . . . . . . . . . . . 120 Phone . . . . . . . . . . . . . . . . . . . . . 120 Display software version . . . . . . . . . . . . . . . . . . . . 121 Display licence informa- tion . . . . . . . . . . . . . . . . . . . . . . . . 121 6 Adjustment............ 123 Mirrors . . . . . . . . . . . . . . . . . . . . 124 Headlight . . . . . . . . . . . . . . . . . . 125 Windscreen . . . . . . . . . . . . . . . 126 Clutch . . . . . . . . . . . . . . . . . . . . . 126 Gearshift lever. . . . . . . . . . . . . 127 Brakes . . . . . . . . . . . . . . . . . . . . 128 Footrests . . . . . . . . . . . . . . . . . . 130 Handlebars . . . . . . . . . . . . . . . . 131 Spring preload . . . . . . . . . . . . 131 Damping . . . . . . . . . . . . . . . . . . 132 7 Riding.................. 135 Safety information . . . . . . . . . 136 Comply with checklist . . . . . 139 Always before riding off . . . 139 At every third refuelling stop . . . . . . . . . . . . . . . . . . . . . . . 139 Starting. . . . . . . . . . . . . . . . . . . . 139 Running in . . . . . . . . . . . . . . . . 143 Off-road use . . . . . . . . . . . . . . 143 Shifting gear . . . . . . . . . . . . . . 145 Brakes . . . . . . . . . . . . . . . . . . . . 146 Parking your motor- cycle . . . . . . . . . . . . . . . . . . . . . . 148 Refuelling . . . . . . . . . . . . . . . . . 149 Securing motorcycle for transportation . . . . . . . . . . . . . 153 8 Engineering details ................. 155 General instructions . . . . . . . 156 Antilock Brake System (ABS). . . . . . . . . . . . . . . . . . . . . . 156 Traction control (ASC/ DTC) . . . . . . . . . . . . . . . . . . . . . . 159 Dynamic ESA…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Robert Bosch GmbH Address: Robert-Bosch-Strasse 200 City: 31139 Hildesheim Country: Germany To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AUXS-ICC10IN1 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Above materials contain secrets, proprietary and technical information. Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors Date: 27/07/2020 Name and signature of applicant: Teoman Soner Sunar Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF Exposure evaluation Model: ICC10in Standards OET Bulletin 65 Edition 97-01 August 1997 FCC 47 CFR §1.1307 FCC 47 CFR §1.1310 RSS-102 Issue 5 – March 2015 Test limits As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure. Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Limits specified per RSS-102, Issue 5. Frequency range (MHz) Power density (W/m²) Power density (mW/cm²) 300 – 6000 0.02619 f 0.6834 mW/cm² = W/m² * 0.1 Equation OET bulletin 65, page 18, edition 97-01: Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna = 20cm Operational Bands Frequency (MHz) Antenna Gain (dBi) Antenna Gain -numeric- (mW/cm²) Output Power -conducted- (dBm) Output Power -conducted- (mW) Output Power (EIRP) (mW) IC Limit (mW/cm²) FCC Limit (mW/cm²) Power Density value (mW/cm²) Margin to FCC Limit (mW/cm²) Margin to IC Limit (mW/cm²) Bluetooth (BT Smartphone)24411.821.52052.001.582.410.54101.000.00050.99950.5405 Bluetooth (BT Headset)24413.222.0989-0.300.931.960.54101.000.00040.99960.5406 WLAN 2.4 GHz24123.652.317412.2016.6038.460.53661.000.00770.99230.5290 Co-Location Considerations The calculation below is used to consider situations in which simultaneous exposure to fields of different frequencies occur. The calculation is performed by the sum of each relative exposure for each equipment according to the following criteria. Where: S eq is the power density of the electromagnetic field at a given distance by a specific transmitter and a defined frequency. S lim is the MPE limit for the frequency being evaluated. Assessment of Co-Location transmission for FCC BT Classic (BT Smartphone) BT Classic (BT Headset) WLAN 2.4 (S eq / S Lim ) 0.0005 0.0004 0.0077 Sum of (S eqn / S Limn ) 0.0086 Limit 1 Assessment passed Assessment of Co-Location transmission for IC BT Classic (BT Smartphone) BT Classic (BT Headset) WLAN 2.4 (S eq / S Lim ) 0.0009 0.0007 0.0144 Sum of (S eqn / S Limn ) 0.016 Limit 1 Assessment passed Yours sincerely, Teoman Soner Sunar

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Frank Spiller Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Alexandre Norré-Oudard Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC Measurement/Technical Report on ICC10in Connected Instrumentation Cluster for Motorcycle (WLAN mode) FCC ID: 2AUXS-ICC10IN1 IC: 25847-ICC10IN1 Test Report Reference: MDE_BOSCH_1906_FCC_01 TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_01 Page 2 of 55 Table of Contents 1 Applied Standards and Test Summary 3 1.1 Applied Standards 3 1.2 FCC-IC Correlation Table 4 1.3 Measurement Summary 4 2 Revision History / Signatures 8 3 Administrative Data 9 3.1 Testing Laboratory 9 3.2 Project Data 9 3.3 Applicant Data 9 3.4 Manufacturer Data 10 4 Test object Data 11 4.1 General EUT Description 11 4.2 EUT Main components 11 4.3 Ancillary Equipment 12 4.4 Auxiliary Equipment 12 4.5 EUT Setups 13 4.6 Operating Modes / Test Channels 14 4.7 Product labelling 14 5 Test Results 15 5.1 Occupied Bandwidth (6 dB) 15 5.2 Occupied Bandwidth (99%) 18 5.3 Peak Power Output 21 5.4 Spurious RF Conducted Emissions 24 5.5 Transmitter Spurious Radiated Emissions 27 5.6 Band Edge Compliance Conducted 35 5.7 Band Edge Compliance Radiated 37 5.8 Power Density 40 6 Test Equipment 42 7 Antenna Factors, Cable Loss and Sample Calculations 47 7.1 LISN R&S ESH3-Z5 (150 kHz – 30 MHz) 47 7.2 Antenna R&S HFH2-Z2 (9 kHz – 30 MHz) 48 7.3 Antenna R&S HL562 (30 MHz – 1 GHz) 49 7.4 Antenna R&S HF907 (1 GHz – 18 GHz) 50 7.5 Antenna EMCO 3160-09 (18 GHz – 26.5 GHz) 51 7.6 Antenna EMCO 3160-10 (26.5 GHz – 40 GHz) 52 8 Setup Drawings 53 9 Measurement Uncertainties 54 10 Photo Report 55 TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_01 Page 3 of 55 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Intentional Radiator. Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 and 15 (10-1-19 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz Note 1: The tests were selected and performed with reference to the FCC Public Notice “Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of the FCC Rules, 558074 D01 15.247 Meas Guidance v05r02, 2019-04-02”. ANSI C63.10–2013 is applied. Note 2: § 15.207 Conducted limits are not applicable: The device is not designed to be connected to the public utility (AC) power line. TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_01 Page 4 of 55 1.2 FCC-IC CORRELATION TABLE Correlation of measurement requirements for DTS (e.g. WLAN 2.4 GHz, BT LE) equipment from FCC and IC DTS equipment Measurement FCC reference IC reference Conducted emissions on AC Mains § 15.207 RSS-Gen Issue 5: 8.8 Occupied bandwidth § 15.247 (a) (2) RSS-247 Issue 2: 5.2 (a) Peak conducted output power § 15.247 (b) (3), (4) RSS-247 Issue 2: 5.4 (d) Transmitter spurious RF conducted emissions § 15.247 (d) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Transmitter spurious radiated emissions § 15.247 (d); § 15.209 (a) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Band edge compliance § 15.247 (d) RSS-247 Issue 2: 5.5 Power density § 15.247 (e) RSS-247 Issue 2: 5.2 (b) Antenna requirement § 15.203 / 15.204 RSS-Gen Issue 5: 8.3 Receiver spurious emissions – – TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_01 Page 5 of 55 1.3 MEASUREMENT SUMMARY 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 § 15.247 (a) (2) Occupied Bandwidth (6 dB) The measurement was performed according to ANSI C63.10 Final Result OP-Mode Radio Technology, Operating Frequency Setup Date FCC IC WLAN b, high S01_aa01_WLAN 2020-04-14 Passed Passed WLAN b, low S01_aa01_WLAN 2020-04-14 Passed Passed WLAN b, mid S01_aa01_WLAN 2020-04-14 Passed Passed WLAN g, high S01_aa01_WLAN 2020-04-14 Passed Passed WLAN g, low S01_aa01_WLAN 2020-04-14 Passed Passed WLAN g, mid S01_aa01_WLAN 2020-04-14 Passed Passed WLAN n 20 MHz, high S01_aa01_WLAN 2020-04-14 Passed Passed WLAN n 20 MHz, low S01_aa01_WLAN 2020-04-14 Passed Passed WLAN n 20 MHz, mid S01_aa01_WLAN 2020-04-14 Passed Passed 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 IC RSS-Gen & IC TRC-43; Ch. 6.7 & Ch. 8 Occupied Bandwidth (99%) The measurement was performed according to ANSI C63.10 Final Result OP-Mode Radio Technology, Operating Frequency Setup Date FCC IC WLAN b, high S01_aa01_WLAN 2020-04-14 N/A Performed WLAN b, low S01_aa01_WLAN 2020-04-14 N/A Performed WLAN b, mid S01_aa01_WLAN 2020-04-14 N/A Performed WLAN g, high S01_aa01_WLAN 2020-04-14 N/A Performed WLAN g, low S01_aa01_WLAN 2020-04-14 N/A Performed WLAN g, mid S01_aa01_WLAN 2020-04-14 N/A Performed WLAN n 20 MHz, high S01_aa01_WLAN 2020-04-14 N/A Performed WLAN n 20 MHz, low S01_aa01_WLAN 2020-04-14 N/A Performed WLAN n 20 MHz, mid S01_aa01_WLAN 2020-04-14 N/A Performed 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 § 15.247 (b) (3) Peak Power Output The measurement was performed according to ANSI C63.10 Final Result OP-Mode Radio Technology, Operating Frequency, Measurement method Setup Date FCC IC WLAN b, high, conducted S01_a…

Text truncated - open the document above for the full version.

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Frank Spiller Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Alexandre Norré-Oudard Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC Measurement/Technical Report on ICC10in Connected Instrumentation Cluster for Motorcycle (Simultaneous Transmission mode) FCC ID: 2AUXS-ICC10IN1 IC: 25847-ICC10IN1 Test Report Reference: MDE_BOSCH_1906_FCC_04 TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 2 of 31 Table of Contents 1 Applied Standards and Test Summary 3 1.1 Applied Standards 3 1.2 FCC-IC Correlation Table 4 1.3 Measurement Summary 4 2 Revision History / Signatures 7 3 Administrative Data 8 3.1 Testing Laboratory 8 3.2 Project Data 8 3.3 Applicant Data 8 3.4 Manufacturer Data 9 4 Test object Data 10 4.1 General EUT Description 10 4.2 EUT Main components 10 4.3 Ancillary Equipment 11 4.4 Auxiliary Equipment 12 4.5 EUT Setups 12 4.6 Operating Modes / Test Channels 13 4.7 Product labelling 13 5 Test Results 14 5.1 Simultaneous Transmission - Spurious Radiated Emissions 14 6 Test Equipment 19 7 Antenna Factors, Cable Loss and Sample Calculations 23 7.1 LISN R&S ESH3-Z5 (150 kHz – 30 MHz) 23 7.2 Antenna R&S HFH2-Z2 (9 kHz – 30 MHz) 24 7.3 Antenna R&S HL562 (30 MHz – 1 GHz) 25 7.4 Antenna R&S HF907 (1 GHz – 18 GHz) 26 7.5 Antenna EMCO 3160-09 (18 GHz – 26.5 GHz) 27 7.6 Antenna EMCO 3160-10 (26.5 GHz – 40 GHz) 28 8 Setup Drawings 29 9 Measurement Uncertainties 30 10 Photo Report 31 TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 3 of 31 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Intentional Radiator. Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 and 15 (10-1-19 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification §2.947 (f) – Composite system Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz Note 1: The tests were selected and performed with reference to the FCC Public Notice “Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of the FCC Rules, 558074 D01 15.247 Meas Guidance v05r02, 2019-04-02”. ANSI C63.10–2013 is applied. Note 2: § 15.207 Conducted limits are not applicable: The device is not designed to be connected to the public utility (AC) power line. TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 4 of 31 1.2 FCC-IC CORRELATION TABLE Correlation of measurement requirements for DTS (e.g. WLAN 2.4 GHz, BT LE) equipment from FCC and IC DTS equipment Measurement FCC reference IC reference Conducted emissions on AC Mains § 15.207 RSS-Gen Issue 5: 8.8 Occupied bandwidth § 15.247 (a) (2) RSS-247 Issue 2: 5.2 (a) Peak conducted output power § 15.247 (b) (3), (4) RSS-247 Issue 2: 5.4 (d) Transmitter spurious RF conducted emissions § 15.247 (d) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Transmitter spurious radiated emissions § 15.247 (d); § 15.209 (a) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Band edge compliance § 15.247 (d) RSS-247 Issue 2: 5.5 Power density § 15.247 (e) RSS-247 Issue 2: 5.2 (b) Antenna requirement § 15.203 / 15.204 RSS-Gen Issue 5: 8.3 Receiver spurious emissions – – TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 5 of 31 Correlation of measurement requirements for FHSS (e.g. Bluetooth ® ) equipment from FCC and IC FHSS equipment Measurement FCC reference IC reference Conducted emissions on AC Mains § 15.207 RSS-Gen Issue 5: 8.8 Occupied bandwidth § 15.247 (a) (1) RSS-247 Issue 2: 5.1 (b) Peak conducted output power § 15.247 (b) (1), (4) RSS-247 Issue 2: 5.4 (b) Transmitter spurious RF conducted emissions § 15.247 (d) RSS-Gen Issue 5: 6.13/8.9/8.10; RSS-247 Issue 2: 5.5 Transmitter spurious radiated emissions § 15.247 (d); § 15.209 (a) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Band edge compliance § 15.247 (d) RSS-247 Issue 2: 5.5 Dwell time § 15.247 (a) (1) (iii) RSS-247 Issue 2: 5.1 (d) Channel separation § 15.247 (a) (1) RSS-247 Issue 2: 5.1 (b) No. of hopping frequencies § 15.247 (a) (1) (iii) RSS-247 Issue 2: 5.1 (d) Hybrid systems (only) § 15.247 (f); § 15.247 (e) RSS-247 Issue 2: 5.3 Antenna requirement § 15.203 / 15.204 RSS-Gen Issue 5: 8.3 Receiver spurious emissions – - TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 6 of 31 1.3 MEASUREMENT SUMMARY 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 § 15.247 (d) Simultaneous Transmission - Spurious Radiated Emissions The measurement was performed according to ANSI C63.10 Final Result OP-Mode Setup Date FCC IC Remark: FCC 15c247 1 GHz-24 GHz, simultaneous operating modes: BT-Smartphone Ch0, DH1; WLAN b-mode CH06; BT-Headset Ch78 DH1 S01_ab01 2020-05-14 Passed Passed TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_04 Page 8 of 31 3 ADMINISTRATIVE DATA 3.1 TESTING LABORATORY Company Name: 7layers GmbH Address: Borsigstr. 11 40880 Ratingen Germany The test facility is accredited by the following accreditation organisation: Laboratory accreditation no: DAkkS D-PL-12140-01-01| -02 | -03 FCC Designation Number: DE0015 FCC Test Firm Registration: 929146 ISED CAB Identifier DE0007; ISED#: 3699A Responsible fo…

Text truncated - open the document above for the full version.

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Frank Spiller Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Alexandre Norré-Oudard Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF Photo Report on setups ICC10in Connected Instrumentation Cluster for Motorcycle FCC ID: 2AUXS-ICC10IN1 IC: 25847-ICC10IN1 Test Report Reference: MDE_BOSCH_1906_FCC_Photo_Setups TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_Photo_Setups Page 2 of 5 Photo 1: EUT, front side view Photo 2: EUT, rear side view TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_Photo_Setups Page 3 of 5 Photo 3: Setup for radiated emissions < 30 MHz, front side view Photo 4: Setup for radiated emissions < 30 MHz, rear side view TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_Photo_Setups Page 4 of 5 Photo 5: Setup for radiated emissions 30 MHz – 1 GHz, front side view Photo 6: Setup for radiated emissions 30 MHz – 1 GHz, rear side view TEST REPORT REFERENCE: MDE_BOSCH_1906_FCC_Photo_Setups Page 5 of 5 Photo 7:Setup for radiated emissions > 1 GHz, detailed view Photo 8: Setup for radiated emissions > 1 GHz, total view
