2AV62KT-8900Mobile Radio

462.5625 462.5625 462.5625 462.5625 462.5625 462.5625-462.7250MHz 462.5500-467.7250MHz QYT Electronics Co., Ltd. 60.1

Apr. 17, 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement QYT Electronics Co., Ltd. FCC ID: 2AV62KT-8900 To Whom It May Concern: We, QYT Electronics Co., Ltd. hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AV62KT-8900) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-04-30). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] Signature Joe Hwang QYT Electronics Co., Ltd.

Apr. 17, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AV62KT-8900 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. (5) tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Joe Hwang QYT Electronics Co., Ltd.

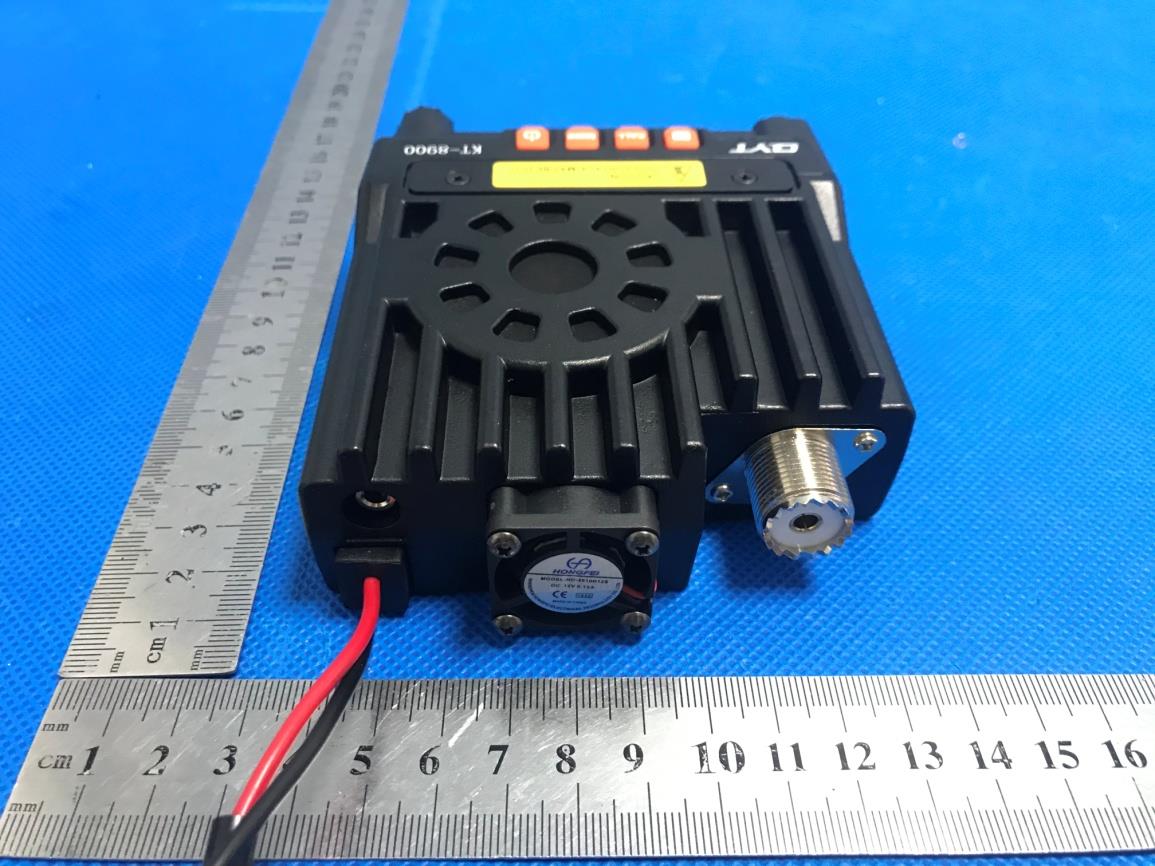

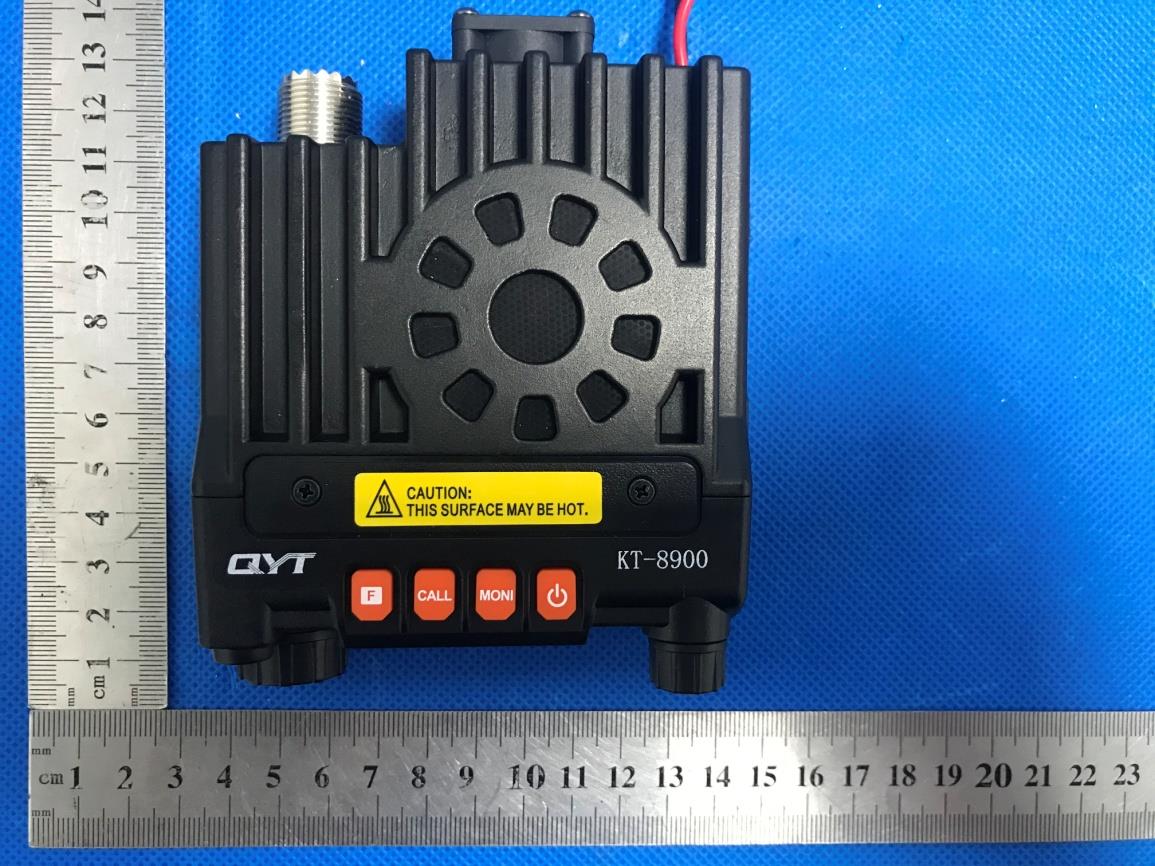

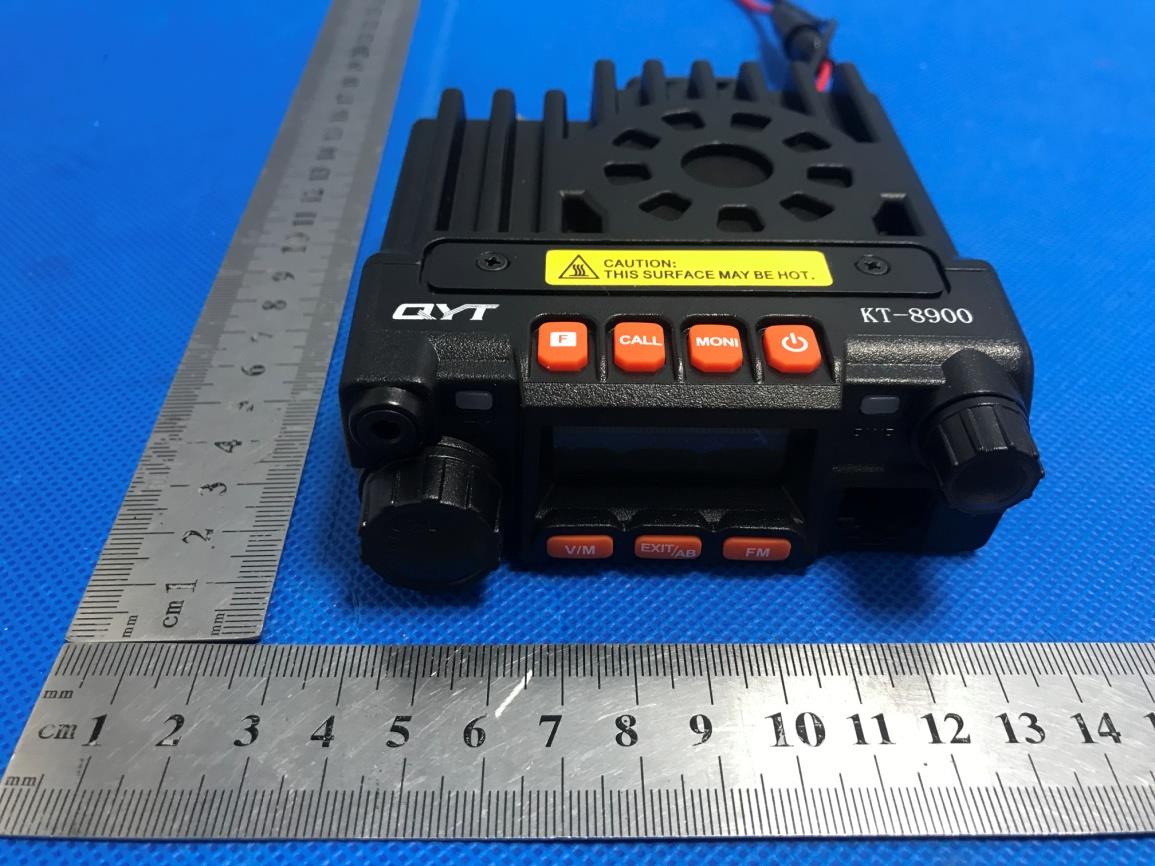

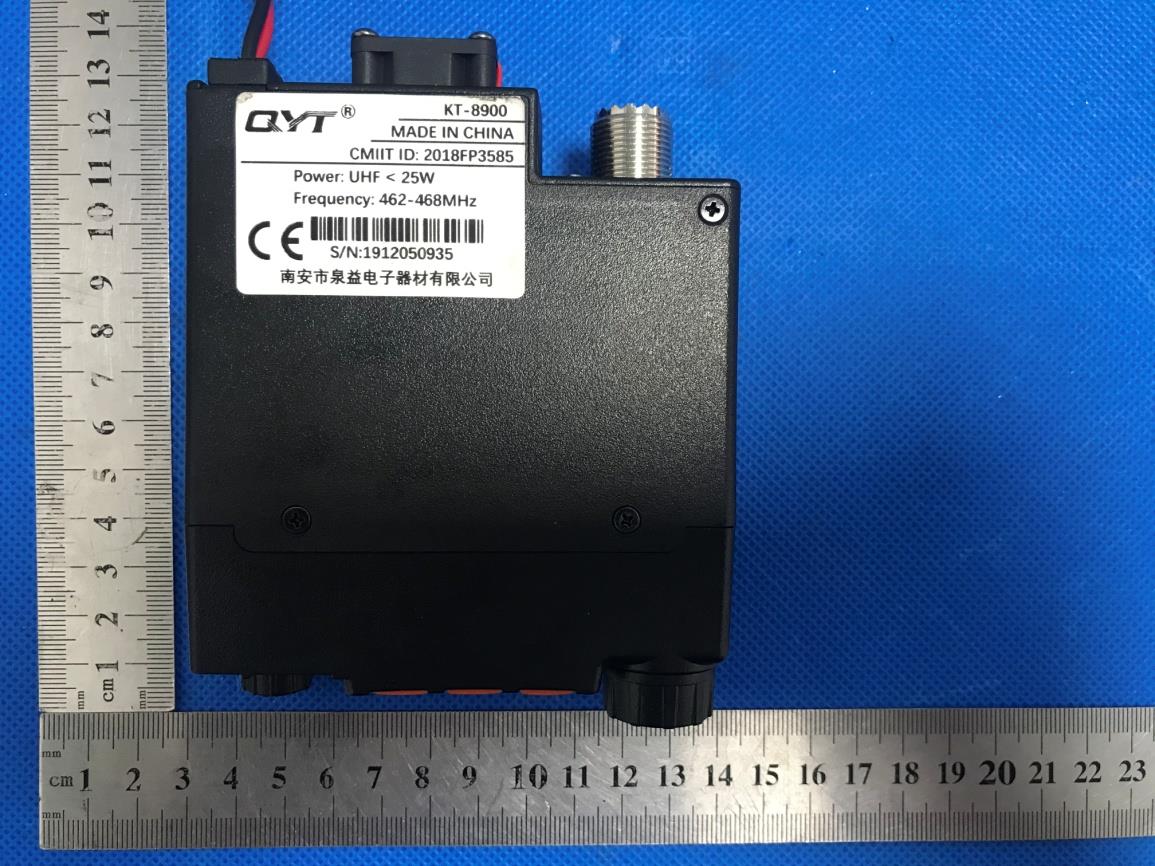

External Photos TOTAL VIEW OF EUT Part I TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT Antenna port RIGHT VIEW OF EUT

FCC ID Label Location Size: 35mm*55mm FCC ID: 2AV62KT-8900

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT-1 INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT(FIGURE 9) INTERNAL VIEW OF EUT(FIGURE 10) INTERNAL VIEW OF EUT(FIGURE 11) INTERNAL VIEW OF EUT(FIGURE 12) INTERNAL VIEW OF EUT(FIGURE 13) INTERNAL VIEW OF EUT(FIGURE 14)

RF EXPOSURE EVALUATION 1. TEST RESULT CERTIFICATION Applicant QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China manufacturer QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Factory QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Designation: Mobile Radio Brand Name: QYT Test Model: KT-8900 FCC ID: 2AV62KT-8900 Date of Test: Mar. 20, 2020~Apr. 17, 2020 2. TECHNICAL INFORMATION A major technical description of EUT is described as following: Operation Frequency GMRS: 462.5625MHz -462.7125MHz(5W) 462.5500MHz -462.7250MHz(15W) 467.5500MHz -467.7250MHz(15W) Modulation FM Antenna Designation Detachable Antenna type External antenna Output power 5W/15W Antenna gain 0dBi Power Supply DC 13.8V Channel List: CH. No CH. Freq Power CH. No CH. Freq Power 1 462.5625 5W 13 462.6750 15W 2 462.5875 14 462.7000 3 462.6125 15 462.7250 4 462.6375 16 467.5500 15W 5 462.6625 17 467.5750 6 462.6875 18 467.6000 7 462.7125 19 467.6250 8 462.5500 15W 20 467.6500 9 462.5750 21 467.6750 10 462.6000 22 467.7000 11 462.6250 23 467.7250 12 462.6500 3. RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2.The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. 4. CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 60.1 cm away from the body of the user. Warning statement to the user for keeping at least 60.1 cm separation distance and the prohibition of operating to a person has been printed on the user’s manual. So, this product under normal use is located on electromagnetic far field between the human body. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. EUT OPERATION CONDITION Make the EUT to transmit at channel 4 , channel 11 and channel 19 individually. 6. TEST RESULTS Note: report the worst result in this part Antenna Gain=0 dBi (Numeric 1), π=3.141, Duty cycle=50% Frequency Output Power Output Power Correct Power Power Density Power Density Limit Result MHz dBm mW mW mW/cm 2 mW/cm 2 Pass/Fail 462.6250 41.45 13964 6982 0.3077 0.3084 Pass Note: 1.The output power is refer to AGC09781200201FE10. 2.Correct Power=Output Power*Duty cycle. 3.According to the user manual, the minimum separate distance which used for MPE calculate is 60.1cm.

Page 1 of 67 FCC Part 95 Rules Test Report Report No.:AGC09781200201FE10 FCC ID : 2AV62KT-8900 PRODUCT DESIGNATION : Mobile Radio BRAND NAME : QYT MODEL NAME : KT-8900 APPLICANT : QYT Electronics Co., Ltd. DATE OF ISSUE : Apr. 17, 2020 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC09781200201FE10 Page 2 of 67 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 17, 2020 Valid Initial release Report No.:AGC09781200201FE10 Page 3 of 67 VERIFICATION OF COMPLIANCE Applicant QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China manufacturer QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Factory QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Designation: Mobile Radio Brand Name: QYT Test Model KT-8900 Date of Test: Mar. 20, 2020~Apr. 17, 2020 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 95 requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Calvin Liu (Project Engineer) Apr. 17, 2020 Reviewed By Max Zhang (Reviewer ) Apr. 17, 2020 Approved By Forrest Lei Authorized Officer Apr. 17, 2020 Report No.:AGC09781200201FE10 Page 4 of 67 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 6 1.1 PRODUCT DESCRIPTION ....................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................... 8 1.3 TEST METHODOLOGY. ........................................................................................................................... 8 1.4 TEST FACILITY ........................................................................................................................................ 8 1.5 SPECIAL ACCESSORIES ........................................................................................................................ 8 1.6 EQUIPMENT MODIFICATIONS ............................................................................................................... 8 2. SYSTEM TEST CONFIGURATION ............................................................................................................... 9 2.1 EUT CONFIGURATION ............................................................................................................................ 9 2.2 EUT EXERCISE ....................................................................................................................................... 9 2.3 CONFIGURATION OF TESTED SYSTEM ............................................................................................. 10 3. SUMMARY OF TEST RESULTS ................................................................................................................. 11 4. DESCRIPTION OF TEST MODES ............................................................................................................... 13 5. FREQUENCY TOLERANCE ........................................................................................................................ 14 5.1 PROVISIONS APPLICABLE ................................................................................................................... 14 5.2 MEASUREMENT PROCEDURE ............................................................................................................ 14 5.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 15 5.4 TEST RESULT ........................................................................................................................................ 16 6. EMISSION BANDWIDTH ............................................................................................................................. 18 6.1 PROVISIONS APPLICABLE ................................................................................................................... 18 6.2 MEASUREMENT PROCEDURE ............................................................................................................ 18 6.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 19 6.4 MEASUREMENT RESULT ..................................................................................................................... 22 7. UNWANTED RADIATION ............................................................................................................................ 25 7.1 PROVISIONS APPLICABLE ................................................................................................................... 25 7.2 MEASUREMENT PROCEDURE ............................................................................................................ 25 7.3 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 27 7.4 MEASUREMENT RESULTS: .................................................................................................................. 29 7.5 EMISSION MASK PLOT ..........................................................…

Text truncated - open the document above for the full version.

Report No.:AGC09781200201FE10 Page 55 of 67 INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) Report No.:AGC09781200201FE10 Page 56 of 67 INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) Report No.:AGC09781200201FE10 Page 57 of 67 INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) Report No.:AGC09781200201FE10 Page 58 of 67 INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) Report No.:AGC09781200201FE10 Page 59 of 67 INTERNAL VIEW OF EUT(FIGURE 9) INTERNAL VIEW OF EUT(FIGURE 10) Report No.:AGC09781200201FE10 Page 60 of 67 INTERNAL VIEW OF EUT(FIGURE 11) INTERNAL VIEW OF EUT(FIGURE 12) Report No.:AGC09781200201FE10 Page 61 of 67 INTERNAL VIEW OF EUT(FIGURE 13) INTERNAL VIEW OF EUT(FIGURE 14) Report No.:AGC09781200201FE10 Page 62 of 67 Part 2 ALL VIEW OF EUT TOP VIEW OF EUT Report No.:AGC09781200201FE10 Page 63 of 67 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.:AGC09781200201FE10 Page 64 of 67 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.:AGC09781200201FE10 Page 65 of 67 RIGHT VIEW OF EUT OPEN VIEW-1 OF EUT Report No.:AGC09781200201FE10 Page 66 of 67 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Report No.:AGC09781200201FE10 Page 67 of 67 INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT ----END OF REPORT----

Test Setup Photos RADIATED EMISSION TEST SETUP
