2AV62KT-8900DMobile Radio

Mini color screen Mobile Radio USER'S MANUAL Thank you for your purchase of the product. This multi-band radio will deliver instant reliable communication. Please read this manual carefully before use! BEFORE PROCEEDING INSURE: • Qualified technicians shall service this equipment only. Do not modify the radio for any reason. • Use only orginal supplied or approved accessories. • Turn off your radio prior to entering any area with explosive and flammable materials. Do NOT USE your trans- ceiver at a gas/fuel station. • For vehicles with an air bag, do not mount your radio in the area over an air bag or in the air bag deployment area. • Do not expose the radio to direct sunlight over a long time, nor place it close to a heating source. • If the unit emits smoke or an odor, you should immediately cut off the power supply. Then send the radio to the nearest service center or dealer. • Do not operate the mobile transceiver on high power unless it is necessary. Do not transmit for long periods of time, as it may overheat the transceiver. • Keep the unit away from dusty, damp and wet environments. • Use the correct power supply (~13.8V); do not use incorrect or higher voltage (e.g. 24V). TABLE OF CONTENTS GETTING STARTED ................................................. 1 Unpacking and Inspecting .................................... 1 Overview of the Front Panel ................................. 2 Overview of the Rear Ports ................................... 4 Hand Held MIC Keys and Description .................. 5 Color Display and Icon Descriptions ..................... 7 Antenna Basics ..................................................... 9 BASIC SHORTCUTS AND USE .............................. 11 Pound # Key (Keypad Lock) ............................... 11 Star ✱ Key .......................................................... 11 Turning the unit ON ............................................ 11 Turning the unit OFF ........................................... 11 Adjusting the volume .......................................... 11 Making a call ....................................................... 12 Channel selection ............................................... 12 Monitor Both VFO & MR Modes ......................... 13 MENU QUICK REVIEW ........................................... 14 Quick Menu Settings ........................................... 14 Menu definitions .................................................. 21 PROGRAMMING ..................................................... 28 Frequency Mode vs. Channel Mode ................... 28 OTHER SETTINGS ................................................. 29 Toggle from High to Low Power ......................... 29 Storing an FM Radio Station and Scanning ....... 29 Keypad Lock-out ................................................ 29 PTT ID Setting.................................................... 29 DTMF RX Settings ............................................. 29 DTMF TX Settings.............................................. 29 Remote Stun ...................................................... 30 Remote Kill ......................................................... 30 Remote Revive .................................................. 31 DTMF Receive Settings, Transmit Setting (Call Key) ........................................................... 31 2TONE Receive Settings, Transmit Setting (Call Key) ........................................................... 31 5Tone Receive Settings, Transmit Setting (Call Key) ........................................................... 32 Scanning modes ................................................ 32 TECHNICAL SPECIFICATIONS ............................ 33 GETTING STARTED | 1  Unpacking and Inspecting • Please check the packaging of your radio for any signs of damage. • Carefully open the box, and confirm your received the items listed below. • If you find the radio or the included accessories are damaged or lost, immediately contact your dealer. What’s in the Box Mobile Radio Mounting Screws and Fuse Microphone Mounting Bracket Power Cable GETTING STARTED 2 | GETTING STARTED G) ® RJ45 Connector G) Data Input @ PTT RPT CTRL @ GND ® MIC 0 +8V DC Out @ MIC Ground ® Null @ @ @ 0 ® ®  Overview of the Front Panel Model 1 G) Power, On/Off Press + Volume Knob 0 V/M Mode Switch (Channel/Frequency) ® Confirm Key Press +Main Selector (Menu Knob) @ Monitor function ® FM radio function key ® Display screen 0 Call key ® Exit Menu + A/B/C/D signal switching + alarm function ® Microphone Connector [ ]: when in standby, press to send caller ID (ANI) in the selected signaling mode; while transmitting, press to send activate signaling. [ ]: press to turn on the squelch, repeat to turn off the squelch. [ ]: press to switch between channel mode and frequency mode. [ ]: press to choose between A,B,C or D frequencies --- Or exit function mode. [ ]: press to enter and exit FM radio. GETTING STARTED | 3 Model 2 G) ® @ @ @ 0 ® ® G) Power, On/Off Press + Volume Knob 0 V/M Mode Switch (Channel/Frequency) ® Monitor function @ Confirm Key Press +Main Selector (Menu Knob) ® Exit Menu + A/B/C/D signal switching + alarm function ® Call key 0 Display screen ® FM radio function key ® Microphone Connector [ ]: when in standby, press to send caller ID (ANI) in the selected signaling mode; while transmitting, press to send activate signaling. [ ]: press to turn on the squelch, repeat to turn off the squelch. [ ]: press to switch between channel mode and frequen- cy mode. [ ]: press to choose between A,B,C or D frequencies --- Or exit function mode. [ ]: press to enter and exit FM radio. RJ45 Connector G) Data Input @ PTT RPT CTRL @ GND ® MIC 0 +8V DC Out @ MIC Ground ® Null 4 | GETTING STARTED  Overview of the Rear Ports G) ® @ @ G) TRRS Line Out: Includes PTT/Microphone/Audio-out/GND 0 DATA, Programming Jack ® Cooling Fan @ SO-239 RF Antenna Connector: Connects to PL-259 Antennas ® DC Power Input (13.8V–7A Peak) @ G) ® TRRS Line-…

Text truncated - open the document above for the full version.

QYT Electronics Co., Ltd. Apr.15, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AV62KT-8900D Model Number: KT-8900D, GS800, GS800B, GS800C, GS800D, GS800E, GS800F, GS800G To Whom It May Concern: We, The QYT Electronics Co., Ltd. hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Joe Hwang QYT Electronics Co., Ltd.

QYT Electronics Co., Ltd. Agent Authorization Company: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Name: Mobile Radio Model Number(s): KT-8900D, GS800, GS800B, GS800C, GS800D, GS800E, GS800F, GS800G Product Description: Mobile Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-15 Name: Joe Hwang Company: QYT Electronics Co., Ltd.

QYT Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-15 Subject; Request for Confidentiality FCC ID: 2AV62KT-8900D To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Joe Hwang QYT Electronics Co., Ltd.

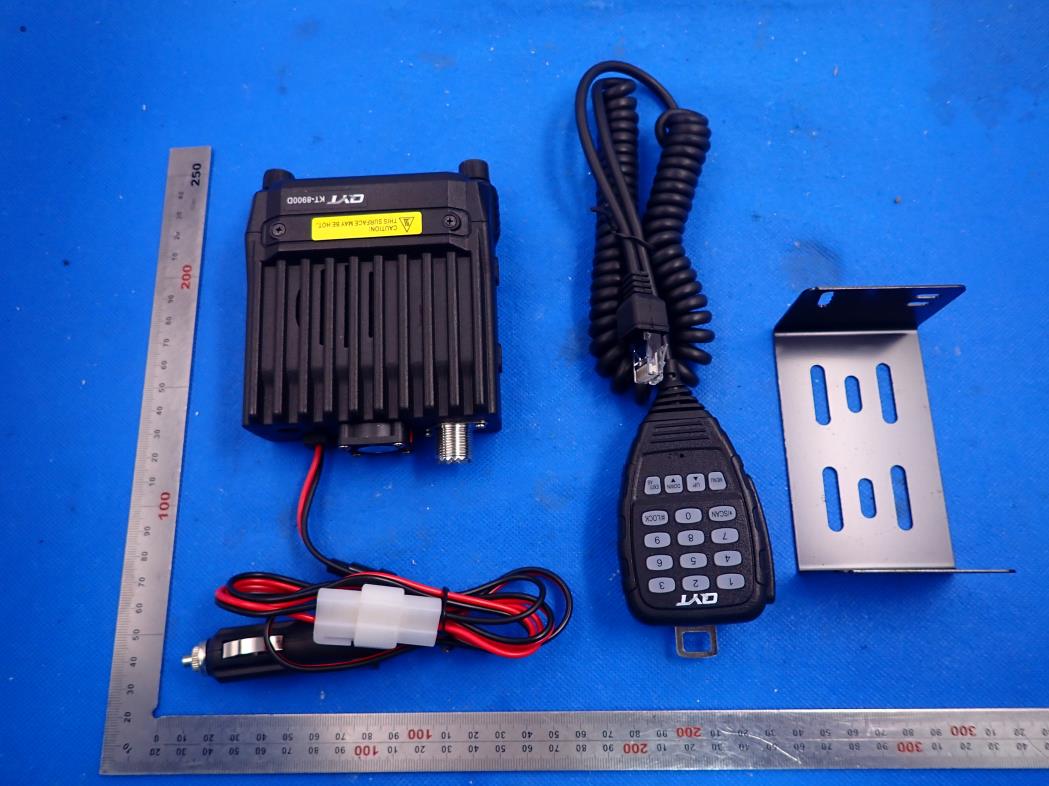

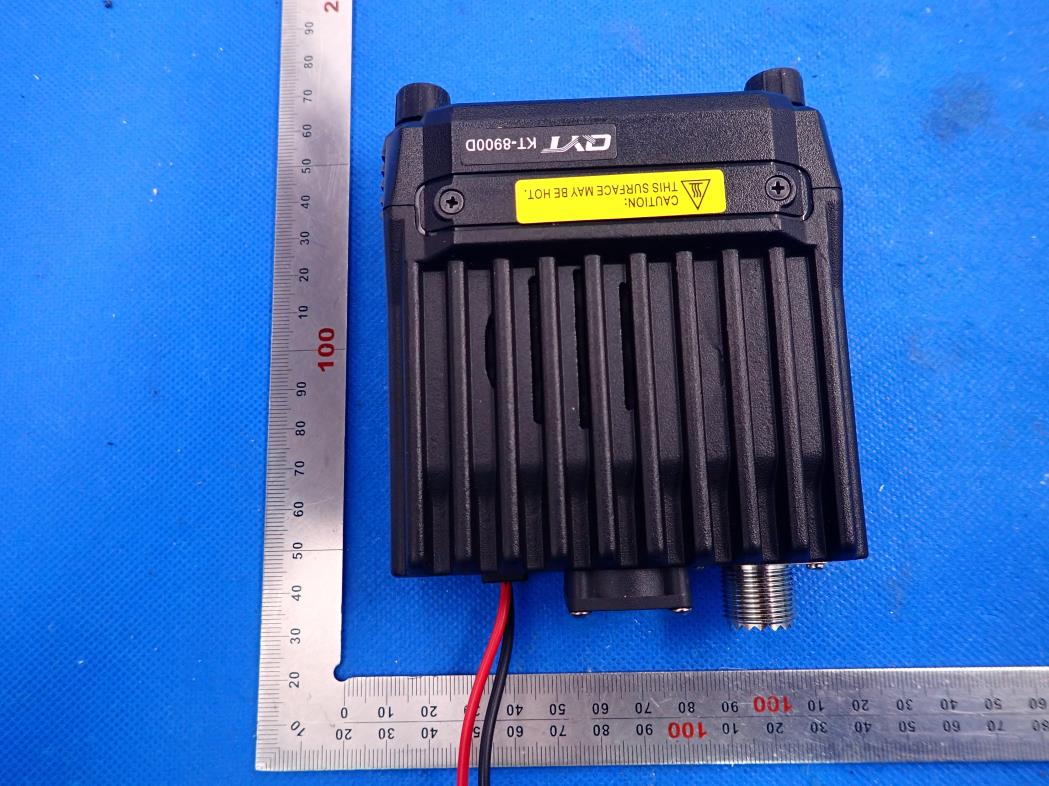

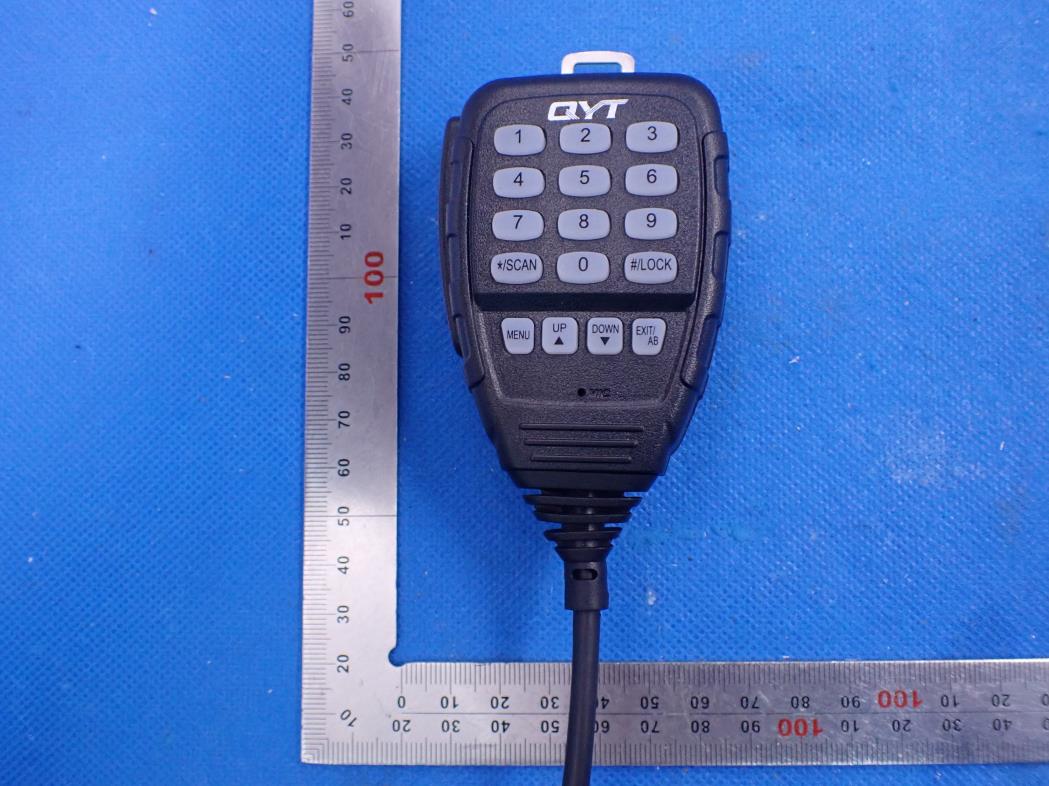

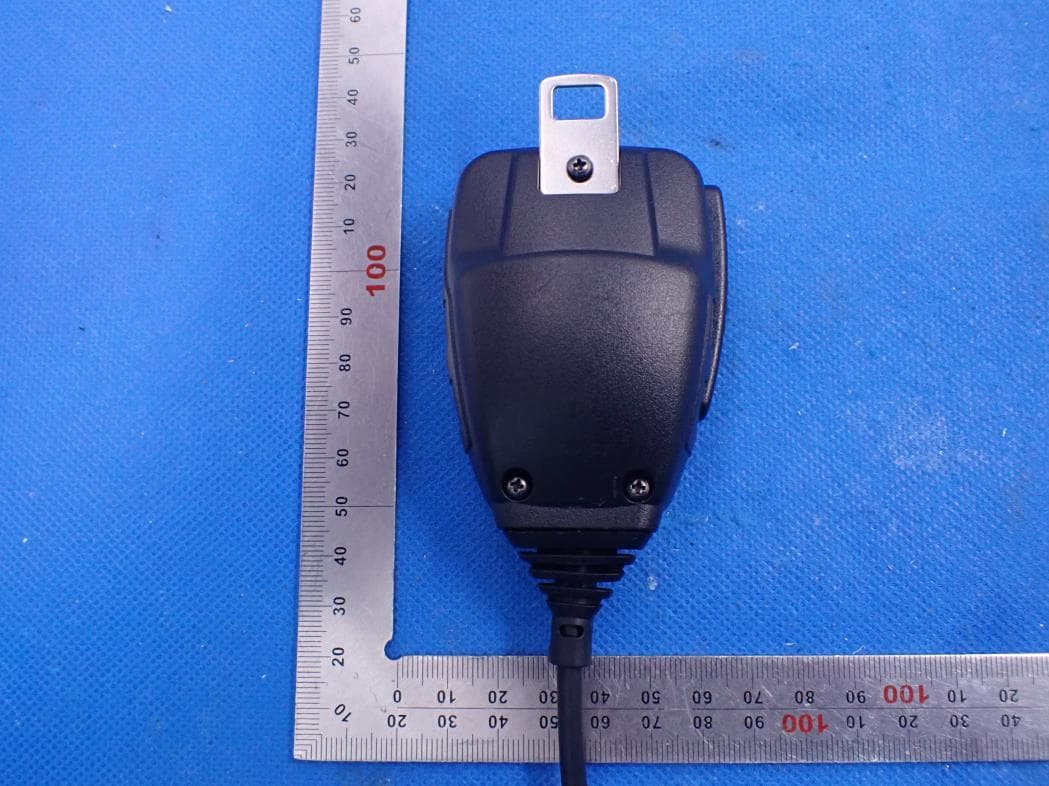

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT Antenna Port RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 50mm&50mm MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PR OHIBITED UNDER FCC RULES AND FEDERAL LAW. FCC ID: 2AV62KT-8900D

Internal Photos OPEN VIEW- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT Hand microphone OPEN VIEW 1- OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

RF EXPOSURE EVALUATION 1.TEST RESULT CERTIFICATION Applicant QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China manufacturer QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Factory QYT Electronics Co., Ltd. Address NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Designation: Mobile Radio Brand Name: QYT Test Model: KT-8900D Series Model GS800, GS800B, GS800C, GS800D, GS800E, GS800F, GS800G Difference Description All the same except the model name. FCC ID: 2AV62KT-8900D Date of Test: Dec. 10, 2020~Mar. 25, 2021 2.TECHNICAL INFORMATION A major technical description of EUT is described as following: Operation Frequency GMRS: 462.5500MHz-462.7250MHz 462.5625MHz-462.7125MHz 467.5500MHz-467.7250MHz Modulation FM Antenna Designation Detachable Antenna type External Antenna Output power 15W/5W Antenna gain 0dBi Power Supply DC 13.8V Channel list: Channel. No CH. Freq Rated Power CH. No CH. Freq Rated Power 1 462.5625 5W 16 467.5500 15W 2 462.5875 17 467.5750 3 462.6125 18 467.6000 4 462.6375 19 467.6250 5 462.6625 20 467.6500 6 462.6875 21 467.6750 7 462.7125 22 467.7000 8 462.5500 15W 23 467.7250 9 462.5750 24 -- -- 10 462.6000 25 -- 11 462.6250 26 -- 12 462.6500 27 -- 13 462.6750 28 -- 14 462.7000 29 -- 15 462.7250 30 -- 3.RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. 3.3 CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 66.21 cm away from the body of the user. Warning statement to the user for keeping at least 66.21cm separation distance and the prohibition of operating to a person has been printed on the user’s manual. So, this product under normal use is located on electromagnetic far field between the human body. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3.4 EUT OPERATION CONDITION Make the EUT to transmit at Bottom channel, Middle channel and Top channel individually. 3.5 TEST RESULTS Note: report the worst result in this part Antenna Gain=0dBi (Numeric 1), π=3.141 TEST Frequency (MHz) Tune-up Tolerance (dBm) Max tune-up (dBm) Max tune-up (mW) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Result (Pass/F ail) 462.6500 41.3±1 42.3 16982.44 0.30833653 0.3084 Pass Note: 1. The output power is refer to AGC09781201201FE10. 2. According to the user manual, the minimum separate distance which used for MPE calculate is 66.21cm.

Page 1 of 44 FCC Test Report Report No.: AGC09781201201FE10 FCC ID : 2AV62KT-8900D PRODUCT DESIGNATION : Mobile Radio BRAND NAME : QYT MODEL NAME : KT-8900D, GS800, GS800B, GS800C, GS800D, GS800E, GS800F, GS800G APPLICANT : QYT Electronics Co., Ltd. DATE OF ISSUE : Apr. 01, 2021 STANDARD(S) : FCC Part 95 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC09781201201FE10 Page 2 of 44 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 01, 2021 Valid Initial Release Report No.: AGC09781201201FE10 Page 3 of 44 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 5 2. PRODUCT INFORMATION ............................................................................................................................ 6 2.1 PRODUCT TECHNICAL DESCRIPTION .............................................................................................. 6 2.2 TEST FREQUENCY LIST ..................................................................................................................... 7 2.3 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................... 8 2.4 TEST METHODOLOGY ........................................................................................................................ 8 2.5 CALCULATION OF EMISSION INDICATORS ...................................................................................... 8 2.6 SPECIAL ACCESSORIES .................................................................................................................... 8 2.7 EQUIPMENT MODIFICATIONS ............................................................................................................ 8 2.8 ANTENNA REQUIREMENT .................................................................................................................. 9 3. TEST ENVIRONMENT ................................................................................................................................. 10 3.1 ADDRESS OF THE TEST LABORATORY .......................................................................................... 10 3.2 TEST FACILITY ................................................................................................................................... 10 3.3 ENVIRONMENTAL CONDITIONS ....................................................................................................... 11 3.4 MEASUREMENT UNCERTAINTY ....................................................................................................... 11 3.5 LIST OF EQUIPMENTS USED ........................................................................................................... 12 4.SYSTEM TEST CONFIGURATION .............................................................................................................. 13 4.1 EUT CONFIGURATION ...................................................................................................................... 13 4.2 EUT EXERCISE .................................................................................................................................. 13 4.3 CONFIGURATION OF TESTED SYSTEM .......................................................................................... 13 4.4 EQUIPMENT USED IN TESTED SYSTEM ......................................................................................... 13 4.5 SUMMARY OF TEST RESULTS ......................................................................................................... 14 5. DESCRIPTION OF TEST MODES ............................................................................................................... 15 6.FREQUENCY STABILITY ............................................................................................................................. 16 6.1 PROVISIONS APPLICABLE ............................................................................................................... 16 6.2 MEASUREMENT PROCEDURE......................................................................................................... 16 6.3 MEASUREMENT SETUP ................................................................................................................... 16 6.4 MEASUREMENT RESULTS ............................................................................................................... 17 7. EMISSION BANDWIDTH ............................................................................................................................. 18 7.1 PROVISIONS APPLICABLE ............................................................................................................... 18 7.2 MEASUREMENT PROCEDURE......................................................................................................... 18 7.3 MEASUREMENT SETUP ................................................................................................................... 18 7.4 MEASUREMENT RESULTS ............................................................................................................... 20 8. SPURIOUS RATIATED EMISSION ............................................................................................................... 21 8.1 PROVISIONS APPLICABLE ............................................................................................................... 21 Report No.: AGC09781201201FE10 Page 4 of 44 8.2 MEASUREMENT PROCEDURE......................................................................................................... 21 8.3 MEASUREMENT SETUP ................................................................................................................... 23 8.4 MEASUREMENT RESULTS ............................................................................................................... 24 8…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP RADIATED EMISSION ABOVE 1G TEST SETUP CONDUCTED TEST SETUP
