2AV62KT-980PLUSMobile Radio

Thank you for your purchase of the product. This multi-band radio will deliver instant reliable communication. Please read this manual carefully before use! BEFORE PROCEEDING INSURE: • Qualified technicians shall service this equipment only. Do not modify the radio for any reason. • Use only orginal supplied or approved accessories. • Turn off your radio prior to entering any area with explosive and flammable materials. Do NOT USE your trans- ceiver at a gas/fuel station. • For vehicles with an air bag, do not mount your radio in the area over an air bag or in the air bag deployment area. • Do not expose the radio to direct sunlight over a long time, nor place it close to a heating source. • If the unit emits smoke or an odor, you should immediately cut off the power supply. Then send the radio to the nearest service center or dealer. • Do not operate the mobile transceiver on high power unless it is necessary. Do not transmit for long periods of time, as it may overheat the transceiver. • Keep the unit away from dusty, damp and wet environments. • Use the correct power supply (~13.8V); do not use incorrect or higher voltage (e.g. 24V). Getting Started | 1 Getting Started „ Unpacking and Inspecting • Please check the packaging of your radio for any signs of damage. • Carefully open the box, and confirm your received the items listed below. • If you find the radio or the included accessories are damaged or lost, immediately contact your dealer. What’s in the Box Mobile Radio Mounting Screws and Fuse MicrophoneMounting BracketPower Cable Table of Contents Getting Started .....................................................1 Unpacking and Inspecting ....................................1 Overview of the Front Panel .................................2 Overview of the Rear Ports ..................................3 Hand Held MIC Keys and Description ..................4 Color Display and Icon Descriptions ....................6 Antenna Basics ....................................................8 Basic Shortcuts And Use ...................................10 Pound # Key (Keypad Lock) ...............................10 Star ✱ Key ..........................................................10 Turning the unit ON ............................................10 Turning the unit OFF ..........................................10 Adjusting the volume ..........................................10 Making a call ......................................................11 Channel selection ...............................................11 Monitor Both VFO & MR Modes .........................12 Menu Quick Review ..............................................13 Quick Menu Settings ..........................................13 Menu definitions .................................................20 Programming ........................................................27 Frequency Mode vs. Channel Mode ..................27 Other Settings .....................................................28 Toggle from High to Low Power .........................28 Storing an FM Radio Station and Scanning .......28 Keypad Lock-out ................................................28 PTT ID Setting ....................................................28 DTMF RX Settings .............................................28 DTMF TX Settings ..............................................28 Remote Stun ......................................................29 Remote Kill .........................................................29 Remote Revive ...................................................30 DTMF Receive Settings, Transmit Setting (Call Key) ............................................................30 2TONE Receive Settings, Transmit Setting (Call Key) ............................................................30 5Tone Receive Settings, Transmit Setting (Call Key) ............................................................31 Scanning modes .................................................31 Technical Specifications ...................................32 2 | Getting StartedGetting Started | 3 „ Overview of the Front Panel Data Input RPT CTRL MIC MIC Ground a b c d PTT GND +8V DC Out Null e f g h RJ45 Connector a fgji hk bc de a. Confirm Key Press+Main Selector (Menu Knob) b. V/M Mode Switch (Channel/Frequency) c. Display screen d. Monitor function e. Power, On/Off Press+Volume Knob f. DATA, Programming Jack g. High / Lower Power Switch + Lock h. Call key i. FM radio function key j. Exit Menu + A/B/C/D signal switching + alarm function k. Microphone Connector [ ]: when in standby, press to send caller ID (ANI) in the selected signaling mode; while transmitting, press to send activate signaling. [ ]: press to turn on the squelch, repeat to turn off the squelch. [ ]: press to switch between channel mode and frequency mode. [ ]: press to choose between A,B,C or D frequencies --- Or exit function mode. [ ]: press to enter and exit FM radio. [ ]: press to toggle high/lower power; hold to key-lock/or key-unlock „ Overview of the Rear Ports abcd a. SO-239 RF Antenna Connector: Connects to PL-259 Antennas b. Cooling Fan c. DC Power Input (13.8V–7A Peak) d. TRRS Line Out: Includes PTT/Microphone/Audio-out/GND ac bd TRRS Line-Out Connector a. GND b. SP c. MIC d. PTT 4 | Getting StartedGetting Started | 5 „ Hand Held MIC Keys and Description a. “MENU” : Function key VFO/MR Toggle (Long Press) b. “UP” : Higher frequency c. “DOWN” : Lower frequency d. “EXIT” : Exit the AB channel switch, alarm function Alarm Activate (Long Press) e. “*/SCAN” : Scanning function f. “#/LOCK” : High / Low Power Toggle Keyboard Lock (Long Press) g. “0” : Number 0 h. “1” : Number 1 i. “2” : Number 2 j. “3” : Number 3 k. “4” : Number 4 l. “5” : Number 5 m. “6” : Number 6 n. “7” : Number 7 o. “8” : Number 8 p. “9” : Number 9 h i k n o e a b j m l p f g d c a. “MENU” : Function key VFO/MR Toggle (Long Press) b. “UP” : Higher frequency c. “DOWN” : Lower frequency d. “EXIT” : Exit the AB cha…

Text truncated - open the document above for the full version.

QYT Electronics Co., Ltd. Office of Engineering Technology Date: 28 June 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2AV62KT-980PLUS Subject: Declaration of compliance to the requirements of §15.121 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. If you have any questions, please feel free to contact me. Thank you. Sincerely Joe Hwang QYT Electronics Co., Ltd.

QYT Electronics Co., Ltd. Agent Authorization Company: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Name: Mobile Radio Model Number(s): KT-980PLUS Product Description: Mobile Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-28 Name: Joe Hwang Company: QYT Electronics Co., Ltd.

QYT Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-28 Subject; Request for Confidentiality FCC ID: 2AV62KT-980PLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Joe Hwang QYT Electronics Co., Ltd.

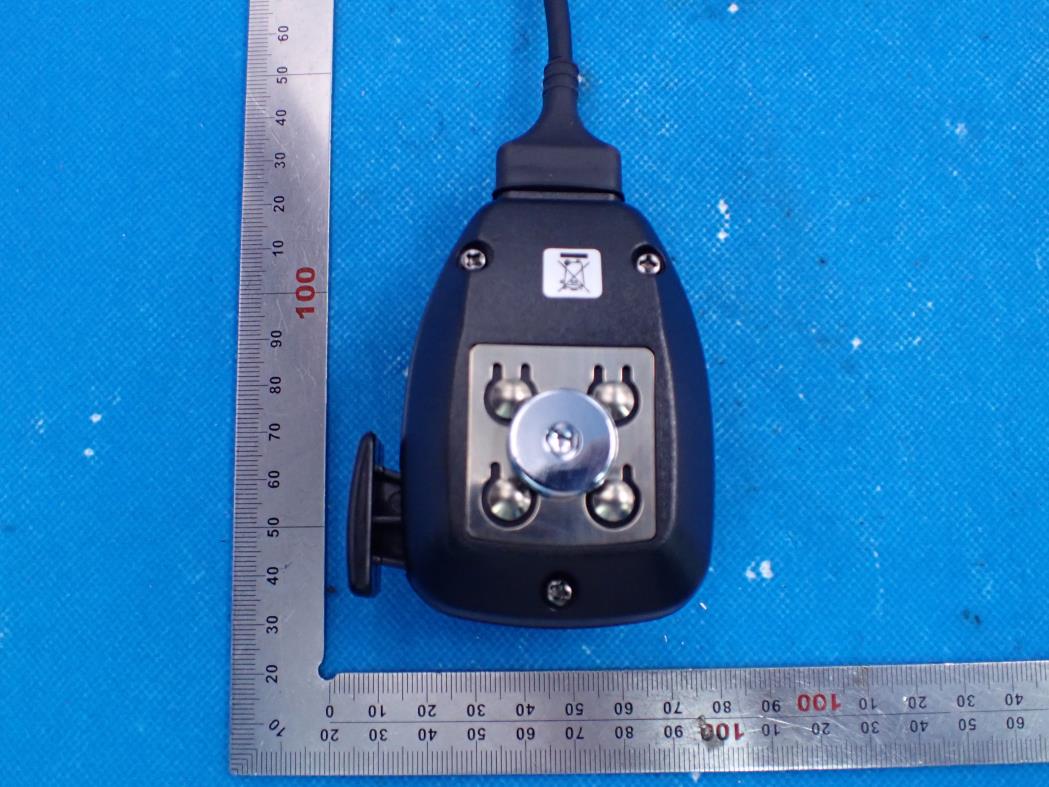

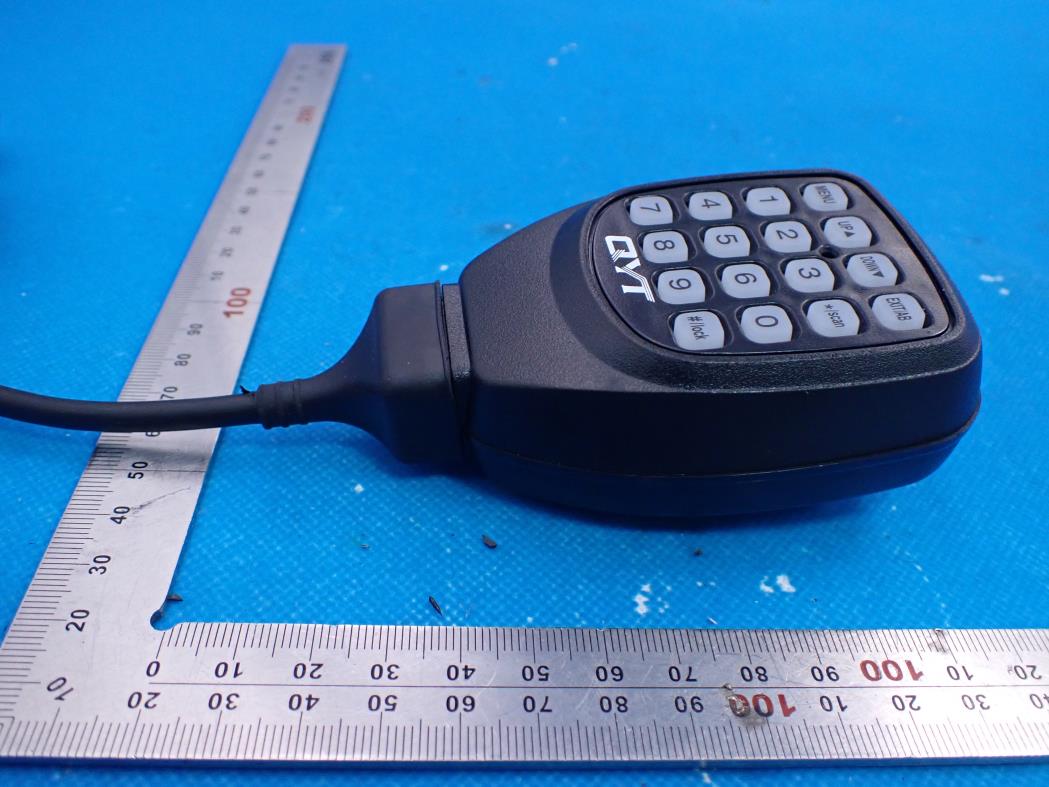

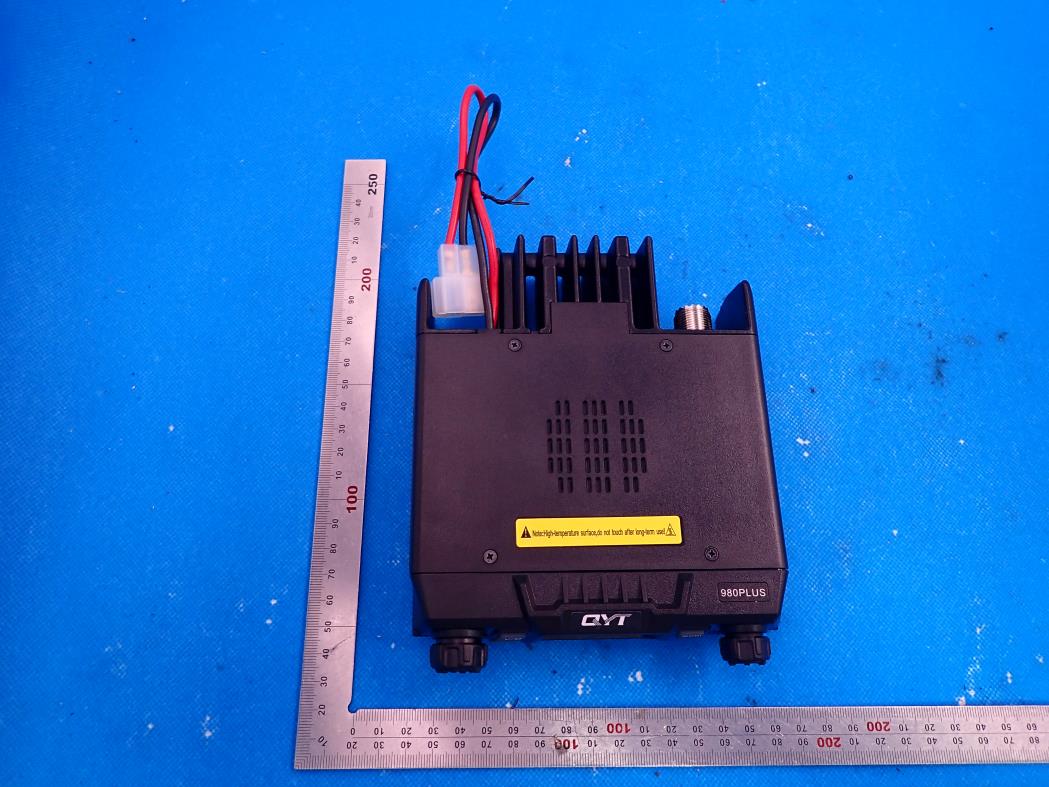

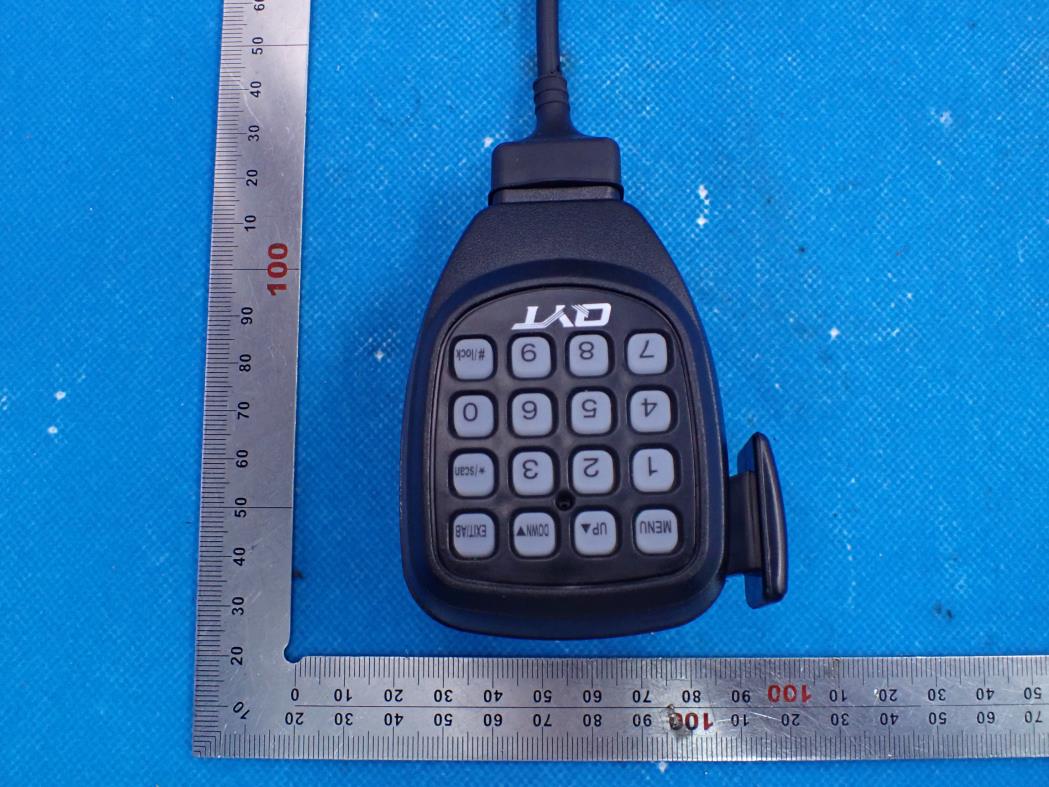

External Photos ALL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT Antenna Port BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Hand microphone TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 30mm&50mm FCC ID: 2AV62KT-980PLUS

Internal Photos OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT Hand microphone OPEN VIEW-1 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT

Page 1 of 24 FCC Test Report Report No.: AGC09781210501FE08 FCC ID : 2AV62KT-980PLUS PRODUCT DESIGNATION : Mobile Radio BRAND NAME : QYT MODEL NAME : KT-980PLUS APPLICANT : QYT Electronics Co., Ltd. DATE OF ISSUE : Jun. 24, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC09781210501FE08 Page 2 of 24 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 24, 2021 Valid Initial Release Report No.: AGC09781210501FE08 Page 3 of 24 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 7. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 8. FCC RADIATED EMISSION TEST .................................................................................................................. 9 8.1 PROVISIONS APPLICABLE ................................................................................................................... 9 8.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 9 8.3 TEST PROCEDURE .............................................................................................................................. 11 8.4 TEST RESULT ....................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ............................................................................................................ 16 9.1 PROVISIONS APPLICABLE ................................................................................................................. 16 9.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 16 9.3 TEST PROCEDURE .............................................................................................................................. 17 9.4 TEST RESULT ....................................................................................................................................... 17 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................... 18 10.1 PROVISIONS APPLICABLE ............................................................................................................... 18 10.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 18 10.3 TEST PROCEDURE ............................................................................................................................ 18 10.4 TEST RESULT ..................................................................................................................................... 19 11. SCANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SCANNING RECEIVERS .. 21 11.1 PROVISIONS APPLICABLE ............................................................................................................... 21 11.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 21 11.3 TEST PROCEDURE ............................................................................................................................ 21 11.4 TEST RESULT ..................................................................................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................. 23 APPENDIX II: PHOTOGRAPHS OF TEST EUT................................................................................................ 24 Report No.: AGC09781210501FE08 Page 4 of 24 1. VERIFICATION OF COMPLIANCE Applicant: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Manufacturer: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Factory: QYT Electronics Co., Ltd. Address: NO.166 Gaoyang, Houtian, Fengzhou, Nan’an, Quanzhou, Fujian, China Product Designation: Mobile Radio Brand Name: QYT Test Model: KT-980PLUS Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: May 12, 2021~Jun. 24, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Jun. 24, 2021 Reviewed By Calvin Liu (Reviewer) Jun. 24, 2021 Approved By Forres…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
