2AVBN-D11WFTrail Camera

FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

SHENZHEN REDLEAF TECHNOLOGY CO., LTD. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address: 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao'an District, Shenzhen, China Product Name: Trail Camera FCC ID: 2AVBN-D11WF Model(s): D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF 2.911(d)(5)(i) Equipment Type We, [SHENZHEN REDLEAF TECHNOLOGY CO., LTD.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Ocean Wang Date: July 18, 2023 Title and Company name: Managing Director SHENZHEN REDLEAF TECHNOLOGY CO., LTD. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

SHENZHEN REDLEAF TECHNOLOGY CO., LTD. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address: 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao'an District, Shenzhen, China Product Name: Trail Camera FCC ID: FCC ID: 2AVBN-D11WF Model(s): D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF 2.911(d)(5)(ii) Applicant filing We, [SHENZHEN REDLEAF TECHNOLOGY CO., LTD.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Ocean Wang Date: July 18, 2023 Title and Company name: Managing Director SHENZHEN REDLEAF TECHNOLOGY CO., LTD. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

JINMAI TECH LLC * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/18/2023 ATTN.: Reviewing Engineer FCC ID: 2AVBN-D11WF Per section 2.911(d)(7) of the FCC rules, SHENZHEN REDLEAF TECHNOLOGY CO.,LTD. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: JINMAI TECH LLC Physical U.S. Company Address: 16035 Robin Way City of Industry, California 91745 United States Agent name: Ligang Agent Email Address: [email protected] TEL: (626) 420-9375 FRN No: 0033974759 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Printed name: Ocean.wang Title: Engineering Manager Company Name: SHENZHEN REDLEAF TECHNOLOGY CO.,LTD. Date: 7/18/2023 Signed: Printed name: Ligang Title: manager Company Name: JINMAI TECH LLC Date: 7/18/2023

SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 18, 2023 Subject; Request for Confidentiality FCC ID: 2AVBN-D11WF To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ocean Wang Title: Managing Director

SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Letter of Authorization Company: SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address: 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao'an District, Shenzhen, China Product Name: Trail Camera Model Number(s): D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-07-18 Name: Ocean Wang Title: Managing Director Company: SHENZHEN REDLEAF TECHNOLOGY CO., LTD.

2023-7-18 Name Ocean Wang Position Managing Director Company Name SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao’an District, Shenzhen, China Tel 13928456051 Fax / Email [email protected] Differences Description We SHENZHEN REDLEAF TECHNOLOGY CO., LTD. state: Product name: Trail Camera Model: D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF All model’s the function, software and electric circuit are the same, except the appearance color and name of the model. (Signature)

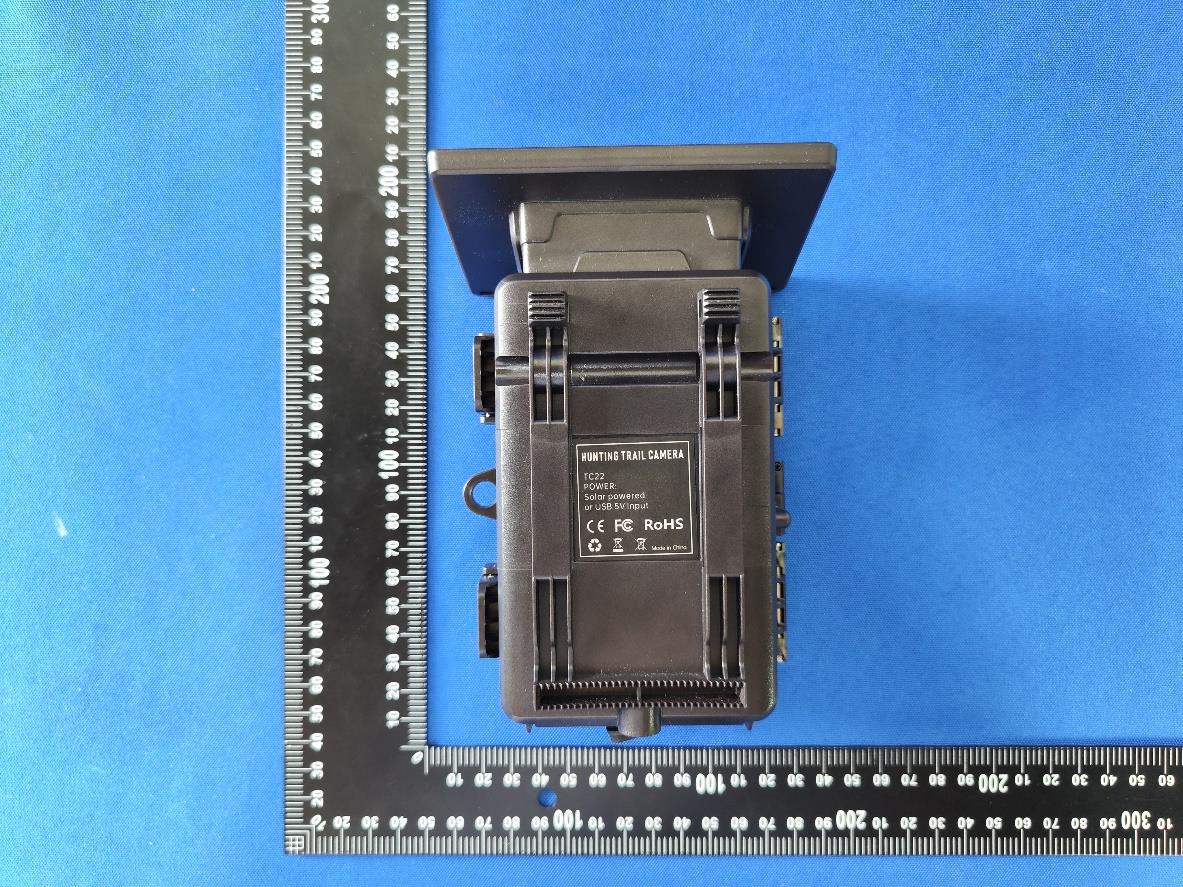

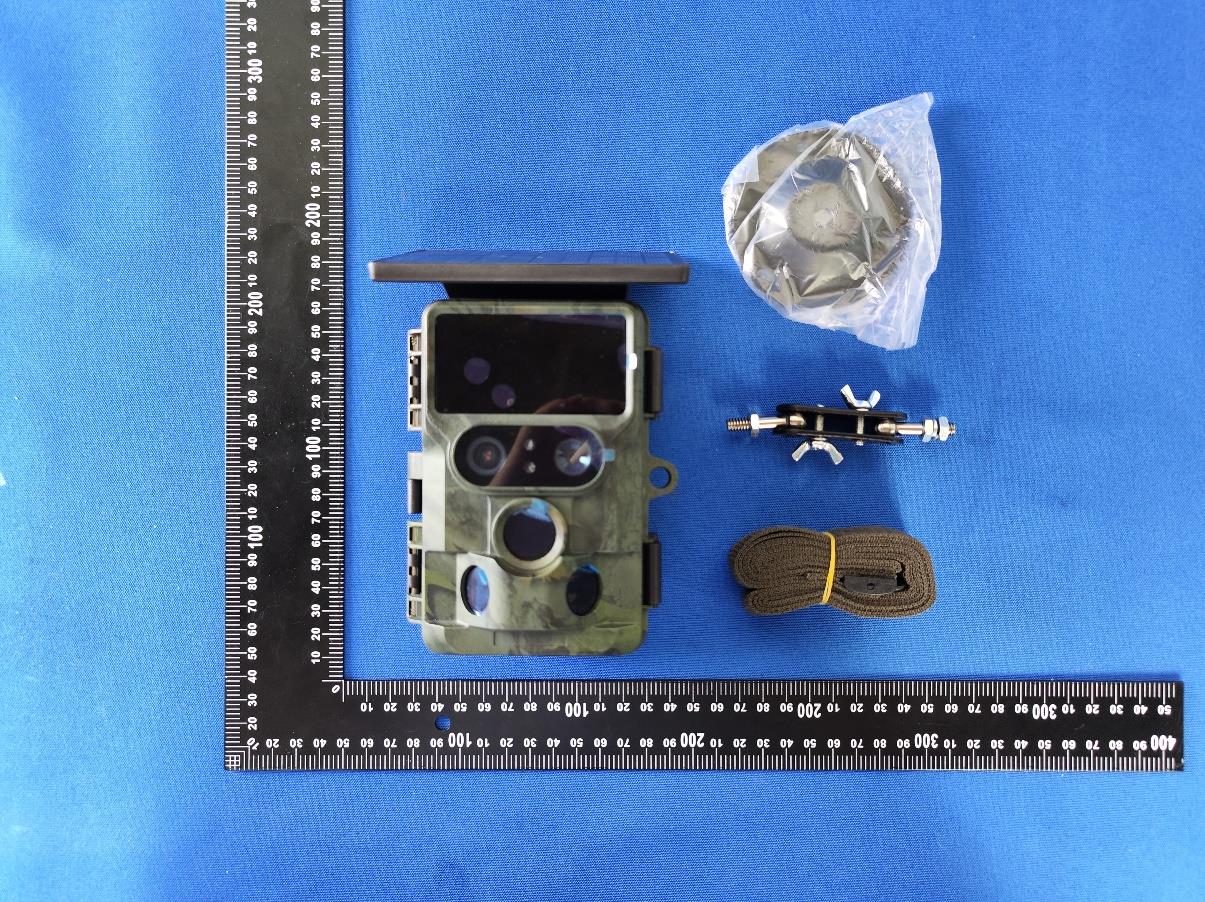

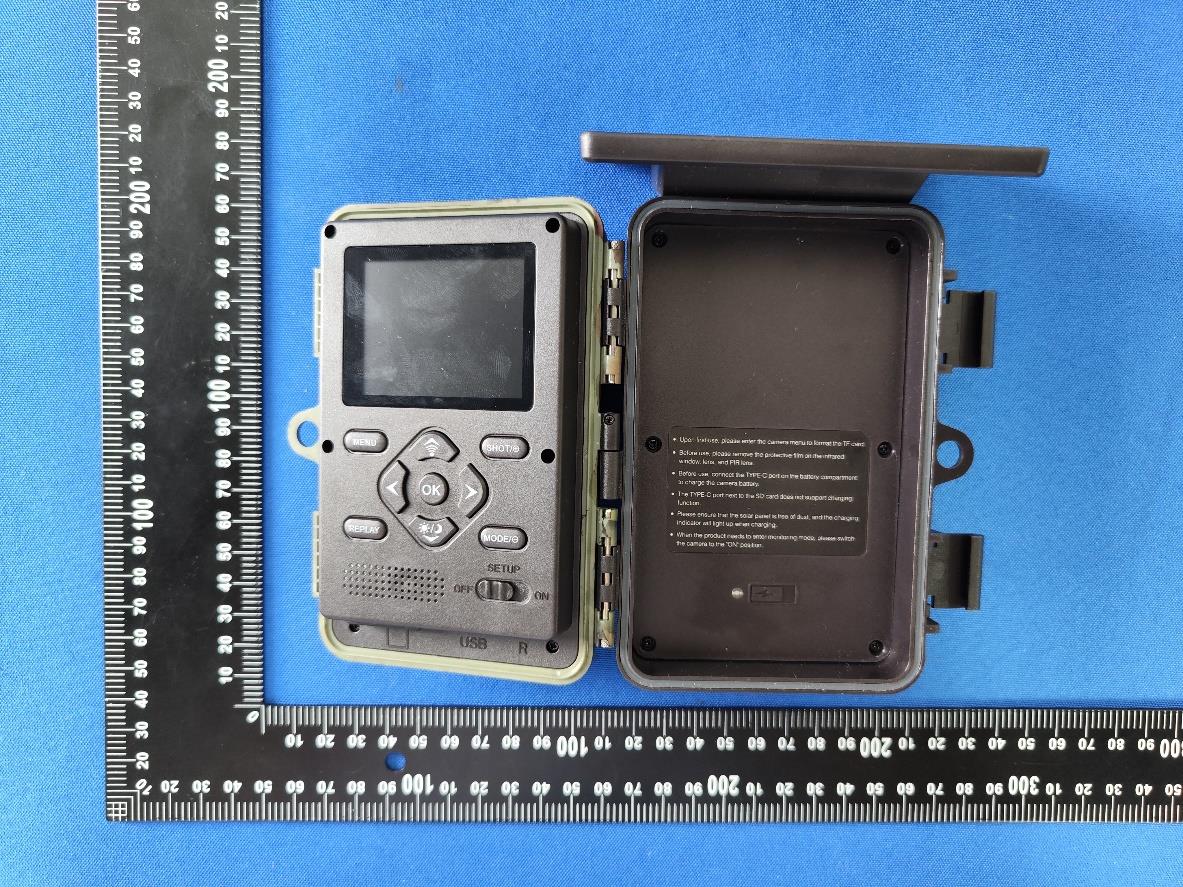

FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF

4.5cm 2.5cm Label Location FCC ID: 2AVBN-D11WF SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Product name: Trail Camera This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF BT ANT

FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF WIFI ANT FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF

FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF FCC ID: 2AVBN-D11WF

FCC ID: 2AVBN-D11WF Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2AVBN-D11WF 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BLE 2480 20 -4.265 0.3745 0.00010 1 Yes WIFI 2412 20 17.707 58.9794 0.01100 1 Yes Maximum Simultaneous transmission MPE Ratios for BLE+WIFI Max MPE ratio BLE /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.00010 0.01100 0.01110 1 PASS WIFI Antenna Gain: 2.27dBi, 1.69(numeric) BLE Antenna Gain: -0.28dBi, 0.94(numeric) Then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008-3008-95 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2AVBN-D11WF On Behalf of SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Trail Camera Model No.: D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF Prepared for : SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address : 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao’an District, Shenzhen, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2305310-C01-R07 Date of Receipt : May 30, 2023 Date of Test : May 30, 2023- July 11, 2023 Date of Report : July 11, 2023 Version Number : V0 Page 2 of 47 Report No.: A2305310-C01-R07 TABLE OF CONTENTS Description Page TABLE OF CONTENTS --------------------------------------------------------------------------------------------------------- 2 1. Summary of Standards And Results -------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results ------------------------------------------------------------------------ 5 2. General Information ------------------------------------------------------------------------------------------------------ 6 2.1. Description of Device (EUT) ------------------------------------------------------------------------------------ 6 2.2. Accessories of Device (EUT) ----------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details ---------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators -------------------------------------------- 7 2.5. Test Mode Description ------------------------------------------------------------------------------------------- 7 2.6. Test Conditions ---------------------------------------------------------------------------------------------------- 8 2.7. Test Facility --------------------------------------------------------------------------------------------------------- 8 2.8. Measurement Uncertainty --------------------------------------------------------------------------------------- 8 2.9. Test Equipment List ----------------------------------------------------------------------------------------------- 9 3. Spurious Emission ------------------------------------------------------------------------------------------------------- 10 3.1. Test Limits ---------------------------------------------------------------------------------------------------------- 10 3.2. Test Procedure ---------------------------------------------------------------------------------------------------- 10 3.3. Test Setup ---------------------------------------------------------------------------------------------------------- 11 4. Power Line Conducted Emission ----------------------------------------------------------------------------------- 22 4.1. Test Limits ---------------------------------------------------------------------------------------------------------- 22 4.2. Test Procedure ---------------------------------------------------------------------------------------------------- 22 4.3. Test Setup ---------------------------------------------------------------------------------------------------------- 22 4.4. Test Results -------------------------------------------------------------------------------------------------------- 22 5. Conducted Maximum Output Power ------------------------------------------------------------------------------- 25 5.1. Test limits ----------------------------------------------------------------------------------------------------------- 25 5.2. Test Procedure ---------------------------------------------------------------------------------------------------- 25 5.3. Test Setup ---------------------------------------------------------------------------------------------------------- 25 5.4. Test Results -------------------------------------------------------------------------------------------------------- 25 6. Peak Power Spectral Density ----------------------------------------------------------------------------------------- 26 6.1. Test limits ----------------------------------------------------------------------------------------------------------- 26 6.2. Test Procedure ---------------------------------------------------------------------------------------------------- 26 6.3. Test Setup ---------------------------------------------------------------------------------------------------------- 26 6.4. Test Results -------------------------------------------------------------------------------------------------------- 26 7. Bandwidth ------------------------------------------------------------------------------------------------------------------ 31 7.1. Test limits ----------------------------------------------------------------------------------------------------------- 31 7.2. Test Procedure ---------------------------------------------------------------------------------------------------- 31 7.3. Test Setup ---------------------------------------------------------------------------------------------------------- 31 7.4. Test Results -------------------------------------------------------------------------------------------------------- 31 8. Band Edge Check -------------------------------------------------------------------------------------------------------- 39 8.1. Test limits ----------------------------------------------------------------------------------------------------------- 39 8.2. Test Procedure ---------------------------------------------------------------------------------------------------- 39 8.3. Test Setup ------------------…

Text truncated - open the document above for the full version.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008-3008-95 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2AVBN-D11WF On Behalf of SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Trail Camera Model No.: D11WF, TC22, TC30, D11, D12, D13, D12WF, D13WF Prepared for : SHENZHEN REDLEAF TECHNOLOGY CO., LTD. Address : 3F, Building E, Huichao Industrial Park, Gushu Road 2, Xixiang Town, Bao’an District, Shenzhen, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2305310-C01-R08 Date of Receipt : May 30, 2023 Date of Test : May 30, 2023- July 11, 2023 Date of Report : July 11, 2023 Version Number : V0 Page 2 of 75 Report No.: A2305310-C01-R08 TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ----------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results --------------------------------------------------------------------------- 5 2. General Information --------------------------------------------------------------------------------------------------------- 6 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 6 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details ------------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators ----------------------------------------------- 7 2.5. Test Mode Description ---------------------------------------------------------------------------------------------- 8 2.6. Test Conditions ------------------------------------------------------------------------------------------------------- 9 2.7. Test Facility ------------------------------------------------------------------------------------------------------------ 9 2.8. Measurement Uncertainty ------------------------------------------------------------------------------------------ 9 2.9. Test Equipment List ------------------------------------------------------------------------------------------------ 10 3. Spurious Emission --------------------------------------------------------------------------------------------------------- 11 3.1. Test Limits ------------------------------------------------------------------------------------------------------------ 11 3.2. Test Procedure ------------------------------------------------------------------------------------------------------ 13 3.3. Test Setup ------------------------------------------------------------------------------------------------------------ 13 3.4. Test Results ---------------------------------------------------------------------------------------------------------- 15 4. Power Line Conducted Emission ------------------------------------------------------------------------------------- 34 4.1. Test Limits ------------------------------------------------------------------------------------------------------------ 34 4.2. Test Procedure ------------------------------------------------------------------------------------------------------ 34 4.3. Test Setup ------------------------------------------------------------------------------------------------------------ 34 4.4. Test Results ---------------------------------------------------------------------------------------------------------- 35 5. Conducted Maximum Output Power --------------------------------------------------------------------------------- 37 5.1. Test limits ------------------------------------------------------------------------------------------------------------- 37 5.2. Test Procedure ------------------------------------------------------------------------------------------------------ 37 5.3. Test Setup ------------------------------------------------------------------------------------------------------------ 37 5.4. Test Results ---------------------------------------------------------------------------------------------------------- 37 6. Peak Power Spectral Density ------------------------------------------------------------------------------------------- 39 6.1. Test limits ------------------------------------------------------------------------------------------------------------- 39 6.2. Test Procedure ------------------------------------------------------------------------------------------------------ 39 6.3. Test Setup ------------------------------------------------------------------------------------------------------------ 39 6.4. Test Results ---------------------------------------------------------------------------------------------------------- 40 7. Bandwidth -------------------------------------------------------------------------------------------------------------------- 47 7.1. Test limits ------------------------------------------------------------------------------------------------------------- 47 7.2. Test Procedure ------------------------------------------------------------------------------------------------------ 47 7.3. Test Setup ------------------------------------------------------------------------------------------------------------ 47 7.4. Test Results ---------------------------------------------------------------------------------------------------------- 47 8. Band Edge Check ---------------------------------------------------------------------------------------------------------- 60 8.1. Test limits ------------------------------------------------------------------------------------------------------------- 60 8.2. Test Procedure -------------------------------------------------…

Text truncated - open the document above for the full version.

Page 51 of 75 Report No.: A2305310-C01-R08 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 52 of 75 Report No.: A2305310-C01-R08 -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Page 53 of 75 Report No.: A2305310-C01-R08 -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Page 54 of 75 Report No.: A2305310-C01-R08 OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 Page 55 of 75 Report No.: A2305310-C01-R08 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 Page 56 of 75 Report No.: A2305310-C01-R08 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 Page 57 of 75 Report No.: A2305310-C01-R08 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 Page 58 of 75 Report No.: A2305310-C01-R08 OBW NVNT n20 2462MHz Ant1 OBW NVNT n40 2422MHz Ant1 Page 59 of 75 Report No.: A2305310-C01-R08 OBW NVNT n40 2437MHz Ant1 OBW NVNT n40 2452MHz Ant1 Page 60 of 75 Report No.: A2305310-C01-R08 8. Band Edge Check 8.1. Test limits Please refer RSS-GEN & FCC PART 15: 15.247 All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits and RSS-GEN limits. 8.2. Test Procedure Details see the KDB558074 D01 Meas Guidance v05r02 8.2.1 Put the EUT on a 1.5m high table, power on the EUT. Emissions were scanned and measured rotating the EUT to 360 degrees, Find the maximum Emission 8.2.2 Check the spurious emissions out of band. 8.2.3 RBW 1MHz, VBW 3MHz, peak detector for peak value , RBW 1MHz ,VBW 10Hz , RMS detector for AV value. 8.3. Test Setup Same as 5.2.2. 8.4. Test Results PASS. Detailed information please see the following page. Page 61 of 75 Report No.: A2305310-C01-R08 Test Mode: IEEE 802.11b-Low Test Mode: IEEE 802.11b-High Page 62 of 75 Report No.: A2305310-C01-R08 Test Mode: IEEE 802.11g-Low Test Mode: IEEE 802.11g-High Page 63 of 75 Report No.: A2305310-C01-R08 Test Mode: IEEE 802.11n20-Low Test Mode: IEEE 802.11n20-High Page 64 of 75 Report No.: A2305310-C01-R08 Test Mode: IEEE 802.11n40-Low Test Mode: IEEE 802.11n40-High Note: 1. *:Maximum data; x:Over limit; !:over margin. 2.Measurement=Reading Level + Correct Factor; Correct Factor=Antenna Factor + Cable Loss. Page 65 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission Page 66 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission Page 67 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission Page 68 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission Page 69 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission Page 70 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission Page 71 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission Page 72 of 75 Report No.: A2305310-C01-R08 Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission Page 73 of 75 Report No.: A2305310-C01-R08 9. Antenna Requirement 9.1. Standard Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 9.2. Antenna Connected Construction The antenna connector is unique antenna and no consideration of replacement. Please see EUT photo for details. 9.3. Results The EUT antenna is internal Antenna. It complies with the standard requirement. Page 74 of 75 Report No.: A2305310-C01-R08 10. Photos Of Test Setup 10.1.Photos of Radiated emission Page 75 of 75 Report No.: A2305310-C01-R08 10.2.Photo of Conducted Emission test ---------THE END OF REPORT-------

Summary InvertedFAntennaSpecification ITEMANTSPEC ModelName2.4GANT Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz -1.36-0.86-0.68-4.25-2.16-1.86 MAX.Gain-0.28dB PolarizationHorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance50Ohm AntennaLength34.95mm ManufactureShenZhenYuYangWirelessTechnoligyC0.,Ltd AntennaPhoto&Length(mm) Horizontal:2400 MHz 2450 MHz 2500 MHz Power(dBm) Max: 0 Min: -40 Scale:5/div Frequency (MHz) Gain(dB) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.285582-22.0315-6.59127 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANTTestLabs：AttestationofDaZewirelesstechnologyCo.,Ltd.

1 ShenzhenDEWEIMACommunicationEquipmentCo.,Ltd SPECIFICATION SHEETFOR APPROVAL CUSTOMERNAME CUSTOMERP/N RD1009WF PART NAME WIFI Antenna DWMNO. APPROVALREV. DWM-V1.0 CONTRACTORDATE：2023-06-29 QA CHECKED ME CHECKED RF CHECKED MANAGER CHECKED CUSTOMERDATE： ApprovedByCheckedByPreparedBy ProductSpecification P/N: WIFIAntenna Rev.: A Page: 2/13 2 Content Content..............................................................................................................................................................2 1. ProductApplication.......................................................................................................................................3 2. The test environment,equipment..................................................................................................................3 3. TechnologyParameters.................................................................................................................................6 4. EngineeringDrawings.................................................................................................................................10 5. EnvironmentalPerformance........................................................................................................................11 6. Usage Precaution.............................................…
