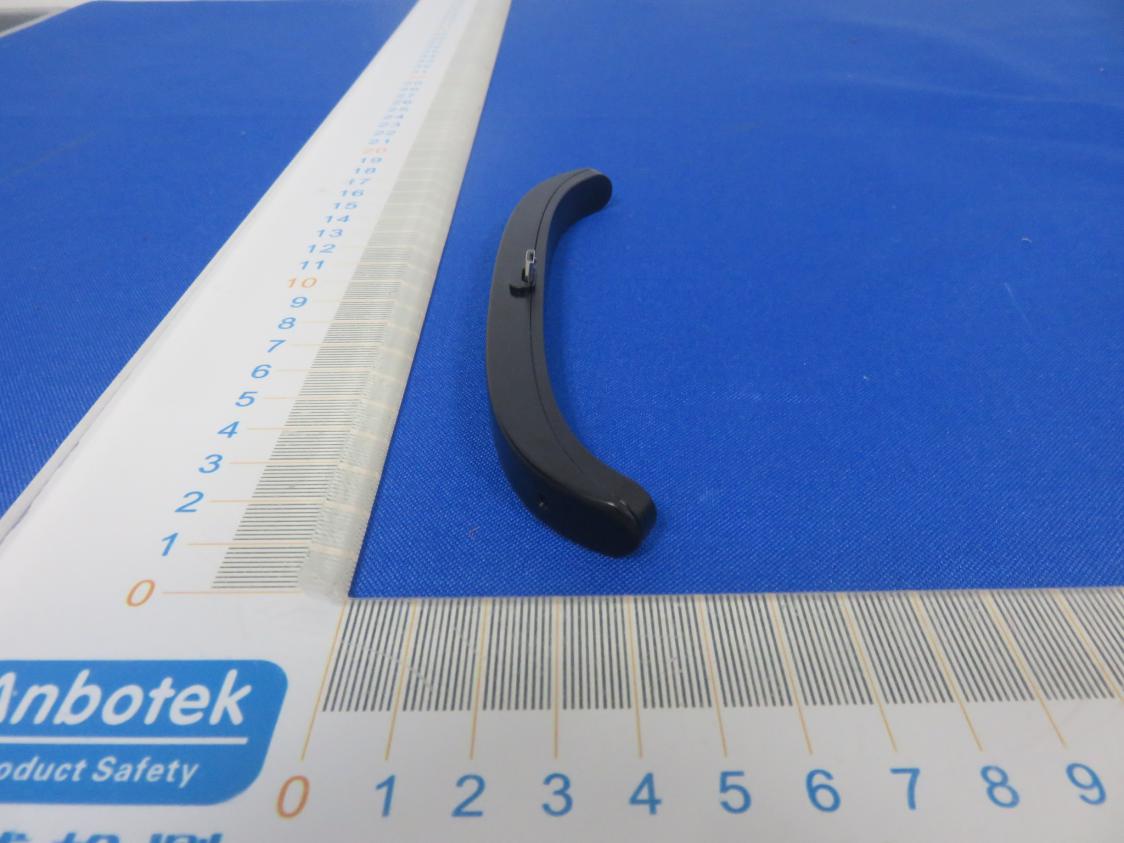

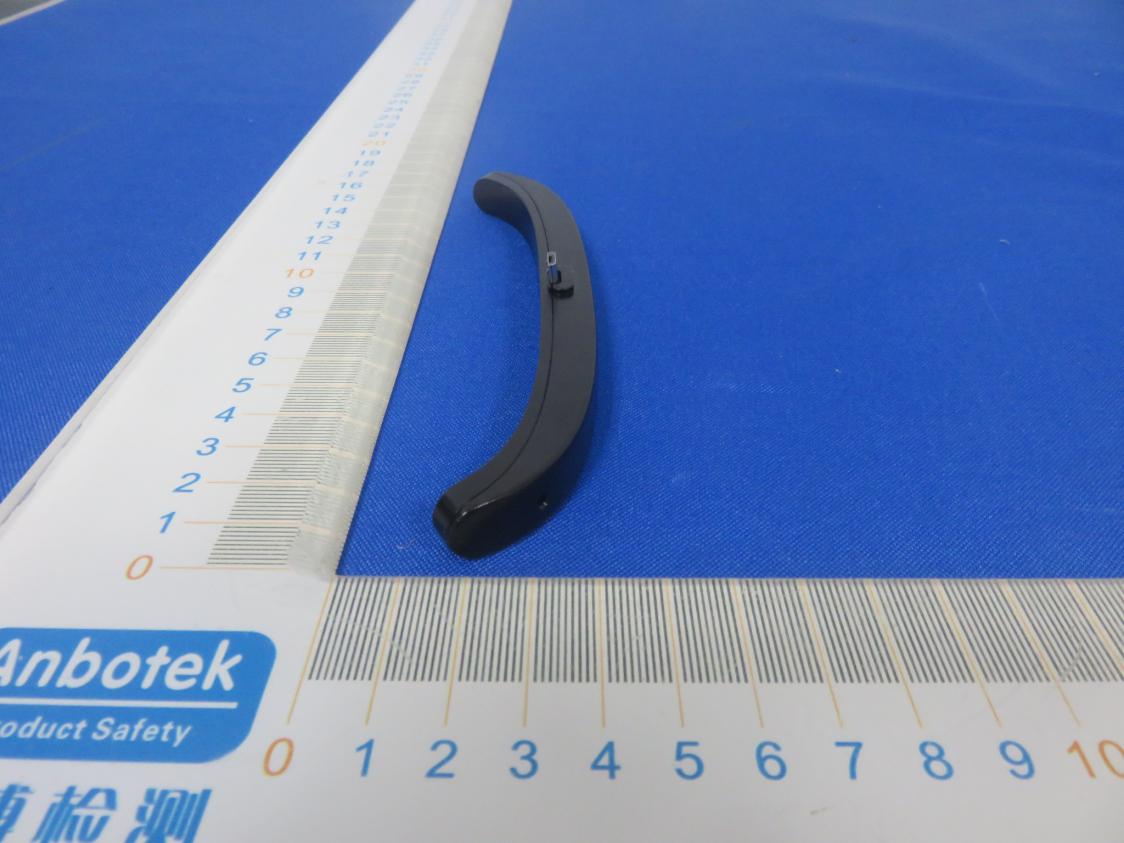

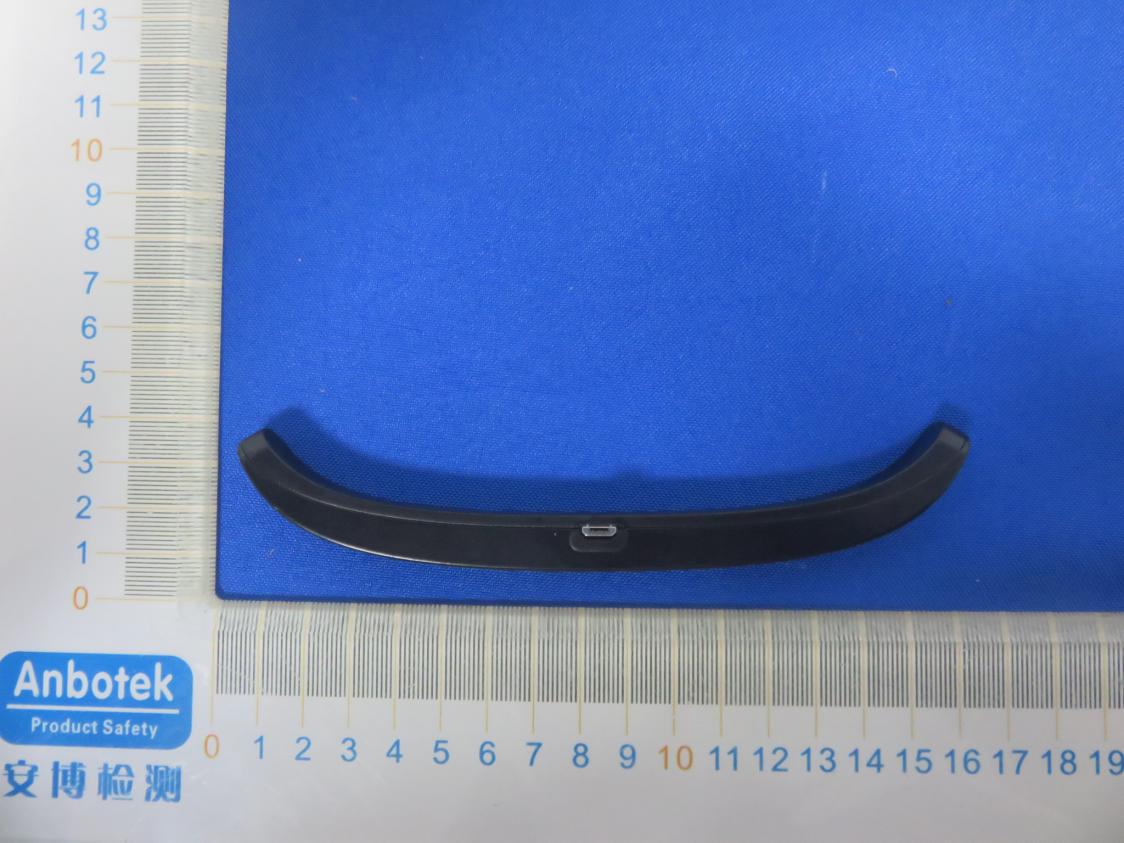

2AVHA-CV1AIRNOLO Headset Marker

NOLO使用说明 NOLO Instructions 详细使用教程，请访问官网(www.nolovr.com/getstarted/)进行査看。 For detailed instructions, please visit the official website (www.nolovr.com/getstarted) 包装内容 Package Contents 定位基站X1 交互手柄X2 头盔定位器X1 Positioning Base Station *1 Interactive Controller *2 Headset Marker *1 Model：CV1 Air 电源适配器X1 一字型定位器卡座X1 L型定位器卡座X1 PowerAdapter*1 SlottedPositionerSocket*1 L-typePositionerSocket*1 了解设备 LearnMoreabouttheDevice 交互手柄 1扳机键 2配对键 3侧按键（左右侧各一个） 4触控键 5菜单键 6指示灯 7系统/电源键 InteractiveController 1TriggerKey 2PairingKey 3SideKeys(Eachfortheleftandrightsides) 4TouchKey 5MenuKey 6IndicatorLamp 7System/PowerKey 定位基站 电源键 配对键 PositioningBaseStation PowerKey PairingKey 头盔定位器 指示灯 配对键 USB接口 HeadsetMarker IndicatorLamp PairingKey USBInterface 一、配合PC使用说明 I．InstructionsforPC 1.电脑配置要求 最低配置： 电脑系统：Windows7 显卡：NVIDIAGTX1050&AMDRX560 驱动版本：397.93 显示接口：DP接口 1.RequirementsforPCConfiguration MinimumConfiguration: ComputerSystem:Windows7 GPU:NVIDIAGTX1050&AMDRX560 DriverVersion:397.93 DisplayInterface:DPInterface 2.电脑软件准备 2.SoftwarePreparationofPC 使用电脑下载并安装NOLOHOMEWindows版(http://download.nolovr.com) DownloadandinstalltheWindowsversionofNOLOHOME(http://download.nolovr.com) 下载并安装Steam和SteamVR。 DownloadandinstallSteamandSteamVR. 3.连接电脑 使用华为VRGlass专用数据线连接电脑与华为VRGlass。 3.ConnectComputer PleaseconnecttheHuaweiVRGlassandthecomputerwiththespecialdatacable. 4.连接头盔定位器 把头盔定位器安装在华为VRGlass顶部。 4.ConnecttheHeadsetMarker InstalltheheadsetmarkeronthetopoftheHuaweiVRGlass. 5.开启NOLO设备 将基站放置在与肩同高的水平桌面边缘，并保持基站正面朝外正对使用者,然后开启基站和 手柄的电源开关。 5.TurnontheNOLODevice Placethebasestationontheshoulder-heighttableedgewiththefrontsidefacingtheuser,and thenturnonthepowerswitchesofthebasestationandcontrollers. 6.开始游戏 正确佩戴华为VRGlass后，手持NOLO手柄，正对基站,开始享受精彩极致的游戏体验吧！ 6.StartGame AftercorrectlywearingtheHuaweiVRGlass,taketheNOLOcontrollers,facethebasestation andstarttoenjoytheultimategamingexperience. 二.NOLO使用说明 II.NOLOInstructions 定位基站摆放要求 1.建议将基站摆放在与肩同高的位置； 2.确保基站位于水平桌面的边缘； 3.确保基站正面朝向使用者(带有NOLO标识的为正面)。 PlacementRequirementsforthePositioningBaseStation 1.Thebasestationissuggestedtoplaceattheshoulder-heightposition; 2.Thebasestationshouldbeensuredontheedgeoftheflattable; 3.Thebasestationshouldbeplacedwiththefrontsidetofacetheuser(Thefrontsiderefersto thesidewiththeNOLOlogo.). 使用区域说明 区域1:基站有效定位范围；区域2:最佳体验范围。 Introductionoftheuseareas Area1:EffectivePositioningRange;Area1:OptimumExperienceRange 手柄标定正方向方法 ThePositiveDirectionCalibrationMethod 1.双臂前伸，双手并拢，目视前方； 2.保证基站、手柄、头盔定位器在一条直线上； 3.分别双击两个手柄上的电源键完成正方向标定。 1.Keepyourarmsforwardandyourhandstogetherwithyoureyestothefront; 2.Keepthebasestation,controllersandtheheadsetmarkeratthesamestraightline; 3.Clickthepowerkeyofthetwocontrollerstwicerespectivelytocompletethecalibrationofthe positivedirection. 正确操作双臂前伸双手并拢目视前方 错误操作 CorrectOperations WrongOperationsKeepyourarmsforwardKeepyourhandstogetherWithyoureyesto thefront 标定高度方法 HeightCalibrationMethod 1.保持设备正常连接状态,将您的VR设备放在距离定位基站正面2米以上的水平地面，并确 保二者之间没有遮挡； 2.轻按头盔定位器上的配对按键完成标定高度。 1.Keepthedevicenormallyconnected,andplaceyourVRdeviceonahorizontalgroundmore than2metersfromthefrontsideofthepositioningbasestation,andensurenobarrierbetween them; 2.SlightlypressthePairingKeyontheheadsetmarkertocompletetheheightcalibration. 定位问题处理 1.同一定位范围内，无多套NOLO交互设备同时使用，如果必须开启多套NOLO设备，请 按照下图摆设NOLO的定位基站，避免多个基站互相干扰。 2.同一环境下,无其他红外激光设备干扰如HTCVIVE、主动式红外摄像头等,无其他超声波 发射设备干扰。如有以上设备请关闭干扰设备再使用，或更换使用环境。 3.尽量避免环境内有镜面等反射平面的存在。如果在类似环境发现设备定位抖动情况，需更 换环境使用。 4.使用过程中切勿背对基站或遮挡手柄、头盔定位器，以上情况会导致定位丢失，如遇以上 情况请正对基站标定正方向。 5.如遇无线干扰，导致设备定位卡顿，需重新配对处理，请参考配对说明。 PositioningProblemProcessing 1.Withinthesamerange,pleaseensureonlyonesetofNOLOinteractivedevicesisrunning;If severalsetsofNOLOdeviceshavetoberunatthesametime,pleaserefertothefollowingpicture toplacethepositioningbasestationofNOLOtoavoidthemutualinterferencebetweenthebase stations. 2.Withinthesameenvironment,pleaseensurenointerferenceofotherinfraredlaserequipment, suchasHTCVIVE,activeinfraredcameraandultrasonictransmissionequipment.Ifanyofthe equipmentmentionedaboveisrunning,pleaseturnofftheinterferenceequipmentorchangethe environment. 3.Trytoavoidthepresenceofthereflectionplane,likemirror,intheenvironment.Ifvibrationis foundinthepositioningdevice,pleasechangetheenvironment. 4.Intheprocessofuse,pleasedonotturnyourbacktothebasestationorcoverthecontrollers, theheadsetmarker,otherwise,thepositioninglossmayoccur.Iftheabovesituationoccurs,please facethefrontsideofthebasestationtocalibratethepositivedirection. 5.Ifthewirelessinterferenceresultsinthepositioningslowingofthedevice,pleasere-pairand refertothepairinginstructions. 设备配对方法 DevicePairingMethod 1.开启所有NOLO设备(头盔定位器连接到华为VRGlass） 1.TurnonallNOLOdevices(TheheadsetmarkerconnectstoHUAWEIVRGlass). 2.长按定位基站配对键(如图所示)，进入配对模式，定位基站指示灯呈绿色闪烁状态。 2.LongpressthePairingKeyofthepositioningbasestation(asshown)toenterthepairingmode withtheindicatorlampshiningingreen. 3.分别长按两支交互手柄的配对键(如图所示），直至手柄震动。每次配对过程中每支交互手 柄只需配对一次，请不要重复配对。 3.RespectivelylongpressthePairingKeyofthetwointeractivecontrollers(asshown)tillthe controllervibrates.Duringeachpairingprocess,eachcontrollercanonlybepairedonce.Please donotre-pair. 4.长按头盔定位器的配对键，直至头盔定位器指示灯红色LED闪烁一次。 4.LongpressthePairingKeyoftheheadsetmarkertilltheredLEDoftheindicatorlampflashes once. 5.单击定位基站的配对键结束配对模式，等待3-5秒钟，若两个交互手柄和头盔定位器的LED 指示灯变为绿色常亮，则配对成功。若LED指示灯为红灯，则配对失败，请重新进行配对。 5.ClickthePairingKeyofthepositioningbasestationtoendthepairingmode.IftheLED indicatorlampoftwocontrollersandtheheadsetmarkerturntogreenafter3to5seconds,then thepairingsucceeds;ifturntored,thenthepairingfailsandpleasere-pair. NOLO设备状态指示灯 NOLODeviceStatusIndicatorLamp 灯状态系统状态 橘色闪烁固件升级 橘色充电中 红绿交替闪烁硬件错误 绿色闪烁配对中 绿色已充满/正常工作 红色闪烁低电量 红色(交互手柄和头盔定位器）等待配对结束/未配对 红色(定位基站）未放稳/工作异常 LampStatusSystemStatus OrangeFlashingFirmwareUpgrade OrangeCharging RedandGreenFlashingAlternatelyHardwareError GreenFlashingPairing GreenFullyCharged/NormalOperation RedFlashingLowPower Red(TheInteractiveControllersandHeadsetMarker)WaitingfortheEndofPairing/ Unpaired Red(TheBaseStation)ImproperlyPlaced/AbnormalOperation 三、安全信息 III.SafetyInformation 在使用和操作设备前,为确保设备性能最佳，并避免出现危险或非法情…

Text truncated - open the document above for the full version.

FCC ID: 2AVHA-CV1AIR

Label Location On EUT Label FCC ID: 2AVHA-CV1AIR

FCC ID: 2AVHA-CV1AIR ANTAANT B

version01 Beijing Lingyu century Information Technology Co.,Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: CV1 Air FCCID:2AVHA-CV1AIR fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: NOLO shorter.4 & NOLO shorter.3 Type of antenna:FPC Antenna Gain of the antenna: ANT A&ANT B: 1 dBi Frequency range:2402~2475MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Beijing Lingyu century Information Technology Co.,Ltd. Address: Room 101-05, 2f, building 20, yard 1, Baosheng South Road, Haidian District, Beijing, China City: Beijing ZIP / Postal code: Country:China Place:ChinaDate: 2020-02-24 Signature:

RF EXPOSURE EVALUATION EUT Specification EUT NOLO Headset Marker Model Name CV1 Air Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: 2402‐2475MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 94.61 dBuV/m (-0.647dBm)(0.862mW) Antenna gain 1 dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance V6, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Measurement Result Channel Frequency (MHz) Max Output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculati on Value (Note 1) Threshold Value 2441 -0.647 ±1 0.353 5 0.34 3.0 EIRP=E-104.8+20logD= 94.61 -104.8+20log3= -0.647dbm Note 1: Calculation Value =[(max. power of channel, included Tune up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 1.085/5*√ 2.441=0.34 ≤3.0 According to KDB447498 D01 V6, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. The SAR measurement is not necessary.

Report No.: SZAWW191118001-01FCC ID: 2AVHA-CV1AIRPage 1 of 49 Code:AB-RF-05-a FCC TEST REPORT Client Name: Beijing Lingyu century Information Technology Co.,Ltd. Address: Room 101-05, 2f, building 20, yard 1, Baosheng South Road, Haidian District, Beijing, China Product Name: NOLO Headset Marker Date: Feb. 18, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: SZAWW191118001-01FCC ID: 2AVHA-CV1AIRPage 2 of 49 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of Channels .......................................................................................................................................... 6 1.6. Description of Test Setup .......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 12 4. Radiated Emission and Band Edge .................................................................................................................. 15 4.1. Test Standard and Limit .......................................................................................................................... 15 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. 20dB Bandwidth Test .......................................................................................................................................... 32 5.1. Test Standard and Limit .......................................................................................................................... 32 5.2. Test Setup .................................................................................................................................................. 32 5.3. Test Procedure .......................................................................................................................................... 32 5.4. Test Data .................................................................................................................................................... 32 6. Antenna Requirement ......................................................................................................................................... 37 6.1. Test Standard and Requirement ............................................................................................................ 37 6.2. Antenna Connected Construction .......................................................................................................... 37 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................... 38 APPENDIX II -- EXTERNAL PHOTOGRAPH ..................................................................................................... 40 APPENDIX III -- INTERNAL PHOTOGRAPH ..................................................................................................... 43 Report No.: SZAWW191118001-01FCC ID: 2AVHA-CV1AIRPage 3 of 49 Code:AB-RF-05-a TEST REPORT Applicant: Beijing Lingyu century Information Technology Co.,Ltd. Manufacturer: Beijing Lingyu century Information Technology Co.,Ltd. Product Name: NOLO Headset Marker Model No.: CV1 Air Trade Mark: NOLO Rating(s): Input: DC 5V, 60mA, 0.3W Test Standard(s) : FCC Part15 Subpart C, Paragraph 15.249 Test Method(s): ANSI C63.10: 2013 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited…
