Samsung Trading (Shanghai) Co., Ltd. Company: Samsung Trading (Shanghai) Co., Ltd. Product Name: ITFIT UV STERILIZER WITH WIRELESS CHARGING Model Number: GP-TOU020SABWW FCC ID: 2AVIA2020UVBOX Cover Letter‐Wireless Charger Approval FCC ID: 2AVIA2020UVBOX Date: 2020-May-13 Gentlemen: There’s a ITFIT UV STERILIZER WITH WIRELESS CHARGING, that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, ITFIT UV STERILIZER WITH WIRELESS CHARGING, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. KDB 680106 D01 Section 5.b) Requirements: Product Technical Specification： Result: (1) Power transfer frequency is less than 1 MHz. 126.8-147.4 kHz Complied (2) Output power from each primary coil is less than or equal to 15 watts. 10Watts Complied (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Only single primary coils Complied (4) Client device is placed directly in contact with the transmitter. The WPT client device is placed in direct contact with the WPT source. Complied (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure condition Complied (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Refer to MPE report GZEM200501228202 Complied Sincerely,

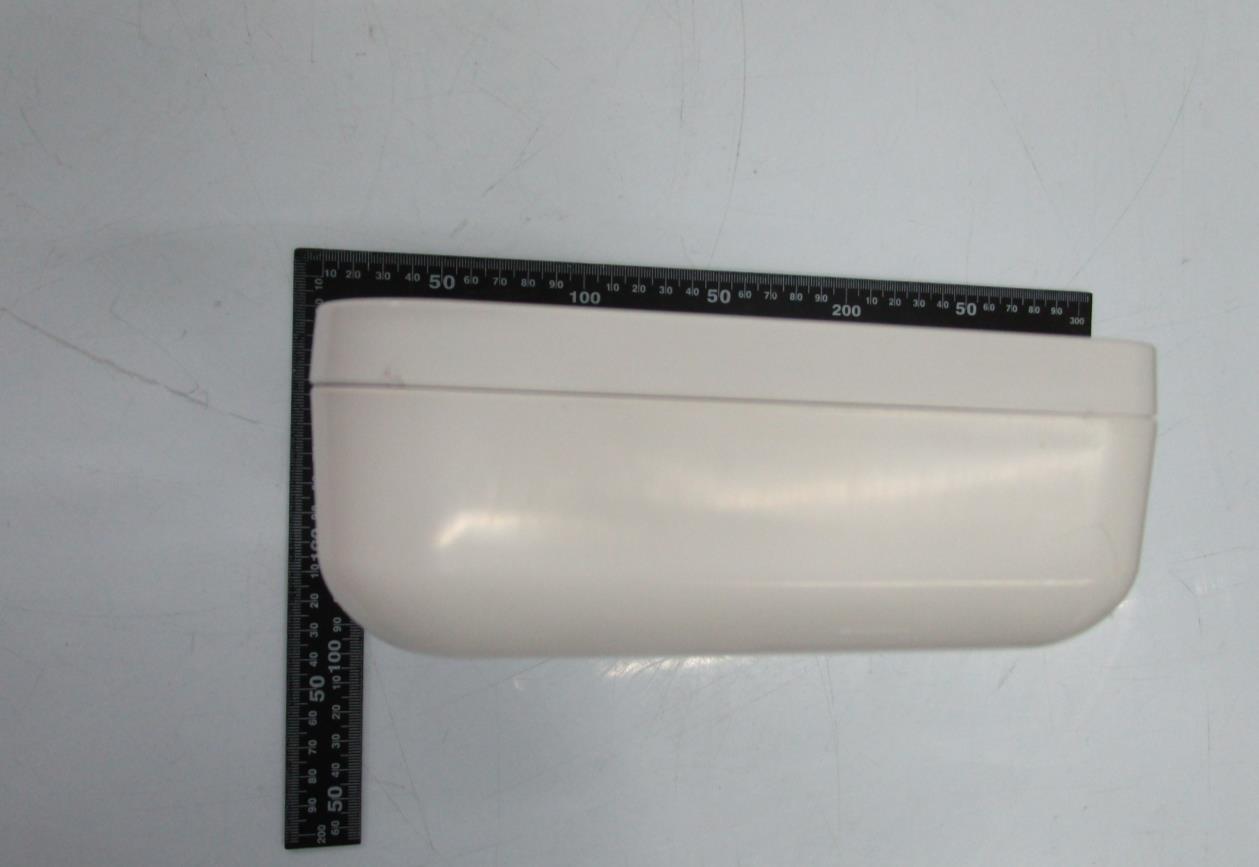

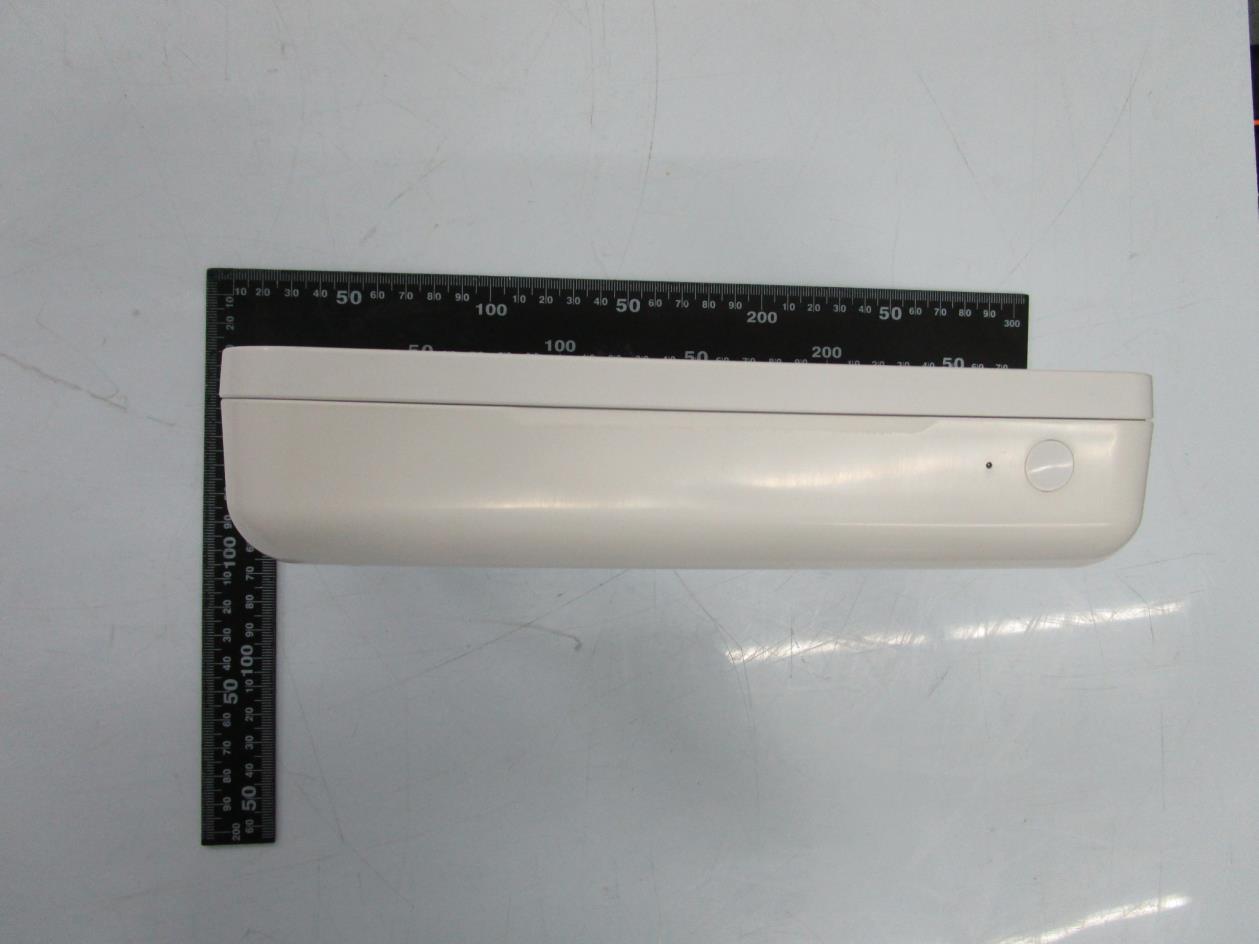

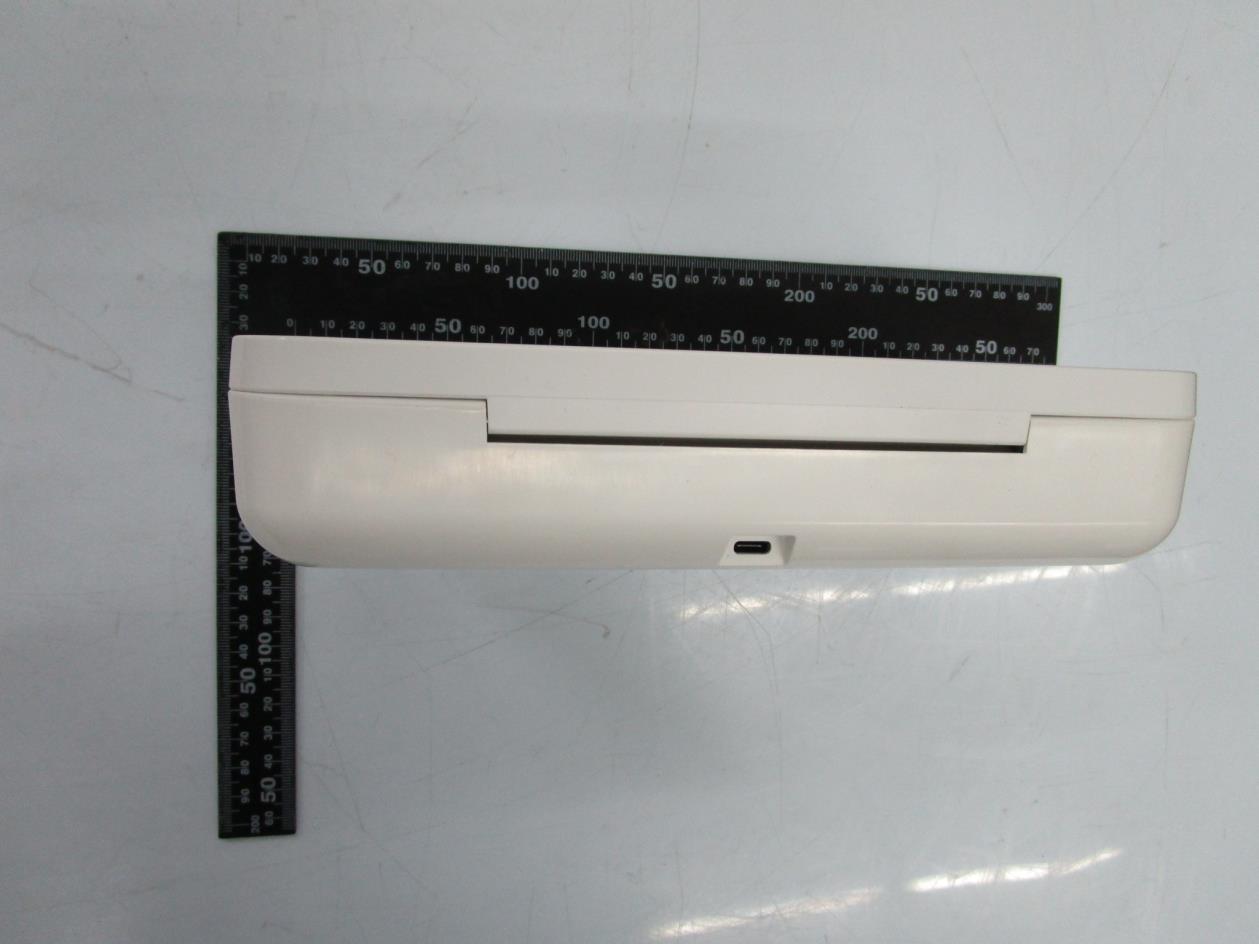

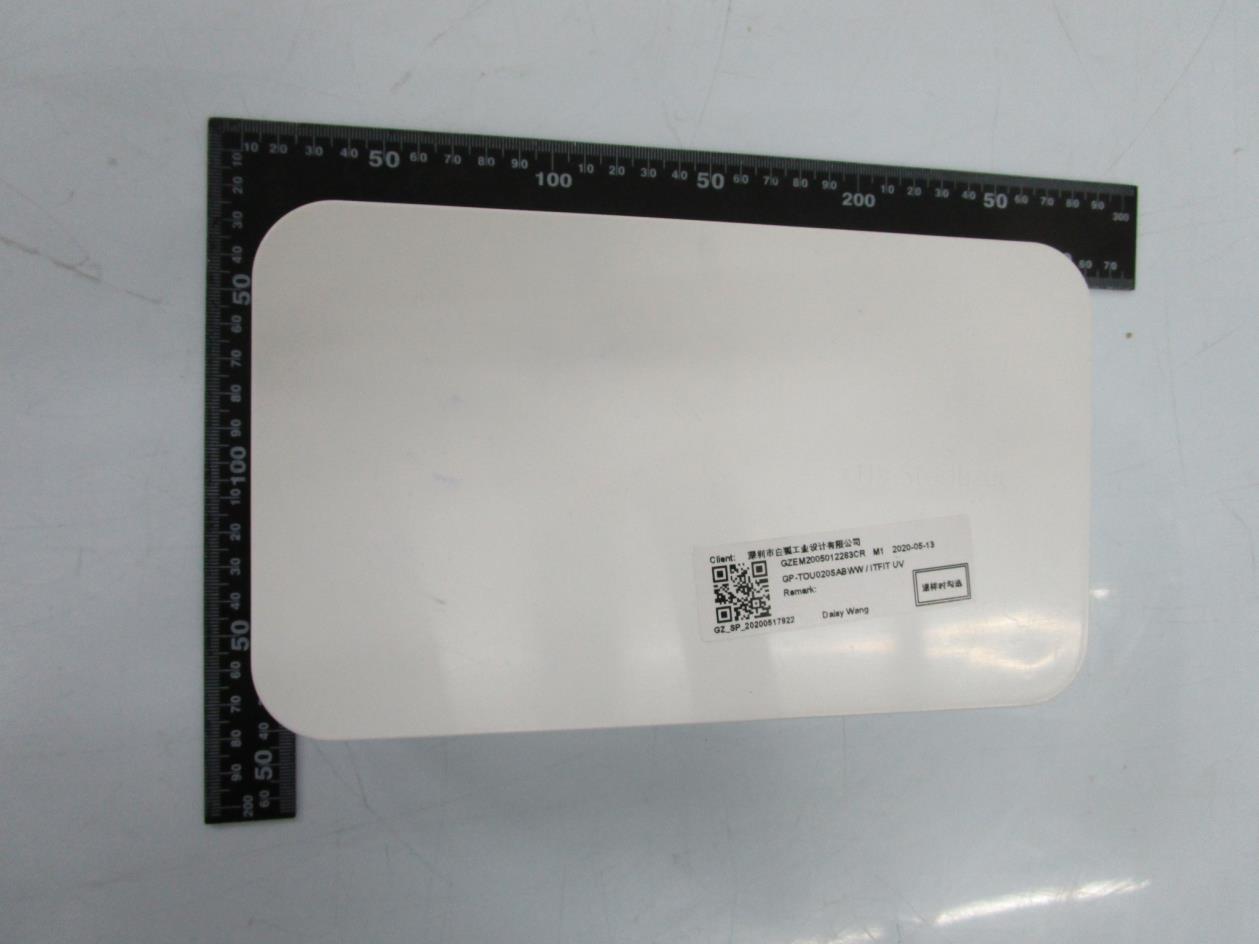

External photo

Model No : GP-TOU020SABWW IT FIT UV Sterilizer With Wireless Charging EPA Est. XXXXXX-XXX-XXFCC ID: 2AVIA2020UVBOX Importer: SAMSUNG ELECTRONICS AMERICA Address: 6625 Excellence Way (2W-022) Plano Dallas 75023 Origin of country : Made in China Rated Input : 9V / 2A, 5V / 2.1A

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228203 Page: 1 of 15 FCC ID: 2AVIA2020UVBOX Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2005012282CR Applicant: Samsung Trading (Shanghai) Co., Ltd. Address of Applicant: China (Shanghai) Pilot Free Trade Zone C Zone the Building of Waigaoqiao Rm.526 Manufacturer: Shenzhen Bifoxs Industrial Design Co., Ltd Address of Manufacturer: 5#, Jianxing Rd., Luozu Community, Shiyan, Baoan District, Shenzhen, 518108, P.R.China Factory: Shenzhen Silver Basis Technology Co., Ltd. Address of Factory: 5#, Jianxing Rd., Luozu Community, Shiyan, Baoan District, Shenzhen, 518108, P.R.China Equipment Under Test (EUT): FCC ID: 2AVIA2020UVBOX EUT Name: IT FIT UV STERILIZER WITH WIRELESS CHARGING Model No.: GP-TOU020SABWW Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 Date of Receipt: 2020-05-12 Date of Test: 2020-05-21 Date of Issue: 2020-05-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228203 Page: 2 of 15 Revision Record Version Chapter Date Modifier Remark 01 2020-05-21 Original Authorized for issue by: Tested By 2020-05-21 Jackson_Yuan /Project Engineer Date Checked By 2020-05-21 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228203 Page: 3 of 15 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR PART 1, Subpart I, Section 1.1310 CFR 47 Part 1.1310 CFR 47 Part 1.1310 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228203 Page: 4 of 15 3 Contents Page 1 Cover Page ................................................................................................................................................... 1 2 Test Summary .............................................................................................................................................. 3 3 Contents ....................................................................................................................................................... 4 4 General Information .................................................................................................................................... 5 4.1 Details of E.U.T. .................................................................................................................................... 5 4.2 Description of Support Units ................................................................................................................. 5 4.3 Measurement Uncertainty ..................................................................................................................... 5 4.4 Test Location ........................................................................................................................................ 5 4.5 Test Facility ........................................................................................................................................... 6 4.6 Deviation from Standards ..................................................................................................................... 7 4.7 Abnormalities from Standard Conditions .............................................................................................. 7 5 Equipment List ............................................................................................................................................. 8 6 Radio Spectrum Technical Requirement .................................................................................................. 9 6.1 RF Exposure ......................................................................................................................................... 9 6.1.1 Test Requirement: ............................................................................................................................ 9 6.1.2 E.U.T. Operation ............................................................................................................................. 10 6.1.3 Measurement Data ......................................................................................................................... 10 7 RF exposure setup Test Setup ................................................................................................................. 12 8 Photographs .............................................................................................................................................. 15 8.1 EUT Constructional Details ................................................................................................................. 15 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228203 Page: 5 of 15 4 General Information 4.1 Details of E.U.T. Power Supply: DC 5/9 V Test Voltage: AC 120 V, 60 Hz powered by DC power refer to section 4.2 Cable: Type C power input ports with unshielded cables (0.5m) Max Internal Source: < 108MHz Operation Frequency: 126.8-147.4 kHz Antenna Type: Inductive Loop Coil Antenna Modulation Type: Load Modulation 4.2 Description of Support Units Description Manufacturer Model No. Serial No. Mobile Phone SAMSUNG GT-9500 RV1D82X8W9X AC/DC Adapter SGS DC 5/9V REF. No.SEA0500 4.3 Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency ±5.5 x 10 -8 2 Duty cycle ±0.57% 3 Occupied Bandwidth ±3% 4 RF Conducted power ±0.68dB 5 RF Power Density ±1.50dB 6 Conducted Spurious Emissions ±1.04dB 7 RF Radiated Power ±4.5dB (below 1GHz) ±4.8dB (above 1GHz) 8 Radiated Spurious Emission Test ±4.5dB (30MHz-1GHz) ±4.8dB (1GHz-18GHz) 9 Temperature ±0.4°C 10 Humidity ±1.3% 11 Supply Voltages ±1.5% 12 Time ±3% 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co.…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228202 Page: 1 of 22 FCC ID: 2AVIA2020UVBOX Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2005012282CR Applicant: Samsung Trading (Shanghai) Co., Ltd. Address of Applicant: China (Shanghai) Pilot Free Trade Zone C Zone the Building of Waigaoqiao Rm.526 Manufacturer: Shenzhen Bifoxs Industrial Design Co., Ltd Address of Manufacturer: 5#, Jianxing Rd., Luozu Community, Shiyan, Baoan District, Shenzhen, 518108, P.R.China Factory: Shenzhen Silver Basis Technology Co., Ltd. Address of Factory: 5#, Jianxing Rd., Luozu Community, Shiyan, Baoan District, Shenzhen, 518108, P.R.China Equipment Under Test (EUT): FCC ID: 2AVIA2020UVBOX EUT Name: IT FIT UV STERILIZER WITH WIRELESS CHARGING Model No.: GP-TOU020SABWW Standard(s) : 47 CFR Part 18 Date of Receipt: 2020-05-12 Date of Test: 2020-05-13 to 2020-05-15 Date of Issue: 2020-05-18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228202 Page: 2 of 22 Revision Record Version Chapter Date Modifier Remark 01 2020-05-18 Original Authorized for issue by: Tested By 2020-05-13 to 2020-05-15 Jackson_Yuan /Project Engineer Date Checked By 2020-05-18 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228202 Page: 3 of 22 2 Test Summary Emission Part Item Standard Method Requirement Result Conducted Emissions at Mains Terminals (150kHz-30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Clause 18.307 (b) Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 18 FCC OST/MP-5:1986 Clause 18.305 (b) Pass Radiated Emissions (Magnetic field Strength) (9kHz-30MHz) 47 CFR Part 18 FCC OST/MP-5:1986 Clause 18.305 (b) Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228202 Page: 4 of 22 3 Contents Page 1 Cover Page ................................................................................................................................................... 1 2 Test Summary .............................................................................................................................................. 3 3 Contents ....................................................................................................................................................... 4 4 General Information .................................................................................................................................... 5 4.1 Details of E.U.T. .................................................................................................................................... 5 4.2 Description of Support Units ................................................................................................................. 5 4.3 Measurement Uncertainty ..................................................................................................................... 5 4.4 Test Location ........................................................................................................................................ 5 4.5 Test Facility ........................................................................................................................................... 6 4.6 Deviation from Standards ..................................................................................................................... 7 4.7 Abnormalities from Standard Conditions .............................................................................................. 7 5 Equipment List ............................................................................................................................................. 8 6 Emission Test Results .............................................................................................................................. 10 6.1 Conducted Emissions at Mains Terminals (150kHz-30MHz) ............................................................. 10 6.1.1 E.U.T. Operation ............................................................................................................................. 10 6.1.2 Test Setup Diagram ........................................................................................................................ 10 6.1.3 Measurement Data ......................................................................................................................... 10 6.2 Radiated Emissions (30MHz-1GHz) ................................................................................................... 13 6.2.1 E.U.T. Operation ............................................................................................................................. 14 6.2.2 Test Setup Diagram ........................................................................................................................ 14 6.2.3 Measurement Data ......................................................................................................................... 14 6.3 Radiated Emissions (Magnetic field Strength) (9kHz-30MHz) ........................................................... 17 6.3.1 E.U.T. Operation ............................................................................................................................. 18 6.3.2 Test Setup Diagram ........................................................................................................................ 18 6.3.3 Measurement Data ......................................................................................................................... 18 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200501228202 Page: 5 of 22 4 General Information 4.1 Details of E.U.T. Power Supply: DC 5/9 V Test Voltage: AC 120 V, 60 Hz powered by DC power refer to section 4.2 Cable: Type C po…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 Conducted Emissions at Mains Terminals (150kHz-30MHz) Test Setup 1.2 Radiated Emissions (30MHz-1GHz) Test Setup 1.3 Radiated Emissions (Magnetic field Strength) (9kHz-30MHz) Test Setup
