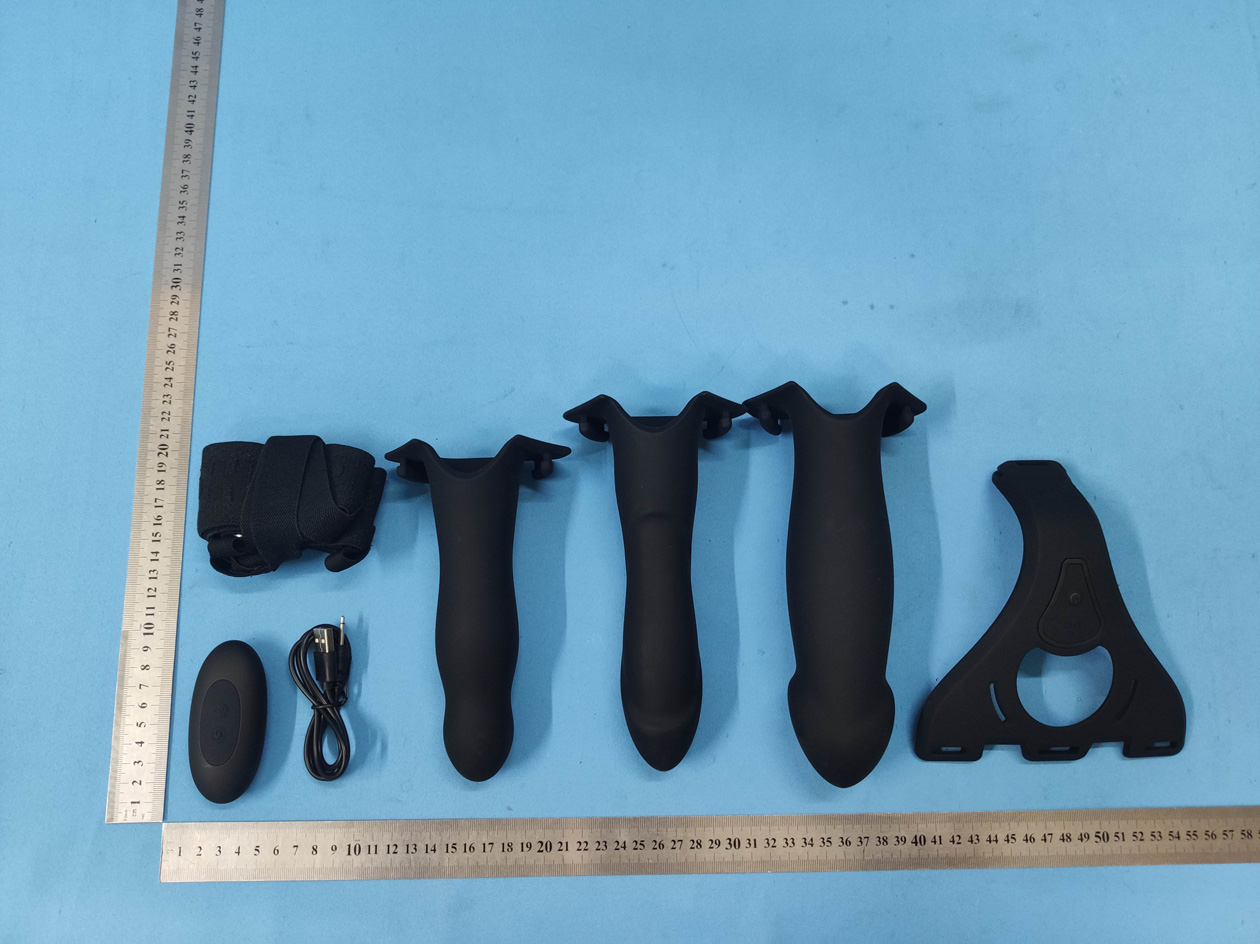

2AVJ9-I-MX-0801-05BODY EXTENSIONS HOLLOW STRAP-ON

Test Model No.: I-MX-0801-05

FCC ID: 2AVJ9-I-MX-0801-05 label location

Test Model No.: I-MX-0801-05

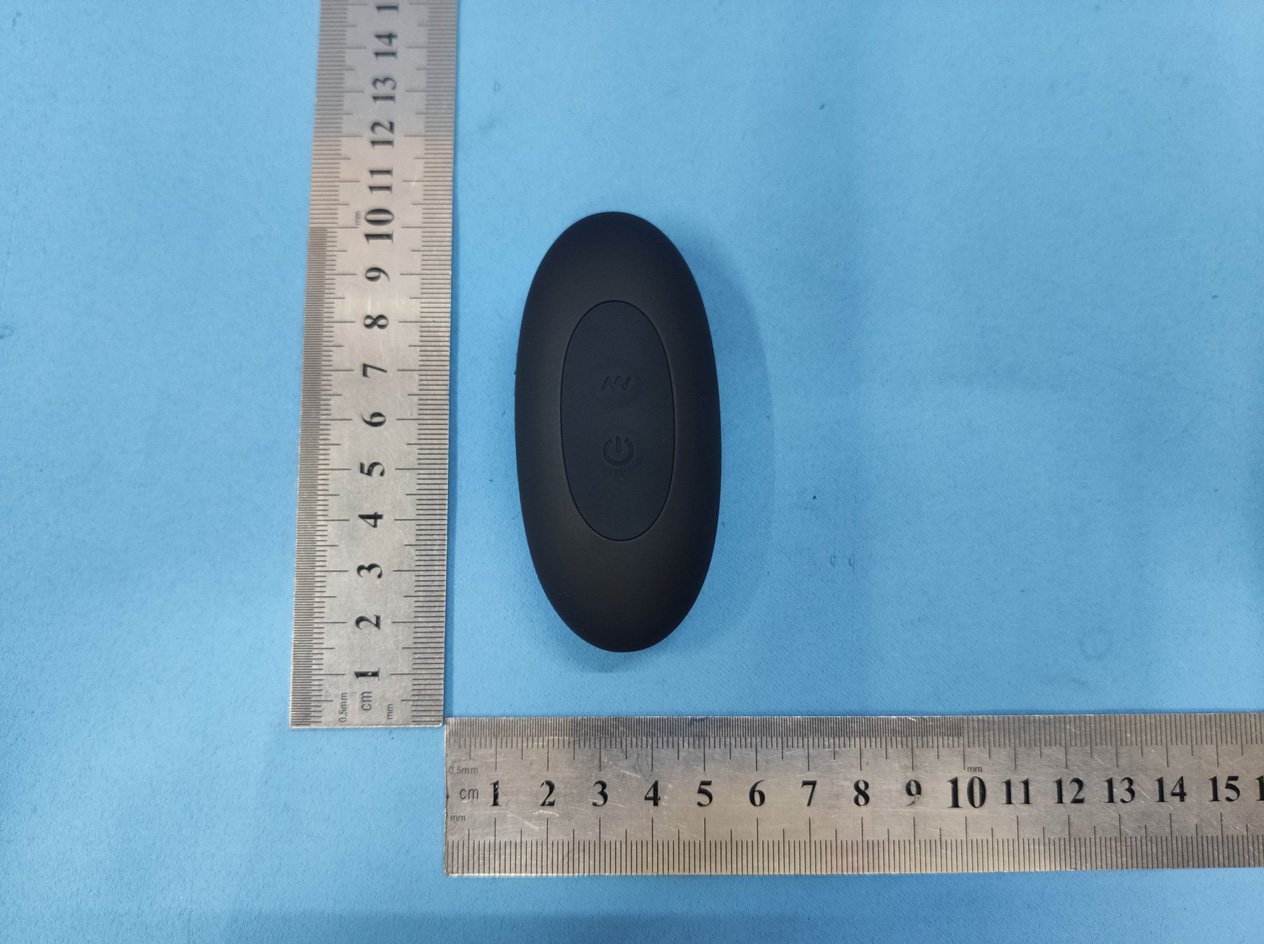

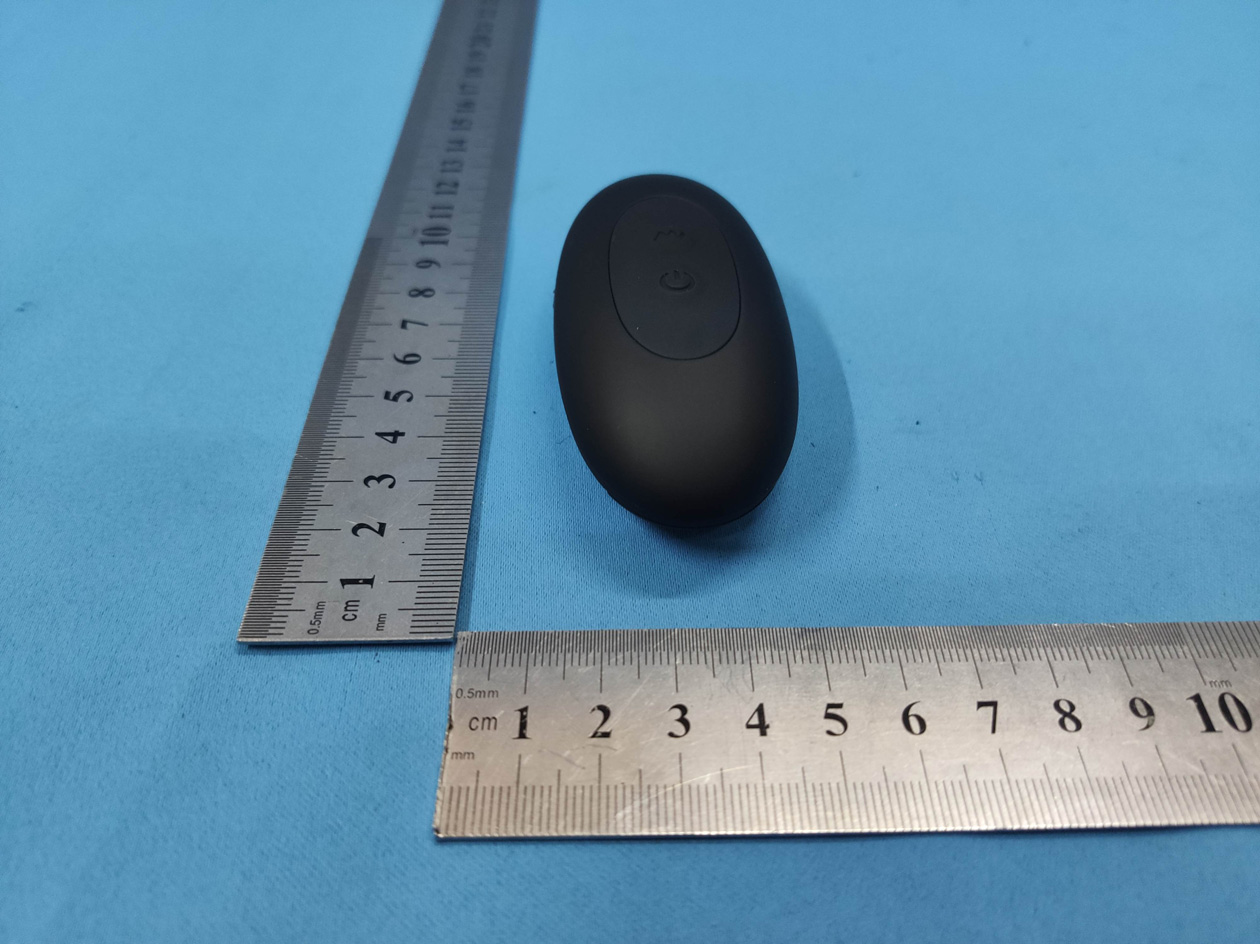

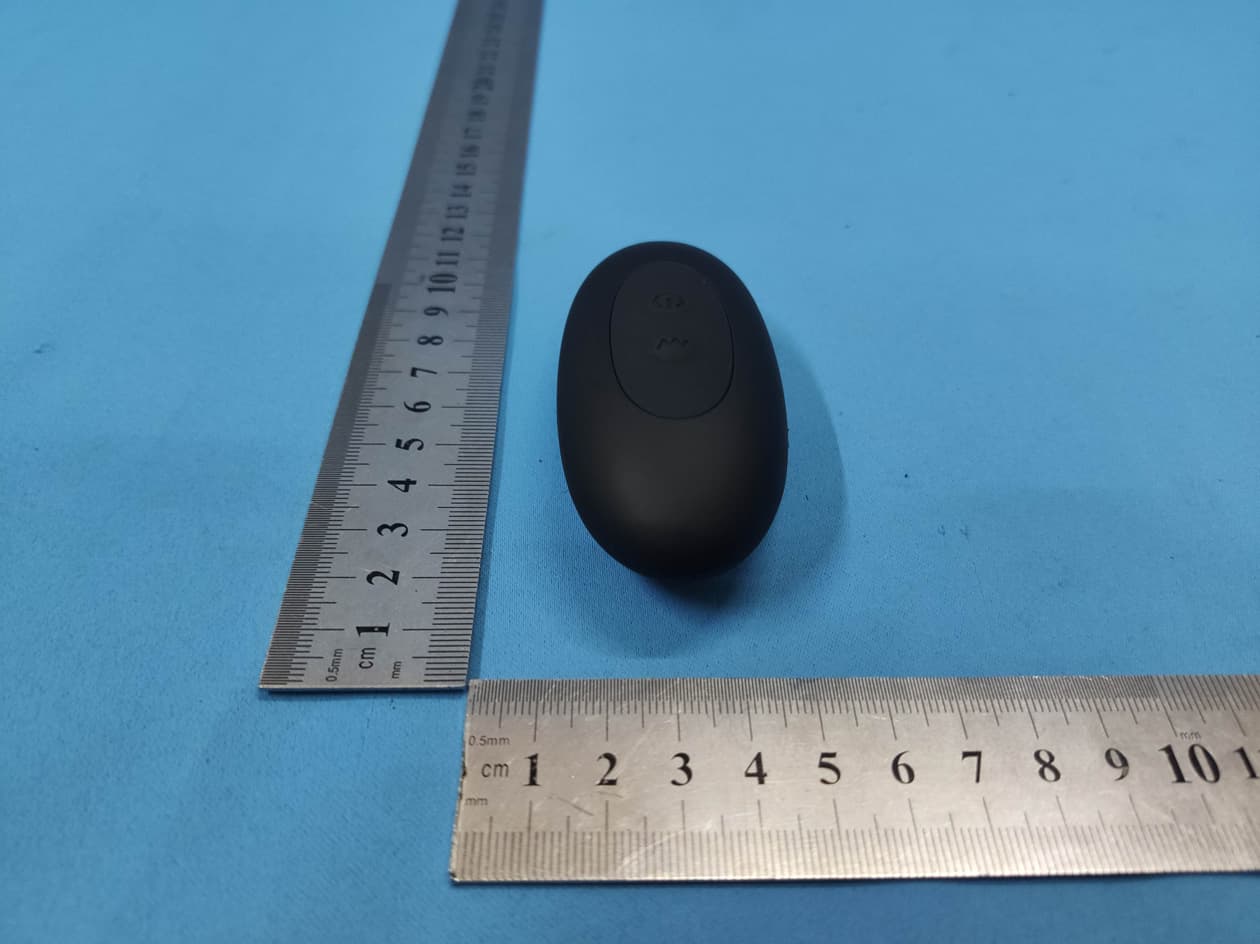

QH08006 Transmitter: The circuit is mainly composed of MCU and wireless RF. The peripheral part of THE MCU circuit is composed of two keys and four LED indicators. The working current of the whole circuit is about 15mA, the static resting current <3uA, and the power supply is powered by 3 V battery, which does not support charging. After the battery is installed, press the switch button of the remote control and the switch will press the bright white light, and the remote control will enter the standby state. When the remote control is in standby or any mode, press the switch and the remote control will be off. Product Name: BODY EXTENSIONS HOLLOW STRAP-ON Model No.: I-MX-0801-05, I-MX-0801-06, I-MX-0801-07, I-MX-0801-08 Operation Frequency: 433.92MHz Modulation technology: ASK Antenna Type: Integral Antenna Antenna gain: 1.8dBi (declare by applicant) Power supply: DC 3.0V(2*1.5V, SIZE“AAA” Battery)

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain=0 dBi ; so Ant numeric gain= 1 Field strength =70.41dBμV/m @3m So Pt={ [10 (70.41/20) /10 6 x3] 2 /30x1}x1000 mW = 0.0033 mW So (0.0033 mW/5mm)x √0.43392 GHz = 0.00 043 < 3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSL202011000234F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 19 Cover Page TEST REPORT Applicant: Doc Johnson Enterprises Address of Applicant: 11933 Vose Street, North Hollywood, CA 91605, United States Manufacturer: Hong Kong Passkey Industry Co. Limited Address of Manufacturer: 2/F, Block 6, Huafeng High Tech Industry Park, Datianyang, Dongfang, Songgang, Bao'An District, Shenzhen, China Equipment Under Test (EUT) Product Name: BODY EXTENSIONS H0LLOW STRAP-ON Model No.: I-MX-0801-05, I-MX-0801-06, I-MX-0801-07, I-MX-0801-08 FCC ID: 2AVJ9-I-MX-0801-05 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of sample receipt: November 20, 2020 Date of Test: November 20-30, 2020 Date of report issued: November 30, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202011000234F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 19 2 Version Version No. Date Description 01 November 30, 2020 Original Prepared By: Date: November 30, 2020 Project Engineer Check By: Date: November 30, 2020 Reviewer Report No.: GTSL202011000234F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 19 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 6 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.4 TEST FACILITY .................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 5.7 ADDITIONAL INSTRUCTIONS ................................................................................................................. 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT ..................................................................................................................... 9 7.2 RADIATED EMISSION METHOD ........................................................................................................... 10 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 12 7.2.2 Spurious Emissions ................................................................................................................... 13 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 17 7.4 DWELL TIME ..................................................................................................................................... 18 8 TEST SETUP PHOTO ............................................................................................................................ 19 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 19 Report No.: GTSL202011000234F01 Global United Technology Services Co., Ltd. No.123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 19 4 Test Summary Test Item Section in CFR 47 Result Antenna Requirement 15.203 Pass Conduction Emission 15.207 N/A Field strength of the Fundamental Signal 15.231 (b) Pass Spurious Emissions 15.231 (b)/15.209 Pass 20dB Bandwidth 15.231 (c) Pass Dwell Time 15.231 (a)1 Pass Pass: The EUT complies with the essential requirements in the standard. N/A: Not applicable. 4.1 Measurement Uncertainty Test Item Frequenc…

Text truncated - open the document above for the full version.

Test Model No.: I-MX-0801-05 Radiated Emission for part 15c
