FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

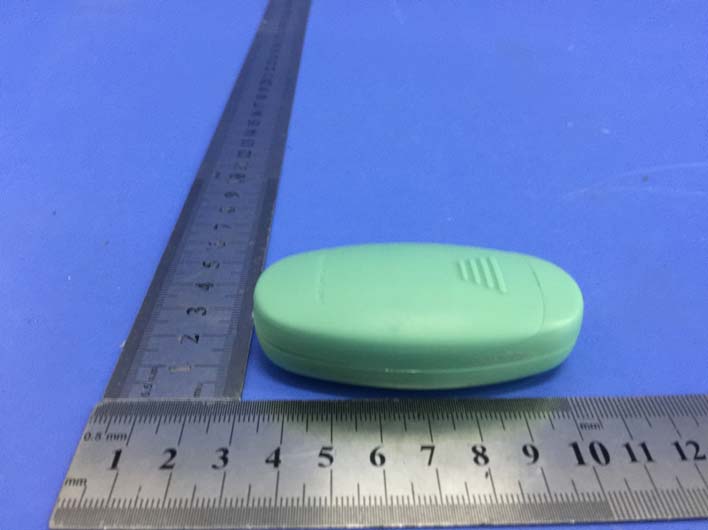

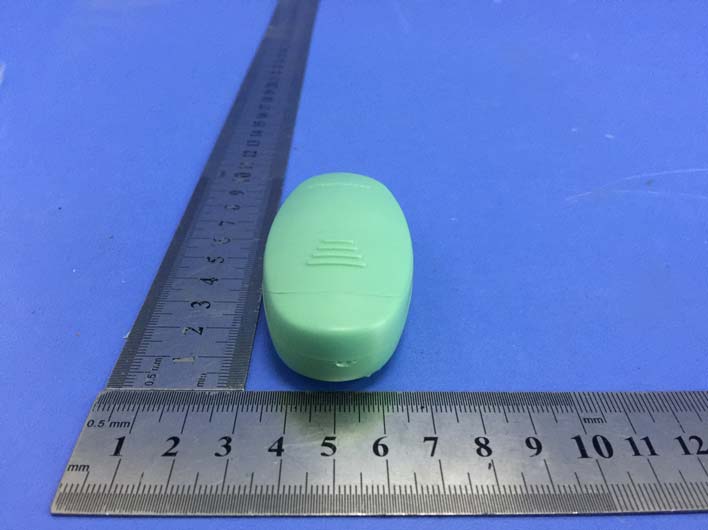

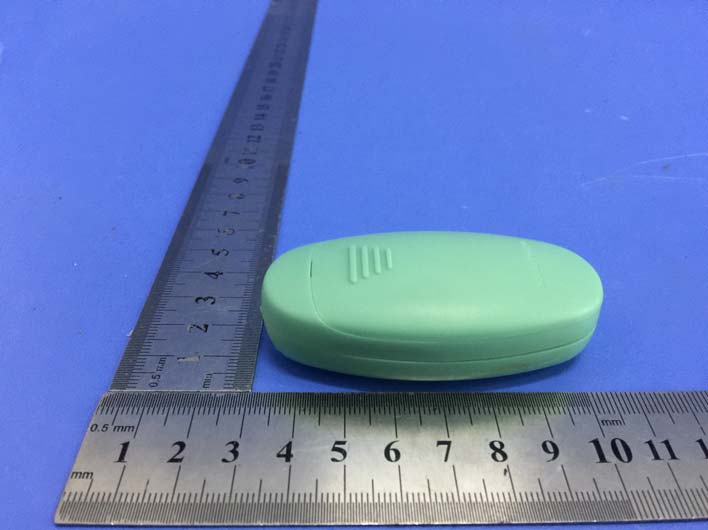

Report No.: TB-FCC172585 Page: 3 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC172585 Page: 4 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC172585 Page: 5 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC172585 Page: 1 of 8 FCC ID:2AVJ9-TRYSTV2 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AVJ9-TRYSTV2 Model: I-MX-0990-16 30mm 10mm Report No.: TB-FCC172585 Page: 2 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC172585 Page: 6 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Appearance of PCB Report No.: TB-FCC172585 Page: 7 of 8 FCC ID: 2AVJ9-TRYSTV2 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB 433MHz antenna

version01 Doc johnson Enterprises Declaration concerning Antenna Specification It is hereby declared that the product Model No.: I-MX-0990-16, I-MX-0990-17, I-MX-0990-15 FCC ID: 2AVJ9-TRYSTV2 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 433.92 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Doc johnson Enterprises Address: 11933 Vose Street, North Hollywood, CA 91605 City: North Hollywood ZIP / Postal code: 91605 Country: United States Place: Paul Garrido / Compliance Administrator Date: 2020-04-27 Signature:

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE172586 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AVJ9-TRYSTV2 1. Client Information Applicant : Doc johnson Enterprises Address : 11933 Vose Street, North Hollywood, CA 91605 Manufacturer : Odeco Ltd. Address : 2F, Block 7th YuSheng Industrial Zone, Xixiang, Bao'an District, Shenzhen, China 2. General Description of EUT EUT Name : TRYST 2.0 Models No. : I-MX-0990-16, I-MX-0990-17, I-MX-0990-15 Model Difference : All these models are in the same PCB, layout and electrical circuit, the only difference is appearance color. Product Description : Operation Frequency: 433.92 MHz Max. Output Power: 59.93dBuV/m(-35.32dBm)( 0.00029mW) Antenna Gain: PCB Antenna(0 dBi) Modulation Type: ASK Power Rating : DC 1.5V AAA battery Software Version : 041772 Hardware Version : PCB-2197MG A1 Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE172586 Page: 2 of 3 TB-RF-074-1.0 Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance V6, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: TB-MPE172586 Page: 3 of 3 TB-RF-074-1.0 Measurement Result: Test separation: 5mm Frequency (GHz) Max. E (dBuV/m) D (m) Max Output power (dBm) Max Output power (mW) Calculation Value (Note 1) Threshold Value 433.92 59.93 3 -35.33 0.0003 0.00004 3.0 Note: EIRP=E-104.8+20logD Note 1: Calculation Value =[(max. power of channel, mW)/(min.test separation distance, mm)] ·[√f(GHz)]. According to KDB447498 D01 V6, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. Standard Applicable According to 2.1093 this is a portable device. According to KDB 447498 D01 V6, Appendix A SAR test exclusion thresholds for below table, the power level 22mW at 5mm. Measurement Result: This is a portable device and the Max. peak output power is -35.32dBm(0.00029mW) lower than low threshold 22mW at 5mm in general population category; The SAR measurement is not necessary. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC172585 Page: 1 of 28 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AVJ9-TRYSTV2 Report No. : TB-FCC172585 Applicant : Doc johnson Enterprises Equipment Under Test (EUT) EUT Name : TRYST 2.0 Model No. : I-MX-0990-16 Serial No. : I-MX-0990-17, I-MX-0990-15 Brand Name : Doc johnson Receipt Date : 2020-04-20 Test Date : 2020-04-21 to 2020-04-27 Issue Date : 2020-04-27 Standards : FCC Part 15, Subpart C (15.231(a)) Test Method : ANSI C63.10:2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Jack Deng Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC172585 Page: 2 of 28 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. TEST SOFTWARE ..................................................................................................................... 8 4. TEST EQUIPMENT .................................................................................................................... 9 5. CONDUCTED EMISSION TEST ........................................................................................... 10 5.1 Test Standard and Limit .................................................................................................... 10 5.2 Test Setup ........................................................................................................................... 10 5.3 Test Procedure ................................................................................................................... 11 5.4 Deviation From Test Standard ......................................................................................... 11 5.5 Test Data ............................................................................................................................. 11 6. RADIATED EMISSION TEST ................................................................................................ 12 6.1 Test Standard and Limit .................................................................................................... 12 6.2 Test Setup ........................................................................................................................... 13 6.3 Test Procedure ................................................................................................................... 15 6.4 Deviation From Test Standard ......................................................................................... 15 6.5 EUT Operating Condition ................................................................................................. 15 6.6 Test Data ............................................................................................................................. 15 7. BANDWIDTH ............................................................................................................................ 16 7.1 Test Standard and Limit .................................................................................................... 16 7.2 Test Setup ........................................................................................................................... 16 7.3 Test Procedure ................................................................................................................... 16 7.4 Deviation From Test Standard ......................................................................................... 16 7.5 EUT Operating Condition ................................................................................................. 16 7.6 Test Data ............................................................................................................................. 16 8. RELEASE TIME MEASUREMENT ....................................................................................... 17 8.1 Test Standard and Limit .................................................................................................... 17 8.2 Test Setup ........................................................................................................................... 17 8.3 Test Procedure ................................................................................................................... 17 8.4 Deviation From Test Standard ..........................................…
