2AVMZ-W08White Noise Machine

W08 User Manual Please email our friendly after-sale team at: [email protected] If faulty product is found when setting up Thank you for purchasing on YORTOTPlease read these instructions carefully and keep the user manual in safe place for future reference. What included 1 White Noise Machine 1 AC/DC Adaptor 1 USB Charging cable 3 AA Batteries sold separately AC100-240V, 50/60Hz. Output: 5V/1A, Class 2. Power Specifications • 10 Nature Sounds • 5 White Noises • 5 Fan Sounds • Sleep Timer • 7 Color Night Lights • 5 Level Dimmer • 1-16 Level Adjustable Volume • Support Outlet And Battery Power Features 1 Power On/Off (Sleep Timer) Nature Sound White NoiseFan Sound DimmerNight Light Volume -Volume + Front View 2 3 Bottom View DC5V MADE IN CHINA : 5V 1A YORTOT White Noise Machine Model : W08 Input : 100-240V Power Connector Battery Compartment (3* AA Batteries) 4 Getting Started Short Press the “ ” button to turn it on, the machine begin to play sound. Long Press the “ ” button to turn sound off. Sleep Timer When machine is on, press repeatedly the “ ” button to select a sleep timer ranging from 0.5H, 1H, 2H, 3H to enter sleep mode. The led light of the selected timer will light up accordingly. If you want to leave your machine on all night, please press the “ ” button until there is no led light on. When you use the timer, the sound and light will turn off once preset sleep time comes. Use The Timer 5 Pick a sound 1. 2. 1. 2. 1. 2. Press the “ ” button to switch among all of 5 white noises sounds in sequence. Long press the “ ” button to turn off white noise. Press the “ ” button to switch among all of 5 fan sounds in sequence. Long press the “ ” button to turn off fan sound. Press the “ ” button to switch among all of 10 nature sounds in sequence. Long press the “ ” button to turn off nature sound. 6 Gentle Waves Lullaby Ocean Waves Rain Thunderstorm Brook Shushing Bird Summer Night Campfire White Noises 1 White Noises 2 White Noises 3 White Noises 4 White Noises 5 Fan Sounds 1 Fan Sounds 2 Fan Sounds 3 Fan Sounds 4 Fan Sounds 5 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 1 2 3 4 5 Here id the list of track White Noises Nature Sounds Fan Sounds Volume Adjustment Press the “ ” button to decrease the volume and “ ” button to increase the volume maximum level, you will hear a short beep. Night Light Brightness of Night Light Adjustment 7 Press the “ ” button to select which color night light you like. Long press the “ ” button to turn off night light. Press the “ ” button to select which one Bright- ness you want. 8 Battery Operated Setting Install 3* AA batteries into battery compartment NOTICE: In Battery Operated Mode, machine has all functions. But the battery drains fast, we recommend using Outlet Operated Mode. Support The White Noise Machine comes with one year warranty. If you have any issue with this White Noise Machine, please contact us at [email protected]. We will address your issue within 24 hours. FCCRequirement Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser ’ sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy,andifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCConfidentialityv02Page1of1 DONGGUANSHUNLANGELECTRONICSCO.,LTD FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AVMZ-W08 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequest confidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName 1.BlockDiagram, 2.Schematics, 3.OperationalDescription 1.2AVMZ-W08-Blockdiagram 2.2AVMZ-W08-SCH 3.2AVMZ-W08-Operationaldescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateofthe Grantforthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealso requesttemporaryconfidentialtreatmentofinformationaccompanyingthisapplication asoutlinedbelowforaninitialperiodofxxxx(ie-“45”,“90”or“180”)days: ExhibitTypeFileName N/AN/A Signature: Contactname:GancongHe Companyname:DONGGUANSHUNLANGELECTRONICSCO.,LTD Address: Floor5,Building2,ShenxiangIndustrialPark,DabandiCuntouCommunity,Humentown, Dongguan,China

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCAuthorizationv02Page1of1 DONGGUANSHUNLANGELECTRONICSCO.,LTD FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2022-12-29 SUBJECT:FCCApplicationfor(FCCID:2AVMZ-W08) ToWhomItMayConcern: We,theundersigned,herebyauthorizeYoyoZhouin ShenzhenHuaxiaTesting TechnologyCo.,Ltdat1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad, DalangStreet,LonghuaDistrict,Shenzhen,Chinaonourbehalf,toapplytotheFederal CommunicationsCommissiononourequipment.Anyandallactscarriedoutby ShenzhenHuaxiaTestingTechnologyCo.,Ltd onourbehalfshallhavethesame effectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We, theapplicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection 5301oftheAnti-DrugActof1988,21USC853a,andnopartytotheapplicationis subjecttoadenialoffederalbenefitspursuanttothatsection. Sincerely, (MustbesignedbythepersonthatislistedontheFCCWebsite) Signature: Contactname:GancongHe Companyname:DONGGUANSHUNLANGELECTRONICSCO.,LTD Address:Floor5,Building2,ShenxiangIndustrialPark,DabandiCuntouCommunity,Humentown, Dongguan,China

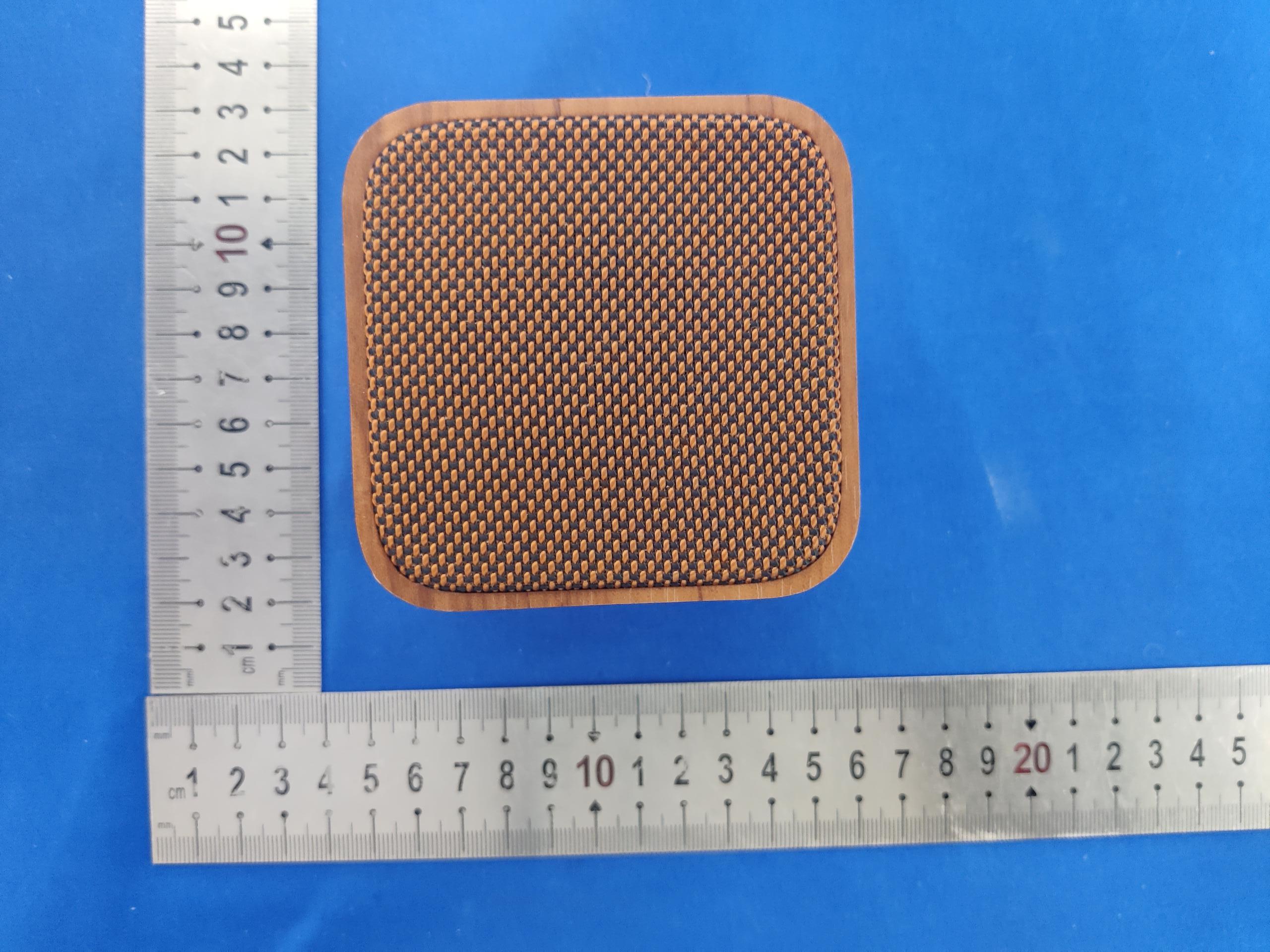

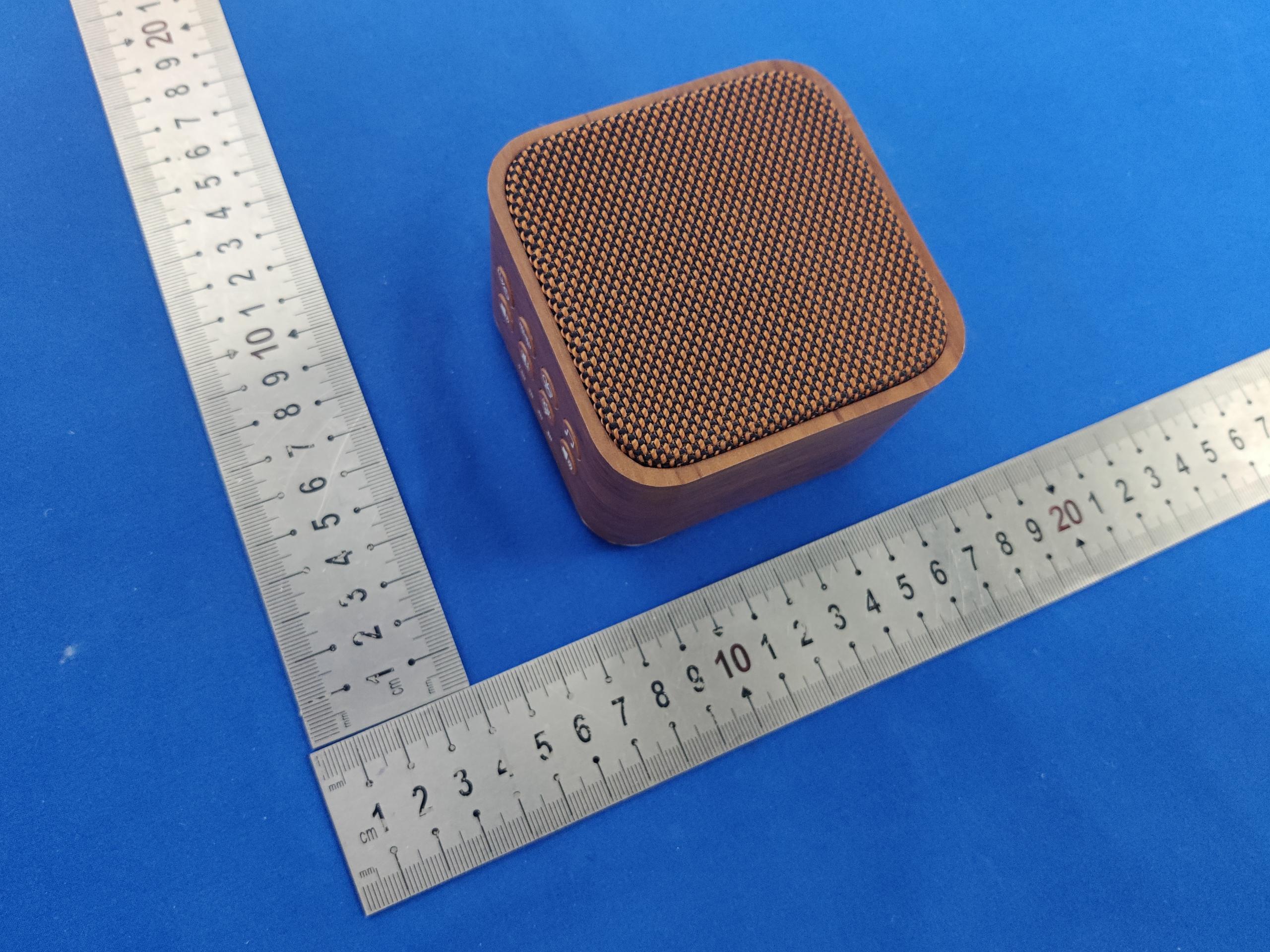

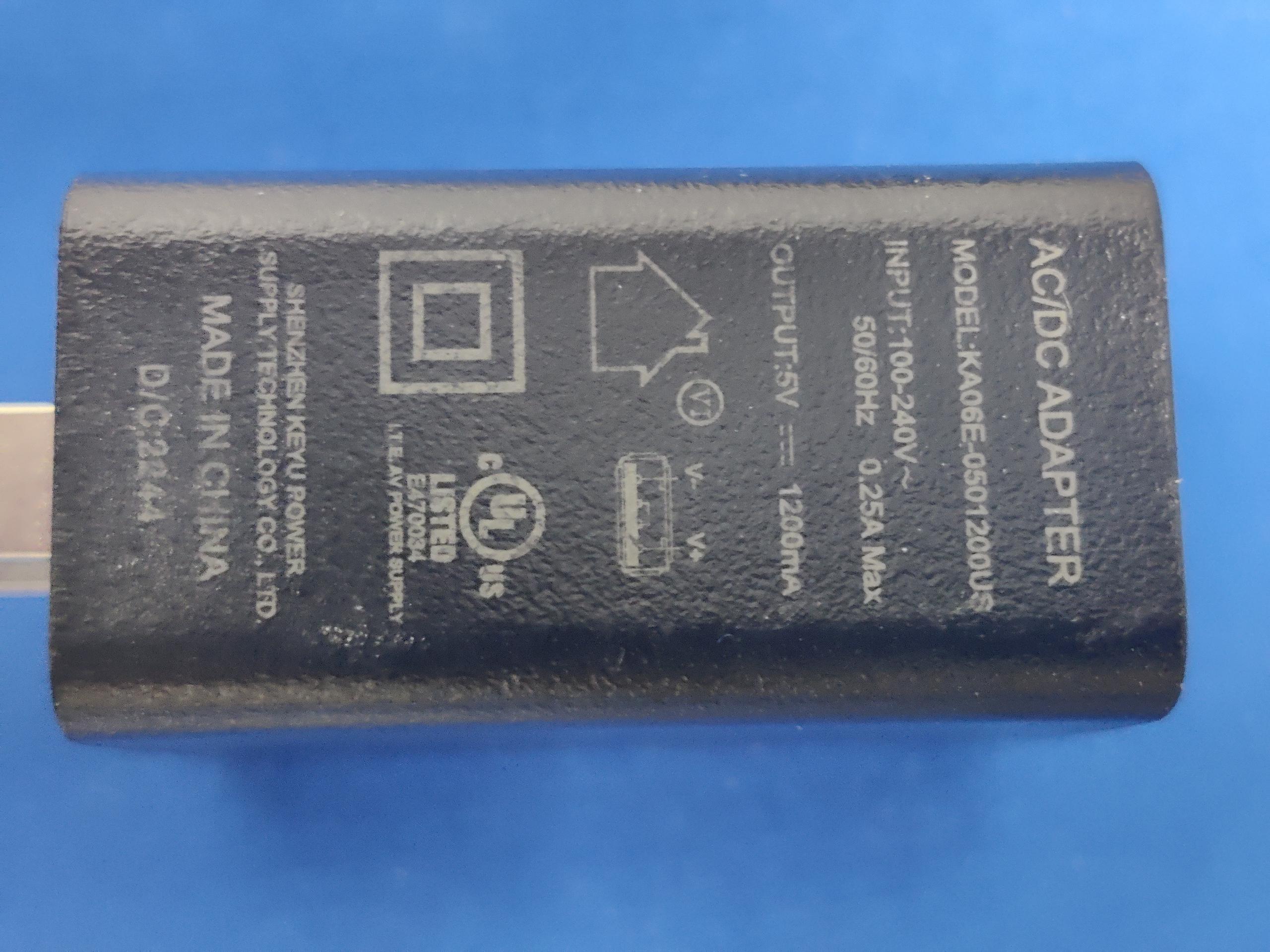

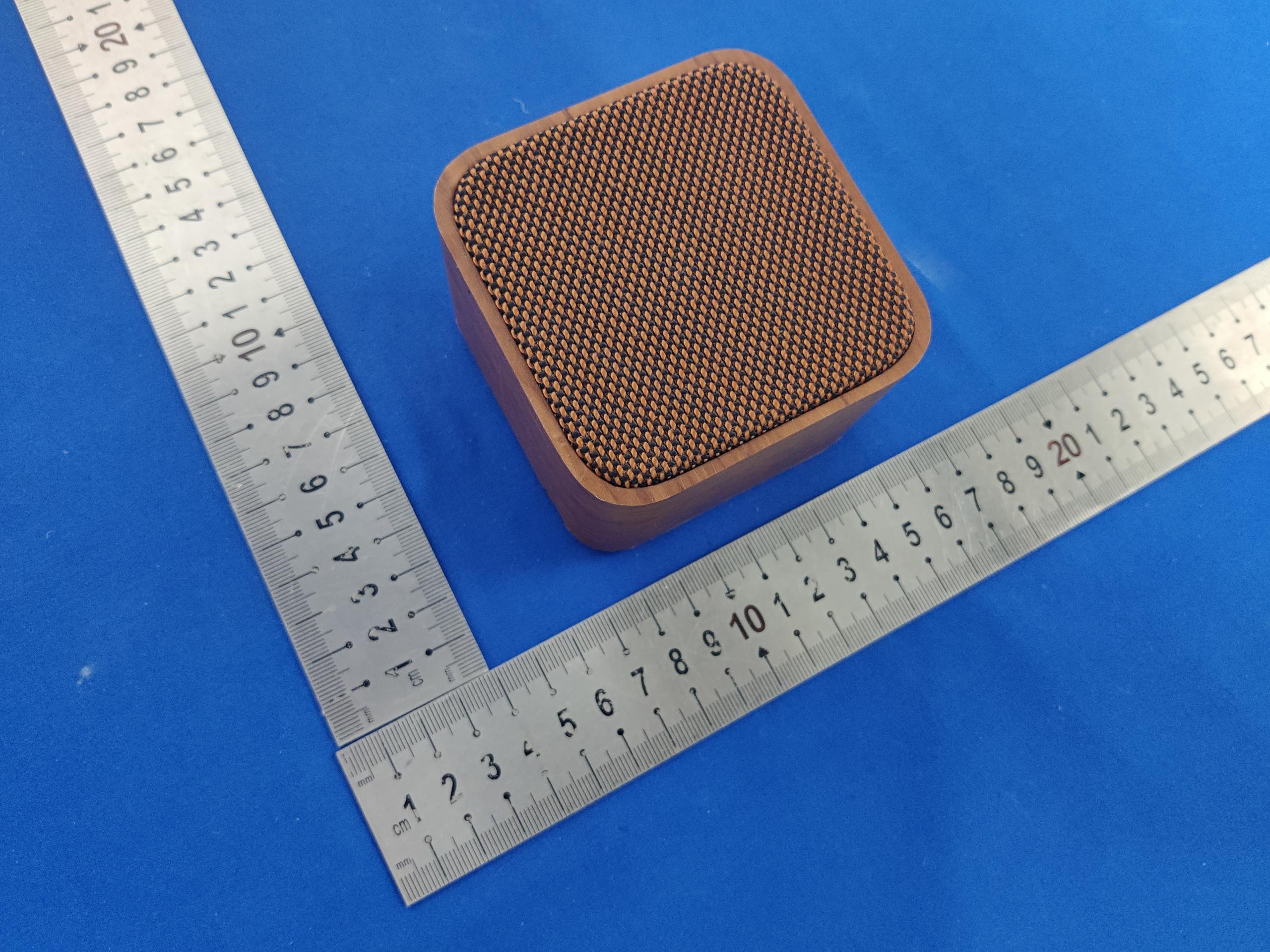

Externalphotos

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TESTREPORT Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothe sample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20221202100E Applicant:DongguanShunlangElectronicsCompanyLimited AddressofApplicant: Floor5，Building2ShenxiangIndustrialPark,DabandiCuntouCommunityHumen town,DongguanChina EquipmentUnderTest(EUT): EUTName:WhiteNoiseMachine ModelNo.:W08 TestModelNo.: W08 BrandName:YORTOT FCCID:2AVMZ-W08 Standards:47CFRPart15,SubpartB,ClassB DateofReceipt:2022-12-15 DateofTest:2022-12-15to2022-12-29 DateofIssue: 2023-1-3 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (JoeWang) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:2of24 1Version RevisionHistoryofReport ReportNo.Version Description IssueDate CQASZ20221202100ERev.01 Initialreport 2023-1-3 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:3of24 2TestSummary TestItemTestRequirementTestmethodResult RadiatedEmission47CFRPart15BANSIC63.4-2014PASS ConductedEmission (150kHzto30MHz) 47CFRPart15BANSIC63.4-2014PASS Highestfrequencygeneratedorusedinthedevice oronwhichthedeviceoperatesortunes (MHz) UpperfrequencyofmeasurementRange (MHz) Below1.70530 1.705to1081000 108to5002000 500to10005000 Above10005thharmonicofthehighestfrequencyor40GHz, whicheverislower ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:4of24 3Contents Page 1VERSION...............................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................3 3CONTENTS...........................................................................................................................................................................4 4GENERALINFORMATION.................................................................................................................................................5 4.1CLIENTINFORMATION......................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT......................................................................................................................................5 4.3TESTENVIRONMENTANDMODE......................................................................................................................................6 4.4DESCRIPTIONOFSUPPORTUNITS.....................................................................................................................................6 4.5TESTLOCATION................................................................................................................................................................6 4.6DEVIATIONFROMSTANDARDS.........................................................................................................................................6 4.7ABNORMALITIESFROMSTANDARDCONDITIONS.............................................................................................................6 4.8OTHERINFORMATIONREQUESTEDBYTHECUSTOMER...................................................................................................6 4.9MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)...................................................................................7 5EQUIPMENTLIST................................................................................................................................................................8 6TESTRESULTSANDMEASUREMENTDATA.............................................................................................................9 6.1CONDUCTEDEMISSIONS...................................................................................................................................................9 6.2RADIATEDEMISSION.......................................................................................................................................................13 APPENDIX1PHOTOGRAPHSOFTESTSETUP..........................................................................................................17 APPENDIX2PHOTOGRAPHSOFEUT...........................................................................................................................18 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:5of24 4GeneralInformation 4.1ClientInformation Applicant: DongguanShunlangElectronicsCompanyLimited AddressofApplicant: Floor5，Building2ShenxiangIndustrialPark,DabandiCuntouCommunity Humentown,DongguanChina Manufacturer: DongguanShunlangElectronicsCompanyLimited AddressofManufacturer: Floor5，Building2ShenxiangIndustrialPark,DabandiCuntouCommunity Humentown,DongguanChina Factory:DongguanShunlangElectronicsCompanyLimited AddressofFactory: Floor5，Building2ShenxiangIndustrialPark,DabandiCuntouCommunity Humentown,DongguanChina 4.2GeneralDescriptionofEUT ProductName: WhiteNoiseMachine ModelNo.: W08 TestModelNo.: W08 TradeMark: YORTOT EUTPowerSupply:Adapter:AC120-240V,60Hz,DC5V,1AAAAbatteryDC1.5V*3 TestMode: NormalworkingKeeptheEUTinNormalworking ChargingmodeKeeptheEUTinChargingmode ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:6of24 4.3TestEnvironmentandMode OperatingEnvironment: RadiatedEmission Temperature: 25.5  C Humidity:53%RH AtmosphericPressure:1009mbar ConductedEmissio…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:20of24 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:21of24 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:22of24 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:23of24 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20221202100E Page:24of24 ***ENDOFREPORT***

APPENDIX1PHOTOGRAPHSOFTESTSETUP RadiatedemissionTestSetup(30MHz ～ 1GHz) ConductedEmissionsTestSetup
