2AVRV100123973Rugged Mini-Speaker

100123973 Rugged Mini-Speaker Press and hold to turn the speaker on/off. Press to show current battery level. Press to pause/play the current track. Press to accept an incoming call. Press again to hang up. Press and hold to reject an incoming call. Press to turn up the volume. Press and hold to go to next song. Press to turn down the volume. Press and hold to go to previous song. Press to switch between AUX/FM/Bluetooth® modes. Power Button Multi-function Button Volume Up/Next Button Volume Down/Previous Button Bluetooth® Button BATTERY INDICATOR MICROPHONE CHARGING PORT AUX IN STATUS LIGHT STRAP BUTTONS CHARGING PORT Plug the included USB-C cable into the speaker’s charging adapter (sold separately). Allow approximately 3 hours to fu lly charge the battery. Note: We recommend using a USB wall adapter with a 5V output. Press the Power button to check current battery level. ButtonsCharging Your DeviceInitial Setup 1. Once your device is fu lly charged, press and hold the Power button until you hear a prompt indicating the de- vice has entered Bluetooth® pairing mode. - tooth® device named “onn. bts mini spkr” and tap to connect. 3. A prompt will play once pairing is successful. Bluetooth onn. bts mini spkr On Available Devices allows you to play music on two of these mini-speakers simultaneously, creating a surround sound experience. 1. Press and hold the Power button on both speakers to turn them on and enter Bluetooth® Pairing Mode. - tooth® device named “onn. bts mini spkr” and tap to connect to one of the speakers. 3. Press and hold the Bluetooth® button on the speaker 4. You will hear a sound prompt while the speakers are pairing. The st atus light will illuminate on both speakers once connected. QUICK START GUIDE Overview PMS 2728CPMS 285C Black PMS 2728CPMS 285C Black Connect your external device to the AUX input on the side of the speaker via AUX cable (sold separately) to audio from your device. Press the Bluetooth® button to exit AUX mode. NOTE: An AUX cable (sold separately) must be connect- ed to detect AUX mode. 1. Switch to FM Radio mode by pressing the Bluetooth® button. 2. Press and hold the Multi-fu nction button to auto- matically scan for radio st ations. Press and hold the Multi-fu nction button again to remain on a selected channel. 3. To manually scan for radio st ations, press and hold the Previous and Next buttons. mode to use it as an external antenna and improve signal. AUX IN FM Radio Mode AUX Mode Press once to decrease volume Volume Down/Previous Button Press once to increase volume Press to accept an incoming call. Press again to hang up. Press and hold to reject an incoming call. Volume Up/Next Button Multi-function Button Hands-Free Calling Controls If your speaker is not operating properly, you may reset it. To do so, press and hold the Power button for approx- imately 8 seconds until the speaker powers off, and then power it on again as usual. Reset Speaker Output Power 3W RMS Bl uetooth® Speaker Frequency Res ponse 150 Hz ~ 16000 Hz Batter y Built -in rechargeable Batter y Life Up to 13 Hours* *Battery life measured as number of playtime hours with volume set at 50%. **Can pair with another onn.™ Rugged Mini- Speaker. Will NOT pair with the onn.™ Mini Rugged Speaker series #100081667 IPX5 Water-resistant, rainpr oof, spr aypr oof, and splashproof Modes Bluetooth® Mode AUX Mode FM Radio Mode Range 33 ft (10m) Input AUX USB C Specs - ation is subject to the following two conditi ons: - Caution Changes or modifications to this product not expressly void the user’s authority to operate the equipment. This equipment has been test ed and found to comply with of the FCC Rules. These limits are designed to provide residential inst allation. This equipment generates, uses and can radiate radio frequency energy and, if not inst alled and used in accordance with the inst ru ctions, may cause FCC Warning - be determined by turning the equipment off and on, the one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV techni- cian for help. This device has been evaluated to meet general RF ex- exposure conditi ons without rest riction. FCC ID: 2AVRV100123973 FCC Warning (Continued) 1-888-516-2630 7 DAYS/WEEK 7:00am- 9:00pm CST SAVE THIS USER GUIDEHAVING TROUBLE? WE CAN HELP Read entire user guide before use FRONT BACK Filename: WM_ONN_DP Audio_100123973_BTS Mini Speaker_OPT03_QSG_C Date: 30 Dec 2022 Stock: 157g C2S Size: 22.75" x 4.48" 3.792" 96.31mm 3.792" 96.31mm 3.792" 96.31mm 3.792" 96.31mm 3.792" 96.31mm 3.792" 96.31mm 4.48" 113.79mm 22.75" 577.85mm DP Audio 100123973 BTS Mini Speaker OPT03_QSG 12/30/2022 Glue area Outside Bleed Copy safe area Fold line Cut line WM_ONN This document is intended only for use as a reference for the individual or entity to which it is being presented and may contain information which is privileged and confidential. No reproduction or distribution is permitted without the consent of r-pac International Corporation.

DP AUDIO VIDEO LLC Model Difference Product description: Rugged Mini-Speaker Model name: 100123973 AATLSA100123973, AAPKFL100123973, AALVSK100123973 Trade Name: onn. FCC ID: 2AVRV100123973 All the model are the same circuit and RF module, except model names, appearance colour and amplifier IC. The first kind of amplifier IC: Manufacturer: CHIPSTAR MICRO-ELECTRONICS Model: CS5250 Specification:ESOP10 The second kind of amplifier IC: Manufacturer: LTKCHIP Model: LTK5313 Specification:ESOP10 The first kind of audio amplifier IC: DP AUDIO VIDEO LLC The second kind of audio amplifier IC: Regards Sincerely Client’s signature: Client’s name / title : Roy Ryan/Manager Contact information / address: 920 Malcolm Ave Los Angeles, California, USA 90024

DP AUDIO VIDEO LLC 2023.01.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Rugged Mini-Speaker Trademark: onn. MODEL : 100123973 AATLSA100123973, AAPKFL100123973, AALVSK100123973 FCC ID: 2AVRV100123973 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Roy Ryan/Manager Contact information / address: 920 Malcolm Ave Los Angeles, California, USA 90024

DP AUDIO VIDEO LLC 2023.01.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Roy Ryan/Manager Contact information / address: 920 Malcolm Ave Los Angeles, California, USA 90024

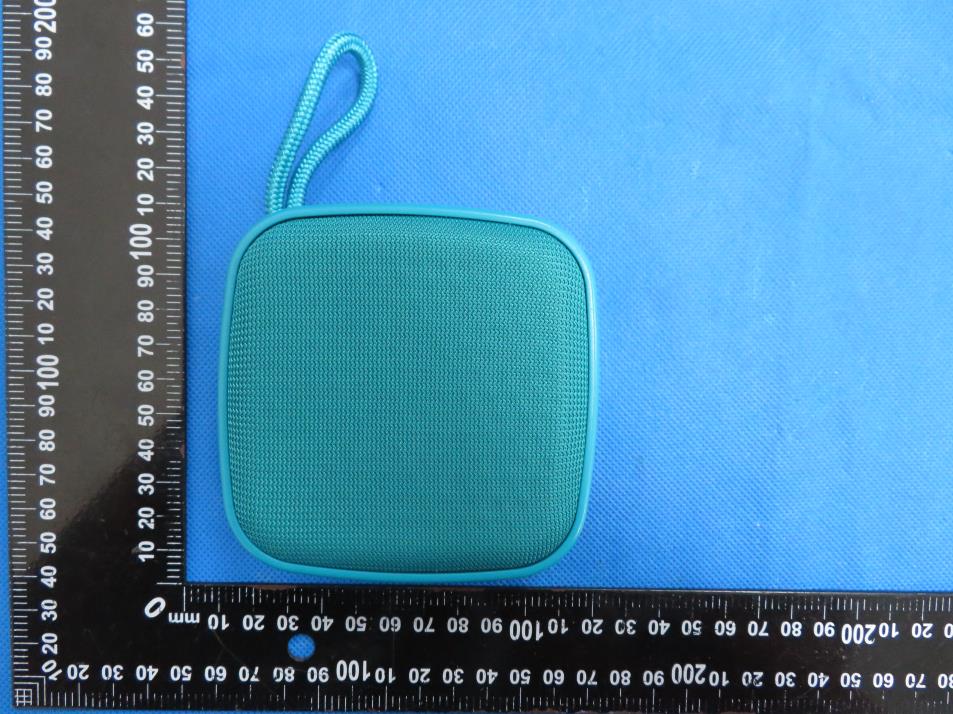

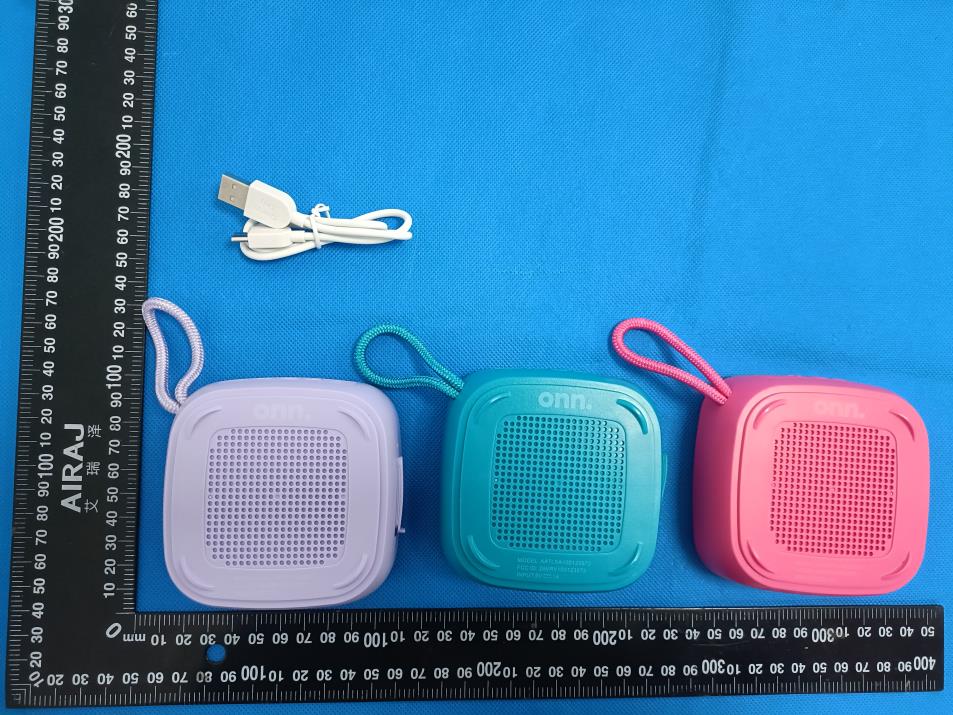

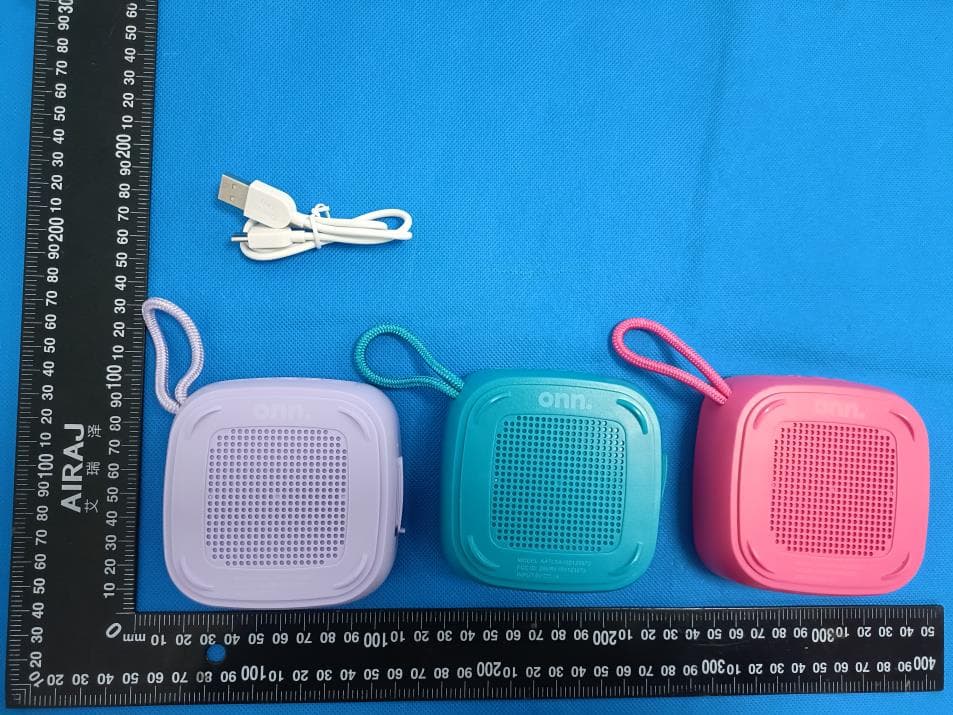

External Photos

6.152 mm 22.00 mm MODEL: 100123973 FCC ID: 2AVRV100123973 INPUT:5V 1A

Internal Photos The first kind of audio amplifier IC: The second kind of audio amplifier IC: Antenna Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AVRV100123973 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT GFSK Low -3.73 21 GFSK Middle -3.59 21 GFSK High -3.64 21 π/4DQPSK Low -2.91 21 π/4DQPSK Middle -2.74 21 π/4DQPSK High -2.82 21 8DPSK Low -2.3 21 8DPSK Middle -2.16 21 8DPSK High -2.25 21 max possible output power (PK,conducted)：-2±1dBm -0.68dBi logarithmic terms convert to numeric result is nearly 0.855 -1dBm=0.79mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.402=0.25≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.440=0.25≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.48=0.25≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address 333 Nanqin Road, Xiangzhou District, Zhuhai City, Guangdong Province Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

No.：BCTC/RF-EMC-005 Page 1 of 91 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2211195345E Applicant: DP AUDIO VIDEO LLC Product Name: Rugged Mini-Speaker Model/Type Ref.: 100123973 Tested Date: 2022-11-10 to 2022-12-05 Issued Date: 2022-12-06 Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 2 of 91 Edition：A.5 FCC ID:2AVRV100123973 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Rugged Mini-Speaker Trademark: onn. Model/Type Ref.: 100123973 AATLSA100123973, AAPKFL100123973, AALVSK100123973 Prepared For: DP AUDIO VIDEO LLC Address: 920 Malcolm Ave Los Angeles, California, USA 90024 Manufacturer: SHENZHEN CITY ENKOR ELECTRONICS LTD. Address: The 101, 201, 301 of Building 1 , building 3, Plant No.4, Tianyang Third Road, Dongfang Community, Songgang Street, Bao'an District, Shenzhen City Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-11-10 Sample tested Date: 2022-11-10 to 2022-12-05 Issue Date: 2022-12-06 Report No.: BCTC2211195345E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 3 of 91 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 8 4. Product Information And Test Setup ..................................................................... 9 4.1 Product Information ............................................................................................... 9 4.2 Test Setup Configuration ...................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 18 7.1 Block Diagram Of Test Setup .............................................................................. 18 7.2 Limit .................................................................................................................... 19 7.3 Test Procedure ................................................................................................... 20 7.4 EUT Operating Conditions .................................................................................. 21 7.5 Test Result .......................................................................................................... 21 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test Procedure ................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Conducted Emission ........................................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit .................................................................................................................... 30 9.3 Test Procedure ................................................................................................... 30 9.4 Test Result .......................................................................................................... 31 10. 20 DB Bandwidth ..............................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 47 of 91 Edition：A.5 Band Edge(Hopping) NVNT 1-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 1-DH1 2480MHz Hopping Emission Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 48 of 91 Edition：A.5 Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2402MHz Hopping Emission Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 49 of 91 Edition：A.5 Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2480MHz Hopping Emission Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 50 of 91 Edition：A.5 Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Hopping Emission Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 51 of 91 Edition：A.5 Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Hopping Emission Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 52 of 91 Edition：A.5 10. 20 DB Bandwidth 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test Procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 20 dB relative to the maximum level measured in the fundamental emission. . Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 53 of 91 Edition：A.5 10.4 Test Result Temperature： 26°C Relative Humidity： 54% Test Voltage ： DC 3.7V Remark N/A Modulation Test Channel Bandwidth(MHz) GFSK Low 0.833 GFSK Middle 0.805 GFSK High 0.815 π/4DQPSK Low 1.157 π/4DQPSK Middle 1.162 π/4DQPSK High 1.159 8DPSK Low 1.152 8DPSK Middle 1.152 8DPSK High 1.153 Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 54 of 91 Edition：A.5 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 55 of 91 Edition：A.5 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 56 of 91 Edition：A.5 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 57 of 91 Edition：A.5 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 58 of 91 Edition：A.5 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 59 of 91 Edition：A.5 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247), Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test Procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 60 of 91 Edition：A.5 11.4 Test Result Temperature： 26°C Relative Humidity： 54% Test Voltage ： DC 3.7V Remark: N/A Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low -3.73 21 GFSK Middle -3.59 21 GFSK High -3.64 21 π/4DQPSK Low -2.91 21 π/4DQPSK Middle -2.74 21 π/4DQPSK High -2.82 21 8DPSK Low -2.3 21 8DPSK Middle -2.16 21 8DPSK High -2.25 21 Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 61 of 91 Edition：A.5 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 62 of 91 Edition：A.5 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 63 of 91 Edition：A.5 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 64 of 91 Edition：A.5 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 65 of 91 Edition：A.5 Power NVNT 3-DH1 2480MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 66 of 91 Edition：A.5 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test Procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 67 of 91 Edition：A.5 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1 0.774 PASS GFSK Middle 1.002 0.869 PASS GFSK High 1 0.845 PASS π/4DQPSK Low 1.002 0.830 PASS π/4DQPSK Middle 1.002 0.828 PASS π/4DQPSK High 1 0.819 PASS 8DPSK Low 0.998 0.810 PASS 8DPSK Middle 1 0.795 PASS 8DPSK High 1 0.805 PASS Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 68 of 91 Edition：A.5 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 69 of 91 Edition：A.5 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Pag…

Text truncated - open the document above for the full version.

Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 89 of 91 Edition：A.5 17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos Report No.: BCTC2211195345E No.：BCTC/RF-EMC-005 Page 90 of 91 Edition：A.5
