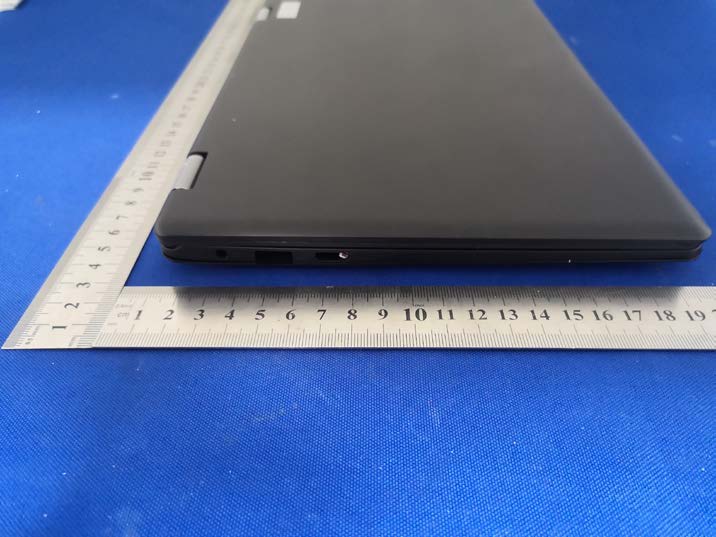

External Photos

Label & label location Model：CLT1164 FCC ID：2AVRVCLT1164

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AVRVCLT1164 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR max possible output power (PK,conducted)：0±1dbm 1dBi logarithmic terms convert to numeric result is nearly 1.259 1dBm=1.26mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=1.26/5*√2.402 =0.39≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2402 -2.46 1 GFSK 2441 -2.05 1 GFSK 2480 -2 1 Pi/4 DQPSK 2402 -1.34 1 Pi/4 DQPSK 2441 -1.04 1 Pi/4 DQPSK 2480 -0.87 1 8DPSK 2402 -1.09 1 8DPSK 2441 -0.73 1 8DPSK 2480 -0.48 1 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.441 =0.39≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=1.26/5*√2.48=0.40≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Frequency Maximum Conducted Output Power(PK) LIMIT (MHz) (dBm) dBm 802.11b 2412 8.16 30 2437 8.84 30 2462 8.66 30 802.11g 2412 7.63 30 2437 7.74 30 2462 7.51 30 802.11n20 2412 6.29 30 2437 6.59 30 2462 6.70 30 802.11n40 2422 6.49 30 2437 6.59 30 2452 6.59 30 max possible output power (PK,conducted)：8±1dbm 1dBi logarithmic terms convert to numeric result is nearly 1.259 9dbm=7.94mW 2412MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=7.94/5*√2.412=2.47≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2437MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.437=2.48≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2462MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=7.94/5*√2.462=2.49≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

No.：BCTC/RF-EMC-005 Page: 1 of 69 Edition：A.1 TEST REPORT Report No.: BCTC2009001591-1E Applicant: DP AUDIO VIDEO LLC Product Name: 11.6inch laptop Model/Type Ref.: CLT1164 Tested Date: Sep. 27, 2020 to Oct. 16, 2020 Issued Date: Oct. 19, 2020 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 2 of 69 Edition：A.1 FCC ID : 2AVRVCLT1164 Tested by: Approved by: Cathy Zhong/Project Handler Zero Zhou/Reviewed The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: 11.6inch laptop Trademark: Core Innovations Model/Type Ref.: CLT1164 CLT1164BL, CLT1164PN, CLT1164BU, CLT1164RD, CLT1164TL, CLT1164PR, CLT1165BL, CLT1165BU, CLT1165PN, CLT1165PR, CLT1165RD, CLT1165TL Prepared For: DP AUDIO VIDEO LLC Address: 920 Malcolm Ave Los Angeles, California, United States 90024 Manufacturer: SHENZHEN NST INDUSTRY AND TRADE CO. LTD Address: 3/F, Bldg 1, Hongbang Intelligent Technology Park, No.30 Cuibao Road, Baolong Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Sample Received Date: Sep. 27, 2020 Sample tested Date: Sep. 27, 2020 to Oct. 16, 2020 Issue Date: Oct. 19, 2020 Report No.: BCTC2009001591-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 3 of 69 Edition：A.1 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................ 5 2. TEST SUMMARY ..................................................... 6 3. MEASUREMENT UNCERTAINTY ....................................... 7 4. PRODUCT INFORMATION AND TEST SETUP ........................... 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................ 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions .............................................. 13 6.5 Test Result ........................................................... 14 7. RADIATED EMISSIONS .............................................. 16 7.1 Block Diagram Of Test Setup ........................................... 16 7.2 Limit ................................................................. 17 7.3 Test procedure ........................................................ 18 7.4 EUT operating Conditions .............................................. 19 7.5 Test Result ........................................................... 20 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION .......................................................... 24 8.1 Block Diagram Of Test Setup ........................................... 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 25 8.4 EUT operating Conditions .............................................. 25 8.5 Test Result ........................................................... 26 9. CONDUCTED EMISSION ............................................. 27 9.1 Block Diagram Of Test Setup ........................................... 27 9.2 Limit ................................................................. 27 9.3 Test procedure ........................................................ 27 9.4 Test Result ........................................................... 28 10. 20 DB BANDWIDTH .................................................. 37 10.1 Block Diagram Of Test Setup .......................................... 37 10.2 Limit ................................................................ 37 10.3 Test procedure ....................................................... 37 Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 4 of 69 Edition：A.1 10.4 Test Result .......................................................... 38 11. MAXIMUM PEAK OUTPUT POWER .................................... 43 11.1 Block Diagram Of Test Setup .......................................... 43 11.2 Limit ................................................................ 43 11.3 Test procedure ....................................................... 43 11.4 Test Result .......................................................... 44 12. HOPPING CHANNEL SEPARATION ................................... 49 12.1 Block Diagram Of Test Setup .......................................... 49 12.2 Limit ................................................................ 49 12.3 Test procedure ....................................................... 49 12.4 Test Result .......................................................... 50 13. NUMBER OF HOPPING FREQUENCY .................................. 55 13.1 …

Text truncated - open the document above for the full version.

Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 37 of 69 Edition：A.1 10. 20 DB BANDWIDTH 10.1 Block Diagram Of Test Setup 10.2 Limit N/A 10.3 Test procedure 1. Set RBW = 30kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. . Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 38 of 69 Edition：A.1 10.4 Test Result Temperature： 26°C Relative Humidity： 54% Test Voltage ： DC 12V Remark N/A Modulation Test Channel Bandwidth(MHz) GFSK Low 0.896 GFSK Middle 0.896 GFSK High 0.896 Pi/4 DQPSK Low 1.286 Pi/4 DQPSK Middle 1.286 Pi/4 DQPSK High 1.288 8DPSK Low 1.230 8DPSK Middle 1.228 8DPSK High 1.230 Test plots GFSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 39 of 69 Edition：A.1 GFSK Middle Channel GFSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 40 of 69 Edition：A.1 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 41 of 69 Edition：A.1 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 42 of 69 Edition：A.1 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 43 of 69 Edition：A.1 11. MAXIMUM PEAK OUTPUT POWER 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 3MHz. VBW = 3MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 44 of 69 Edition：A.1 11.4 Test Result Temperature： 26°C Relative Humidity： 54% Test Voltage ： DC 12V Remark: N/A Modulation Test Channel Output Power (dBm) Limit (dBm) GFSK Low -2.46 21 GFSK Middle -2.05 21 GFSK High -2 21 Pi/4 DQPSK Low -1.34 21 Pi/4 DQPSK Middle -1.04 21 Pi/4 DQPSK High -0.87 21 8DPSK Low -1.09 21 8DPSK Middle -0.73 21 8DPSK High -0.48 21 Test plots GFSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 45 of 69 Edition：A.1 GFSK Middle Channel GFSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 46 of 69 Edition：A.1 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 47 of 69 Edition：A.1 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 48 of 69 Edition：A.1 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 49 of 69 Edition：A.1 12. HOPPING CHANNEL SEPARATION 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 50 of 69 Edition：A.1 12.4 Test Result Modulation Test Channel Separation (MHz) Limit(MHz) Result GFSK Low 1.004 0.597 PASS GFSK Middle 0.994 0.597 PASS GFSK High 1.006 0.597 PASS Pi/4 DQPSK Low 0.994 0.857 PASS Pi/4 DQPSK Middle 1.000 0.857 PASS Pi/4 DQPSK High 1.000 0.859 PASS 8DPSK Low 1.004 0.820 PASS 8DPSK Middle 0.998 0.819 PASS 8DPSK High 0.992 0.820 PASS Test plots GFSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 51 of 69 Edition：A.1 GFSK Middle Channel GFSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 52 of 69 Edition：A.1 Pi/4 DQPSK Low Channel Pi/4 DQPSK Middle Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 53 of 69 Edition：A.1 Pi/4 DQPSK High Channel 8DPSK Low Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 54 of 69 Edition：A.1 8DPSK Middle Channel 8DPSK High Channel Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 55 of 69 Edition：A.1 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2009001591-1E No.：BCTC/RF-EMC-005 Page: 56 of 69 Edition：A.1 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK …
