2AVSADH19C-1Keyfree System

Manual Requirement of FCC Model: DH19C-1 Our product is one of vehicle parts incorporated into the vehicle as original equipment. We will include following statements in the user manual of the vehicle in accordance with FCC requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

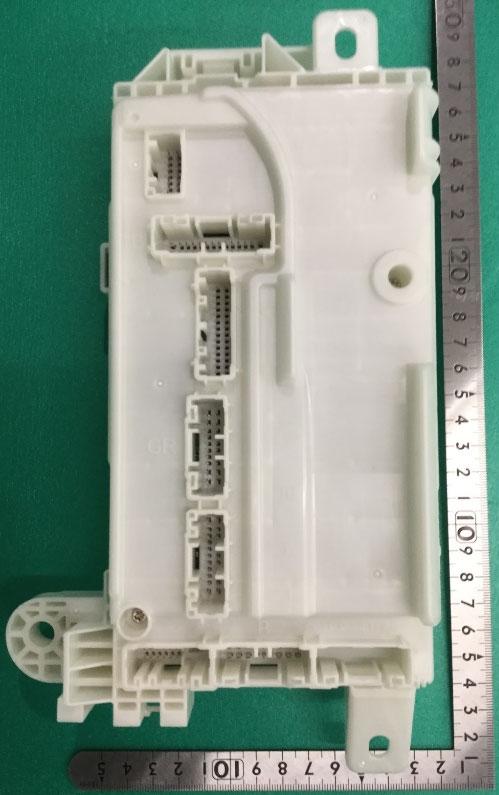

DAIHATSU MOTOR CO., LTD. Keyfree System FCC ID: 2AVSADH19C-1 External Photos: Junction Box 1/2 Front Rear Note: The outer appearance may be changed. DAIHATSU MOTOR CO., LTD. Keyfree System FCC ID: 2AVSADH19C-1 External Photos: Junction Box 2/2 Top Bottom Right Left Note : The outer appearance may be changed.

Product: Keyfree System Model: DH19C-1 Marking location: Note: Compliance statement of marking will not be changed. Marking layout, size and other indications maybe changed and added. Marking is embossed, printed with laser marking or labeled.

DAIHATSU MOTOR CO., LTD. Keyfree System FCC ID: 2AVSADH19C-1 Internal Photos: Junction Box Component side Solder side Antenna for Rx

Test report No. : 14113269H-B Page : 1 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 19.0 EMI TEST REPORT Test Report No. : 14113269H-B Applicant : DAIHATSU MOTOR CO., LTD. Type of EUT : Keyfree system Model Number of EUT : DH19C-1 FCC ID : 2AVSADH19C-1 Test regulation : FCC Part 15 Subpart B: 2021 Test Result : Complied (Refer to SECTION 3) Date of test: December 15 and 17, 2021 Representative test engineer: Hiroki Numata Engineer Approved by: Tsubasa Takayama Leader CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6. This test report covers EMC technical requirements. It does not cover administrative issues such as Manual or non-EMC test related Requirements. (if applicable) 7. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited. 9. The information provided from the customer for this report is identified in SECTION 1. Test report No. : 14113269H-B Page : 2 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 14113269H-B Revision Test report No. Date Page revised Contents - (Ori ginal) 14113269H-B January 14, 2022 - - Test report No. : 14113269H-B Page : 3 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation IEEE Institute of Electrical and Electronics Engineers AAN Asymmetric Artificial Network IF Intermediate Frequency AC Alternating Current ILAC International Laboratory Accreditation Conference AM Amplitude Modulation ISED Innovation, Science and Economic Development Canada AMN Artificial Mains Network ISN Impedance Stabilization Network Amp, AMP Amplifier ISO International Organization for Standardization ANSI American National Standards Institute JAB Japan Accreditation Board Ant, ANT Antenna LAN Local Area Network AP Access Point LCL Longitudinal Conversion Loss ASK Amplitude Shift Keying LIMS Laboratory Information Management System Atten., ATT Attenuator LISN Line Impedance Stabilization Network AV Average MRA Mutual Recognition Arrangement BPSK Binary Phase-Shift Keying N/A Not Applicable BR Bluetooth Basic Rate NIST National Institute of Standards and Technology BT Bluetooth NS No signal detect. BT LE Bluetooth Low Energy NSA Normalized Site Attenuation BW BandWidth OBW Occupied BandWidth C.F Correction Factor OFDM Orthogonal Frequency Division Multiplexing Cal Int Calibration Interval PER Packet Error Rate CAV CISPR AV PK Peak CCK Complementary Code Keying P LT long-term flicker severity CDN Coupling Decoupling Network POHC(A) Partial Odd Harmonic Current Ch., CH Channel Pol., Pola. Polarization CISPR Comite International Special des Perturbations Radioelectriques PR-ASK Phase Reversal ASK Corr. Correction P ST short-term flicker severity CPE Customer premise equipment QAM Quadrature Amplitude Modulation CW Continuous Wave QP Quasi-Peak DBPSK Differential BPSK QPSK Quadrature Phase Shift Keying DC Direct Current r.m.s., RMS Root Mean Square DET Detector RBW Resolution BandWidth D-factor Distance factor RE Radio Equipment Dmax maximum absolute voltage change during an observation period REV Reverse DQPSK Differential QPSK RF Radio Frequency DSSS Direct Sequence Spread Spectrum RFID Radio Frequency Identifier DUT Device Under Test RNSS Radio Navigation Satellite Service EDR Enhanced Data Rate RSS Radio Standards Specifications e.i.r.p., EIRP Equivalent Isotropically Radiated Power Rx Receiving EM clamp Electromagnetic clamp SINAD Ratio of (Signal + Noise + Distortion) to (Noise + Distortion) EMC ElectroMagnetic Compatibility S/N Signal to Noise ratio EMI ElectroMagnetic Interference SA, S/A Spectrum Analyzer EMS ElectroMagnetic Susceptibility SG Signal Generator EN European Norm SVSWR Site-Voltage Standing Wave Ratio e.r.p., ERP Effective Radiated Power THC(A) Total Harmonic Current ETSI European Telecommunications Standards Institute THD(%) Total Harmonic Distortion EU European Union TR, T/R Test Receiver EUT Equipment Under Test Tx Transmitting Fac. Factor VBW Video BandWidth FCC Federal Communications Commission Vert. Vertical FHSS Frequency Hopping Spread Spectrum WLAN Wireless LAN FM Frequency Modulation xDSL Generic term for all types of DSL technology Freq. Frequency (DSL: Digital Subscriber Line) FSK Frequency Shift Keying Fund Fundamental FWD Forward GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard I/O Input/Output IEC International Electrotechnical Commission Test report No. : 14113269H-B Page : 4 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JA…

Text truncated - open the document above for the full version.

Test report No. : 14113269H-B Page : 20 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Mode 1: Below 1 GHz Photo 1 Photo 2 Test report No. : 14113269H-B Page : 21 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Emission Mode 1: Above 1 GHz Photo 1 Photo 2 Test report No. : 14113269H-B Page : 22 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Emission Mode 2: Below 1 GHz Photo 1 Photo 2 Test report No. : 14113269H-B Page : 23 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Emission Mode 2: Above 1 GHz Photo 1 Photo 2 Test report No. : 14113269H-B Page : 24 of 24 Issued date : January 14, 2022 FCC ID : 2AVSADH19C-1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 1 GHz Horizontal: X-axis / Vertical: X-axis Above 1 GHz Mode 1: Horizontal: X-axis / Vertical: X-axis Mode 2: Horizontal: Y-axis / Vertical: Z-axis X-axis Y-axis Z-axis End of Report
