2AVSADH19R-7Immobilizer system (Immobilizer and RKE)

Manual Requirement of FCC Model: DH19R-7 Our product is one of vehicle parts incorporated into the vehicle as original equipment. We will include following statements in the user manual of the vehicle in accordance with FCC requirements. 1. Requirement for User manual of the vehicle 1.1. FCC Requirement In accordance with 15.21 of FCC rule, following statement will be included in the user manual of the vehicle. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. In accordance with requirement of FCC§15.19(a)(3), following statement will be included in the user manual of the vehicle. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Date: FCC ID: 2AVSADH19R‐7 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Sincerely, Tel: 81‐72‐754‐5619 Raita Nakanishi General Manager CFR 47 §2.911 (d)(5) Attestation DAIHATSU MOTOR CO., LTD. (“the applicant”) certifies that, as of the date of the filing of this application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. 05/06/2023 DAIHATSU MOTOR CO., LTD. (“the applicant”) certifies that as of the date of the application the equipment for which autho rization is sought is not “covered” equipment prohibited from receiving an e quipment authorization pursuant to section 2.903 of the FCC rules. DAIHATSU MOTOR CO., LTD. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an ex planation on why the equipment is not “covered” equipment. Additional Explanation: (Not applicable)

U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve‐IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651‐247‐1678 Email: team@approve‐it.net FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name /Title): N athan Grinager / Co‐President *This letter must be dated within 5 years of the date the application is submitted to the TCB for device certification The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission‐related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name : DAI HATSU MOTOR CO., LTD FCC ID: 2AVSADH19R‐7 Contact Name: Raita Nakanishi Street Address: 1‐1, Momozono 2‐Chome Ikeda City City/Province/Zip: Osaka / 563‐8651, JAPAN Telephone No: 81‐72‐754‐5619 Email: [email protected] Grantee FRN #: 0029269370 Applicant Signature: Date: June 5, 2023 Signed by (Printed Name/Title): Raita Nakanishi/General Manager July 6th, 2023

Date: UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC IC: Applicant: To whom it may concern: Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. Sincerely, Letter of Authorization We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has no t been submitted to another TCB for certification. DAIHATSU MOTOR CO., LTD. 2AVSADH19R‐7 31/05/2023 We, the undersigned, hereby authorize Rie Fujiwara of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to th ese matters. DAIHATSU MOTOR CO., LTD. DAIHATSU MOTOR CO., LTD. Raita Nakanishi General Manager

Date: Federal Communications Commission 45 L Street NE Washington, DC 20554 FCC IC: Applicant: To whom it may concern: Sincerely, Conducted measurements performed is for reference only. FCC Justification statement about Antenna gain information 31/05/2023 2AVSADH19R‐7 DAIHATSU MOTOR CO., LTD. Since this device is complied with FCC limits for fundamental and spurious emissions only by radiated measurements , antenna test report is not submitted in this application. General Manager DAIHATSU MOTOR CO., LTD. DAIHATSU MOTOR CO., LTD. Antenna specification and information are shown in Theory of Operation just for the reference. Raita Nakanishi

Date: UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC IC: Applicant: Sincerely, DAIHATSU MOTOR CO., LTD. DAIHATSU MOTOR CO., LTD. Request for Confidentiality Schematic Diagram Raita Nakanishi General Manager 31/05/2023 2AVSADH19R‐7 DAIHATSU MOTOR CO., LTD. Please be advised that the following information is to be held confidential on behalf of DAIHATSU MOTOR CO. , LTD., referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Parts List The application contains technical information which DAIHATSU MOTOR CO., LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the a pplicant in the market place.

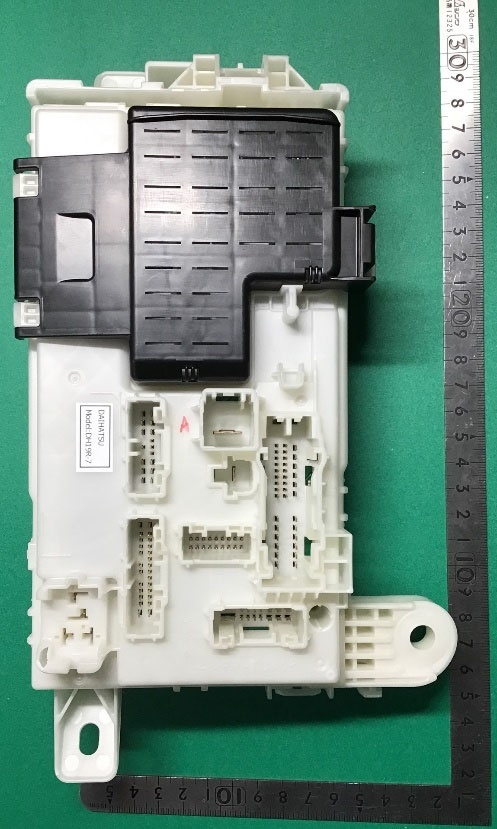

DAIHATSU MOTOR CO., LTD. Immobilizer s ystem (Immobilizer and RKE) FCC ID: 2AVSADH19R-7 External Photos: Junction Box 1/2 Front Rear Note: The outer appearance may be changed. DAIHATSU MOTOR CO., LTD. Immobilizer s ystem (Immobilizer and RKE) FCC ID: 2AVSADH19R-7 External Photos: Junction Box 2/2 Top Bottom Right Left Note : The outer appearance may be changed. DAIHATSU MOTOR CO., LTD. Immobilizer s ystem (Immobilizer and RKE) FCC ID: 2AVSADH19R-7 External Photos: Immobilizer antenna Front Rear Top Bottom Right Left Note : The outer appearance may be changed.

Product: Immobilizer system (Immobilizer and RKE) Model: DH19R-7 Marking location: Note: Compliance statement of marking will not be changed. Marking layout, size and other indications maybe changed and added. Marking is embossed, printed with laser marking or labeled. In case the label is embossed or printed with laser, the label is durable within the product life. In case the label is affixed with an adhesive, the label will not peel off within the product life. The outer case m ay be changed. R-7

DAIHATSU MOTOR CO., LTD. Immobilizer s ystem (Immobilizer and RKE) FCC ID: 2AVSADH19R-7 Internal Photos: Junction Box Component side Solder side Antenna for Rx DAIHATSU MOTOR CO., LTD. Immobilizer s ystem (Immobilizer and RKE) FCC ID: 2AVSADH19R-7 Internal Photos: Immobilizer antenna Front Rear Top Bottom Right Left Note: The outer case may be changed. Immobilizer antenna does not have any PCB.

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com July 10, 2023 FCC ID: 2AVSADH19R-7 To whom it may concern, We, UL Japan, Inc, hereby declare that Immobilizer system (Immobilizer and RKE), model: DH19R-7 (FCC ID: 2AVSADH19R-7) of DAIHATSU MOTOR CO., LTD. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The SAR test exclusion thresholds for below 100 MHz at test separation distances ≤ 50 mm are determined by step c) 2): c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion: 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100 / f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ Numeric exemption threshold: Pth step c) [mW]:925.69 Radio specification and use-case for this deveice are below: f [MHz]:0.125 d [mm]:0 Power consumption [mW]:761 f [MHz]: Operating frequency d [mm]: Minimum separation distance Power consumption [mW]: timed-average power This is less than Pth step c), so SAR test is exemption for this device. Thank you for your attention to this matter. Tsubasa Takayama Leader

Test Report No. 14829187H-A Page 1 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 14829187H-A Customer DAIHATSU MOTOR CO., LTD. Description of EUT Immobilizer system (Immobilizer and RKE) Model Number of EUT DH19R-7 FCC ID 2AVSADH19R-7 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date June 26, 2023 Remarks - Representative test engineer Approved by Yuichiro Yamazaki Engineer Tsubasa Takayama Leader CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 22.0 Test Report No. 14829187H-A Page 2 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 14829187H-A Revision Test Report No. Date Page Revised Contents - (Original) 14829187H-A June 26, 2023 -  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in SECTION 1.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14829187H-A Page 3 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management S ystem AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 14829187H-A Page 4 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ....................................................................................... 5 SECTION 2: Equipment Under Test (EUT) ........................................................................... 5 SECTION 3: Test specification, procedures & results ........................................................ 6 SECTION 4: Operation of EUT during testing ...................................................................... 9 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ........................ 11 SECTION 6: -20 dB Bandwidth ............................................................................................ 13 SECTION 7: 99 % emission bandwidth .............................................................................. 13 APPENDIX 1: Test data ...................................…

Text truncated - open the document above for the full version.

Test Report No. 14829187H-A Page 18 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test Report No. 14829187H-A Page 19 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position ECU Below 30 MHz X-axis Above 30 MHz Horizontal: X-axis / Vertical: X-axis ANT Below 30 MHz X-axis Above 30 MHz Horizontal: X-axis / Vertical: X-axis X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test Report No. 14829187H-A Page 20 of 20 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst case position With transponder key inserted (Worst) Without transponder key inserted End of Report
