2AVSB-IC-20CSQWireless Car Charger

Product Parts Description IC-20CSQ 产品说明书 User Manual 80% 71.7*45*71.7mm 15W/5W 10mm ABS+Tempered Glass DC 9V/3A,5V/3A Input Output Product Standard Product Dimension Product Material Charging Distance Charging Efficiency Specifications Note:This product is applicable to all Qi standard wireless charging phones,other phones need an external receiver for wireless charging function. 1.Built-in strong magnets, easier for one-hand operation. 2.Built-in smart semiconductor chilling plate and cooling fan, the fan will start working when the wireless charging starts,the chilling plate cools the wireless charging coil and the phone surface simultaneously to improve the wireless charging efficiency. The semiconductor chilling plate stops working when the phone is removed. 3.Standby mode: The RGB light runnning three laps and it keeps green. 4.Charging mode：The colorful lights of the fan change gradually,the light goes off once removed the receiver. 5.FOD function: when put metal or magnet objects on the charger, the wireless charging stops working and the phone does not charge. 6.Perfect protective function based on over-voltage, over-current, over-temperature and short-circuit protection. 1.Please do not vigorously extrude or collide. 2.Please do not dismantle or put it into fire or water when the product is power on,to avoid short circuit or leakage. 3.Please do not use it in severely high temperature,high humidity or corrosive environment,to avoid damage to the circuit leakage. 4.Please do not put the magnetic strip or chip card (Such as ID card,bankcard etc.)on the charging pad to avoid to cause magneticcard lose efficacy. 5.Please do not put the metal (Such as coin etc.) on the charging pad when charging,to avoid damage from heating. Attention Wireless Car Charger 1. Please make sure the product connect to the power before using. 2. The product stop charging when the current is too large or there is foreign object. Do not wireless charging the phone if similar situation happened. 3. Please purchase the wireless receiver module or case separately (Not included in the product) if your phone do not support wireless charging. 4. The power input is 5V-12V, when placed the phone and wireless charging starts, the chilling plate works and the fan rotates. When the phone is removed, the chilling plate stops working and the fan stops rotating 30 seconds later. 5. It is recommended to use phone case less than 2mm thick. The product cools the phone backside surface,too thickness phone case will affect the cooling effect. Product Operating Guide Product Features Parts List Vent Clip Knob Type-C Charging Port Charging Transmitter Coil Magnet Electronic Refrigeration Cooling Fan PCB RGB Light 9 9 Qi2 Fast wireless charging requires QC or PD adapters. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

- Shenzhen Mgctech Co.,Ltd. - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/7/2024 U.S. Agent Designation Shenzhen Mgctech Co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2AVSB-IC- 20CSQ): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Shenzhen Mgctech Co.,Ltd. Shenzhen Mgctech Co.,Ltd. with the FRN 0029269446 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Cici Huang Overseas Sales Manager Shenzhen Mgctech Co.,Ltd. Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

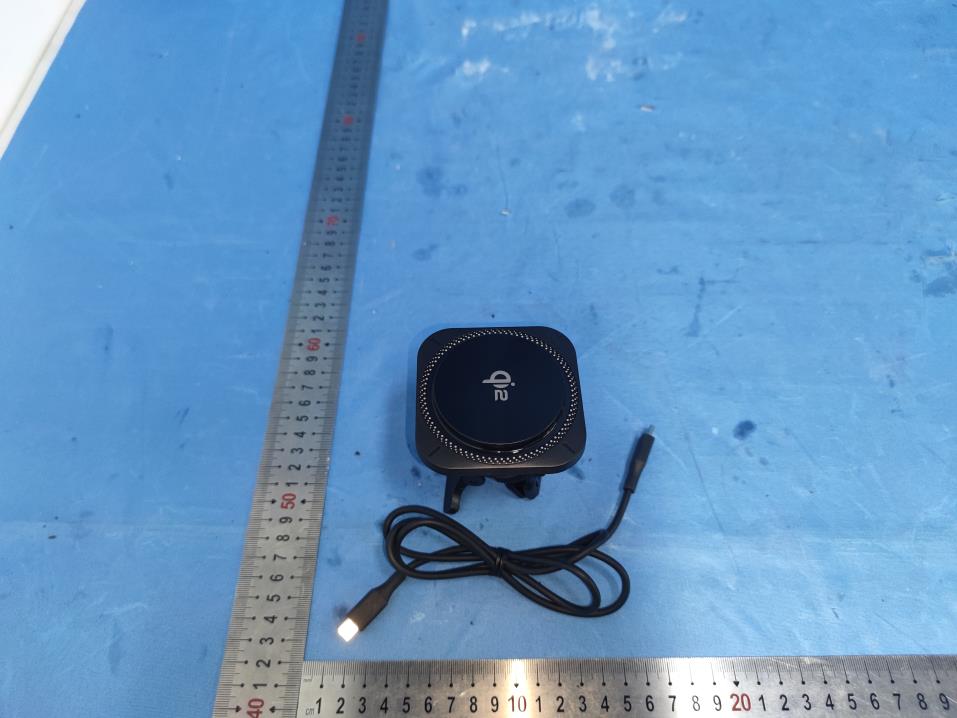

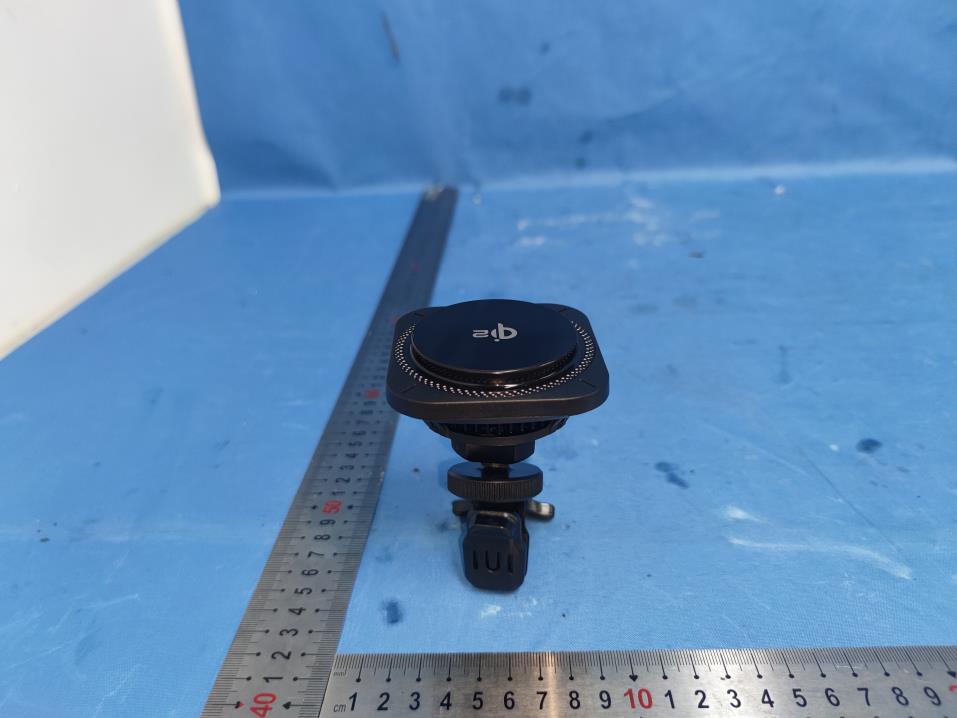

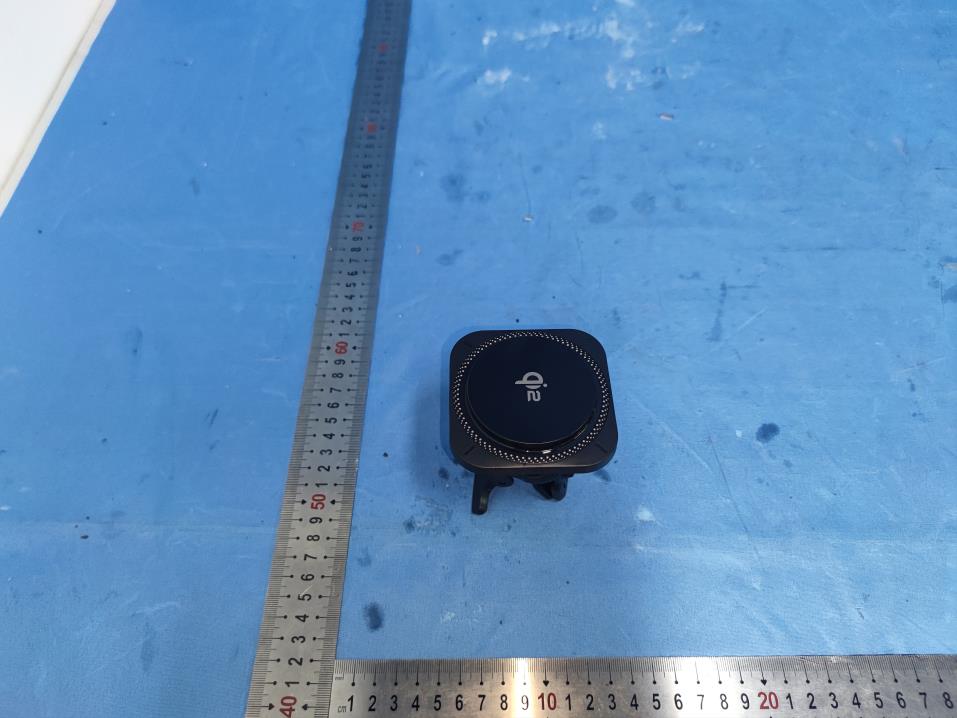

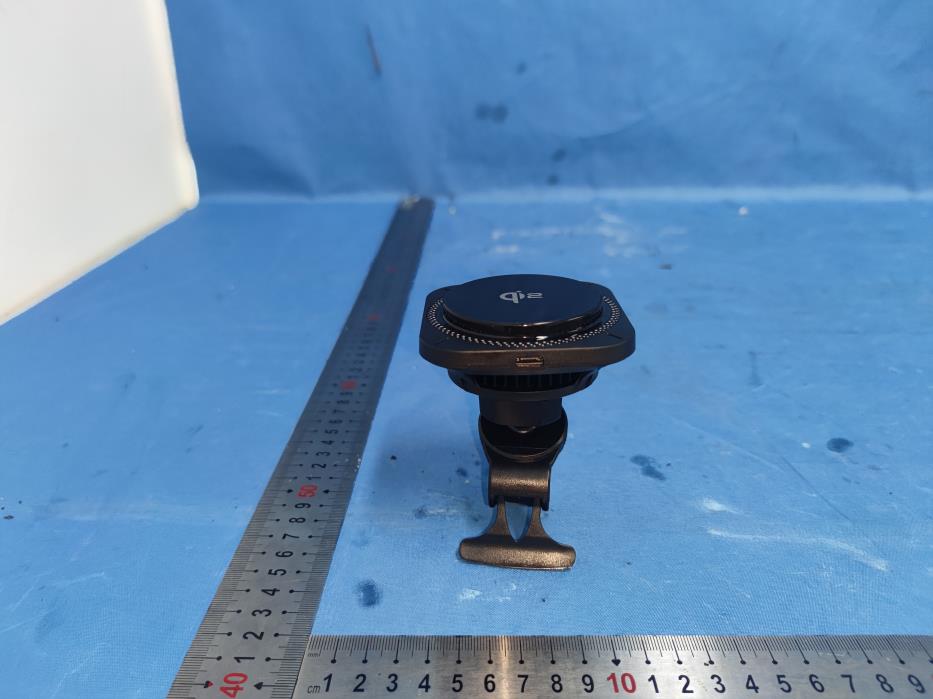

Page 1 of 4 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 4 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 4 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 4 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 ---The End---

Label Size: L45mm * W5mm 1. The label is silk-screen on the sample Wireless Car Charger Model Name: IC-20CSQ FCC ID: 2AVSB-IC-20CSQ L W

Page 1 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Coil Antenna Page 5 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 Photo 10 Page 6 of 6 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 11 ------End------

Page 1 of 14 Report No.: AITSZ24061309W3 RF Exposure Evaluation Client Information: Applicant: Shenzhen Mgctech Co.,Ltd. Applicant add.: 401, Bldg.14, No. 48-12, Fuchengao Rd., Pinghu Street, Longgang District, Shenzhen,China. Manufacturer: Shenzhen Mgctech Co.,Ltd. Manufacturer add.: 401, Bldg.14, No. 48-12, Fuchengao Rd., Pinghu Street, Longgang District, Shenzhen,China. Product Information: Product Name: Wireless Car Charger Model No.: IC-20CSQ Brand Name: N/A Test samples.: AITSZ24061309-1 FCC ID: 2AVSB-IC-20CSQ Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun 13, 2024 Date of Test: Jun 13, 2024 ~ July 30, 2024 Date of Issue: July 30, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 14 Report No.: AITSZ24061309W3 1 CONTENTS COVER PAGE Page 1 CONTENTS 2 2 TEST FACILITY 4 2.1 Deviation from standard 4 2.2 Abnormalities from standard conditions 4 2.3 Test Location 4 3 GENERAL INFORMATION 5 4 TEST METHODOLOGY 6 4.1 Measuring Standard 6 4.2 Requirements 6 4.3 Limits 6 4.4 Test Setup 7 4.5 Test Procedure 7 5 Equipment Approval Considerations 8 5.1 Description of the test mode 9 5.2 Peripheral List 9 5.3 Test Instruments list 9 5.4 Duty Cycle 10 5.5 Test Result 11 1.1 Test Setup photo 12 Page 3 of 14 Report No.: AITSZ24061309W3 Revision History Revision Issue Date Revisions Revised By 00 July 30, 2024 Initial Issue Sean She Page 4 of 14 Report No.: AITSZ24061309W3 2 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 2.1 Deviation from standard None 2.2 Abnormalities from standard conditions None 2.3 Test Location Guangdong Asia Hongke Test Technology Limited Address: B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Page 5 of 14 Report No.: AITSZ24061309W3 3 GENERAL INFORMATION EUT Name: Wireless Car Charger Model No: IC-20CSQ Serial Model: IC-10CSQ,IC-30CSQ,IC-40CSQ,IC-50CSQ,31860,CND-01 Test sample(s) ID: AITSZ24061309-1 Sample(s) Status: Engineer sample Operation frequency: 113kHz-205kHz,360kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Hardware version.: V1.0 Software version.: V1.0 Power supply: Input : DC 9V⎓3A, 5V⎓3A Model different: Output : 15W/5W Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 14 Report No.: AITSZ24061309W3 4 TEST METHODOLOGY 4.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 4.2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. 4.3 Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 7 of 14 Report No.: AITSZ24061309W3 4.4 Test Setup 4.5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E,F) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 Wireless Po…

Text truncated - open the document above for the full version.

Page 1 of 23 Report No.: AITSZ24061309W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen Mgctech Co.,Ltd. Applicant add.: 401, Bldg.14, No. 48-12, Fuchengao Rd., Pinghu Street, Longgang District, Shenzhen,China. Manufacturer: Shenzhen Mgctech Co.,Ltd. Manufacturer add.: 401, Bldg.14, No. 48-12, Fuchengao Rd., Pinghu Street, Longgang District, Shenzhen,China. Product Information: Product Name: Wireless Car Charger Brand Name: N/A Model No.: IC-20CSQ FCC ID: 2AVSB-IC-20CSQ Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Jun 13, 2024 Date of Test: Jun 13, 2024 ~ July 30, 2024 Date of Issue: July 30, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Leon.yi Sean She Page 2 of 23 Report No.: AITSZ24061309W2 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ................................................................................................…

Text truncated - open the document above for the full version.

承 认 书 客户名称（CUSTOMER): 品名（DESCRIPTION) : 部门 品质 工程 部门 开发工 程 采购 品质 ADD：深圳市龙华新区观澜环观中路48号1栋2楼 TEL：15112254520 FAX：+86-0755-28015170 page:1/2 REV.NO.:A0 DATE:2024-3-26 规格（SPECIFICATION) ：G43.5 Slot + magnetic coil + small magnetic disc + glue 7MM 备注： 深 圳 市 鸿 日 昇 威 科 技 有 限 公 司 HRSW ELECTRONICS CO.,LTD 备注： 深圳市立景科技有限公司 承 认 签 核、盖章 确认/日期审核/日期批准/日期 (盖公司公 章) 董晚红吕惠韦函满 何伟华韦立红韦立红 SPECIFICATION FOR APPROVAL 深圳市立景科技有限公司 客户料号（CUSTOMER P/N）: 鸿日昇威科技承认签核、盖章 确认/日期审核/日期批准/日期 (盖公司公 章) 1.MECHANICAL DIMENSION (UNIT:mm) 2.SCHEMATICS: 113kHz-205kHz Loop coil Antenna 0dBi ADC HEB 42.5±0.57±20.8±0.052.1MAX3±220.5±0.3 3.WINDING： 1.1底部印字100 STE P TAPE REMAR K N1 4.ELECTRICAL SPECIFICATION: ITEM SPEC 5.BILF OF MATERIAL： NO.SGS NO. 1 2 3 4 5 page:2/2 天线增益Antenna gain: 何伟华韦立红韦立红 TES T CON HRSW ELECTRONICS CO.,LTD 备注：1.加20MM小磁片 2. 加背胶 Operation frequency: Antenna Type: Antenna gain: PART NO TITLE G42.5 Slot + magnetic coil + small magnetic disc + adhesive 7MM DRAWN BYCHECKED BY APPROVED BY glueYellow gum 9999 LIANCHENG CO.,LTD high-temperature adhesive tape 8mm Wide high temperature adhesive paperCUDAK CO.,LTD Lead-free tin strip Lead-free tin strip QIAODO magnetic sheet ⌀42.5*0.8 Manganese zinc hard disk with L slot TAIYI CO.,LTD ITEMMATERIAL SPECIFICATIONMANUFACTURER Hot air wireLead-free tin hot air wire 0.08*80 strandsNANJINGJINNINGCO,LTD 100KHz,0.25V AT 25°C 8.1uH±10% 58mΩ Max 80°C HI-POT Coil and diskette S-FNormal state S-F 热风线⌀0.08*80mm 2UEW 11TS (Ref) LDCRtemperature SPECIFICATION FOR APPROVAL START-FINISHWIRE TYPETURNS Note: 1. Add 20MM small magnetic disc 2. Add back glue 360kHz

Page 1 of 2 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2AVSB-IC-20CSQ Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
