2AVTJ-CP13SPX Sandpiper Digital Display

The device is installed at fixed locations via trained professionals and needs to remains at least 20 centimeters away from human contact.

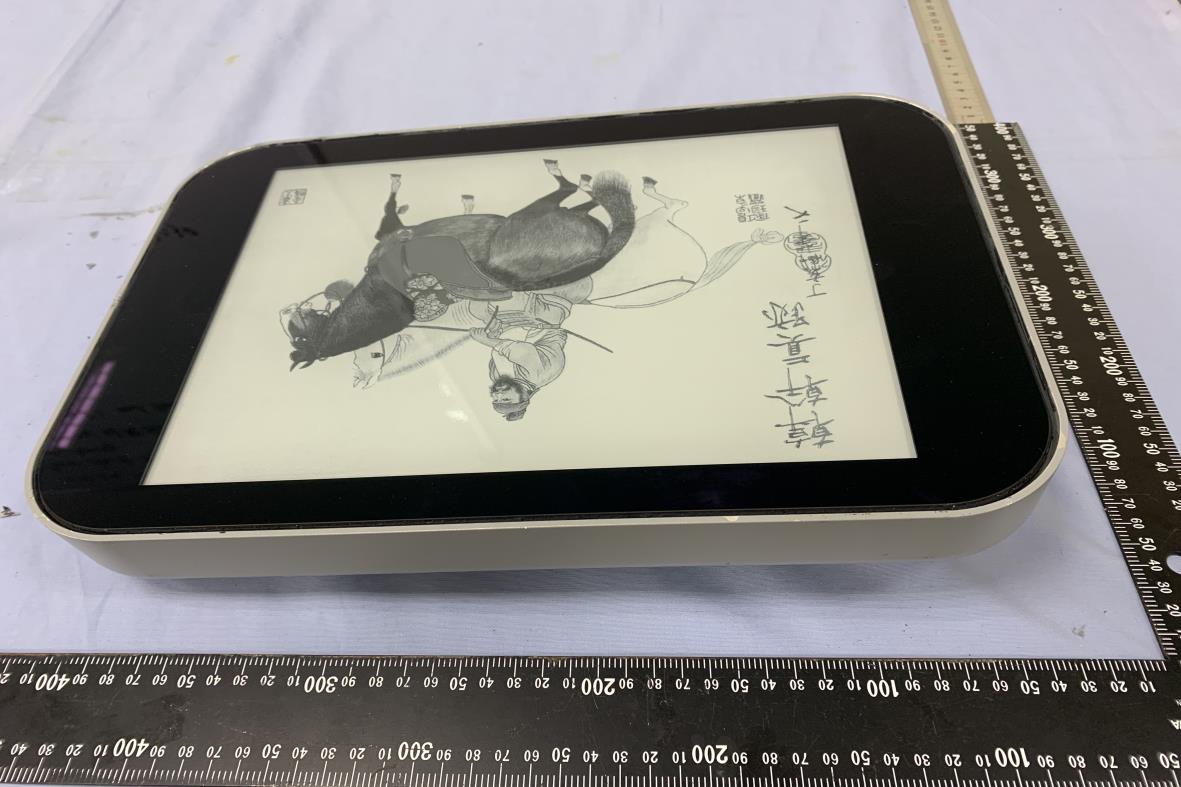

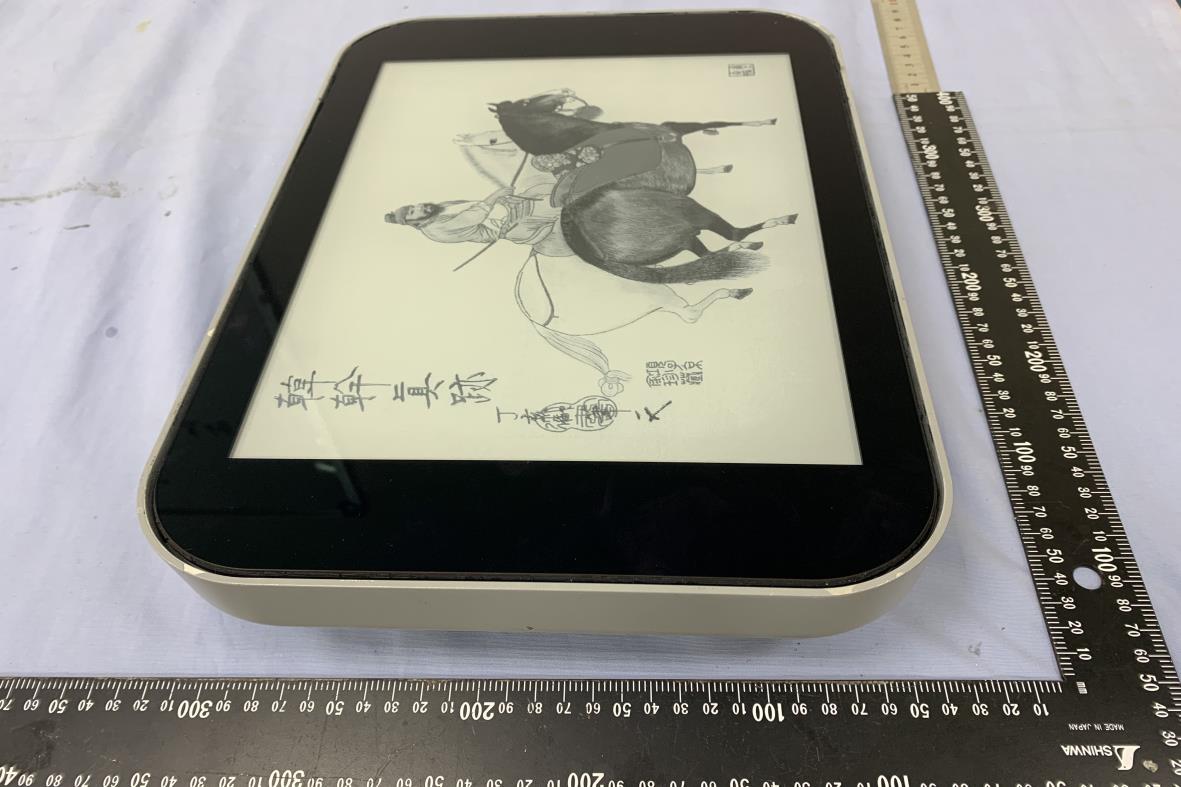

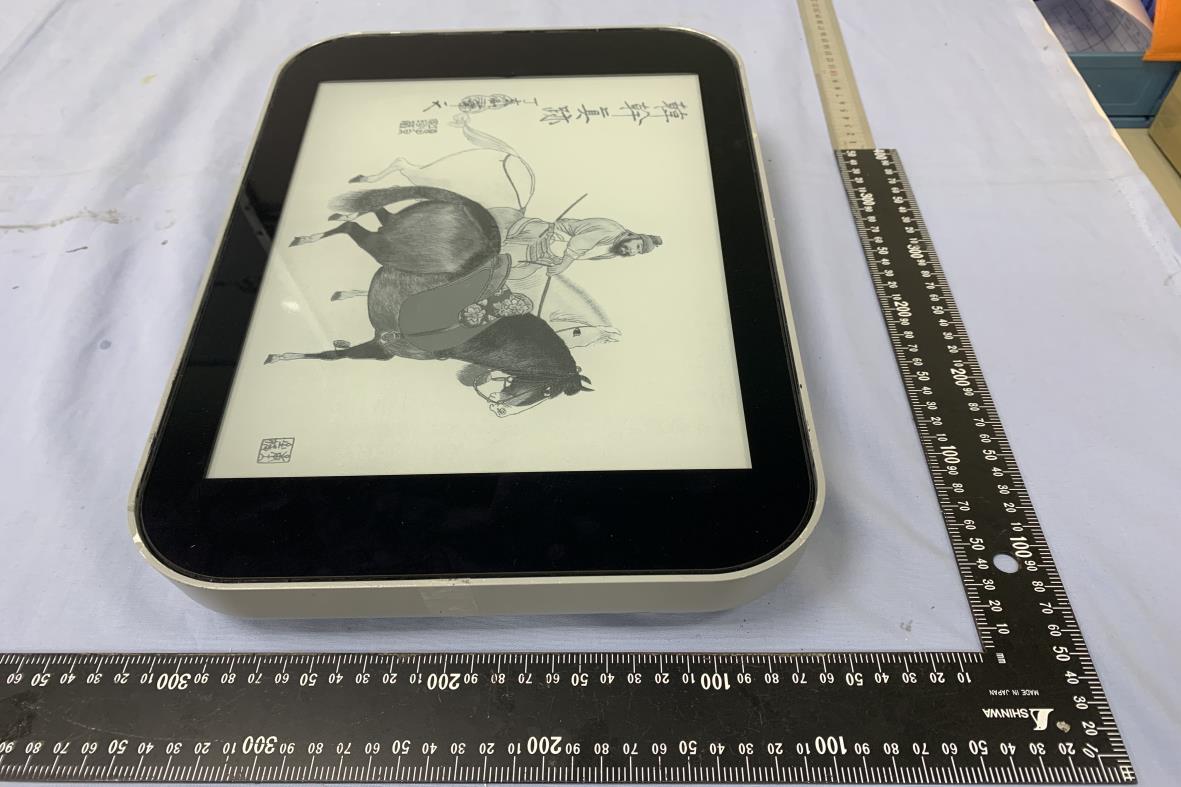

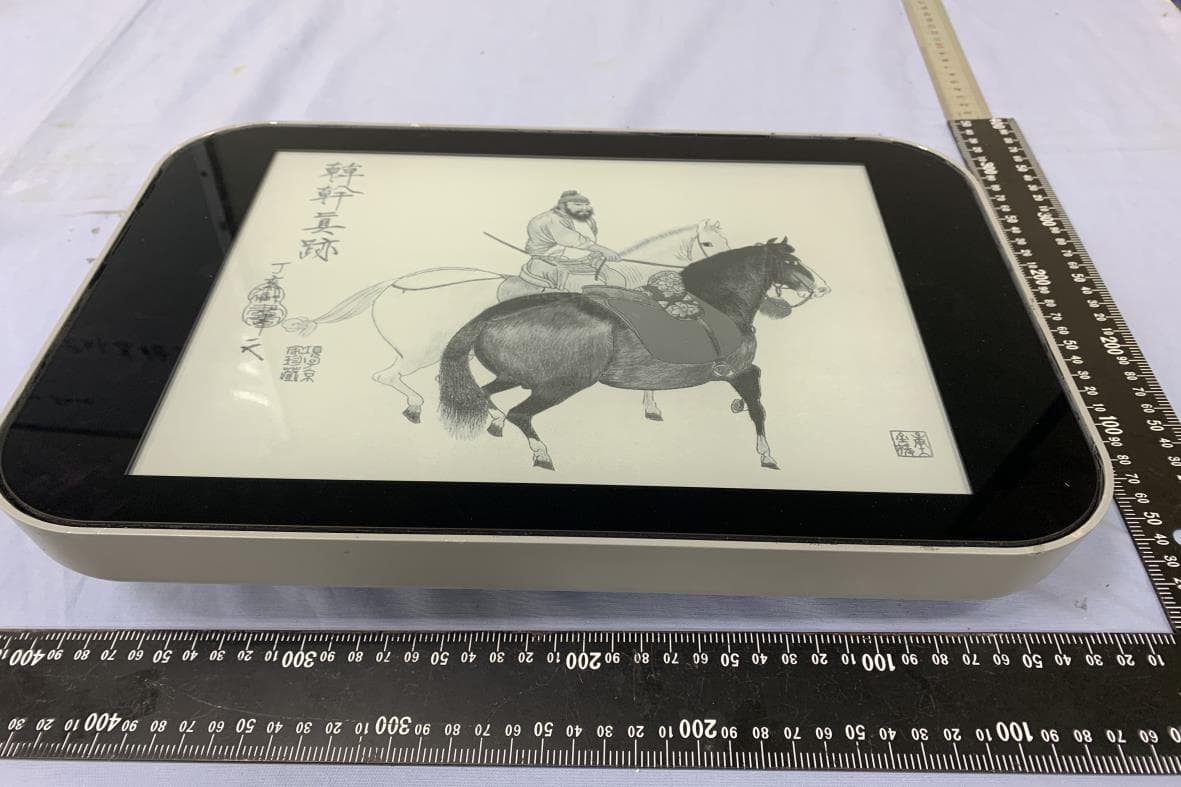

Page: 1 / 11 Report No.: T200311W01 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Page: 2 / 11 Report No.: T200311W01 Rev.: 00 Page: 3 / 11 Report No.: T200311W01 Rev.: 00 Page: 4 / 11 Report No.: T200311W01 Rev.: 00

Sandpiper CP13 Laser/Label/Printing/Packing caption Page:1 2020.03.26 Ver.B Model CP13 Version B Date: 2020.03.26  Item A: Display image when shipping B: Machine (Cover)-Laser/Label C: Machine (Door) -Laser D: Carton-Label/Printing E: Packing Caption of Laser/Labe/Printing : 1. Content 2. Position 3. Dimension ◎ A-Display image when shipping 1. Content Include Logo, model name, MFD , SW Firmware, Jar version, FW build date, EPD VCOM, EPD Waveform and barcode of UUID/IMEI/Serial Number Sandpiper CP13 Laser/Label/Printing/Packing caption Page:2 2020.03.26 Ver.B ◎ B-Machine (Cover) *Laser 1. Content Include Logo, Power info, S/N , FCC ID（LTE + WiFi）and Identification mark 2. Position (on the center of the cover) Sandpiper CP13 Laser/Label/Printing/Packing caption Page:3 2020.03.26 Ver.B 3. Dimension Dimension about: 63mm(2.48”) x28.6mm(1.125”) *Label 1. Content Include COO, S/N, Barcode and 15.19 warning of FCC # Barcode Type: CODE128 # S/N: M13Q46TCA250100 XXXXXX123456789 XXXXXX  Project code 12  Customer code 3  Production Year 4  Production Month 5  Production Week 6~9  Serial Number Sandpiper CP13 Laser/Label/Printing/Packing caption Page:4 2020.03.26 Ver.B 2. Position (on the center of the cover) 3. Dimension Label Dimension: 60mm(2.36”)x30mm(1.18”) ◎ C-Machine (Door) *Laser 1. Content Sandpiper CP13 Laser/Label/Printing/Packing caption Page:5 2020.03.26 Ver.B 2. Position Unit: mm 3. Dimension Dimension about: 32.8mm(1.29”)x33.3mm(1.31”) Sandpiper CP13 Laser/Label/Printing/Packing caption Page:6 2020.03.26 Ver.B ◎ D-Carton *Label 1. Content Include COO, S/N and Barcode # Barcode Type: CODE128 2. Position (on the center of the frame) 3. Dimension Dimension: 40mm(1.57”)x20mm(0.79”) *Printing 1. Content Include Logo, identification mark and carton recognize symbol Sandpiper CP13 Laser/Label/Printing/Packing caption Page:7 2020.03.26 Ver.B 2. Position Unit: mm 3. Dimension Carton Dimension: 428mm(16.85”)x312mm(12.28)x124mm(4.88”) Sandpiper CP13 Laser/Label/Printing/Packing caption Page:8 2020.03.26 Ver.B Printing Dimension: 363mm(14.29”)x98mm(3.86”) ◎ E-Packing 100 Boxes stacked by 10 layers on a pallet Total 100 pcs machines for one pallet Pallet Pallet Type: Paper Pallet Dimension: 1060mm(41.73”)x1290mm(50.79)x119mm(4.69”) Loaded weight:500kg Sandpiper CP13 Laser/Label/Printing/Packing caption Page:9 2020.03.26 Ver.B Box Machine weight: 3.8kg Packaging materials weight: 0.7kg One box weight (machine + packaging): 4.5kg PS: The yellow part is pallet.

Page: 5 / 11 Report No.: T200311W01 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT Page: 6 / 11 Report No.: T200311W01 Rev.: 00 Page: 7 / 11 Report No.: T200311W01 Rev.: 00 WWAN Module Page: 8 / 11 Report No.: T200311W01 Rev.: 00 Page: 9 / 11 Report No.: T200311W01 Rev.: 00 WIFI Module Page: 10 / 11 Report No.: T200311W01 Rev.: 00 WWAN Antenna Page: 11 / 11 Report No.: T200311W01 Rev.: 00 WIFI Antenna

FCC ID: 2AVTJ-CP13 Page 1 / 8 Report No.: T200311W01-MF Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For SPX Sandpiper Digital Display Model: CP13 Trade Name: Connectpoint Issued to Connectpoint Inc. 175 Cremona, Goleta, 93117 CA Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: May 25, 2020 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page 2 / 8 Report No.: T200311W01-MF Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 13, 2020 Initial Issue ALL Angel Cheng 01 May 25, 2020 See the following note Rev.(01) P.6, P.8 Allison Chen Rev.(01) 1. Revised maximum tune up power for 11n40. Page 3 / 8 Report No.: T200311W01-MF Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................ 4 2. LIMIT .................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS................................................................................................... 7 5. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 8 Page 4 / 8 Report No.: T200311W01-MF Rev.: 01 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. Page 5 / 8 Report No.: T200311W01-MF Rev.: 01 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. Page 6 / 8 Report No.: T200311W01-MF Rev.: 01 3. EUT SPECIFICATION EUT SPX Sandpiper Digital Display Model CP13 Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2412MHz ~ 2462 MHz 802.11n HT40: 2422MHz ~ 2452MHz 802.11a/n HT20: 5180MHz ~ 5240MHz / 5260 ~ 5320MHz 5500 ~ 5700MHz / 5745MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5230MHz / 5270 ~ 5310MHZ 5510 ~ 5670MHz / 5755MHz ~ 5795MHz 802.11ac VHT80: 5210MHz / 5290MHz / 5530MHz / 5775MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PIFA Antenna 2.4GHz: Directional Gain :5.82 dBi (Numeric gain:3.82) Worst Maximum Measurement Average Power 2.4GHz IEEE 802.11b Mode: 21.93 dBm(155.955 mW) IEEE 802.11g Mode: 19.91 dBm(97.949 mW) IEEE 802.11n HT 20 Mode: 19.79 dBm(95.280 mW) IEEE 802.11n HT 40 Mode: 19.74 dBm(94.189 mW) Maximum tune up power 2.4GHz IEEE 802.11b Mode: 22.50 dBm(177.828 mW) IEEE 802.11g Mode: 20.50 dBm(112.202 mW) IEEE 802.11n HT 20 Mode: 20.50 dBm(112.202 mW) IEEE 802.11n HT 40 Mode: 20.50 dBm(112.202 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Page 7 / 8 Report No.: T200311W01-MF Rev.: 01 4. TEST RESULTS No non-compliance noted. Calculation Given d GP E  = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G…

Text truncated - open the document above for the full version.

FCC ID: 2AVTJ-CP13 Page: 1 / 94 Report No.: T200311W01-RP1 Rev.: 02 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan / 新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2298-1882 www.sgs.tw www.ccsrf.com RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 FCC ID 2AVTJ-CP13 Brand name Connectpoint Product name SPX Sandpiper Digital Display Model No. CP13 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory). Approved by: Tested by: Kevin Tsai Deputy Manager Page: 2 / 94 Report No.: T200311W01-RP1 Rev.: 02 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 May 14, 2020 Initial Issue ALL Angel Cheng 01 May 25, 2020 See the following note Rev.(01) P.4-5, P.8-9, P.12, P.19, P.29, P.31, P.35 Allison Chen 02 May 26, 2020 See the following note Rev.(02) P.4, P.8, P.31-35 Allison Chen Rev.(01) 1. Added S/N, SW test tool and SW tool version in section 1.1. 2. Revised antenna type in section 1.3. 3. Revised calibration date and adapter for support equipment in section 1.6 & 1.7. 4. Revised the worst mode of measurement in section 3.2. 5. Revised 6dB test plot for high channel in section 4.2. 6. Revised power density and frequency range for 11n40. Rev.(02) 1. Revised date of test and test procedure in section 1.1 2. Revised conducted cal. date in section 1.6. 3. Revised test data of power density in section 4.4. Page: 3 / 94 Report No.: T200311W01-RP1 Rev.: 02 Table of contents 1. GENERAL INFORMATION ............................................................................................... 4 1.1 EUT INFORMATION ......................................................................................................... 4 1.2 EUT CHANNEL INFORMATION ....................................................................................... 5 1.3 ANTENNA INFORMATION ............................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY .................................................................................... 6 1.5 FACILITIES AND TEST LOCATION................................................................................. 7 1.6 INSTRUMENT CALIBRATION ......................................................................................... 8 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ....................................................... 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS .................................................... 9 2. TEST SUMMERY ............................................................................................................ 10 3. DESCRIPTION OF TEST MODES .................................................................................. 11 3.1 THE WORST MODE OF OPERATING CONDITION ...................................................... 11 3.2 THE WORST MODE OF MEASUREMENT..................................................................... 12 3.3 EUT DUTY CYCLE ......................................................................................................... 13 4. TEST RESULT ................................................................................................................ 14 4.1 AC POWER LINE CONDUCTED EMISSION .................................................................. 14 4.2 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ............................................. 17 4.3 OUTPUT POWER MEASUREMENT .............................................................................. 27 4.4 POWER SPECTRAL DENSITY ...................................................................................... 30 4.5 CONDUCTED BANDEDGE AND SPURIOUS EMISSION .............................................. 36 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION ................................................. 49 APPENDIX 1 - PHOTOGRAPHS OF EUT .............................................................................. A-1 Page: 4 / 94 Report No.: T200311W01-RP1 Rev.: 02 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Connectpoint Inc. 175 Cremona, Goleta, 93117 CA Manufacturer Sable Corporation 4F, No.945, Boai Street, Jubei City, Hsinchu, 302 Taiwan Equipment SPX Sandpiper Digital Display Model Name CP13 Model Discrepancy N/A Received Date March 11, 2020 Date of Test April 9 ~ May 25, 2020 Output Power(W) IEEE 802.11b mode: 0.2291 IEEE 802.11g mode: 0.2500 IEEE 802.11n HT 20 MHz mode: 0.2495 IEEE 802.11n HT 40 MHz mode: 0.2399 Power Supply Power from power adapter. S/N M13Q46TCA350047 SW Test Tool Android Debug Bridge SW Tool version Version 1.0.32 Test Procedure 1. Install Android Debug Bridge software. 2. Open the command prompt in the ADB folder. 3. Enter Command to test. Page: 5 / 94 Report No.: T200311W01-RP1 Rev.: 02 1.2 EUT CHANNEL INFORMATION Frequency Range 802.11b/g/n HT 20: 2412MHz ~ 2462MHz 802.11n HT40: 2422MHz ~ 2452MHz Modulation Type 1. IEEE 802.11b mode: CCK 2. IEEE 802.11g mode: OFDM 3. IEEE 802.11n HT 20 MHz mode : OFDM 4. IEEE 802.11n HT40 MHz mode: OFDM Number of channel 1. IEEE 802.11b mode: 11 Channels 2. IEEE 802.11g mode: 11 Channels 3. IEEE 802.11n HT 20 MHz mode : 11 Channels 4. IEEE 802.11n HT 40 MHz mode : 7 Channels Remark: Refer as ANSI C63.10: 2013 clause 5.6.1 Table 4 for test channels Number of frequencies to be tested Frequency range in which device operates Number of frequencies Location in frequency range of operation 1 MHz or less 1 M…

Text truncated - open the document above for the full version.

Page: A-1 / A-4 Report No.: T200311W01-RP1 Rev.: 02 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) Page: A-2 / A-4 Report No.: T200311W01-RP1 Rev.: 02 Conducted Emission Set Up Photo Page: A-3 / A-4 Report No.: T200311W01-RP1 Rev.: 02 Conduction Page: A-4 / A-4 Report No.: T200311W01-RP1 Rev.: 02
