2AVTM-AM66SPortable Rechargeable AM/ FM Radio with Bluetooth

Portable Rechargeable AM/ FM Radio with Bluetooth

TT Innovation Technology (HK) Co., Ltd. 2023-10-24 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AVTM-AM66S) The applicant: TT Innovation Technology (HK) Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Print name: Jason Jiang Title: manager Signature: SIEPER GMBH 2023-09-01 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AVTM-AM66S) The applicant: TT Innovation Technology (HK) Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Print name: Jason Jiang Title: manager Signature:

Attestation Statements -US agent 2023-10-24 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AVTM-AM66S) TT Innovation Technology (HK) Co., Ltd. the undersigned, hereby authorize (Baihetian Innovative Solutions) to act as our designated U.S. agent for service of process, TT Innovation Technology (HK) Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Baihetian Innovative Solutions) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: TT Innovation Technology (HK) Co., Ltd Address: Unit 506A, Harbour Crystal Centre, 100 Granville Road, Tsim Sha Tsui, Kowloon, Hong Kong FRN: 0029293115 Contact Name: Jason Jiang Telephone No: 0755-28411004 Email: [email protected] Signature : [name] ： Jason Jiang U.S. Agent Information: Company name: Baihetian Innovative Solutions Address: 6837 Chase Rd, Dearborn, MI 48126 United States Dearborn, MI 48126 FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature [name] ：

TT Innovation Technology (HK) Co., Ltd. Agent Authorization Letter 2023-10-24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (The Hong Kong Standards and Testing Centre Limited) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Print name: Jason Jiang Title: manager Signature:

TT Innovation Technology (HK) Co., Ltd. Long Term Confidentiality Request Letter Date: 2023-10-24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA Print name: Jason Jiang Title: manager Signature: Sincerely, Please contact me if there is any information you may need. into the possession of your competition. The above documents are company proprietary information that could never get from public review. description ) required to be submitted with this application be permanently withheld of CFR 47. We have requested that the (block diagram/schematics /operational This letter serves as an official request for confidentiality under sections 0.457 and 0.459 To Whom It May Concern: FCC ID: 2AVTM-AM66S MODEL: AM66S EUT NAME: Portable Rechargeable AM/ FM Radio with Bluetooth RE: CONFIDENTIALITY REQUEST FOR

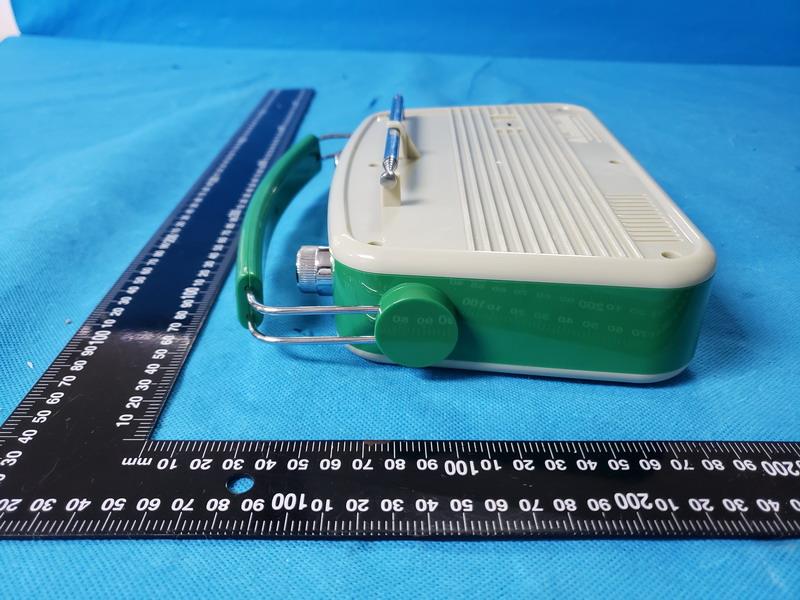

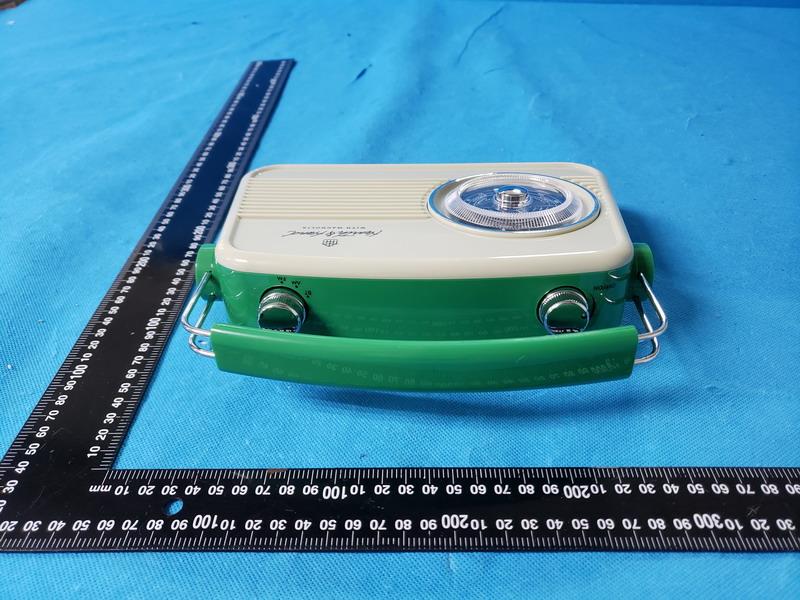

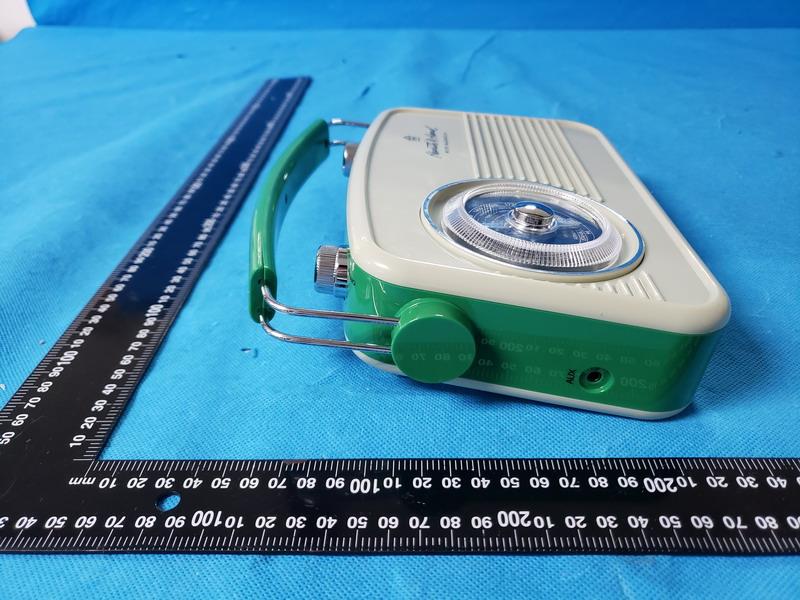

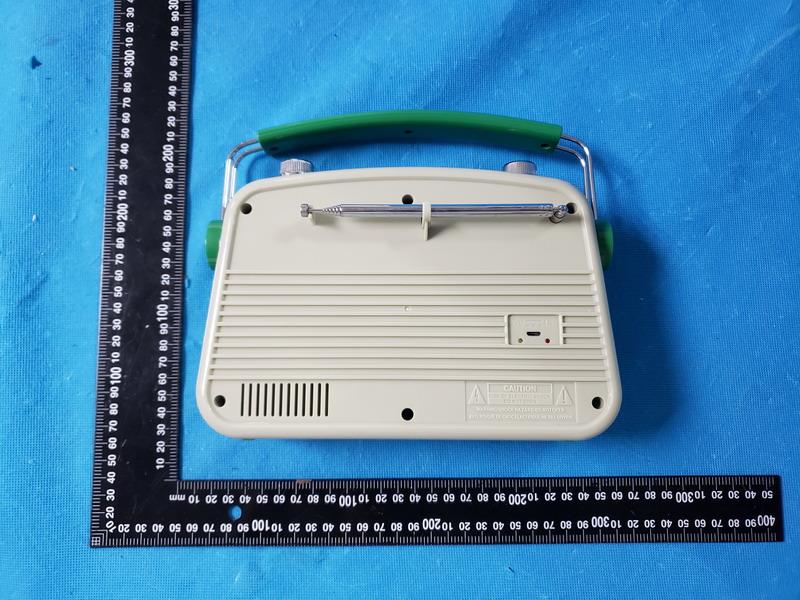

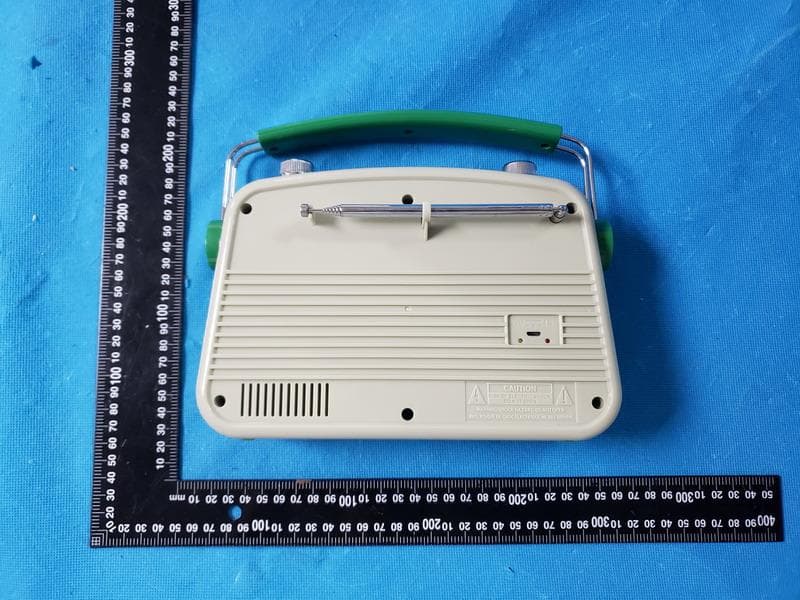

1 External Photo FCC ID: 2AVTM-AM66S View of The Product View of The Product 2 View of The Product View of The Product 3 View of The Product View of The Product

尺寸65*33mm，黑底白字 材质：80g合成纸+背胶+过光胶 DC Input: 5V 1A (Micro USB port) Power consumption: 5W Portable Rechargeable AM/ FM Radio with Bluetooth Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AVTM-AM66S FM Frequency: 88 - 108 MHz AM Frequency: 520 - 1710 KHz BT Frequency: 2402 - 2480 MHz Built-in Li-ion battery: 3.7V DC 1200mAh AM66S

1 Internal Photo FCC ID: 2AVTM-AM66S Inner View of the EUT Inner View of the EUT 2 Inner View of the EUT Inner View of the EUT 3 Inner circuit top view Inner circuit top view 4 BT antenna

RF Exposure FCC ID: 2AVTM-AM66S Test Requirement: FCC 47CFR 15.247(i) Test Date: 2023-10-23 Mode of Operation: Tx mode Requirements: In 15.247(i), an equipment shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the limits in §§ 1.1310 and 2.1093 of this chapter. Applications to the Commission for construction permits, licenses to transmit or renewals thereof, equipment authorizations or modifications in existing facilities must contain a statement confirming compliance with the limits unless the facility, operation, or transmitter is categorically excluded, as discussed below. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB447498 D01 General RF Exposure Guidance v06, unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition. Test Results: RF Exposure Evaluation For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison max. power of channel = 2.008 mW (at frequency = 2.480 GHz, the power tune-up tolerance is ±0.5dB) The test separation distances is ≤5 mm Result: 2.008/5*√2.48=0.632 SAR Test Exclusion Thresholds=0.632 ≤ 3.0 for 1-g SAR

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are sub j ect to chan ge without p rior notice Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.2 -3.6 1.1 -3.0 6 0.2 % Antenna Photo & Length (mm) Inverted F Antenna Specification 3.14mm 13.5mm 5.7mm 11.5mm Xinyinjia Electronic Technology Co., Ltd Room 1208, No. 25, Shaerhebin Community, Songgang Street, Bao'an District, Shenzhen, Guangdong Province Manufacture Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Test Report Date : 2023-10-27 Page 1 of 83 No. : HMD23090010 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. Applicant : TT Innovation Technology (HK) Co., Ltd. Unit 506A, Harbour Crystal Centre, 100 Granville Road, Tsim Sha Tsui, Kowloon, Hong Kong Supplier / Manufacturer : Ruijin Trefan Technology Co., Ltd. North Jinyuan Road, Economic and Development Zone, Ruijin, Jiangxi, China. Description of Sample(s) : Submitted sample(s) said to be Product: Portable Rechargeable AM/ FM Radio with Bluetooth Brand Name: Hearth & Hand with Magnolia Model No.: AM66S FCC ID: 2AVTM-AM66S Date Samples Received : 2023-10-17 Date Tested : 2023-10-17 to 2023-10-23 Investigation Requested : Perform Electro Magnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.10:2013 for FCC Certification. Conclusions : The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks : Bluetooth FHSS (GFSK / /4-DQPSK/ 8DPSK) Test by Susu _______________________________ Dr.CHAN Kwok Hung, Brian Authorized Signatory Test Report Date : 2023-10-27 Page 2 of 83 No. : HMD23090010 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. CONTENT: Cover Page 1 of 83 Content Page 2 of 83 1.0 General Details 1.1 Test Laboratory Page 3 of 83 1.2 Equipment Under Test [EUT] Page 3-5 of 83 Description of EUT operation 1.3 Date of Order Page 5 of 83 1.4 Submitted Sample(s) Page 5 of 83 1.5 Test Duration Page 5 of 83 1.6 Country of Origin Page 5 of 83 1.7 RF Module Details Page 6 of 83 1.8 Antenna Details Page 6 of 83 1.9 Channel List Page 6 of 83 2.0 Technical Details 2.1 Investigations Requested Page 7 of 83 2.2 Test Standards and Results Summary Page 8 of 83 2.3 Table for Test Modes Page 9 of 83 3.0 Test Results 3.1 Emission Page 10-78 of 83 Appendix A List of Measurement Equipment Page 79 of 83 Appendix B Photograph(s) of Product Page 80-83 of 83 Test Report Date : 2023-10-27 Page 3 of 83 No. : HMD23090010 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate, New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Portable Rechargeable AM/ FM Radio with Bluetooth Supplier: Ruijin Trefan Technology Co., Ltd. North Jinyuan Road, Economic and Development Zone, Ruijin, Jiangxi, China. Brand Name: Hearth & Hand with Magnolia Model Number: AM66S Rating: 3.7Vd.c.(Li-ion battery *1) 5Vd.c by Micro USB port The AC/DC adapter was provided by the laboratory with following details: Brand name: UE; Model no.: UES10LU-050200SPA Input: 100-240Va.c. 50/60Hz 0.5A, Output: 5.0Vd.c. 2.0A 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Portable Radio. The transmission signal is digital modulated with channel frequency range 2402-2480MHz. The R.F. signal was modulated by IC; the type of modulation used was frequency hopping spread spectrum Modulation. 1.3 Date of Order 2023-09-27 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2023-10-17 to 2023-10-23 1.6 Country of Origin China Test Report Date : 2023-10-27 Page 4 of 83 No. : HMD23090010 The Hong Kong Standards and Testing Centre Limited 10 Dai Wang Street, Taipo Industrial Estate, Tai Po, N.T., Hong Kong Tel: +852 2666 1888 Fax: +852 2664 4353 Email: [email protected] Website: www.stc.group This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Limited. For Conditions of Issuance of this test report, please refer to “Conditions of Issuance of Test Reports” section or Website. 1.7 RF Module Details Module Model Number: N/A Module FCC ID: N/A Module Transmission Type: Bluetooth 5.3 BR+EDR Modulation: FHSS (GFSK / /4-DQPSK/ 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: /4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: 1.2 dBi 1.9 Channel List Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 42 2444 1 2403 43 2445 2 2404 44 2446 3 2405 45 2447 4 2406 46 2448 5 2407 47 2449 6 2408 48 2450 7 2409 ... ... 8 2410 67 2469 9 2411 68 2470 ... ... 69 2471 33 2435 70 2472 34 2436 71 2473 35 2437 72 2474 36 2438 73 2475 37 2439 74 2476 38 2440 75 2477 39 2441 76 2478 40 2442 77 2479 41 2443 78 2480 Test Report Date : 2023-10-27 Page 5 of 83 No. : HMD23090010 The Hong Kong Standards and Testing Centre Limited …

Text truncated - open the document above for the full version.

1 Test Photo FCC ID: 2AVTM-AM66S Measurement of Radiated Emission Test Set Up (9kHz – 30MHz) Measurement of Radiated Emission Test Set Up (30MHz to 1000MHz) 2 Measurement of Radiated Emission Test Set Up (Above 1000MHz) Measurement of Conducted Emission Test Set Up
