2AVTM-TT2107True Wireless Earbuds

True Wireless Earbuds hey! welcome to your Heyday TM true wireless earbuds. let’s get you set up How to wear earbuds Take the earbuds out from the charging case. The left earbud has an “L” and the right earbud has an “R” marked on it. Place the left/right earbud in the left/right ear as indicated in the illustration. Ensure the speakers are pointed upwards when placing them in your ears. Included Charging case Wireless earbuds 3 Sets of silicon ear tips (S/M/L with M on the earbuds) USB-C type charging cable Pairing Remove the earbuds from the charging case to power on. If the earbuds are not stored inside the charging case or are turned off, press and hold both earbuds for 1.5 seconds to power on. Use Bluetooth settings on your phone to pair with HEYDAY EARBUD 04. The right earbud will start flashing white/red light rapidly while connecting to your phone. The left earbud will emit a steady white light - pairing successful. Place the earbuds back in the charging case to power off or press and hold both earbuds for 4 seconds to power off. Indicators charging case Left White flashing rapidly – Battery low 1 Steady White – Battery charged for 25% 2 Steady White – Battery charged for 50% 3 Steady White – Battery charged for 75% All 4 Steady White – Charging complete LED indicator Multifunctional Button Multifunctional Button Mic Charging LED indicator MicLED indicator Type C charging portReset Button Phone call function When you receive an incoming call, the left earbud will flash white. Single press the left or right earbud to answer the incoming call, press the left or right earbud again to hang up after the call. Press and hold the left or right earbud for 1.5 seconds to reject the incoming call. The music will automatically pause when a call comes in and will resume playing after the call has ended. Music function Press the left or right earbud to play or pause the music. Double press the left earbud to play the previous track. Double press the right earbud to play the next track. Note: since the right earbud is set as default, the left earbud cannot be used in mono mode. Voice assistant function Press and hold the left or right earbud for 1.5 seconds to enable or disable the voice assistant / Siri function. Charging earbuds Make sure the earbuds are fully charged prior to the first use. Approximately 1.5 hours are required to fully charge the earbuds. Charging is complete when red light turns off. Place the earbuds in their respective slots inside the charging case to start charging them. The left and right earbuds emit a steady red light while charging. When the earbuds are fully charged the lights turn white. Recharging charging case When the left light on the charging case rapidly flashes white, the battery of the charging case is on low power and needs to be charged. Approximately 1.5 hours are required to fully charge the charging case. Plug the male end of the USB-C type charging cable into the female port of the charging case. Plug USB end of charging cable into a DC 5V USB power supply. The lights flash white while charging. Once the charging case is fully charged all 4 lights will turn a steady white. Resetting earbuds Place the earbuds in the charging case and press the reset button of the charging case. After 6 seconds, the earbuds will turn on and off again, indicating the reset. Troubleshooting and tips If the earbuds are not working correctly, turn them on/off. If the earbuds won’t turn on, recharge the battery and try again. If the earbuds won’t charge, make sure the charging case battery is not empty. “charging case battery”is fine - omit apostrophe!! If the charging case won’t charge, make sure the supply is 5V>1A, that it is functioning properly and not damaged. If the earbuds make no sound adjust the volume by turning it up. If the earbuds make no sound or do not show as an available device, make sure they are not paired to another device. If so, unpair the device and re-pair the desired device. This device does not have a pairing code. If prompted for one, make sure you are connecting to the correct device. If you are, then“forget“ the device and re-pair. If you nevertheless receive a prompt, then enter 0000. NOTE: The unit will power off it is not used for more than 5 minutes. If the Bluetooth connection range is more than 10 meters the earbuds will disconnect with a prompt sound, indicating that the connection has been lost. If the connection is not re-established within 2 minutes, the earbuds will turn off automatically. Need some help? Can’t get it to pair? Have a question or comment? call us at: 877-698-4883 or: 877-MyTgtTech online at: TargetTechSupport.com Safety Do not use near any water source Do not modify or repair this device Do not use in high temperatures or extreme weather Do not use chemical detergents to clean your device, use a soft dry cloth Keep 5-10 inches between microphone and mouth when using the phone call function FCCID: 2AVTM-TT2107 Model: TT2107 Input: 5V Max 1A Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equi…

Text truncated - open the document above for the full version.

TT Innovation Technology(HK) Co., Ltd [2020-04-22] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement TT Innovation Technology(HK) Co., Ltd FCC ID: 2AVTM-TT2107 To Whom It May Concern: We, TT Innovation Technology(HK) Co., Ltd hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AVTM-TT2107) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-04-22). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] TT Innovation Technology(HK) Co., Ltd Contact person: Jason Jiang

TT Innovation Technology(HK) Co., Ltd Apr. 20, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AVTM-TT2107 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TT Innovation Technology(HK) Co., Ltd Contact person: Jason Jiang

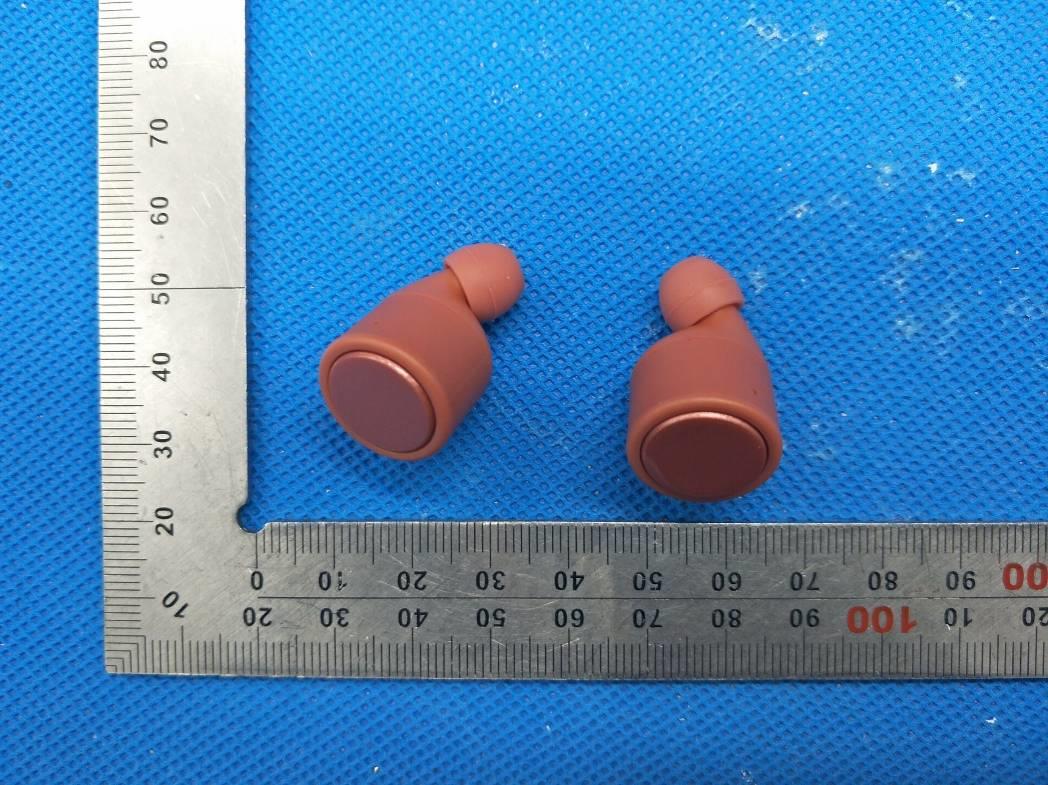

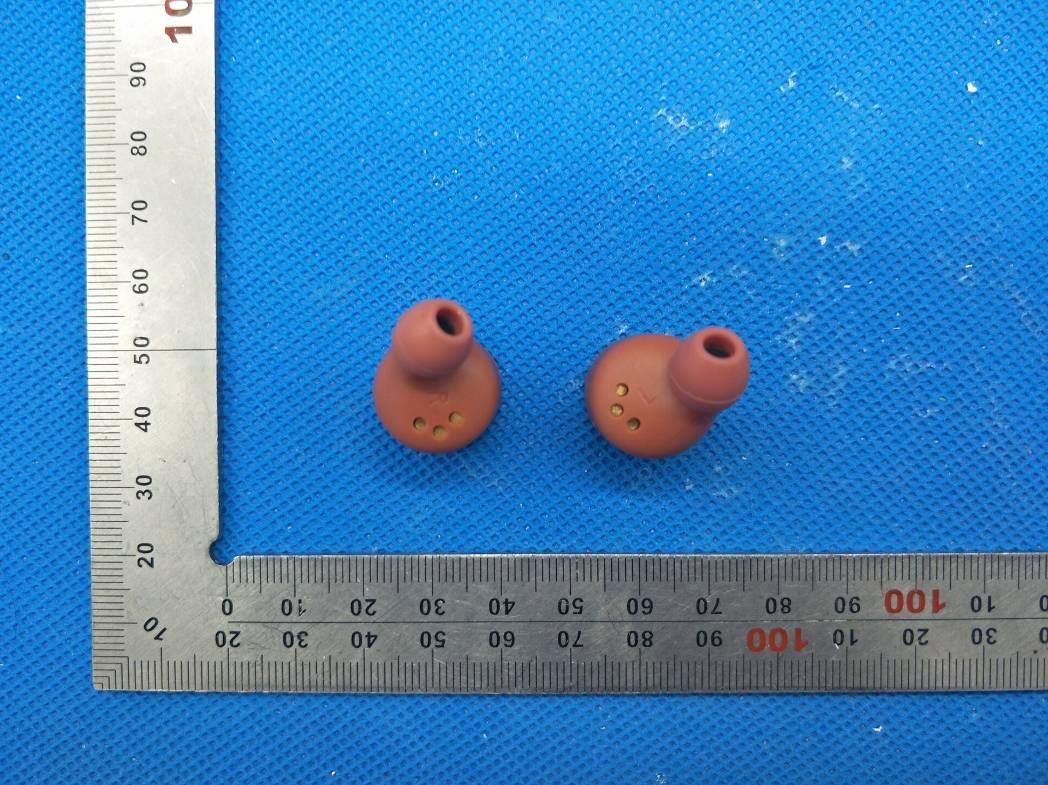

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Other Color Sample WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT

FCC ID Label Location 73mm*25mm FCC ID: 2AVTM-TT2107 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY BT Antenna INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Right OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description True Wireless Earbuds Model Name TT2107 FCC ID 2AVTM-TT2107 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-3.589dBm=0.44mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.44mW /5mm) .[√2.441GHz)]= 0.14<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 71 FCC Test Report Report No.: AGC05411200301FE03 FCC ID : 2AVTM-TT2107 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : True Wireless Earbuds BRAND NAME : Heyday MODEL NAME : TT2107 APPLICANT : TT Innovation Technology(HK) Co., Ltd DATE OF ISSUE : Apr. 16, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05411200301FE03 Page 2 of 71 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 16, 2020 Valid Initial Release Report No.: AGC05411200301FE03 Page 3 of 71 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION .............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 20 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 37 Report No.: AGC05411200301FE03 Page 4 of 71 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 37 10.2. TEST SETUP ....................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 40 10.4. TEST RESULT ..................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 50 11.1. MEASUREMENT PROCED…

Text truncated - open the document above for the full version.

Report No.: AGC05411200301FE03 Page 46 of 71 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT True Wireless Earbuds Model Name TT2107 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC05411200301FE03 Page 47 of 71 EUT True Wireless Earbuds Model Name TT2107 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical PK AV RESULT: PASS Report No.: AGC05411200301FE03 Page 48 of 71 EUT True Wireless Earbuds Model Name TT2107 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC05411200301FE03 Page 49 of 71 EUT True Wireless Earbuds Model Name TT2107 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC05411200301FE03 Page 50 of 71 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC05411200301FE03 Page 51 of 71 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.885 26*4 300.040 400 Middle 2.886 26*4 300.144 400 High 2.879 26*4 299.416 400 Note: The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC05411200301FE03 Page 52 of 71 TEST PLOT OF LOW CHANNEL Report No.: AGC05411200301FE03 Page 53 of 71 TEST PLOT OF MIDDLE CHANNEL Report No.: AGC05411200301FE03 Page 54 of 71 TEST PLOT OF HIGH CHANNEL Report No.: AGC05411200301FE03 Page 55 of 71 13. FREQUENCY SEPARATION 13.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Wide enough to capture the peaks of two adjacent channels. 2. RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. 3. Video (or average) bandwidth (VBW) ≥ RBW. 4. Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. 13.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 6.2 13.3. MEASUREMENT EQUIPMENT USED The same as described in section 6.3 13.4. LIMITS AND MEASUREMENT RESULT CHANNEL CHANNEL SEPARATION KHz LIMIT (KHz) RESULT CH01-CH02 1001 >=25 KHz or 2/3 20 dB BW PASS TEST PLOT FOR FREQUENCY SEPARATION Note: The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC05411200301FE03 Page 56 of 71 14. FCC LINE CONDUCTED EMISSION TEST 14.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P.( dBuV) Average( dBuV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
