2AVUA-REVEALXVREVEAL X-V

INSTRUCTION MANUAL REVEALCELLCAM.COM 2 REVEAL APP DOWNLOAD VISIT YOUR APP STORE TO DOWNLOAD DOWNLOAD THE TACTACAM REVEAL APP 3 TABLE OF CONTENTS INTRODUCTION Front View Bottom View of Camera Internal and Side View of Camera QUICK START What is in the Box? Get Camera and App Ready Add Camera to the App Account Start Using the Reveal CAMERA SETTINGS SPECIFICATION TROUBLESHOOTING Photos Do Not Capture the Subject of Interest Camera Stops Taking Images or Won’t Take Images Night Vision Flash Range Doesn’t Meet Expectations WARRANTY 3 4 4 4 4 6 6 6 6 7 8 11 12 12 12 12 13 TABLE OF CONTENTS 4 1 5 2 6 10 14 18 3 7 11 15 19 20 4 8 12 16 9 13 17 INTRODUCTION PIR Motion Sensor Antenna Lens IR LEDs Camera Working Status Indicator (Red) WiFi Indicator Light (Blue) SD Card Indicator (Red/Green) Device Status Indicator Light (Green/Blue) SIM Slot (DO NOT REMOVE) Power Switch (ON/SETUP/OFF) Battery Eject Button Microphone Battery Level Indicator 4G Signal Indicator SD Card Slot Test Button Reset Button External Battery In/DC Port USB Port Tripod/Mount Attachment 5 • (1) Trail Camera • (1) Instruction Manual • (1) Mounting Strap • (1) Antenna • (1) Pre-Installed SIM Card (DO NOT REMOVE) • 12 AA Batteries • SD Card - Class 10, U3, 16GB-32GB • Recommended Brands: Tactacam, Lexar, SanDisk (Other brands of lower end SD cards are incompatible with the Reveal X and will yield unexpected results) QUICK START GUIDE WHAT IS IN THE BOX?WHAT YOU WILL NEED RECOMMENDED CAMERA ACCESSORIES (NOT INCLUDED) VIEW AND PURCHASE ALL ACCESSORIES AT REVEALCELLCAM.COM SOLAR PANEL 6 1. Search “Tactacam Reveal” in the App Store or Google Play. Download and install the app on your smart device. 1. Install camera’s antenna. 2. Install a Class 10 U3 SD card (16GB or 32GB). 3. Install 12 AA batteries. DOWNLOADING THE APP SETTING UP THE CAMERA QUICK START GUIDE • Tighten securely to prevent internal moisture/condensation inside the lens. • To install the batteries, press the EJECT button on the Reveal X. Be sure to install the batteries in the correct orientation on the front and back of the tray. • See battery details on page 13 under Best Practices. • Recommended brands are: SanDisk, Lexar and Tactacam 7 4. DO NOT REMOVE the SIM Card that is Pre-installed in the Reveal X 5. Turn the power switch to SETUP 1. Open the Reveal App. 2. Click the camera icon at the bottom of the screen. 3. Click the (+) in the upper right corner to select a data plan and add your first camera. 4. Select the data plan for your camera and enter your payment information. 5. Follow the prompts to connect your camera. SETTING UP THE CAMERA (CONTINUED) ADD CAMERA TO THE APP • Check the indicator LED status lights; you will see all green when the camera is ready. Only the WiFi indicator light will be blue. • If the SD card indicator light is not green, the SD card is bad and needs to be changed. Be sure to always use a formatted SD card. • Next to the SD indicator light is the WiFi indicator light. This will be slowly flashing blue, meaning it is in pairing mode. • Default camera WiFi SSID is Reveal_**** • Default camera WiFi password is Reveal2021 QUICK START GUIDE 8 • Two ways to activate your camera • Scanning the QR Code • QR code will be inside the door of the camera • Pair over WiFi Connection • Does not require your phone or camera to be hooked up to your home or work WiFi • The camera will pair to your phone using a WiFi connection, similar to linking devices via Bluetooth • Follow the prompts on your phone to connect to your camera WiFi • This will activate the SIM card and data plan 6. After your camera is activated, you will see the signal status indicator searching, and then connect showing the signal strength. 7. You can automatically change and apply the camera settings when your phone is connected to the camera’s WiFi. This will not work unless you are next to the camera. ADD CAMERA TO THE APP (CONTINUED) QUICK START GUIDE • You can also remotely change the camera settings from the App, it will take up to 24 hours for settings to be applied. 1. Allow the camera to connect to 4G signal. The LED signal indicator light will be constant green. SENDING A TEST PICTURE • After your camera is activated, you will see the signal status indicator searching, and then connect showing the signal strength. 9 QUICK START GUIDE 1. While your camera is connected to your phone with WiFi, you will be able to access a live preview to help with camera setup and proper placement. 2. Ensure that the antenna is securely tightened. 3. Wipe down the seal, removing any dirt or debris. 4. Format your SD card in the App. 5. As long as your phone picks up a signal, be sure a motion detected picture is sent to your phone via the App. 2. Refer to the app to be sure the picture is successfully sent. 3. While your camera is connected to your phone with WiFi, you will be able to access a live preview to help with camera setup and proper placement. SENDING A TEST PICTURE (CONTINUED) LEAVING YOUR CAMERA IN THE FIELD • After the camera has connected, push the test button to send a photograph. • You will see the status light blinking as the image is sending. • When the test picture sends successfully, the status light will turn green. • If the status light turns red there may have been an issue trying to send the test photo. This is usually caused by signal strength. 10 SETTINGS / SPECIFICATIONS Camera ModePhoto; Photo+Video Day/Night ModeDaytime: Color, Nighttime: B+W IR Range96+ Feet PIR Angle45* Flash4 Infrared High Power LED bulbs; 850mn-High Power IR LED Operating Keys (2)1x Power slide switch; 1x Test button LensF=6mm; F/No=2.0; FOV=60* Auto IR-Cut-Remove (at night) SD CardClass 10, U3, 16GB-32GB, minimum 90mb/sec SD Indicator1 LED; Green=Good, 1 Red = Bad Battery Indicator 4 LED Lights 4G Signal Indicator4 LED Lights, Red= no service WiFi Indicator1 LED Light; Blinking blue=pairing mode / Solid blue=paired Picture Size8MP/12MP/24MP; Default 8MP Picture FormatJPEG Multishot Option…

Text truncated - open the document above for the full version.

Tactacam LLC Agent Authorization Company: Tactacam LLC Address: 110 N Sunset Blvd, Caledonia, MN 55921, USA Product Name: REVEAL X-V Trade Mark: TACTACAM Model Number: REVEAL X-V, REVEAL X-V 1.0, REVEAL X-V 2.0, REVEAL X-V 3.0, REVEAL X-V 4.0, REVEAL X-V 5.0, REVEAL X-V 6.0, REVEAL X-V 7.0 FCC ID: 2AVUA-REVEALXV We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-08 Name: Tara Peel Title: Manager Company: Tactacam LLC

Tactacam LLC Add: 110 N Sunset Blvd, Caledonia, MN 55921, USA Tel: 8477789020 Fax: 8477789020 Date: 2021-03-08 Dear Sir/Madam, We, Tactacam LLC Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these models: Product name: REVEAL X-V Models No.: REVEAL X-V, REVEAL X-V 1.0, REVEAL X-V 2.0, REVEAL X-V 3.0, REVEAL X-V 4.0, REVEAL X-V 5.0, REVEAL X-V 6.0, REVEAL X-V 7.0 Sincerely, Client’s name / title : Tara Peel / Manager Contact information / address: 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Tel: 8477789020 Fax: 8477789020 E-Mail: [email protected]

Tactacam LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-08 Subject; Request for Confidentiality FCC ID: 2AVUA-REVEALXV To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tara Peel Title: Manager

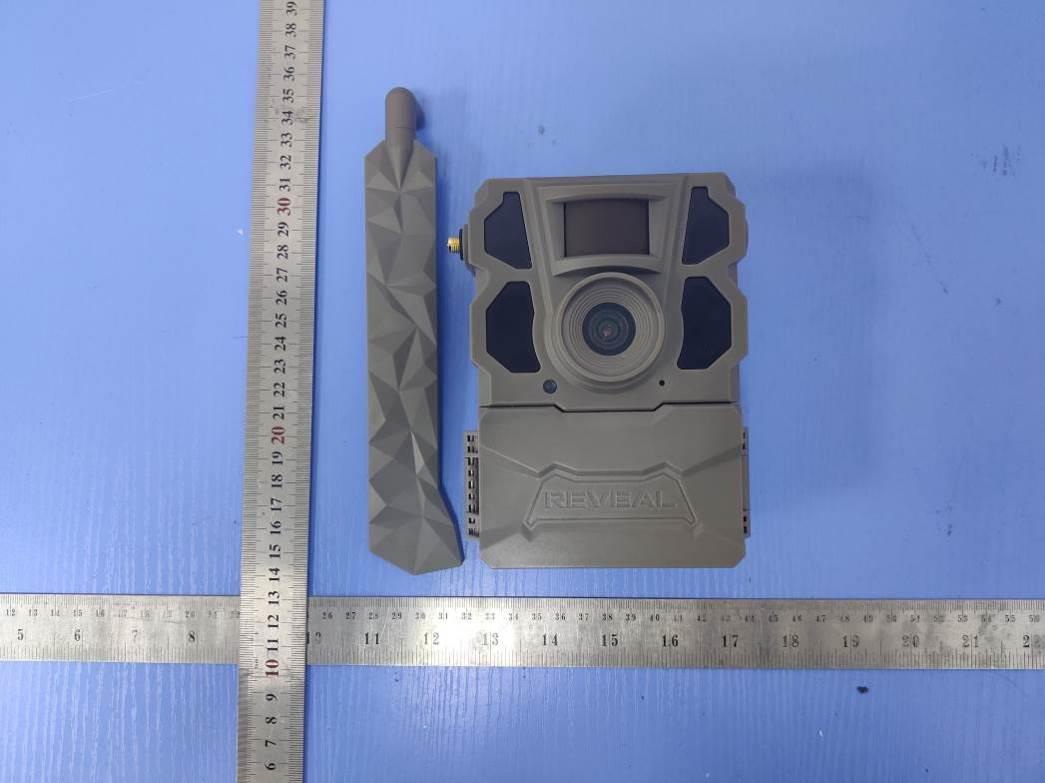

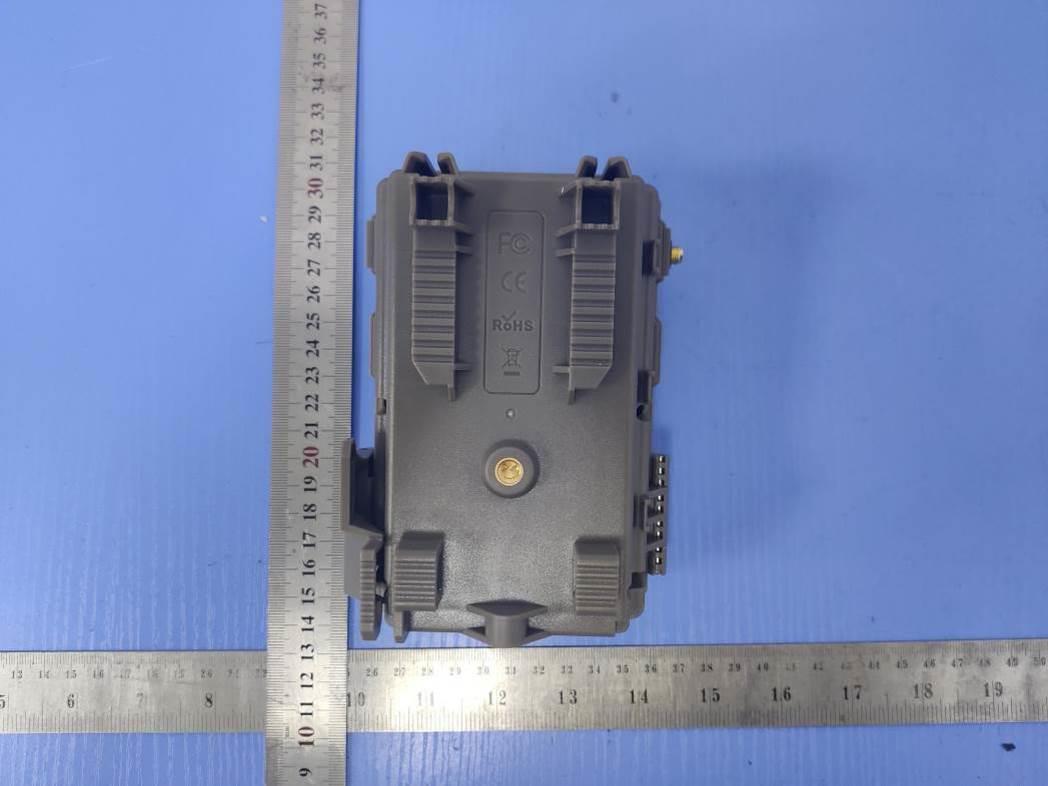

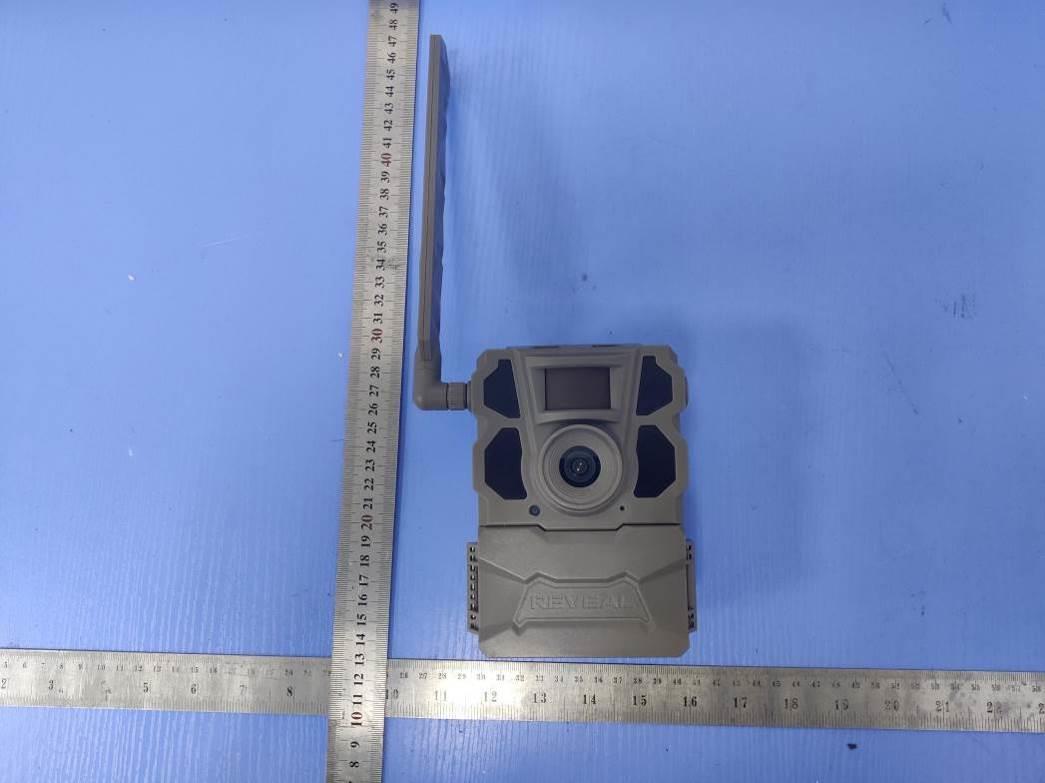

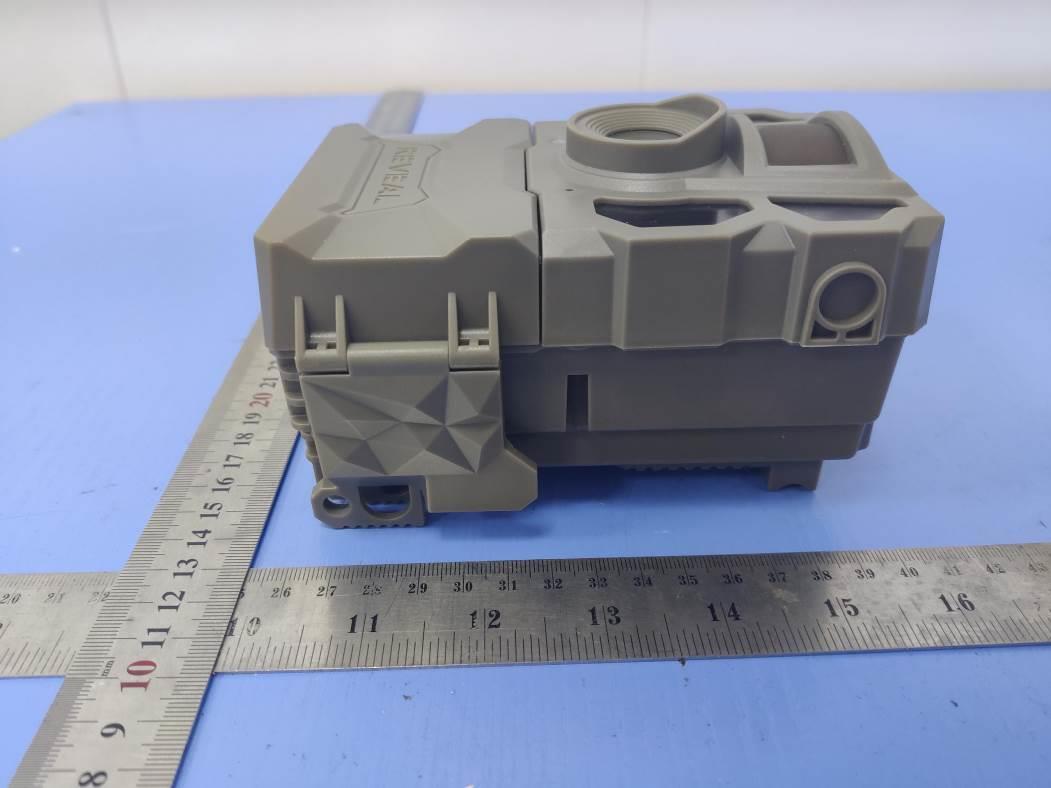

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 LTE Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.5cm Label Location REVEAL X-V Model No.: REVEAL X-V FCC ID: 2AVUA-REVEALXV Contains FCC ID: XMR201907EG91VX Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV INTERIOR PHOTOGRAPHS Fig.1 Fig.2 2.4G WIFI ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-REVEALXV Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2AVUA-REVEALXV EUT : REVEAL X-V Test Model : REVEAL X-V Power Supply : DC 9V By 6*AA Batteries Hardware Version : 1.0 Software Version : 1.0 2.4G WLAN Frequency Range : 2412 – 2462 MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing : 5MHz Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 3.0 dBi(Max.) LTE Frequency Band : LTE FDD Band 4, Band 13 LTE Antenna Description : External Antenna, 2.0 dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-REVEALXV Page 2 of 5 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498 D01 General RF Exposure Guidance v06 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-REVEALXV Page 3 of 5 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Electronic Lock can only use an antenna certificated as follows provided by manufacturer; Antenna Identification Antenna type and antenna number Operate frequency band Maximum antenna gain 2.4G WIFI ANT Internal Antenna 2400MHz – 2500MHz 3.0 dBi(Max.) LTE ANT External Antenna 600MHz – 3000MHz 2.0 dBi(Max.) 6. Conducted Power [2.4G WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11B 1 2412 15.10 6 2437 15.94 11 2462 16.21 11G 1 2412 15.72 6 2437 16.97 11 2462 16.94 11N20 1 2412 15.87 6 2437 16.10 11 2462 16.48 11N40 3 2422 16.09 6 2437 16.27 9 2452 16.19 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-REVEALXV Page 4 of 5 7. Manufacturing tolerance 2.4GWIFI 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-REVEALXV Page 5 of 5 8. Measurement Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Band/Mode RF output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/c…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: REVEAL X-V Trade Mark: TACTACAM Test Model: REVEAL X-V Environmental Conditions Temperature: 21.3 C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.79 PASS 11G 2437 Ant1 98.74 PASS 11N20SISO 2437 Ant1 98.65 PASS 11N40SISO 2437 Ant1 98.07 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 15.10 30 PASS MCH 15.94 30 PASS HCH 16.21 30 PASS 11G LCH 15.72 30 PASS MCH 16.97 30 PASS HCH 16.94 30 PASS 11N20SISO LCH 15.87 30 PASS MCH 16.10 30 PASS HCH 16.48 30 PASS 11N40SISO LCH 16.09 30 PASS MCH 16.27 30 PASS HCH 16.19 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -11.964 8 PASS MCH -11.243 8 PASS HCH -10.994 8 PASS 11G LCH -16.224 8 PASS MCH -15.471 8 PASS HCH -15.405 8 PASS 11N20SISO LCH -16.665 8 PASS MCH -14.704 8 PASS HCH -14.897 8 PASS 11N40SISO LCH -17.066 8 PASS MCH -16.795 8 PASS HCH -16.139 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.110 ≥0.5 PASS MCH 9.553 ≥0.5 PASS HCH 9.562 ≥0.5 PASS 11G LCH 10.12 ≥0.5 PASS MCH 12.57 ≥0.5 PASS HCH 11.34 ≥0.5 PASS 11N20SISO LCH 13.82 ≥0.5 PASS MCH 10.12 ≥0.5 PASS HCH 11.34 ≥0.5 PASS 11N40SISO LCH 31.34 ≥0.5 PASS MCH 33.80 ≥0.5 PASS HCH 30.11 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH 3.159 -38.515 -16.841 PASS MCH 3.613 -37.651 -16.387 PASS HCH 4.089 -37.331 -15.911 PASS 11G LCH -0.454 -36.619 -20.454 PASS MCH 0.337 -38.092 -19.663 PASS HCH -1.173 -38.065 -21.173 PASS 11N20 SISO LCH -0.561 -37.920 -20.561 PASS MCH 0.246 -37.264 -19.754 PASS HCH -0.13 -37.634 -20.130 PASS 11N40 SISO LCH -3.674 -37.087 -23.674 PASS MCH -3.338 -38.486 -23.338 PASS HCH -3.123 -38.365 -23.123 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC I…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For Tactacam LLC REVEAL X-V Test Model: REVEAL X-V Additional Model No.: REVEAL X-V 1.0, REVEAL X-V 2.0, REVEAL X-V 3.0, REVEAL X-V 4.0, REVEAL X-V 5.0, REVEAL X-V 6.0, REVEAL X-V 7.0 Prepared for : Tactacam LLC Address : 110 N Sunset Blvd, Caledonia, MN 55921, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 12, 2021 Number of tested samples : 2 Sample number : 201210226A-1, 201210226A-2 Serial number : Prototype Date of Test : January 12, 2021 ~ January 28, 2021 Date of Report : January 30, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS201210228AEA Date of Issue .................................. : January 30, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Tactacam LLC Address .......................................... : 110 N Sunset Blvd, Caledonia, MN 55921, USA Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : REVEAL X-V Trade Mark ..................................... : TACTACAM Test Model ...................................... : REVEAL X-V Ratings ........................................... : DC 9V By 6*AA Batteries Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ File administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT EUT......................................... : REVEAL X-V Test Model............................... : REVEAL X-V Applicant............................... : Tactacam LLC Address.................................. : 110 N Sunset Blvd, Caledonia, MN 55921, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Tactacam LLC Address................................... : 110 N Sunset Blvd, Caledonia, MN 55921, USA Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201210228AEA January 30, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 January 30, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV Report No.: LCS201210228AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMEN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-REVEALXV _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz
