2AVUASOLOWIFICamera

WWW.TACTACAM.COM 5.0, 5.0 WIDE, 4.0, & SOLO WIFI TACTACAM QUICK START GUIDE CONGRATULATIONS ON YOUR NEW TACTACAM! This is a Quick Start Guide to show you the basics of your new Tactacam. Visit Tactacam.com for the most up-to-date info about your Tactacam. Please make sure you register your camera within 10 days of purchase at: https://www.tactacam.com/warranty-registration/ Follow us on Facebook, Instagram and Twitter for the latest updates from the Tactacam team: https://www.facebook.com/tactacam https://www.instagram.com/tactacam https://twitter.com/tactacam Submit your videos at https://www.tactacam.com/share/ TACTACAM 5.0 What microSD requirements does my camera have? Tactacam 5.0 cameras supports up to 4k 30FPS, 1080p 120FPS, 720p 240FPS high frame rate video for a better shooting experience. Please use a microSD card that meets the following specifications: 1. Use U3 or higher with your 5.0 (Class 10 U1 cards are not compatible and are too slow). 2. 5.0 supports 64-128GB memory cards. Solo and 4.0 supports 32-64GB 3. FAT32 SD card format. After connecting to Tactacam APP, we recommend formatting the card by going to the “Settings-> SD Card -> Format SD Card”. 4. Please use one of the recommended micro SD cards. (see below). *Other Brands speed / quality may vary, look for the for best results. Please email [email protected] if you need any further assistance. (844) 482-2822 5.0, 5.0 WIDE, 4.0, & SOLO WIFI GET TO KNOW YOUR TACTACAM TACTACAM Solo WiFi 1. External waterproof mic 2. 2.5 hour record time on a single charge 3. “Quick change” Mode/Wi-Fi button 4. One touch record with vibration indication 5. Battery indicator lights 6. TrueVision™ Full HD 4k-30fps | 2.7k-30fps 1080-120fps 7. TrueVision™ Full HD 2.7k-30fps | 1080-60fps 720p-120fps 8. TrueVision™ Full HD 1080p 8 1 2 FEATURES 4 TACTACAM 4.0 7 1 2 TACTACAM 5.0 & 5.0 WIDE 6 1 2 4 3 5 4 3 5 WWW.TACTACAM.COM 5.0, 5.0 WIDE, 4.0, & SOLO WIFI TACTACAM QUICK START GUIDE Before you start filming, charge your Tactacam completely. On the rear of the camera unlock the back cap and then twist counter clockwise to the unlock position to access the components listed below. You should see the following. SD card slot USB port (Charging and Downloading) Removable battery (Up to 2.5 hours continuous recording time) Micro HDMI output (excludes Solo WiFi) List of the Pre-set modes for your camera (excludes Solo WiFi) Your Tactacam’s serial number. (Note: Tactacam Solo’s only have USB port, SD Card slot, and Removable battery.) 1 2 1 2 56 4 3 1 2 1 2 3 4 5 6 (844) 482-2822 CHARGE YOUR TACTACAM 5.0, 5.0 WIDE, 4.0, & SOLO With the back cap removed you will see the USB charging port and the SD card slot. Using the included USB cord, plug your Tactacam into a wall outlet. . You will see the solid red light illuminate on your Tactacam and it will remain lit until your camera is fully charged. When the light has shut off, you can then unplug your Tactacam. You can also charge your Tactacam Batteries with the Tactacam Dual Battery Charger (sold separately). Mini USB WWW.TACTACAM.COM GETTING TO KNOW YOUR TACTACAM POWERING ON AND RECORDING 1. Push the Rec/Power button. You will feel the camera vibrate 2 times and see a blinking green light around the Rec/Power button. The green LED must be blinking for the camera to be recording. The process takes approximately 3 seconds. NOTE: If light does not begin to flash, make sure your SD Card is installed, formatted, and not filled with videos. 2. To pause your recording quickly push the Rec/Power button. The camera will vibrate 1 time and the green light will go solid around the rec/power button. 3. With the camera paused, change the modes by pushing the mode button. (Ex- cludes Solo WiFi) 4. To power your camera completely off push and hold the Rec/Power button for 5 seconds. 5. The camera will automatically power off to save battery when left in pause mode after 3 minutes. (844) 482-2822 QUICK CHANGE MODES GETTING TO KNOW YOUR TACTACAM: “QUICK CHANGE” VIDEO MODES (Excludes Solo WiFi) Three Pre-set video modes: Green = Standard recording, best for first time use, general recording and low light recording. Blue = Zoom mode, to get you closer to the subject. Light Blue = Slow motion, records at 120fps provides smooth playback of your shot placement. Best results are with lighted arrow nock or tracer round ammo. BLACKOUT MODE (excludes Solo WiFi) To enter Blackout mode press the MODE button when the camera is recording. NOTE: You can only enter and exit the Blackout mode when the camera is recording. When in Blackout mode your camera functions will remain the same without visible lights on the camera. You will only feel the camera vibrate. (2 vibrations = recording and 1 vibration = pause.) If at any time you get confused just push and hold the rec/power button for 5 seconds and the camera will power off. NOTE: When using Blackout mode, periodically confirm you are recording to avoid mishaps. The battery indicator light will blink to inform you that the battery has less then 10% life remaining. WWW.TACTACAM.COM CUSTOMIZABLE MODES TACTACAM 5.0 & 5.0 WIDE The Camera comes from the factory Pre-set for optimal use in the following 3 settings. MODE 1 GREEN = General Filming and Low Light This setting is optimal for general filming and is the mode of choice for many. The High resolution and lowlight capability is recommended for first time, as well as experienced users. As you familiarize yourself with the Tactacam 5.0 you will enjoy the flexibility to adjust the Tacta- cam 5.0’s zoom which is available when connecting to the Tactacam’s WiFi with the Tactacam APP. MODE 2 BLUE = ZOOM MODE This setting is optimal for use when the subject is in the distance. The 4.0 uses 5x zoom and the 5.0 is set at 8x. You are able to customize the zoom setting on your Tactacam 5.0, connect to the Tactacam APP and select your desired zoom setting. MODE 3 LIGHT BLUE = Slow-mo This setting is optimized for high speed action at 120fps. To…

Text truncated - open the document above for the full version.

Declaration of Authorization We Name: Tactacam LLC Address: 110 N Sunset BLVD, Caledonia, MN 55921 Declare that: Name Representative of agent:Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address:D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City:Suzhou CountryChina is authorized to apply for Certification of the following product(s): FCC ID: 2AVUASOLOWIFI Product:Camera Brand:Tactacam Model: Tactacam Solo WiFi Sincerely, Name: Tara Peel Tactacam LLC Date: 2020-03-07

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AVUASOLOWIFI Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1.Block Diagram 2.Schematics 3.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Tara Peel Tactacam LLC Date: 2020-03-07

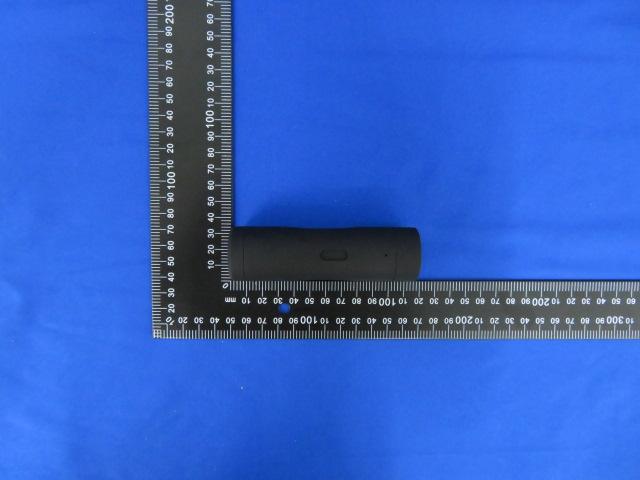

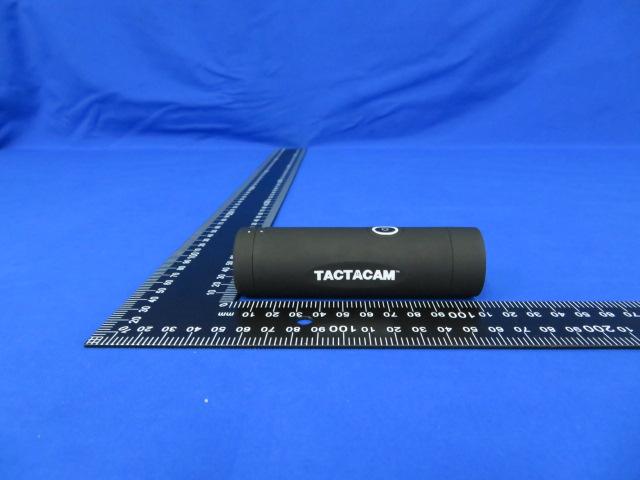

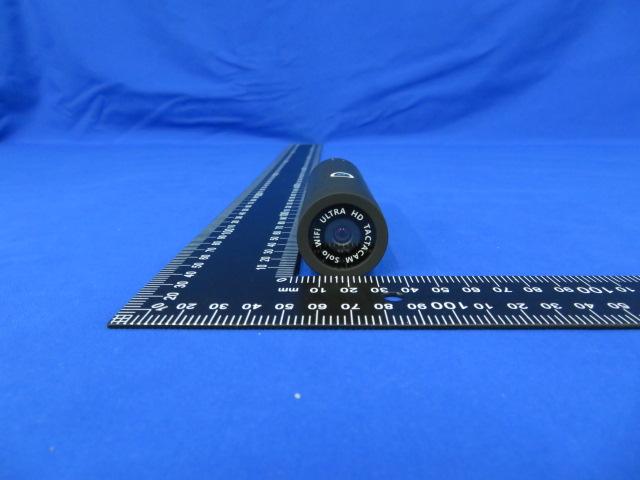

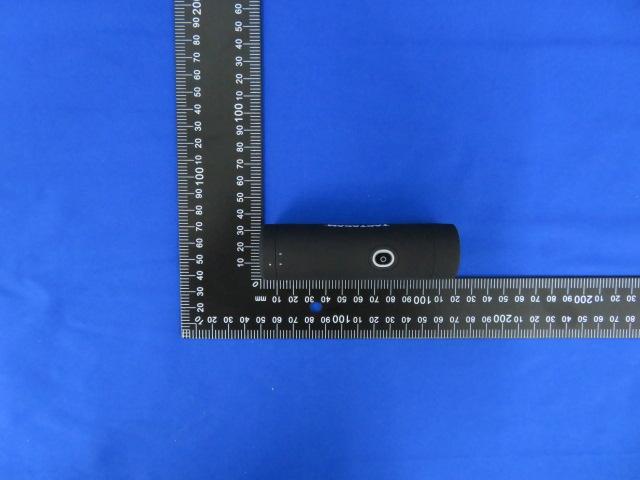

Report No.: 2001RSU048-UE 1 of 3 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2001RSU048-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2001RSU048-UE 3 of 3 (5) EUT Photo (6) EUT Photo

Report No.: 2001RSU048-UE 1 of 7 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.:2001RSU048-UE 2 of 7 (3) EUT Photo (4) EUT Photo Report No.:2001RSU048-UE 3 of 7 (5) EUT Photo (6) EUT Photo Report No.:2001RSU048-UE 4 of 7 (7) EUT Photo (8) EUT Photo Report No.:2001RSU048-UE 5 of 7 (9) EUT Photo (10) EUT Photo Report No.:2001RSU048-UE 6 of 7 (11) EUT Photo (12) EUT Photo Report No.:2001RSU048-UE 7 of 7 (13) EUT Photo (14) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2001RSU048-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-10-2020 FCC ID: 2AVUASOLOWIFI Page Number: 1 of 7 RF Exposure Evaluation Declaration FCC ID: 2AVUASOLOWIFI Applicant: Tactacam LLC Application Type: Certification Product: Camera Model No.: Tactacam Solo WiFi Brand Name: Tactacam FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 1.1307, Part 2.1093 Test Procedure(s): 447498 D01 General RF Exposure Guidance v06 Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 2 of 7 Revision History Report No. Version Description Issue Date Note 2001RSU048-U2 Rev. 01 Initial Report 03-10-2020 Valid Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 3 of 7 1. Equipment Description 1.1. Feature of Equipment under Test 1.2. Product Specification Subjective to this Report 1.3. Working Frequencies for this report 802.11b/g/n-HT20 Channel Frequency Channel Frequency Channel Frequency 01 2412 MHz 02 2417 MHz 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz 10 2457 MHz 11 2462 MHz -- -- 802.11n-HT40 Channel Frequency Channel Frequency Channel Frequency 03 2422 MHz 04 2427 MHz 05 2432 MHz 06 2437 MHz 07 2442 MHz 08 2447 MHz 09 2452 MHz -- -- -- -- Product Name Camera Model No. Tactacam Solo WiFi Brand Name Tactacam Wi-Fi Specification 802.11b/g/n Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Data Rate 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 150Mbps Antenna Type PIFA Antenna Peak Antenna Gain 2.24dBi Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 4 of 7 2. RF Exposure Evaluation 2.1. Limits SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 5 of 7 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 6 of 7 2.3. Test Result of RF Exposure Evaluation Product Wireless Earphone Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.24dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum output power to antenna (mW) SAR Test Exclusion Threshold (mW) 802.11b/g/n 2412 ~ 2462 9.12 10 Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances<50mm is defined by the following equation: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 Based on the maximum conducted power of Bluetooth and the antenna to use separation distance, Bluetooth SAR was not required; [(9.12mW/5)* √2.462] = 2.86 < 3.0 Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End Report No.: 2001RSU048-U2 FCC ID: 2AVUASOLOWIFI Page Number: 7 of 7 Appendix - EUT Photograph Refer to “2001RSU048-UE” file.

MRT Technology (Suzhou) Co., Ltd Report No.: 2001RSU048-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 03-10-2020 FCC ID: 2AVUASOLOWIFI Page Number: 1 of 102 FCC ID: 2AVUASOLOWIFI Applicant: Tactacam LLC Application Type: Certification Product: Camera Model No.: Tactacam Solo WiFi Brand Name: Tactacam FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Test Procedure(s): ANSI C63.10-2013 Test Date: January 18 ~ 21, 2020 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 2 of 102 Revision History Report No. Version Description Issue Date Note 2001RSU048-U1 Rev. 01 Initial Report 03-10-2020 Valid Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 3 of 102 CONTENTS Description Page General Information ......................................................................................................................... 5 1. INTRODUCTION ........................................................................................................................ 6 1.1. Scope .............................................................................................................................. 6 1.2. MRT Test Location .......................................................................................................... 6 2. PRODUCT INFORMATION ........................................................................................................ 7 2.1. Feature of Equipment under Test ................................................................................... 7 2.2. Product Specification Subjective to this Report .............................................................. 7 2.3. Working Frequencies for this report ................................................................................ 7 2.4. Test Mode ....................................................................................................................... 8 2.5. Test Software .................................................................................................................. 8 2.6. Duty Cycle ....................................................................................................................... 9 2.7. EMI Suppression Device(s)/Modifications ....................................................................... 9 2.8. Labeling Requirements ................................................................................................. 10 3. DESCRIPTION of TEST .......................................................................................................... 11 3.1. Evaluation Procedure .................................................................................................... 11 3.2. AC Line Conducted Emissions ..................................................................................... 11 3.3. Radiated Emissions ...................................................................................................... 12 4. ANTENNA REQUIREMENTS .................................................................................................. 13 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 14 6. MEASUREMENT UNCERTAINTY ........................................................................................... 16 7. TEST RESULT ......................................................................................................................... 17 7.1. Summary ....................................................................................................................... 17 7.2. Occupied Bandwidth Measurement .............................................................................. 18 7.2.1. Test Limit ................................................................................................................... 18 7.2.2. Test Procedure used ................................................................................................. 18 7.2.3. Test Setting ............................................................................................................... 18 7.2.4. Test Setup ................................................................................................................. 18 7.2.5. Test Result ................................................................................................................ 19 7.3. Output Power Measurement ......................................................................................... 24 7.3.1. Test Limit ................................................................................................................... 24 7.3.2. Test Procedure Used ................................................................................................. 24 7.3.3. Test Setting ............................................................................................................... 24 7.3.4. Test Setup ................................................................................................................. 25 Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 4 of 102 7.3.5. Test Result of Output Power ..................................................................................... 26 7.4. Power Spectral Density Measurement .......................................................................... 28 7.4.1. Tes…

Text truncated - open the document above for the full version.

Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 61 of 102 Site: AC1 Time: 2020/02/12 - 18:25 Limit: FCC_Part15.209_RE(3m) Engineer: Snake Ni Probe: VULB 9168 _20-2000MHz Polarity: Vertical EUT: Camera Power: By Battery Worst Case Mode: Transmit by 802.11b at Channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 56.190 16.018 2.334 -23.982 40.000 13.684 QP 2 104.205 13.630 2.174 -29.870 43.500 11.456 QP 3 359.800 30.401 14.698 -15.599 46.000 15.703 QP 4 546.525 36.397 16.910 -9.603 46.000 19.487 QP 5 * 720.155 39.675 17.307 -6.325 46.000 22.368 QP 6 888.450 33.804 9.605 -12.196 46.000 24.199 QP Note 1: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Note 2: The test trace is same as the ambient noise and the amplitude of the emissions are attenuated more than 20dB below the permissible (the test frequency range: 9kHz ~ 30MHz, 18GHz ~ 25GHz), therefore no data appear in the report. Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 62 of 102 7.7. Radiated Restricted Band Edge Measurement 7.7.1.Test Limit For 15.205 requirement: Radiated emissions which fall in the restricted bands, as defined in Section 15.205(a) of FCC part 15, must also comply with the radiated emission limits specified in Section 15.209(a). Frequency (MHz) Frequency (MHz) Frequency (MHz) Frequency (GHz) 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525 608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475 960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 - 1710 10.6 - 12.7 6.26775 - 6.26825 108 - 121.94 1718.8 - 1722.2 13.25 - 13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 - 14.5 8.291 - 8.294 149.9 - 150.05 2310 – 2390 15.35 - 16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2690 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3358 36.43 - 36.5 12.57675 - 12.57725 322 - 335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 -- -- -- Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 63 of 102 All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47CFR must not exceed the limits shown in Table. FCC Part 15 Subpart C Paragraph 15.209 Limits Frequency [MHz] Field Strength [uV/m] Measured Distance [Meters] 0.009 - 0.490 2400/F (kHz) 300 0.490 - 1.705 24000/F (kHz) 30 1.705 - 30 30 30 30 - 88 100 3 88 - 216 150 3 216 - 960 200 3 Above 960 500 3 7.7.2.Test Procedure Used ANSI C63.10 Section 6.3 (General Requirements) ANSI C63.10 Section 6.6 (Standard test method above 1GHz) 7.7.3.Test Setting Peak Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 64 of 102 Average Field Strength Measurements 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ 1/T 4. De As an alternative, the instrument may be set to linear detector mode. Ensure that video filtering is applied in linear voltage domain (rather than in a log or dB domain). Some instruments require linear display mode in order to accomplish this. Others have a setting for Average-VBW Type, which can be set to “Voltage” regardless of the display mode 5. Detector = Peak 6. Sweep time = auto 7. Trace mode = max hold 8. Allow max hold to run for at least 50 times (1/duty cycle) traces 7.7.4.Test Setup Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 65 of 102 7.7.5.Test Result Site: AC1 Time: 2020/01/20 - 20:33 Limit: FCC_Part15.209_RE(3m) Engineer: Snake Ni Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Camera Power: By Battery Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2334.920 58.777 26.620 -15.223 74.000 32.157 PK 2 2390.000 56.312 24.240 -17.688 74.000 32.072 PK 3 * 2411.976 93.681 61.598 N/A N/A 32.084 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 66 of 102 Site: AC1 Time: 2020/01/20 - 20:37 Limit: FCC_Part15.209_RE(3m) Engineer: Snake Ni Probe: BBHA9120D_1-18GHz Polarity: Horizontal EUT: Camera Power: By Battery Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.000 44.097 12.025 -9.903 54.000 32.072 AV 2 * 2411.248 88.768 56.687 N/A N/A 32.082 AV Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI Page Number: 67 of 102 Site: AC1 Time: 2020/01/20 - 20:37 Limit: FCC_Part15.209_RE(3m) Engineer: Snake Ni Probe: BBHA9120D_1-18GHz Polarity: Vertical EUT: Camera Power: By Battery Test Mode: Transmit by 802.11b at channel 2412MHz No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Margin (dB) Limit (dBuV/m) Factor (dB) Type 1 2384.200 58.374 26.300 -15.626 74.000 32.074 PK 2 2390.000 56.651 24.579 -17.349 74.000 32.072 PK 3 * 2411.864 92.141 60.058 N/A N/A 32.083 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) Report No.: 2001RSU048-U1 FCC ID: 2AVUASOLOWIFI…

Text truncated - open the document above for the full version.

Report No.: 2001RSU048-UT 1 of 2 FCC Part 15C Test Setup Photo Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2001RSU048-UT Description: Radiated Spurious Emission Test Setup for Below 1GHz Description: Radiated Spurious Emission Test Setup for Above 1GHz
