2AVUA-SPOTTERLRSPOTTER LR

INSTRUCTION MANUAL SPOTTER LR WWW.TACTACAM.COM SPOTTER LR TACTACAM QUICK START GUIDE CONGRATULATIONS ON YOUR NEW TACTACAM SPOTTER LR! This is a Quick Start Guide to show you the basics of your Spotter LR Camera. Visit Tactacam.com for the most up-to-date info about your Tactacam Spotter LR. Make sure you register your camera within 10 days of purchase at: https://www.tactacam.com/warranty-registration/ Follow us on Facebook, Instagram and Twitter for the latest updates from the Tactacam team: https://www.facebook.com/Tactacam https://www.instagram.com/tactacam https://twitter.com/tactacam Submit your videos at https://www.tactacam.com/share/ (844) 482-2822 SPOTTER LR FEATURES & BENEFITS GET TO KNOW YOUR TACTACAM 1. Light weight 9oz 2. Easy quick connect attachment 3. Adjustable HD screen 4. 4k resolution 5. Optic and Digital zoom 6. Wi-Fi to Spotter LR APP for easy sharing 3 1 TACTACAM SPOTTER LR FEATURES 4 What microSD requirements does my camera have? Please use a microSD card that meets the following specifications: 1. Use a U3 speed SD card with your Spotter LR 2. Spotter LR supports 32-128GB memory cards. 3. After connecting to Tactacam Spotter LR APP, we recommend formatting the card by going to the “Menu > Other Settings-> Format SD Card”. 4. Recommended micro SD cards. (see below) Please email [email protected] if you need any further assistance. TACTACAM - SPOTTER LR 5 6 2 WWW.TACTACAM.COM You should see the following. · SD card slot · USB Type-C port (Charging and Downloading) · Micro HDMI Port · Removable battery SPOTTER LR TACTACAM QUICK START GUIDE Before you start filming, charge your Spotter LR completely. On the bottom of the camera open the two doors to access the components listed below. 1 1 2 3 4 4 3 2 (844) 482-2822 CHARGE YOUR TACTACAM SPOTTER LR With the bottom doors open you will see the USB C charging port and the SD card slot. Using the included USB C cord, plug your Spotter LR into a wall outlet. You will see the solid red light illuminate on your Tactacam Spotter LR it will remain lit until your camera is fully charged. When the light has shut off, unplug your Tactacam Spotter LR. USB C You can also charge your Tactacam Spotter LR Battery with the Tactacam Dual Battery Charger (sold separately). WWW.TACTACAM.COM CONNECTING YOUR TACTACAM OPERATING THE SPOTTER LR 1. Push the Power button. You will see a green light around the Power button. (The green LED light will be blink when the Tactacam is recording.) 2. Screen Orientation With the camera ON push the menu button. You will see the camera’s quick menu. Select Screen Flip to properly orientate your display. (Push OK (Power button) to make a selection) and Exit. 3. To start recording, the camera should be powered ON, push the power button again, you will see the Green light start to blink. There is also a RED visual on the top right of the Spotter LR screen. RED record icon will be blinking NOTE: If light does not begin to flash, make sure your SD Card is installed, formatted, and not filled with videos. 4. Pause your recording by pushing the Power button, you will see the blinking Green light change to a solid green light around the power button. 5. To power your camera off completely, push and hold the Rec/Power button for 5 seconds. (844) 482-2822 GETTING TO KNOW YOUR TACTACAM Other Camera Tips ZOOM - When previewing or recording you can zoom in and out by pushing the buttons on the left and right side of the power button. MENU - With the camera on and not recording, you can access the cameras Menu by pushing the menu button on the back of the camera. WI-FI - With the camera on and not recording you can turn on the cameras Wi-Fi by pushing and holding the bottom left Wi-Fi button on the back of the camera for 3 sec. You will need to download the Tactacam Spotter LR APP from the iOS or Android app stores. Mounting Spotter LR to your scope 1. Select the proper spacer for your spotting scope. 2. Attach the adapter to the Spotter LR 3. Slide the Spotter LR and adapter over the spacer 4. Clamp the adapter tight to the spacer and scope OPERATING THE SPOTTER LR WWW.TACTACAM.COM REFORMATTING YOUR CARD GETTING TO KNOW YOUR TACTACAM SD Card info Always use the recommended SD Card for your camera. Tactacam Spotter LR requires UHS Speed Class 3 (U3) to deliver the necessary write speed for cameras like the Tactacam that can shoot 4K and high-bitrate video. U3- certified SD cards must be able to maintain a minimum write speed of 30MB/s to ensure that recording continues smoothly without any dropped frames. You can use up to a 128GB card with the Tactacam Spotter LR. Note: You should always format your SD Card before using it in your Tactacam for the first time or after it has been used in any other device. Only use high quality micro SD Cards. Tactacam SD Cards, Lexar, or SanDisk Ultra Please see more info on SD Cards at tactacam.com/support (844) 482-2822 REFORMATTING YOUR CARD GETTING TO KNOW YOUR TACTACAM Use one of the following methods to access videos located on your micro SD Card. 1. Using the provided USB C cord, connect your Tactacam to your computer. Power your camera on to allow the computer and camera to communicate. You will see an icon on your computer desktop (usually named TACTACAM). Open it, any videos taken with your Tactacam Spotter LR will be in the “Video” folder. OR 2. Remove your micro SD Card from your Tactacam Spotter LR and insert the micro SD Card into the provided micro SD Card adapter. Insert the micro SD Card adapter into your SD Card reader on your computer. Format your SD Card. When you Format a SD Card it will erase all data on the SD card. If you need assistance reformatting your SD card see the following: For a Mac: Visit tactacam.com/support and to see video “SD Card Reformat on a Mac Computer” for full detailed instructions For a PC: Visit tactacam.com/support and to see video “SD Card Reformat on a Windows Computer” for full detailed instructions Notes: It is best to format your SD…

Text truncated - open the document above for the full version.

Tactacam LLC Agent Authorization Company: Tactacam LLC Address: 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Product Name: SPOTTER LR Trade Mark: TACTACAM Model Number: SPOTTER LR, SPOTTER LR 1.0, SPOTTER LR 2.0, SPOTTER LR 3.0, SPOTTER LR 4.0, SPOTTER LR 5.0, SPOTTER LR 6.0, SPOTTER LR 7.0 FCC ID: 2AVUA-SPOTTERLR We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-06-23 Name: Tara Peel Title: Manager Company: Tactacam LLC

Tactacam LLC Add: 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Tel: 8477789020 Fax: 8477789020 Date: 2020-06-23 Dear Sir/Madam, We, Tactacam LLC Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these models: Product name: SPOTTER LR Models No.: SPOTTER LR, SPOTTER LR 1.0, SPOTTER LR 2.0, SPOTTER LR 3.0, SPOTTER LR 4.0, SPOTTER LR 5.0, SPOTTER LR 6.0, SPOTTER LR 7.0 Sincerely, Client’s name / title : Tara Peel / Manager Contact information / address: 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Tel: 8477789020 Fax: 8477789020 E-Mail: [email protected]

Tactacam LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-06-23 Subject; Request for Confidentiality FCC ID: 2AVUA-SPOTTERLR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tara Peel Title: Manager

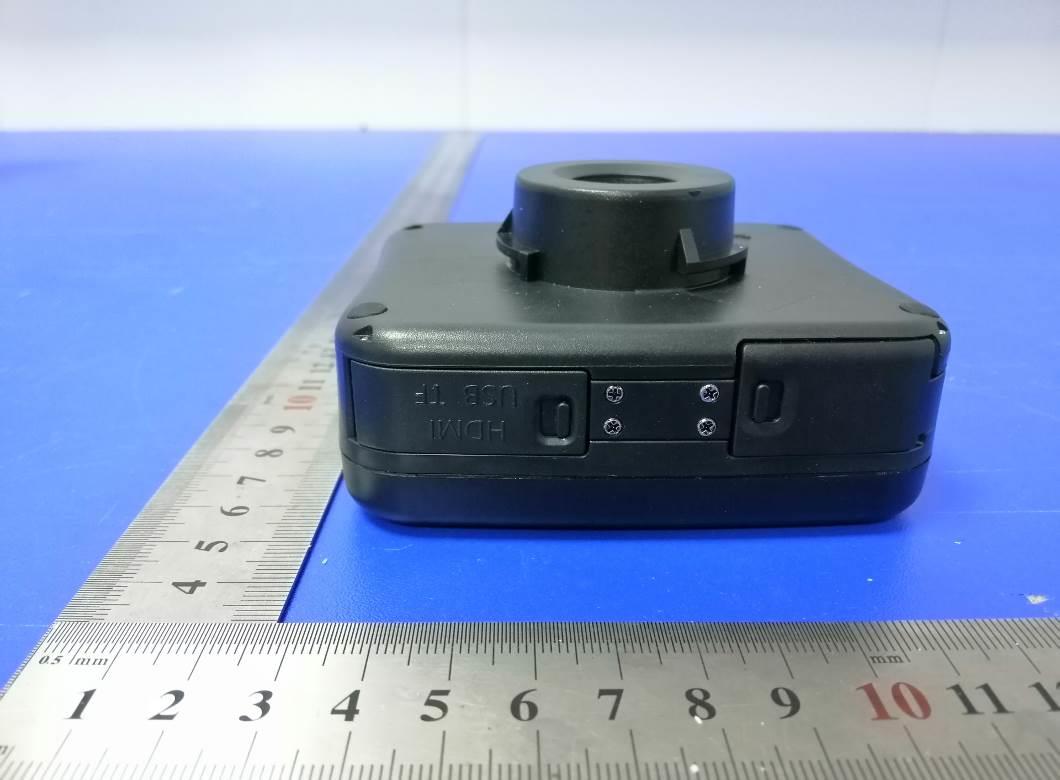

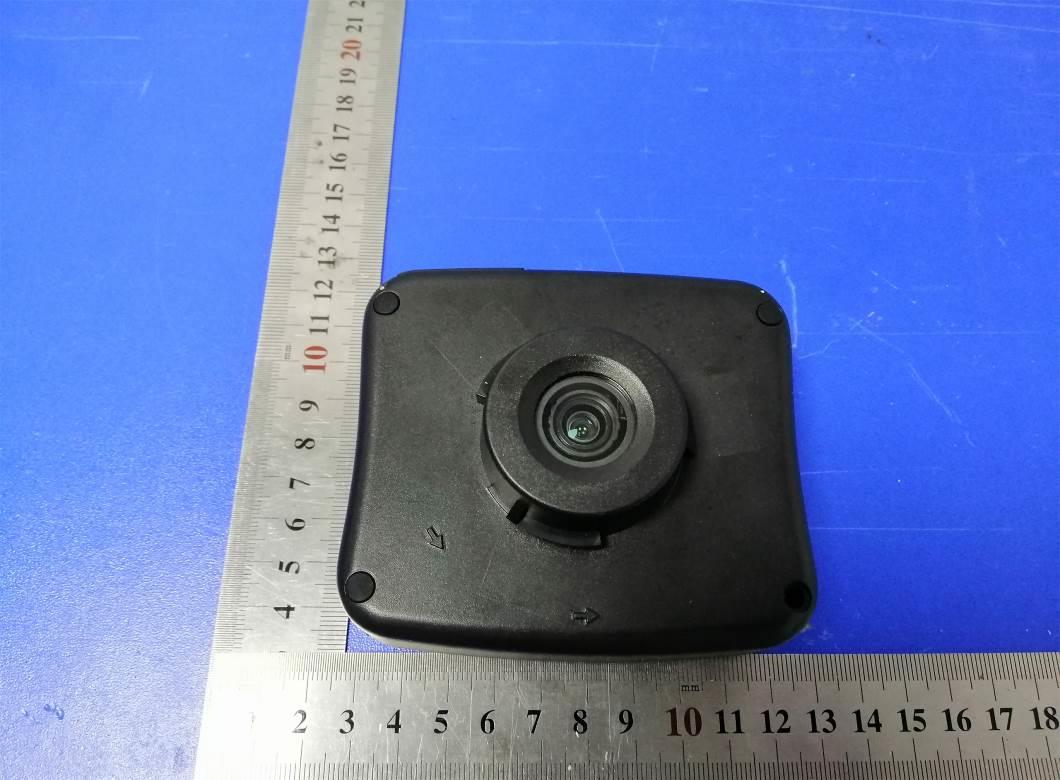

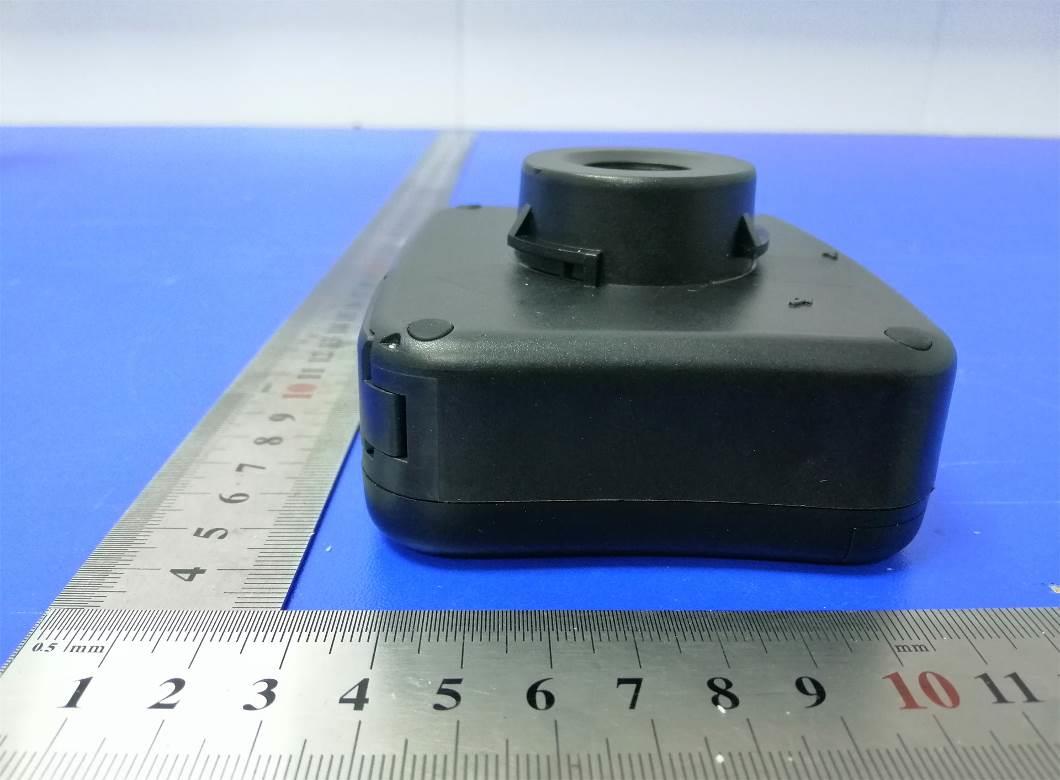

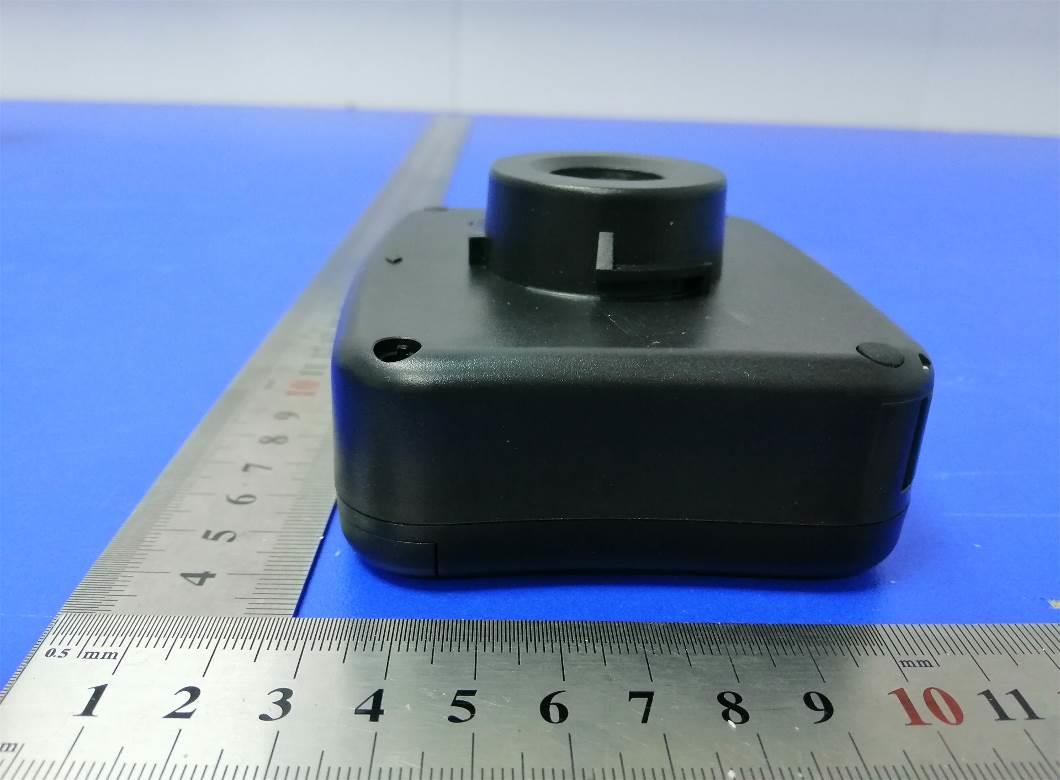

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0m x 2.0cm) Label Location SPOTTER LR Model No: SPOTTER LR FCC ID: 2AVUA-SPOTTERLR Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery(1350mAh)

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 7 Internal Photos of the EUT Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 7 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 7 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 7 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 7 of 7 Fig.13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVUA-SPOTTERLR Product name SPOTTER LR Test Model SPOTTER LR Additional Model No. SPOTTER LR 1.0, SPOTTER LR 2.0, SPOTTER LR 3.0, SPOTTER LR 4.0, SPOTTER LR 5.0, SPOTTER LR 6.0, SPOTTER LR 7.0 Model declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery(1350mAh) Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) Antenna Type FPC Antenna Antenna Gain 3.0dBi(Max.) Hardware version 1.0 Software version 2.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) IEEE 802.11b 1 2412 8.04 6 2437 8.10 11 2462 8.31 IEEE 802.11g 1 2412 8.68 6 2437 8.60 11 2462 8.48 IEEE 802.11n HT20 1 2412 7.58 6 2437 7.53 11 2462 7.48 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVUA-SPOTTERLR ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing tolerance IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW IEEE 802.11b 2.462 5 9.0 7.9433 2.51 < 3.0 Yes IEEE 802.11g 2.412 5 9.0 7.9433 2.51 < 3.0 Yes IEEE 802.11n HT20 2.412 5 8.0 6.3096 2.89 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determin…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For Tactacam LLC SPOTTER LR Model No.: SPOTTER LR Additional Model No.: Please Refer To Page 6 Prepared for : Tactacam LLC Address : 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 21, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 21, 2020 ~ April 29, 2020 Date of Report : May 11, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200324034AEA Date of Issue ................................... : May 11, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Tactacam LLC Address ........................................... : 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : SPOTTER LR Trade Mark ...................................... : TACTACAM Model/ Type reference .................... : SPOTTER LR Ratings ............................................ : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery(1350mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang / Administrators Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT EUT......................................... : SPOTTER LR Type / Model........................... : SPOTTER LR Applicant............................... : Tactacam LLC Address.................................. : 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Tactacam LLC Address................................... : 110 N Sunset Blvd, Caledonia, MN 55921, Caledonia, New Hampshire, USA Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200324034AEA May 11, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 May 11, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. Description of Device (EUT) ........................................................................................................................... 6 1.2. Host System Configuration List and Details ................................................................................................. 6 1.3. External I/O Cable ............................................................................................................................................ 6 1.4. Description of Test Facility .............................................................................................................................. 7 1.5. Statement of the Measurement Uncertainty ..…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 1 of 35 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: SPOTTER LR Trade Mark: TACTACAM Test Model: SPOTTER LR Environmental Conditions Temperature: 23.5  C Relative Humidity: 53.7% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 2 of 35 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 3 of 35 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 4 of 35 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 8.04 30 PASS MCH 8.10 30 PASS HCH 8.31 30 PASS 11G LCH 8.68 30 PASS MCH 8.60 30 PASS HCH 8.48 30 PASS 11N20SISO LCH 7.58 30 PASS MCH 7.53 30 PASS HCH 7.48 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 5 of 35 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -19.955 8 PASS MCH -20.538 8 PASS HCH -18.194 8 PASS 11G LCH -22.368 8 PASS MCH -23.923 8 PASS HCH -24.354 8 PASS 11N20SISO LCH -23.735 8 PASS MCH -24.351 8 PASS HCH -24.080 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 6 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 7 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 8 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 9 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 10 of 35 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 7.127 ≥0.5 PASS MCH 7.143 ≥0.5 PASS HCH 7.227 ≥0.5 PASS 11G LCH 15.15 ≥0.5 PASS MCH 15.10 ≥0.5 PASS HCH 15.11 ≥0.5 PASS 11N20SISO LCH 15.14 ≥0.5 PASS MCH 15.14 ≥0.5 PASS HCH 15.14 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 11 of 35 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 12 of 35 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 13 of 35 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 14 of 35 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 15 of 35 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH -1.225 -38.123 -21.225 PASS MCH -1.319 -37.616 -21.319 PASS HCH -3.104 -37.648 -23.104 PASS 11G LCH -7.029 -36.873 -27.029 PASS MCH -7.512 -36.150 -27.512 PASS HCH -7.791 -36.446 -27.791 PASS 11N20 SISO LCH -6.864 -32.920 -26.864 PASS MCH -7.465 -37.743 -27.465 PASS HCH -7.265 -35.095 -27.265 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 16 of 35 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 17 of 35 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 18 of 35 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 19 of 35 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 20 of 35 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 21 of 35 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVUA-SPOTTERLR Report No.: LCS200324034AEA Page 22 of 35 11N20SISO_L…

Text truncated - open the document above for the full version.
