2AVUKRTCZA04Occupy Sensor

Occupancy Sensor RTCZA04 Datasheet General Specifications Features Dimensions Weight (with battery) Casing 52.6x52.6x13.5mm 29g ABS plastic Environment Requirements Operating temperature Operating humidity Mounting location Mounting Detection angle Detection distance 035 1095%RH, no condensation Under the desktop Adhesives 95° Field of view, horizontal 87° Field of view, vertical ≤50cm Power Battery Battery life Battery capacity CR2450 lithium battery, 3VDC 2year 610mAh Performance standards Measurement accuracy Measurement frequency ≥98% 10Hz Others IP rating Standards IP52 EN 60669-1 EN 60669-2-1 Bluetooth Mesh technology * * RTCZA04 occupancy sensor registers infrared thermal energy from people via a thermopile element. It can detect whether a person present and effectively measure the duration of time they remain. Bluetooth Mesh technolo gy used in RTCZA04 is a global wireless standard for communication between smart devices and anti-theft systems in industrial automation environments. Bluetooth Mesh technology uses a reliable mesh network to keep devices connect- ed and working together while providing excellent battery life. Dynamic Temperature Compensation Dynamic temperature compensation enables RTCZA04 to automatically monitor the ambient temperature and adjust the signal processing algorithms to maintain normal sensing perfor- mance in varying temperatures. Active White Light Suppression Strong sources of white light can interfere with the senses opera- tion. However, the RTCZA04 can actively identify and measure the amount of interfering light allowing for internal processes to remove such noise from the data. Real-time Data Reporting and Offline Caching RTCZA04 reports measurement data through the gateway with a delay of less than 100 ms. If the sensor is offline, the data will be cached locally and transmitted after the network connection is restored. Measurement Accuracy=(1-the statistical error of time recorded by sensors /the actual time of measurement)x100% The above data is measured by 9am laboratory, and may be affected by environmental factors. • www.9amtech.com • [email protected] • 400-037-8109 * * Recommended installation location: Install 10-25 cm from the edge of the desk, directly in front of where people sit. If it is installed outside of these limits blind spots will appear. Reme mber to point the detection probe at the area needed to be probed. Installation Guide 10-25cm ≤50cm NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. * Recommended installation location:

Zhanzuo (Beijing) Technology, Ltd. [2020-03-24] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Zhanzuo (Beijing) Technology, Ltd. FCC ID: 2AVUKRTCZA04 To Whom It May Concern: We, Zhanzuo (Beijing) Technology, Ltd. hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AVUKRTCZA04) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-03-24). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] Zhanzuo (Beijing) Technology, Ltd. Contact person: Hao Wu

Zhanzuo (Beijing) Technology, Ltd. 2020-03-24 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AVUKRTCZA04 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhanzuo (Beijing) Technology, Ltd. Contact person: Hao Wu

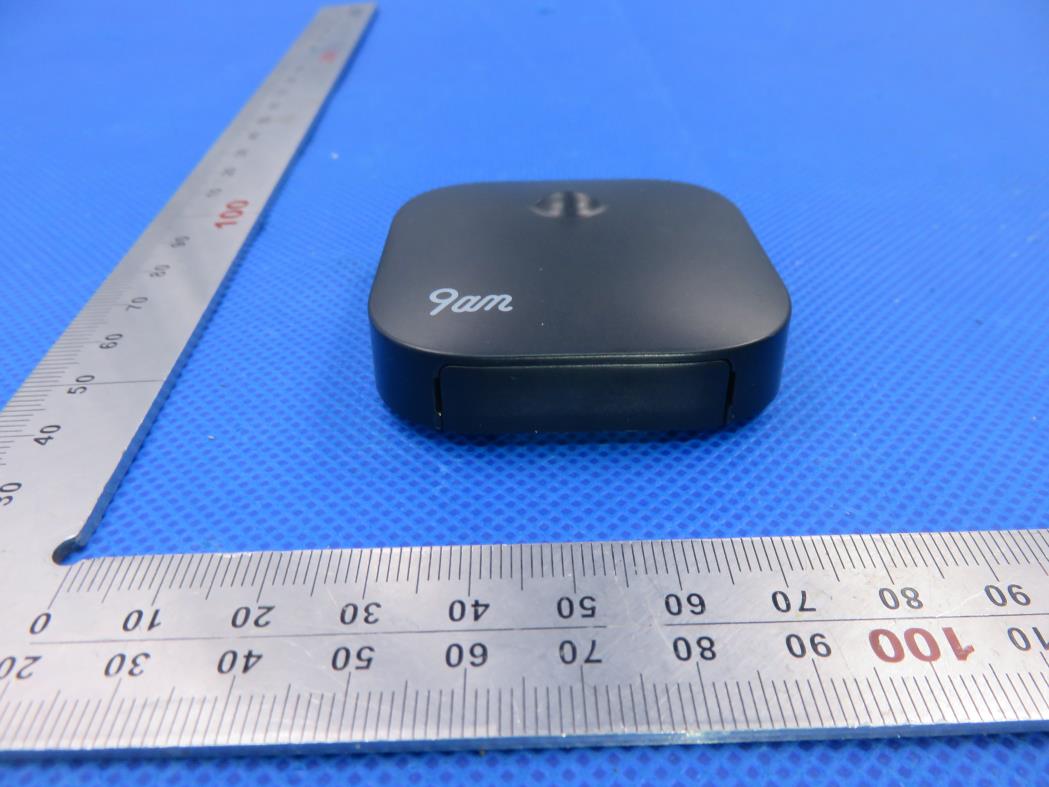

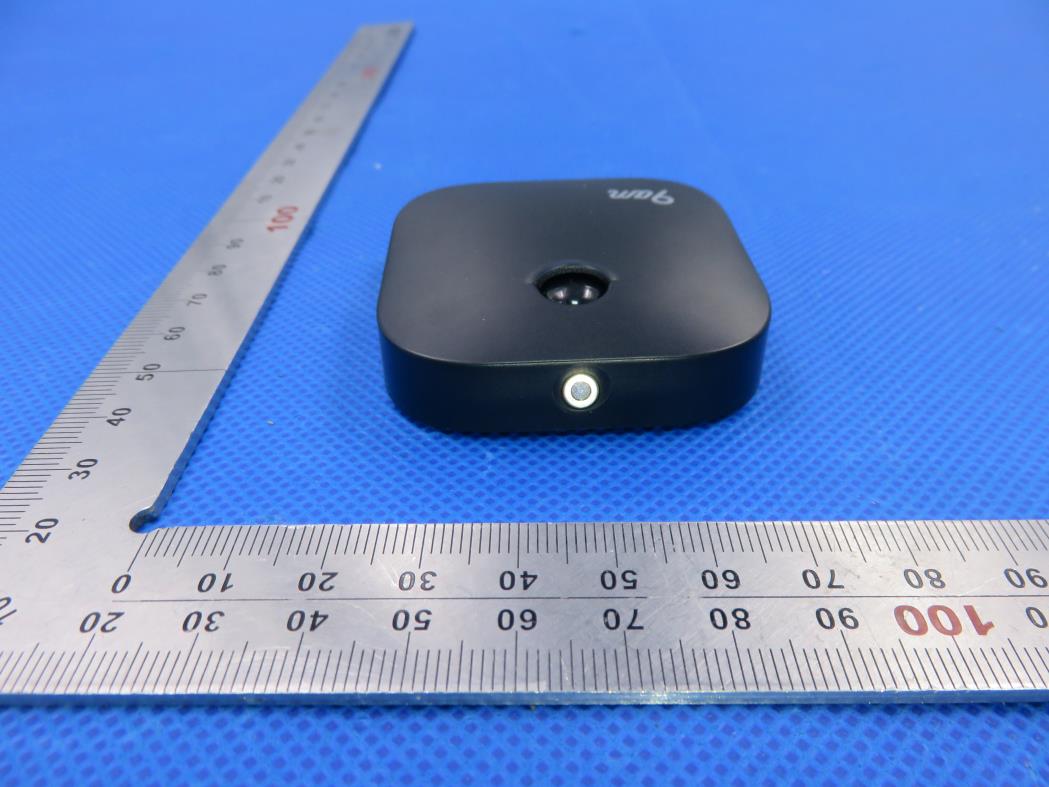

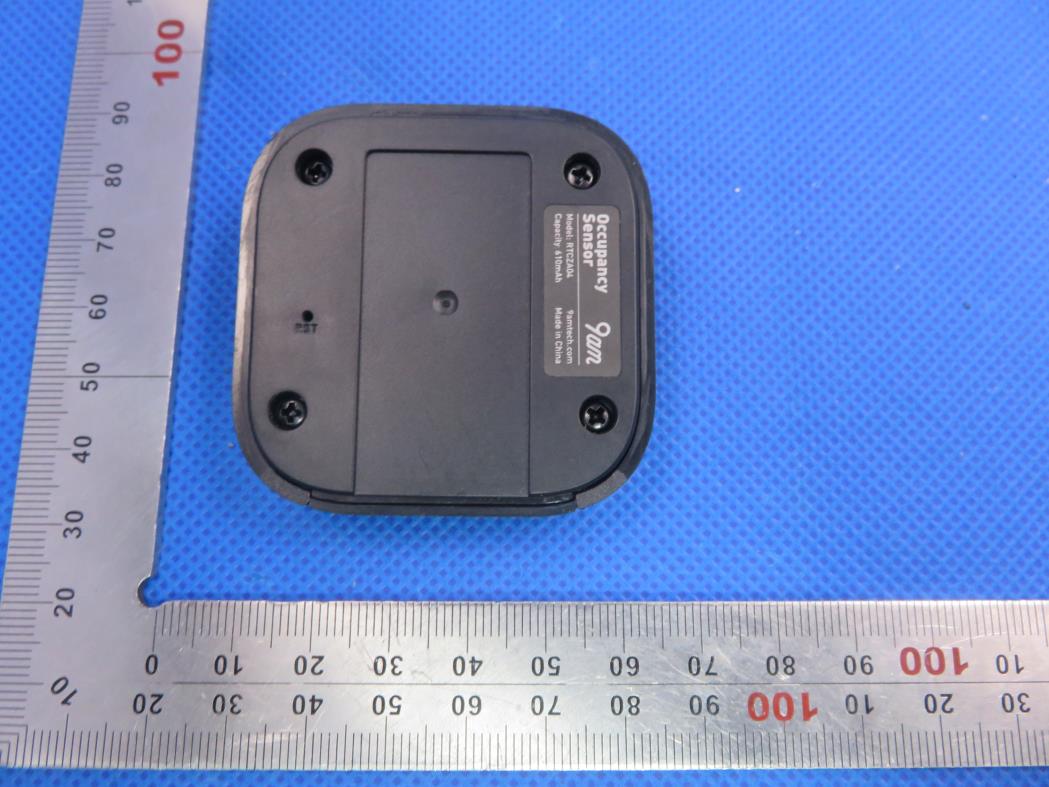

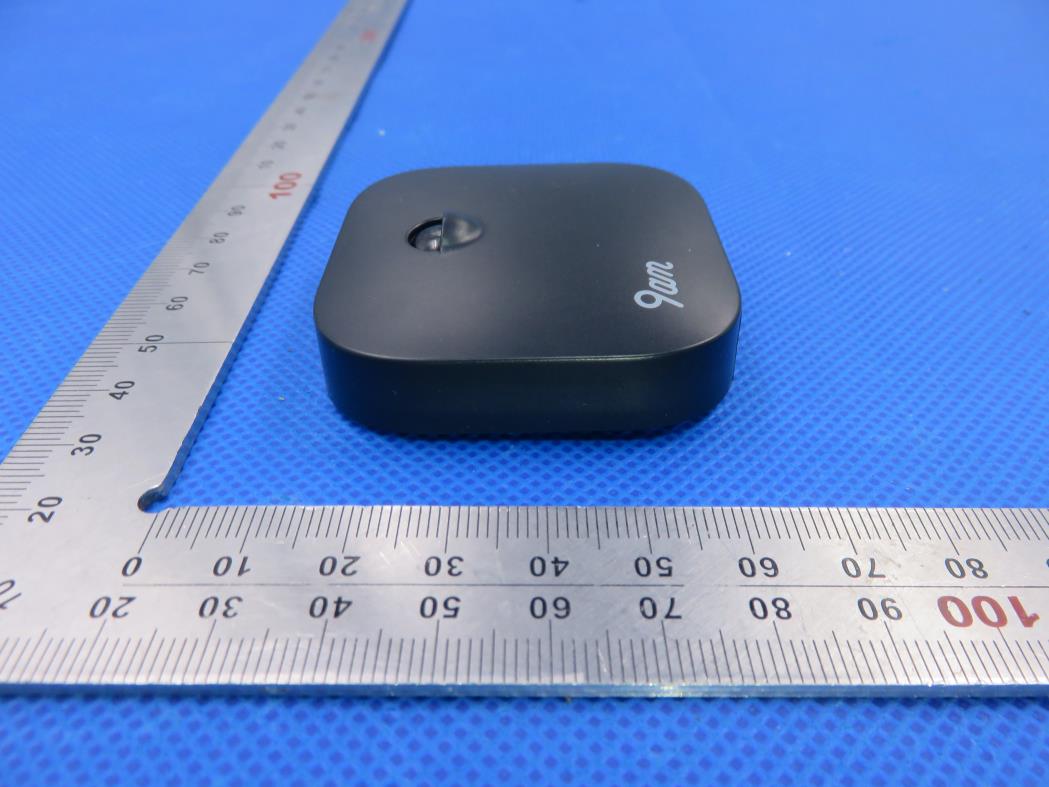

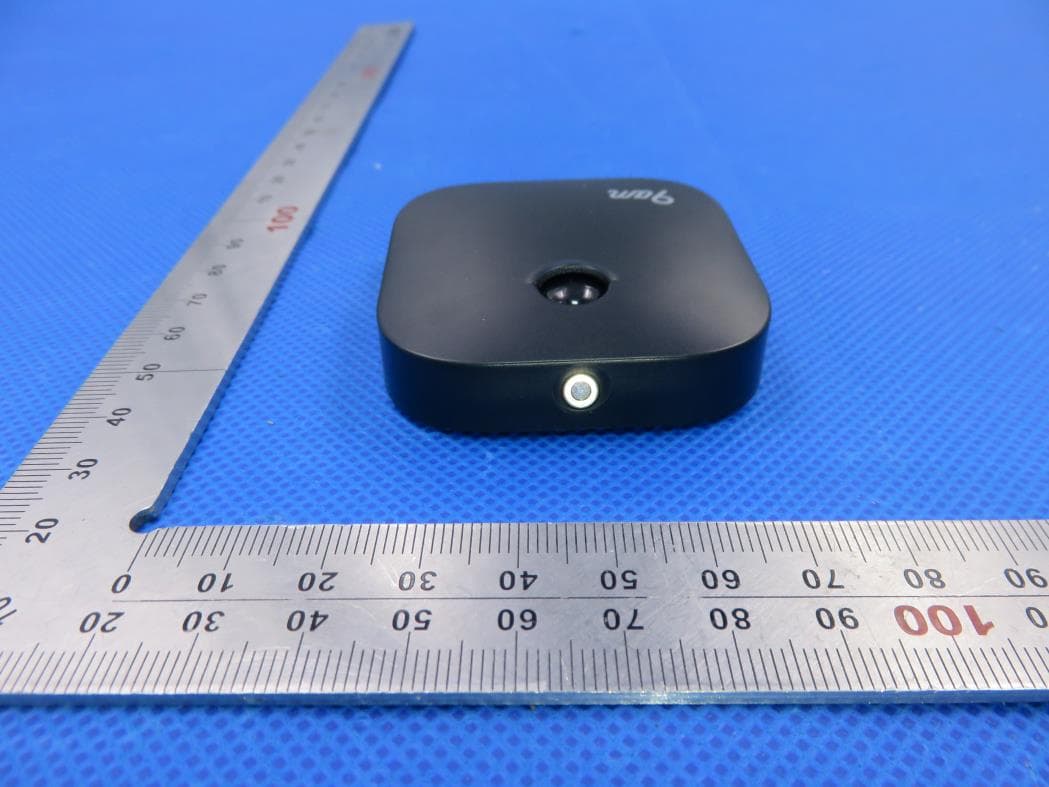

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Size: 22mm*8mm FCC ID: 2AVUKRTCZA04

Internal Photos VIEW OF EUT(PORT) OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 BT Antenna INTERNAL VIEW OF EUT-7

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Occupy Sensor Model Name RTCZA04, RTCZ FCC ID 2AVUKRTCZA04 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t = -1.519dBm=0.70mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.70mW /5mm) .[√2.480GHz)]= 0.22<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 47 FCC Test Report Report No.: AGC09880200301FE02 FCC ID : 2AVUKRTCZA04 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Occupy Sensor BRAND NAME : 9am MODEL NAME : RTCZA04, RTCZ APPLICANT : Zhanzuo (Beijing) Technology, Ltd. DATE OF ISSUE : Mar. 20, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09880200301FE02 Page 2 of 47 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 20, 2020 Valid Initial Release Report No.: AGC09880200301FE02 Page 3 of 47 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION .................................................................................................................... 6 2.2.TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................... 7 2.4.TEST METHODOLOGY .......................................................................................................................... 7 2.5. SPECIAL ACCESSORIES ..................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ............................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 10 6. TEST FACILITY ............................................................................................................................................ 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE .......................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .......................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE .......................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 17 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 22 10.1. MEASUREMENT PROCEDURE ........................................................................................................ 22 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................... 22 10.3. MEASUREMENT EQUIPMENT USED .............................................................................................. 22 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................ 22 11. RADIATED EMISSION ............................................................................................................................... 24 Report No.: AGC09880200301FE02 Page 4 of 47 11.1. MEASUREMENT PROCEDURE ........................................................................................................ 24 11.2. TEST SETUP ..................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 26 11.4. TEST RESULT ...........................................................................................…
