2AVUKRTJSD02Counting Sensor

Counting Sensor Datasheet General Specifications Features Installation Guide Dimensions Weight (with battery) Casing 164x34.5x34.5mm 138.5g ABS plastic Environment Requirements Operating temperature Operating humidity Mounting location Mounting Detection angle Detection distance 035 1095%RH, no condensation Above the door, 2-2.5m away from the floor Screws / Adhesives ≈80° ≤1.2m Power Battery Battery life Battery capacity Built-in battery 1year 17000mAh Performance standards Counting accuracy Counting direction ≥90% Two Way Others IP rating Standards IP52 EN 60669-1 EN 60669-2-1 People Counting * * RTJSD02 counting sensor receives thermal IR energy from objects through its thermopile array to detect people passing through. The sensor can calculate the number of passing people and their direction of travel. RTJSD02 is fixed dir ectly above a doorway using an adhesive, with an installation time of <1 minute. When a person passes through the doorway, the thermopile array registers a temperature change and its trajectory. After processing, the passing direction and the number of persons will be accurately calculated. RTJSD02 only collects information based on temperature changes directly under the sensor. The sensor can not collect any personal or identif ying. Bluetooth Mesh Technology Bluetooth Mesh technology used in RTJSD02 is a global wireless standard for communication between smart devices in industrial automation environments. Bluetooth Mesh technology uses a reliable mesh network to keep devices connected and working together whi le providing excellent battery life. Dynamic Temperature Compensation Dynamic temperature compensation enables RTJSD02 to automatically monitor the ambient temperature and adjust the signal processing algorithms to maintain stability over tempera- ture changes. Real-time Data Reporting and Offline Caching RTJSD02 reports measurement data through the gateway with a delay of less than 100 ms. If the sensor is offline, the data will be cached locally and will transmit all stored data after the network connection is restored. The above data is measured by 9am laboratory, and may be affected by environmental factors. Counting accuracy = (1-the statistical error of people counted by sensors / the actual number of people) x 100% The recommended installation height is between 2m and 2.5m. Installed below 2m or above 2.5m, blind spots will appear and some area cannot be detected. Remember to point the detection probe at the area needed to be probed.Fix the sensor as close as possible to the edge of the door frame. 2-2.5m ≤1.2m Door * * • www.9amtech.com • contact @9amtech.com • 400-037-8109 RTJSD02 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

Zhanzuo (Beijing) Technology, Ltd. 2020-05-22 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AVUKRTJSD02 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhanzuo (Beijing) Technology, Ltd. Contact person: Hao Wu

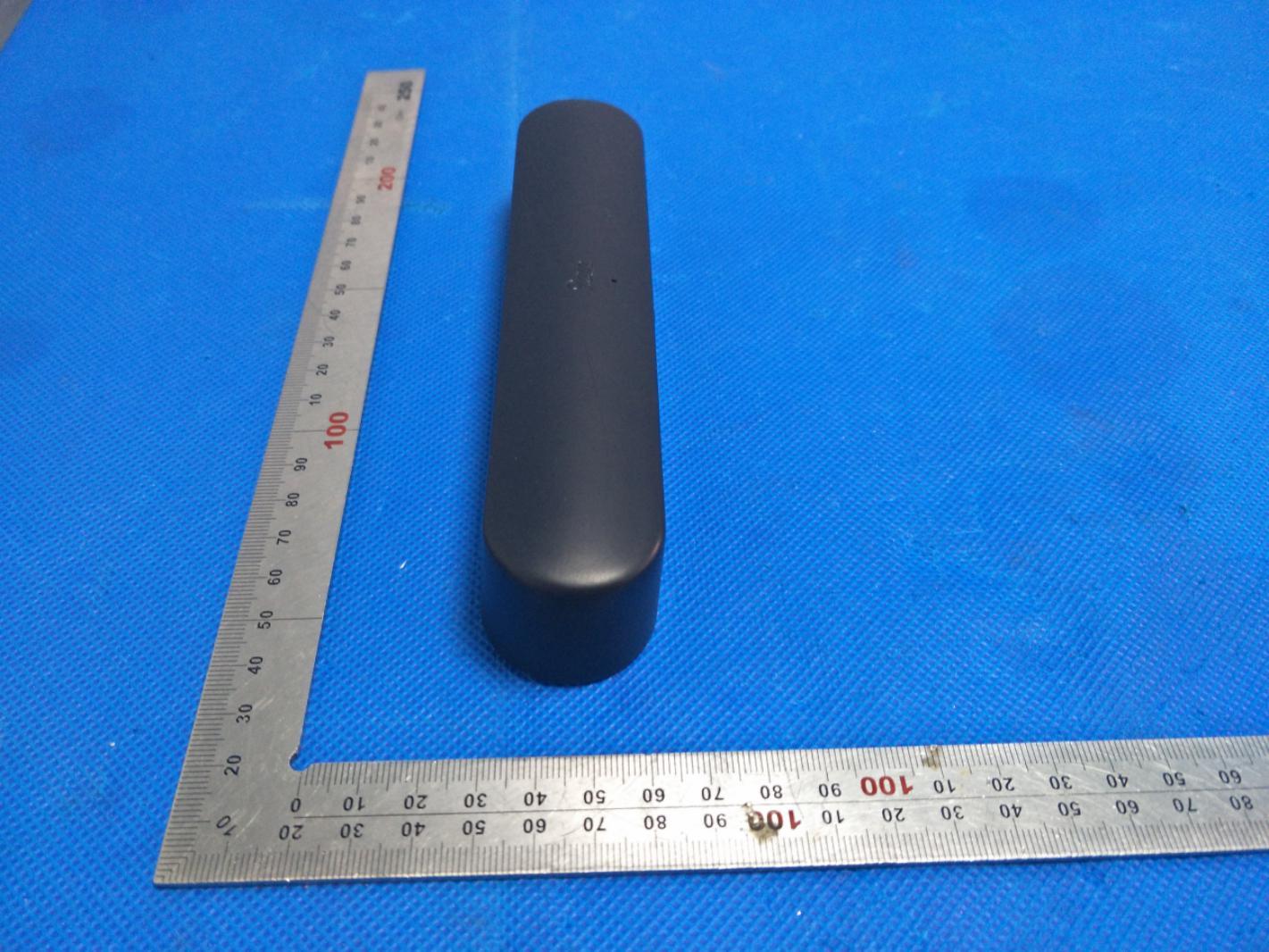

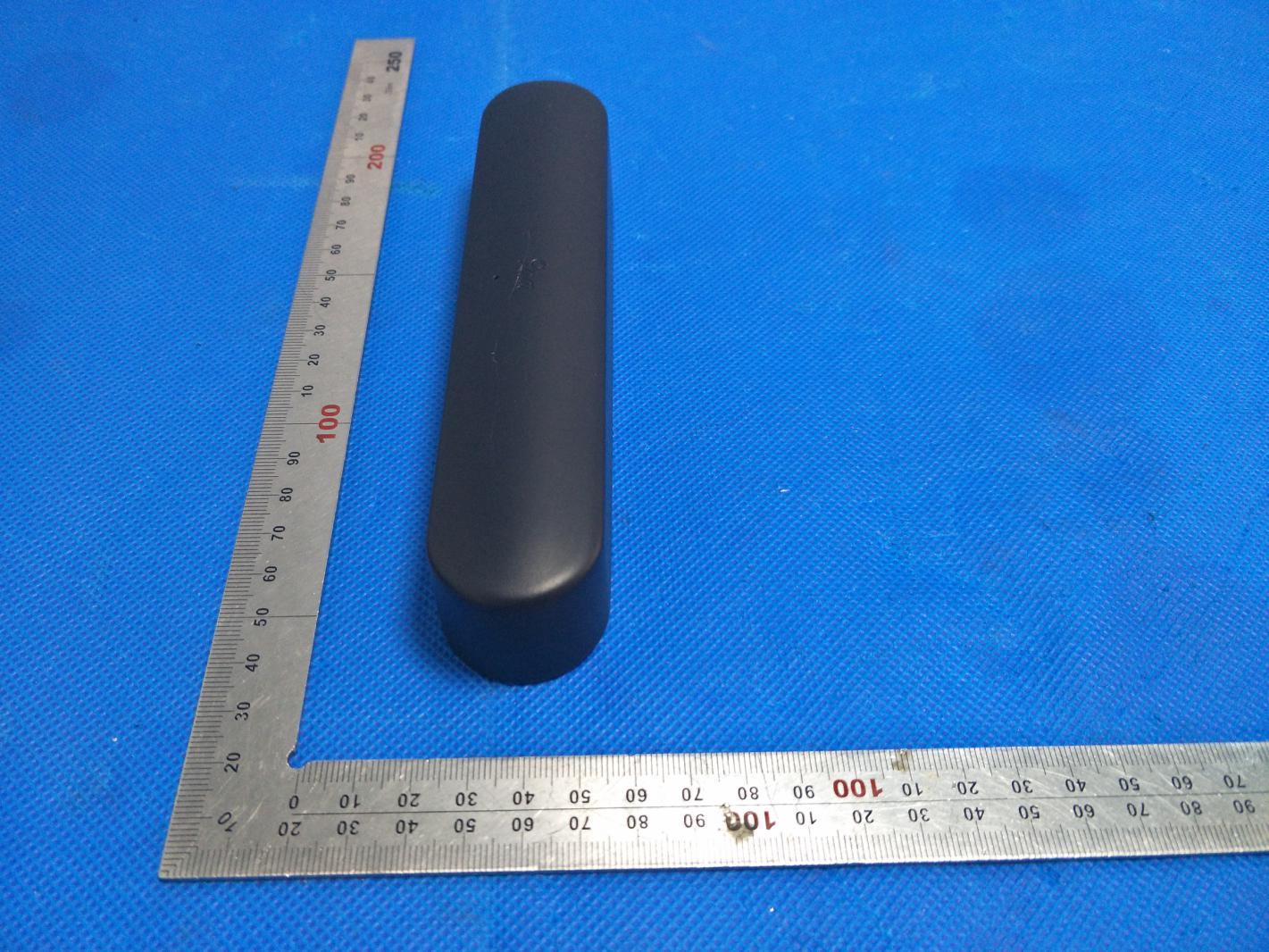

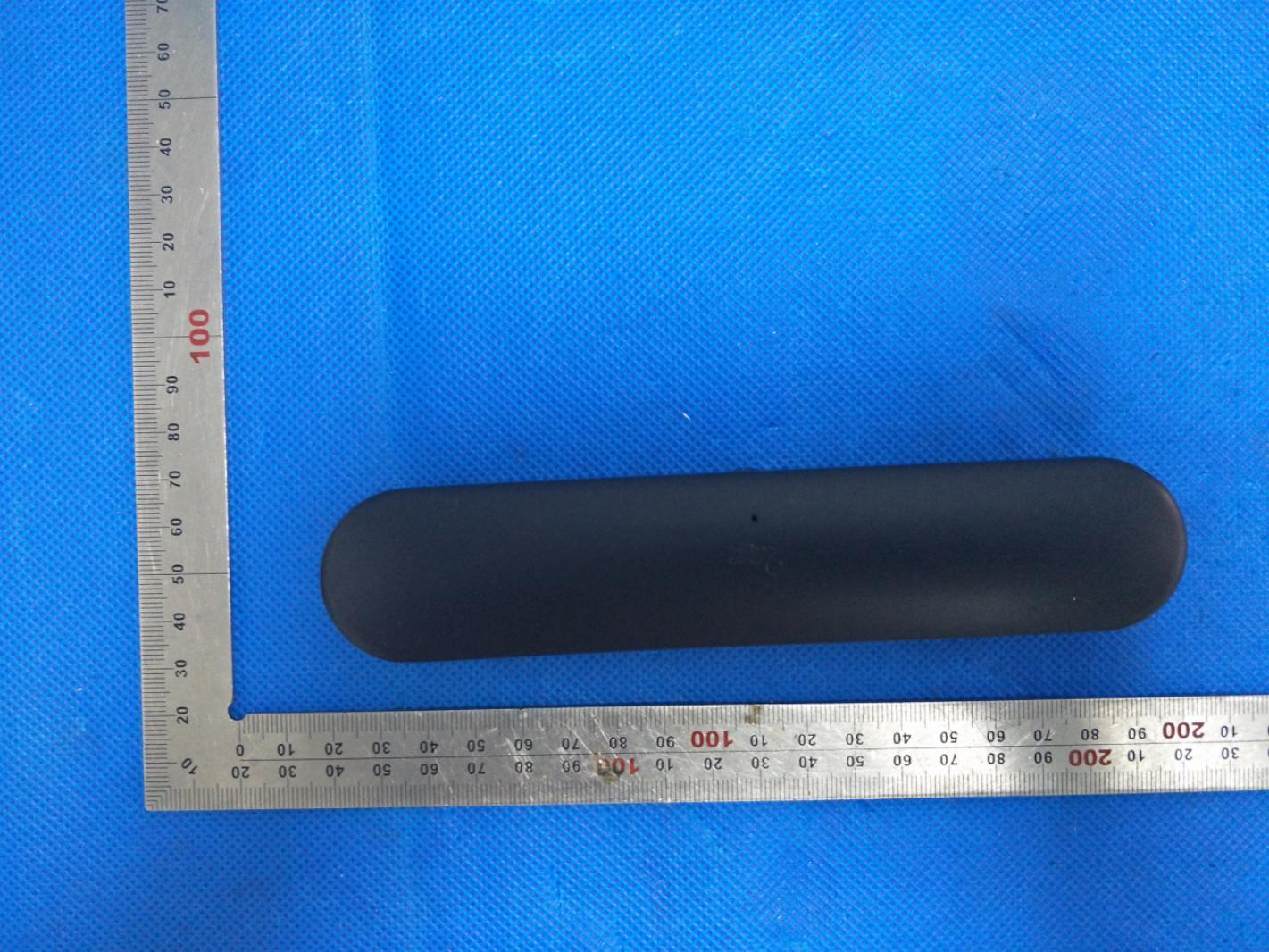

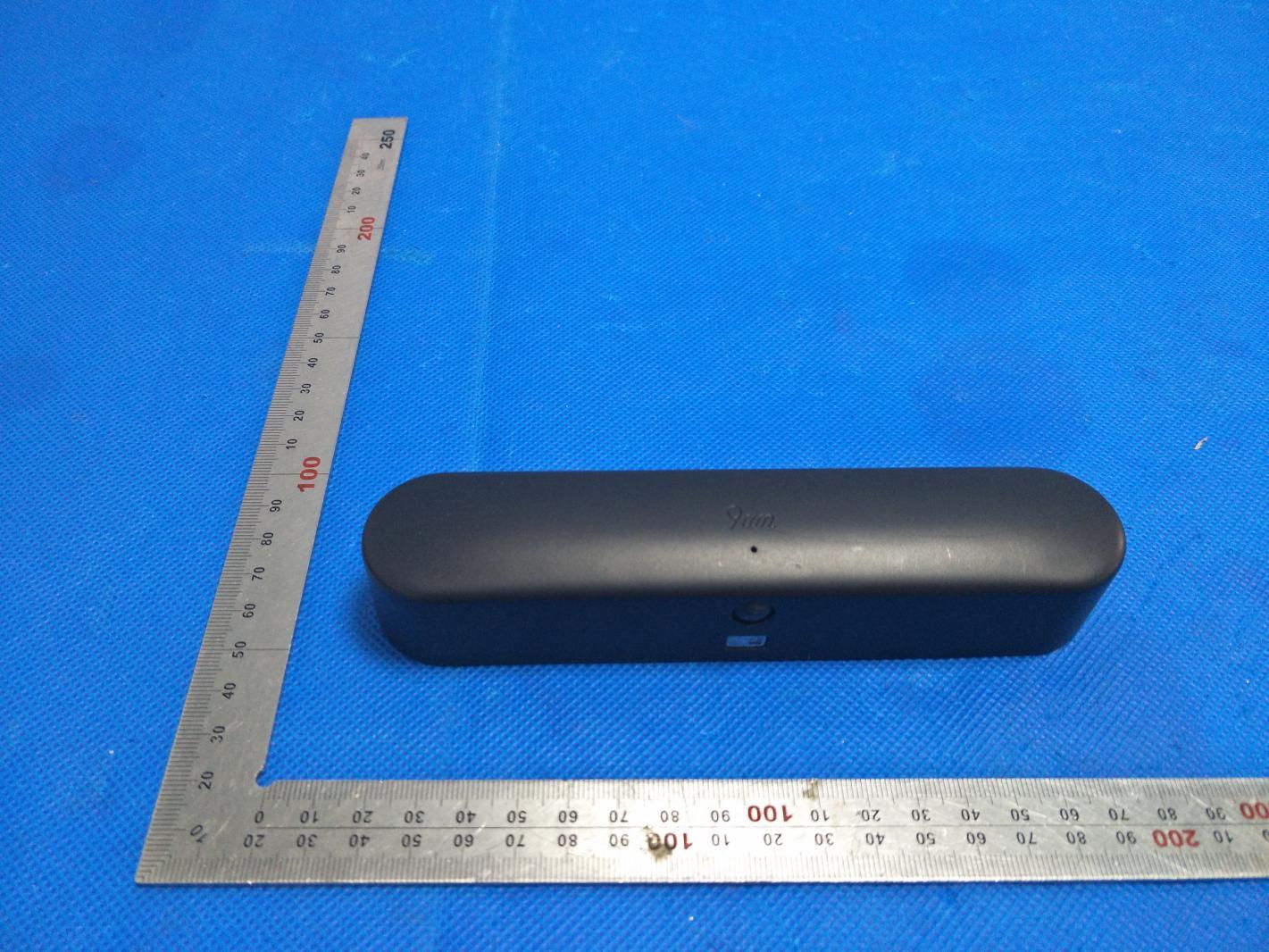

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Size: 20mm*20mm FCC ID: 2AVUKRTJSD02

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 BT Antenna INTERNAL VIEW OF EUT-7

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Counting Sensor Model Name RTJSD02 FCC ID 2AVUKRTJSD02 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t = -6.309dBm=0.23mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.23mW/5mm) .[√2.402GHz)]= 0.07<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 47 FCC Test Report Report No.: AGC09880200402FE02 FCC ID : 2AVUKRTJSD02 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Counting Sensor BRAND NAME : 9am MODEL NAME : RTJSD02, RTJS APPLICANT : Zhanzuo (Beijing) Technology, Ltd. DATE OF ISSUE : May 22, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC09880200402FE02 Page 2 of 47 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 22, 2020 Valid Initial Release Report No.: AGC09880200402FE02 Page 3 of 47 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION .................................................................................................................... 6 2.2.TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................... 7 2.4.TEST METHODOLOGY .......................................................................................................................... 7 2.5. SPECIAL ACCESSORIES ..................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ............................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 10 6. TEST FACILITY ............................................................................................................................................ 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE .......................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .......................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE .......................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 17 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 22 10.1. MEASUREMENT PROCEDURE ........................................................................................................ 22 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................... 22 10.3. MEASUREMENT EQUIPMENT USED .............................................................................................. 22 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................ 22 11. RADIATED EMISSION ............................................................................................................................... 24 Report No.: AGC09880200402FE02 Page 4 of 47 11.1. MEASUREMENT PROCEDURE ........................................................................................................ 24 11.2. TEST SETUP ..................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 26 11.4. TEST RESULT ...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC09880200402FE02 Page 41 of 47 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC09880200402FE02 Page 42 of 47 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC09880200402FE02 Page 43 of 47 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC09880200402FE02 Page 44 of 47 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC09880200402FE02 Page 45 of 47 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC09880200402FE02 Page 46 of 47 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 BT Antenna Report No.: AGC09880200402FE02 Page 47 of 47 INTERNAL VIEW OF EUT-7 ----END OF REPORT----
