2AVV6LPWP01KDC180 Wireless Charger

Compatible with Qi-Enabled Devices Charging your phone is now easier than ever. This dock charges qi enabled devices wireless. Simply place your phone on the charging pad the the LED indicator will light up and your phone will begin charging by induction. Charge your phone without ever having to look for a cable again! Packing Contents: 1x wireless charging dock. 1x Micro USB Cable. 1x Manuel How to Use: 1. Connect the charging dock to the supplied USB cable. 2. Connect the USB plug to USB power supply(support:5V/ 2A) 3. When the red light appears. The dock has entered standby mode. 4. Charging will begin when your device( Qi-Enabled) is placed on the dock. 5. When the blue light is showing. The device is charging. 6. When the device is fully charged. The blue light turn off. Specifications: Input: 5V / 2A Output Power: 5 Watts Power Conversion: 70% Working Frequency: 114.5-204kHz Charging Distance: 2~7mm Note: Power supply support 5V/2A LED State: Mode RED BLUE NOTE Standby ON OFF Charging OFF ON FULL OFF OFF ERROR FLASH FLASH (Check it,and Replace again) Warning: 1. Do not squeeze or collisions. 2. Do not disassemble or throw into fire or water,to avoid causing a short circuit leakage. 3. Do not use wireless charger in severely hot,humid or corrosive environments,to avoid circuit damage and occurs leakage phenomenon. 4. Do not place too close with magnetic stripe or chip card(ID card,bank cards,etc. ) to avoid magnetic failure. 5. Please keep the distance at least 20cm between implantable medical devices(pacemakers,implantable cochlear,etc.)and the wireless charger,to avoid potential interference with the medical device. 6. To take care of children,to ensure that they won’t play the wireless charger as a toy,to avoid unnecessary accidents. MADE IN CHINA V1.0 FCC COMPLIANCE STATEMENT： This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference (2)this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. The distance between user and products should be no less than 20cm

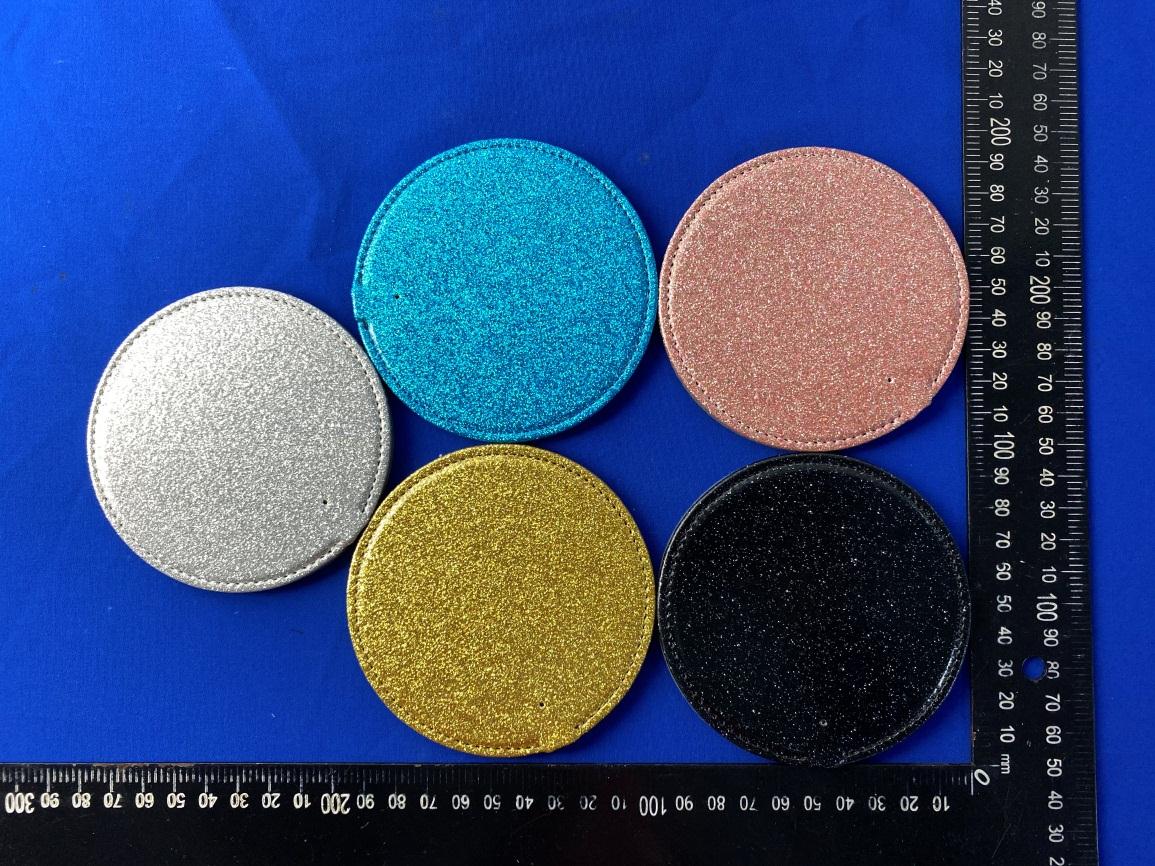

Declaration Letter We, Liquipel Protection LLC declared that our product Wireless Charger item No.: LPWP01-RG,LPWP01-B,LPWP01-S,LPWP01-BL,LPWP01-G were identical inside, the electrical circuit design, layout, components used and internal wiring, with only difference being model and the appearance color。 LPWP01-RG(Rose Gold) LPWP01-B (Black) LPWP01-S (Silver) LPWP01-BL (Blue) LPWP01-G(Gold) Sincerely your Signature: Name/Title: Lin guichu / manager Tel. No.: 86138 029 04065 E-Mail: [email protected] Company: Liquipel Protection LLC Date：2020-3-23

Liquipel Protection LLC DATE :2020-3-26 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVV6LPWP01 Product Name: Wireless Charger Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2020-3-26 By: Lin guichu Signature Printed Title: Manager On behalf of : Liquipel Protection LLC Telephone: 86-13802904065

Liquipel Protection LLC DATE:2020-3-26 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Shenzhen Zhongjian Nanfang Testing Co.,Ltd.; 1st Floor, Block No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China；Bruce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Liquipel Protection LLC Dated this 2020-3-26 By: Lin guichu Signature Printed Title: Manager On behalf of : Liquipel Protection LLC Telephone: 86-13802904065

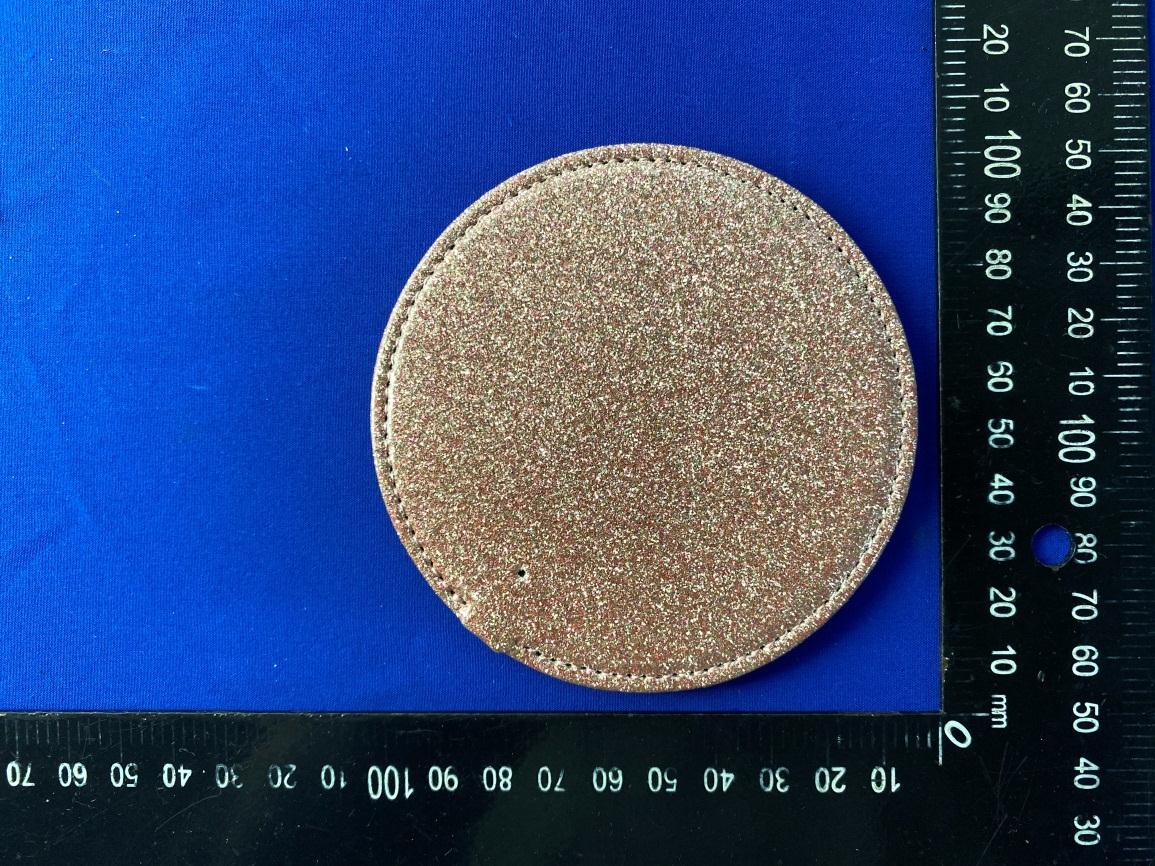

Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 24 of 29 8 EUT Constructional Details Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 25 of 29

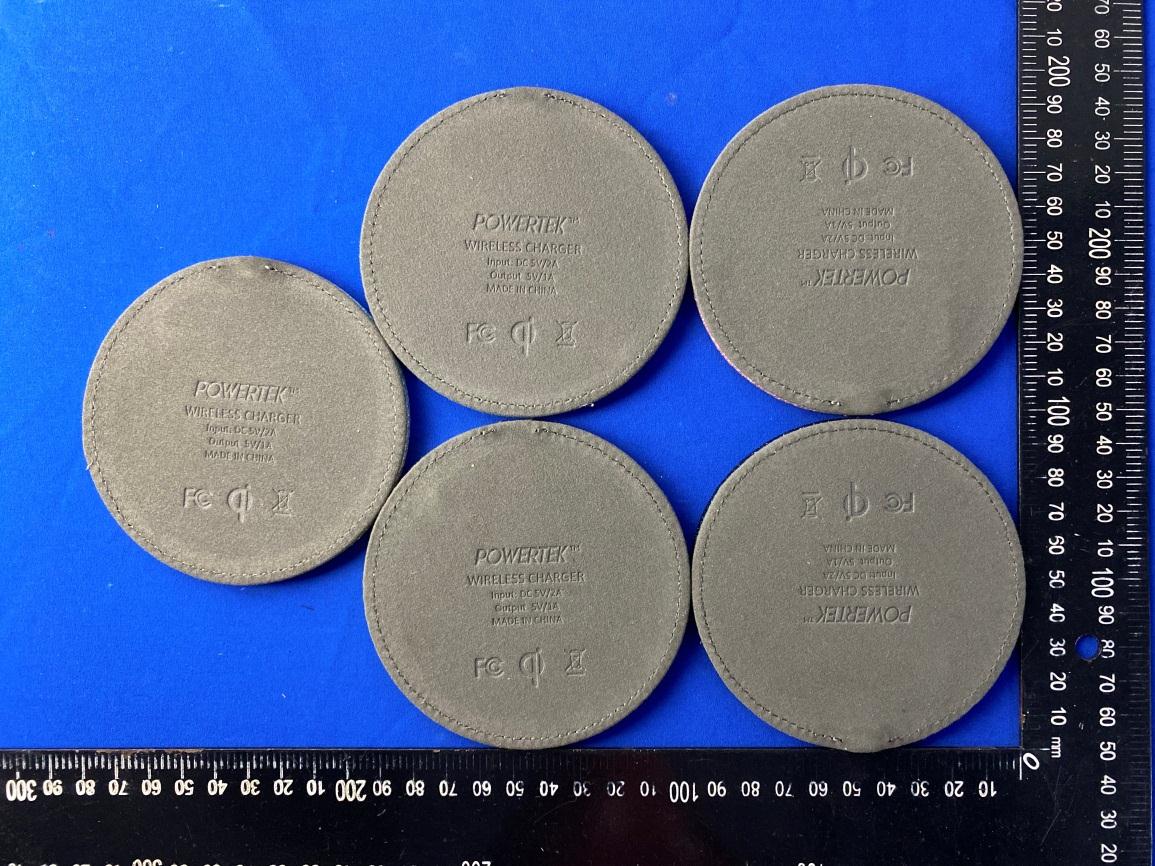

label location label location

Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 26 of 29 Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 27 of 29 Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 28 of 29 Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 29 of 29 ------End of report------

Shenzhen ZhongjianNanfang Testing Co., Ltd. Report No: CCISE200302702V01 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of theCCISproduct certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery orfalsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: Liquipel Protection LLC Address of Applicant: Street: 19800 MacArthur Blvd. Suite 300, Irvine, CA, 92612, USA Equipment Under Test (EUT) Product Name: Wireless Charger Model No.: LPWP01-RG (Rose Gold) LPWP01-B (Black) LPWP01-S (Silver) LPWP01-BL (Blue) LPWP01-G (Gold) FCC ID: 2AVV6LPWP01 Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1091 Date of sample receipt: 06 Mar., 2020 Date of Test: 06 Mar., to 27 Mar., 2020 Date of report issue: 27 Mar., 2020 Test Result: PASS* Report No: CCISE200302702V01 Shenzhen ZhongjianNanfang Testing Co., Ltd. Project No.: CCISE2003027 Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 10 2 Version Version No. Date Description 00 20 Mar., 2020 Original 01 27 Mar., 2020 Update pages 5, 7, 8 Tested By: Date: 27 Mar., 2020 Test Engineer Reviewed By: Date: 27 Mar., 2020 Project Engineer Report No: CCISE200302702V01 Shenzhen ZhongjianNanfang Testing Co., Ltd. Project No.: CCISE2003027 Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 10 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 CLIENT INFORMATION .......................................................................................................................................................... 4 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................................................... 4 OPERATING MODES ............................................................................................................................................................. 4 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................................... 4 MEASUREMENT UNCERTAINTY ............................................................................................................................................ 4 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD .................................................................................... 4 LABORATORY FACILITY ....................................................................................................................................................... 5 LABORATORY LOCATION..................................................................................................................................................... 5 TEST INSTRUMENTS LIST ..................................................................................................................................................... 5 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 6 LIMITS .................................................................................................................................................................................. 6 TEST SETUP BLOCK ............................................................................................................................................................ 6 LIMITS FORGENERAL POPULATION/UNCONTROLLED EXPOSURE ..................................................................................... 6 TEST PROCEDURE ............................................................................................................................................................... 7 RESULT ................................................................................................................................................................................ 7 6 TEST SETUP PHOTOS： .................................................................................................................................... 9 7 EUT PHOTOS：.................................................................................................................................................. 10 Report No: CCISE200302702V01 Shenzhen ZhongjianNanfang Testing Co., Ltd. Project No.: CCISE2003027 Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 …

Text truncated - open the document above for the full version.

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCISE200302701V01 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Liquipel Protection LLC Address of Applicant: Street: 19800 MacArthur Blvd. Suite 300, Irvine, CA, 92612, USA Equipment Under Test (EUT) Product Name: Wireless Charger Model No.: FCC ID: Applicable standards: LPWP01-RG (Rose Gold) LPWP01-B (Black) LPWP01-S (Silver) LPWP01-BL (Blue) LPWP01-G (Gold) 2AVV6LPWP01 FCC CFR Title 47 Part 15 Subpart C Section 15C Date of sample receipt: 06 Mar., 2020 Date of Test: 06 Mar., to 19 Mar., 2020 Date of report issue: 27 Mar., 2020 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCISE200302701V01 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 29 2 Version Version No. Date Description 00 20 Mar., 2020 Original 01 27 Mar., 2020 Update page 11 Prepared By: Date: 27 Mar., 2020 Report Clerk Check By: Date: 27 Mar., 2020 Project Engineer Report No: CCISE200302701V01 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 29 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST MODE ............................................................................................................................................................ 5 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 5.6 DESCRIPTION OF CABLE USED ............................................................................................................................. 6 5.7 LABORATORY FACILITY .......................................................................................................................................... 6 5.8 LABORATORY LOCATION ....................................................................................................................................... 6 5.9 TEST INSTRUMENTSLIST ........................................................................................................................................ 7 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 8 6.1 ANTENNA REQUIREMENT ....................................................................................................................................... 8 6.2 RADIATED EMISSION ............................................................................................................................................. 9 6.3 CONDUCTED EMISSION ....................................................................................................................................... 16 6.4 BANDWIDTH ......................................................................................................................................................... 19 7 TEST SETUP PHOTOS...................................................................................................................................... 22 8 EUT CONSTRUCTIONAL DETAILS ................................................................................................................ 24 Report No: CCISE200302701V01 Shenzhen Zhongjian Nanfang Testing Co.,…

Text truncated - open the document above for the full version.

Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 22 of 29 7 Test Setup Photos Radiated Emission(9kHz-30MHz) Radiated Emission(30MHz-1000MHz) Report No: CCISE200302701 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2003027 No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong,China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 23 of 29 Conducted Emission
