2AVW7-ANC-BS813Collapsible Bluetooth LED Speaker

1 POP-TOP Collapsible Bluetooth LED Speaker with COLOR CHANGING LED LIGHTS ITEM NO: ANC-BS813, CBLS-6/1756 INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 2 Getting Started  Remove the speaker from the box.  Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Package Contents  Collapsible Bluetooth LED Speaker  USB rechargeable cable  Auxiliary cable  Instruction Manual Key Features  Collapsible Bluetooth LED Speaker  Built-in Bluetooth - connect & stream wireless music anytime, anywhere  Color changing LED lights  Great for any occasion or everyday use  Multi-function mode: Bluetooth, Micr0-SD card, USB slot & Aux jack  Built-in rechargeable battery  USB recharge cable included SAFETY INSTRUCTIONS  Keep the speaker away from heat sources, direct sunlight, humidity, water and any other liquids.  Do not operate the speaker if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the speaker.  Do not use the speaker if it has been dropped or damaged in any way.  Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.  Do not use the speaker with wet hands.  Do not put objects into any of the openings.  Keep the speaker free from dust, lint etc.  Do not use this speaker for anything other than its intended use.  Keep the speaker out of reach of children.  This appliance is not a toy.  Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 3 Description of Parts 1 Next Track/Volume Increase Button 2 Built-in Microphone 3 LED Light Button 4 ON/OFF/Phone Button 5 Play/Pause/Mode Button 6 LED Indicator 7 Previous Track/Volume Decrease Button 8 Micro SD (TF) Card Slot 9 Charging Indicator 10 Charging Port 11 USB (Flash Drive) Slot 12 Auxiliary Port Note: Micro SD Card & USB Flash Drive NOT included. INSTRUCTIONS FOR USE Charging the speaker The speaker has built-in rechargeable battery. When the battery is drained out, speaker would turn OFF automatically. Please recharge the battery every time it drains out. 4 Plug the Micro USB end of the included USB rechargeable cable into the charging port. Plug the other end into a USB port on your computer or other devices made for USB charging. Red LED Light illuminates indicating that the device is being charged. It takes 3-4 hours to fully charge the speaker. Once the speaker is fully charged, LED Light would turn OFF. Turning ON/OFF the Speaker – Before Turning ON the speaker, please ensure that it is fully charged. Press and hold the ON/OFF button for 3-4 seconds to turn on the unit, or 2-3 seconds to turn off. Connect using Bluetooth Technology  Press and hold the ON/OFF button for 3-4 seconds to turn on the unit. An indication tone would be heard and blue LED indicator flashes rapidly, indicating that you are now in Bluetooth Pairing Mode.  Activate the Bluetooth function on your source device (Mobile Phone or Tablet). Please refer to manufacturer’s instructions for instructions on enabling Bluetooth on your device.  Search for available Bluetooth devices and you would find “SL POP-TOP” – Pair it with this device.  If required, enter the password “0000” to pair with the device.  Once paired successfully, you would hear another indication tone, and blue LED flashes very slowly.  You can now stream wireless music on your speaker through your source device. Answering Calls through Bluetooth Speaker Please ensure that you are paired with the Bluetooth Speaker to use the below functions. Function Operation Button Answer Incoming Call Incoming Call Press the Phone button once to answer an incoming call. Reject incoming call Incoming Call Short press the Phone button twice End Call Incoming Call After your phone conversation, short press the Phone button Increase Volume During a call Press and hold the Volume increase button to increase the volume Decrease Volume During a call Press and hold the Volume decrease button to decrease the volume Redial last number Standby mode and connected to a device Short press the Phone button twice Listening to Music Wirelessly Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device. Function Operation Button 5 Increase Volume Playing music Press and hold the Volume increase button to increase the volume Decrease Volume Playing music Press and hold the Volume decrease button to decrease the volume Pause Playing music Short press the Play/Pause button will pause the music Play Pausing Short press the Play/Pause button will resume the music Previous track Playing music Short press the Previous track button will return you to the previous track Next track Playing music Short press the Next track button will take you to the next track (Note: An indication tone will alert you when the volume is adjusted to the maximum level. In Aux mode, besides the volume increase/decrease, you will need to control through your source device.) Stream music from Micro SD (TF) Card or USB Flash Drive –  Turn ON the speaker.  Insert the Micro SD (TF) Card or USB Drive preloaded with songs, into the Micro SD (TF) Card Slot or USB Card Slot of the speaker respectively. An indication tone would be heard and speaker would automatically start playing songs from the Micro SD (TF) Card or USB Drive.  To Skip Track Forward – Short press the Next track button.  To Skip Track Backwards – Short press the Previous track button.  To Pause the Track – Short press the Play/Pause button.  To Play the Track – Short press the Play/Pause button.  Long press Volume increase button to increase the volume or Volume decrease button to decrease the volume. Note: Micr…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-25> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVW7-ANC-BS813 ANC-BS813, CBLS-6/1756 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Date: March 25, 2020 FCC ID: 2AVW7-ANC-BS813 Model Number: ANC-BS813, CBLS-6/1756 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Collapsible Bluetooth LED Speaker) Model Number: ANC-BS813, CBLS-6/1756 will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) although Bluetooth modular AB5325C support both Bluetooth Lower Energy (Bluetooth V5.0 LE&2LE) and Bluetooth Classics (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) due to marketing purposes. End-user will only use Bluetooth Classics (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Product Similarity Declaration FCC ID: 2AVW7-ANC-BS813 Model Number: ANC-BS813, CBLS-6/1756 DATE: 2020-03-25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Collapsible Bluetooth LED Speaker) Model Number: ANC-BS813, CBLS-6/1756 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Alice Chen / General manager Company Name: ANC CHINA LIMITED Address: Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

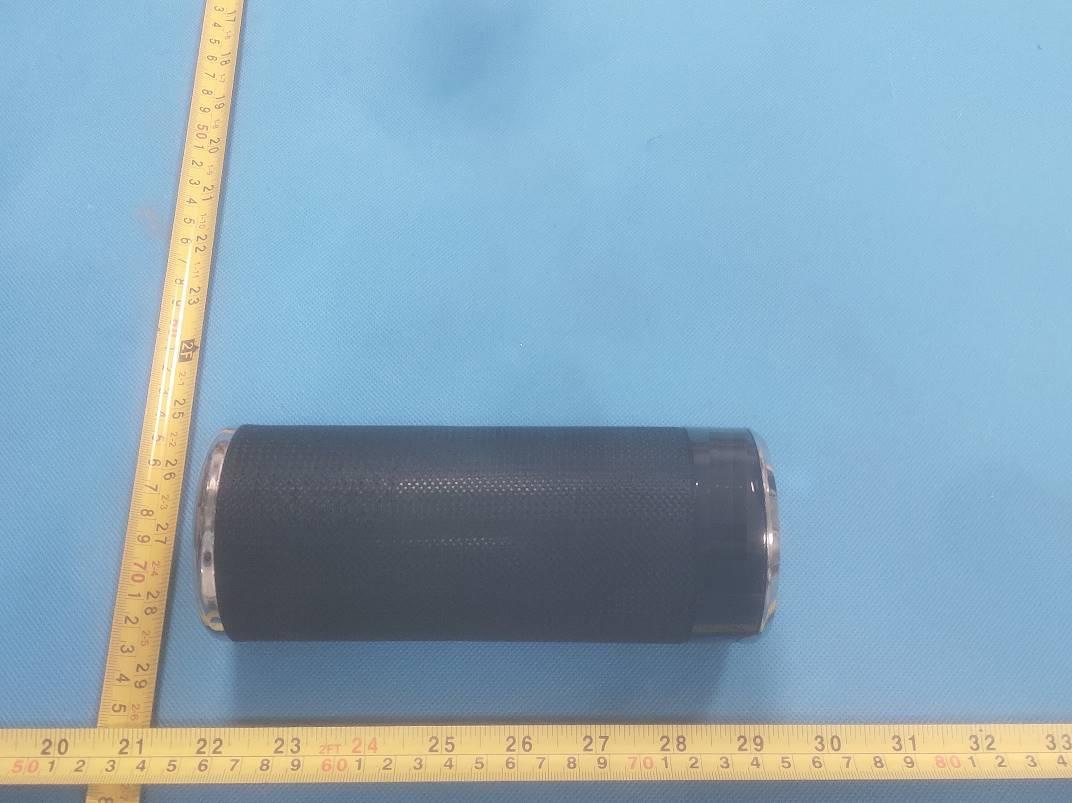

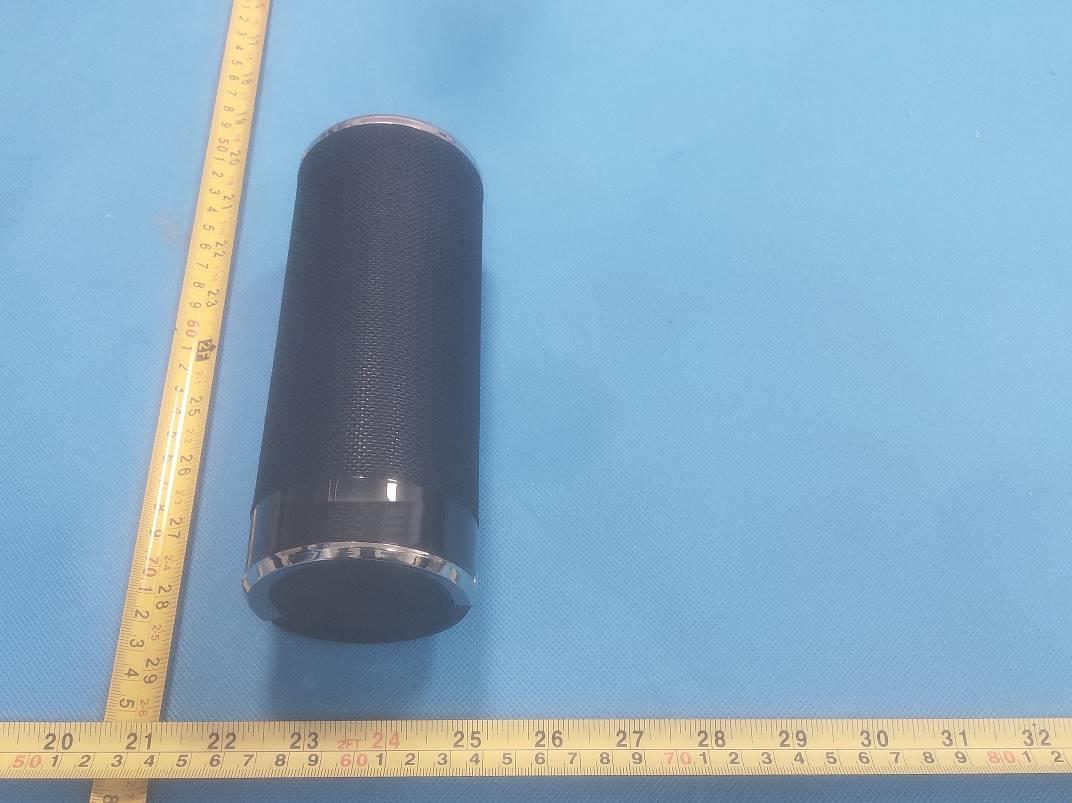

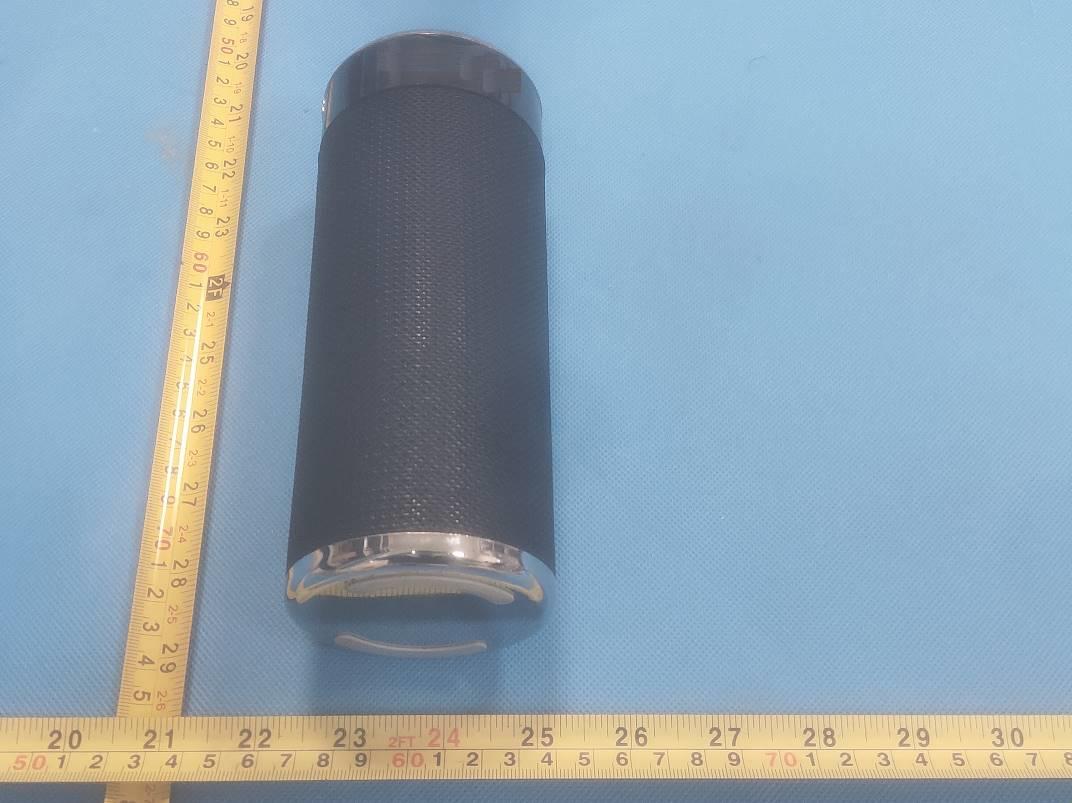

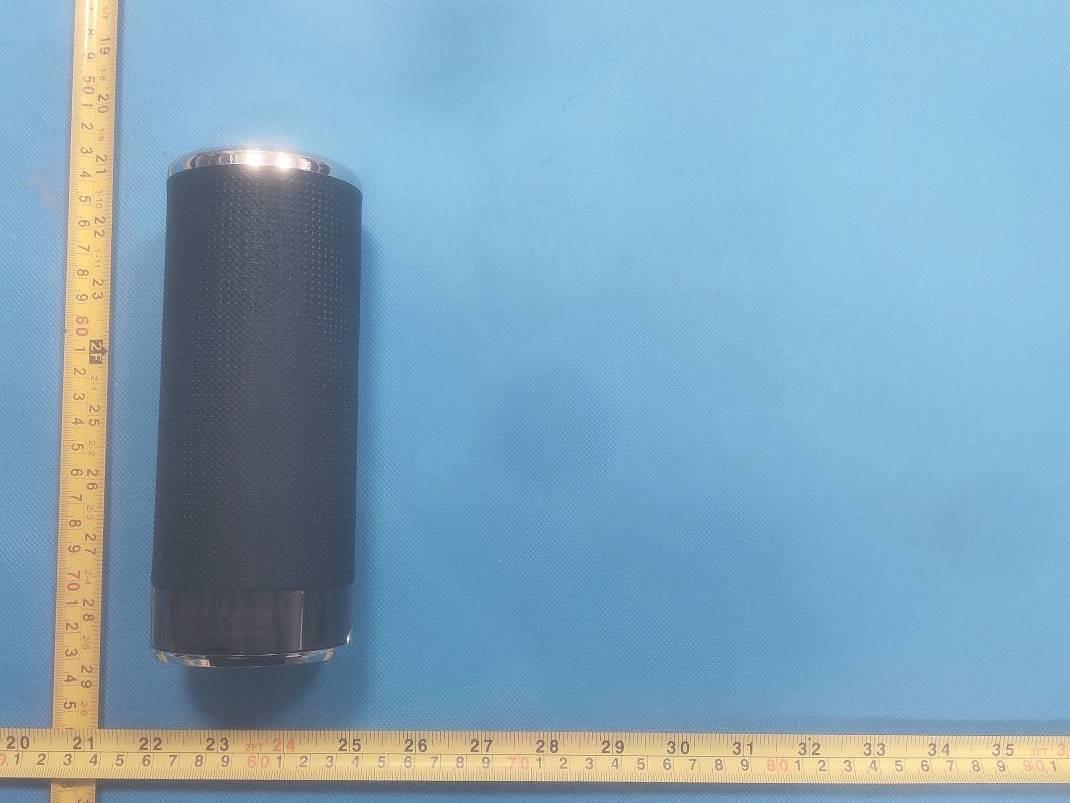

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W2.0cm Label Location FCC ID: 2AVW7-ANC-BS813 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVW7-ANC-BS813 Product name Collapsible Bluetooth LED Speaker Model number ANC-BS813 Model List No. ANC-BS813, CBLS-6/1756 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V By Battery(1200mAh) Recharged By DC 5V 300mA Modulation Type GFSK, π/4-DQPSK, 8-DPSK for V5.0 (BT Classics) Channel Number 79 channels for Bluetooth V5.0 (BT Classics) Channel Spacing 1MHz for Bluetooth V5.0 (BT Classics) Antenna Type Internal Antenna Antenna Gain 0 dBi (maximum) Hardware version V1.1 Software version V1.0 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results BT Classics Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -12.995 39 2441 -13.572 78 2480 -13.559 π/4DQPSK 0 2402 -10.777 39 2441 -11.322 78 2480 -11.316 8-DPSK 0 2402 -10.184 39 2441 -10.761 78 2480 -10.728 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -13.0 -13.0 -13.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -11.0 -11.0 -11.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -10.0 -10.0 -10.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 This report shall not be reproduced except in full, without t…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: Collapsible Bluetooth LED Speaker Trade Mark: N/A Test Model: ANC-BS813 Environmental Conditions Temperature: 23.1  C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -12.995 21 PASS MCH -13.572 21 PASS HCH -13.559 21 PASS π/4DQPSK LCH -10.777 21 PASS MCH -11.322 21 PASS HCH -11.316 21 PASS 8-DPSK LCH -10.184 21 PASS MCH -10.761 21 PASS HCH -10.728 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 5 of 47 8-DPSK/LCH 8-DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 6 of 47 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 7 of 47 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.81568 0.8484 Not Specified PASS MCH 0.81397 0.8485 Not Specified PASS HCH 0.81423 0.8835 Not Specified PASS π/4DQPSK LCH 1.1613 1.281 Not Specified PASS MCH 1.1589 1.280 Not Specified PASS HCH 1.1611 1.280 Not Specified PASS 8-DPSK LCH 1.1503 1.267 Not Specified PASS MCH 1.1502 1.265 Not Specified PASS HCH 1.1511 1.253 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 10 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 11 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] 2/3*20dB Bandwidth Verdict GFSK LCH 0.997 0.566 PASS MCH 1.000 0.566 PASS HCH 0.992 0.589 PASS π/4DQPSK LCH 0.997 0.854 PASS MCH 0.980 0.853 PASS HCH 1.000 0.853 PASS 8-DPSK LCH 1.010 0.845 PASS MCH 0.995 0.843 PASS HCH 0.997 0.835 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 15 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 16 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8-DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 18 of 47 π/4DQPSK/Hop 8-DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.90 106.7 0.309 0.4 PASS 2DH5 MCH 2.90 106.7 0.309 0.4 PASS 2DH5 HCH 2.90 106.7 0.309 0.4 PASS 8-DPSK 3DH5 LCH 2.90 106.7 0.309 0.4 PASS 3DH5 MCH 2.90 106.7 0.309 0.4 PASS 3DH5 HCH 2.90 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8-DPSK_3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 23 of 47 8-DPSK_3DH5/MCH 8-DPSK_3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -13.309 -51.301 -33.31 PASS MCH -13.928 -52.860 -33.93 PASS HCH -13.921 -50.829 -33.92 PASS π/4DQPSK LCH -13.494 -53.005 -33.49 PASS MCH -14.091 -52.972 -34.09 PASS HCH -14.062 -50.939 -34.06 PASS 8-DPSK LCH -13.400 -52.384 -33.40 PASS MCH -13.978 -56.602 -33.98 PASS HCH -13.965 -52.396 -33.97 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 25 of 47 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR ANC CHINA LIMITED Collapsible Bluetooth LED Speaker Test Model: ANC-BS813 Additional Model No.: CBLS-6/1756 Prepared for : ANC CHINA LIMITED Address : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 06, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : March 06, 2020 ~ March 25, 2020 Date of Report : March 25, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200302078AEA Date of Issue ................................... : March 25, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ANC CHINA LIMITED Address ........................................... : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2020-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Collapsible Bluetooth LED Speaker Trade Mark ...................................... : N/A Test Model ...................................... : ANC-BS813 Ratings ............................................ : DC 3.7V By Battery(1200mAh) Recharged By DC 5V 300mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200302078AEA March 25, 2020 Date of issue Test Model........................... : ANC-BS813 EUT......................................... : Collapsible Bluetooth LED Speaker Applicant............................... : ANC CHINA LIMITED Address.................................. : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 March 25, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 Report No.: LCS200302078AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS813 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
