ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Date: September 09, 2020 FCC ID: 2AVW7-ANCBS949R Model Number: ANC-BS949R, 20836, KARAOKE-SP To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Bluetooth Speaker) Model Number: ANC-BS949R, 20836, KARAOKE-SP will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK) although Bluetooth modular AC6925B support both Bluetooth Classics function (GFSK, π/4-DQPSK) and Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) due to marketing purposes. End-user will only use Bluetooth Classics function (GFSK, π/4-DQPSK) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Product Similarity Declaration FCC ID: 2AVW7-ANCBS949R Model Number: ANC-BS949R, 20836, KARAOKE-SP DATE: 2020-09-09 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Bluetooth Speaker) Model Number: ANC-BS949R, 20836, KARAOKE-SP board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Alice Chen / General manager Company Name: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

<ANC CHINA LIMITED> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-09-09 Subject; Request for Confidentiality FCC ID: 2AVW7-ANCBS949R To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Alice Chen Title: General manager

ANC CHINA LIMITED Letter of Authorization Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Product Name: Bluetooth Speaker Model Number: ANC-BS949R, 20836, KARAOKE-SP FCC Identifier: 2AVW7-ANCBS949R We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Alice Chen Date: 2020-09-09 Title: General manager Signature of applicant:

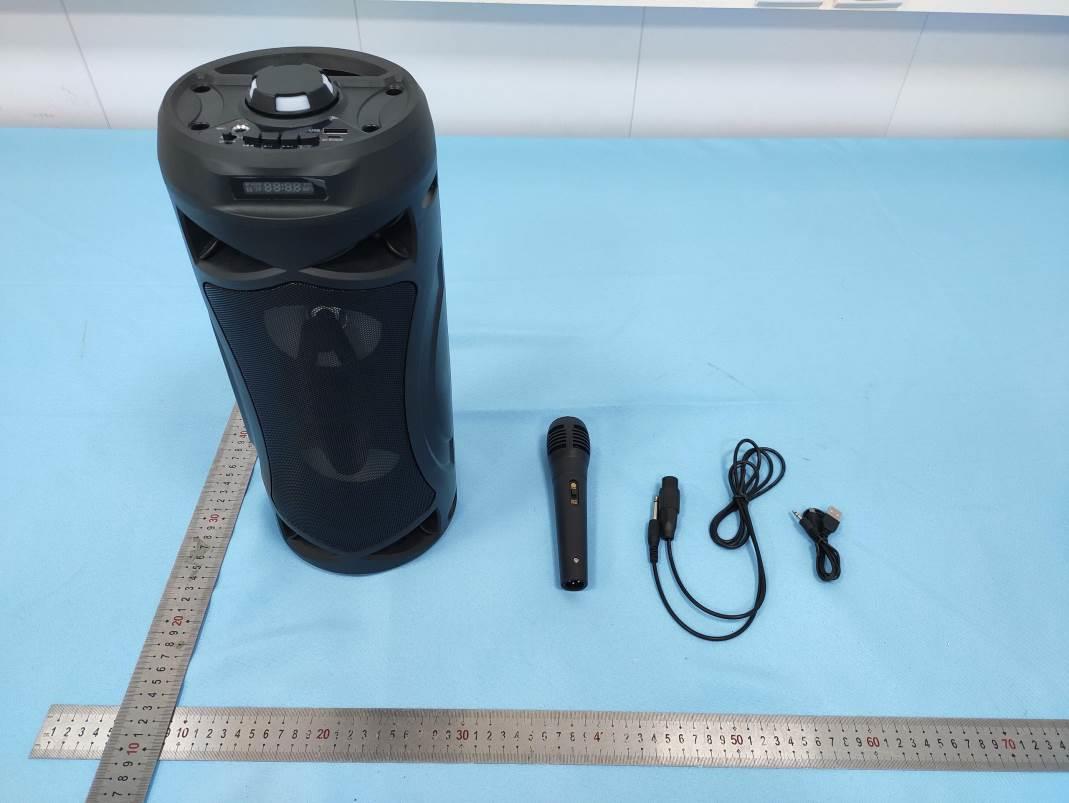

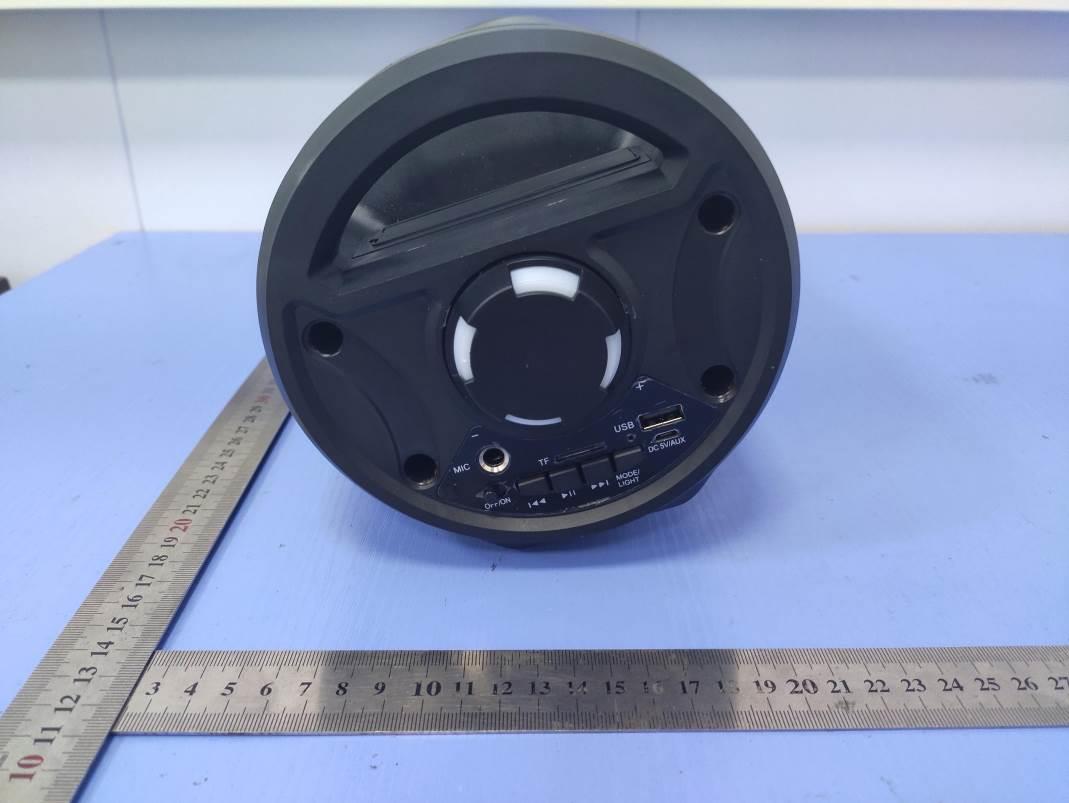

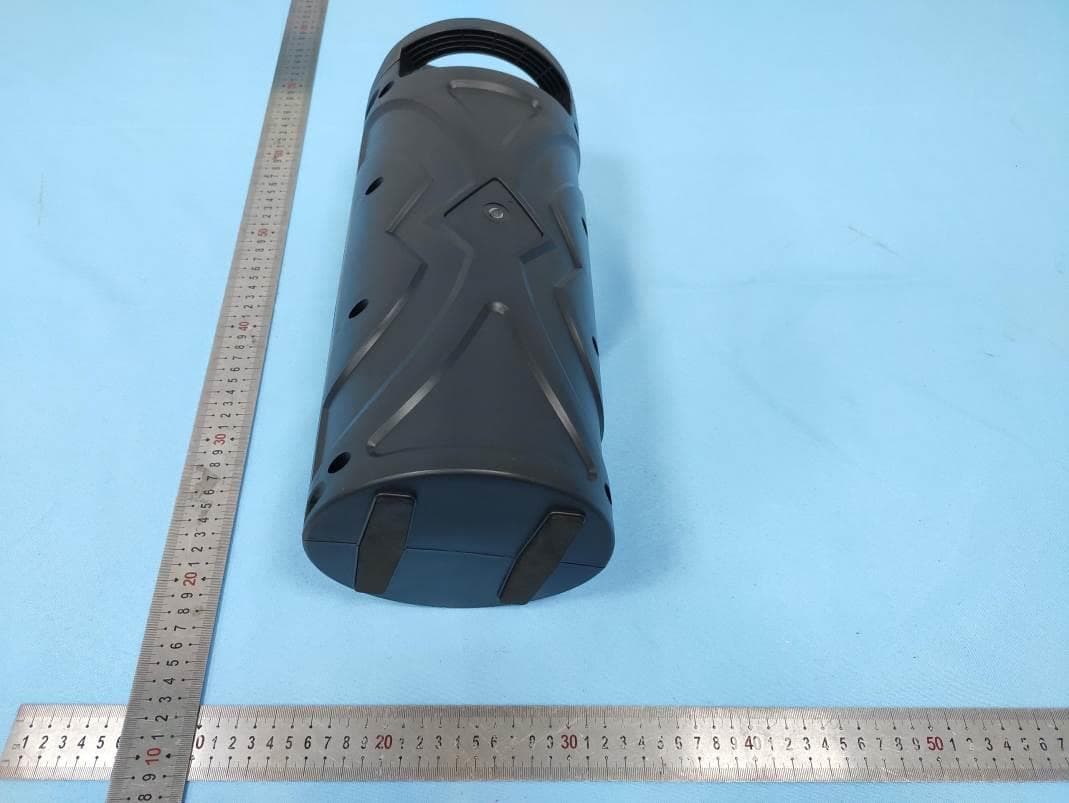

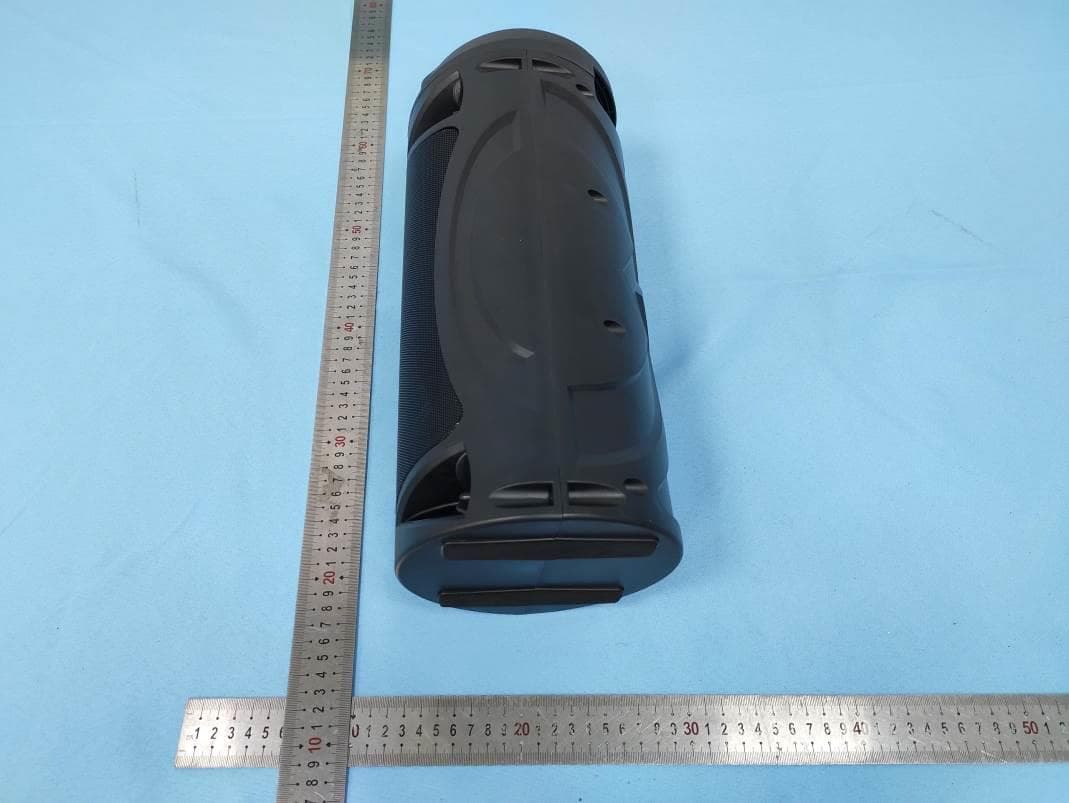

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W3.0cm Label Location FCC ID: 2AVW7-ANCBS949R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 3 Fig. 4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVW7-ANCBS949R Product name Bluetooth Speaker Test Model ANC-BS949R Model List No. ANC-BS949R, 20836, KARAOKE-SP Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power Supply DC 3.7V By Battery(1500mAh) Recharged By DC 5V 1A Bluetooth 2402-2480MHz Channel Number 79 channels for Bluetooth V5.0 (BT Classics) Channel Spacing 1MHz for Bluetooth V5.0 (BT Classics) Modulation Type GFSK, π/4-DQPSK for V5.0 (BT Classics) Antenna Type Internal Antenna Antenna Gain -0.58 dBi(Max.) Hardware version SY-12V1.0 Software version 692X 2.6.3 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results 4.1 Test Setup Block Diagram 4.2 Test Equipment Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter R&S NRVS 100444 2021-06-21 2 Power Sensor R&S NRV-Z81 100458 2021-06-21 Remark: all calibration period of equipment list is one year. 4.3 Test Procedure The EUT was directly connected to the power meter and antenna output port as show in the block diagram Test Setup; Setup EUT work at duty cycle more than 98%; Read power sensor values in RMS detector; SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 BT Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm)…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 34 FCC TEST REPORT FOR ANC CHINA LIMITED Bluetooth Speaker Test Model: ANC-BS949R Additional Model No.: 20836, KARAOKE-SP Prepared for : ANC CHINA LIMITED Address : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 26, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : August 26, 2020 ~ September 09, 2020 Date of Report : September 09, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200821094AEA Date of Issue ................................... : September 09, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ANC CHINA LIMITED Address ........................................... : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Bluetooth Speaker Trade Mark ...................................... : N/A Test Model ...................................... : ANC-BS949R Ratings ............................................ : DC 3.7V By Battery(1500mAh) Recharged By DC 5V 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 34 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200821094AEA September 09, 2020 Date of issue Test Model........................... : ANC-BS949R EUT......................................... : Bluetooth Speaker Applicant............................... : ANC CHINA LIMITED Address.................................. : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, Hong Kong Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 September 09, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 34 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 1 of 35 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Speaker Trade Mark: N/A Test Model: ANC-BS949R Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Jenny Wu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -3.288 21 PASS MCH -3.394 21 PASS HCH -3.657 21 PASS π/4DQPSK LCH -2.570 21 PASS MCH -2.690 21 PASS HCH -2.934 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 2 of 35 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 3 of 35 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 4 of 35 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 5 of 35 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8603 Not Specified PASS MCH 0.8580 Not Specified PASS HCH 0.8615 Not Specified PASS π/4DQPSK LCH 1.238 Not Specified PASS MCH 1.240 Not Specified PASS HCH 1.240 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 6 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 7 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 8 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 9 of 35 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.946 0.574 PASS MCH 1.054 0.572 PASS HCH 0.846 0.574 PASS π/4DQPSK LCH 0.832 0.825 PASS MCH 0.878 0.827 PASS HCH 0.950 0.827 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 10 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 11 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 12 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 13 of 35 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 14 of 35 π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 15 of 35 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.92 106.7 0.312 0.4 PASS DH5 MCH 2.92 106.7 0.312 0.4 PASS DH5 HCH 2.92 106.7 0.312 0.4 PASS π/4DQPSK 2DH5 LCH 2.92 106.7 0.313 0.4 PASS 2DH5 MCH 2.92 106.7 0.313 0.4 PASS 2DH5 HCH 2.92 106.7 0.313 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 16 of 35 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 17 of 35 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 18 of 35 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 19 of 35 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -3.713 -37.709 -23.713 PASS MCH -3.728 -37.140 -23.728 PASS HCH -3.985 -38.129 -23.985 PASS π/4DQPSK LCH -3.704 -38.019 -23.704 PASS MCH -3.754 -36.958 -23.754 PASS HCH -4.079 -37.974 -24.079 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 20 of 35 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 21 of 35 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 22 of 35 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 23 of 35 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 24 of 35 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 25 of 35 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 26 of 35 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -3.693 Off -49.009 -23.69 PASS -3.583 On -49.305 -23.58 PASS HCH 2480 -3.937 Off -43.281 -23.94 PASS -3.765 On -45.266 -23.77 PASS π/4DQPSK LCH 2402 -4.366 Off -47.874 -24.37 PASS -3.507 On -48.832 -23.51 PASS HCH 2480 -3.999 Off -47.320 -24 PASS -3.625 On -48.402 -23.63 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 27 of 35 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R Report No.: LCS200821094AEA Page 28 of…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANCBS949R _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
