2AVW7-HT-1316Wireless Speaker

65MM 80MM The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. RF Exposure Requirement

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-04-21> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVW7-HT-1316 HT-1316, TPS-6/1754 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Date: April 21, 2020 FCC ID: 2AVW7-HT-1316 Model Number: HT-1316, TPS-6/1754 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Wireless Speaker) Model Number: HT-1316, TPS-6/1754 will disable Bluetooth Lower Energy function (Bluetooth V5.0 2LE) and Bluetooth Classics function (8-DPSK) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK) (Bluetooth V5.0) and Bluetooth Lower Energy function(Bluetooth V5.0 LE) although Bluetooth modular AC6928B support both Bluetooth Lower Energy (Bluetooth V5.0 LE&2LE) and Bluetooth Classics (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) due to marketing purposes. End-user will only use Bluetooth Classics (GFSK, π/4-DQPSK) (Bluetooth V5.0) and Bluetooth Lower Energy function (Bluetooth V5.0 LE) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Product Similarity Declaration FCC ID: 2AVW7-HT-1316 Model Number: HT-1316, TPS-6/1754 DATE: 2020-04-21 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Wireless Speaker) Model Number: HT-1316, TPS-6/1754 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Alice Chen / General manager Company Name: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

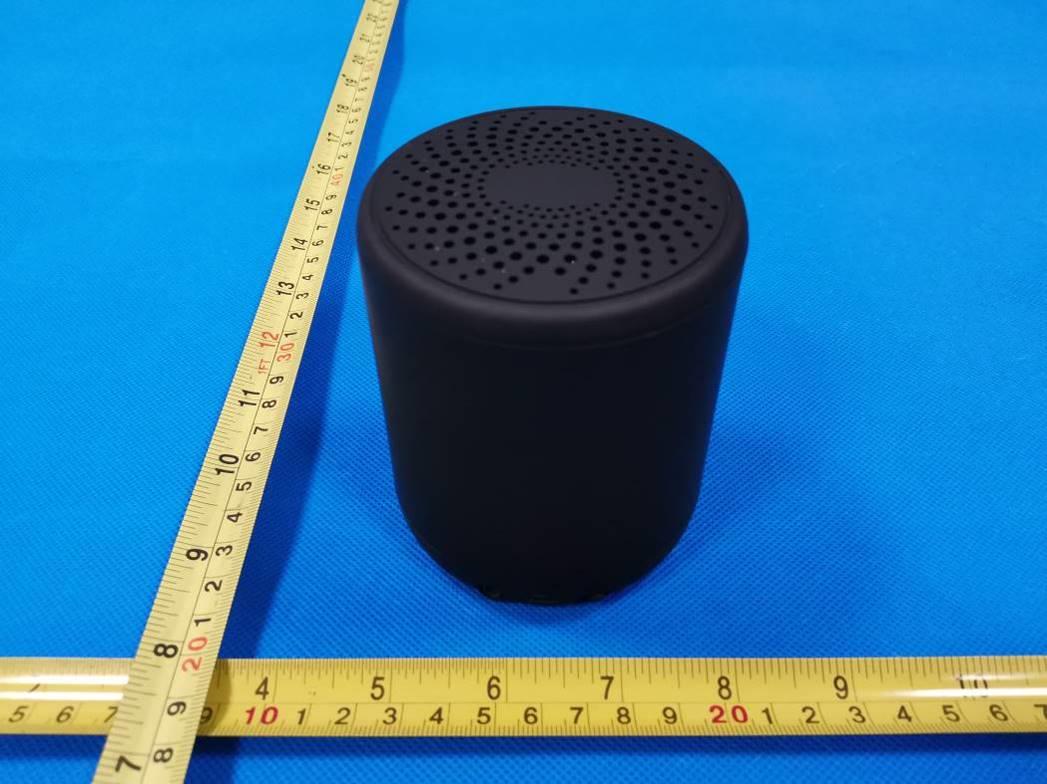

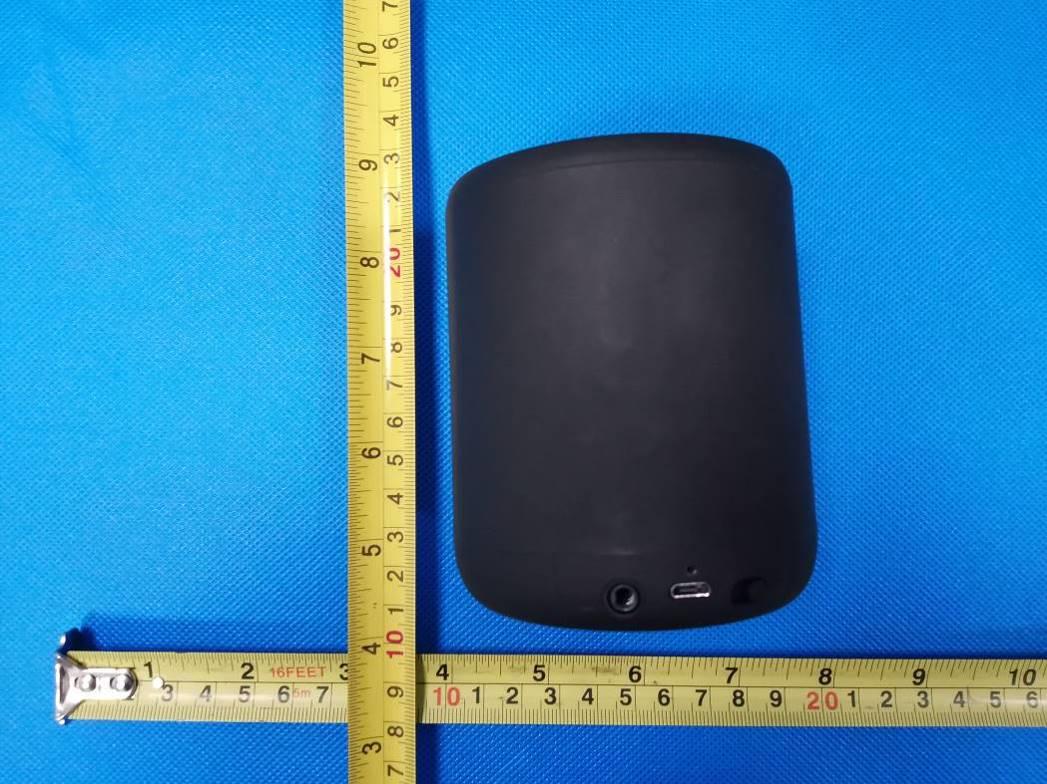

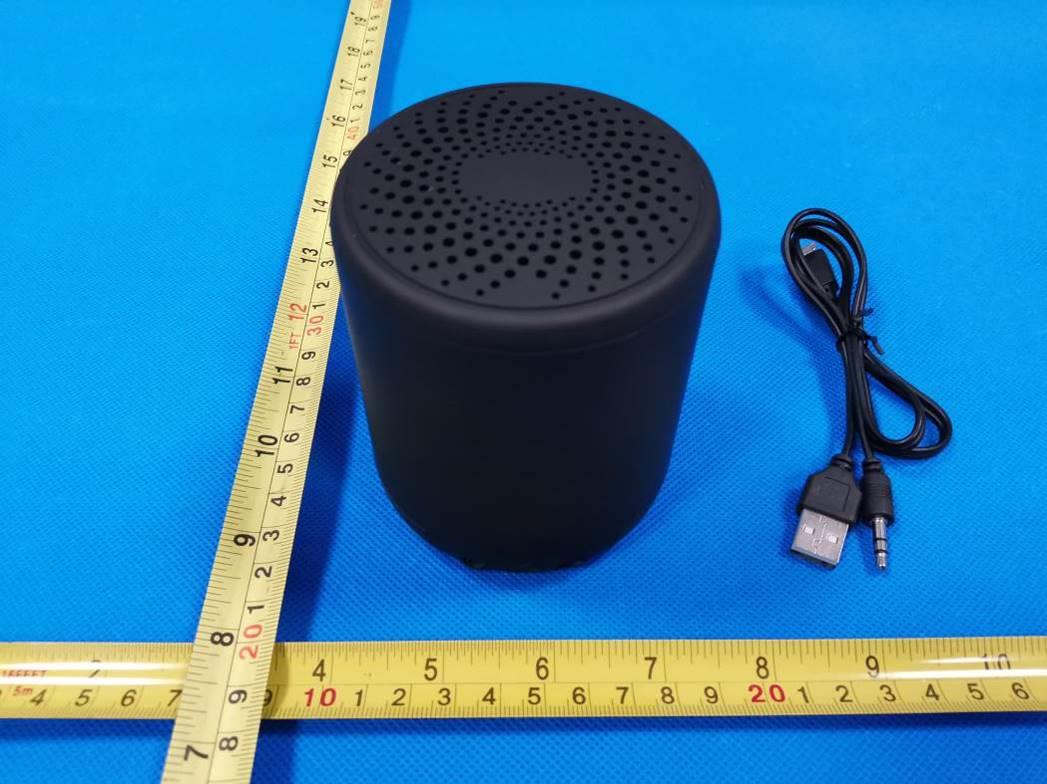

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W2.0cm Label Location FCC ID: 2AVW7-HT-1316 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Fig. 3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVW7-HT-1316 Product name Wireless Speaker Model number HT-1316 Model List No. HT-1316, AKBT2X Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V By Battery(1200mAh) Recharged By DC 5V 1A Modulation Type GFSK, π/4-DQPSK for V5.0 (BT Classics) GFSK for Bluetooth V5.0 (BT LE) Channel Number 79 channels for Bluetooth V5.0 (BT Classics) 40 channels for Bluetooth V5.0 (BT LE) Channel Spacing 1MHz for Bluetooth V5.0 (BT Classics) 2MHz for Bluetooth V5.0 (BT LE) Antenna Type Internal Antenna Antenna Gain -5.6 dBi (maximum) Hardware version Pads V1.1 Software version AC692x_SDK_release_V2.6.3 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results BT Classics Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.876 39 2441 -0.983 78 2480 -0.900 π/4DQPSK 0 2402 -0.172 39 2441 -0.265 78 2480 -0.208 BT LE Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) BT LE 0 2402 1.784 19 2440 1.725 39 2480 1.723 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 BT LE (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIA…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 1 of 35 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: Wireless Speaker Trade Mark: N/A Test Model: HT-1316 Environmental Conditions Temperature: 23.5  C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -0.876 21 PASS MCH -0.983 21 PASS HCH -0.900 21 PASS π/4DQPSK LCH -0.172 21 PASS MCH -0.265 21 PASS HCH -0.208 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 2 of 35 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 3 of 35 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 4 of 35 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 5 of 35 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.82862 0.8757 Not Specified PASS MCH 0.82925 0.8771 Not Specified PASS HCH 0.83044 0.8772 Not Specified PASS π/4DQPSK LCH 1.1670 1.253 Not Specified PASS MCH 1.1682 1.254 Not Specified PASS HCH 1.1681 1.255 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 6 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 7 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 8 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 9 of 35 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] 2/3*20dB Bandwidth Verdict GFSK LCH 1.002 0.584 PASS MCH 0.998 0.585 PASS HCH 1.001 0.585 PASS π/4DQPSK LCH 1.000 0.835 PASS MCH 1.000 0.836 PASS HCH 1.004 0.837 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 10 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 11 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 12 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 13 of 35 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 14 of 35 π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 15 of 35 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 16 of 35 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 17 of 35 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 18 of 35 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 19 of 35 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.954 -43.029 -20.95 PASS MCH -1.067 -41.865 -21.07 PASS HCH -0.993 -43.322 -20.99 PASS π/4DQPSK LCH -0.900 -43.367 -20.90 PASS MCH -1.076 -41.875 -21.08 PASS HCH -1.020 -41.923 -21.02 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 20 of 35 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 21 of 35 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 22 of 35 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 23 of 35 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 24 of 35 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 25 of 35 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 26 of 35 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -0.926 Off -32.985 -20.93 PASS -0.972 On -33.349 -20.97 PASS HCH 2480 -0.930 Off -45.232 -20.93 PASS -0.956 On -45.977 -20.96 PASS π/4DQPSK LCH 2402 -0.937 Off -32.911 -20.94 PASS -0.939 On -33.190 -20.94 PASS HCH 2480 -0.936 Off -44.997 -20.94 PASS -0.947 On -45.827 -20.95 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA Page 27 of 35 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-131…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR ANC CHINA LIMITED Wireless Speaker Test Model: HT-1316 Additional Model No.: TPS-6/1754 Prepared for : ANC CHINA LIMITED Address : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 13, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 13, 2020 ~ April 21, 2020 Date of Report : April 21, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200331068AEA Date of Issue ................................... : April 21, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ANC CHINA LIMITED Address ........................................... : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2020-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Wireless Speaker Trade Mark ...................................... : N/A Test Model ...................................... : HT-1316 Ratings ............................................ : DC 3.7V By Battery(1200mAh) Recharged By DC 5V 1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200331068AEA April 21, 2020 Date of issue Test Model........................... : HT-1316 EUT......................................... : Wireless Speaker Applicant............................... : ANC CHINA LIMITED Address.................................. : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 April 21, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 Report No.: LCS200331068AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ................................................................................................................................. 6 1.4 DESCRIPTION OF TEST FACILITY ..…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-HT-1316 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
