1 ANC-BS949, MFSB-2/1755 SUPER-BASS Multi Function Portable BT Speaker INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 2 Getting Started  Remove the product from the box.  Remove any packaging from the product.  Please retain all packaging after you have checked and counted all the parts and the contents against the list. Package Contents  Bluetooth Speaker  AUX/USB rechargeable cable  Wired Microphone  Instruction Manual Key Features  Portable Multi-function Bluetooth Speaker with LED lights  Connect & stream wireless music anytime, anywhere  Delivers rich sound with bass  Built-in 2 x 4 inch speaker drivers delivers superior sound with bass  Wireless range up to 33 feet  Multi-function: Bluetooth, USB slot, Micro-SD card slot & AUX jack  Long-lasting rechargeable battery  Built-in microphone input  AUX/USB cable included Safety Instructions  Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.  Do not use the unit if it has been dropped or damaged in any way.  Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.  Do not use the unit with wet hands.  Do not put objects into any of the openings.  Keep the unit free from dust, lint etc.  Do not use this unit for anything other than its intended use.  Keep the unit out of reach of children.  This unit is not a toy. 3 Description of Parts LED Display Number Item Function 1 MIC IN Microphone input 2 ON/OFF SWITCH Turn the speaker On or Off 3 PREVIOUS TRACK/STATION Bluetooth/USB/SD card mode: Skip to previous track FM radio mode: Skip to the previous already saved radio station 4 PLAY/PAUSE/SCAN PLAY/PAUSE, scan FM radio stations (only in FM radio mode) 5 Micro SD (TF) slot Micro SD (TF) card input 6 NEXT TRACK/STATION Skip to the next track in Bluetooth/USD/SD card mode/Skip to the next radio station in FM radio 7 MODE/LIGHT button Short press to change the mode between Bluetooth / FM radio / AUX / USB / SD Long press to turn on/off the colour changing LED lights 8 DC 5V IN/AUX IN Charging port/External audio input 9 USB slot USB input (Flash Drive) 10 VOLUME KNOB Increases/Decrease the speaker volume 4 INSTRUCTIONS FOR USE Charging the Boombox Bluetooth Speaker For best results, fully charge the unit before use. 1. Plug the Micro USB end of the included AUX/USB charging cable into the charging port of the speaker. Plug the other end into a USB port on your computer or USB power source with 1A output. 2. Red charging indicator on the display is on while charging, and turns off when fully charged Note: Before using the unit for the first time, please charge it for around 4-5 hours or until the red charging indicator turns off. Turn On/Off the Speaker Slide the ON/OFF SWITCH to ON position to turn on the unit with colour changing LED lights, or OFF position to turn off the unit. Pairing your device with the Speaker – Your Bluetooth Speaker can stream wireless audio from any Bluetooth enabled device within the range of up to 10 meters. Simply follow the below steps. 1. Rotate the volume knob to your favorite sound level. 2. Turn ON the speaker. 3. LED display will show ‘HIFI’ and then ‘bt, and indication tone would be heard. The speaker is now in pairing mode. 4. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer. 5. It will search for available Bluetooth devices. 6. Bluetooth Speaker would appear as “SL SUPER-BASS”, in the list of searched devices. Select it from the available list of devices. 7. If required, enter the password ‘0000’ to confirm pairing. 8. Once paired successfully, another indication tone would be heard. 9. If you fail to pair it within a few seconds or you want to pair it with a new device, please repeat above steps. Play your favorite song on the Bluetooth source device and music would now stream through the speaker. Listening to Wireless Music Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the speaker to stream wireless music. Once it is paired, play music from your device. 5 Function Operation Button Increase / Decrease Volume Playing music Turn VOLUME KNOB to adjust the volume to your desired level, or Adjust volume from the source device (in Bluetooth mode only). Pause Playing music Short press PLAY/PAUSE/SCAN button once to pause music Play Pause Short press PLAY/PAUSE/SCAN button once to resume music Previous track Playing music Short press the PREVIOUS TRACK/STATION button to the previous track Next track Playing music Short press the NEXT TRACK/STATION button to the next track Listening to Music using USB / Micro SD (TF) Card Slot 1. Rotate the volume knob to your favorite sound level. 2. Turn on the speaker. 3. Insert USB flash drive into the USB slot or Micro SD (TF) card into the Micro SD (TF) card slot accordingly. LED display will show ‘USb or tF’ first, and music would play automatically with LED display showing track number & then music time. 4. Short press the NEXT TRACK/STATION button or PREVIOUS TRACK/STATION button to move forward or backward on your playlist. 5. Short press PLAY/PAUSE/SCAN button to Play or Pause a track. Listening to Music using AUX-In 1. Rotate the volume knob to your favorite sound level. 2. Turn on the speaker. 3. Insert the Micro USB end of the included AUX/USB rechargeable cable into the Aux in. Plug the Aux pin to the audio device (such as phone / MP3 Player / computer / tablet / .....etc.). 4. Short press the MODE button each time until it reaches Aux-in mode, LED display will show ‘LINE’, and an indication tone would be heard. 5. Select your favorite song at the source device to play. (Note: While using AUX-In function, all functions such as playing next/previous track can be controlled only through your source device). Listening FM radio 1. Rotate the volume knob to your favorite sound level. 2. Turn on the speaker. 3. Short press the MODE butt…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-30> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVW7-ANC-BS949 ANC-BS949, MFSB-2/1755 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Date: March 30, 2020 FCC ID: 2AVW7-ANC-BS949 Model Number: ANC-BS949, MFSB-2/1755 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Multi Function Portable BT Speaker) Model Number: ANC-BS949, MFSB-2/1755 will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) although Bluetooth modular AB5322C support both Bluetooth Lower Energy (Bluetooth V5.0 LE&2LE) and Bluetooth Classics (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) due to marketing purposes. End-user will only use Bluetooth Classics (GFSK, π/4-DQPSK, 8-DPSK) (Bluetooth V5.0) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Alice Chen / General manager Company: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

ANC CHINA LIMITED ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Product Similarity Declaration FCC ID: 2AVW7-ANC-BS949 Model Number: ANC-BS949, MFSB-2/1755 DATE: 2020-03-30 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, ANC CHINA LIMITED hereby declare that our product (Multi Function Portable BT Speaker) Model Number: ANC-BS949, MFSB-2/1755 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Alice Chen / General manager Company Name: ANC CHINA LIMITED Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Phone: 86-0755-23765735 Fax: 0755-27490655 E-Mail: [email protected]

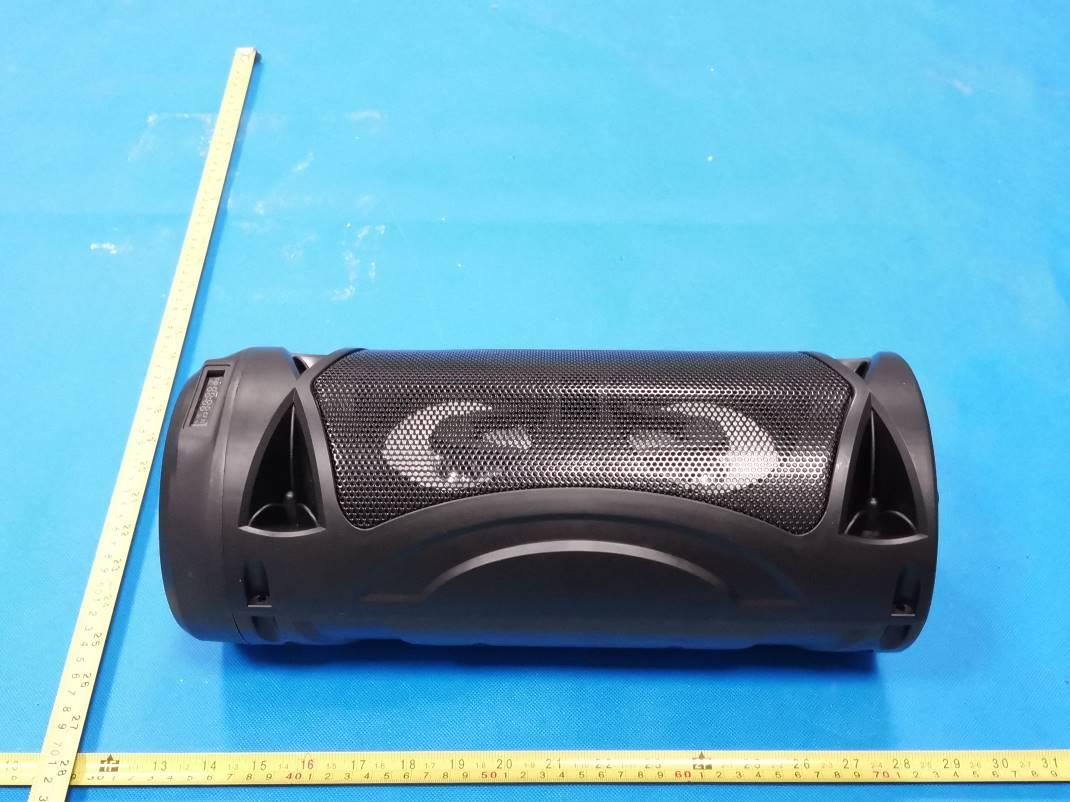

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W2.0cm Label Location FCC ID: 2AVW7-ANC-BS949 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Fig. 3 Fig. 4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVW7-ANC-BS949 Product name Multi Function Portable BT Speaker Model number ANC-BS949 Model List No. ANC-BS949, MFSB-2/1755 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V By Battery(1200mAh) Recharged By DC 5V 2A Modulation Type GFSK, π/4-DQPSK, 8-DPSK for V5.0 (BT Classics) Channel Number 79 channels for Bluetooth V5.0 (BT Classics) Channel Spacing 1MHz for Bluetooth V5.0 (BT Classics) Antenna Type Internal Antenna Antenna Gain 0 dBi (maximum) Hardware version JTK-858-V1.0 Software version JTK-858-V1.0 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results BT Classics Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -4.109 39 2441 -4.912 78 2480 -5.116 π/4DQPSK 0 2402 -1.885 39 2441 -2.564 78 2480 -2.760 8-DPSK 0 2402 -1.283 39 2441 -2.007 78 2480 -2.159 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -5.0 -5.0 -5.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 This report shall not be reproduced except in full, without the w…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: Multi Function Portable BT Speaker Trade Mark: N/A Test Model: ANC-BS949 Environmental Conditions Temperature: 23.2  C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -4.109 21 PASS MCH -4.912 21 PASS HCH -5.116 21 PASS π/4DQPSK LCH -1.885 21 PASS MCH -2.564 21 PASS HCH -2.760 21 PASS 8-DPSK LCH -1.283 21 PASS MCH -2.007 21 PASS HCH -2.159 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 5 of 47 8-DPSK/LCH 8-DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 6 of 47 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 7 of 47 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.80539 0.8763 Not Specified PASS MCH 0.80296 0.8765 Not Specified PASS HCH 0.80622 0.8779 Not Specified PASS π/4DQPSK LCH 1.1566 1.264 Not Specified PASS MCH 1.1573 1.267 Not Specified PASS HCH 1.1564 1.264 Not Specified PASS 8-DPSK LCH 1.1444 1.245 Not Specified PASS MCH 1.1428 1.245 Not Specified PASS HCH 1.1420 1.246 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 10 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 11 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] 2/3*20dB Bandwidth Verdict GFSK LCH 1.000 0.584 PASS MCH 1.001 0.584 PASS HCH 1.002 0.585 PASS π/4DQPSK LCH 1.005 0.843 PASS MCH 1.005 0.845 PASS HCH 1.000 0.843 PASS 8-DPSK LCH 0.999 0.830 PASS MCH 1.003 0.830 PASS HCH 1.000 0.831 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 15 of 47 π/4DQPSK/HCH 8-DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 16 of 47 8-DPSK/MCH 8-DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8-DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 18 of 47 π/4DQPSK/Hop 8-DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.89 106.7 0.308 0.4 PASS 2DH5 MCH 2.89 106.7 0.308 0.4 PASS 2DH5 HCH 2.89 106.7 0.308 0.4 PASS 8-DPSK 3DH5 LCH 2.89 106.7 0.308 0.4 PASS 3DH5 MCH 2.90 106.7 0.309 0.4 PASS 3DH5 HCH 2.89 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8-DPSK_3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 23 of 47 8-DPSK_3DH5/MCH 8-DPSK_3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -4.458 -48.287 -24.46 PASS MCH -5.380 -47.956 -25.38 PASS HCH -5.679 -49.210 -25.68 PASS π/4DQPSK LCH -4.491 -48.690 -24.49 PASS MCH -5.382 -47.574 -25.38 PASS HCH -5.689 -45.258 -25.69 PASS 8-DPSK LCH -4.379 -49.236 -24.38 PASS MCH -5.263 -52.414 -25.26 PASS HCH -5.473 -48.492 -25.47 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 25 of 47 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 R…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR ANC CHINA LIMITED Multi Function Portable BT Speaker Test Model: ANC-BS949 Additional Model No.: MFSB-2/1755 Prepared for : ANC CHINA LIMITED Address : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 06, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : March 06, 2020 ~ March 30, 2020 Date of Report : March 30, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200302079AEA Date of Issue ................................... : March 30, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ANC CHINA LIMITED Address ........................................... : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2020-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Multi Function Portable BT Speaker Trade Mark ...................................... : N/A Test Model ...................................... : ANC-BS949 Ratings ............................................ : DC 3.7V By Battery(1200mAh) Recharged By DC 5V 2A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200302079AEA March 30, 2020 Date of issue Test Model........................... : ANC-BS949 EUT......................................... : Multi Function Portable BT Speaker Applicant............................... : ANC CHINA LIMITED Address.................................. : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen HTZ Teconology Co.,Ltd Address................................... : Floor 4, No. 13 Furong Road, Gu Shu Community, Xixiang, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 March 30, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 Report No.: LCS200302079AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ................................................................................................................... 6 1.2 SUPPORT EQUIPMENT LIST ........................................................................................................................... 6 1.3 EXTERNAL I/O CABLE ................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVW7-ANC-BS949 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
