2AVYA-KC24G20Preschool RC VEHICLE (Controller)

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE PLAYING. R E TA I NTHESE INSTRUCTIONS AND THE PACKAGE FOR FUTURE REFERENCE. 1. ATTENTION TO ADULTS * For your child’s safety, please read all safety precautions and operating instructions with your Child. 2. SAFETY PRECAUTIONS * For your safety, NEVER play with this vehicle on or near the street or highway. * Adult supervision is recommended when playing. * This toy is not suitable for children under 3 years. * Keep your hair, fingers and clothing away from the wheels when the “ON/OFF/TRY ME” switch of the vehicle is turned to “ON” position. * When not playing, please turn both the “ON/OFF/TRY ME” switch of the vehicle to “OFF” position to prevent unintended or accidental operation. Remove all batteries. * Do not drive the vehicle on water, snow, sand, ice or grass. * When the vehicle and/or controller get wet, dry thoroughly before the next play. * Check the condition of all batteries, the vehicle and the controller regularly. * Do not operate if the vehicle and/or controller are damaged. * Never lift up the vehicle while it is moving. * Do not modify or disassemble the vehicle or controller. * Do not operate vehicle during rain or thunderstorms. * Never use people, pets or animals as obstacles. * Do not run vehicle into hard surfaces, furniture, or objects. This will cause damage to both the vehicle and the objects. 3. PAIRING THE CONTROLLER WITH THE VEHICLE * Pair the controller with the vehicle before attempting to play. * Make sure all batteries are installed in the vehicle and controller at the correct polarities. * Push any one of the 2 buttons of the controller first, then quickly turn the “ON/OFF/TRY ME” switch of the vehicle to “ON” position. * Pairing is complete when the controller's red lightindicator stop blinking. * If the red lightindicator on the controller is still flashing after about 12 seconds, turn the “ON/OFF/TRY ME” switch of the vehicle to the “OFF” position and try again. * If pairing continues to fail, remove and reinstall all batteries of the vehicle and controller and try again. * The red controller can only be paired with the Fire Truck; the blue controller can only be paired with the Police Car. 4. OPERATION TIPS * Performance may be affected by the accumulation of dust and dirt. Keep all wheels clean! * For greatest performance, drive on concrete or solid surfaces. * Always point the controller antenna upward for better transmission. * If the vehicle is left idle for more than 5 minutes, it will enter sleep mode.Turn the “ON/OFF/TRY ME” switch of the vehicle to the “OFF” position, then restart pairing. * Do not leave the vehicle or controller outdoors overnight. Dampness may damage interior components. * Keep the toy in a dry and cool place after playing. * Do not leave in direct sunlight. * If the vehicle starts to slow down, it is time to change batteries. * For storage, turn the “ON/OFF/TRY ME” switch the vehicle to the “OFF” position, and remove all batteries. * Never immerse the vehicle and/or controller in water. * When the vehicle and/or controller gets wet, wipe with a dry towel and remove all batteries. Let them dry completely overnight and use new batteries for the next operation. * Vehicle may malfunction if exposed to static power or electrostatic source.Remove and reinstall batteries to resume normal operation. 5. BATTERY INFORMATION * Do not leave batteries in the vehicle and controller when the toy is not in use. * Do not mix old and new batteries together. * Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. * Non-rechargeable batteries are not to be recharged. * Remove exhausted batteries from the toy. * Supply terminals are not to be short circuited. * For best performance, alkaline batteries are recommended. * Do not dispose of batteries in fire. Batteries may explode or leak. 6. TRANSMITTER AND RECEIVER Since radio waves control this vehicle and in order to avoid interruption, do not operate this vehicle near electrical or telephone lines, cb interference, CD players, mobile phones, elevators, steel girders, other electronic devices and near highways. CONFORMS TO TOY SAFETY STANDARDS ASTM F963. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR ACLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITSARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFULINTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USESAND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED INACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TORADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCEWILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSEHARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BEDETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGEDTO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWINGMEASURES: - REORIENT OR RELOCATE THE RECEIVING ANTENNA. - INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER. - CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED. - CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP. Warning: Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment 51165 Preschool RC Vehicles Walmart Inc. Bentonville, AR72716 Walmart.com

Company: Speed Well International Industrial Ltd. Address: 2/F, West Wing, 822 Lai Chi Kok Road, Cheung Sha Wan, Kowloon, Hong Kong Email: [email protected] Tel: 852 21159518 Fax:852 2304 1863 FCC Authorization 15/04/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Speed Well International Industrial Ltd. the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Aaron Ho Title: Manager QA-FR-170-B

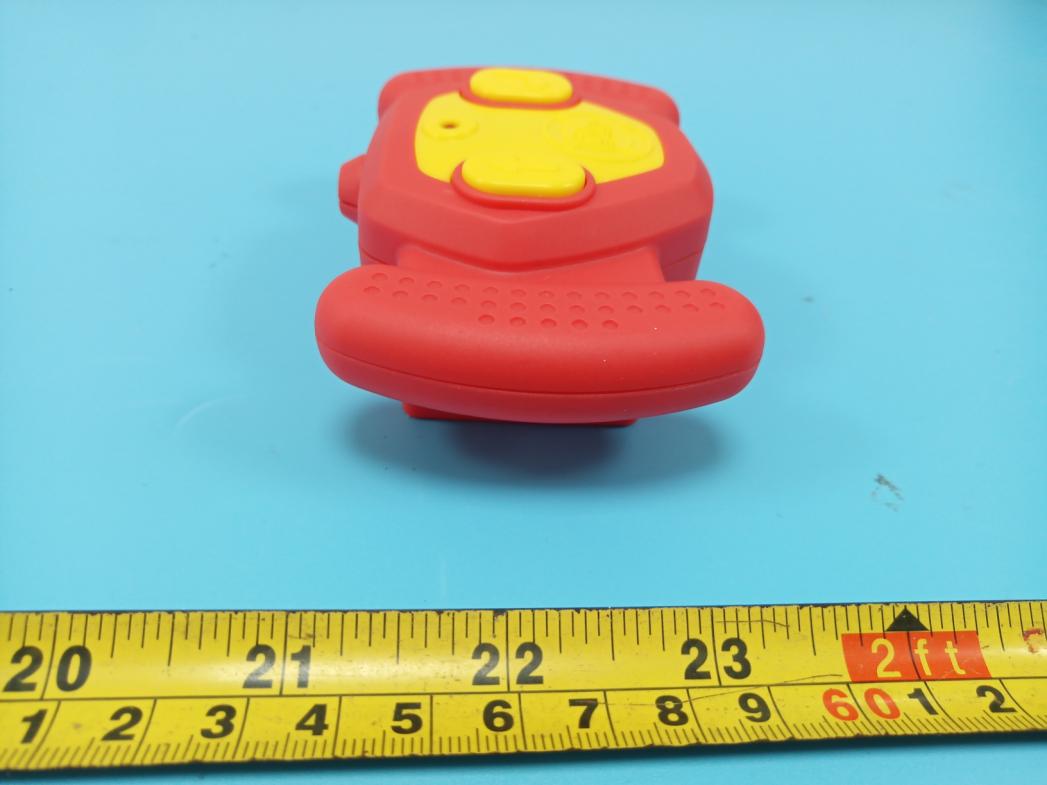

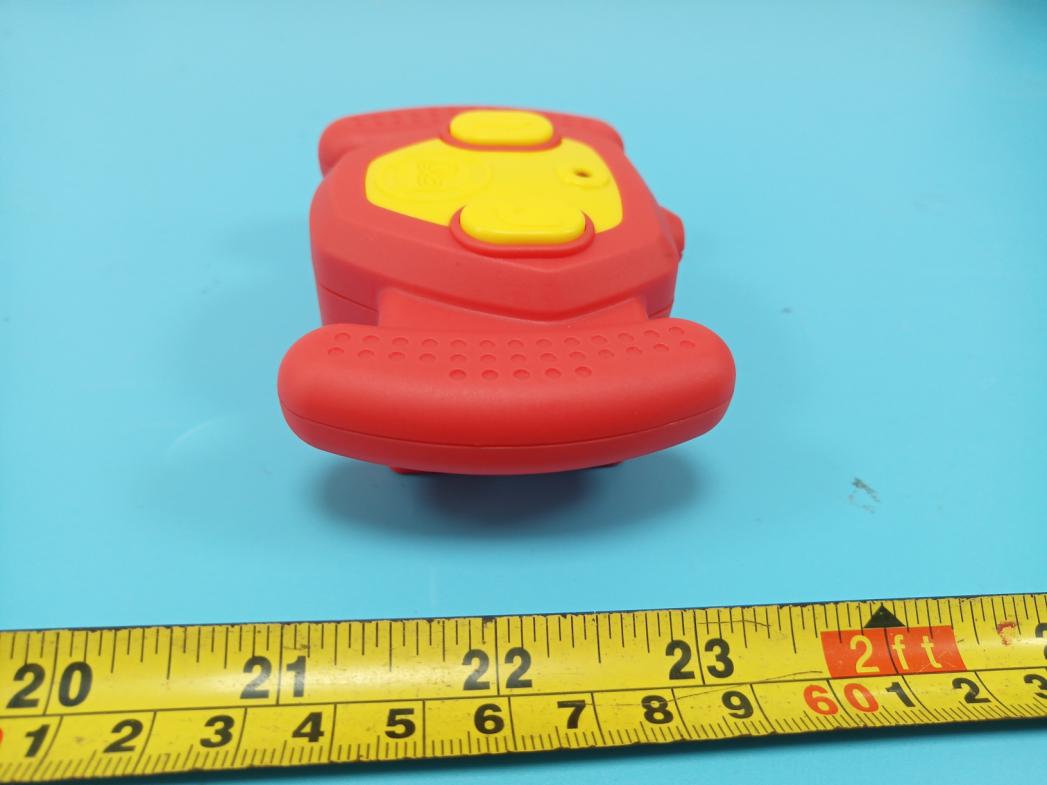

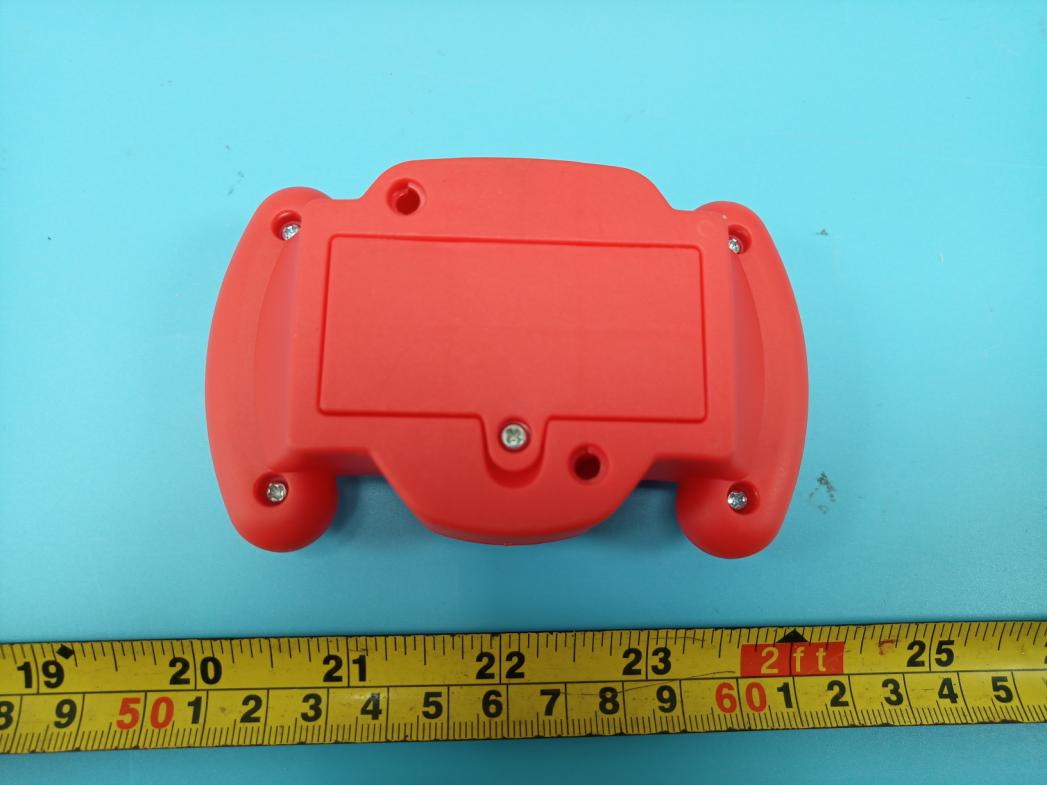

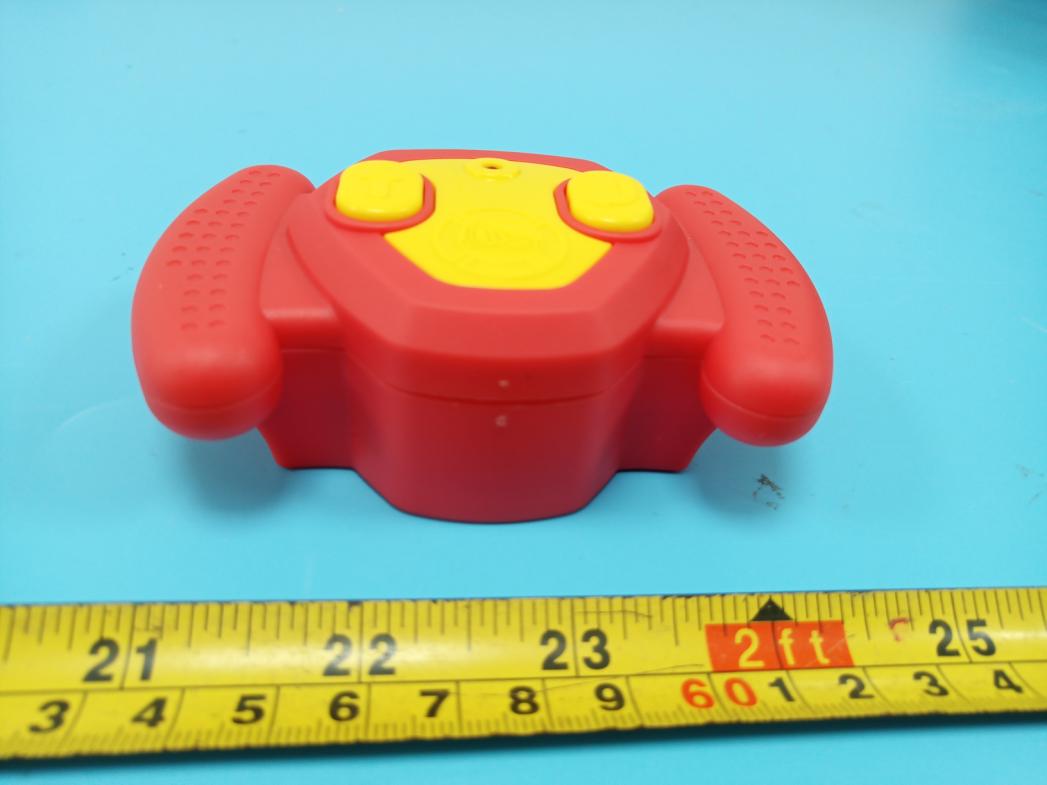

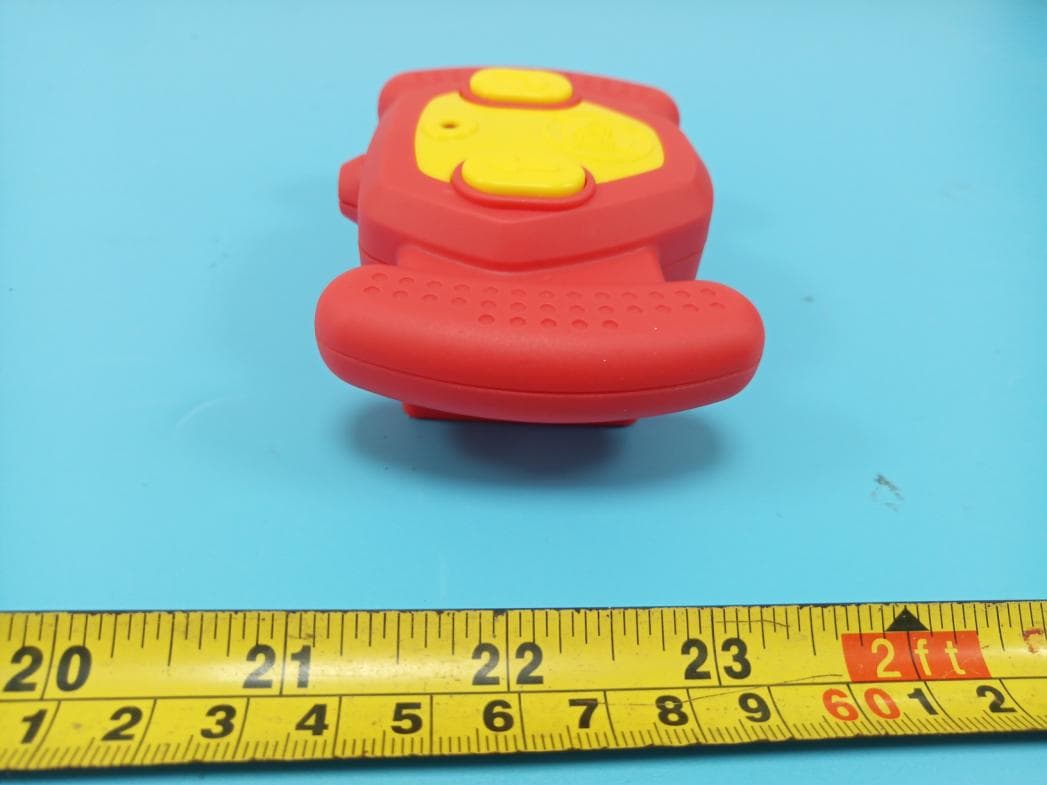

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Functional circuit description: The remote control is powered by two 1.5V AAA batteries. RC cars are powered by two sets of batteries, one with two 1.5V AG10 and one with three 1.5V AAA batteries The remote control does not have an OFF / ON switch. When the battery is powered on, the LED1 light flashes, indicating that the code is not aligned. At this time, the U1 IC will automatically emit a coded signal, which is composed of L1, and C2. The RC car is pulled to the ON position and powered by three AAA batteries for a total of 4.5V. LED1 and LED2 flash at the same time, indicating that there is no code-up. At this time, the encoded signal transmitted by TX(remote control) is received via the RX(RC car) antenna. After the code is uploaded, the TX(remote control) LED1 turns off, and the K1 switch is pressed to send a forward signal, which is emitted from the antenna via the LC filter. At the same time, LED1 lights up. The RX(RC car) antenna receives the forward signal and decodes it by the LC input U1. After U1 is decoded, it outputs a high level to U3 from the second pin. , LED2 flashes. After the code is uploaded, the TX(remote control) LED1 turns off, and the K2 switch is pressed to send a back signal and the LC wave is emitted from the antenna. At the same time, LED1 lights up. The RX(RC car) antenna receives the back signal and decodes it by LC input U1. After U1 is decoded, it outputs a high level from pin 3 to U3. The output voltage of U3 drives the M1 motor to rotate the RC car. , LED2 flashes. The remote control does not enter the sleep state within 20 seconds of code upload, and does not press K1 and K2 to enter the sleep state after 20 seconds of code upload. Press K1 and K2 to wake up. The RC car enters the sleep state without operation for 10 minutes under the ON remote control function. Press the TRYME button to wake up. The RC car is pulled to the TRYME position and is powered by two AG10 3V batteries. LED1 and LED2 will blink after 6 seconds, then press the S1 switch TRYME button and then blink after 6 seconds. The OFF position turns off all functions and disconnects power.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Speed Well International Industrial Ltd. 2/F, West Wing, 822 Lai Chi Kok Road, Cheung Sha Wan, Kowloon, Hong Kong FCC ID: 2AVYA-KC24G20 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : P r e s c h o o l R C V E H I C L E Report Number: RSZ200327830-00 Report Date: 2020-04-24 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200327830-00 FCC Part 15.249 Page 2 of 20 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT.............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.205, §15.209 & §15.249(D) - RADIATED EMISSIONS ............................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST EQUIPMENT SETUP ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC§15.215(C) - 20DB EMISSION BANDWIDTH .........................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
