2AVYA-SW24G21RC STUNT TUMBLER-SNAKE

123456 A B C D 654321 D C B A ANT 2.4G La u n c h module 2.4G Fil t e r c i r c u i t P o w e r s u p p l y m o d u l e F B keys R L keys LED 2408-2467MHz 12MHZ Crystal

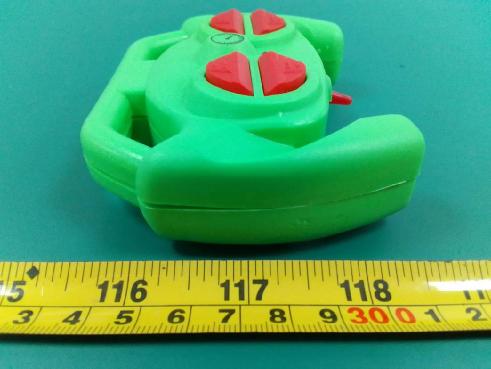

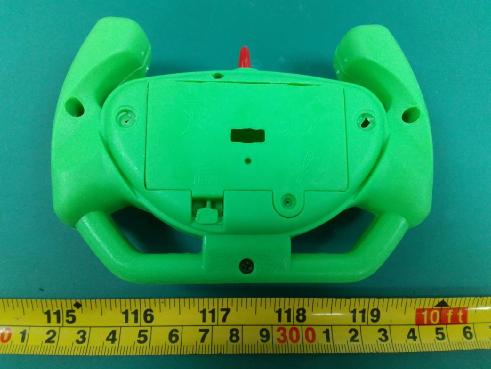

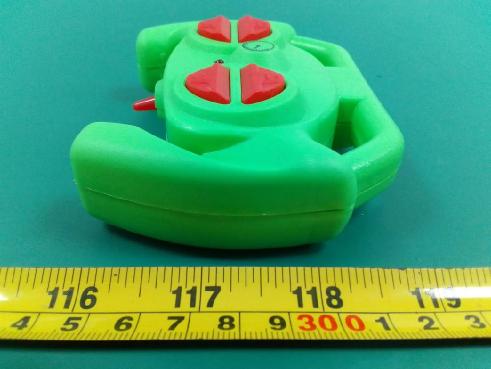

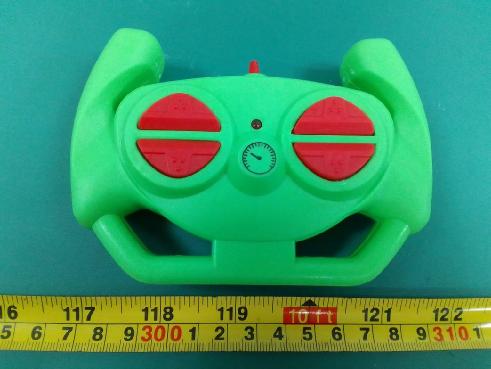

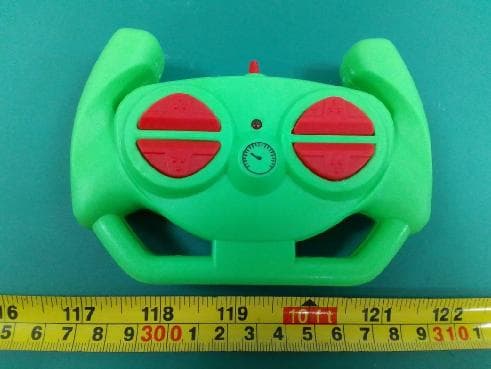

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF Page 3 of 3 Antenna

Remote control Snake-shaped car function line description: 1. The remote control uses two 1.5V AAA batteries for power supply. The Snake-shaped car is powered by 4 1.5V AAA batteries. 2. After the remote controller is installed with battery and powered on, the LED1 light flashes to indicate the status of code matching. At this time, the IC1 will automatically transmit an encoded signal, which is formed by C1, and C2 to form an LC filter wave and transmit it through the TX antenna. 3. The remote control does not enter the dormant state if it does not match the code within 30 seconds, and it enters the dormant state if it does not press K1 or K2 within 30 seconds after the code is coded. Press K1 or K2 at will to wake it up. 4. The OFF position turns off all functions and disconnects the power supply. Frequency Range:2408-2467MHz

123456 A B C D 654321 D C B A Fp ANT1 1 ANT2 2 VSS 3 PB6 4 VDD 5 PB5 6 PB4 7 PB3/REST 8 PB2 9 PB1 10 PB0 11 VSS 12 PA3 13 VDD1 14 XTAI 15 XTAO 16 U1 BL2401/SOP16 S5 R ANT1 Y1 12M C3 18P C4 18P C1 1P 3.3V 3.3VS4 L S2 F S3 B R1 1K LED1 LED S1 SPEED BT1 C5 104 V+ 3.3V R2 0R R3 10R

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Speed Well International Industrial Ltd. 2/F, West Wing, 822 Lai Chi Kok Road, Cheung Sha Wan, Kowloon, Hong Kong FCC ID: 2AVYA-SW24G21 Report Type: Original Report Product Type: RC STUNT TUMBLER-SNAKE Report Number: SZ3210508-15813E-00 Report Date: 2021-06-22 Reviewed By: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: SZ3210508-15813E-00 FCC Part 15.249 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE .................................................................................................................................................................. 3 TEST METHODOLOGY ................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY ................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................ 5 EUT EXERCISE SOFTWARE ......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ...................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS ................................................................................................................... 5 SUPPORT CABLE DESCRIPTIONS .................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ............................................................................................................................... 6 SUMMARY OF TEST RESULTS .............................................................................................................................. 7 TEST EQUIPMENT LIST .......................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD ............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ..................................................................................................................... 9 FCC§15.205, §15.209 & §15.249(D) - RADIATED EMISSIONS ............................................................................10 APPLICABLE STANDARD ............................................................................................................................................10 TEST EQUIPMENT SETUP ............................................................................................................................................10 EUT SETUP ................................................................................................................................................................11 TEST PROCEDURE.......................................................................................................................................................12 CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................................12 TEST RESULTS SUMMARY ..........................................................................................................................................12 TEST DATA ................................................................................................................................................................12 FCC§15.215(C) - 20DB EMISSION BANDWIDTH .................................................................................................19 APPLICABLE STANDARD ...............................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ3210508-15813E-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
