2AW3IAD20Advancer AD20 with Bluetooth

1 Advancer Smart OBD Dongle Start your smart OBD life FCC ID : 2AW3IAD20 2/3/4 Product Description Advancer Smart OBD Dongle (AD20/AD20 Pro) is a smart diagnosis terminal that communicates with your Android/iOS devices via BT 5.0. With the Advancer app, AD20 provides services like vehicle health check, diagnosis, driving habits analysis for car owners. Main Functions 1) OBD-II Diagnosis Advancer AD20 can read and categorize the fault codes (DTCs) that storage inside the vehicle ECU via standard OBD-II protocols. 2) In-depth Check In-depth check function allows you to do thorough check on vehicle systems like engine, powertrain, brakes, steering, safety, infotainment and so on, which helps owners to know the health condition of the car clearly and provide safe and comfortable driving experience on travels. Note: In-depth check on all systems is only supported on AD20 Pro; AD20 supports in-depth check on engine only. 3) Live Data When the car is started, Advancer will provide and demonstrate detailed vehicle status like battery voltage, engine revolution speed, coolant temperature, engine load, fuel trimming and so on. This will help you to get the real-time working conditions of the car. 4) Maintenance Light Reset Reset the maintenance counter and turn off the maintenance light after finishing maintenance. For your driving safety, make sure you have followed the manual when doing maintenance to your own car. Note: Maintenance light is a reminder set by car manufacturer, which reminds drivers to do maintenances when needed. When the reminder is on, the car will show info on the dashboard screen, or simply shows a light. 5) Trip Recorder When driving, Advancer will record the index like average speed, fuel consumption, mileage, max engine revolution speed, max coolant temperature and shows them on the app. This will help you to know vehicle status and fuel consumption info on the entire trip. 6) Driving Habits Monitor With the G-sensors inside Advancer, all the sharp turns, emergency brakes and sudden accelerations will be recorded and shown on the app after analyzed. This function will provide data support if you are willing to improve your driving skills. 5 Specifications Items Specifications Processor ARM Cortex-M4 Bluetooth BLE 5.0 Supported Protocols ISO15765-4 CAN (11bit ID, 500Kbaud) ISO15765-4 CAN (29bit ID, 500Kbaud) ISO15765-4 CAN (11bit ID, 250Kbaud) ISO15765-4 CAN (29bit ID, 250Kbaud) ISO9141-2 (5 baud init, 10.4Kbaud) ISO14230-4 KWP (5 baud init, 10.4Kbaud) ISO14230-4 KWP (fast init, 10.4Kbaud) SAE J1850 PWM (41.6Kbaud) SAE J1850 VPW (10.4Kbaud) Working DC 9~16V Voltage Working Current 100mA@12V Sleeping Current 10mA@12V Working Temperature -20~60°C 6 Scan this QR Code or search “Advancer” on Play Store/App Store: Shenzhen Xtooltech Intelligent Co., Ltd. Add: 17&18/F, A2 Building, Creative City, Liuxian Avenue, Nansha n District, Shenzhen, China Website: www.xtooltech.com Customer Support: [email protected] 7/8/9 How to Use 1) Turn on Bluetooth, click “Advancer” app, sign up (or log in your account), and click “Activate Device”. 2) Scan the QR Code on the device, follow the steps on the app and insert your AD20 into the OBD-II port, then turn on the engine. 3) The Advancer will automatically collect the basic info of the vehicle. Please make sure the info is correct and click “OK” to finish activation. Note: Sometimes when detecting vehicles, the info may not be correct, or the info could be missing. If this happened, please correct it manually. 10/11/12 FAQ 1) Does AD20 support my car? Advancer AD20 supports all vehicles that use standard OBD-II protocols. 2) Can AD20 plugged inside the vehicle all the time? Yes, in daily driving conditions, Advancer AD20 won’t cause battery drain out or damage. Advancer AD20 supports low-power BLE 5.0 which automatically sleeps after the car is turned off for 3 minutes. It will be turned on again when the car is turned on. 3) Why can’t I connect to my AD20? 1. Click “Advancer” app will let the phone automatically connect to the device so you don’t need to find it again in phone settings. 2. Please make sure “Advancer” is allowed to turn on Bluetooth, get location info, and get access to device storage. 3. Make sure that the AD20 is attached firmly to the OBD-II port. 4. Make sure that you are using the app from reliable sources and has already been in latest version. 4) Why can’t I communicate with the vehicle? 1. Make sure the engine has been turned on and is in idle; 2. Please check the brand and model that registered inside the Advancer app is correct. 5) How can I do when the device cannot sign up or log in? Please check the network on your phone and the account info is correct. If both those are checked but problem still happens, please contact customer support. 6) Why the fault codes couldn't be cleared, or just appears again after cleared? 1. When clearing codes, please refers to the actual situations to the fault. Usually there are sporadic codes and actual codes: Sporadic codes: Normally this happens when the component works abnormally in some points, probably because of electromagnetic interference, vibration, poor contact with the wiring and so on. Those codes could be cleared directly. Actual codes: This happens when there are components that are actually failed. Before clearing those codes, make sure that you have fixed the issue. If the fault lights are on again after clearing codes, that means the faults are not fully fixed - further inspections are needed in those cases. 7) Why there is no lights shown on my dashboard but AD20 scanned that there are DTC codes present? 1. Not all the DTC codes will trigger the fault lights on the dashboard - the manufacturer will decide which fault will trigger the light and which don't. 2. The ECU may still not fully decide if this is a fault yet. Maybe there are electromagnetic interference or vibration that misleads the ECU. Normally in those cases, the ECU will decide if this is an a…

Text truncated - open the document above for the full version.

0755-83467556

0755-83467556

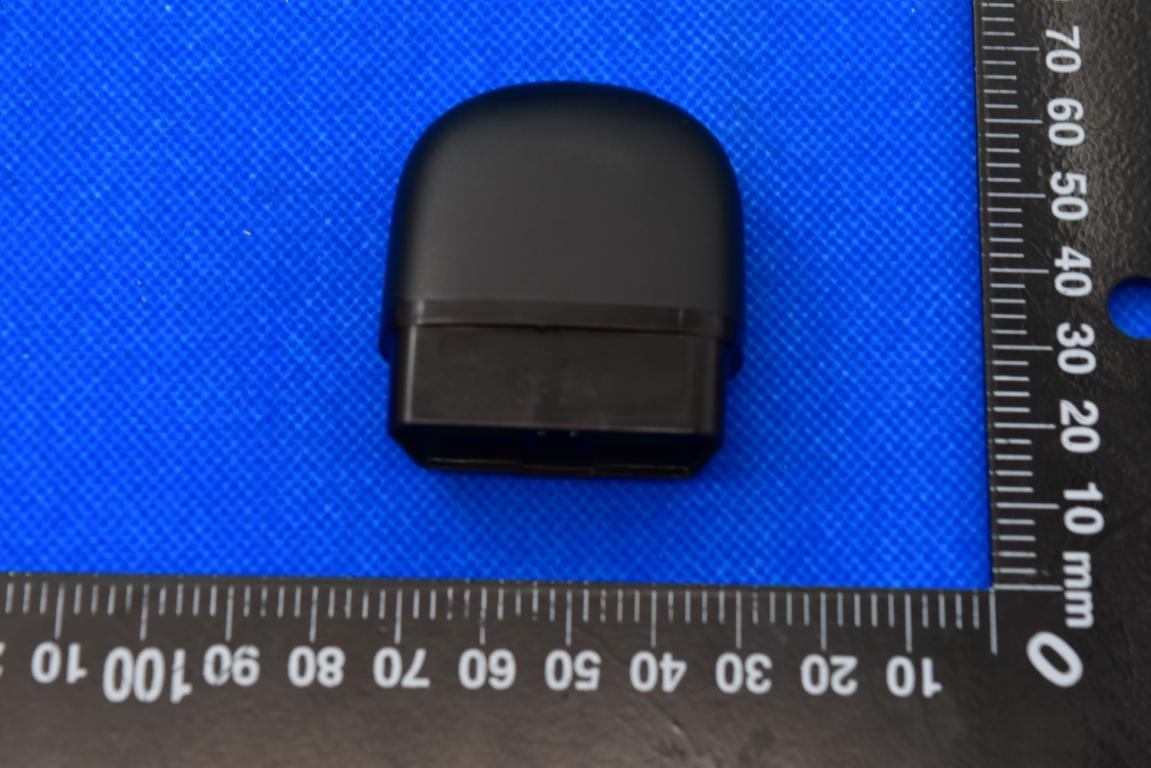

FCC ID: 2AW3IAD20 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

FCC ID: 2AW3IAD20 Internal Photos 1. EUT uncover view 2. Antenna view Bluetooth Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ22090298S01 RF EXPOSURE EXEMPT REPORT APPLICANT : Shenzhen Xtooltech Intelligent Co., Ltd. PRODUCT NAME : Advancer AD20 MODEL NAME :AD20 BRAND NAME : XTOOL FCC ID : 2AW3IAD20 STANDARD(S) : 47 CFR Part 2(2.1093) RECEIPT DATE : 2022-09-30 TEST DATE :2022-10-12 to 2022-11-06 ISSUE DATE :2022-11-16 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 9 REPORT No.：SZ22090298S01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Change History Version Date Reason for change 1.0 2022-11-16 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 9 REPORT No.：SZ22090298S01 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Shenzhen Xtooltech Intelligent Co., Ltd. Applicant Address: 17&18/F, A2 Building, Creative City, Liuxian Avenue, Nanshan District, Shenzhen Manufacturer: Shenzhen Xtooltech Intelligent Co., Ltd. Manufacturer Address: 17&18/F, A2 Building, Creative City, Liuxian Avenue, Nanshan District, Shenzhen 1.2 Equipment Under Test (EUT) Description Product Name: Advancer AD20 Sample No.: 2# Hardware Version: V1.0 Software Version: V017 Equipment Type: Bluetooth LE Bluetooth Version: 5.0 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK(1Mbps) Antenna Type: PCB Antenna Antenna Gain: 2.22dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 9 REPORT No.：SZ22090298S01 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D04v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 9 REPORT No.：SZ22090298S01 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47 CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47 CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). General Population/Uncontrolled limits apply when the general public may be exposed, or when persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or do not exercise control over their exposure. Warning labels placed on consumer dev…

Text truncated - open the document above for the full version.

尚远科技（中国）有限公司 Sunnyway Technology （china） Co., LTD. Test Report Infomation Test prototype match 1#2# Designer zhuzhibing Serial Number/ESN/IMEI N/A Band 2400-2500Mhz Manufacturer Sunnyway Technology （china） Co., LTD. Model Name 蓝牙板载 Date 2022.05.06 板 0hom N/C ANT 0hom 1# Frequency/MhzEfficiency / dBEfficiency / %MaxGain/dBiAvgGain/dBi 2400-2.4656.751.3-2.46 2410-2.4956.361.43-2.49 2420-2.4357.151.41-2.43 2430-2.3658.081.69-2.36 2440-2.3358.481.5-2.33 2450-2.2659.431.82-2.26 2460-2.1261.381.87-2.12 2470-2.0762.092.21-2.07 2480-2.161.662.09-2.1 2490-2.0662.232.22-2.06 2500-2.1361.241.96-2.13 2# Frequency/MhzEfficiency / dBEfficiency / %MaxGain/dBiAvgGain/dBi 2400-2.7852.721.49-2.78 2410-2.8352.121.65-2.83 2420-2.7952.61.63-2.79 2430-2.7153.581.82-2.71 2440-2.7453.211.71-2.74 2450-2.6454.451.93-2.64 2460-2.5655.461.97-2.56 2470-2.5355.852.09-2.53 2480-2.4956.362-2.49 2490-2.5156.12.13-2.51 2500-2.5455.721.93-2.54 调试总结： 1，匹配为串联0欧姆电阻 2，天线无源效率OK Thank You 上海研发中心:上海市青浦区高光路215弄99号4号楼1楼 深圳研发中心:深圳市光明区南太云创谷中心5栋6楼 重庆研发中心：重庆市渝北区仙桃数据谷东路19号ARM生态产业园1F 惠州工厂地址：惠州市惠城区水口镇龙湖工业区中心村路一号4-5楼

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 39 REPORT No.：SZ22090298W01 TEST REPORT APPLICANT : Shenzhen Xtooltech Intelligent Co., Ltd. PRODUCT NAME : Advancer AD20 MODEL NAME :AD20 BRAND NAME : XTOOL FCC ID :2AW3IAD20 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2022-09-30 TEST DATE :2022-10-12 to 2022-11-06 ISSUE DATE :2022-11-16 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 39 REPORT No.：SZ22090298W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. The Channel Number and Frequency ····························································· 4 1.4. Test Standards and Results ·········································································· 5 1.5. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ·················································································· 7 2.2. Duty Cycle of Test Signal ············································································· 8 2.3. Maximum Peak Conducted Output Power ······················································ 9 2.4. Maximum Average Conducted Output Power ················································· 12 2.5. 6 dB Bandwidth ························································································· 13 2.6. Conducted Spurious Emissions and Band Edge ············································ 16 2.7. Power Spectral Density ··············································································· 20 2.8. Conducted Emission ·················································································· 23 2.9. Restricted Frequency Bands ······································································· 25 2.10. Radiated Emission ··················································································· 29 Annex A Test Uncertainty ················································································ 36 Annex B Testing Laboratory Information ··························································· 37 Change History Version Date Reason for change 1.0 2022-11-16 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 39 REPORT No.：SZ22090298W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Shenzhen Xtooltech Intelligent Co., Ltd. Applicant Address: 17&18/F, A2 Building, Creative City, Liuxian Avenue, Nanshan District, Shenzhen Manufacturer: Shenzhen Xtooltech Intelligent Co., Ltd. Manufacturer Address: 17&18/F, A2 Building, Creative City, Liuxian Avenue, Nanshan District, Shenzhen 1.2. Equipment Under Test (EUT) Description Product Name: Advancer AD20 Sample No.: 2# Hardware Version: V1.0 Software Version: V017 Equipment Type: Bluetooth LE Bluetooth Version: 5.0 Modulation Type: GFSK Data Rate: 1Mbps Operating Frequency Range: 2402MHz-2480MHz Antenna Type: PCB Antenna Antenna Gain: 2.22dBi Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 39 REPORT No.：SZ22090298W01 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 Note 1: The black bold channels were selected for test. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 39 REPORT No.：SZ22090298W01 1.4. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C for the EUT FCC ID Certification: No. Ide…

Text truncated - open the document above for the full version.

FCC ID: 2AW3IAD20 Test Setup Photos 1. Radiated emission (9KHz-30MHz) 2. Radiated emission (30MHz-1GHz) 3. Radiated emission (above 1GHz) 4. RF measurement setup (Bluetooth LE)
