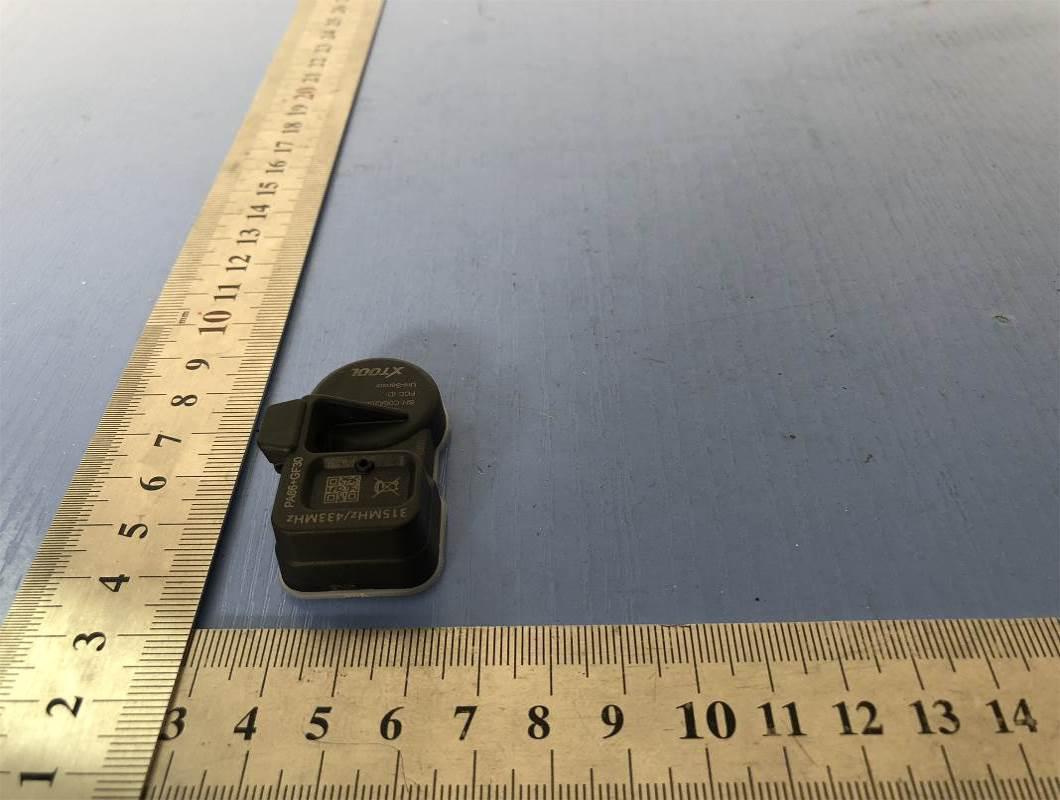

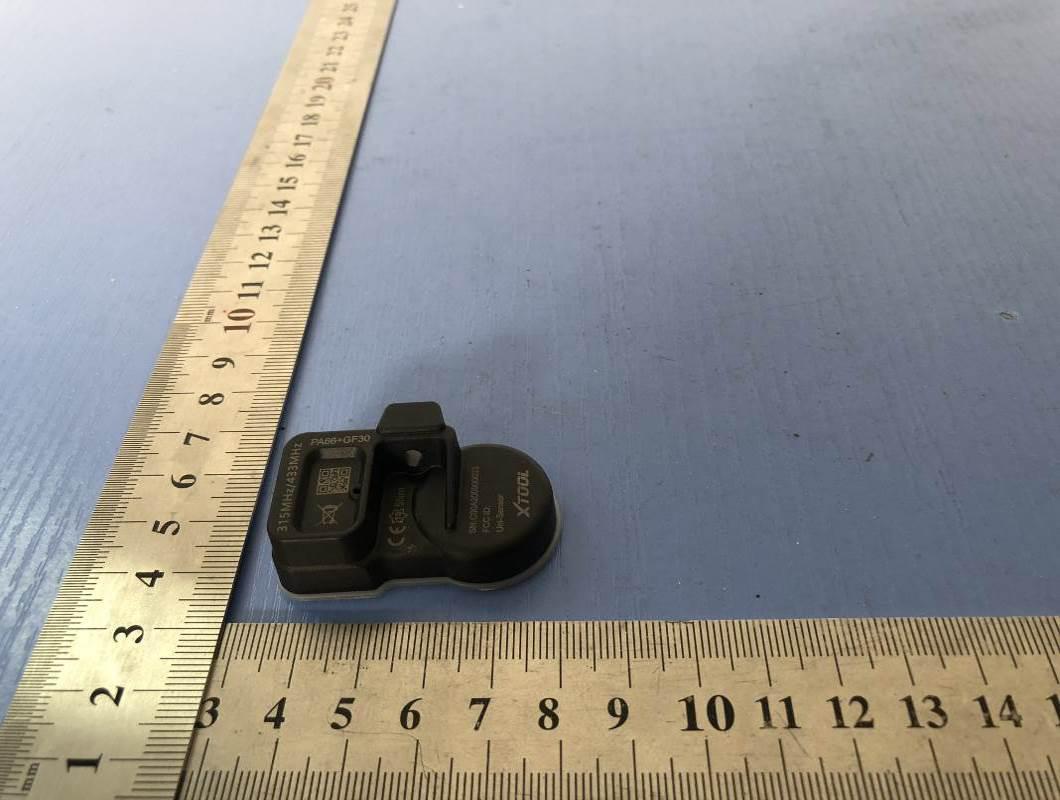

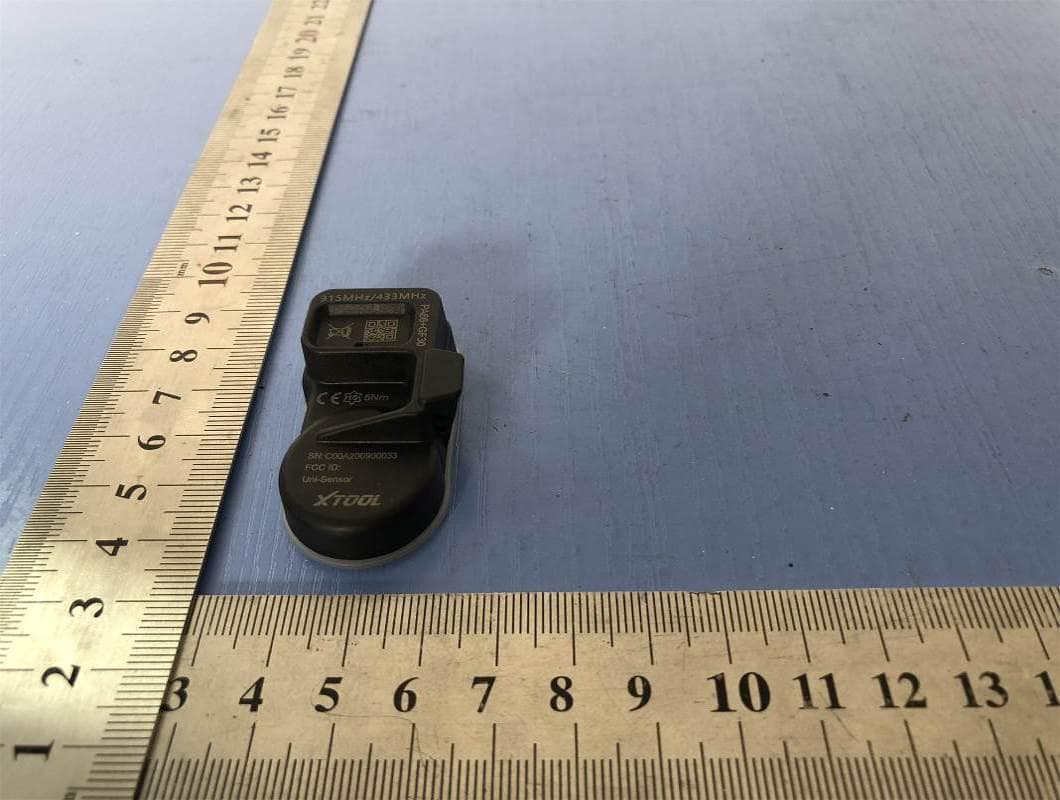

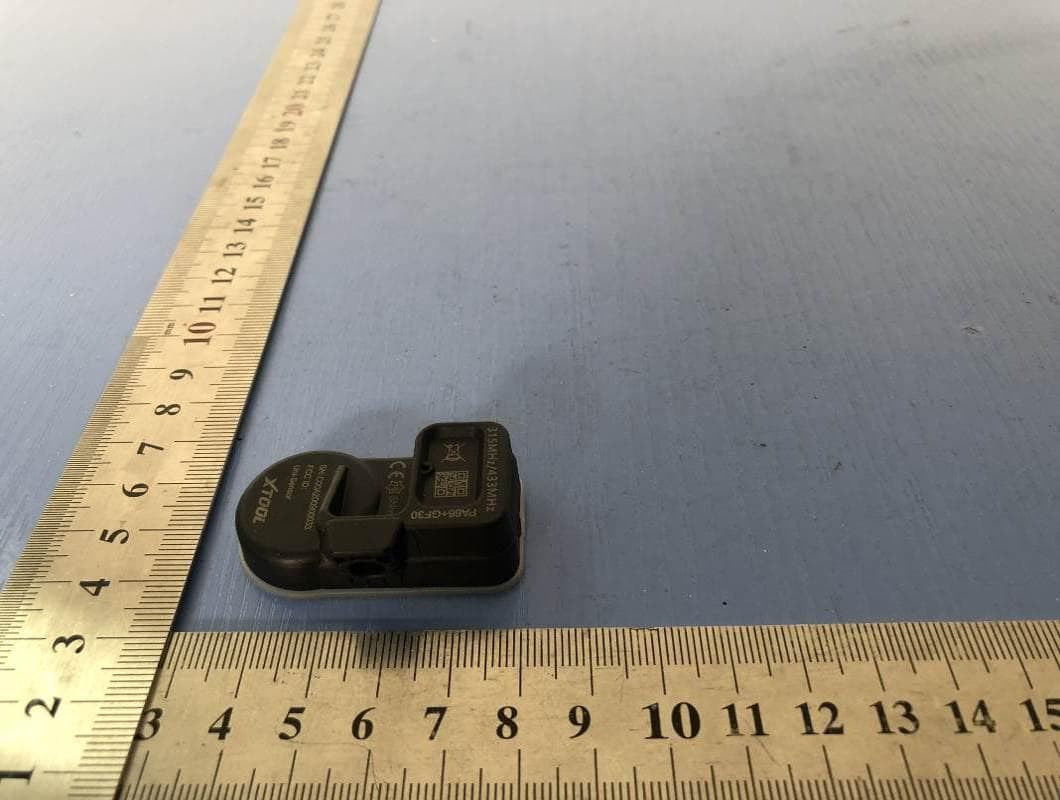

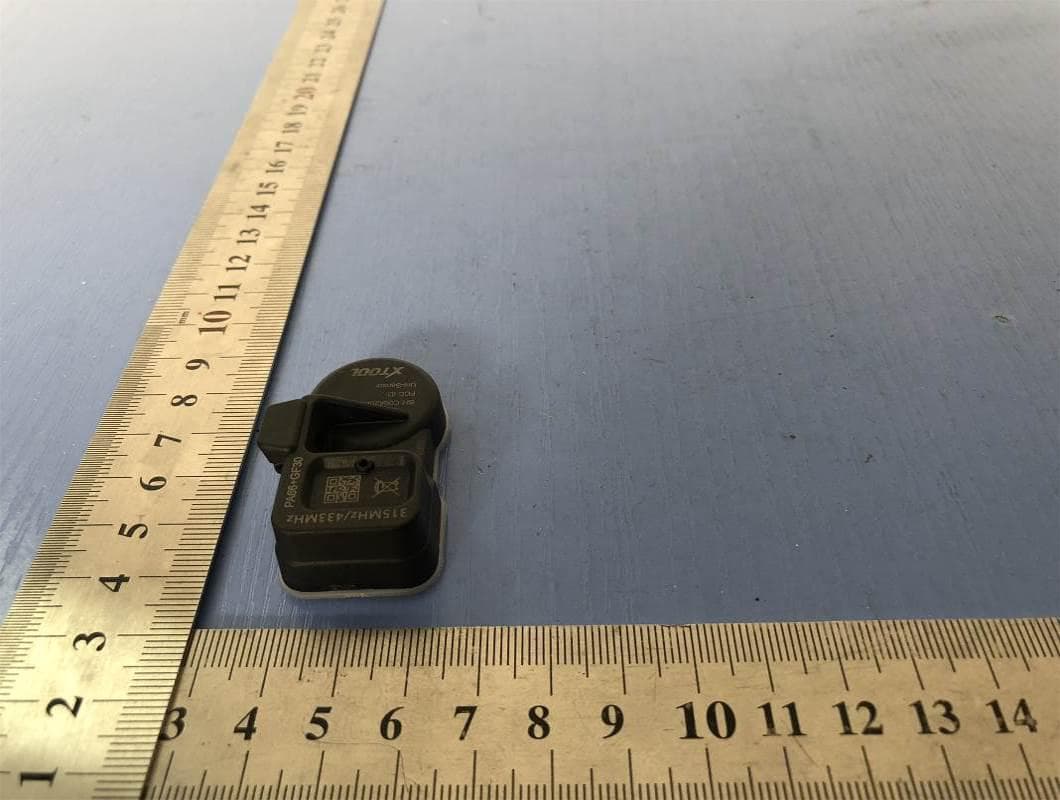

2AW3ITPMS1Tire pressure sensor

Programmable universal tire pressure sensor Web: www.xtooltech.com Attention：Before use the Xtool TS100 tire pressure sensor， must use Xtool tire pressure programming device to program first，suggest finishing programming before install tires. When driving the vehicle which is equipped with this type of tire pressure sensor，suggest maintaining vehicle driving speed≤240km/h. Metal Cycle Valve Security guidance Attention Before install TS100 tire pressure sensorplease reading this security instruction. As the reason of security and optimized operationwe suggest all of the maintaining and repairing work only trained personnel according to vehicle manufacturer guiding principle to operate. Cycle valve is related to vehicle security partsuse only for professional installationotherwise it may be result in TPMS tire pressure sensor damage. If the product appear error or incorrect installationShenzhen Xtooltech Co., Ltd do not undertake any responsible. TS100 tire sensor module is equipped with tire pressure monitor system vehicle of leave factory replaceable and maintaining parts. Make sure using Xtool tire pressure sensor programming tool before install via select specific vehicle seriesvehicle type and the year of manufacture to program TS100 tire pressure sensor. Please do not install TPMS tire pressure sensor into the broken tire which have programmed. In order to guarantee optimum performanceplease do not install cycle valve and parts which are not belong to Xtool on Xtool TS100 tire pressure sensor. After finish installationaccording to original vehicle manufacturer user guide steps to test vehicle TPMS to confirm correct installation. Warranty repair Shenzhen Xtooltech Co., LtdHereinafter referred to as “Company") promise to all this product original retail buyerssince the day of delivery and under two years or under 40000 kmif in the case of normal usethis product or any parts is confirm that exist material or the flaw of craft aspect result in device breakdownvia proof of purchasecompany will as the circumstances may require free of charge for you to repair or replaceNew product or parts. Because the product misusemisoperation or rig up error bring about additional damage or indirect damagecompany assume no responsibility. This warranty repair is not adjust to following situations: 1. Product rig up error; 2. Misuse; 3. Because crash or tire defect bring about product damage; 4. Racing or other unconventional use bring about product damage 5. Over the specific use restriction of product. TS100 tire pressure sensor detail sketch Every time tire servicing or teardown or TS100 tire pressure sensor teardown or replacemust use our parts to replace rubber washer washernut and valve coremake sure sealing good. If it is external damagemust replace TS100 tire pressure sensor. Correct TS100 tire pressure sensor nut torque4Nm Attention TS100 tire pressure sensor technical parameters TS100 tire pressure sensor weight （Do not contain cycle valve） 13.8 g About 46.4*25*16.2mm 900 kPa Boundary dimension Maximum pressure Valve capNut Sensor subject Retaining screw Cycle valve Rubber sealing circle Valve core module Take down valve cap and valve coredeflate the tire. Use wind pressure shovel to strip tire rubber cover tire away from rim. Installation guide Loosen tire 1 Attention：please let the cycle valve via 180°face to wind pressure shovel. Significancebefore install TS100 tire pressure sensorplease read this instruction carefullyplease pay special attention to safety warning and announcements of this instruction. Please according to this instruction to use TS100 tire pressure sensor correctly otherwise may be result in TS100 damage or personal injuryand make the warranty repair lose efficacy. Unload tire Remove TS100 tire pressure sensor 2 3 Attention：In the whole removal process must abide by this beginning location. Remove the valve capnut washer from cycle valve rodthen remove TS100 tire pressure sensor module from rim. Let the tire clamp on tire changeradjust cycle valve to relative to tire separated plug 1 o’clock locationinsert tire tool and lift the tire bead on installation plug to remove tire bead. Install TS100 tire pressure sensor and cycle valve 4 Step1. Connect cycle valve and TS100 tire pressure sensor subject firmly. Attention Make sure module connect firmly. Step2. Remove the valve capnut and washer from cycle valve. Step3. Valve rod across the valve openinglet TS100 tire pressure sensor located in rim interiorassemble washernut on valve rod fist and last. Step4. Use 4.0 N•m torque screw up nutthen assemble bonnet back on valve rod. Step 1 Step 2 Install tire 5 AttentionShould abide by change tire machine manufacturer instruction to install tire on rim. Put tire on the rimmake sure cycle valve via 180°face to separated plug install tire on the rim. Step 3Step 4 Programmable universal tire pressure sensor Web: www.xtooltech.com AttentionBefore use Xtool TS100 tire pressure sensor must use Xtool tire pressure device to programsuggest finish programming before tire mounting.When driving the vehicle which is equipped with this type of tire pressure sensorsuggest maintaining vehicle driving speed≤210km/h. Security guidance Before install TS100 tire pressure sensorplease reading this security instruction. As the reason of security and optimized operationwe suggest all of the maintaining and repairing work only trained personnel according to vehicle manufacturer guiding principle to operate. Cycle valve is related to vehicle security partsuse only for professional installationotherwise it may be result in TPMS tire pressure sensor damage. If the product appear error or incorrect installationShenzhen Xtooltech Co., Ltd do not undertake any responsible. Attention TS100 tire sensor module is equipped with tire pressure monitor system vehicle of leave factory replaceable and maintaining parts. Make sure using Xtool tire pressure sensor programming tool before installvia select specific vehicle s…
