P7 P7 长按:一曲 短按:音量减 双击:混响音响减 下 长按:消原音开/关 单击:模式切换(TF卡、蓝牙) 单击:暂停/播放 长按:开/关机 单击:切换灯光 双击关闭/开启灯光 长按: :音量减 上一曲 单击 长按: :音量加 下一曲 单击 AUX接口 Type-c充电接口 TF卡接口 长按:开/关机 单击:麦克风关/开 长按:一曲 短按:音量加 双击:混响音量加 上 长按:魔音切换 单击:消原音开/关 蓝灯指示灯,红灯充电指示灯. 麦克风充电端口 将充电线USB头插入标准的USB电源适配器（5V1A）， 充电线Type-C头插入音箱的充电接口中，USB左侧的红色 指示灯亮表示产品开始充电，红色指示灯熄灭表示电池已 充满，可断开充电器和音箱的连接。 Insert the USB cable into the standard USB power adapter (5V1A), and the Type-C plug of the charging cable into the charging interface of the speaker. If the red indicator light on the left side of the USB lighting indicates,the product starts to charge, and the red indicator light off indicates the charge is full, you can break the connection between the charger and the speaker GB 4943.1-2022 106Hz-20kHz 1. If the indicator light does not light up, please check whether the power of the speaker is sufficient. Connect the speaker to a 5V/1A power supply to charge. The charging time is about 3 to 4 hours. 2. If there is no sound from the microphone, may be the microphone is not turned on, the mode is incorrect, or the mic volume has been closed. Please adjust the microphone volume. 3. If there is no reverb in the speaker, the reverb may be closed. Please turn on the reverb volume on the microphone. 4. If there is noise from the microphone, it may be due to environmental noise, signal interference, or the microphone is too close to the speaker, etc. Please re-adjust the direction of the microphone. 5. If Bluetooth playback is interrupted, maybe Bluetooth transmission distance is too far, or there are obstacles between the mobile phone and the speaker that affect signal transmission. Please move speaker more closer to the connected mobile phone and avoid obstacles. 6. If Bluetooth cannot be connected, maybe the distance is too far, there are obstacles between speaker and phone, or this speaker connected by other mobile phones. Please move the speaker closer to the mobile phone, avoid obstacles and disconnect the other connected mobile phone. 7. If it cannot be charged, check whether the charger is normal and whether the red indicator lights up when the speaker is charging 1.Warranty service is available for any functional issues with the product,with a warranty period of 12 months. 2.Warranty does not cover damages caused by human factors, such as accidental damage,dropping,intentional scratching,or ack of a warranty card. 3 Customers must provide all necessary information(such as customer name,address, phone number,purchase date,etc.) 4 The company is responsible for repair costs incurred during the warranty period,but is not responsible for shipping and other expenses 5 Warranty service requires a warranty card and compliance with the specified requirements. Without these,warranty service will not be provided Battery: High performance high capacity lithium battery Charging Voltage: DC5V Frequency range: 106Hz-20kHz Power supply method: DC charging and built-in battery Adopt high reduction electro-acoustic system 3.7V high performance battery Strong sound penetration, wide coverage Super MP3 audio decoding technology Fully digital audio processing, clear sound quality, responsive Product name: Pocket karaoke speaker Product model: P7 Implementation standard: GB 4943.1-2022 Output power: 5W Input signal: 42DB P7 Pocket Karaoke Speaker Long press: previous song Short press: volume down Double click: Reverb volume down Long press: original sound on/off Single click: switch mode(TF card, Bluetooth) Single click: pause/play Long press: power on/off Single click: switch lights Double click: turn off/on lights Long press: previous song Single click: volume down Long press: next song Single click: volume up AUX port TYPE-C charging port TF card port Long press: power on/off Single click: microphone off/on Long press: next song Short press: volume up Double click: Reverb volume up Long press: magic sound switch Single click: original sound on/off Blue indicator, red charging indicator Microphone charging port Service and warranty FAQ Charging connection diagram Main functions Function introduction Product information FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Guye Technology Co., Ltd. B1502, Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/25 U.S. Agent Designation Shenzhen Guye Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AW5N-P7): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Guye Technology Co., Ltd. Shenzhen Guye Technology Co., Ltd. with the FRN [0029821337] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Yang qian Manager Shenzhen Guye Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

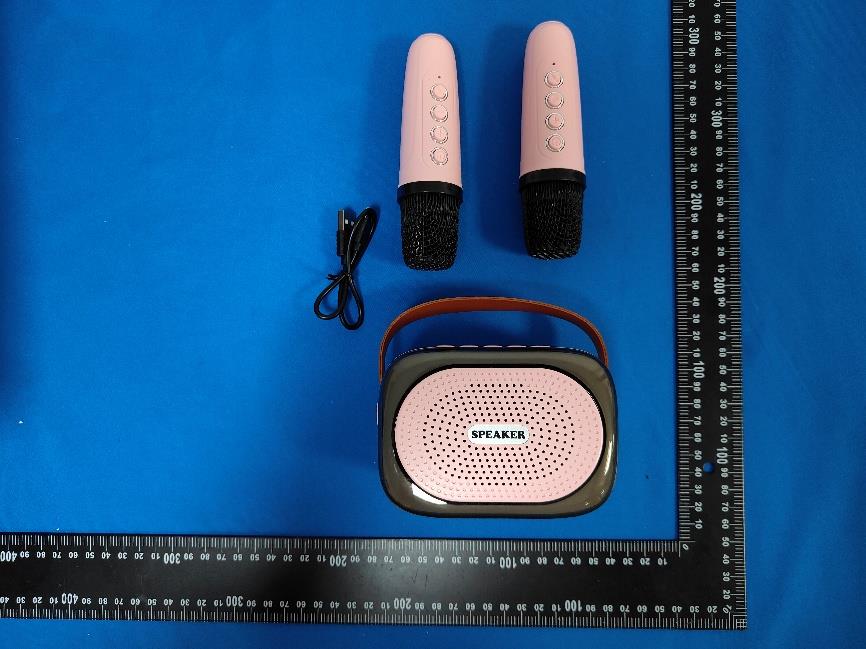

FCC ID: 2AW5N-P7 External Photos of the EUT FCC ID: 2AW5N-P7 FCC ID: 2AW5N-P7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AW5N-P7

FCC ID: 2AW5N-P7 Internal Photos of the EUT FCC ID: 2AW5N-P7 FCC ID: 2AW5N-P7 FCC ID: 2AW5N-P7 ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25101601302 2AW5N-P7 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 21, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Guye Technology Co., Ltd. Address............................................ : B1502,Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Karaoke Speaker Trade Mark ........................................ N/A Manufacturer .................................... : Dongguan Xinyue electronic Technology Co., Ltd. Model/Type reference ...................... : P7 List Model .......................................... N/A Ratings ............................................. : Input: 5V 1A Battery: 3.7V 1200mAh 4.44Wh Result ............................................... : PASS Report No.: CTA25101601302 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Karaoke Speaker Model /Type : P7 Listed Models : N/A Applicant : Shenzhen Guye Technology Co., Ltd. Address : B1502,Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China Manufacturer : Dongguan Xinyue electronic Technology Co., Ltd. Address : Room 301, Building 15, 52 Hongshi Road, Yantian, Fenggang Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101601302 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25101601302 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model P7 Frequency range 2400-2500MHz Manufacturer Shenzhen Guye Technology Co., Ltd. Address B1502,Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China ANT Peak Gain 0.75 dBi 2. Antenna Photo: Length :14.61mm Width:3.24mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25101601301 2AW5N-P7 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 21, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Guye Technology Co., Ltd. Address ............................................ : B1502,Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Wireless Karaoke Speaker Trade Mark ....................................... : N/A Manufacturer .................................... : Dongguan Xinyue electronic Technology Co., Ltd. Model/Type reference ...................... : P7 List Model .......................................... N/A Modulation ....................................... : GFSK, Π/4DQPSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : Input: 5V 1A Battery: 3.7V 1200mAh 4.44Wh Result ............................................... : PASS Report No.: CTA25101601301 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Wireless Karaoke Speaker Model /Type : P7 Listed Models : N/A Applicant : Shenzhen Guye Technology Co., Ltd. Address : B1502,Jieshun Science and Technology Center, No. 5, Guansheng Second Road, Guanhu Street, Longhua, Shenzhen, Guangdong Province, China Manufacturer : Dongguan Xinyue electronic Technology Co., Ltd. Address : Room 301, Building 15, 52 Hongshi Road, Yantian, Fenggang Town, Dongguan City, Guangdong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25101601301 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ..............................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2AW5N-P7 Company : Shenzhen Guye Technology Co., Ltd. EUT : Wireless Karaoke Speaker Model Number : P7 Report No. : CTA25101601301 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.948 2401.556 2402.504 --- --- 2441 0.945 2440.553 2441.498 --- --- 2480 0.957 2479.550 2480.507 --- --- 2DH5 Ant1 2402 1.272 2401.385 2402.657 --- --- 2441 1.317 2440.355 2441.672 --- --- 2480 1.281 2479.385 2480.666 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87278 2401.5761 2402.4488 --- --- 2441 0.87047 2440.5783 2441.4488 --- --- 2480 0.87250 2479.5787 2480.4512 --- --- 2DH5 Ant1 2402 1.1929 2401.4192 2402.6121 --- --- 2441 1.1858 2440.4224 2441.6082 --- --- 2480 1.1899 2479.4202 2480.6101 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.39 ≤20.97 PASS 2441 0.30 ≤20.97 PASS 2480 0.29 ≤20.97 PASS 2DH5 Ant1 2402 -0.44 ≤20.97 PASS 2441 -0.49 ≤20.97 PASS 2480 -0.53 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.004 ≥0.957 PASS 2DH5 Ant1 Hop 1.128 ≥0.878 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 319 0.124 ≤0.4 PASS DH3 Ant1 Hop 1.650 157 0.259 ≤0.4 PASS DH5 Ant1 Hop 2.890 104 0.301 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 320 0.125 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 151 0.249 ≤0.4 PASS 2DH5 Ant1 Hop 2.900 105 0.305 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.33 -58.93 ≤-19.67 PASS High 2480 -0.32 -58.08 ≤-20.32 PASS Low Hop_2402 -4.03 -63.96 ≤-24.03 PASS High Hop_2480 -3.79 -63.79 ≤-23.79 PASS 2DH5 Ant1 Low 2402 -4.45 -55.91 ≤-24.45 PASS High 2480 -3.70 -59.11 ≤-23.7 PASS Low Hop_2402 -4.58 -61.33 ≤-24.58 PASS High Hop_2480 -3.26 -55.59 ≤-23.26 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.65 -0.65 --- PASS 30~1000 -0.65 -68 ≤-20.65 PASS 1000~26500 -0.65 -43.89 ≤-20.65 PASS 2441 Reference -0.42 -0.42 --- PASS 30~1000 -0.42 -67.61 ≤-20.42 PASS 1000~26500 -0.42 -42.77 ≤-20.42 PASS 2480 Reference -0.78 -0.78 --- PASS 30~1000 -0.78 -67.51 ≤-20.78 PASS 1000~26500 -0.78 -42.51 ≤-20.78 PASS 2DH5 Ant1 2402 Reference -5.91 -5.91 --- PASS 30~1000 -5.91 -68.04 ≤-25.91 PASS 1000~26500 -5.91 -48.5 ≤-25.91 PASS 2441 Reference -5.64 -5.64 --- PASS 30~1000 -5.64 -66.69 ≤-25.64 PASS 1000~26500 -5.64 -47.49 ≤-25.64 PASS 2480 Reference -5.09 -5.09 --- PASS 30~1000 -5.09 -67.81 ≤-25.09 PASS 1000~26500 -5.09 -45.89 ≤-25.09 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480

FCC ID: 2AW5N-P7 Test Setup Photos of the EUT FCC ID: 2AW5N-P7
