Karaoke microphone Operation instructions In order to better play the product performance, please carefully read the instructions before using the product. Please keep full charge when using the product for the first time. Function diagram ECHO +/- MUSIC +/- Microphone volume +/- Volume + Volume - Play / pause Next song Previous song Reduce vocals ON/OFF, mode TF card slot Earphone output Operation description Switch on / off mode Power off state :Long press 3 seconds---Power on Power on state Long press 3 seconds---Power off Play / pause Music playing:Short press---Pause Music Pausying:Short press---Play In the Bluetooth mode (there is a TF Card in the card socket and the LINE IN audio cable is inserted), double-click the key in turn to change the mode, - card reading -LINE IN - Bluetooth, and cycling in turn Volume + In the music playing , short press “volume +” to increase the volume, beep for maximum volume In the music playing, short press “ volume-” to reduce the volume Next song Press " next song " in the process of karaoke to switch the next song Press " previous " in the process of karaoke to switch the previous song Press the " reduce vocals " in the process of Karaok to switch the original singing accompaniment Note: 1.Please hold the middle part of the karaoke when using. Do not hold the sounding position of the loudspeaker, so as to avoid low sound or high pitched scream. 2.Do not put this product in high temperature or humid environment. 3.When the product emit a "tick" prompt sound, it means that the power of the product is too low. Please shut down the product and charge it in time. Do not use the product during the charging process, so as to avoid the current sound. 4.If you cann't find the bluetooth ,please make sure the loudspeaker and mobile phone in the valid connection range and the loudspeaker in Bluetooth search mode,as well as check that whether the Bluetooth loudspeakers are paired with other phones. 5.If you can't connect the Bluetooth, please check if there are any other loudspeakers connected the mobile phone. Please clear the unnecessary connecting devices in time. If the above steps fail to solve the problem, please shut down the product for charging or shut down your phone and restart it. Volume - Previous song Reduce vocals Operation description The operation of turning on and off Press the on / off key for 3 seconds to turn on the Bluetooth loudspeaker, the blue indicator light will flash, and send out the start up indicate voice, that means device has turned on. After using the product, press the on / off key for 3 seconds to close the Bluetooth , and the shutdown prompt tone will be send out. loudspeaker Bluetooth music function After the loudspeaker is turned on, the blue indicator light flashes quickly, and the loudspeaker enters the search matching status.At this point, turn on the Bluetooth function of the mobile phone, search for the Bluetooth device... When the name K3 appears, click to enter matching. After the matching is succeeded, there will be a prompt tone, and then turn on the mobile phone player to play the song.If you want to sing without the original, just press "reduce vocals" to switch the singing accompaniment. TF Card music function In the state of power-on , insert TF memory card into the TF card slot of the Bluetooth loudspeaker (pay attention to the direction) which will send out a "beep" prompt sound, indicating that it has entered the TF card playing mode, and the loudspeaker will play the songs in the TF card at this time. Tip: when listening to songs in any mode of Bluetooth microphone, in order to avoid reverberation of microphone when playing songs, please adjust MIC volume to the minimum, and songs can be played normally after opening the mobile phone music player. , External loudspeaker and headphones This microphone can be connected with earphones and loudspeaker through 3.5mm port. Easy to operate, just need connect to the microphone 3.5mm output port. Product specifications Pickup: Capacitive type Reverb mode: reverb effect reverb TF card playback format: MP3, wma, wav Transmission distance: < 10 m (barrier free distance) Operating frequency: 2.402g-2.480ghz Transmitting power: 4dB Receiving sensitivity: - 85dB Signal to noise ratio: ≥80dB Distortion：≤1%-2% Output power：5W+5W Loudspeaker specification: 40mm 4Ω /5W Frequency Response: 30Hz-20Hz Charging power supply:5V/1A Charging time: about 4 hours Playback time: 5-6 hours Battery capacity: 2000mAH Product size: 245 * 50mm product net weight: 350g Audio input: Bluetooth / TF / aux connection Packaging accessories: 3.5mm recording cable * 1 USB charging cable * 1 Instructions *1 Micro USB charging port/ Recording port Charging Insert the USB cable into the standard USB power adapter (5V1A), and the micro plug of the charging cable into the charging interface of the loudspeaker. If the red indicator light on the left side of the USB lighting indicates,the product starts to charge, and the red indicator light off indicates the charge is full,you can break the connection between the charger and the loudspeaker. FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio c…

Text truncated - open the document above for the full version.

Shenzhen Guye Technology Co., Ltd. 2020.7.31 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: microphone Trademark: N/A FCC ID: 2AW5NK3 MODEL : K3, K1, K2, K4, K5, K6, K7, K8, K9, K10 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Yang qian /Manager Contact information / address: 30i, Block B, Guangbo Modern Window Building, Huaqiang North, Futian District, Shenzhen, Guangdong, China

Shenzhen Guye Technology Co., Ltd. 2020.7.31 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Yang qian /Manager Contact information / address: 30i, Block B, Guangbo Modern Window Building, Huaqiang North, Futian District, Shenzhen, Guangdong, China

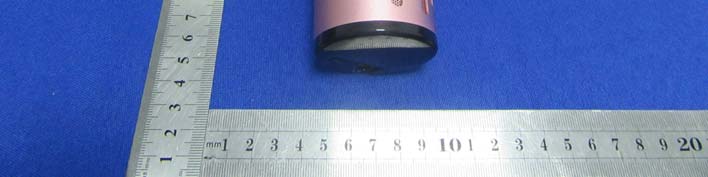

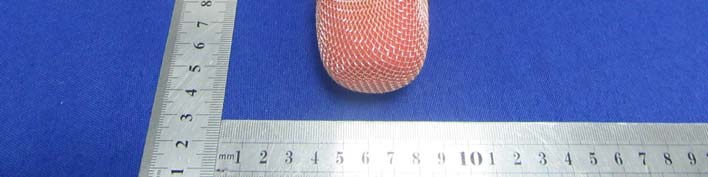

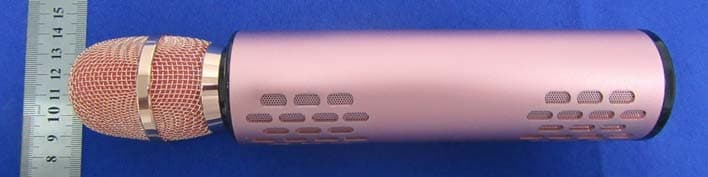

External Photos

40*20mm Label Location FCC ID: 2AW5NK3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interfer ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AW5NK3 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.4023.872.443±14.002.51<50.778603.00YES Pi/4 DQPSK 2.4025.053.205±16.003.98<51.234003.00YES Conclusion: For the max result : 1.23400＜3.0, the SAR testing is not required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006002012E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 60 FCC Part 15C Test Report FCC ID: 2AW5NK3 Product Name: microphone Trademark: N/A Model Name : K3 K1, K2, K4, K5, K6, K7, K8, K9, K10 Prepared For : Shenzhen Guye Technology Co., Ltd. Address : 30i, Block B, Guangbo Modern Window Building, Huaqiang North, Futian District, Shenzhen, Guangdong, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Jun. 29, 2020 – Jul. 20, 2020 Date of Report : Jul. 21, 2020 Report No.: BCTC2006002012E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006002012E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 60 TEST RESULT CERTIFICATION Applicant’s name ............. : Shenzhen Guye Technology Co., Ltd. Address ............................. : 30i, Block B, Guangbo Modern Window Building, Huaqiang North, Futian District, Shenzhen, Guangdong, China Manufacture's Name ........ : Shenzhen Guye Technology Co., Ltd. Address ............................. : 30i, Block B, Guangbo Modern Window Building, Huaqiang North, Futian District, Shenzhen, Guangdong, China Product description Product name .................... : microphone Trademark ......................... : N/A Model and/or type reference .......................................... : K3 K1, K2, K4, K5, K6, K7, K8, K9, K10 Standards ......................... : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006002012E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 60 Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ...................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ........................................................... 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 34 9.1 Block Diagram Of Test Setup ........................................... 34 9.2 Limit ................................................................. 34 9.3 Test procedure ........................................................ 34 9.4 Test Result ........................................................... 35 10. MAXIMUM PEAK OUTPUT POWER .................................... 39 10.1 Block Diagram Of Test Setup .......................................... 39 10.2 Limit ................................................................ 39 10.3 Test procedure ....................................................... 39 10.4 Test Result .......................................................... 40 11. HOPPING CHANNEL SEPARATION .................................... 44 11.1 Block Diagram Of Test Setup .......................................... 44 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006002012E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 60 11.2 Limit ................................................................ 44 11.3 Test procedure ....................................................... 44 11.4 Test Result .......................................................... 45 12. NUMBER OF HOPPING FREQUENCY .................................. 49 12.1…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Spurious emissions Shenzhen BCTC Testing Co., Ltd. Conducted Measurement Photos
