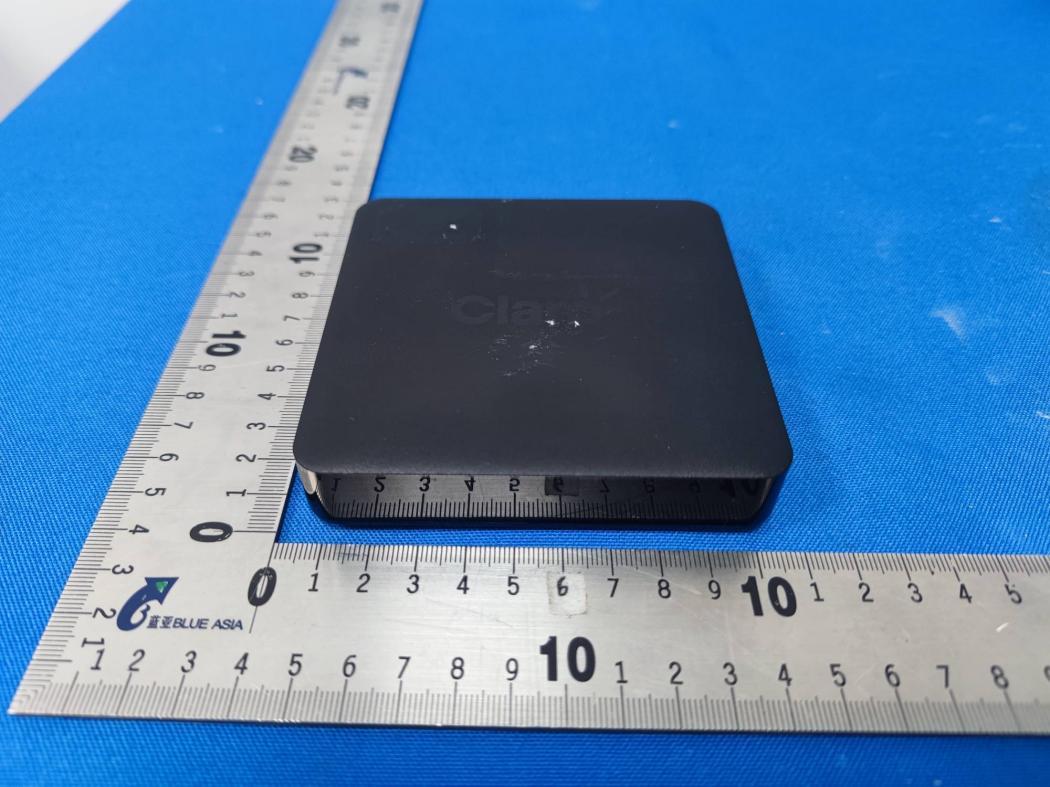

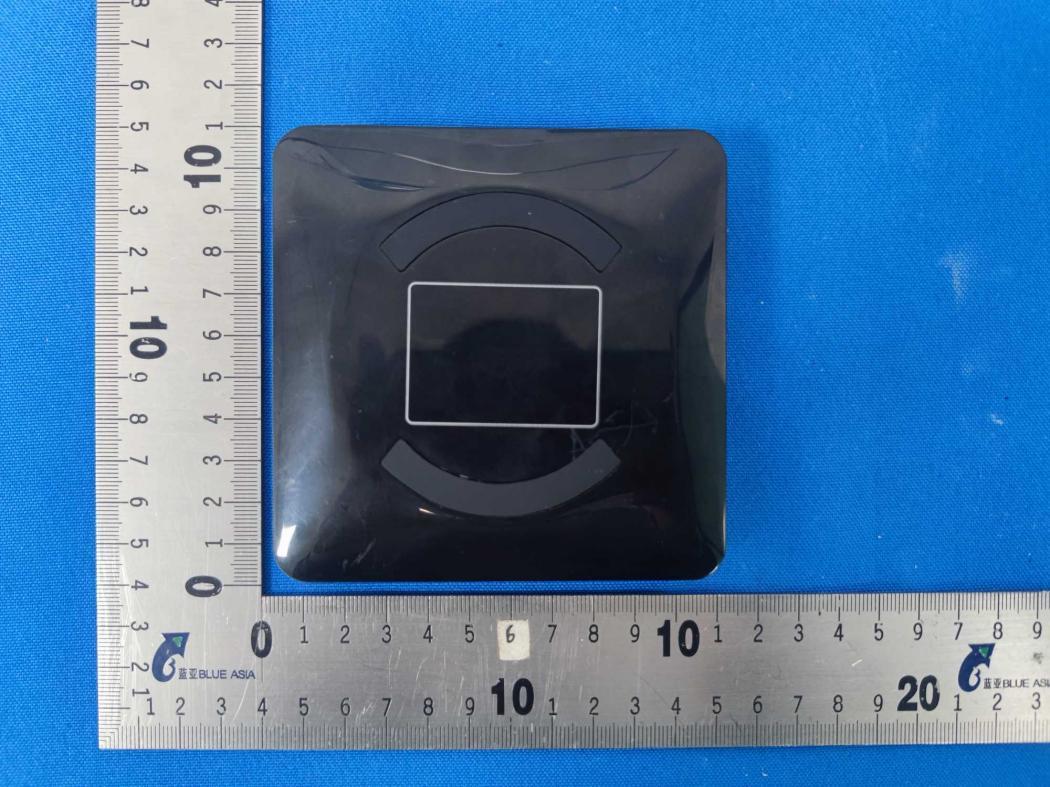

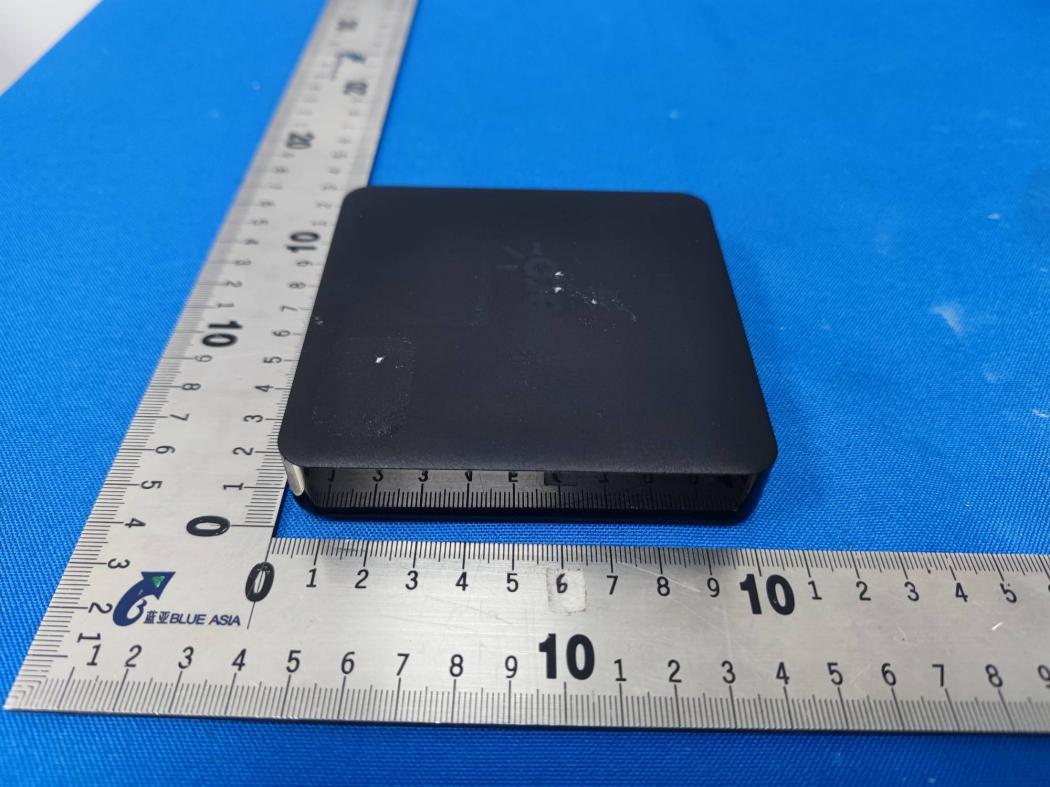

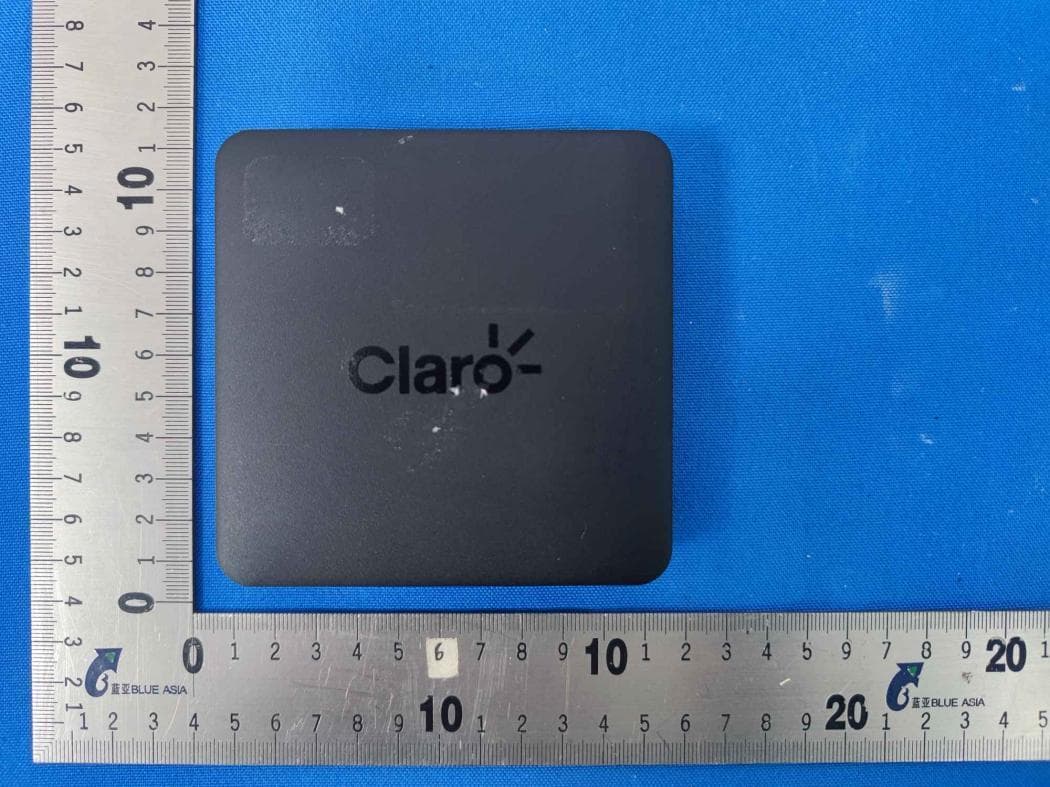

2AW68-C89354K AndroidTV Set Top Box

Claro impulsado por Android TV ™ Guia de referencia rapida Lea el manual del usuario antes de operar la caja de TV Instrucciones de seguridad Mantenga el producto en posición horizontal. No coloques objetos pesados en la parte superior de la caja de TV. Utilice el adaptador de corriente proporcionado por el fabricante. No utilice el cable de alimentación o el enchufe dañados. Evite tocar el adaptador de corriente con las manos mojadas. No desmonte ni modique la caja de TV usted mismo para evitar descargas eléctricas o daños. Mantenga la caja de TV alejada de cualquier fuente de calor para evitar daños. Mantenga el dispositivo en un área seca y bien ventilada, alejado del polvo que podría causar incendios o descargas eléctricas. Apague y desenchufe rápidamente el adaptador de corriente del dispositivo si el dispositivo emite humo o algún olor desagradable. Desenchufe el adaptador de corriente del dispositivo cuando no esté en uso durante largos períodos de tiempo. 1 Declaración de la FCC Este equipo ha sido probado y se encontró que cumple con los límites para un dispositivo digital de Clase B, de conformidad con la parte 15 de las Reglas de la FCC. Estos límites están diseñados para brindar una protección razonable contra interferencias dañinas en una instalación residencial. Este equipo genera, usa y puede irradiar energía de radiofrecuencia y, si no se instala y usa de acuerdo con las instrucciones, puede causar interferencias dañinas en las comunicaciones por radio. Sin embargo, no hay garantía de que no se produzcan interferencias en una instalación en particular. Si este equipo causa interferencias dañinas en la recepción de radio o televisión, lo que se puede determinar apagando y encendiendo el equipo, se recomienda al usuario que intente corregir la interferencia mediante una o más de las siguientes medidas: —Reorientar o reubicar la antena receptora. —Aumente la separación entre el equipo y el receptor. —Conectar el equipo a una toma de un circuito diferente al que está conectado el receptor. —Consulte al distribuidor oa un técnico experimentado en radio/TV para obtener ayuda. Declaración de exposición a la radiación de la FCC Este dispositivo cumple con los límites de exposición a la radiación de la FCC establecidos para un entorno no controlado. Este equipo debe instalarse y operarse de acuerdo con las instrucciones proporcionadas y la(s) antena(s) utilizada(s) para este transmisor deben instalarse para proporcionar una distancia de separación de al menos 20 cm de todas las personas. Este dispositivo cumple con la Parte 15 de las Normas de la FCC. La operación está sujeta a las siguientes dos condiciones: (1) este dispositivo no puede causar interferencia dañina, y (2) este dispositivo debe aceptar cualquier interferencia recibida, incluida la interferencia que pueda provocar un funcionamiento no deseado. ¡Precaución! Cualquier cambio o modificación no aprobado expresamente por la parte responsable del cumplimiento podría anular la autoridad del usuario para operar el equipo. Abra el paquete y compruebe los siguientes accesorios: Lista de accesorios Panel frontal Estructura de hardware Manual de usuario x1 Adaptador de corriente x1 Cable HDMI x1 Mando a distancia x1Caja de TV x1 2 Panel lateral izquierdo Puerto audio video compuesto Panel lateral derecho Panel posterior Puerto audio óptico Puerto HDMI 3 Ranura para tarjetas TFUSBUSB Puerto fuente de poder Puerto entrada Ethernet 4 Control remoto Instrucciones Luz indicadora: Presionó cualquier botón y la luz indicadora se enciende. Emparejamiento Bluetooth: Presionó los botones "Aceptar" y "Bajar volumen" juntos en su control remoto durante 10 segundos; Búsqueda por voz: solo di lo que quieras ver con la búsqueda por voz. Encendido / apagado Solicitud Claro abierto Canal arriba y abajo Búsqueda por voz Avance rápido Reproducir pausar Navegación botones Menú Dormir atrás Sube el volumen y abajo Rebobinar botones numéricos Silencio Ingresar Solicitud * Android TV es una marca de Google LLC. 5 Conexión del sistema Paso 1: Conexión con TV Conecte el cable HDMI / AV al puerto HDMI / AV de la caja de TV y el televisor. Paso 2: Conexión con la red Utilice el cable Ethernet para conectar el puerto LAN de la caja de TV y el puerto Ethernet o enrutador de la red de banda ancha doméstica. Paso 3: Conexión con energía Conecte el adaptador de corriente a la caja de TV. Una vez encendido, puede iniciarse automáticamente. Paso 4: congura tu dispositivo Siga las instrucciones en pantalla para congurar su dispositivo. Consulte las instrucciones a continuación para conectar la TV, la alimentación, la red y otros dispositivos. Nota: Apague todos los equipos antes de conectarlos (como TV Box y alimentación del televisor). HDMIHDMI HDMIHDMI 6 Especificaciones técnicas UPC Sistema operativo Android ™ 10 ARMQuad Cortex-A55 de 64 bits HDMI2.1 , Superior, AV MPEG1 / 2, MP3, AAC / HE-AAC y otros formatos de audio Salida de video Formato de audio Optical Salida de audio <12W Consumo de energía Entrada: AC100-240V 50 / 60Hz Salida: DC 12.0V / 1.0A Poder 0 ~ 40 Operación la temperatura Wi-Fi 2.4GHz / 5.0GHz 802.11 a / b / g / n / ac Interfaz RJ45 10M / 100M adaptable La red AV1 MP-10 4K * 2K @ 60fps , H.265 HEVC Mp-10 4K * 2K @ 60fps , VP9 4K * 2K @ 60fps, H.264 AVC 4K * 2K @ 30fps , MPEG1 / 2/4 ASP, RealVideo8 / 9 / 10 y otros formatos de video Formato de video El cable de alimentación no está conectado correctamente. El cable de audio no está conectado Vuelva a conectar el audio cable La conguración de audio es anormal El volumen es demasiado bajo Ingrese al menú de conguración de audio y video, seleccione el canal de sonido e idioma apropiados El cable Ethernet no está conectado correctamente El voltaje del control remoto es demasiado bajo El control remoto está roto Envíelo al local estación de mantenimiento para comprobar Wi-Fi está apagado o la señal es demasiado débil Vuelva a conectar el cable Reemplace las baterías Reinicie la conexión Wi-Fi…

Text truncated - open the document above for the full version.

Model No.: DV8935

华曦达科技 DV8935 _SN+MAC_Label_v1.ai DV8935 Ver 1 420202036 2021.2.25 21012101 100%Adobe Illustrator CC 2017 单色印刷 见图档 PET贴纸（不覆膜 哑光） 产品上贴贴纸的位置 （贴于产品底部） 贴纸尺寸：宽41.5X高30.5 mm 材 质：PET贴纸 不覆膜 哑光 一份一联：每份 10200 PCS， 一联共 10200 PCS 1. 条码类型：Code 128 2.Arial regular 5pt 工厂打印内容贴纸供应商来料打印内容 30.5 mm 41.5 mm Power rating: 12.0V 1A STB SN: C210121011600001 STB MAC: FCD5D9936F29 STB SN: 固定不变 流水号（十进制） 00001~10200（共10200PCS） C210121011600001条码扫描显示为 C210121011600001 STB MAC: FCD5D9936F29条码扫描显示为 FCD5D9936F29 固定不变 流水号（十六进制） 936F29~939700（共10200PCS） 4K AndroidTV Set Top Box Model Name: DV8935 FCC ID: 2AW68-C8935

Model No.: DV8935 Samsung storage Samsung storage Samsung storage Samsung storage Longsys storage Longsys storage

Page 1 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : 4K AndroidTV Set Top Box Brand Mark : Claro Model No. : DV8935 FCC ID : 2AW68-C8935 Report Number : BLA-EMC-202209-A5507 Date of Sample Receipt : 2022/9/23 Date of Test : 2022/10/16 to 2022/11/14 Date of Issue : 2022/11/30 Test Standard : 47 CFR Part 1.1307, Part 1.1310 Test Result : Pass Prepared for: Shenzhen SDMC Technology Co.,Ltd. Room 1022, Floor 10, Building A, Customs Building, No. 2, Xin'an 3rd Ro ad, Dalang Community, Xin'an Street, Bao'an District, Shenzhen, Prepared by: BlueAsia Technical Services(Shenzhen) Co.,Ltd. No.41, South of Beihuan Road, Shangwu Community, Shiyan Subdistrict, Bao’an District, Shenzhen,Guangdong ,China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2022/11/30 Report No.: BLA-EMC-202209-A5507 Page 2 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2022/11/30 Original Report No.: BLA-EMC-202209-A5507 Page 3 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................4 2 GENERAL INFORMATION .........................................................................................................................5 3 GENERAL DESCRIPTION OF E.U.T..........................................................................................................5 4 BLOCK DIAGRAM OF EUT CONNECTION ..............................................................................................7 5 LABORATORY LOCATION ........................................................................................................................8 6 RF EXPOSURE COMPLIANCE REQUIREMENT ......................................................................................9 6.1 LIMITS ....................................................................................................................................................................... 9 6.2 TEST PROCEDURE ........................................................................................................................................................ 9 6.3 EUT RF EXPOSURE EVALUATION .................................................................................................................................. 10 Report No.: BLA-EMC-202209-A5507 Page 4 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 1 TEST summary Test item Test Requirement Test Method Class/Severity Result RF Exposure 47 CFR Part 1.1307 47 CFR Part 1.1310 CFR 47 Part 1.1310 CFR 47 Part 1.1310 PASS Report No.: BLA-EMC-202209-A5507 Page 5 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2 General information Applicant Shenzhen SDMC Technology Co.,Ltd. Address Room 1022, Floor 10, Building A, Customs Building, No. 2, Xin'an 3rd Road, Dalang Community, Xin'an Street, Bao'an District, Shenzhen, Manufacturer Shenzhen SDMC Technology Co.,Ltd. Address Room 1022, Floor 10, Building A, Customs Building, No. 2, Xin'an 3rd Road, Dalang Community, Xin'an Street, Bao'an District, Shenzhen, Product Name 4K AndroidTV Set Top Box Test Model No. DV8935 3 General description of EUT Hardware Version V1 Software Version Android 10 Operation Frequency: 2402MHz-2480MHz Modulation Type: GFSK, π/4 DQPSK, 8DPSK Channel Spacing: 1MHz Number of Channels: 79 Antenna Type: PCB Antenna Antenna Gain: 1.7dBi (Provided by antenna specification) Operation Frequency: 2402MHz-2480MHz Modulation Type: GFSK Channel Spacing: 2MHz Number of Channels: 40 Antenna Type: PCB Antenna Antenna Gain: 1.7dBi (Provided by antenna specification) Report No.: BLA-EMC-202209-A5507 Page 6 of 10 BlueAsia Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Channel Spacing: 5MHz Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Antenna Type: PCB Antenna Antenna Gain: Antenna 1: 3.19dBi Antenna 2: 3.09dBi (Provided by antenna specification) Operation Frequency: Band 1 : 5180MHz-5240MHz; Band 2:5260MHz~5320MHz Band 3: 5500MHz~5700MHz; Band 4 : 5745MHz-5825MHz Channel numbers: Band 1: 802.11a/802.11n(HT20)/802.11ac(HT20): 4, 802.11n(HT40)/802.11ac(HT40):2, 802.11ac(HT80): 1 Band 2: 802.11a/802.11n(HT20)/802.11ac(HT20): 4, 802.11n(HT40)/802.11ac(HT40):2, 802.11ac(HT80): 1 Band 3: 802.11a/802.11n(HT20)/802.11ac(HT20): 11, 802.11n(HT40)/802.11ac(HT40):5, 802.11ac(HT80): 3 Band 4: 802.11a/802.11(HT20)/802.11ac(HT20): 5, 802.11n(HT40)/802.11ac(HT40): 2, 802.11ac(HT80): 1 Channel separation: 802.11a/n/ac(HT20): 20MHz, 802.11n/ac(HT40): 40MHz, 802.11ac(HT80): 80MHz Modulation technology: (IEEE 802.11a/n/ac) BPSK, QPSK,16-QAM, 64-QAM, 256QAM Data speed(IEEE 802.11a) 6Mbps, 9Mbps,12Mbps,18Mbps, 24Mbps,36Mbps,48Mbps, 54Mbps Data speed (IEEE 802.11n/ac): Up to 866.7Mbps Antenna Type: PCB antenna Antenna gain: Antenna 1: 3.24dBi；Antenna 2: 3.50dBi (Provided by antenna specification) Note: Antenna number: 2 SISO mode：802.11a/802.11n(HT20)/ 802.11n(HT40)/ 802.11ac(HT20)/ 802.11ac(HT40)/ 802.11ac(HT80) MIMO mode：802.11n(HT20)/ 802.11n(HT40)/ 802.11ac(HT20)/ 802.11ac(HT40)/ 802.11ac(HT80) Directional gain = 10 log[(10 ANT1 /20 + 10 ANT2 /20) 2 /N ANT ] dBi = 10 log[(10 3.19 /20 + 10 3.09 /20)…

Text truncated - open the document above for the full version.

Page 1 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. Add:No.41,SouthofBeihuanRoad,ShangwuCommunity,ShiyanSubdistrict,Bao’anDistrict,Shenzhen,Guangdong,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: 4KAndroidTVSetTopBox BrandMark: Claro ModelNo.: DV8935 FCCID: 2AW68-C8935 ReportNumber: BLA-EMC-202209-A5502 DateofSampleReceipt: 2022/9/23 DateofTest: 2022/10/16to2022/11/14 DateofIssue: 2022/11/30 TestStandard: 47CFRPart15,SubpartC15.247 ANSIC63.10-2013 TestResult:Pass Preparedfor: ShenzhenSDMCTechnologyCo.,Ltd. Room1022,Floor10,BuildingA,CustomsBuilding,No.2,Xin'an3rdRo ad,DalangCommunity,Xin'anStreet,Bao'anDistrict,Shenzhen, Preparedby: BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd. No.41,SouthofBeihuanRoad,ShangwuCommunity,ShiyanSubdistrict, Bao’anDistrict,Shenzhen,Guangdong,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2022/11/30 ReportNo.:BLA-EMC-202209-A5502 Page 2 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002022/11/30Original ReportNo.:BLA-EMC-202209-A5502 Page 3 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY..............................................................................................................................................6 2GENERALINFORMATION...............................................................................................................................7 3GENERALDESCRIPTIONOFE.U.T................................................................................................................7 4TESTENVIRONMENT......................................................................................................................................8 5TESTMODE......................................................................................................................................................8 6MEASUREMENTUNCERTAINTY....................................................................................................................8 7DESCRIPTIONOFSUPPORTUNIT................................................................................................................9 8LABORATORYLOCATION..............................................................................................................................9 9TESTINSTRUMENTSLIST............................................................................................................................10 10ANTENNAREQUIREMENT..........................................................................................................................12 10.1CONCLUSION...............................................................................................................................................................12 11CONDUCTEDSPURIOUSEMISSIONS.......................................................................................................13 11.1LIMITS......................................................................................................................................................................13 11.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................13 11.3TESTDATA..................................................................................................................................................................14 1220DBBANDWIDTH.......................................................................................................................................15 12.1BLOCKDIAGRAMOFTESTSETUP............................................................................................................................15 12.2TESTDATA..................................................................................................................................................................15 13CONDUCTEDPEAKOUTPUTPOWER......................................................................................................16 13.1LIMITS......................................................................................................................................................................16 13.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................16 13.3TESTDATA..................................................................................................................................................................17 14CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).........................................................18 14.1LIMITS......................................................................................................................................................................18 14.2BLOCKDIAGRAMOFTESTSETUP............................................................................................................................18 14.3PROCEDURE.............................................................................................................................................................18 14.4TESTDATA..................................................................................................................................................................20 15RADIATEDSPURIOUSEMISSIONS...........................................................................................................22 15.1LIMITS......................................................................................................................................................................22 ReportNo.:BLA-EMC-202209-A5502 Page 4 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.2BLOCKDIAGRAMOF…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202209-A5502 Page 61 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT2-DH12480MHzAnt1No-HoppingEmission BandEdgeNVNT3-DH12402MHzAnt1No-HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 62 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT3-DH12402MHzAnt1No-HoppingEmission BandEdgeNVNT3-DH12480MHzAnt1No-HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 63 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNT3-DH12480MHzAnt1No-HoppingEmission ReportNo.:BLA-EMC-202209-A5502 Page 64 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.4BANDEDGE(HOPPING) ConditionModeFrequency (MHz) AntennaHopping Mode MaxValue (dBc) Limit (dBc) Verdict NVNT1-DH12402Ant1Hopping-59.51-20Pass NVNT1-DH12480Ant1Hopping-56.18-20Pass NVNT2-DH12402Ant1Hopping-59.02-20Pass NVNT2-DH12480Ant1Hopping-58.26-20Pass NVNT3-DH12402Ant1Hopping-59.64-20Pass NVNT3-DH12480Ant1Hopping-58.85-20Pass BandEdge(Hopping)NVNT1-DH12402MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 65 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT1-DH12402MHzAnt1HoppingEmission BandEdge(Hopping)NVNT1-DH12480MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 66 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT1-DH12480MHzAnt1HoppingEmission BandEdge(Hopping)NVNT2-DH12402MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 67 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT2-DH12402MHzAnt1HoppingEmission BandEdge(Hopping)NVNT2-DH12480MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 68 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT2-DH12480MHzAnt1HoppingEmission BandEdge(Hopping)NVNT3-DH12402MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 69 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT3-DH12402MHzAnt1HoppingEmission BandEdge(Hopping)NVNT3-DH12480MHzAnt1HoppingRef ReportNo.:BLA-EMC-202209-A5502 Page 70 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge(Hopping)NVNT3-DH12480MHzAnt1HoppingEmission ReportNo.:BLA-EMC-202209-A5502 Page 71 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.5CONDUCTEDRFSPURIOUSEMISSION ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNT1-DH12402Ant1-47.26-20Pass NVNT1-DH12441Ant1-46.48-20Pass NVNT1-DH12480Ant1-46.11-20Pass NVNT2-DH12402Ant1-45.77-20Pass NVNT2-DH12441Ant1-45.88-20Pass NVNT2-DH12480Ant1-45.05-20Pass NVNT3-DH12402Ant1-45.65-20Pass NVNT3-DH12441Ant1-45.61-20Pass NVNT3-DH12480Ant1-45.17-20Pass Tx.SpuriousNVNT1-DH12402MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 72 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT1-DH12402MHzAnt1Emission Tx.SpuriousNVNT1-DH12441MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 73 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT1-DH12441MHzAnt1Emission Tx.SpuriousNVNT1-DH12480MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 74 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT1-DH12480MHzAnt1Emission Tx.SpuriousNVNT2-DH12402MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 75 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT2-DH12402MHzAnt1Emission Tx.SpuriousNVNT2-DH12441MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 76 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT2-DH12441MHzAnt1Emission Tx.SpuriousNVNT2-DH12480MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 77 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT2-DH12480MHzAnt1Emission Tx.SpuriousNVNT3-DH12402MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 78 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT3-DH12402MHzAnt1Emission Tx.SpuriousNVNT3-DH12441MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 79 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT3-DH12441MHzAnt1Emission Tx.SpuriousNVNT3-DH12480MHzAnt1Ref ReportNo.:BLA-EMC-202209-A5502 Page 80 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNT3-DH12480MHzAnt1Emission

ReportNo.:BLA-EMC-202209-A5502 Page 81 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.6CARRIERFREQUENCIESSEPARATION ConditionModeAntennaHoppingFreq1 (MHz) HoppingFreq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT1-DH1Ant12441.00802442.00600.99750.639Pass NVNT2-DH1Ant12440.96152442.05201.09050.902Pass NVNT3-DH1Ant12440.83552442.08501.24950.907Pass CFSNVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 82 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] CFSNVNT2-DH12441MHzAnt1 CFSNVNT3-DH12441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 83 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.7NUMBEROFHOPPINGCHANNEL ConditionModeAntennaHoppingNumberLimitVerdict NVNT1-DH1Ant17915Pass NVNT2-DH1Ant17915Pass NVNT3-DH1Ant17915Pass HoppingNo.NVNT1-DH12441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 84 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] HoppingNo.NVNT2-DH12441MHzAnt1 HoppingNo.NVNT3-DH12441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 85 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 21.8DWELLTIME ConditionModeFrequency (MHz) AntennaPulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT1-DH12441Ant10.383120.26231431600400Pass NVNT1-DH32441Ant11.638250.61415331600400Pass NVNT1-DH52441Ant12.887274.2659531600400Pass NVNT2-DH12441Ant10.391123.94731731600400Pass NVNT2-DH32441Ant11.643276.02416831600400Pass NVNT2-DH52441Ant12.891303.55510531600400Pass NVNT3-DH12441Ant10.391122.77431431600400Pass NVNT3-DH32441Ant11.642244.65814931600400Pass NVNT3-DH52441Ant12.893262.8816031600400Pass ReportNo.:BLA-EMC-202209-A5502 Page 86 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DwellNVNT1-DH12441MHzAnt1OneBurst DwellNVNT1-DH12441MHzAnt1Accumulated ReportNo.:BLA-EMC-202209-A5502 Page 87 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DwellNVNT1-DH32441MHzAnt1OneBurst DwellNVNT1-DH32441MHzAnt1Accumulated ReportNo.:BLA-EMC-202209-A5502 Page 88 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DwellNVNT1-DH52441MHzAnt1OneBurst DwellNVNT1-DH52441MHzAnt1Accumulated ReportNo.:BLA-EMC-202209-A5502 Page 89 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DwellNVNT2-DH12441MHzAnt1OneBurst DwellNVNT2-DH12441MHzAnt1Accumulated ReportNo.:BLA-EMC-202209-A5502 Page 90 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OneBurstNVNT2-DH32441MHzAnt1OneBurst DwellNVNT2-DH32441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 91 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OneBurstNVNT2-DH52441MHzAnt1OneBurst DwellNVNT2-DH52441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 92 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] DwellNVNT3-DH12441MHzAnt1OneBurst DwellNVNT3-DH12441MHzAnt1Accumulated ReportNo.:BLA-EMC-202209-A5502 Page 93 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OneBurstNVNT3-DH32441MHzAnt1OneBurst DwellNVNT3-DH32441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 94 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OneBurstNVNT3-DH52441MHzAnt1OneBurst DwellNVNT3-DH52441MHzAnt1 ReportNo.:BLA-EMC-202209-A5502 Page 95 of 95 BlueAsiaTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXA:PHOTOGRAPHSOFTESTSETUP ReferencetothetestAttachmentTestphotos APPENDIXB:PHOTOGRAPHSOFEUT ReferencetothetestreportNo.BLA-EMC-202209-A5501 ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbe reproducedexceptinfull.

第 1 页 共 9 页 深圳市亿嘉欣盛科技有限公司 Shenzhen YiJiaXinSheng Technology Co., Ltd. 板载蓝牙天线 匹配调试报告 客户名称： 华曦达 文件版本： V 1.0 生成日期： 2020-07-24 深圳市光明区公明街道上村社区冠城低碳产业园G栋802, Room 802, Building G, Guancheng Low Carbon Industrial Park, Shangcun Community, Gongming Street, Guangming District, Shenzhen 第 2 页共 9 页 简介 1.项目说明 2.调测设备与设计说明 3.调试数据 4.匹配电路 5.隔离度 第 3 页 共 9 页 1.项目说明 此次报告为亿嘉欣盛调试板载蓝牙天线匹配的参数。 2.设计说明 Agilent 网络分析仪 ETS AMS 8500 OTA Chamber 第 4 页共 9 页 3.调试数据 电性能测试数据: VSWR&ReturnLoss&SmithChart: ElectricalProperties Frequency2.4GHz-2.5GHz Impedance50ohmNominal V.S.W.R1：1.09Max ReturnLoss-27.21dBMax RadiationOmni-directional PolarizationLinear，Vertical 第 5 页共 9 页 效率、增益和方向图: PassiveTestForBT FreqEffiGainGainUHISDHISMaxMin (MHz)(%)(dBi)(dBd)(%)(%)(dB)(dB) 240056.541.12-1.0324.6531.891.12-12.18 245057.561.7-0.4527.27130.2871.7-12.04 250058.531.12-1.0328.1930.3371.12-12.42 第 6 页共 9 页 4.匹配电路 ElementValue E1(0402)空 E2(0402)6.8pF E3(0402)1.2pF E26.8pF E31.2pF 第 7 页共 9 页 5.隔离度 WIFI 天线天线位置 WIFI-B WIFI-A 第 8 页共 9 页 WIFI-A和WIFI-B的隔离度（2.4G） WIFI-A和WIFI-B的隔离度（5G） 第 9 页共 9 页 WIFI-A和BT的隔离度（2.4G） WIFI-B和BT的隔离度（2.4G）

ModelNo.:DV8935 DFS TEST RadiatedSpuriousEmissions ConductedEmissionsatACPowerLine(150kHz-30MHz)
