INSTRUCCIONES CONTROL REMOTO 1. Luz Indicadora: presione cualquier tecla para que la luz parpadee; en caso de ser necesario el cambio de baterías, esta luz indicadora parpadeará rápidamente. 2. Emparejamiento de Bluetooth: Al presionar cualquier tecla, se iniciara el proceso de emparejamiento inteligente. 3. Búsqueda por Voz: Presione el botón “Google Assistant” en su control remoto y hable claramente para acceder al entretenimiento, controlar dispositivos inteligentes, obtener respuestas en pantalla y más utilizando su voz. Abrir Netflix Home Volver/Salir Guía Subir/Bajar volumen del deco/TV Silencio Configurar TV Encender/Apagar deco Abrir Prime Video Grabar Live TV Teclas de dirección (arriba/abajo/izquierda/ derecha) Repetir Google Assistant/ Control por voz Subir/Bajar Canal Teclas numéricas Entrada del TV Retroceder Adelantar ESPECIFICACIONES TECNICAS CPU ARM Quad 64-bit Cortex-ASS Android OS Android'" 11.0 R Sallda video HDMI 2.1 con HDCP, AV Salida audio Optico audio Formatos video Container Red • AAC-LC & AAC-HE • MPEG-1 Layers 1, 2, 3 • Dolby Digital, Dolby Digital Plus, MS12 • AVl [email protected] hasta 4K'2K@60fps • VP9 Profile-2 hasta 4伈2K@60fps • H 265/HEVC [email protected] hasta 4伈2K@60fps • H 264/ AVC [email protected] hasta 4伈2K@30fps • MPEG-2 MP/HL ha sta 1080P@60fps 拿 mkv,拿 mpg,'.mpeg,拿 dat,拿. avi,拿.mov,拿.mp3 y 拿,o gg 2 x 2 M IMO Wi-Fi 2.4GHz802.11/b/g/n Wi-Fi 5GHz 802.lla/b/g/n/ac (802.llax) RJ45 Interface lOM/lOOM adaptive T de em operaci6n peratura OC-40C Fuente de Entrada: A000-240V 50/60Hz pode r Salida: DC 12V /lA COnsumo <12W ＿ FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Pa rt 15 of the FCC Rules. These limits are designed to provide reasonable protection aga inst harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if no t installed and used in accordance with the instructions, may cause harmful interference to ra dio communications. Ho weve r, there is no guara ntee that interference will not occur in a particular installation. If this equipment does cause harmful interference to ra dio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separ ation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly appro ved by the party responsible for compliance could void the user's authority to operate the equipment. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. FCC ID: 2AW68-DV8957 Manufacturer: Shenzhen SDMC Technology Co., Ltd. Manufacturer Add.:19/F, Changhong Science & Technology Mansion, No.18, Keji South 12th Road, Nanshan District, Shenzhen, China.

Shenzhen SDMC Technology Co.,Ltd. 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Date: May 19, 2022 FCC ID: 2AW68-DV8957 Model Number: DECO ENTEL DIW586 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen SDMC Technology Co.,Ltd. declare that this EUT (FCC ID: 2AW68-DV8957) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Ryan Yan / manager Company: Shenzhen SDMC Technology Co.,Ltd. Address: 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High‐tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Phone: 0755‐86019782 Email: [email protected] 』

C5266091_X8_Ed.1 1/1 Letter of Authorization < Shenzhen SDMC Technology Co.,Ltd.> Company: Shenzhen SDMC Technology Co.,Ltd. Address: 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Product Name: DIW586 Model Number(s): DECO ENTEL DIW586 Product Description: DIW586 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Ryan Yan Date: 2022/05/19 Title: Manager Signature of applicant: 』

C5266091_X10_Ed.2 1/1 < Shenzhen SDMC Technology Co.,Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 D ate: 2021/05/19 Subject: Request for Confidentiality FCC ID: 2AW68-DV8957 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up ☐☐ RF Exposure Info No No Operational Description ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long‐Term Confidentiality may be permitted under special conditions (See II. LONG‐TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short‐Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of __180____ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ryan Yan Title: Manager 』

FCC Software Configuration Control Declaration Rev1.1 Shenzhen SDMC Technology Co.,Ltd. FCC Software Configuration Control Declaration Date: May 20, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: DIW586/ DECO ENTEL DIW586 Regarding FCC Country Code Selection guidelines identified in KDB 594280D01v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Ryan Yan Date: 2022/05/19 Title: Manager Signature of applicant 』

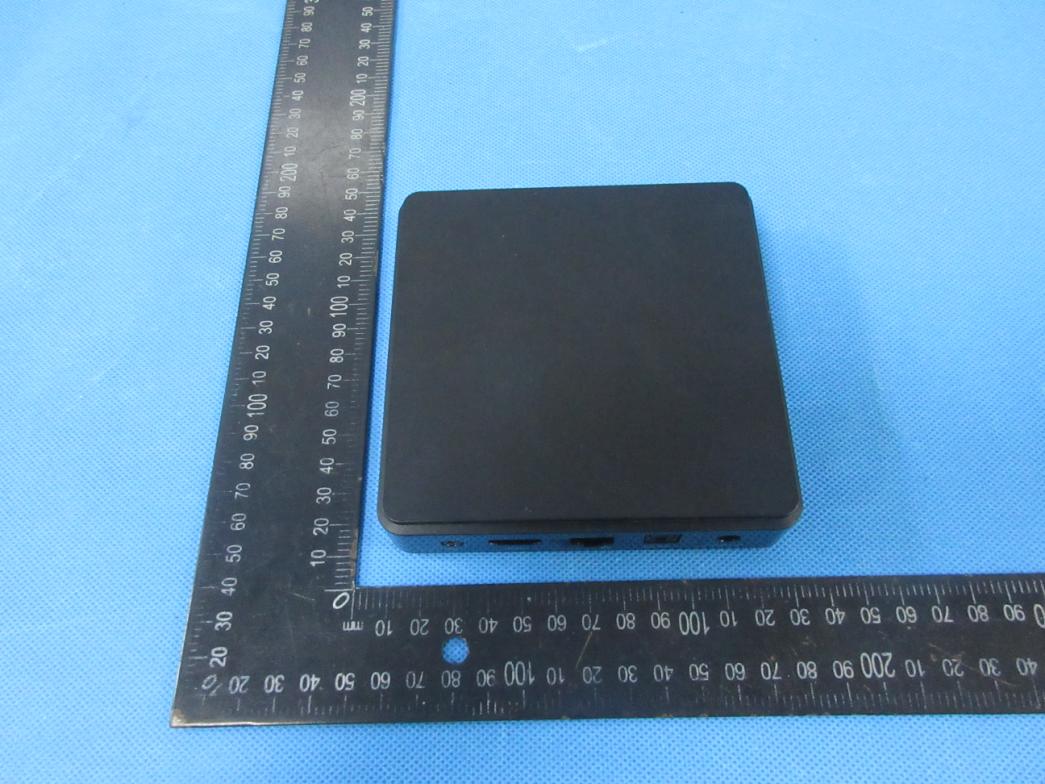

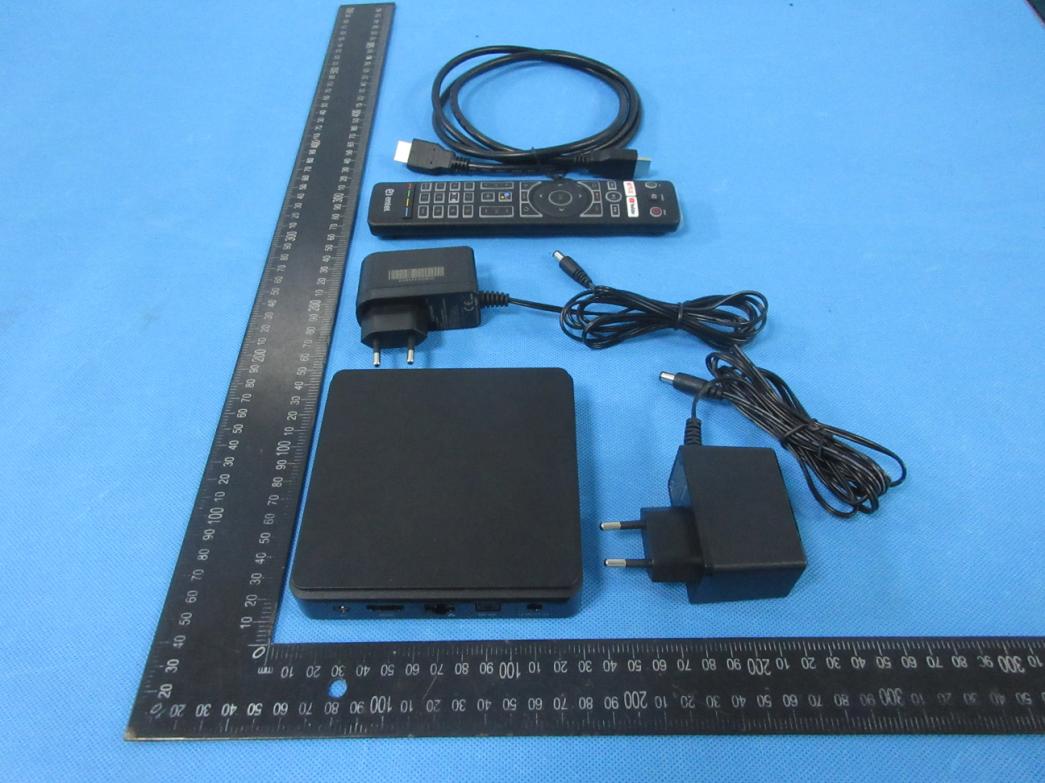

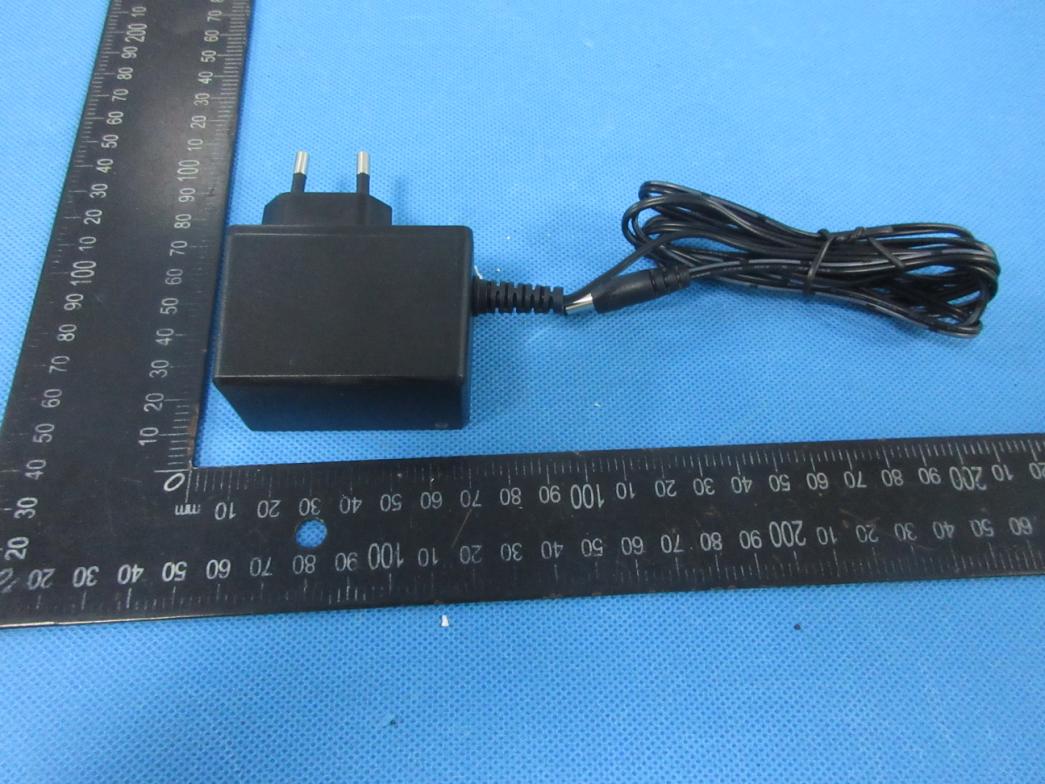

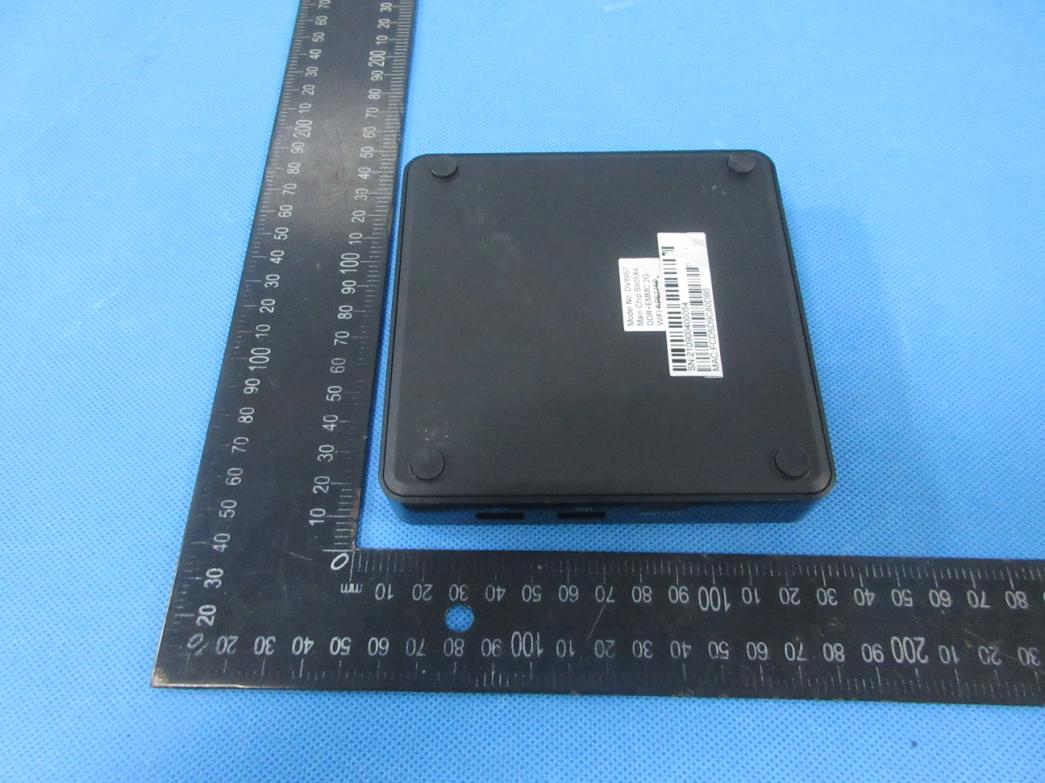

S22021403602 Model: DECO ENTEL DIW586 Photo 1 Photo 2 S22021403602 Model: DECO ENTEL DIW586 Photo 3 Photo 4 S22021403602 Model: DECO ENTEL DIW586 Photo 5 Photo 6 S22021403602 Model: DECO ENTEL DIW586 Photo 7 Photo 8 S22021403602 Model: DECO ENTEL DIW586 Photo 9 Photo 10 S22021403602 Model: DECO ENTEL DIW586 Photo 11

Supplier incoming printFactory print content MAC: FCD5D9F5F9D6 Barcode scan: FCD5D9F5F9D6 Barcode scan: 262209702000001 Fixed F5F9D6~F5FA9D ( 200 PCS) 000001~000200 ( 200 PCS) Decimal S/N: 262209702000001(15 in total Factory code（SDMC is 26） m odel code: 01(DIW 585), 02(DIW 586) Pr oduction calendar days（0 to 365） Last two digits of current year S ix-digit serial number (decimal) Date code: MM/AAAA Helvetica regular 4pt code 128 S/N: 262209702000001 MAC: FCD5D9F5F9D6 DECO ENTEL DIW586 P/N: 253932834 FCC ID: 2AW68-DV8957 E013-04-18056 Fabricado con la autorización de Dolby Laboratories. Dolby, Dolby Audio y el símbolo de doble D son marcas de Dolby Laboratories Licensing Corporation. 12.0V 1.0A Date code: 05/2022 Hecho en China DECO ENTEL DIW586 P/N: 253932834 FCC ID: 2AW68-DV8957 E013-04-18056 Fabricado con la autorización de Dolby Laboratories. Dolby, Dolby Audio y el símbolo de doble D son marcas de Dolby Laboratories Licensing Corporation. 12.0V 1.0A Label Location Diagram Label location 50mm 30mm Shenzhen SDMC Technology Co.,Ltd. 22030098 Name Print color Material Craft Size 1:1 DV8957_Machine label 单色 Fragile paper stickers Matte Cai Chen W:50mm*H30mm Material No. scaling ratio Order No. 彩色专色 420202435 √ Designator Description：50*30mm Fragile paper Self-adhesive Lamination Monochrome Note：① A machine sticks a piece；②The left and right margins of the label sticker and the release paper are 5MM Version：V12022/04/24 无印刷

S22021403602 Model: DECO ENTEL DIW586 Photo 1 Photo 2 S22021403602 Model: DECO ENTEL DIW586 Photo 3 Photo 4 S22021403602 Model: DECO ENTEL DIW586 Photo 5 Photo 6 BT ANT S22021403602 Model: DECO ENTEL DIW586 Photo 7 Photo 8 WIFI ANT B(ANT 2) S22021403602 Model: DECO ENTEL DIW586 Photo 9 WIFI ANT A(ANT1)

Report No.: S22021403602005 MPE Report FCC ID:2AW68-DV8957 Product: DIW586 Trade Mark: Model No.: DECO ENTEL DIW586 Family Model: N/A Report No.: S22021403602005 Issue Date: May 24. 2022 Prepared for Shenzhen SDMC Technology Co.,Ltd. 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22021403602005 FCC ID: 2AW68-DV8957 Maximum Permissible Exposure (MPE) According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: S22021403602005 Measurement Result BT: Operation Frequency: 2402MHz~2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB antenna BT antenna gain: 3.11 dBi ; R=20cm mW=10^(dBm/10) conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 6.43 6±17 5.0123.112.050.00201 2441 6.97 6±17 5.0123.112.050.00201 2480 5.36 6±17 5.0123.112.050.00201 2402 8.64 8±19 7.9433.112.050.00321 2441 9.26 9±110 10.0003.112.050.00411 2480 7.6 8±19 7.9433.112.050.00321 2402 8.92 9±110 10.0003.112.050.00411 2441 9.71 9±110 10.0003.112.050.00411 2480 8.1 9±110 10.0003.112.050.00411 2402 6.54 6±17 5.0123.112.050.00201 2440 7.06 7±18 6.3103.112.050.00261 2480 5.4 6±17 5.0123.112.050.00201 2402 6.57 6±17 5.0123.112.050.00201 2440 7.1 7±18 6.3103.112.050.00261 2480 5.42 6±17 5.0123.112.050.00201 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) π/4-DQPSK 8-DPSK BLE(2M) BLE(1M) (mW/cm2 )(mW/cm2) Antenna Gain GFSK Max tune-up power 2.4G/5G WIFI: Operation Frequency: WIFI 802.11b/g/n HT20: 2412-2462MHz, WIFI 802.11n HT40:2422-2452MHz Power density limited: 1mW/ cm 2 Operation Frequency: WIFI 802.11a/ac/n(HT20): 5180-5240MHz;5260-5320MHz,5500-5700MHz,5745- 5825MHz;WIFI 802.11ac/n(HT40): 5190-5230MHz;5270-5310MHz,5510-5670MHz5755-5795MHz; WIFI 802.11ac80:5210-5210MHz;5290-5290MHz;5530-5610MHz; 5775-5775MHz Power density limited: 1mW/cm Antenna Type: PCB antenna 2.4G WIFI antenna1 gain: 3.11dBi; WIFI antenna2 gain: 3.11dBi 5G WIFI antenna1 gain: 3.25dBi; WIFI antenna2 gain: 3.88dBi R=20cm mW=10^(dBm/10) WLAN2.4G SISO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm ) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Conclusion Ant 1 20.26 3.11 23.37 217.270 20 0.0432 1 Pass Ant 2 21.54 3.11 24.65 291.743 20 0.0580 1 Report No.: S22021403602005 WLAN5.2G SISO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Conclusion Ant 1 12.07 3.25 15.32 34.041 20 0.0068 1 Pass Ant 2 11.95 3.88 15.83 38.282 20 0.0076 1 WLAN5.3G SISO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Conclusion Ant 1 12.37 3.25 15.62 36.475 20 0.0073 1 Pass Ant 2 11.76 3.88 15.64 36.644 20 0.0073 1 WLAN5.6G SISO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Conclusion Ant 1 11.25 3.25 14.5 28.184 20 0.0056 1 Pass Ant 2 12.54 3.88 16.42 43.853 20 0.0087 1 WLAN5.8G SISO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Conclusion Ant 1 11.72 3.25 14.97 31.405 20 0.0062 1 Pass Ant 2 11.99 3.88 15.87 38.637 20 0.0077 1 SIMULTANEOUS TRANSMISSIONS When a number of sources at different frequencies, and/or broadband sources, contribute to the total exposure, it becomes necessary to weigh each contribution relative to the MPE. To comply with the MPE, the fraction of the MPE in terms of E 2 , H 2 (or power density) incurred within each frequency interval should be determined and the sum of all such fractions should not exceed unity. In order to ensure compliance with the MPE for a controlled environment, the sum of the ratios of the power density to the corresponding MPE should not exceed unity. That is Report No.: S22021403602005 WLAN2.4G MIMO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Calculation result Conclusion Ant 1 20.26 3.11 23.37 217.270 20 0.0432 1 0.1012 Pass Ant 2 21.54 3.11 24.65 291.743 20 0.0580 1 WLAN5.2G MIMO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Calculation result Conclusion Ant 1 12.07 3.25 15.32 34.041 20 0.0068 1 0.0144 Pass Ant 2 11.95 3.88 15.83 38.282 20 0.0076 1 WLAN5.3G MIMO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Calculation result Conclusion Ant 1 12.37 3.25 15.62 36.475 20 0.0073 1 0.0146 Pass Ant 2 11.76 3.88 15.64 36.644 20 0.0073 1 WLAN5.6G MIMO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Calculation result Conclusion Ant 1 11.25 3.25 14.5 28.184 20 0.0056 1 0.0143 Pass Ant 2 12.54 3.88 16.42 43.853 20 0.0087 1 WLAN5.8G MIMO MODE Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Calculation result Conclusion Ant 1 11.72 3.25 14.97 31.405 20 0.0062 1 0.0139 Pass Ant 2 11.99 3.88 15.87 38.637 20 0.0077 1 This product does not support the requirements under multiple sources. Conclusion: The conclusion for MIMO mode should be…

Text truncated - open the document above for the full version.

Report No.: S22021403602004 Version.1.2 Page 1 of 106 FCC RADIO TEST REPORT FCC ID:2AW68-DV8957 Product: DIW586 Trade Mark: Model No.: DECO ENTEL DIW586 Family Model: N/A Report No.: S22021403602004 Issue Date: May 13. 2022 Prepared for Shenzhen SDMC Technology Co.,Ltd. 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22021403602004 Version.1.2 Page 2 of 106 TEST RESULT CERTIFICATION Applicant’s name ...................... : Shenzhen SDMC Technology Co.,Ltd. Address ....................................... : 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Manufacturer's Name ................ : Shenzhen SDMC Technology Co.,Ltd. Address ....................................... : 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Product description Product name .............................. : DIW586 Model and/or type reference ..... : DECO ENTEL DIW586 Family Model ............................... : N/A Standards ................................... : FCC Part15.407 Test procedure ................................. : ANSI C63.10-2013 KDB 789033 D02 General UNII Test Procedures New Rules v02r01 KDB 662911 D01 Multiple Transmitter Output v02r01 KDB 905462 D03 Client Without DFS New Rules v01r02 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ................................................... : Date (s) of performance of tests .................... : Feb 14. 2022 ~ May 13. 2022 Date of Issue .................................................. : May 13. 2022 Test Result ...................................................... : Pass Testing Engineer : (Mary Hu) Authorized Signatory : (Alex Li) Report No.: S22021403602004 Version.1.2 Page 3 of 106 Table of Contents Page 1. SUMMARY OF TEST RESULTS 7 1.1 FACILITIES AND ACCREDITATIONS 8 1.2 MEASUREMENT UNCERTAINTY 8 1 . GENERAL INFORMATION 9 1.1 GENERAL DESCRIPTION OF EUT 9 1.2 DESCRIPTION OF TEST MODES 12 1.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 1.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 14 1.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 15 2 . EMC EMISSION TEST 17 2.1 CONDUCTED EMISSION MEASUREMENT 17 2.1.1 APPLICABLE STANDARD 17 2.1.2 CONFORMANCE LIMIT 17 2.1.3 TEST CONFIGURATION 17 2.1.4 TEST PROCEDURE 17 2.2 RADIATED EMISSION MEASUREMENT 34 2.2.1 APPLICABLE STANDARD 34 2.2.2 CONFORMANCE LIMIT 34 2.2.3 MEASURING INSTRUMENTS 34 2.2.4 TEST CONFIGURATION 35 2.2.5 TEST PROCEDURE 36 2.2.6 TEST RESULTS (9KHZ – 30 MHZ) 37 2.2.7 TEST RESULTS (30MHZ – 1GHZ) 38 2.2.8 TEST RESULTS (1GHZ-18GHZ) 54 2.2.10 TEST RESULTS (18GHZ-40GHZ) 60 3 . POWER SPECTRAL DENSITY TEST 74 3.1 APPLIED PROCEDURES / LIMIT 74 3.2 TEST PROCEDURE 75 3.3 DEVIATION FROM STANDARD 75 3.4 TEST SETUP 75 3.5 EUT OPERATION CONDITIONS 75 3.6 TEST RESULTS 76 4 . 26DB & 99% EMISSION BANDWIDTH 77 4.1 APPLIED PROCEDURES / LIMIT 77 4.2 TEST PROCEDURE 77 4.3 EUT OPERATION CONDITIONS 78 4.4 TEST RESULTS 78 Report No.: S22021403602004 Version.1.2 Page 4 of 106 Table of Contents Page 5 . MINIMUM 6 DB BANDWIDTH 79 5.1 APPLIED PROCEDURES / LIMIT 79 5.2 TEST PROCEDURE 79 5.3 DEVIATION FROM STANDARD 79 5.4 TEST SETUP 79 5.5 EUT OPERATION CONDITIONS 79 5.6 TEST RESULTS 80 6 . MAXIMUM CONDUCTED OUTPUT POWER 81 6.1 PPLIED PROCEDURES / LIMIT 81 6.2 TEST RESULTS 83 7 . OUT OF BAND EMISSIONS 84 7.1 APPLICABLE STANDARD 84 7.2 TEST PROCEDURE 84 7.3 DEVIATION FROM STANDARD 85 7.4 TEST SETUP 85 7.5 EUT OPERATION CONDITIONS 85 7.6 TEST RESULTS 86 8. FREQUENCY STABILITY MEASUREMENT 87 8.1 LIMIT 87 8.2 TEST PROCEDURES 87 8.3 TEST SETUP LAYOUT 87 8.4 EUT OPERATION DURING TEST 87 8.5 TEST RESULTS 88 9. DYNAMIC FREQUENCY SELECTION(DFS) 100 9.1 APPLICABILITY OF DFS REQUIREMENTS 100 9.2 INTERFERENCE THRESHOLD VALUES, MASTER OR CLIENT INCORPORATING IN-SERVICE MONITORING 100 9.3 DFS RESPONSE REQUIREMENT VALUES 101 9.4 SHORT PULSE RADAR TEST WAVEFORMS 101 9.5 CALIBRATION SETUP AND DFS TEST RESULTS 102 9.6 CONDUCTED CALIBRATION SETUP 102 9.7 RADAR WAVEFORM CALIBRATION RESULT 103 9.8 IN-SERVICE MONITORING: CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME AND NON-OCCUPANCY PERIOD 104 9.9 RESULT OF CHANNEL MOVE TIME, CHANNEL CLOSING TRANSMISSION TIME Report No.: S22021403602004 Version.1.2 Page 5 of 106 Table of Contents Page AND NON-OCCUPANCY PERIOD FOR CLIENT BEACON TEST 105 10. ANTENNA REQUIREMENT 106 10.1 STANDARD REQUIREMENT 106 10.2 EUT ANTENNA 106 Report No.: S22021403602004 Version.1.2 Page 6 of 106 Revision History Report No. Version Description Issued Date S22021403602004 Rev.01 Initial issue of report Mar 12. 2022 Report No.: S22021403602004 Version.1.2 Page 7 of 106 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(2) 15.407 (b)(3) 15.407 (b)(4) 15.407(b)(8)(9) Spurious Radiated Emissions PASS 15.407 (a) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a) Maximum Conducted Output Power PASS 15.407 (b)(1) 15.407 (b)(2) 15.407 (b…

Text truncated - open the document above for the full version.

Report No.: S22021403602004 Page 1 of 885 FCC Attachment for 5G Product: DIW586 Trade Mark: Model No.: Family Model: Report No.: Issue Date: DEC O ENTEL DIW586 N/A S22021403602004 May 13. 2022 Prepared for Shenzhen SDMC Technology Co.,Ltd. 19/F,Changhong Science & Technology Mansion, No.18, KejiRoad, High-tech Industrial Park, Nanshan District, Shenzhen, China, 518022 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22021403602004 Page 2 of 885 5.2G Duty Cycle Antenna Condition Mode Frequency (MHz) Duty Cycle (%) Duty Factor (dB) Ant 1 NVNT 802.11a 5180 99.7 0.01 Ant 1 NVNT 802.11a 5200 99.7 0.01 Ant 1 NVNT 802.11a 5240 99.7 0.01 Ant 2 NVNT 802.11a 5180 99.7 0.01 Ant 2 NVNT 802.11a 5200 99.7 0.01 Ant 2 NVNT 802.11a 5240 99.69 0.01 Ant 1 NVNT 802.11ac20 5180 99.68 0.01 Ant 1 NVNT 802.11ac20 5200 99.68 0.01 Ant 1 NVNT 802.11ac20 5240 99.68 0.01 Ant 2 NVNT 802.11ac20 5180 99.68 0.01 Ant 2 NVNT 802.11ac20 5200 99.68 0.01 Ant 2 NVNT 802.11ac20 5240 99.68 0.01 Ant 1 NVNT 802.11ac40 5190 99.35 0.03 Ant 1 NVNT 802.11ac40 5230 99.36 0.03 Ant 2 NVNT 802.11ac40 5190 99.36 0.03 Ant 2 NVNT 802.11ac40 5230 99.35 0.03 Ant 1 NVNT 802.11ac80 5210 98.7 0.06 Ant 2 NVNT 802.11ac80 5210 98.7 0.06 Ant 1 NVNT 802.11ax20 5180 99.59 0.02 Ant 1 NVNT 802.11ax20 5200 99.59 0.02 Ant 1 NVNT 802.11ax20 5240 99.58 0.02 Ant 2 NVNT 802.11ax20 5180 99.59 0.02 Ant 2 NVNT 802.11ax20 5200 99.59 0.02 Ant 2 NVNT 802.11ax20 5240 99.58 0.02 Ant 1 NVNT 802.11ax40 5190 99.22 0.03 Ant 1 NVNT 802.11ax40 5230 99.21 0.03 Ant 2 NVNT 802.11ax40 5190 99.22 0.03 Ant 2 NVNT 802.11ax40 5230 99.21 0.03 Ant 1 NVNT 802.11ax80 5210 98.54 0.06 Ant 2 NVNT 802.11ax80 5210 98.54 0.06 Ant 1 NVNT 802.11n(HT20) 5180 99.67 0.01 Ant 1 NVNT 802.11n(HT20) 5200 99.68 0.01 Ant 1 NVNT 802.11n(HT20) 5240 99.68 0.01 Ant 2 NVNT 802.11n(HT20) 5180 99.67 0.01 Ant 2 NVNT 802.11n(HT20) 5200 99.67 0.01 Ant 2 NVNT 802.11n(HT20) 5240 99.67 0.01 Ant 1 NVNT 802.11n(HT40) 5190 98.71 0.06 Ant 1 NVNT 802.11n(HT40) 5230 99.36 0.03 Ant 2 NVNT 802.11n(HT40) 5190 99.35 0.03 Ant 2 NVNT 802.11n(HT40) 5230 99.35 0.03 Report No.: S22021403602004 Page 3 of 885 Duty Cycle NVNT 802.11a 5180MHz Ant 1 Duty Cycle NVNT 802.11a 5200MHz Ant 1 Report No.: S22021403602004 Page 4 of 885 Duty Cycle NVNT 802.11a 5240MHz Ant 1 Duty Cycle NVNT 802.11a 5180MHz Ant 2 Report No.: S22021403602004 Page 5 of 885 Duty Cycle NVNT 802.11a 5200MHz Ant 2 Duty Cycle NVNT 802.11a 5240MHz Ant 2 Report No.: S22021403602004 Page 6 of 885 Duty Cycle NVNT 802.11ac20 5180MHz Ant 1 Duty Cycle NVNT 802.11ac20 5200MHz Ant 1 Report No.: S22021403602004 Page 7 of 885 Duty Cycle NVNT 802.11ac20 5240MHz Ant 1 Duty Cycle NVNT 802.11ac20 5180MHz Ant 2 Report No.: S22021403602004 Page 8 of 885 Duty Cycle NVNT 802.11ac20 5200MHz Ant 2 Duty Cycle NVNT 802.11ac20 5240MHz Ant 2 Report No.: S22021403602004 Page 9 of 885 Duty Cycle NVNT 802.11ac40 5190MHz Ant 1 Duty Cycle NVNT 802.11ac40 5230MHz Ant 1 Report No.: S22021403602004 Page 10 of 885 Duty Cycle NVNT 802.11ac40 5190MHz Ant 2 Duty Cycle NVNT 802.11ac40 5230MHz Ant 2 Report No.: S22021403602004 Page 11 of 885 Duty Cycle NVNT 802.11ac80 5210MHz Ant 1 Duty Cycle NVNT 802.11ac80 5210MHz Ant 2 Report No.: S22021403602004 Page 12 of 885 Duty Cycle NVNT 802.11ax20 5180MHz Ant 1 Duty Cycle NVNT 802.11ax20 5200MHz Ant 1 Report No.: S22021403602004 Page 13 of 885 Duty Cycle NVNT 802.11ax20 5240MHz Ant 1 Duty Cycle NVNT 802.11ax20 5180MHz Ant 2 Report No.: S22021403602004 Page 14 of 885 Duty Cycle NVNT 802.11ax20 5200MHz Ant 2 Duty Cycle NVNT 802.11ax20 5240MHz Ant 2 Report No.: S22021403602004 Page 15 of 885 Duty Cycle NVNT 802.11ax40 5190MHz Ant 1 Duty Cycle NVNT 802.11ax40 5230MHz Ant 1 Report No.: S22021403602004 Page 16 of 885 Duty Cycle NVNT 802.11ax40 5190MHz Ant 2 Duty Cycle NVNT 802.11ax40 5230MHz Ant 2 Report No.: S22021403602004 Page 17 of 885 Duty Cycle NVNT 802.11ax80 5210MHz Ant 1 Duty Cycle NVNT 802.11ax80 5210MHz Ant 2 Report No.: S22021403602004 Page 18 of 885 Duty Cycle NVNT 802.11n(HT20) 5180MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5200MHz Ant 1 Report No.: S22021403602004 Page 19 of 885 Duty Cycle NVNT 802.11n(HT20) 5240MHz Ant 1 Duty Cycle NVNT 802.11n(HT20) 5180MHz Ant 2 Report No.: S22021403602004 Page 20 of 885 Duty Cycle NVNT 802.11n(HT20) 5200MHz Ant 2 Duty Cycle NVNT 802.11n(HT20) 5240MHz Ant 2 Report No.: S22021403602004 Page 21 of 885 Duty Cycle NVNT 802.11n(HT40) 5190MHz Ant 1 Duty Cycle NVNT 802.11n(HT40) 5230MHz Ant 1 Report No.: S22021403602004 Page 22 of 885 Duty Cycle NVNT 802.11n(HT40) 5190MHz Ant 2 Duty Cycle NVNT 802.11n(HT40) 5230MHz Ant 2 Report No.: S22021403602004 Page 23 of 885 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna SISO Conducted Power (dBm) Duty Factor (dB) SISO Total Power (dBm) MIMO Total Power (dBm) Limit (dBm) Verdict NVNT 802.11a 5180 Ant 1 13.89 0.01 13.9 -- 24 Pass NVNT 802.11a 5200 Ant 2 13.85 0.01 13.86 -- 24 Pass NVNT 802.11a 5240 Ant 1 14.33 0.01 14.34 -- 24 Pass NVNT 802.11a 5180 Ant 2 14.24 0.01 14.25 -- 24 Pass NVNT 802.11a 5200 Ant 1 13.89 0.01 13.9 -- 24 Pass NVNT 802.11a 5240 Ant 2 14.07 0.01 14.08 -- 24 Pass NVNT 802.11ac20 5180 Ant 1 11.04 0.01 11.05 14.55 23.41 Pass NVNT 802.11ac20 5180 Ant 2 11.97 0.01 11.98 Pass NVNT 802.11ac20 5200 Ant 1 11.51 0.01 11.52 14.42 23.41 Pass NVNT 802.11ac20 5200 Ant 2 11.29 0.01 11.3 Pass NVNT 802.11ac20 5240 Ant 1 11.16 0.01 11.17 14.71 23.41 Pass NVNT 802.11ac20 5240 Ant 2 12.17 0.01 12.18 Pass NVNT 802.11ac40 5190 Ant 1 11.09 0.03 11.12 14.65 23.41 Pass NVNT 802.11ac40 5190 Ant 2 12.07 0.03 12.1 Pass NVNT 802.11ac40 5230 Ant 1 11.47 0.03 11.5 14.51 23.41 Pass NVNT 802.11ac40 5230 Ant 2 11.47 0.03 11.5 Pass NVNT 802.11ac80 5210 Ant 1 11.16 0.06 11.22 14.61 23.41 Pass NVNT 802.11ac80 5210 Ant 2 11.89 0.06 11.95 Pass NVNT 802.11ax20 5180 Ant 1 11.…

Text truncated - open the document above for the full version.

Report No.: S22021403602004 Page 81 of 885 OBW NVNT 802.11ax20 5200MHz Ant2 -26 dB BW NVNT 802.11ax20 5200MHz Ant2 Report No.: S22021403602004 Page 82 of 885 OBW NVNT 802.11ax20 5240MHz Ant1 -26 dB BW NVNT 802.11ax20 5240MHz Ant1 Report No.: S22021403602004 Page 83 of 885 OBW NVNT 802.11ax20 5240MHz Ant2 -26 dB BW NVNT 802.11ax20 5240MHz Ant2 Report No.: S22021403602004 Page 84 of 885 OBW NVNT 802.11ax40 5190MHz Ant1 -26 dB BW NVNT 802.11ax40 5190MHz Ant1 Report No.: S22021403602004 Page 85 of 885 OBW NVNT 802.11ax40 5190MHz Ant2 -26 dB BW NVNT 802.11ax40 5190MHz Ant2 Report No.: S22021403602004 Page 86 of 885 OBW NVNT 802.11ax40 5230MHz Ant1 -26 dB BW NVNT 802.11ax40 5230MHz Ant1 Report No.: S22021403602004 Page 87 of 885 OBW NVNT 802.11ax40 5230MHz Ant2 -26 dB BW NVNT 802.11ax40 5230MHz Ant2 Report No.: S22021403602004 Page 88 of 885 OBW NVNT 802.11ax80 5210MHz Ant1 -26 dB BW NVNT 802.11ax80 5210MHz Ant1 Report No.: S22021403602004 Page 89 of 885 OBW NVNT 802.11ax80 5210MHz Ant2 -26 dB BW NVNT 802.11ax80 5210MHz Ant2 Report No.: S22021403602004 Page 90 of 885 OBW NVNT 802.11n(HT20) 5180MHz Ant1 -26 dB BW NVNT 802.11n(HT20) 5180MHz Ant1 …
