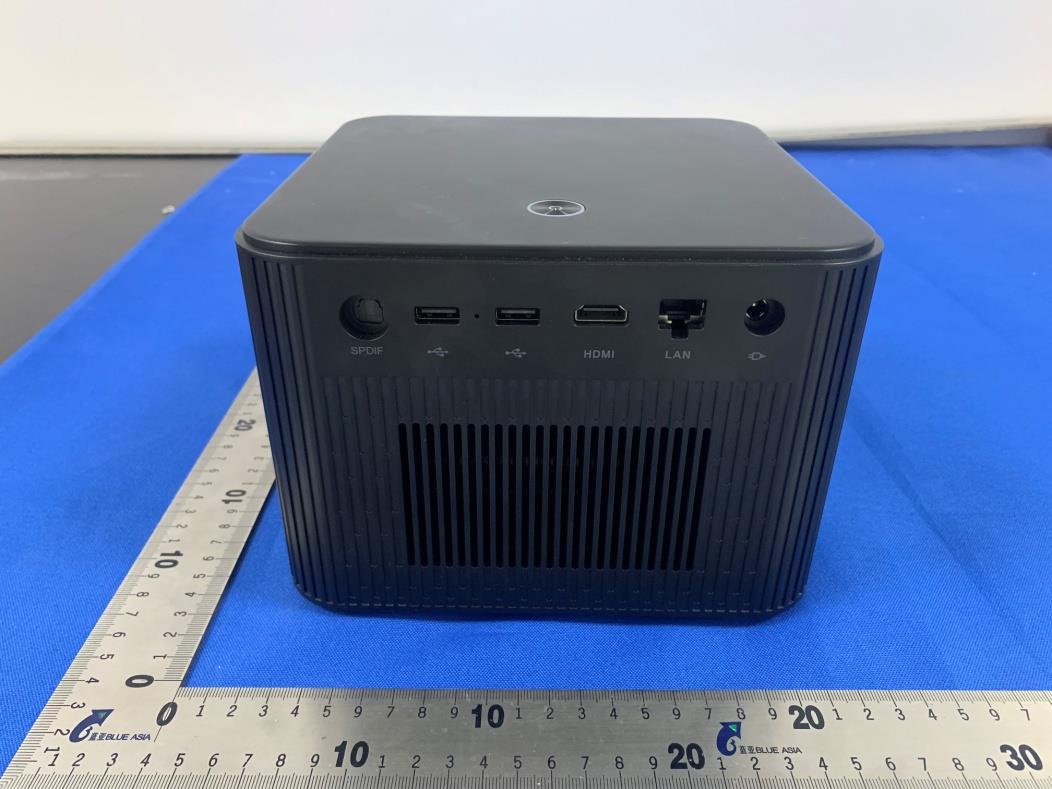

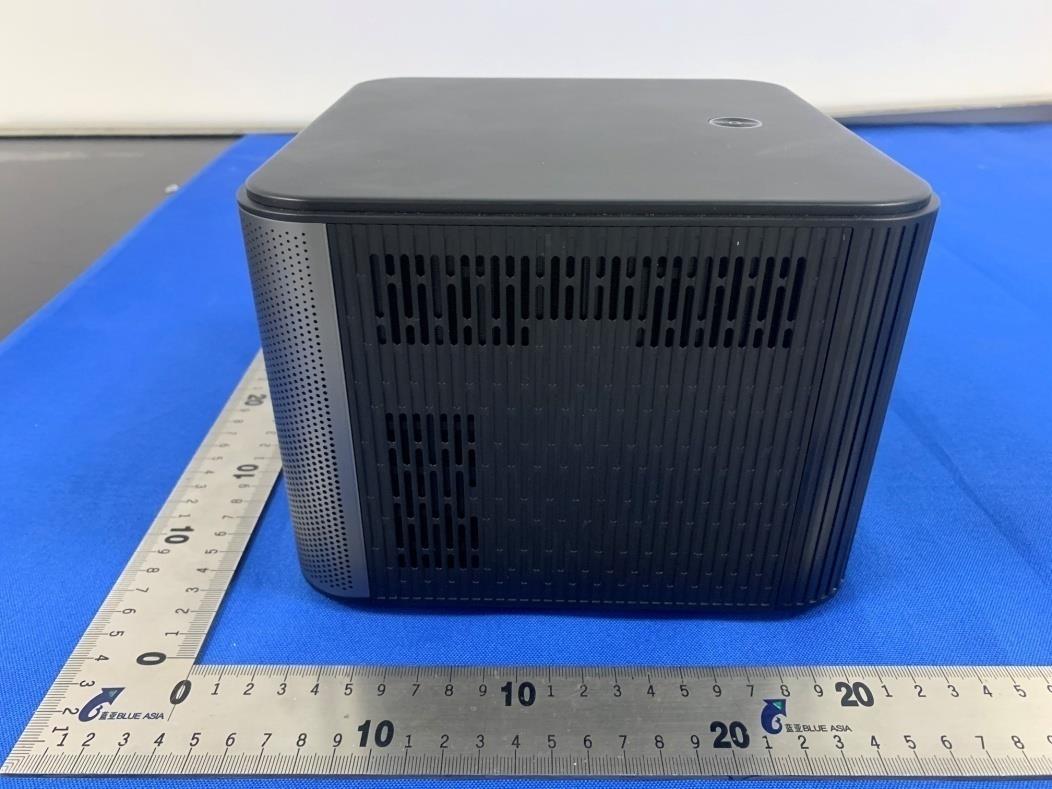

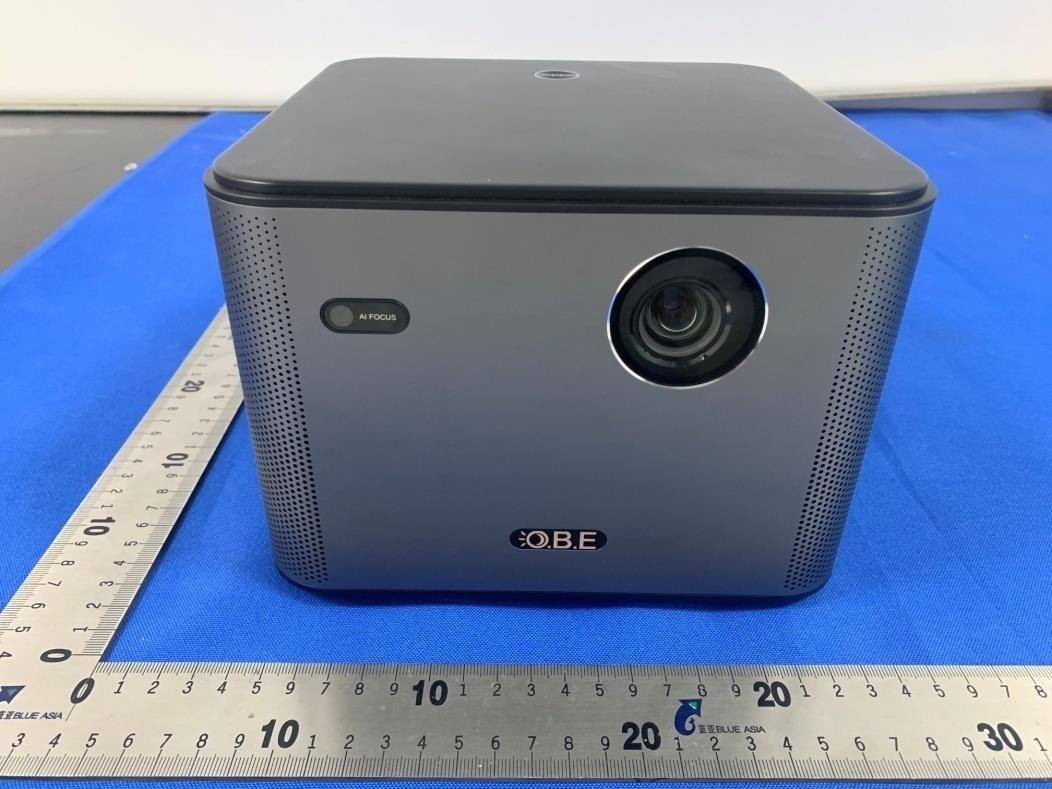

2AW96-M1200SSmart Mini Pro Projector

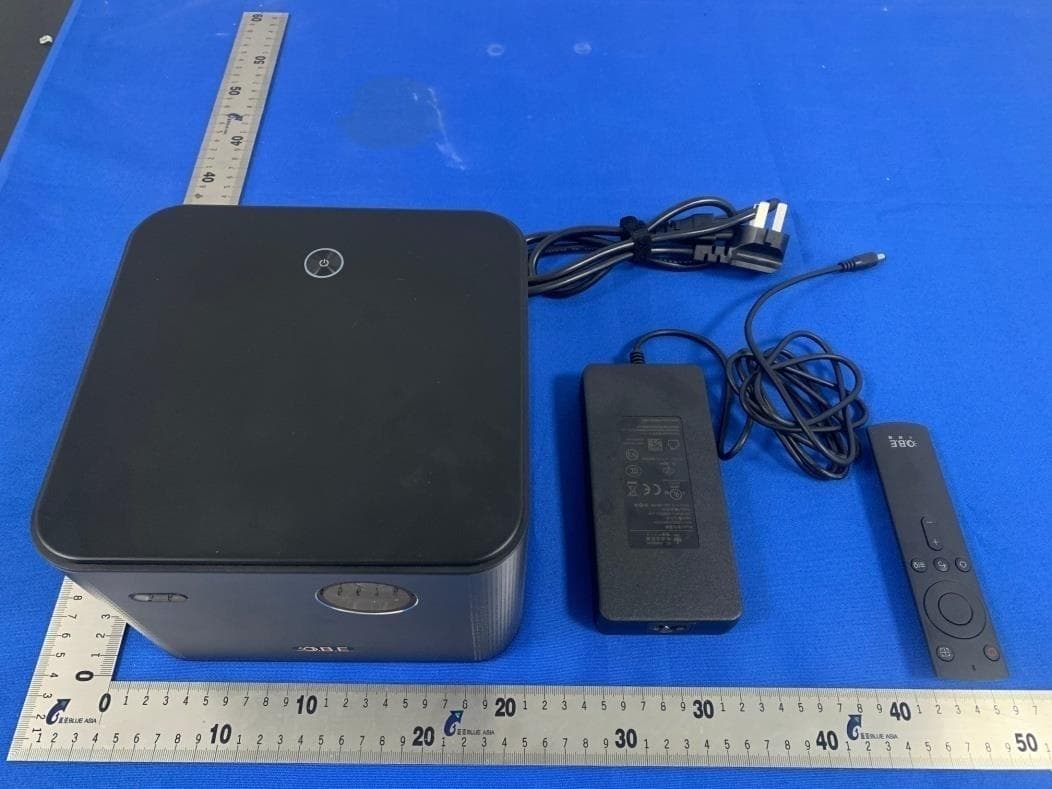

Quick Start Guide Ultra Pro Smart Projector Your Miroir Projector Package contents and product specifications 1x Main unit 1x Remote control 2x AAA batteries 1x Power adapter 1x Instruction manual Remote Control 1. Indicator 2. Power Off - Turn on and off 3. Projector settings - View the projector settings 4. Direction buttons - Move the focal point up/down/left/right. During video playback, hold down the left/right direction buttons to rewind/fast-forward the video 5. Play/pause/confirm button - Confirm focal point; on the video playback interface, short press to play/pause the video. 6. Return button - Return to previous interface 7. Home screen button - Return to home screen 8. Menu/air mouse button - Short press: Display menu, Long press: Air mouse 9. Volume +/- button - Adjust the volume Pairing the Remote Control If the remote control disconnects from the projector, bring the remote control to within 6 feet of the projector and press the “Confirm” and “Return” buttons simultaneously until the indicator starts to flash, indicating that the remote control is connected to the projector. Images are provided for reference only and may differ from the actual product. 2 1 4 3 7 5 6 8 9 Product Overview and Powering on/off 1. TOSLINK interface 2. USB 2.0 interface 3. USB 2.0 interface 4. HDMI interface 5. LAN interface 6. Power-in socket 7. On/Off Button Bluetooth speaker mode 1. To enable Bluetooth speaker mode, press the power button on the remote control. Bluetooth speaker controls on remote control: Volume +/- button: Adjusts the volume. Speaker button: Returns to projector mode. The other buttons on the remote control have no function. Important After enabling Bluetooth speaker mode, keep the connected Bluetooth device within 8 m of the projector and ensure that there are no obstructions. Getting Started 1.Place the product in a suitable location with the lens pointing at the projection surface. 2.Connect the power adapter to the mains. Press the power button on the main unit or remote control to turn on the projector. The indicator will turn on and the system will load. 3. Follow the startup wizard or go to “System settings—Networks” and connect to your wireless network. 142536 7 Learn More To learn more about your Miroir Projector and its operations, to review specs, and find answers to frequently asked questions, please visit: www.miroirusa.com/M1200S www.miroirusa.com MICRO1200S.11.25.2020 © 2020 Miroir USA, LLC. All rights reserved. Miroir and the Miroir logo are owned by Miroir USA, LLC. All other trademarks are the property of their respective owners. Miroir USA, LLC assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. FCC Statement： Th is device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Th is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: -Reo rient the receiving antenna. -In crease the separation between the equipment and receiver. -Co nnect the equipment into and outlet on a circuit different from that to which the receiver is connected. -Cons ult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The distance between user and products should be no less than 20cm The EUT is In door use only

Dec 17, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Qianhai BlueAsia of Technical Serivices(shenzhen) Limited, No 448, BulongRoad,BantianStreet,LonggangDistric (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Telstar USA LLC 9817 Valley View Road，Eden Prairie Minnesota United States (Applicant Name and address) <Signature> Name Richard Oscar Erickson Title CEO Company Telstar USA LLC

Dec 17，2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AW96-M1200S Product Name:Smart Mini Pro Projector Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Richard Oscar Erickson Title CEO Company Telstar USA LLC

Model No.: M1200S

出纸方向 供应商来料卷状 MTC打印范本 1.材质：50#PET(格拉辛底)+背胶+哑膜 SN:具体号码由软件或者业务提供 条码格式：Code 128 条码高度≥ 4mm 可读字体： Arial 字号：5.5 pt MAC:具体号码由软件或者业务提供 字体： Arial 字号：5.5 pt 2.尺寸：65.5*65.5mm(±0.2mm ) 3.印刷颜色：Black+Pantone Cool Gray 6C 4.卷状来料标签内芯统一要求采用3英寸大纸芯。 整卷标准数量做整数，整卷直径最大不能超过210mm （请供应商提供整卷标准数量） 5.标签间间隙需符合标签机基本要求（一般2 或者3mm整数） 6.单排排列 r=9mm 76mm 76mm Ø=12mm 粘贴示意图 Miroir M1200S Product name : Smart Mini Pro Projector Product Model : M1200S Input : DC 19V 6.32A Made in China SN: 24000020120446010000001 MAC: NNNNNNNNNNNN FCC ID:2AW96-M1200S FCC ID: 2AW96-M1200S SN: 24000020120446010000001 MAC: NNNNNNNNNNNN FCC ID:2AW96-M1200S

Model No.: M1200S

Page 1 of 2 Product Name: Smart Mini Pro Projector Model No.：M1200S FCC ID：2AW96-M1200S RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: BLE/EDR:3.0dBi; 2.4G wifi:ant1=3.7dBi,ant2=3.8dBi 5G WIFI:ant1=2.0dBi,ant2=2.3dBi Output Power Into Antenna & RF Exposure Evaluation Distance: BLE: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result Middle 2440 10.25 10.59 0.004 1.0 PASS EDR Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result highest 2480 5.12 3.25 0.001 1.0 PASS 2.4G WIFI: 802.11b Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result lowest 2412 18.64 73.11 0.034 1.0 PASS 5G WIFI:802.11N20 Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result highest 5240 15.16 32.81 0.021 1.0 PASS Note: Refer to report No. BLA-EMC-202012-A1502/03/04/05 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Page 1 of58 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Smart Mini Pro Projector Brand Mark : N/A Model No. : M1200S FCC ID : 2AW96-M1200S Report Number : BLA-EMC-202012-A1504 Date of Sample Receipt : 2020/12/3 Date of Test : 2020/12/3 to 2020/12/18 Date of Issue : 2021/01/15 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Telstar USA LLC 9817 Valley View Road, Eden Prairie, MN, US Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/01/15 Report No.: BLA-EMC-202012-A1504 Page 2 of58 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/01/15 Original Report No.: BLA-EMC-202012-A1504 Page 3 of58 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 CARRIER FREQUENCIES SEPARATION .............................................................................................. 13 1.1 LIMITS ................................................................................................................................................................... 13 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 13 1.3 TEST DATA .............................................................................................................................................................. 13 2 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 14 2.1 LIMITS ................................................................................................................................................................... 14 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 14 2.3 EST DATA ................................................................................................................................................................ 15 3 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 16 3.1 LIMITS ................................................................................................................................................................... 16 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 17 3.3 PROCEDURE .......................................................................................................................................................... 17 3.4 TEST DATA .............................................................................................................................................................. 19 4 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 27 4.1 LIMITS ................................................................................................................................................................... 27 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 28 4.3 PROCEDURE .......................................................................................................................................................... 28 4.4 TEST DATA .............................................................................................................................................................. 30 5 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 46 5.1 LIMITS ................................................................................................................................................................... 46 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 46 Report No.: BLA…

Text truncated - open the document above for the full version.

APPENDIX1 1.1 APPENDIXA: DTS BANDWIDTH Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.880 2417.080 >=0.5 PASS 2437 10.080 2431.960 2442.040 >=0.5 PASS 2462 10.120 2456.920 2467.040 >=0.5 PASS 11G Ant1 2412 16.360 2403.800 2420.160 >=0.5 PASS 2437 15.480 2429.120 2444.600 >=0.5 PASS 2462 16.360 2453.800 2470.160 >=0.5 PASS 11N20SISO Ant1 2412 16.360 2403.800 2420.160 >=0.5 PASS 2437 15.800 2428.800 2444.600 >=0.5 PASS 2462 15.960 2453.960 2469.920 >=0.5 PASS 11N40SISO Ant1 2422 33.920 2404.400 2438.320 >=0.5 PASS 2437 34.400 2419.320 2453.720 >=0.5 PASS 2452 34.000 2434.400 2468.400 >=0.5 PASS Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 10.160 2406.920 2417.080 >=0.5 PASS 2437 10.160 2431.920 2442.080 >=0.5 PASS 2462 10.160 2456.920 2467.080 >=0.5 PASS 11G Ant2 2412 15.080 2404.200 2419.280 >=0.5 PASS 2437 16.080 2428.840 2444.920 >=0.5 PASS 2462 15.240 2454.360 2469.600 >=0.5 PASS 11N20SISO Ant2 2412 16.000 2403.800 2419.800 >=0.5 PASS 2437 17.640 2428.160 2445.800 >=0.5 PASS 2462 16.800 2453.600 2470.400 >=0.5 PASS 11N40SISO Ant2 2422 35.280 2404.320 2439.600 >=0.5 PASS 2437 34.480 2420.200 2454.680 >=0.5 PASS 2452 35.200 2434.400 2469.600 >=0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Test Graphs---Ant2 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 11G_Ant2_2412 11G_Ant2_2437 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 1.2 APPENDIX: OCCUPIED CHANNEL BANDWIDTH Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.555 2404.719 2419.274 --- PASS 2437 14.591 2429.650 2444.241 --- PASS 2462 14.615 2454.662 2469.277 --- PASS 11G Ant1 2412 16.742 2403.601 2420.343 --- PASS 2437 16.721 2428.588 2445.309 --- PASS 2462 16.820 2453.564 2470.384 --- PASS 11N20SISO Ant1 2412 16.842 2403.558 2420.400 --- PASS 2437 16.878 2428.511 2445.389 --- PASS 2462 16.808 2453.560 2470.368 --- PASS 11N40SISO Ant1 2422 36.127 2403.928 2440.055 --- PASS 2437 36.263 2418.850 2455.113 --- PASS 2452 36.306 2433.829 2470.135 --- PASS Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant2 2412 14.604 2404.682 2419.286 --- PASS 2437 14.615 2429.665 2444.280 --- PASS 2462 14.622 2454.661 2469.283 --- PASS 11G Ant2 2412 16.651 2403.659 2420.310 --- PASS 2437 16.731 2428.603 2445.334 --- PASS 2462 16.715 2453.631 2470.346 --- PASS 11N20SISO Ant2 2412 17.932 2403.016 2420.948 --- PASS 2437 17.938 2427.989 2445.927 --- PASS 2462 17.876 2453.046 2470.922 --- PASS 11N40SISO Ant2 2422 36.172 2403.917 2440.089 --- PASS 2437 36.273 2418.841 2455.114 --- PASS 2452 36.341 2433.806 2470.147 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Test Graphs---Ant2 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 11G_Ant2_2412 11G_Ant2_2437 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 1.3 APPENDIX: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Total Limit[dBm] Verdict ANT1 ANT2 11B Ant1 2412 18.64 15.34 / <=30 PASS 2437 17.75 14.94 / <=30 PASS 2462 17.77 14.55 / <=30 PASS 11G Ant1 2412 8.02 16.10 / <=30 PASS 2437 18.02 16.04 / <=30 PASS 2462 17.44 15.30 / <=30 PASS 11N20SISO Ant1 2412 8.10 5.42 9.97 <=30 PASS 2437 7.80 5.62 9.86 <=30 PASS 2462 7.23 4.52 9.09 <=30 PASS 11N40SISO Ant1 2422 7.78 5.81 9.92 <=30 PASS 2437 7.76 5.12 9.65 <=30 PASS 2452 7.15 4.83 9.15 <=30 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Test Graphs---Ant2 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 11G_Ant2_2412 11G_Ant2_2437 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 1.4 APPENDIX: MAXIMUM POWER SPECTRAL DENSITY Test Result TestMode Antenna Channel Result Total Limit[dBm/3kHz] Verdict ANT1 ANT2 11B Ant1 2412 -8.16 -12.28 / <=8 PASS 2437 -9.41 -12.1 / <=8 PASS 2462 -9.47 -12.42 / <=8 PASS 11G Ant1 2412 -8.42 -11.28 / <=8 PASS 2437 -9.18 -11.51 / <=8 PASS 2462 -9.9 -12.34 / <=8 PASS 11N20SISO Ant1 2412 -19.52 -22.24 -17.66 <=8 PASS 2437 -19.09 -22.34 -17.41 <=8 PASS 2462 -20.02 -22.98 -18.24 <=8 PASS 11N40SISO Ant1 2422 -22.37 -24.58 -20.33 <=8 PASS 2437 -22.1 -25.36 -20.42 <=8 PASS 2452 -22.42 -25.02 -20.52 <=8 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Test Graphs 11B_Ant2_2412 11B_Ant2_2437 11B_Ant2_2462 11G_Ant2_2412 11G_Ant2_2437 11G_Ant2_2462 11N20SISO_Ant2_2412 11N20SISO_Ant2_2437 11N20SISO_Ant2_2462 11N40SISO_Ant2_2422 11N40SISO_Ant2_2437 11N40SISO_Ant2_2452 1.5 APPENDIX:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 9.34 -44.65 <=-20.66 PASS High 2462 8.12 -45.14 <=-21.88 PASS 11G Ant1 Low 2412 7.79 -44.92 <=-22.21 PASS High 2462 6.89 -46.34 <=-23.11 PASS 11N20SISO Ant1 Low 2412 -3.13 -49.86 <=-33.13 PASS High 2462 -3.81 -49.7 <=-33.81 PASS 11N40SISO Ant1 Low 2422 -5.84 -47.99 <=-35.84 PASS High 2452 -6.53 -48.79 <=-36.53 PASS Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant2 Low 2412 5.77 -48.24 <=-24.23 PASS High 2462 5.19 -49.19 <=-24.81 PASS 11G Ant2…

Text truncated - open the document above for the full version.

Page 1 of61 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Smart Mini Pro Projector Brand Mark : N/A Model No. : M1200S FCC ID : 2AW96-M1200S Report Number : BLA-EMC-202012-A1502 Date of Sample Receipt : 2020/12/3 Date of Test : 2020/12/3 to 2020/12/17 Date of Issue : 2021/01/15 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Telstar USA LLC 9817 Valley View Road, Eden Prairie, MN, US Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/01/15 Report No.: BLA-EMC-202012-A1502 Page 2 of61 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/01/15 Original Report No.: BLA-EMC-202012-A1502 Page 3 of61 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 14 1.1 LIMITS ................................................................................................................................................................... 14 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 1.3 PROCEDURE .......................................................................................................................................................... 15 1.4 TEST DATA .............................................................................................................................................................. 17 2 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 25 2.1 LIMITS ................................................................................................................................................................... 25 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 26 2.3 PROCEDURE .......................................................................................................................................................... 26 2.4 TEST DATA .............................................................................................................................................................. 28 3 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 32 3.1 LIMITS ................................................................................................................................................................... 32 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 32 3.3 TEST DATA .............................................................................................................................................................. 33 4 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 34 4.1 LIMITS ................................................................................................................................................................... 34 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 34 4.3 TEST DATA .............................................................................................................................................................. 35 5 POWER SPECTRUM DENSITY ............................................................................................................... 36 5.1 LIMITS ................................................................................................................................................................... 36 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 36 Report No.: BLA…

Text truncated - open the document above for the full version.

Model No.: M1200S
