2AW96-M280ASmart Mini Pro Projector

Quick Start Guide Smart Mini Pro Projector © 2020 Miroir USA, LLC. All rights reserved. Miroir and the Miroir logo are owned by Miroir USA, LLC. All other trademarks are the property of their respective owners. Miroir USA, LLC assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. © 2020 Miroir USA, LLC. Tous droits réservés. Miroir et le logo Miroir sont la propriété de Miroir USA, LLC. Toutes les autres marques commerciales sont la propriété de leurs propriétaires respectifs. Miroir USA LLC décline toute responsabilité pour toute erreur pouvant apparaître dans cette notice d’utilisation. Les informations contenues dans les présentes peuvent être modifiées sans préavis. © 2020 Miroir USA, LLC. Reservados todos los derechos. Miroir y el logotipo de Miroir son propiedad de Miroir USA, LLC. Todas las demás marcas comerciales son propiedad de sus respectivos propietarios. Miroir USA, LLC no asume ninguna responsabilidad por los errores que puedan aparecer en este manual. La información incluida aquí puede ser modificada sin previo aviso. © 2020 Miroir USA, LLC. Todos os direitos reservados. Miroir e o logótipo Miroir são propriedade da Miroir USA, LLC. Todas as outras marcas comerciais são propriedade dos respetivos proprietários. Miroir USA, LLC não assume qualquer responsabilidade por quaisquer erros que possam surgir neste manual. A informação contida no presente documento está sujeita a alterações sem aviso. © 2020 Miroir USA, LLC. Alle Rechte vorbehalten. Miroir und das Miroir-Logo sind Eigentum von Miroir USA, LLC. Alle anderen Warenzeichen sind das Eigentum ihrer jeweiligen Inhaber. Miroir USA, LLC haftet nicht für etwaige Fehler, die in dieser Bedienungsanleitung auftreten können. Die Informationen hierin können ohne Vorankündigung geändert werden. © 2020 Miroir USA, LLC. Tutti i diritti riservati. Miroir e il logo Miroir sono proprietà di Miroir USA, LLC. Tutti gli altri marchi registrati appartengono ai rispettivi proprietari. Miroir USA, LLC declina ogni responsabilità per eventuali errori in questo manuale. Le informazioni contenute in questo manuale possono subire modifiche senza preavviso. © 2020 Miroir USA, LLC. All rights reserved. MiroirおよびMiroirのロゴ は、Miroir USA, LLCの所有物です。その他全ての商標は、各所有者の財産です。本 マニュアルに誤りがある場合でも、Miroir USA, LLCはそれに対する責任を負いま せん。本書に記載されている情報は、通知なく変更される場合があります。 © 2020年美国Miroir公司版权所有。版权所有。Miroir品牌和Miroir 商标是属 于美国Miroir公司。其他所有商标均归各商标拥有者所有。Miroir对本手册中 可能出现的任何错误不承担任何责任。本手册中的信息可能会随时发生变动， 恕不另行通知 © 2020年美國Miroir公司版權所有。版權所有。 Miroir品牌和Miroir 商標是屬 於美國Miroir公司。其他所有商標均歸各商標擁有者所有。 Miroir對本手冊中 可能出現的任何錯誤不承擔任何責任。本手冊中的信息可能會隨時發生變動， 恕不另行通知 English ...................................2 Français .................................4 Español .................................6 Português .............................8 Deutsche .............................10 Italiano ..................................12 日本語 .....................................16 中文 ........................................18 23 5. Reset button - Performs a force restart 6. HDMI interface 7. 3.5 mm headphone socket 8. On/off button 9. Dust cover for lens - After connecting the power supply, slide the dust cover to reveal the lens. Product Overview and Powering on/off Performing a force restart If the system crashes or becomes unresponsive, insert a pointed object into the Reset button and wait for the white indicator to turn off, indicating that the projector has switched off. Then hold down the power button to restart the projector. Bluetooth speaker mode 1. To enable Bluetooth speaker mode, press the speaker button on the remote control. 2. You can also enable Bluetooth speaker mode by sliding the lens dust cover. Bluetooth speaker controls on remote control: Volume +/- button: Adjusts the volume. Speaker button: Returns to projector mode. The other buttons on the remote control have no function. Important After enabling Bluetooth speaker mode, keep the connected Bluetooth device within 10 m of the projector. Built-in Lithium-ion Battery This product contains a lithium-ion battery. Please note the following battery safety information: 1. If you do not plan to use the product for an extended period, charge the battery at least once every 3 months to prevent the battery from discharging. When storing the product for period of longer than one year, we recommend charging once per year to discharge and reactivate the battery. 2. After use, disconnect the power supply to avoid damaging the battery due to excessive charging. 3. Use the product at temperatures of 0 to 40°C with a relative humidity of 20-70% and keep it away from hot and humid environments and sources of heat. 4. Store the product in a dry place away from moisture and corrosive materials. 5. Do not use chemical cleaning products (e.g. soap or detergent) to clean the product. 6. Do not disassemble the product, subject it to impacts or falls, or place it in open flames or water. 7. If the battery inside the product expands, leaks or emits an odor, discontinue use immediately. 8. Do not use the product in strong electrostatic or electromagnetic environments, as this may damage the battery’s safety mechanism and present a safety hazard. 9. Do not use or store the product at high temperatures (e.g. in direct sunlight or in a hot vehicle), as this may cause the battery to overheat, catch fire or malfunction and reduce the battery’s lifespan. Getting Started 1. Place the product in a suitable location with the lens pointing at the projection surface. 2. Hold down the power button to turn on the projector. The white indicator will turn on and the system will load. 3. Follow the startup wizard or go to “System settings— Networks” and connect to your wireless network. 9 3 1 45678 2 1. System indicator - Switched on: Constant white 2. Charging indicator - Charging: Red Charging complete: Green 3. Power-in socket 4. USB 2.0 interface Your Miroir Projector Package contents and product specificat…

Text truncated - open the document above for the full version.

Telstar USA LLC Add: 9817 Valley View Road, Eden Prairie, MN, USA Tel: 9529413422 Fax: 9523889562 Email: [email protected] FCC Authorization Date: 2020/9/23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may conc e rn: We, Telstar USA LLC, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant Sincerely Yours, Client's signature 巨卢从b.;,心m Printed Name: Richard Erickson Title: CEO QA-FR-170-B

Telstar USA LLC Add: 9817 Valley V iew Road, Eden Prairie, MN, USA Tel: 9529413422 Fax: 9523889562 Email: [email protected] FCC Confidential Authorization Date: 2020/9/23 FEDERAL COMMUNICATIONS COMMISSIONS A uthorization and Evaluation Division 7435 Oakland Mills Road C olumb团，MD21046 S ubject: Confidentiality Request regarding application for certification of FCC ID: 2AW96-M280A In accordance with Sections 0.457 and 0.459 of the Commission's Rules, Telstar USA LLC hereby requests long-term confidential treatment of information accomp anying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential inforn诏tion not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: 炉 伈 从 历 i 心 汃 Printed Name: Richard Erickson Title: CEO QA-FR-171-A

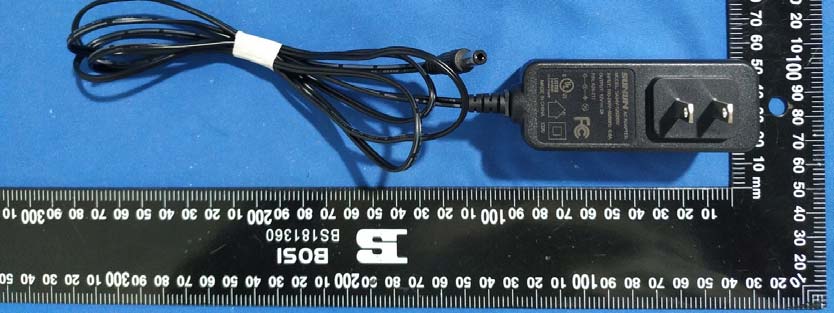

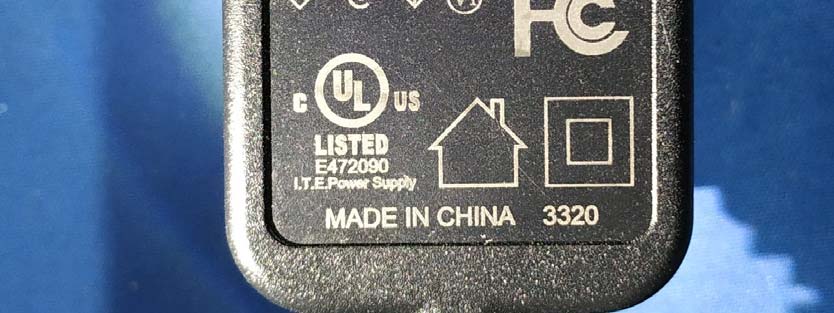

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

SN: AABBBBCCDDEE FFGGHHHHHHH MAC: NNNNNNNNNNNN FCC ID: 2AW96-M280A Smart Mini Pro Projector 7.4 1900 14.06

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS BT ANT WiFi ANT Chain 0 WiFi ANT Chain 1

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200812007-00B Page 13 of 68 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200812007-00B Page 14 of 68 Calculated Data: Operation Mode Frequency (MHz) Antenna Gain Conducted output power including Tune-up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) BDR/EDR 2402-2480 0 1.00 97.94 20.00 0.001 1.0 BLE 2402-2480 0 1.00 75.01 20.00 0.001 1.0 WLAN 2.4G 2412-2462 0 1.00 18 63.10 20.00 0.01 1.0 WLAN 5G 5180-5240 0 1.00 16 39.81 20.00 0.01 1.0 The WLAN and Bluetooth can transmit simultaneously: =S WLAN /S limit- WLAN + S BT /S limit-BT =0.001/1+0.01/1 =0.011 < 1.0 Result: The device meet FCC MPE at 20 cm distance

FCC PART 15.247 TEST REPORT For Telstar USA LLC 9817 Valley View Road, Eden Prairie, MN, USA Report Type: Original Report Product Name: Smart Mini Pro Projector Re port Number: RDG200812007-00B Re port Date: 2020-09-22 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AW96-M280A Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200812007-00B Page 2 of 68 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 SUPPORT CABLE LIST AND DETAILS .......................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 17 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 17 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 17 TEST DATA ................................................................................................................................................................ 18 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP ................................................................................................................................................................ 20 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 21 TEST PROCEDURE ...................................................................................................................................................... 21 CORRECTED AMPLITUDE & MARGIN CALCULATION .......…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission -front View Conducted Emission -Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
