2AW9J-BT3401LED Wireless Charging Bluetooth Speaker

FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Xindongsheng Electronic Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address: Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Product Name: LED Wireless Charging Bluetooth Speaker FCC ID: 2AW9J-BT3401 Model(s): BT3401, BT2301 2.911(d)(5)(i) Equipment Type We, Shenzhen Xindongsheng Electronic Technology Co., Ltd. certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Shaorong Lin Date: July 13, 2023 Title and Company name: CEO Shenzhen Xindongsheng Electronic Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Xindongsheng Electronic Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address: Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Product Name: LED Wireless Charging Bluetooth Speaker FCC ID: 2AW9J-BT3401 Model(s): BT3401, BT2301 2.911(d)(5)(ii) Applicant filing We, Shenzhen Xindongsheng Electronic Technology Co., Ltd. certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Shaorong Lin Date: July 13, 2023 Title and Company name: CEO Shenzhen Xindongsheng Electronic Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

JOC Australia Inc * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter DATE 2023/7/13 ATTN.: Reviewing Engineer FCC ID: 2AW9J-BT3401 Per section 2.911(d)(7) of the FCC rules, Shenzhen Xindongsheng Electronic Technology Co., Ltd. certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: JOC Australia Inc . FRN: 0033379421 Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights, California, 91748 United States of America Agent name: Benjamin. Smith/Vice President Agent Email Address: [email protected]/[email protected] Tel: +1(626)217 4778 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Shaorong Lin Title: CEO Company Name: Shenzhen Xindongsheng Electronic Technology Co., Ltd. Date: 7/13/2023 Agent Signed (if different to Applicant): Signed: Printed name: Benjamin. Smith Title: Vice President Company Name: JOC Australia Inc Date: 7/14/2023

Shenzhen Xindongsheng Electronic Technology Co., Ltd. Letter of Authorization Company: Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address: Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Product Name: LED Wireless Charging Bluetooth Speaker Model Number(s): BT3401, BT2301 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-07-13 Name: Shaorong Lin Title: CEO Company: Shenzhen Xindongsheng Electronic Technology Co., Ltd.

2023-7-13 Name Shaorong Lin Position CEO Company Name Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Tel +8613728642627 Fax / Email [email protected] Differences Description We Shenzhen Xindongsheng Electronic Technology Co., Ltd. state: Product name: LED Wireless Charging Bluetooth Speaker Model: BT3401, BT2301 There is no difference except the name of the model. (Signature)

Shenzhen Xindongsheng Electronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 13, 2023 Subject; Request for Confidentiality FCC ID: 2AW9J-BT3401 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shaorong Lin Title: CEO

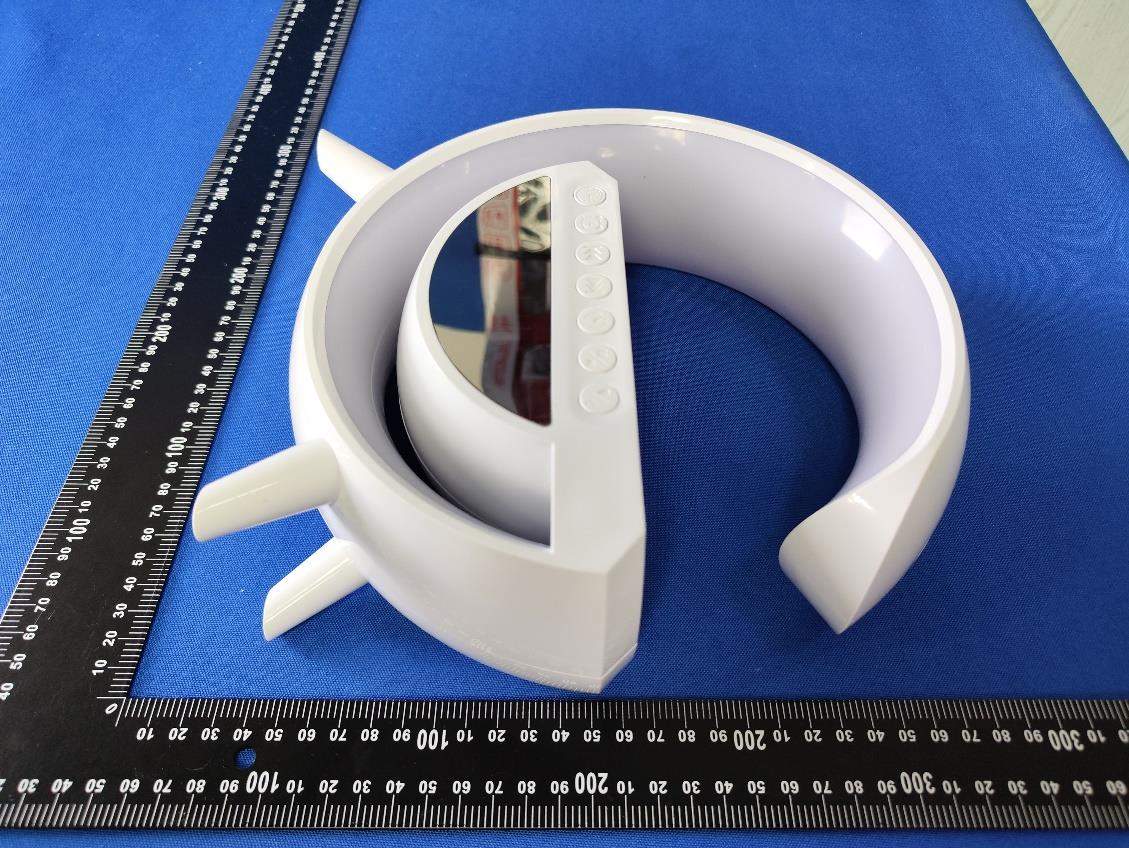

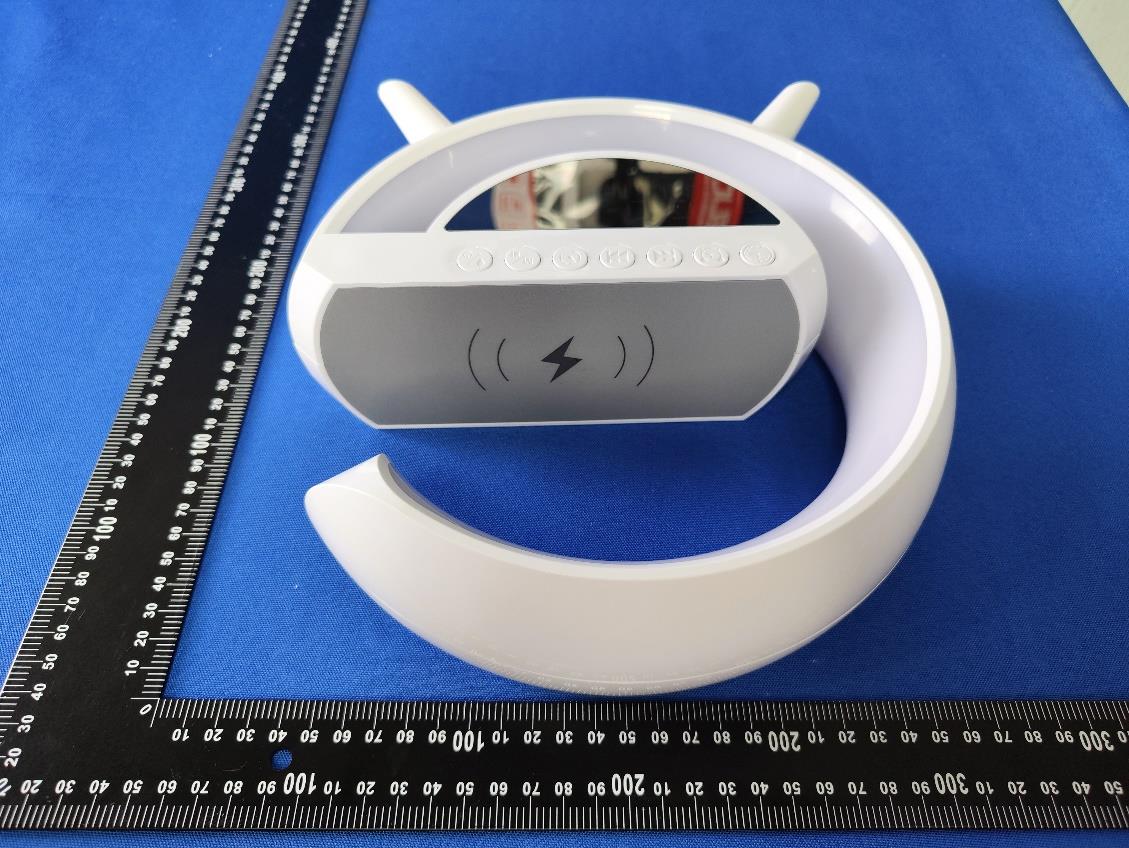

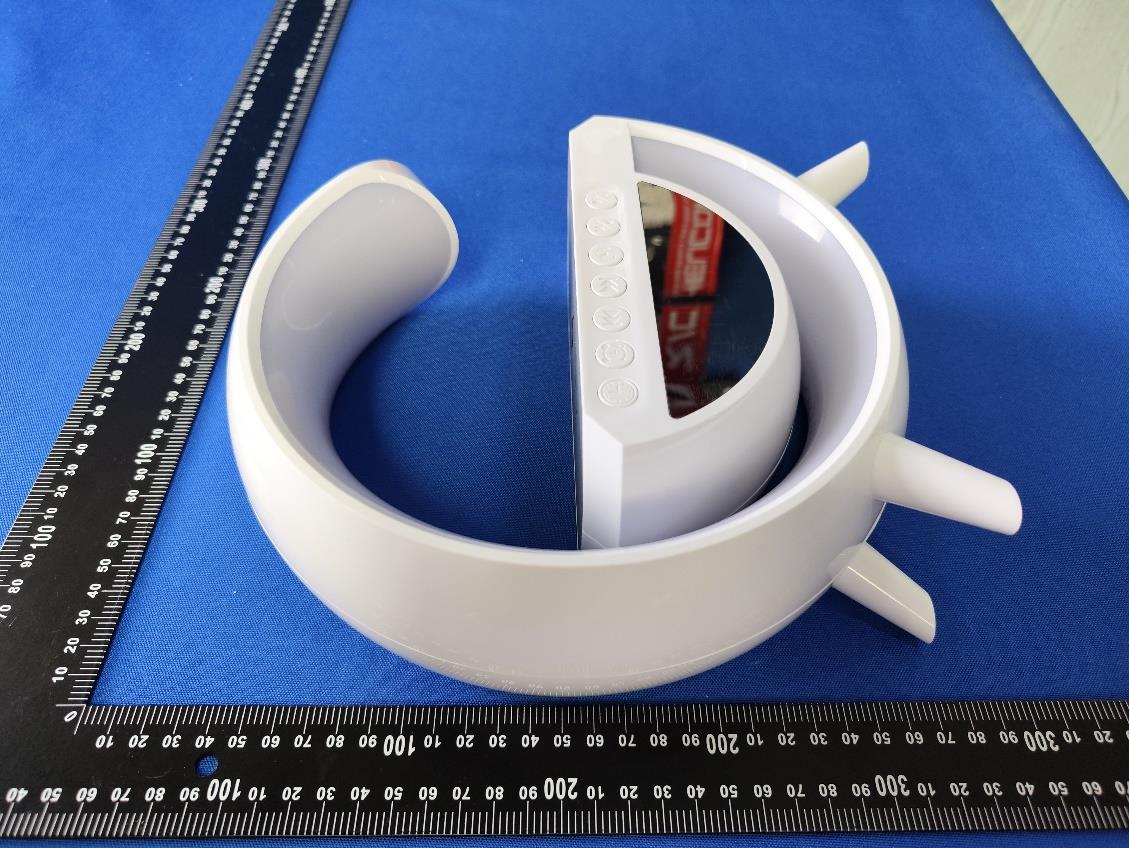

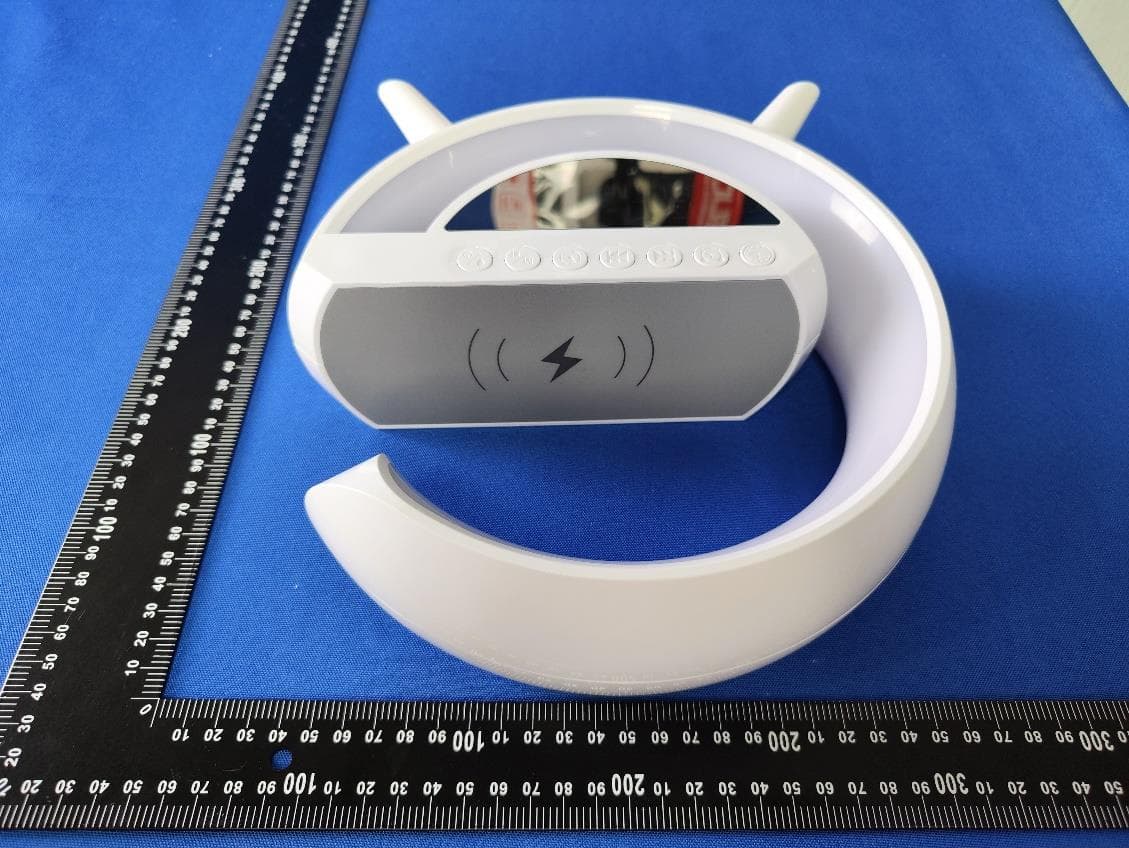

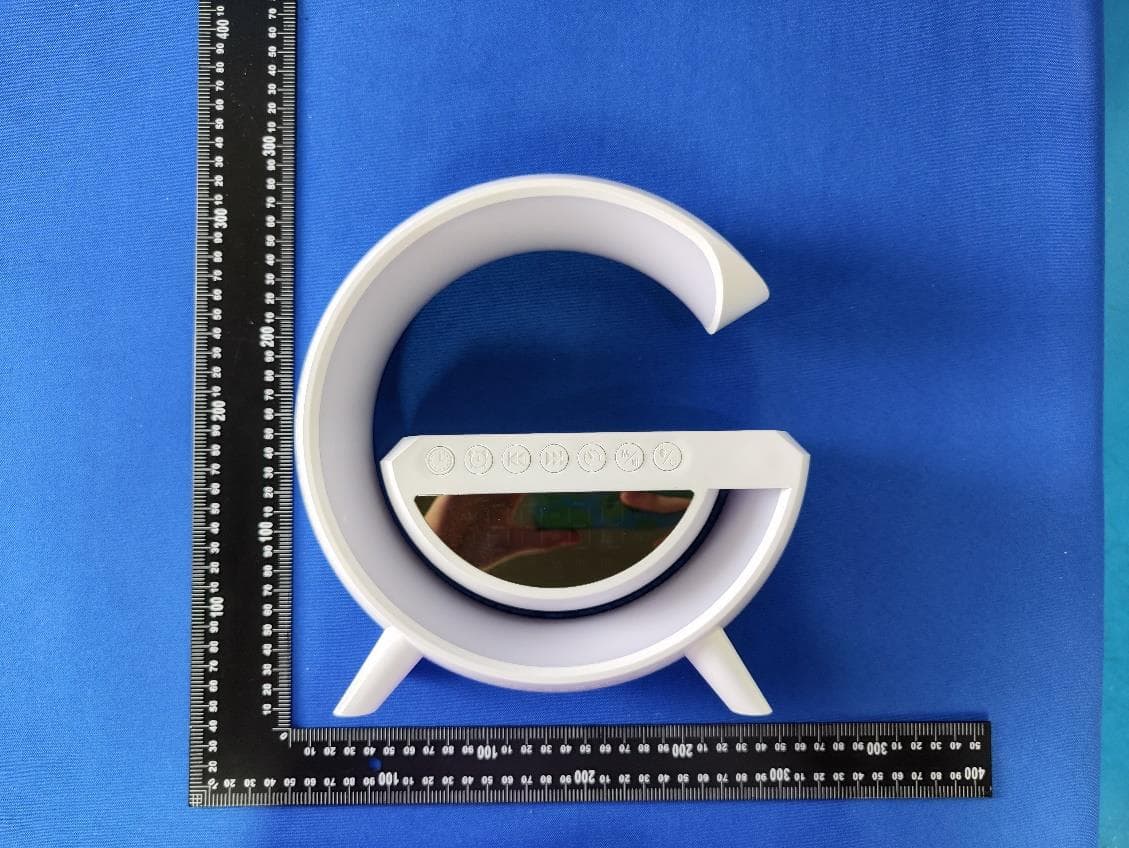

FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401

4.5cm 2.5cm Label Location FCC ID: 2AW9J-BT3401 Shenzhen Xindongsheng Electronic Technology Co., Ltd. Product name: LED Wireless Charging Bluetooth Speaker This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 BT ANT Coil ANT FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401

FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401 FCC ID: 2AW9J-BT3401

FCC ID: 2AW9J-BT3401 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna 3. Result FCC ID: 2AW9J-BT3401 Mode Frequency (MHz) Prediction distance (cm) RF output power MAX tune-uppower MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm dBm mW BT EDR 2441 20 -3.586 -2 0.6310 0.0002 1 Yes BT Antenna Gain: 1.3dBi In summary, SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008-3008-95 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2AW9J-BT3401 On Behalf of Shenzhen Xindongsheng Electronic Technology Co., Ltd. LED Wireless Charging Bluetooth Speaker Model No.: BT3401, BT2301 Prepared for : Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address : Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2307002-C01-R01 Date of Receipt : July 4, 2023 Date of Test : July 4, 2023- July 10, 2023 Date of Report : July 10, 2023 Version Number : V0 Page 2 of 76 Report No.: A2307002-C01-R01 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ...................................................................................... 6 1.1. Description of Standards and Results .................................................................... 6 2. General Information .................................................................................................................. 7 2.1. Description of Device (EUT) .................................................................................... 7 2.2. Accessories of Device (EUT) .................................................................................. 8 2.3. Tested Supporting System Details ......................................................................... 8 2.4. Block Diagram of connection between EUT and simulators .............................. 8 2.5. Test Mode Description .............................................................................................. 8 2.6. Test Conditions .......................................................................................................... 9 2.7. Test Facility ................................................................................................................ 9 2.8. Measurement Uncertainty ........................................................................................ 9 2.9. Test Equipment List ................................................................................................ 10 3. Maximum Peak Output power ............................................................................................... 12 3.1. Limit ........................................................................................................................... 12 3.2. Test Procedure ........................................................................................................ 12 3.3. Test Setup ................................................................................................................ 12 3.4. Test Result................................................................................................................ 12 4. Bandwidth ................................................................................................................................ 13 4.1. Limit ........................................................................................................................... 13 4.2. Test Procedure ........................................................................................................ 13 4.3. Test Result................................................................................................................ 13 5. Carrier Frequency Separation ............................................................................................... 24 5.1. Limit ........................................................................................................................... 24 5.2. Test Procedure ........................................................................................................ 24 5.3. Test Result................................................................................................................ 24 6. Number Of Hopping Channel ................................................................................................ 26 6.1. Limit ........................................................................................................................... 26 6.2. Test Procedure ........................................................................................................ 26 6.3. Test Result................................................................................................................ 26 7. Dwell Time ............................................................................................................................... 28 7.1. Test limit .................................................................................................................... 28 7.2. Test Procedure ........................................................................................................ 28 7.3. Test Result................................................................................................................ 28 8. Radiated emissions ................................................................................................................ 38 8.1. Limit ........................................................................................................................... 38 8.2. Block Diagram of Test setup .................................................................................. 39 8.3. Test Procedure ........................................................................................................ 40 8.4. Test Result................................................................................................................ 40 9. Band Edge Compliance ...........…

Text truncated - open the document above for the full version.

Page 46 of 76 Report No.: A2307002-C01-R01 Conducted RF Spurious Emission Tx. Spurious NVNT 1-DH1 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH1 2402MHz Ant1 Emission Page 47 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 1-DH1 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH1 2441MHz Ant1 Emission Page 48 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 1-DH1 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH1 2480MHz Ant1 Emission Page 49 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 2-DH1 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH1 2402MHz Ant1 Emission Page 50 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 2-DH1 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH1 2441MHz Ant1 Emission Page 51 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 2-DH1 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH1 2480MHz Ant1 Emission Page 52 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 3-DH1 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH1 2402MHz Ant1 Emission Page 53 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 3-DH1 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH1 2441MHz Ant1 Emission Page 54 of 76 Report No.: A2307002-C01-R01 Tx. Spurious NVNT 3-DH1 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH1 2480MHz Ant1 Emission Page 55 of 76 Report No.: A2307002-C01-R01 9. BAND EDGE COMPLIANCE 9.1. Block Diagram of Test Setup 9.2. Limit All the lower and upper band-edges emissions appearing within restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 9.3. Test Procedure All restriction band and non- restriction band have been tested ，only worse case is reported. 9.4. Test Result PASS. (See below detailed test data) Page 56 of 76 Report No.: A2307002-C01-R01 Test Mode: GFSK-Low Hopping-off Test Mode: GFSK-High Hopping-off Test Mode: GFSK-Low Hopping-on Test Mode: GFSK-High Hopping-on Note: 1. *:Maximum data; x:Over limit; !:over margin. 2.Measurement=Reading Level+Correct Factor; Correct Factor=Antenna Factor+Cable Loss. Page 57 of 76 Report No.: A2307002-C01-R01 Test Mode: π/4 DQPSK-Low Hopping-off Test Mode: π/4 DQPSK-High Hopping-off Test Mode: π/4 DQPSK-Low Hopping-on Test Mode: π/4 DQPSK-High Hopping-on Note: 1. *:Maximum data; x:Over limit; !:over margin. 2.Measurement=Reading Level+Correct Factor; Correct Factor=Antenna Factor+Cable Loss. Page 58 of 76 Report No.: A2307002-C01-R01 Test Mode: 8DPSK-Low Hopping-off Test Mode: 8DPSK-High Hopping-off Test Mode: 8DPSK-Low Hopping-on Test Mode: 8DPSK-High Hopping-on Note: 1. *:Maximum data; x:Over limit; !:over margin. 2.Measurement=Reading Level+Correct Factor; Correct Factor=Antenna Factor+Cable Loss. Page 59 of 76 Report No.: A2307002-C01-R01 Conducted Method Band Edge NVNT 1-DH1 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH1 2402MHz Ant1 No-Hopping Emission Page 60 of 76 Report No.: A2307002-C01-R01 Band Edge NVNT 1-DH1 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH1 2480MHz Ant1 No-Hopping Emission Page 61 of 76 Report No.: A2307002-C01-R01 Band Edge NVNT 2-DH1 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH1 2402MHz Ant1 No-Hopping Emission Page 62 of 76 Report No.: A2307002-C01-R01 Band Edge NVNT 2-DH1 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH1 2480MHz Ant1 No-Hopping Emission Page 63 of 76 Report No.: A2307002-C01-R01 Band Edge NVNT 3-DH1 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH1 2402MHz Ant1 No-Hopping Emission Page 64 of 76 Report No.: A2307002-C01-R01 Band Edge NVNT 3-DH1 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH1 2480MHz Ant1 No-Hopping Emission Page 65 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 1-DH1 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH1 2402MHz Ant1 Hopping Emission Page 66 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 1-DH1 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH1 2480MHz Ant1 Hopping Emission Page 67 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 2-DH1 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2402MHz Ant1 Hopping Emission Page 68 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 2-DH1 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH1 2480MHz Ant1 Hopping Emission Page 69 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 3-DH1 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2402MHz Ant1 Hopping Emission Page 70 of 76 Report No.: A2307002-C01-R01 Band Edge(Hopping) NVNT 3-DH1 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH1 2480MHz Ant1 Hopping Emission Page 71 of 76 Report No.: A2307002-C01-R01 10. POWER LINE CONDUCTED EMISSIONS 10.1.Block Diagram of Test Setup 10.2.Limit Frequency Maximum RF Line Voltage Quasi-Peak Level dB(V) Average Level dB(V) 150kHz ~ 500kHz 66 ~ 56* 56 ~ 46* 500kHz ~ 5MHz 56 46 5MHz ~ 30MHz 60 50 Notes: 1. * Decreasing linearly with logarithm of frequency. 2. The lower limit shall apply at the transition frequencies. 10.3.Test Procedure (1) The EUT was placed on a non-metallic table, 80cm above the ground plane. (2) Setup the EUT and simulator as shown in 10.1 (3) The EUT Power connected to the power mains through a power adapter and a line impedance stabilization network (L.I.S.N1). The other peripheral devices power cord connected to the power mains through a line impedance stabilization network (L.I.S.N2), this provided a 50-ohm coupling impedance for the EUT (Please refer to the block diagram of the test setup and photographs). Both sides of power line were checked for maximum conducted interference. In order to find the maximum emission, the relative positions of equipments and all of the interface cables were changed according to ANSI C63.10 :2013on conducted Emission test. (4) The bandwidth of test receiver is set at 10KHz. (5) The frequency range from 150 KHz to 30MHz is checked. 10.4.Test Result PASS. (See below detailed test data) Note: If peak Result comply with AV limit, QP and AV Result is deemed to comply with AV limit EUT LISN LISN PC System 80c…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Antenna module on the system board Frequency 2.45GHz*1 Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -2.3 (Input pwr – loss pwr) Peak EIRP(dBm) 1.3 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) -2.3 (58.5%) Gain (dBi) 1.3 (Peak Gain XY-plane) Maximum Power (dBm) 1.3 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Max/Min Ratio (dB) 5.3(XY-plane) Max/Avg Ratio (dB) 1.8(XY-plane) Min/Avg Ratio (dB) -3.5(XY-plane) Average Gain (dB) -0.5 (Avg Gain XY-plane) Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficien cy PeakAvg . PeakAvg . PeakAvg . Module Board 1.3 -0.5 1.7 -3.8 1.1 -3.0 58.5% Antenna module on the system board Frequency 2.45GHz*1 Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -2.3 (Input pwr – loss pwr) Peak EIRP(dBm) 1.3 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) -2.3 (58.5%) Gain (dBi) 1.3 (Peak Gain XY-plane) Maximum Power (dBm) 1.3 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Max/Min Ratio (dB) 5.3(XY-plane) Max/Avg Ratio (dB) 1.8(XY-plane) Min/Avg Ratio (dB) -3.5(XY-plane) Average Gain (dB)-0.5 (Avg Gain XY-plane) Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficien cy PeakAvgPeakAvgPeakAvg Internal antenna Manufacturer: Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address: Xinzhongtai Science Park, Zhu’ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

FCC ID: 2AW9J-BT3401 Photo of Radiated Emission test FCC ID: 2AW9J-BT3401 Photo of Conducted Emission test
