2AW9J-S318White Noise Machine

S318 White Noise Machine USER MANUAL AUVODA Technical Parameter • Model Name: S318 • Output Power: 5W x 1 • Wireless Frequency: 2.4 GHz - 2.48GHz • Transmission Distance: 10 m (32.8 ft) • Frequency Response Range: 50 Hz - 20 kHz • Total Signal-to-Noise Ratio (SNR): ≥ 75 dB • Built-in Lithium Battery Voltage: 3.7 V • Built-in Lithium Battery Capacity: 1000 mAh • Charging Input: DC 5 V / 500 mA • Product Dimension: Ø82 × H41 mm (Ø3.23 × H1.61in) • Net Weight: 170 g (6.0 oz) Package Contents • 1 × White Noise Machine • 1 × USB Charging Cable • 1 × User Manual Operating Instructions 1, Power On / Power Off Long press Button 2 to power on or power off the device. 2, Pause / Play Short press Button 2 to pause or play. 3, Volume + / Volume - Short press Button 1 to increase the volume. Short press Button 5 to decrease the volume. 4, Previous Track / Next Track Long press Button 1 to skip to the next track. Long press Button 5 to skip to the previous track. 5, Night Light Long press Button 4 to turn on/off the night light. Short press Button 4 to switch light modes. Note: When the night light is turned off during light mode switching by short-pressing Button 4, short-press Button 4 to turn it on again. 6,Timer Short press Button 3 to set the timer, with options of 30 mins / 60 mins / 90 mins / 120 mins. The timer is successfully set when the corresponding indicator light illuminates, and the device will automatically turn off once the set time has elapsed. 7,Natural Sounds Short press Button 6 to turn on or switch between Natural Sounds. 8,White Noise Short press Button 7 to turn on or switch between White Noise types. 9,Lullabies Short press Button 8 to turn on or switch between Lullabies types. Functional Features Valid for one year from the date of purchase, the warranty does not cover the following malfunctions caused by user behavior: 1, Malfunctions resulting from unauthorized disassembly and modification of the device. 1, Bluetooth Speaker Function Long press Button 3 to enter Bluetooth speaker mode. Search for and connect to the Bluetooth device S318 via your mobile phone or other Bluetooth-enabled playback devices. The device can then play all audio content through its built-in speaker. 2, Memory Function The white noise machine retains your last audio and light settings. Once the machine is turned on, it will automatically restore the last used settings. Note: Volume and timer settings are not retained. 3,Runtime It can operate for approximately 4-6 hours at 50% volume when fully charged. 4,Auto Shutdown Function Once the timer elapses, the machine will automatically shut down. Warranty and After-Sales Service 2, Malfunctions caused by accidental drops during use or transportation. 3, Malfunctions due to failure to operate the device in accordance with the correct instructions in the user manual. Note: If there are any missing parts in the product upon receipt or you have any questions regarding the operation of this product, please contact the seller in a timely manner. We will provide you with our most dedicated service. Safety Instructions 1, Use a USB cable only. 2, Check adapter marked voltage matches local mains voltage before power connection. 3, Keep away from water/humid environments (e.g., bathroom). 4, Turn off power when not in use. Product Diagrams Button 1 Button 2 Button 3 Button 4 Button 5 Button 8 (Volume+)(Volume-) (Natural Sounds) (White Noise) (Lullabies) (Power On/Off / Pause) (Toggle BT Speaker (Night Light) Mode / Timer) Button 7 Button 6 FCC Statement This device complies with Part 15 of the FCC rules. Operation i s subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including in terference that may cause undesired operation. Note: This equipment has been tested and found to comply with t he limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These l imits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency e nergy and, if not installed and used in accordance with the instructions, may cau se harmful interference to radio communications. However, there is no guar antee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which ca n be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different f rom that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party re sponsible for compliance could void the user’s authority to operate the equip ment. Radiation Exposure Statement This device complies with RF radiation exposure limits set fort h for an uncontrolled environment. The device can be used in portable exposure condition without restriction.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AW9J-S318 S318, S321, S317, S319, S322, S323, S325, S326, S327, S328, S329 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2026-2-6 Signature Date: 2026-2-6 Company Name: GLOCERTS TECHNOLOGY INC Shenzhen Xindongsheng Electronic Technology Co., Ltd. FRN: 0036339737 0034330175 Contact Name: Huiying Fan Shaorong Lin Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 Xinzhongtai Science Park, Zhu'ao Third Industrial Zone, Gushu Community, Xixiang street Phone: (626) 588-8039 8613728642627 Email: [email protected] [email protected]

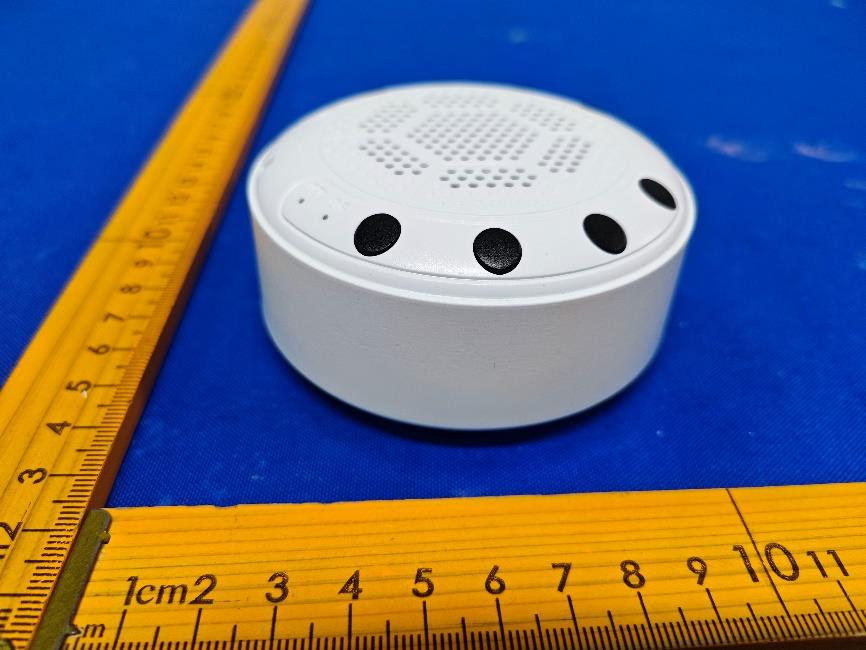

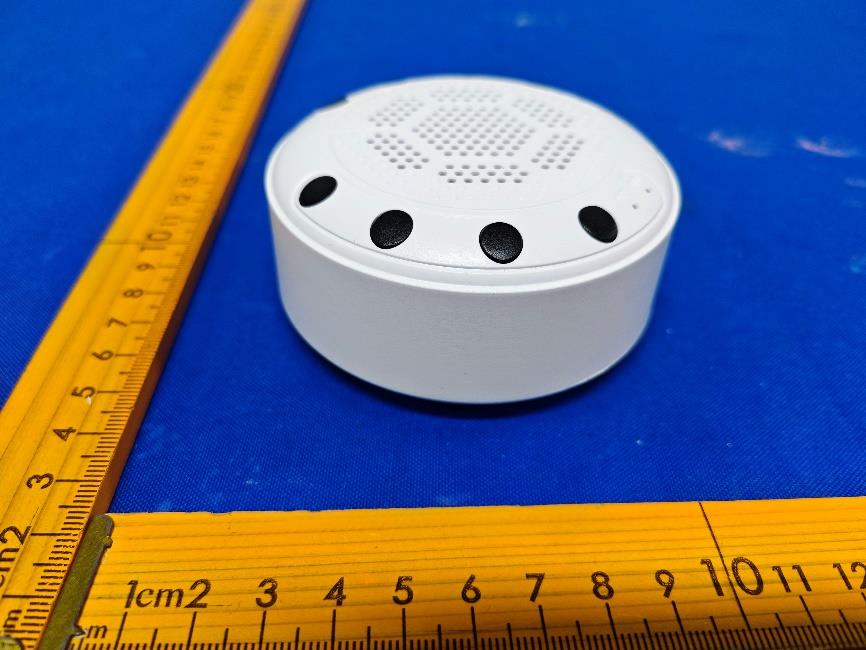

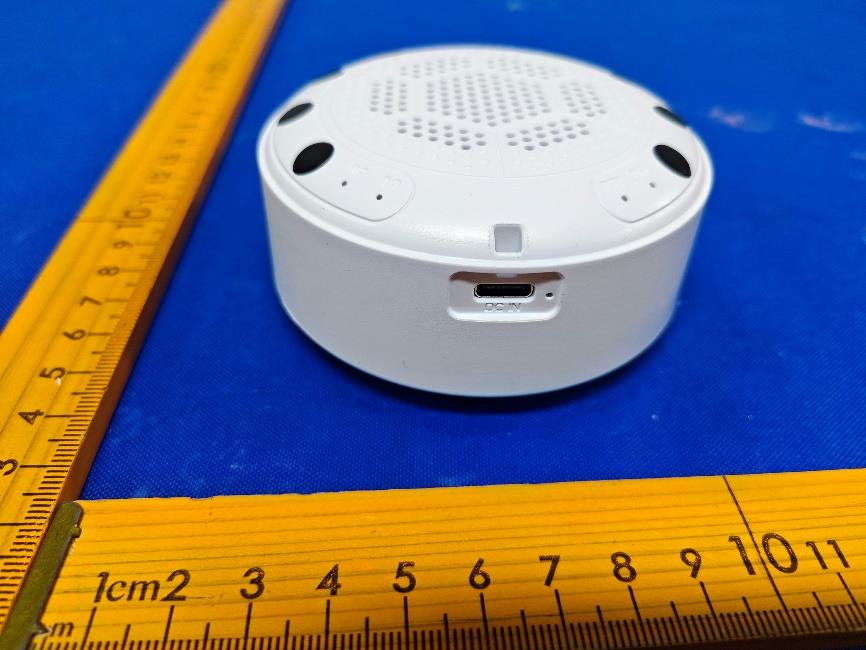

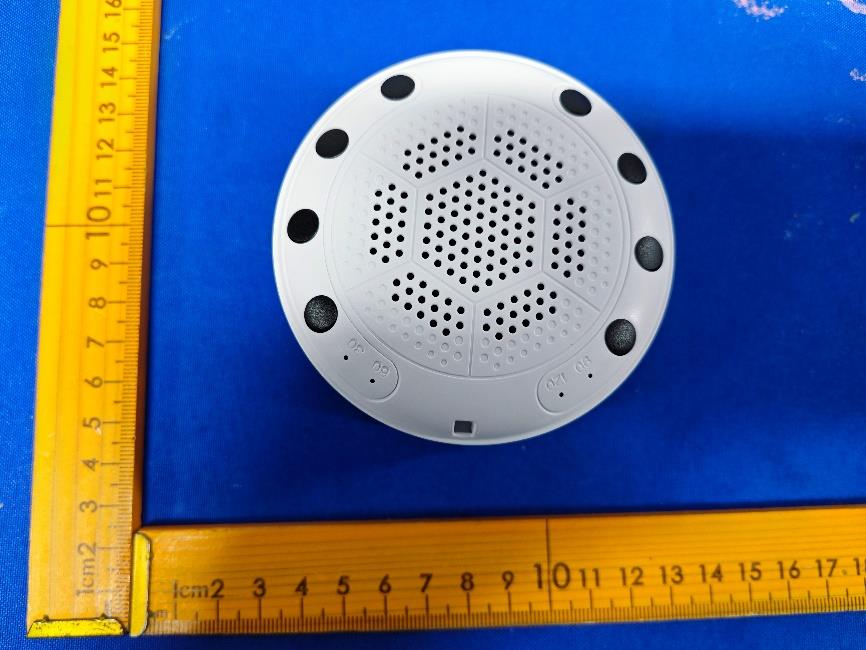

Page 1 of 2 FCC ID: 2AW9J-S300 External Photos Page 2 of 2 FCC ID: 2AW9J-S300

Label 1. The label is silk-screen on the sample FCC ID:2AW9J-S318

Page 1 of 2 FCC ID: 2AW9J-S300 Internal photos BT ANT Page 2 of 2 FCC ID: 2AW9J-S300

Page 1 of 7 Report No.:AiTSZ-260203090FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : White Noise Machine Brand Name : N/A Model : S318 Series Model : S321, S317, S319, S322, S323, S325, S326, S327, S328, S329 FCC ID : 2AW9J-S318 Applicant : Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address : Xinzhongtai Science Park, Zhu'ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Manufacturer : Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address : Xinzhongtai Science Park, Zhu'ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Feb. 03, 2026 Date of Test : Feb. 03, 2026~ Feb. 07, 2026 Issued Date : Feb. 08, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.:AiTSZ-260203090FW2 Report Revise Record Report Version Issued Date Notes M0 Feb. 08, 2026 Initial Release Page 3 of 7 Report No.:AiTSZ-260203090FW2 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................... 6 2.1 APPLICABLE STANDARD.................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.:AiTSZ-260203090FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: White Noise Machine Model/Type reference: S318 Serial Model: S321, S317, S319, S322, S323, S325, S326, S327, S328, S329 Model difference: All models are same as the samples except model name, all the models are electrical identical same mechanical structure and design. Power Supply: DC 3.7V from battery or DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-250321019-1(Normal sample) AiTSZ-250321019-2(Engineer sample) Bluetooth: Supported type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: PCB antenna Antenna gain: 1.7dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 7 Report No.:AiTSZ-260203090FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.:…

Text truncated - open the document above for the full version.

Page 1 of 34 Report No.:AiTSZ-260203090FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : White Noise Machine Brand Name : N/A Model : S318 Series Model : S321, S317, S319, S322, S323, S325, S326, S327, S328, S329 FCC ID : 2AW9J-S318 Applicant : Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address : Xinzhongtai Science Park, Zhu'ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Manufacturer : Shenzhen Xindongsheng Electronic Technology Co., Ltd. Address : Xinzhongtai Science Park, Zhu'ao Third Industrial Zone, Gushu Community, Xixiang street, Baoan Shenzhen, Guangdong, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Feb. 03, 2026 Date of Test : Feb. 03, 2026~ Feb. 07, 2026 Issued Date : Feb. 08, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 34 Report No.:AiTSZ-260203090FW1 Report Revise Record Report Version Issued Date Notes M0 Feb. 08, 2026 Initial Release Page 3 of 34 Report No.:AiTSZ-260203090FW1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 28 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 29 4 TEST SETUP PHOTOGRAPHS OF EUT ..............................…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Antenna typePCB Frequency2.400-2.500GHz*1 Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm)-2.3 (Input pwr – loss pwr) Peak EIRP(dBm)1.7 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Address: No.333 Kexing Road, Nanping Science Park, Xiangzhou District, Zhuhai Antenna Gain XY-planeXZ-planeYZ-plane Unit in dBi @2.44GHz PeakAvg.PeakAvg.PeakAvg. Efficiency Module Board 1.3-0 .51.7-3 .81.1-3 .058.5% The Environment of Antenna Radiation Pattern 3D radiation pattern diagram Far-field power Distribution(H+V)on Y-X PlaneFar-field power Distribution(H+V)on X-Z PlaneFar-field power Distribution(H+V)on Y-Z Plane Plot peak Gain(H+V)=1.35dbi;plot AvgGain(H+V)[email protected] peak Gain(H+V)=1.68dbi;plot AvgGain(H+V)[email protected] peak Gain(H+V)=1.11dBi;plot AvgGain(H+V)[email protected] XY-planeXZ-planeYZ-plane

Page 1 of 52 Report No.:AiTSZ-260203090FW1 Appendix RF test data for BT Page 2 of 52 Report No.:AiTSZ-260203090FW1 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.895 / Pass 2441 DH5 1 0.891 / Pass 2480 DH5 1 0.879 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.186 / Pass 2441 2DH5 1 1.177 / Pass 2480 2DH5 1 1.175 / Pass 8DPSK SISO 2402 3DH5 1 1.190 / Pass 2441 3DH5 1 1.188 / Pass 2480 3DH5 1 1.186 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.999 / Pass 2441 DH5 1 1.016 / Pass 2480 DH5 1 0.959 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.317 / Pass 2441 2DH5 1 1.325 / Pass 2480 2DH5 1 1.315 / Pass 8DPSK SISO 2402 3DH5 1 1.310 / Pass 2441 3DH5 1 1.310 / Pass 2480 3DH5 1 1.303 / Pass Page 3 of 52 Report No.:AiTSZ-260203090FW1 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 4 of 52 Report No.:AiTSZ-260203090FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 5 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 6 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 7 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 8 of 52 Report No.:AiTSZ-260203090FW1 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 9 of 52 Report No.:AiTSZ-260203090FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 10 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 11 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 12 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 13 of 52 Report No.:AiTSZ-260203090FW1 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 -0.08 <=20.97 Pass 2441 DH5 -0.91 <=20.97 Pass 2480 DH5 -1.61 <=20.97 Pass Pi/4DQPSK SISO 2402 2DH5 0.84 <=20.97 Pass 2441 2DH5 0.12 <=20.97 Pass 2480 2DH5 -0.57 <=20.97 Pass 8DPSK SISO 2402 3DH5 1.22 <=20.97 Pass 2441 3DH5 0.47 <=20.97 Pass 2480 3DH5 -0.22 <=20.97 Pass Page 14 of 52 Report No.:AiTSZ-260203090FW1 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Page 15 of 52 Report No.:AiTSZ-260203090FW1 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Page 16 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Page 17 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Page 18 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Page 19 of 52 Report No.:AiTSZ-260203090FW1 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.990 1.016 >=0.677 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.325 >=0.883 Pass 8DPSK SISO HOPP 3DH5 0.994 1.310 >=0.873 Pass Page 20 of 52 Report No.:AiTSZ-260203090FW1 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 21 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 22 of 52 Report No.:AiTSZ-260203090FW1 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Page 23 of 52 Report No.:AiTSZ-260203090FW1 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 24 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HOPP_Ant1_NTNV Page 25 of 52 Report No.:AiTSZ-260203090FW1 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.386 31.600 319 123.134 <=400 Pass DH3 1.646 31.600 163 268.298 <=400 Pass DH5 2.894 31.600 116 335.704 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 316 125.136 <=400 Pass 2DH3 1.648 31.600 170 280.160 <=400 Pass 2DH5 2.896 31.600 110 318.560 <=400 Pass 8DPSK SISO HOPP 3DH1 0.396 31.600 320 126.720 <=400 Pass 3DH3 1.650 31.600 155 255.750 <=400 Pass 3DH5 2.904 31.600 108 313.632 <=400 Pass Page 26 of 52 Report No.:AiTSZ-260203090FW1 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV Page 27 of 52 Report No.:AiTSZ-260203090FW1 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV Page 28 of 52 Report No.:AiTSZ-260203090FW1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Page 29 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Page 30 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Pi/4DQPSK_2DH3_HOPP_Ant1_NTNV Page 31 of 52 Report No.:AiTSZ-260203090FW1 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Page 32 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH1_HOPP_Ant1_NTNV 8DPSK_3DH1_HOPP_Ant1_NTNV Page 33 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH3_HOPP_Ant1_NTNV 8DPSK_3DH3_HOPP_Ant1_NTNV Page 34 of 52 Report No.:AiTSZ-260203090FW1 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Page 35 of 52 Report No.:AiTSZ-260203090FW1 6. Unwanted Emissions In Non-restricted Frequency Bands 6.1 Test Result 6.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 -0.24 2441 DH5 1 -1.05 2480 DH5 1 -1.69 Pi/4DQPSK SISO 2402 2DH5 1 -0.19 2441 2DH5 1 -0.92 2480 2DH5 1 -1.56 8DPSK SISO 2402 3DH5 1 -0.24 2441 3DH5 1 -0.9…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AW9J-S300 Page 2 of 2 FCC ID: 2AW9J-S300
