2AWC2-AIRH201NUWA ROBOT

Product User Manual Please read this manual carefully prior to use and keep it for future reference. Thank you for choosing Kebbi Air! Kebbi is a robot consisting of education, accompanianship, and services. The R&D team integrates artificial intelligence, hardware and software technologies, so that the robot has full facial expressions, body movements and communication and interaction capabilities. Also, the team uses voice interaction and body sensor technology to vividly present a variety of education and service. Robots enable digital content to jump out of the screen and enter the real world. We believe that the interactive form brought by robots can provide users with affectionate and warm-hearted companionship experience. The R&D team uses design thinking to explore human needs, combining various theories and trends of interactive experience as the design direction of hardware, software, and content applications. Kebbi Air is more than a multifunctional robot, it touches people's true feelings. Kebbi Air is endowed with infinite possibility. When parents and kids are having fun together, it plays the role of a learning tutor. When a store is in need of a clerk, it serves as a little assistant. When the elderly needs help, it becomes a little helper. Through various development tools, you may also leverage your imagination, building your own robot partner. Now, invite Kebbi Air to be your partner and move forward together in the future! 01 Please carefully check the contents of the box. If anything is missing or damaged, please contact our customer service representatives. The charger in the accessory package is a OEM charger. Please avoid using any other brand charging cables in order to keep the robot working appropriately. Please read this User Manual thoroughly to ensure correct and safe use of this product. Regularly check the charging cable, connector, and outer casing for damage. If damage is found, do not use until repaired. 1. 2. 3. 4. 02 Accessory ListKebbi Air OEM charger 使用說明書 使用前請仔細閱讀本使用說明書並妥善保存 User ManualQuick-Start Guide Kebbi air Product Introduction Ear accessory styles may differ 恭喜你成為機器人的父母，相信你已經做好心理準備要迎接這新來的小生命。本手 冊會引導您完成機器人的第一次啟動，以及如何與他溝通、互動的使用指南，若你想 了解更多，我們的官網有完整詳細的介紹，希望您能享受與機器人生活的點點滴滴。 凱比AIR快速育兒指南 Ear Accessory NUWA APPs Nuwa CodeLab NuwaSpace Help Cneter User Mnaual Official website Listening LED Indicator 7" Touch Panel Power LED Indicator Touch Area (Belly) Status LED Indicator Touch Area (Hands) PIR Sensor IR Drop Sensor Product Description Product Introduction 03 Camera Charging Port Return to Home Screen, Turn On / Off (Please refer to Page 8 for more details) There are 5 Touch Sensing Areas: Head, left and right Cheeks, Belly, left and right Hands. Please remember to touch Kebbi gently. PIR Sensor: Senses whether there is anyone passing by in front of Kebbi. Please use with the orginal OEM charger. Home Screen / Power Button Touch Area PIR Sensor USB Type C Charging Port Touch Area (Head) Touch Area (Cheeks) Speakers Microphone Micro SD Card Slot Home (Power) Button Charging Indicator (next to the lens) Power LED Indicator Information ColorIndicatorStatusDescription Blue Steady blue light System is normal Orange Steady orange light Low battery (less than 15%). Red Steady red light Very low battery (less than 5%) - Please charge the robot. Please charge the robot. Status Indicator on the chest Green Flashing green light Charging Blinking green light means one of two things: 1. The battery is fully charged 2. The battery is too low, please continue charging for 10 minutes Please refer to P. 14 for more information Safety Instructions 04 Using Kebbi for the First Time 05 Second: Press and hold the power button until the screen turns on. Be sure there is enough space for your robot to safely move around. Connect the charger and turn the power on. Hold for three seconds. First: Prepare a safe place for Kebbi and connect the charger. Fourth: Install the App on your smartphone. (Android and iOS systems are available) Third: Please follow the robot's instructions to complete the initial setup. WELCOME! ID PASSWORD LOG IN 06 Open the Menu Notification Panel Slide down from the top edge of the screen to open the Notification Panel. There are three main areas: Function Shortcut, Screen Brightness / Volume Control, and Notifica- tion Area. Function Shortcut: Shortcuts in this area enable you to quickly set up your robot. You may click the editing button on the bottom to change the sequence; or to display or cancel the shortcuts. Screen Brightness / Volume Control: Drag the control bar to adjust the screen brightness or volume. Notification Area: Display the system status, system notification, or messages from different applications of the robot. ❶ ❶ ❸❷ ❷ ❸ 00:00 MM/DD 100% Pet Screen / Function Menu You may swipe left and right on the screen to switch between the Pet Screen and Function Menu. Pet Screen: This is the start-up default mode. You can have a conversation with the robot on the Pet Screen. Click "Home Button" or swipe to the right from the Function Menu to return to the Pet Screen. Functon Menu: You can browse all the built-in APPs of the robot in the Function Menu, including Sing and Dance and Creative Learning. You can also explore the various functions of the robot and delete / manage them. 07 WiFi Please connect to WiFi or mobile hotspot to allow you to enjoy a complete robot experience. Bluetooth Bluetooth device can be connected according to the guidance of some value-added services. Image delivery Images from the robot can be dropped on other devices (supported but not guaranteed to be compatible with all devices). Action Robot's body movement can be turned off (it can still move when the movement is turned off). Movement The robot can move while turned off (its body still moves when it is turned off) Audio recognition When the robot is under the turning-off condition, it turns in the direction of wherever the wakening words come. (This function …

Text truncated - open the document above for the full version.

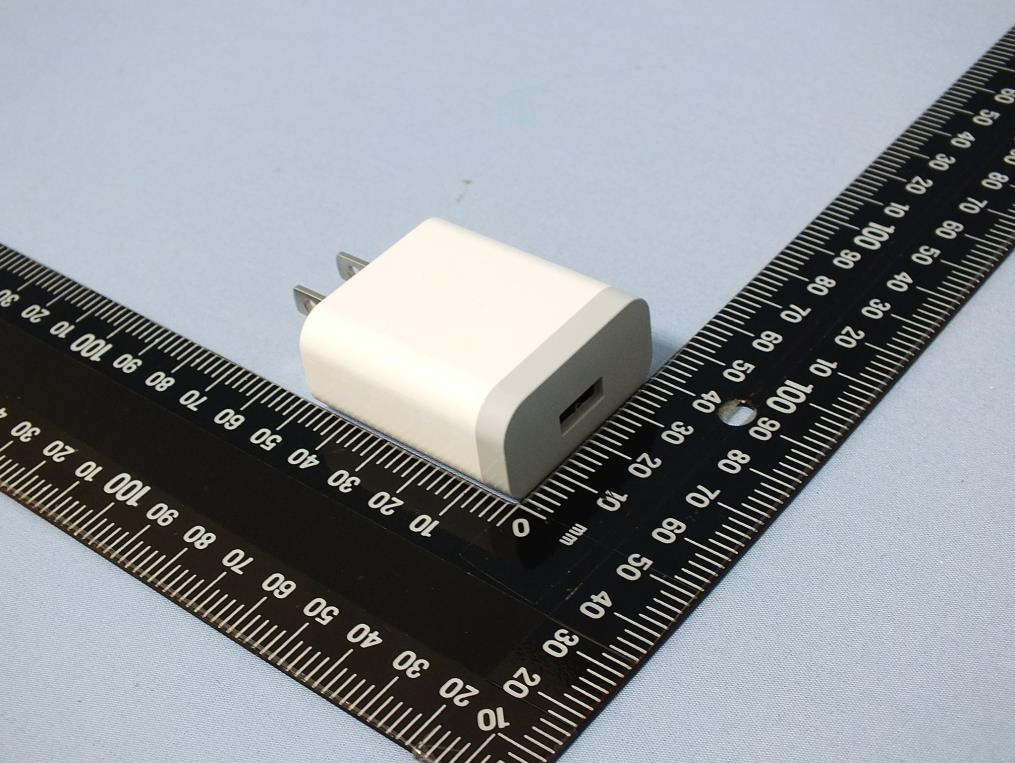

Project No.: 030301-02 Page No. : 1 of 22 Photographs of EUT Project No.: 030301-02 Page No. : 2 of 22 Project No.: 030301-02 Page No. : 3 of 22 Project No.: 030301-02 Page No. : 4 of 22 Project No.: 030301-02 Page No. : 5 of 22 Project No.: 030301-02 Page No. : 6 of 22 Project No.: 030301-02 Page No. : 7 of 22

NUWA ROBOT AIR-H201 MADE IN CHINA Manufacturer：Chengdu NUWA Robotics Corp. Input：DC9V 2A/DC5V 3A(Charging condition) FCC ID:2AWC2-AIRH201 08 Item 凱比產品標籤_美國 Description 79*45mm 裁型 尺寸 一色 K100 印工 材質 2020.05.29 Date V.1.2 Version 后加工条码印刷位置 FCC ID: 2AWC2-AIRH201

Project No.: 030301-02 Page No. : 8 of 22 Project No.: 030301-02 Page No. : 9 of 22 Project No.: 030301-02 Page No. : 10 of 22 Project No.: 030301-02 Page No. : 11 of 22 Project No.: 030301-02 Page No. : 12 of 22 Project No.: 030301-02 Page No. : 13 of 22 Project No.: 030301-02 Page No. : 14 of 22 Project No.: 030301-02 Page No. : 15 of 22 Project No.: 030301-02 Page No. : 16 of 22 Project No.: 030301-02 Page No. : 17 of 22 Project No.: 030301-02 Page No. : 18 of 22 Project No.: 030301-02 Page No. : 19 of 22 Project No.: 030301-02 Page No. : 20 of 22 Project No.: 030301-02 Page No. : 21 of 22 Project No.: 030301-02 Page No. : 22 of 22

Report No.: FA030301-02 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2AWC2-AIRH201 Equipment : NUWA ROBOT Model No. : AIR-H201 Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 9F., No. 101, Sec. 3, Nanjing E. Rd., Zhongshan Dist., Taipei City 104, Taiwan (R.O.C.) Standard : 47 CFR FCC Part 2.1091 Received Date : Mar. 03, 2020 Tested Date : Mar. 05 ~ Mar. 13, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA030301-02 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA030301-02 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA030301-02 Rev. 01 Initial issue Jun. 01, 2020 Report No.: FA030301-02 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA030301-02 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS WLAN Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2412~2462 20.8 21 2.4 20 0.044 1 0.044 Pass 5150~5250 20.90 21 -1.4 20 0.018 1 0.018 Pass 5745~5825 20.98 21 1.3 20 0.034 1 0.034 Pass BT Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2402-2480 (EDR) 11.66 12 2.40 20 0.005 1 0.005 Pass 2402-2480 (LE) 2.06 2.5 2.40 20 0.001 1 0.001 Pass *Ratio = Power density / Limit. Report No.: FA030301-02 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR030301-02AC Page : 1 of 62 Report Version: Rev. 01 FCC Test Report FCC ID : 2AWC2-AIRH201 Equipment : NUWA ROBOT Model No. : AIR-H201 Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 9F., No. 101, Sec. 3, Nanjing E. Rd., Zhongshan Dist., Taipei City 104, Taiwan (R.O.C.) Standard : 47 CFR FCC Part 15.247 Received Date : Mar. 03, 2020 Tested Date : Mar. 05 ~ Mar. 13, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR030301-02AC Page : 2 of 62 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 20 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 29 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 57 4 TEST LABORATORY INFORMATION ............................................................................................... 62 Report No.: FR030301-02AC Page : 3 of 62 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR030301-02AC Rev. 01 Initial issue Jun. 01, 2020 Report No.: FR030301-02AC Page : 4 of 62 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.724MHz 44.34 (Margin -11.66dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 72.98 (Margin -1.02dB) - PK Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 27.03 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR030301-02AC Page : 5 of 62 Report Version: Rev. 01 1 General Description 1.1 Information Test results can be referred to ICC report no. TR030301AC. 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 MCS 0-7 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 MCS 0-7 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Gain (dBi) Remarks 1 NUWA PIFA No 2.4 --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type DC 3.7V battery DC 5V⎓3A / 9V⎓2A / 12V⎓1.5A from adapter 1.1.4 Accessories No. Equipment Description 1 Adapter Brand: NUWA Model: KA1803A-TW I/P: 100-240V, 50/60Hz, 0.5…

Text truncated - open the document above for the full version.

Report No.: FR030301-02AE Page : 1 of 34 Report Version: Rev. 01 FCC Test Report FCC ID : 2AWC2-AIRH201 Equipment : NUWA ROBOT Model No. : AIR-H201 Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 9F., No. 101, Sec. 3, Nanjing E. Rd., Zhongshan Dist., Taipei City 104, Taiwan (R.O.C.) Standard : 47 CFR FCC Part 15.247 Received Date : Mar. 03, 2020 Tested Date : Mar. 06 ~ Mar. 13, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR030301-02AE Page : 2 of 34 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.7 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Emissions in Restricted Frequency Bands ........................................................................................... 22 3.6 Emissions in non-restricted Frequency Bands ..................................................................................... 32 4 TEST LABORATORY INFORMATION ............................................................................................... 34 Report No.: FR030301-02AE Page : 3 of 34 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR030301-02AE Rev. 01 Initial issue Jun. 01, 2020 Report No.: FR030301-02AE Page : 4 of 34 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 0.694MHz 44.82(Margin -11.18dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 202.66 MHz 35.81(Margin -7.69dB) - PK Pass 15.247(b)(3) Maximum Output Power Power [dBm]: 2.36 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR030301-02AE Page : 5 of 34 Report Version: Rev. 01 1 General Description 1.1 Information Test results can be referred to ICC report no. TR030301AE. 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 LE 2402-2480 0-39 [40] 1 Mbps Note 1: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) Remarks 1 PIFA No 2.4 --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type DC 3.7V from host DC 5V⎓3A/9V⎓2A/12V⎓1.5A from adapter 1.1.4 Accessories No. Equipment Description 1 Adapter Brand: NUWA Model: KA1803A-TW I/P: 100-240V, 50/60Hz, 0.5A Max O/P: 5V⎓3A / 9V⎓2A / 12V⎓1.5A 2 Li-ion Battery Brand: SCUD (FUJIAN) ElECTRONICS CO. LTD. Model: NB1 Rating: 3.7Vdc, 9100mA, 33.67Wh 3 USB charger Cable 1.20m non-shielded without core. Report No.: FR030301-02AE Page : 6 of 34 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel…

Text truncated - open the document above for the full version.

Report No.: FR030301-02 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR030301-02 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR030301-02 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR030301-02 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR030301-02 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
