2AWC2-AIRH203Kebbi Air S, Robot Creator DX

Product User Manual Please read this manual carefully prior to use and keep it for future reference. Model:AIR-H204 01 Thank you for choosing Robot Creator DX! Robot Creator DX is a fun-filled DIY robot kit. Using Kebbi Air as a foundation, Robot Creator DX is a passion project designed for robot enthusiasts that doesn't require any prior knowledge of programming languages. Simply pick up a screwdriver to build a smart robot that can talk, walk, and do much more! The goal of our team is to create the world’s best robots. Nuwa Robotics is one of the few AI robotics companies in the market that has the ability to independently design and develop hardware, software, AI, and content. We envision a world filled with people who love robots as much as we do, so that we can work together and create more interesting and unique robots. Join us at Robot Creator DX, where you'll find a community full of fantasy and creativity. Show us your unique creation! Search “Robot Creator Support”, Start to Assemble Search for "robot creator support" in the browser to start building your own robot. We recommend that you use a larger screen (e.g. laptop, tablet) to read it for the best experience. Painting Assembling 。 Customize your Robot Using Biztools Create your Contents MakerBase 02 Please cross-check with the list of parts to ensure all parts are present. For any missing parts, please contact customer service. The charger in the accessory package is an OEM charger. Please avoid using any other brand of charging cables in order to keep the robot working properly. Please read this User Manual thoroughly to ensure correct and safe use of this product. Regularly check the charging cable, connector, and outer casing for damage. If damage is found, do not use until repaired. 1. 2. 3. 4. 03 Product Introduction Robot Creator Nuwa BiztoolsRobot Creator website Nuwa Support / Guidebook NuwaSpace Listening LED Indicator 7" Touch Panel Power LED Indicator Touch Area (Belly) Status LED Indicator Touch Area (Hands) PIR Sensor IR Drop Sensor Product Description Product Introduction 04 Camera Charging Port Return to Home Screen, Turn On / Off (Please refer to P.10 for more details) There are 5 Touch Sensing Areas: Head, left and right Cheeks. Belly, and left and right Hands. Please remember to touch Kebbi gently. PIR Sensor: Senses whether there is anyone passing in front of Kebbi. Please use with the orginal OEM charger. Home Screen / Power Button Touch Area PIR Sensor USB Type C Charging Port Touch Area (Head) Touch Area (Cheeks) Speakers Microphone Micro SD Card Slot Home (Power) Button Start building your robot Redesign your robot Use your imagination to redesign your robot with panel lines, spray paint, ink lines, and 3D-printed accessories. Attention: Please carefully review our website instructions for redesigning techniques and special notices. Before assembly, first confirm that all parts are present DIY assembly Please visit our official website for online instructions and assemble according to step-by-step instruc- tions. 05 Using Kebbi for the First Time Second: Press and hold the power button until the screen turns on. Be sure there is enough space for your robot to safely move around. Connect the charger and turn the power on. Hold for three seconds. First: Prepare a safe place for Kebbi and connect the charger. How to Activate Nuwa BizTools 06 Fourth: Sign up on Nuwa BizTools for create your own robot. (BizTools are web based tools.) Third: Please follow the robot's instructions to complete the initial setup. WELCOME! ID PASSWORD LOG IN - A Nuwa BizTools product key will be sent to the buyer's designated email address or Internal message of e-commerce platform when the product is shipped. - Open the email and click on the link to visit "Nuwa Account." - Sign in with the Nuwa account created when initializing the robot. - Choose "Upgrade to NuwaPro" and enter the product key at "My Tools." - Upon completion, the development tools will be available to you. Sign up on Nuwa BizTools for a wide range of development programs! *Please check your trash folder or contact customer service if you haven't received your Nuwa BizTools product key. Charging Indicator (next to the lens) LED Indicator Information ColorIndicatorStatusAction / Description Blue Steady blue light System is normal Orange Steady orange light Low battery (less than 15%) Red Steady red light Very low battery (less than 5%) - Please charge the robot. Please charge the robot. Status Indicator on the chest Red Flashing red light Charging No flashing red light means one of two things: 1. The battery is fully charged 2. The battery is too low, please continue charging for 10 minutes Please refer to P.17 for more information Safety Instructions 07 Camera in use Notifies user that camera is in use. Camera Indicator (next to the lens) Green Steady green light 08 Open the Menu Notification Panel Slide down from the top edge of the screen to open the Notifica- tion Panel. There are three main areas: Function Shortcut, Screen Brightness / Volume Control, and Notification Area. Function Shortcut: Shortcuts in this area enable you to quickly set up your robot. You may click the editing button on the bottom to change the sequence or to display or cancel the shortcuts. Screen Brightness / Volume Control: Drag the control bar to adjust the screen brightness or volume. Notification Area: Display the system status, system notification, or messages from different applications of the robot. ❶ ❶ ❸❷ ❷ ❸ 00:00 MM/DD 100% Pet Screen / Function Menu You may swipe left and right on the screen to switch between the Pet Screen and Function Menu. Pet Screen: This is the start-up default mode. You can have a conversation with the robot on the Pet Screen. Click "Home Button" or swipe to the right from the Function Menu to return to the Pet Screen. Functon Menu: You can browse all the built-in APPs of the robot in the Function Menu, including Singing and Dancing and Creative Le…

Text truncated - open the document above for the full version.

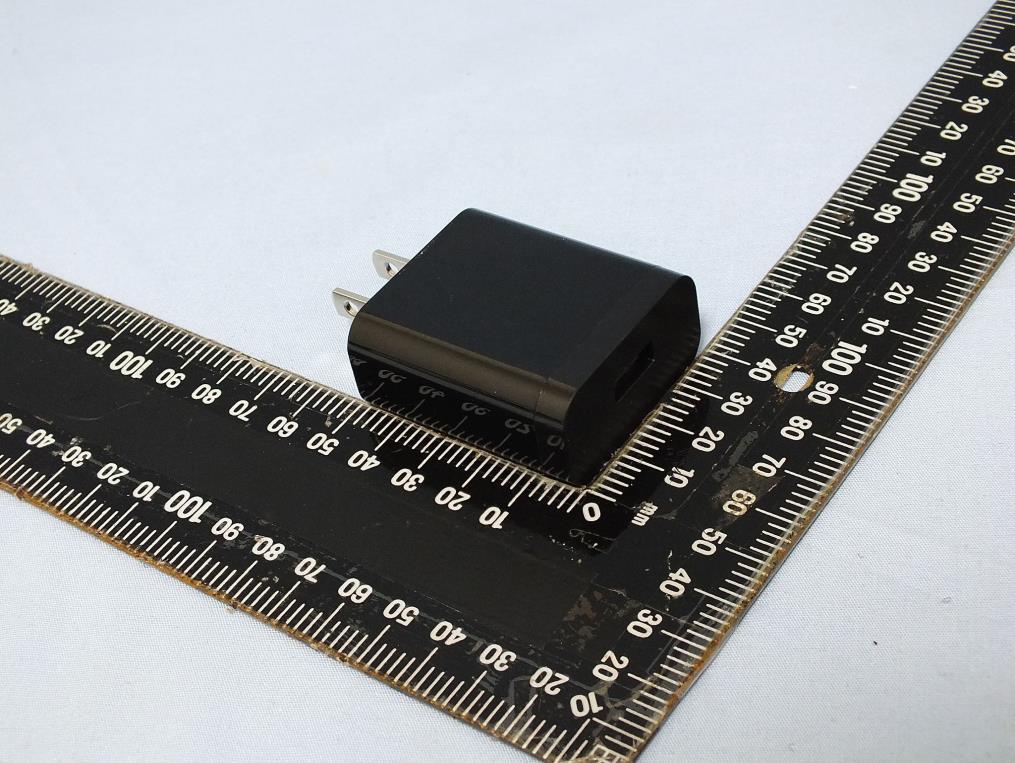

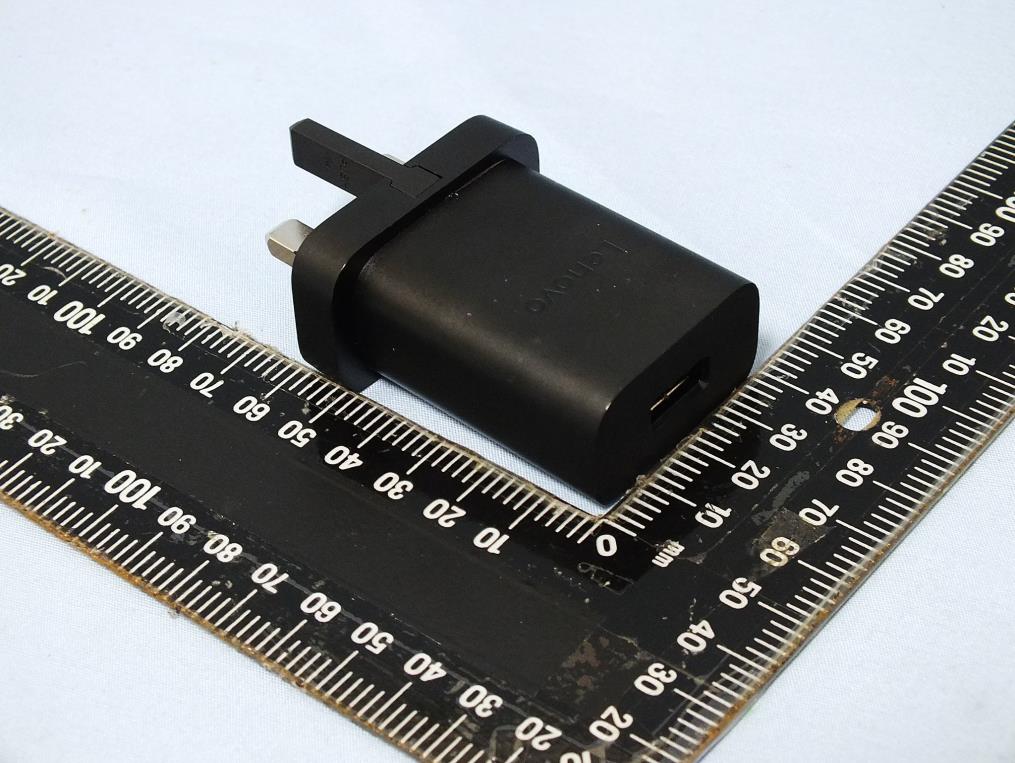

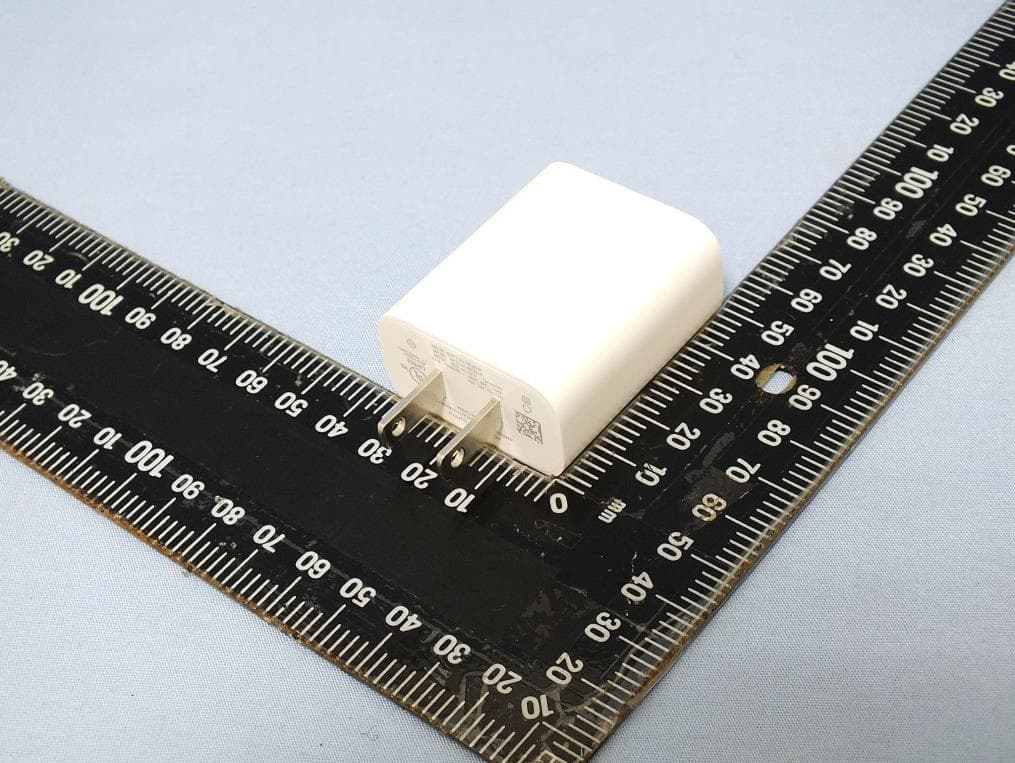

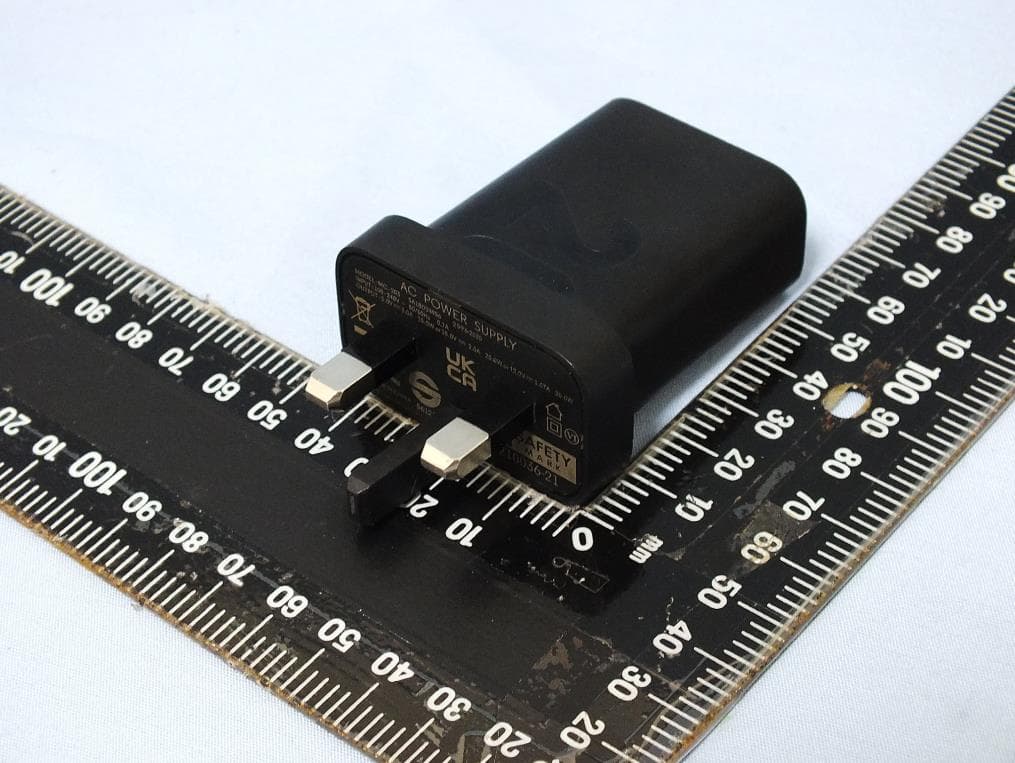

Project No.:EP240701 Page No. : 1 of 30 Photographs of EUT Project No.:EP240701 Page No. : 2 of 30 Project No.:EP240701 Page No. : 3 of 30 Project No.:EP240701 Page No. : 4 of 30 Project No.:EP240701 Page No. : 5 of 30 Project No.:EP240701 Page No. : 6 of 30 Project No.:EP240701 Page No. : 7 of 30 Project No.:EP240701 Page No. : 8 of 30 Project No.:EP240701 Page No. : 9 of 30 Project No.:EP240701 Page No. : 10 of 30 Project No.:EP240701 Page No. : 11 of 30 Project No.:EP240701 Page No. : 12 of 30 Project No.:EP240701 Page No. : 13 of 30

InputDC9V 2A/DC5V 3A(Charging condition) Label location FCC ID：2AWC2-AIRH203

Project No.:EP240701 Page No. : 14 of 30 Project No.:EP240701 Page No. : 15 of 30 Project No.:EP240701 Page No. : 16 of 30 Project No.:EP240701 Page No. : 17 of 30 Project No.:EP240701 Page No. : 18 of 30 Project No.:EP240701 Page No. : 19 of 30 Project No.:EP240701 Page No. : 20 of 30 Project No.:EP240701 Page No. : 21 of 30 Project No.:EP240701 Page No. : 22 of 30 Project No.:EP240701 Page No. : 23 of 30 Project No.:EP240701 Page No. : 24 of 30 Project No.:EP240701 Page No. : 25 of 30 Project No.:EP240701 Page No. : 26 of 30 Project No.:EP240701 Page No. : 27 of 30 Project No.:EP240701 Page No. : 28 of 30 Project No.:EP240701 Page No. : 29 of 30 Project No.:EP240701 Page No. : 30 of 30

Report No.: FA240701 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Exemption Report FCC ID : 2AWC2-AIRH203 Equipment : Kebbi Air S (Please refer to section 1.1.1 for more details) Model No. : AIR-H203 (Please refer to section 1.1.1 for more details) Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 3F., No. 102, Dunhua N. Rd., Songshan Dist., Taipei City , Taiwan (R.O.C.) Standard : 47 CFR FCC Part 2.1091 Received Date : Apr. 07, 2021 Tested Date : May 04 ~ May 14, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA240701 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information.............................................................................................................................................. 4 2 RF EXPOSURE TEST EXEMPTIONS ................................................................................................... 5 2.1 1-mW TEST EXEMPTION ..................................................................................................................... 5 2.2 SAR-BASED EXEMPTION .................................................................................................................... 5 2.3 MPE-BASED EXEMPTION .................................................................................................................... 5 2.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 6 2.5 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 2.6 EXEMPTION CALCULATION ................................................................................................................ 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA240701 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA240701 Rev. 01 Initial issue Jun. 06, 2022 Report No.: FA240701 Page : 4 of 7 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description NUWAROBOTICS AIR-H203 Kebbi Air S Outer appearance: white NUWAROBOTICS AIR-H204 Robot Creator DX Outer appearance: black  All models are electrically identical, different model names are for marketing purpose.  The above models, model AIR-H203 was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA240701 Page : 5 of 7 Report Version: Rev. 01 2 RF Exposure Test Exemptions 2.1 1-mW TEST EXEMPTION Available maximum time-averaged power is no more than 1 mW. 2.2 SAR-BASED EXEMPTION This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. The maximum time-averaged power or effective radiated power (ERP), whichever is greater, ≤ Pth Pth (mW) = ERP 20cm (d/20) x d≤20cm Pth (mW) = ERP 20cm 20 cm < d ≤40cm Where = - log 10 Pth (mW) = ERP 20cm (mW) = 2040f 0.3GHz ≤ f < 1.5 GHz Pth (mW) = ERP 20cm (mW) = 3060 1.5GHz ≤ f < 6 GHz Frequency (MHz) Power Thresholds mW dBm 663 1353 31.31 699 1426 31.54 704 1436 31.57 777 1585 32.00 824 1681 32.26 902 1840 32.65 1500 ~ 6000 3060 34.86 2.3 MPE-BASED EXEMPTION For a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. Radio Source Frequency Minimum Distance Threshold ERP F L MHz F H MHz λ L / 2π λ H / 2π W 0.3 - 1.34 159 m - 35.6 m 1920 R 2 1.34 - 30 35.6 m - 1.6 m 3450 R 2 /f 2 30 - 300 1.6 m - 159 mm 3.83 R 2 300 - 1500 159 mm - 31.8 mm 0.0128 R 2 f 1500 - 100000 31.8 mm - 0.5 mm 19.2 R 2 Note: R is the antenna-person separation distance. Report No.: FA240701 Page : 6 of 7 Report Version: Rev. 01 2.4 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.5 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2.6 EXEMPTION CALCULATION Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) EIRP (dBm) ERP (dBm) SAR-Based Exemption Thresholds (dBm) Pass/ Fail 2412~2462 21.24 21.5 2.40 23.9 21.75 34.86 Pass 5180~5240 21.53 22 -1.40 20.6 18.45 34.86 Pass 5500~5720 22.38 22.5 -1.30 21.2 19.05 34.86 Pass 2402~2480 12.07 12.5 2.4 14.9 12.75 34.86 Pass Note: Minimum separation distance = 20 cm. Report No.: FA240701 Page : 7 of 7 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. Internati…

Text truncated - open the document above for the full version.

Report No.: FR240701AC Page : 1 of 21 Report Version: Rev. 01 FCC Test Report FCC ID : 2AWC2-AIRH203 Equipment : Kebbi Air S (Please refer to section 1.1.1 for more details) Model No. : AIR-H203 (Please refer to section 1.1.1 for more details) Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 3F., No. 102, Dunhua N. Rd., Songshan Dist., Taipei City , Taiwan (R.O.C.) Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 07, 2021 Tested Date : May 04 ~ May 13, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR240701AC Page : 2 of 21 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 9 1.3 Test Setup Chart .................................................................................................................................... 9 1.4 The Equipment List .............................................................................................................................. 10 1.5 Test Standards ..................................................................................................................................... 12 1.6 Reference Guidance ............................................................................................................................ 12 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 12 1.8 Measurement Uncertainty .................................................................................................................... 12 2 TEST CONFIGURATION ..................................................................................................................... 13 2.1 Testing Facility ..................................................................................................................................... 13 2.2 The Worst Test Modes and Channel Details ....................................................................................... 13 3 TRANSMITTER TEST RESULTS ....................................................................................................... 14 3.1 6dB and Occupied Bandwidth .............................................................................................................. 14 3.2 Conducted Output Power ..................................................................................................................... 15 3.3 Power Spectral Density ........................................................................................................................ 16 3.4 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 17 3.5 Emissions in Non-Restricted Frequency Bands ................................................................................... 19 3.6 AC Power Line Conducted Emissions ................................................................................................. 20 4 TEST LABORATORY INFORMATION ............................................................................................... 21 Appendix A. 6dB and Occupied Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions into Restricted Frequency Bands Appendix E. Emissions in Non-Restricted Frequency Bands Appendix F. AC Power Line Conducted Emissions Report No.: FR240701AC Page : 3 of 21 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR240701AC Rev. 01 Initial issue Jun. 06, 2022 Report No.: FR240701AC Page : 4 of 21 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emission [dBuV]: 14.440MHz 35.01 (Margin -14.99dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 4924.00MHz 53.38 (Margin -0.42dB) - AV Pass 15.247(b)(3) Conducted Output Power Max Power [dBm]: 27.06 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR240701AC Page : 5 of 21 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description NUWAROBOTICS AIR-H203 Kebbi Air S Outer appearance: white NUWAROBOTICS AIR-H204 Robot Creator DX Outer appearance: black  All models are electrically identical, different model names are for marketing purpose.  The above models, model AIR-H203 was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (M…

Text truncated - open the document above for the full version.

Report No.: FR240701AE Page : 1 of 20 Report Version: Rev. 01 FCC Test Report FCC ID : 2AWC2-AIRH203 Equipment : Kebbi Air S (Please refer to section 1.1.1 for more details) Model No. : AIR-H203 (Please refer to section 1.1.1 for more details) Brand Name : NUWAROBOTICS Applicant : NUWA ROBOTICS (HK) LIMITED TAIWAN BRANCH Address : 3F., No. 102, Dunhua N. Rd., Songshan Dist., Taipei City , Taiwan (R.O.C.) Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 07, 2021 Tested Date : May 04 ~ May 13, 2022 We, International Certification Corporation, would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR240701AE Page : 2 of 20 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 Test Equipment List and Calibration Data .............................................................................................. 9 1.5 Test Standards ..................................................................................................................................... 11 1.6 Reference Guidance ............................................................................................................................ 11 1.7 Deviation from Test Standard and Measurement Procedure ............................................................... 11 1.8 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Facility ..................................................................................................................................... 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ....................................................................................................... 13 3.1 6dB and Occupied Bandwidth .............................................................................................................. 13 3.2 Conducted Output Power ..................................................................................................................... 14 3.3 Power Spectral Density ........................................................................................................................ 15 3.4 Unwanted Emissions in Restricted Frequency Bands ......................................................................... 16 3.5 Emissions in non-restricted Frequency Bands ..................................................................................... 18 3.6 AC Power Line Conducted Emissions ................................................................................................. 19 4 TEST LABORATORY INFORMATION ............................................................................................... 20 Appendix A. 6dB and Occupied Bandwidth Appendix B. Conducted Output Power Appendix C. Power Spectral Density Appendix D. Unwanted Emissions into Restricted Frequency Bands Appendix E. Emissions in Non-Restricted Frequency Bands Appendix F. AC Power Line Conducted Emissions Report No.: FR240701AE Page : 3 of 20 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR240701AE Rev. 01 Initial issue Jun. 06, 2022 Report No.: FR240701AE Page : 4 of 20 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions [dBuV]: 14.907MHz 34.79 (Margin -15.21dB) - AV Pass 15.247(d) 15.209 Unwanted Emissions [dBuV/m at 3m]: 245.66MHz 40.89 (Margin -5.11dB) - PK Pass 15.247(b)(3) Conducted Output Power Power [dBm]: 2.72 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR240701AE Page : 5 of 20 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description NUWAROBOTICS AIR-H203 Kebbi Air S Outer appearance: white NUWAROBOTICS AIR-H204 Robot Creator DX Outer appearance: black  All models are electrically identical, different model names are for marketing purpose.  The above models, model AIR-H203 was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Num…

Text truncated - open the document above for the full version.

Report No.: FR240701 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR240701 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR240701 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR240701 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR240701 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
