2AWD4-KS215AECHELON 21.5 INCH SCREEN

AIO User Guide Thanks for buying the All In One. This manual is to introduce the functions of the device, as well as matters which need attention. Please read this manual before you use the device. Catalog ⚫ 1. Announcements----------------------------------------------------------------------------------------------- ⚫ 2. Packing Details-------------------------------------------------------------------------------------------------- ⚫ 3. Functional characteristics------------------------------------------------------------------------------------ ⚫ 4. Product description-------------------------------------------------------------------------------------------- ⚫ 5. Main interface introduction---------------------------------------------------------------------------------- ⚫ 6. Buttons on the main interface------------------------------------------------------------------------------- ⚫ 7. Basic setting options------------------------------------------------------------------------------------------- ⚫ 8. Common problems and Solutions-------------------------------------------------------------------------- ⚫ 9. FCC compliance statement ---------------------------------------------------------------------------------- 1. Announcements ① Only use the power adapter, power cord and other accessories provided by the original factory. ② The gaps and openings on the machine are used for ventilation and heat dissipation. Do not block or cover these gaps and openings. ③ Do not use or store the machine in dusty, humid and high temperature environment. ④ When the machine breaks down, do not disassemble and repair by yourself. Contact the original factory or dealer to solve the problem. ⑤ Avoid stepping on the power line or power adapter, so as to avoid the danger of leakage caused by line damage. If the wiring of the power adapter is damaged, do not continue to use it, otherwise danger may occur. ⑥ Please unplug the power cord when it is not suitable for this machine in thunderstorm or for a long time. ⑦ When using, please do not put the machine on the edge of the table or the place easily accessible to children, so as to avoid falling damage or injury to children. ⑧ During transportation or use, try not to touch the display screen, do not squeeze the display screen, do not use sharp tools or hard objects to damage the display screen, so as to avoid damage to the display screen。 ⑨ Please clean the Android all in one machine with a dry soft cloth or a soft cloth slightly dipped in a soft detergent. Do not use any kind of solvent, such as alcohol or gasoline, otherwise the surface treatment layer may be damaged. 2.1 Packing Details. Each unit of All in one has the following items: All in one device*1, charger*1, cable*1,and user manual*1. .All items are packed in box. 3.1 Features Overview ◼ Product Name：Echelon 21.5 Inch Screen ◼ Model No.:ECHKIN215 ◼ CPU: Rockchip 3288 Quad-core , 1.8GHz. With ANDROID 9.0 operation system. ◼ 21.5" touch panel LCD display, 1920*1080 resolution. ◼ 16 GB Nand Flash Memory, support 64GB external TF card. ◼ ANDROID 9.0 OS. ◼ Bluetooth 5.0 ◼ Built-in Wi-Fi. 802.11a/b/g/n/ac. (2.4Ghz+5.0Ghz, 2x2MIMO) ◼ Support built-in microphone record function. ◼ Support G-sensor screen rotation function. ◼ Support Multi touch 10 points ◼ Supports multiple languages. ◼ Support External 3G dongle 3.2 Technical Specifications Screen 21.5 inch capacitive 10 points touch screen, Resolution:1920*1080 CPU Chipset: Rockchip 3288 Quad-core , 1.8GHz. RAM DDR3 4GB Storage 16GB Nand Flash Camera Front 5.0 MP Standard System Android 9.0 Network Wifi: IEEE 802.11a/b/g/n/ac. 2X2 MIMO Video MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) Music MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) Pictures BMP, JPG, GIF, PNG PC Connection DC Power jack 5.5MM*2.5MM,Input 12V 5A 4.1 Product description Front view： Rear view： Interface： Power On / off Insert the power supply to enter the start-up interface automatically. Press the power button for 3-5 seconds for shutdown, and the shutdown dialog box will appear, and then click shutdown. Press the power button for 3-5 seconds for start up without unplugging the power supply to enter the start-up interface. 5.1 Main interface introduction It will automatically enter into the main interface after start up. 6. Buttons on the main interface Volume button，Click to adjust the volume low. Volume button，Click to adjust the volume up. Back button，Click this icon on any interface to return to the previous directory. Home button，Click any interface to return to the main interface. Recent browsing records. Upper left corner of main interface 1）Drag from the top of the display to view the download status. 2）Three bars to clear the download display. 3）When connecting USB, you can open USB storage connection or USB debugging. Upper right corner of main interface 1. Drag down from the top of the display to view brightness, settings, WiFi, automatic rotation screen, Bluetooth, location information. 2. Long press any position of the main interface to open the wallpaper selection dialog box, and select your favorite wallpaper according to the prompts. 3. Create shortcut icon in main interface： Long press the required icon in the menu to move to the main interface to generate shortcut icon. 7.1 Function introduction of basic setting options ➢ WIFI Click WiFi option, open WiFi, select WiFi network, input correct password to connect. ➢ Bluetooth Enter the setting interface, click the Bluetooth option, open the Bluetooth, click the search device in the upper right corner, and open the Bluetooth of the device to be connected at the same time to search for it; click the device name to search for it, and the Bluetooth pairing requirements will appear, and the local device and the device can click pairing at the same time to connect. ➢ Flow usage You can view the traffic records generated by surfing the Internet. ➢ More The content includes airplane mode, …

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Echelon Fitness Multimedia LLC Address 6011 Century Oaks Drive, Chattanoog, Tennessee 37416, United States Grantee Code 2AWD4 FCC ID 2AWD4-KS215A Authorized Contact Name John Goldston Contact Email [email protected] Contact Phone 423-402-9010 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 7-20-2020 Print Name: John Goldston Title: Quality Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Echelon Fitness Multimedia LLC Date: 5-4-2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AWD4-KS215A To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Echelon Fitness Multimedia LLC. This authorization is valid until further written notice from the applicant. Print Name: John Goldston Title: Quality Manager Signature: On behalf of Company: Echelon Fitness Multimedia LLC Telephone: 423-402-9010 E-mail: [email protected]

Echelon Fitness Multimedia LLC We, Echelon Fitness Multimedia LLC declare that this EUT (FCC ID: 2AWD4-KS215A) doesn’t have ad Hoc Mode function on “non-US/Canada frequencies“. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/ Canada. For DTS part of this device, only channels 1-11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, Please have my best attention. Sincerely yours, Print Name: John Goldston T itle: Quality Manager Signature: On behalf of Company: Echelon Fitness Multimedia LLC Telephone: 423-402-9010 E-mail: [email protected]

Echelon Fitness Multimedia LLC TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AWD4-KS215A LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Software Security Description The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 0 days from the grant date, whichever is less. If the device is marketed within 0 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: John Goldston Title: Quality Manager Signature: On behalf of Company: Echelon Fitness Multimedia LLC Telephone: 423-402-9010 E-mail: [email protected]

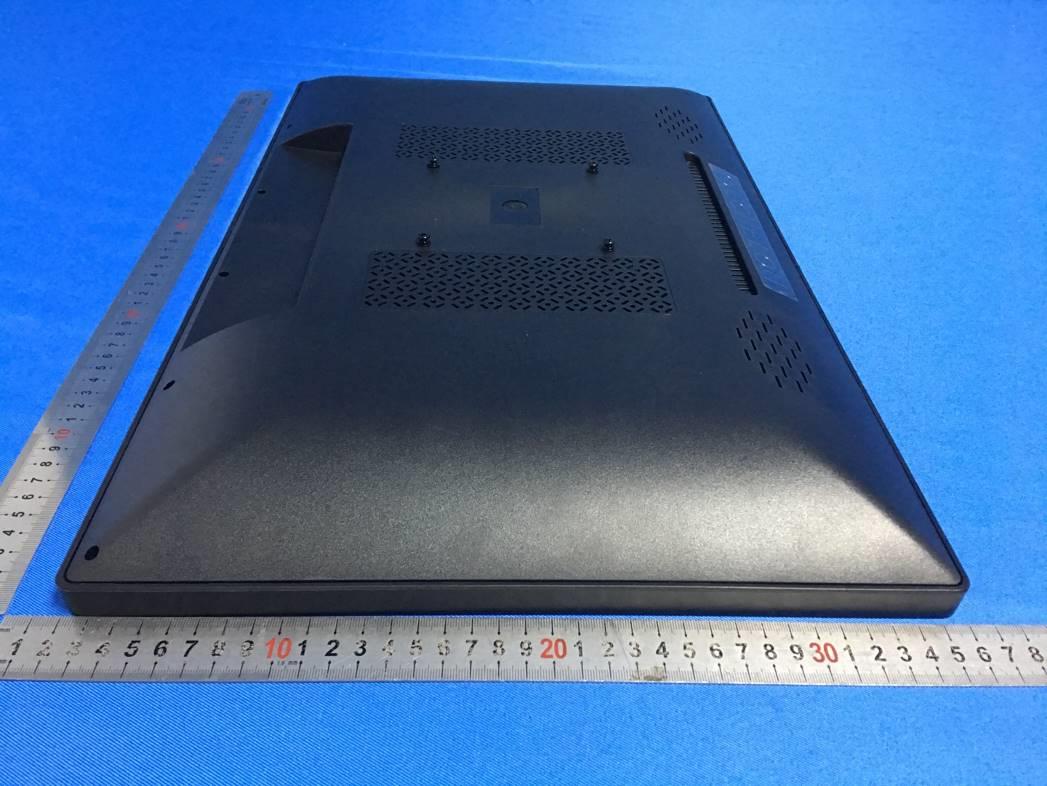

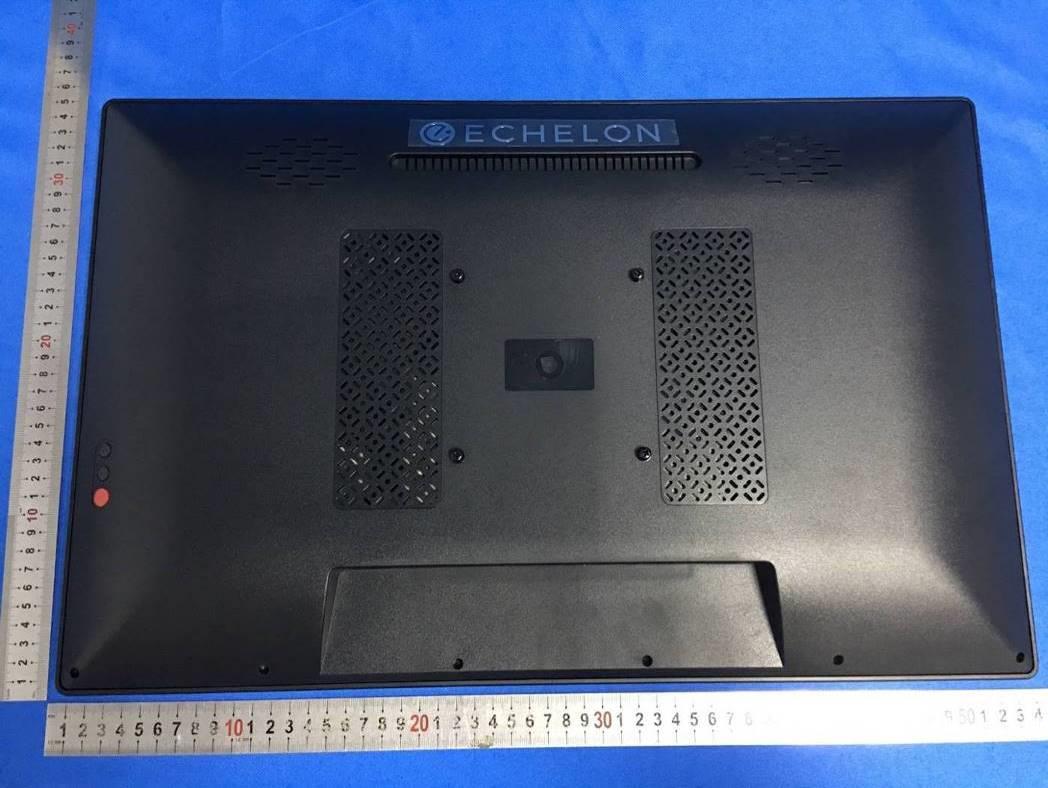

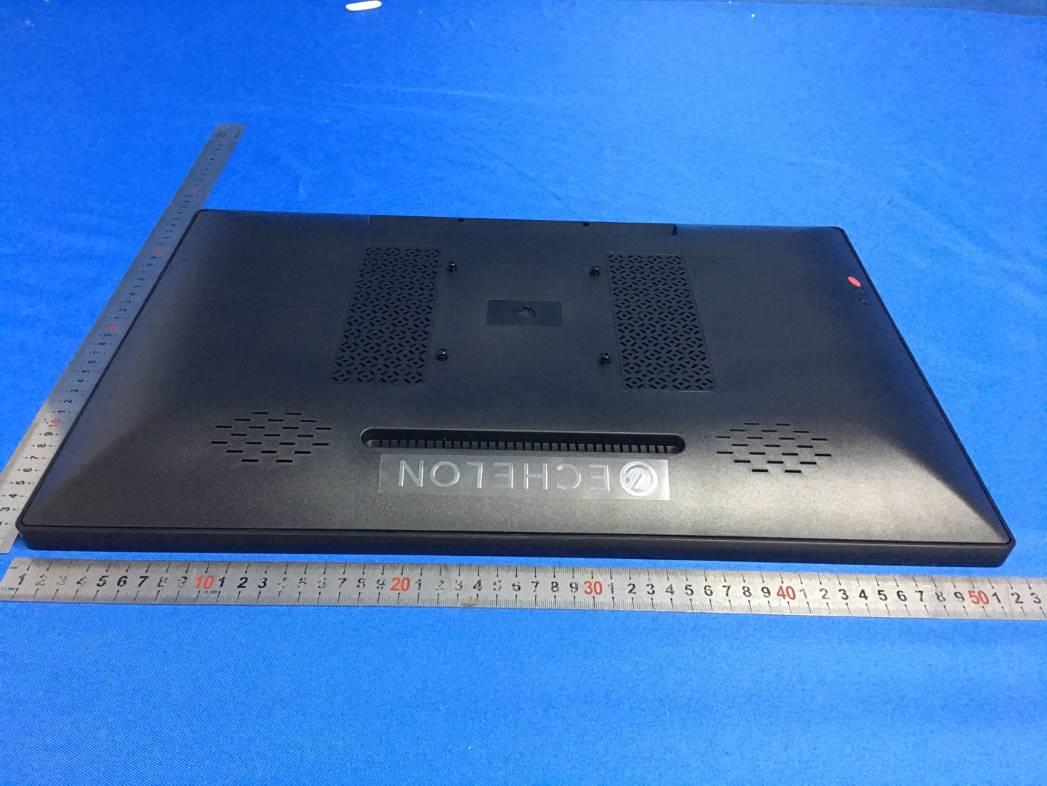

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 External Photos for SZEM2004002299CR FCC ID: 2AWD4-KS215A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7

ECHKS21500001

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 7 Internal Photos for SZEM2004002299CR FCC ID: 2AWD4-KS215A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 7 1 EUT Constructional Details BT WIFI antenna(ant1) WIFI antenna (ant2) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 7 of 7

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 1 of 10 Keny Xu EMC Laboratory Manager 1 Cover page RF Exposure Evaluation Report Application No.: SZEM2004002299CR Applicant: Echelon Fitness Multimedia LLC Address of Applicant: 6011 Century Oaks Drive, Chattanoog, Tennessee 37416 United States Manufacturer: SHENZHEN KINSTONE D&T DEVELOP CO., LTD Address of Manufacturer: 5F, A2B, XinJianXing Tech Industrial Park, Fengxin Road, Lou Cun, Gongming Street, Guangming New Dist., Shenzhen, China Factory: SHENZHEN KINSTONE D&T DEVELOP CO., LTD Address of Factory: 5F, A2B, XinJianXing Tech Industrial Park, Fengxin Road, Lou Cun, Gongming Street, Guangming New Dist., Shenzhen, China Equipment Under Test (EUT): EUT Name: ECHELON 21.5 INCH SCREEN Model No.: ECHKIN215 Trade Mark: ECHELON FCC ID: 2AWD4-KS215A Standards: 47 CFR PART 1.1310 47 CFR PART 2.1091 447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-04-08 Date of Test: 2020-04-09 to 2020-06-24 Date of Issue: 2020-06-30 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 2 of 10 2 Version Revision Record Version Chapter Date Modifier Remark 01 2020-06-30 Original Authorized for issue by: Calvin Weng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 3 of 10 3 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 VERSION ................................................................................................................................................ 2 3 CONTENTS ............................................................................................................................................ 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ............................................................................................................. 4 4.2 TEST LOCATION .................................................................................................................................... 6 4.3 TEST FACILITY ...................................................................................................................................... 6 4.4 DEVIATION FROM STANDARDS ................................................................................................................. 6 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................ 6 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 6 5 RF EXPOSURE EVALUATION ............................................................................................................... 7 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 7 5.1.1 Limits .......................................................................................................................................... 7 5.1.2 Test Procedure ........................................................................................................................... 7 4.1.3 EUT RF EXPOSURE EVALUATION ...................................................................................................... 8-10 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 4 of 10 4 General Information 4.1 General Description of EUT Power Supply: DC12V/5000mA by power adapter Adapter input: AC100-240V, 50/60Hz, 1.5A Adapter model: JHD-AD065C-120500 Cable: Power adapter cable: 2m unshielded cable without ferrite core For BT: Bluetooth Version: 5.0 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Modulation Type: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Channel Spacing: 1MHz Antenna Type: Ant1:PIFA antenna Antenna Gain: Ant1:1.2dBi For BLE: Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: Ant1:PIFA antenna Antenna Gain: Ant1:1.2dBi For 2.4G WIFI Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 Channel Spacing: 5MHz Antenna Type: Ant1: PIFA antenna; Ant2: PIFA antenna Antenna Gain: Ant1:1.2dBi; Ant2:1.2dBi SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 5 of 10 For 5G WIFI Operation Frequency: Band Mode Frequency Range(MHz) Number of channels UNII Band I IEEE 802.11a/n20/ac 5180-5240 4 IEEE 802.11n40/ac40 5190-5230 2 IEEE 802.11ac80 5210 1 UNII Band III IEEE 802.11a/n20/ac 5745-5825 5 IEEE 802.11n40/ac40 5755-5795 2 IEEE 802.11ac80 5775 1 Modulation Type: 802.11a/n: OFDM(BPSK/QPSK/16QAM/64QAM) 802.11ac: OFDM(BPSK/QPSK/16QAM/64QAM/256QAM) TPC Function: Not support Antenna Type: Ant1: PIFA antenna; Ant2: PIFA antenna Antenna Gain: Ant1:1.6dBi; Ant2:1.6dBi S/N: ECHKS21500000 Software version: Android 9.0 Hardware version: AD-Z33P-V1.0 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229906 Page: 6 of 10 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organization…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 1 of 240 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2004002299CR Applicant: Echelon Fitness Multimedia LLC Address of Applicant: 6011 Century Oaks Drive, Chattanoog, Tennessee 37416 United States Manufacturer: SHENZHEN KINSTONE D&T DEVELOP CO., LTD Address of Manufacturer: 5F, A2B, XinJianXing Tech Industrial Park, Fengxin Road, Lou Cun, Gongming Street, Guangming New Dist., Shenzhen, China Factory: SHENZHEN KINSTONE D&T DEVELOP CO., LTD Address of Factory: 5F, A2B, XinJianXing Tech Industrial Park, Fengxin Road, Lou Cun, Gongming Street, Guangming New Dist., Shenzhen, China Equipment Under Test (EUT): EUT Name: ECHELON 21.5 INCH SCREEN Model No.: ECHKIN215 Trade Mark: ECHELON FCC ID: 2AWD4-KS215A Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2020-04-08 Date of Test: 2020-04-09 to 2020-06-24 Date of Issue: 2020-06-30 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 2 of 240 Revision Record Version Chapter Date Modifier Remark 01 2020-06-30 Original Authorized for issue by: Calvin Weng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 3 of 240 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.407 (c) Pass N/A: Not applicable Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 & 15.407 b(6) Pass 99% Bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 II D N/A Pass 26dB Emission bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 1 47 CFR Part 15, Subpart C 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band ) 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 2 47 CFR Part 15, Subpart C 15.407 (e) Pass Maximum Conducted output power 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II E 47 CFR Part 15, Subpart C 15.407 (a) Pass Peak Power spectrum density 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II F 47 CFR Part 15, Subpart C 15.407 (a) Pass Radiated Emissions 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Frequency Stability 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart C 15.407 (g) Pass N/A: Not applicable Remark:1. For the 802.11n(HT20 & HT40 mode), 802.11ac(VHT20,VHT40,VHT80), two antennas can transmit at the same time. For 802.11a mode, ant1 is worst case for radiated emission test, and both antennas are transmitting for radiated emission test for other mode. 2. all the conducted RF test include offset value for cable loss. 3. in this report, directional gain=1.6+10*log(2)=4.61dBi. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 4 of 240 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 TEST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................13 6.1 ANTENNA REQUIREMENT ................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.1.2 Conclusion ..............................................................................................................................13 6.2 TRANSMISSION IN THE ABSENCE OF DATA ........................................................................................14 6.2.1 Test Requirement: ...............................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 179 of 240 2. Emission Bandwidth & 99% Occupied Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5180 SISO 1 20.927 Only for Report Use PASS 5200 SISO 1 20.933 Only for Report Use PASS 5240 SISO 1 20.905 Only for Report Use PASS 5745 SISO 1 15.798 ≥0.5 PASS 5785 SISO 1 16.107 ≥0.5 PASS 5825 SISO 1 16.331 ≥0.5 PASS 802.11n(HT20) 5180 SISO 1 21.258 Only for Report Use PASS 5200 SISO 1 21.390 Only for Report Use PASS 5240 SISO 1 21.194 Only for Report Use PASS 5745 SISO 1 17.532 ≥0.5 PASS 5785 SISO 1 16.347 ≥0.5 PASS 5825 SISO 1 16.773 ≥0.5 PASS 802.11n(HT40) 5190 SISO 1 51.804 Only for Report Use PASS 5230 SISO 1 53.230 Only for Report Use PASS 5755 SISO 1 35.518 ≥0.5 PASS 5795 SISO 1 35.536 ≥0.5 PASS 802.11ac(VHT20) 5180 SISO 1 21.175 Only for Report Use PASS 5200 SISO 1 21.299 Only for Report Use PASS 5240 SISO 1 21.175 Only for Report Use PASS 5745 SISO 1 16.424 ≥0.5 PASS 5785 SISO 1 17.215 ≥0.5 PASS 5825 SISO 1 17.135 ≥0.5 PASS 802.11ac(VHT40) 5190 SISO 1 49.949 Only for Report Use PASS 5230 SISO 1 52.020 Only for Report Use PASS 5755 SISO 1 35.792 ≥0.5 PASS 5795 SISO 1 35.371 ≥0.5 PASS 802.11ac(VHT80) 5210 SISO 1 81.058 Only for Report Use PASS 5775 SISO 1 75.571 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11a 5180 SISO 1 16.865 Only for Report Use 5200 SISO 1 16.813 Only for Report Use 5240 SISO 1 16.810 Only for Report Use 5745 SISO 1 17.256 Only for Report Use 5785 SISO 1 17.088 Only for Report Use 5825 SISO 1 17.202 Only for Report Use SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 180 of 240 802.11n(HT20) 5180 SISO 1 17.956 Only for Report Use 5200 SISO 1 17.909 Only for Report Use 5240 SISO 1 17.944 Only for Report Use 5745 SISO 1 18.349 Only for Report Use 5785 SISO 1 18.697 Only for Report Use 5825 SISO 1 18.616 Only for Report Use 802.11n(HT40) 5190 SISO 1 36.964 Only for Report Use 5230 SISO 1 36.925 Only for Report Use 5755 SISO 1 36.867 Only for Report Use 5795 SISO 1 37.034 Only for Report Use 802.11ac(VHT20) 5180 SISO 1 17.908 Only for Report Use 5200 SISO 1 17.975 Only for Report Use 5240 SISO 1 17.894 Only for Report Use 5745 SISO 1 18.427 Only for Report Use 5785 SISO 1 18.486 Only for Report Use 5825 SISO 1 18.458 Only for Report Use 802.11ac(VHT40) 5190 SISO 1 36.900 Only for Report Use 5230 SISO 1 36.869 Only for Report Use 5755 SISO 1 36.860 Only for Report Use 5795 SISO 1 36.834 Only for Report Use 802.11ac(VHT80) 5210 SISO 1 75.622 Only for Report Use 5775 SISO 1 75.775 Only for Report Use SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 181 of 240 2.2 Test Graph - Emission Bandwidth SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 182 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 183 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 184 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 185 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 186 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 187 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 188 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 189 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 190 of 240 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200400229905 Page: 191 of 240 SGS-CSTC…

Text truncated - open the document above for the full version.
