2AWD4HW901Heart rate Armband

Echelon Fitness Multimedia LLC 2020-10-12 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Echelon Fitness Multimedia LLC FCC ID: 2AWD4HW901 To Whom It May Concern: We, Echelon Fitness Multimedia LLC, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AWD4HW901 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is October 12, 2020. The Limited Agency Agreement expires on October 12, 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, John Goldston Quality Manager

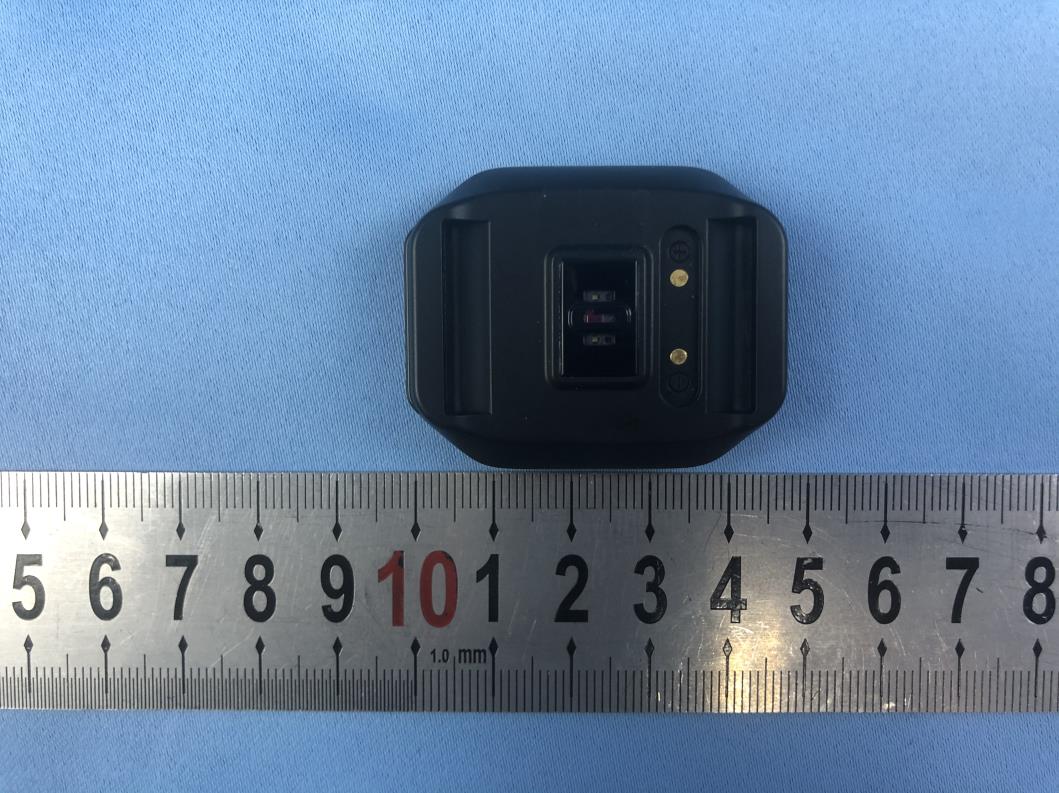

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a Heart rate Armband with Bluetooth and ANT+ function operating in 2402-2480MHz. The Bluetooth and ANT+ transmitters share one antenna. The EUT is powered by DC 3.7V by rechargeable battery. For more detail information pls. refer to the user manual. Standalone SAR evaluation for ANT+ function: Antenna Type: Integral antenna. Antenna Gain: 0.0dBi. Modulation Type: GFSK The nominal conducted output power specified: -10.0dBm (±1dB) The nominal radiated output power (e.i.r.p) specified: -10.0dBm (±1dB) According to the KDB 447498: The maximum peak radiated emission for the EUT is 85.5dBμV/m at 3m in the frequency 2457MHz The EIRP = [(FS*D) ^2 / 30] mW = -9.73dBm which is within the production variation. The maximum conducted output power specified is -9.0dBm = 0.13mW The source- based time-averaging conducted output power = 0.13 * Duty factor mW (where Duty Factor≤1) = 0.13mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.457) mW = 9.57 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AWD4HW901 INTERTEK TESTING SERVICES Standalone SAR evaluation for Bluetooth function Antenna Type: Integral Antenna. Antenna Gain: 0.0dBi. Modulation Type: GFSK. The nominal conducted output power specified: 0.0dBm (Tolerance: ±1.0dB). The nominal radiated output power (e.i.r.p) specified: 0.0dBm (Tolerance: ±1.0dB) The maximum conducted output power for the EUT is 0.15dBm in the frequency 2402MHz(stand-alone mode) which is within the production variation. The minimum conducted output power for the EUT is -0.36dBm in the frequency 2480MHz( Simultaneous transmission) which is within the production variation. The maximum conducted output power specified is 1.0dBm = 1.26mW The source- based time-averaging conducted output power = 1.26 * Duty factor mW (where Duty Factor≤1) = 1.26mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AWD4HW901 INTERTEK TESTING SERVICES Simultaneous Transmission SAR Evaluation According to the KDB 447498 D01 v06, when standalone SAR test exclusion applies to an antenna that transmits simultaneously with other antennas, the standalone SAR must be estimated according to following to determine simultaneous transmission SAR test exclusion: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)/x] W/kg for test separation distances ≤50 mm; where x = 7.5 for 1-g SAR, and x =18.75 for 10-g SAR. ANT+ SAR Estimation Tune-Up Power (dBm) Max. Power (mW) Distance (mm) Frequency (GHz) x SAR(1g) W/kg -9.0 0.13 5 2.457 7.5 0.005 Bluetooth SAR Estimation Tune-Up Power (dBm) Max. Power (mW) Distance (mm) Frequency (GHz) x SAR(1g) W/kg 1.0 1.26 5 2.480 7.5 0.053 The sum of 1-g SAR of all simultaneously transmitting antennas Bluetooth ANT+ Summed SAR(1g) W/kg SAR(1g) Limit W/kg Max. Scaled SAR(1g) W/kg Max. Scaled SAR(1g) W/kg 0.053 0.005 0.058 1.6 Since the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit, the EUT is considered to satisfy Simultaneous transmission SAR test exclusion. FCC ID: 2AWD4HW901

Echelon Fitness Multimedia LLC TEST REPORT SCOPE OF WORK FCC TESTING–HW901 REPORT NUMBER 200911007SZN-001 ISSUE DATE [REVISED DATE] 11 October 2020 [--------------------] PAGES 39 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 200911007SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 39 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Echelon Fitness Multimedia LLC Application For Certification FCC ID: 2AWD4HW901 Heart rate Armband Model: HW901 2.4GHz Wi-Fi Transceiver Report No.: 200911007SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 11 October 2020 Intertek Report No.: 200911007SZN-001 Version: 01-November-2017 Page: 2 of 39 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01- 19] Edition] provision. Report prepared by: Jeff Liang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6661 Intertek Report No.: 200911007SZN-001 Version: 01-November-2017 Page: 3 of 39 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ............................................................................................... 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description ........................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................... 5 2.3 Test Methodology .............................................................................................................. 5 2.4 Test Facility ........................................................................................................................ 5 3.0 System Test Configuration ............................................................................................ 6 3.1 Justification ........................................................................................................................ 6 3.2 EUT Exercising Software ..................................................................................................... 6 3.3 Special Accessories ............................................................................................................ 6 3.4 Measurement Uncertainty ................................................................................................. 7 3.5 Equipment Modification .................................................................................................... 7 3.6 Support Equipment List and Description .......................................................................... 7 4.0 Measurement Results ................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................. 8 4.2 Minimum 6 dB RF Bandwidth ............................................................................................ 9 4.3 Maximum Power Density Reading ................................................................................... 11 4.4 Out of Band Conducted Emissions ................................................................................... 15 4.5 Out of Band Radiated Emissions ...................................................................................... 24 4.6 Transmitter Radiated Emissions in Restricted Bands ........................................................ 25 4.7 Field Strength Calculation ................................................................................................ 26 4.8 Radiated Spurious Emission ............................................................................................. 27 4.9 Conduc…

Text truncated - open the document above for the full version.

Below 1G Above 1G
