2AWDCTB1000-GUWB Tag

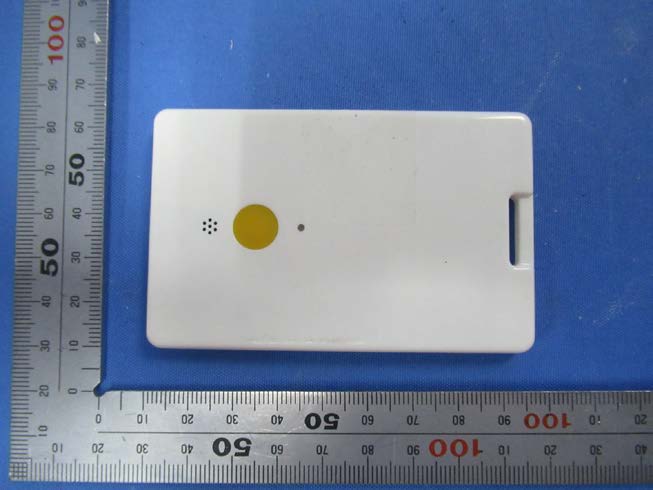

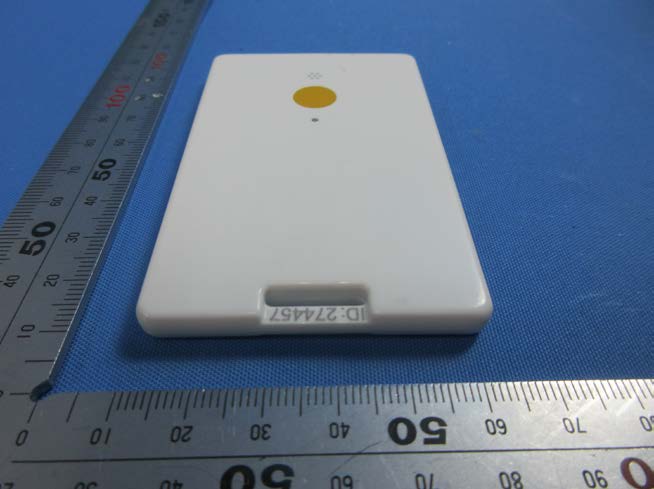

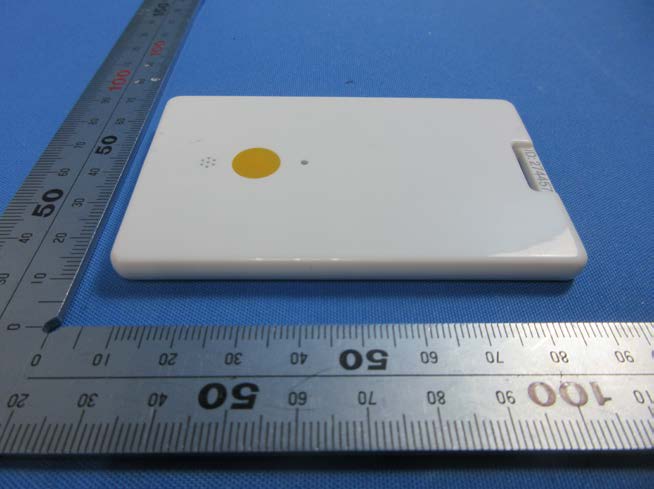

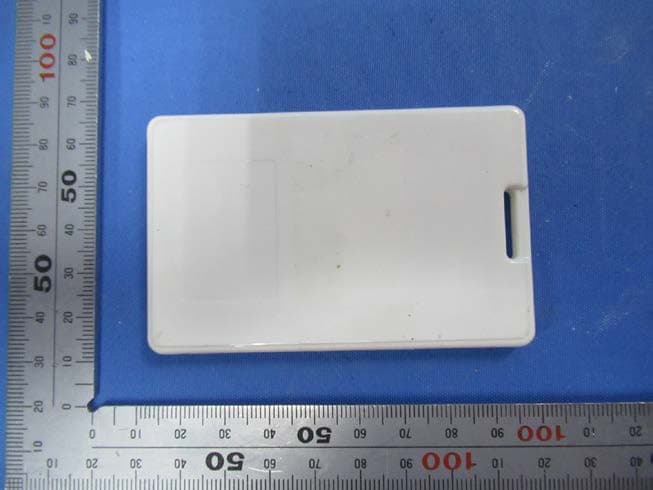

Product Introduction General Tb1000-g UWB Tag has the function of detecting the distance between each other. When it detects that the distance between itself and any other UWB Tag is less than the preset distance, it will record this event and alarm. Typical application scenario is shown in the figure below. gateway (a separate product from TSINGOAL) is used and it is uploaded to the user’s own designated server. For details, please refer to user manual of the gateway (if also purchased). Use buttons Do not press the button on the UWB Tag hard or crack it violently. Charging cable If the cable is bent repeatedly in the same area, it could become hard and brittle. Please roll up the electric wire into downy curve. Please check the cables and connectors regularly to prevent them from knotting, breaking, bending or other damages. If any damage is found, do not continue to use the cable. Operating temperature UWB Tag is designed to work best in ambient temperatures between -10°C (14°F) and +60 °C (140°F) and be stored in temperatures between -20°C (-4°F) and +70°Cand (158°F). UWB Tag can be damaged and battery life could be shortened if stored or operated outside of these temperature ranges. Avoid exposing UWB Tag to dramatic changes in temperature or humidity. UWB wireless may penetrate some objects to establish connection, such as wooden box, shelf, hollow wall, etc. However, it may cause an increase in ranging error. There might be cases that the alarm of the tag is triggered e.g. when you and the other wearer are within the pre-set alarm distance while there is a separator (wooden box, shelf, hollow wall) between you. There might be cases that the alarm of the tag is not triggered e.g. when you and the other wearer are within the pre-set alarm distance but UWB Tags are separated by wearer’s body. It’s NLOS condition and in reality, this situation should be considered safe. The vibration alarm of UWB Tag is only triggered within pre-set alarm distance. If you are far away from any other UWB Tag but the vibration alarm does not stop, it may be because the UWB Tag you are wearing is squeezed hard or entered with liquid, resulting in the short circuit of the vibration motor. Please contact the manager in time in this case. Get Started Turn On UWB Tag To use UWB Tag for the first time, press the front button for more than 3 seconds to turn it on. The Tag will vibrate and beep if successfully turned on. After turning on, UWB Tag will remain in a working state, and the user cannot turn it off autonomously. If you need to turn off UWB Tag, please contact the system administrator to achieve it with the help of UWB Gateway and related software. Panels The front panel of the UWB Tag is shown in the following figure with descriptions in the table. In addition, with the help of UWB Gateway, UWB Tag can upload this alarm record. The bottom panel of the UWB Tag contains the charging port, as shown in the following figure. Description 1 2 Lanyard Hole Status Indicator Used to tie lanyard. Description 1Charging PortFor 5V1A microUSB charging. 4Beep HoleBeeping when in alarm status. Charging status: --Blue and green flashing: Charging; --Green always on: Battery charged full. Working status: -- Green flashing: full battery; -- Red flashing: low battery. Alarm status: --Red light flashing: Alarm. 3Button Used to temporarily mute the alert function. USER MANUAL UWB TAG Tb1000-g CONTENTS Trouble Shooting Product Parameters Safety Instructions Disposal and Recycling Information Instructions for Operation Statement Of Conformity Limited Warranty Statement On Intellectual Property Rights Responsibility Statement PRODUCT INFORMATION General Panels Get Started Turn On UWB Tag Charging Basics Ranging Alarming Recording Uploading Data Privacy Consideration Basics UWB TAG has four basic functions: ranging, alarming, recording and uploading. Ranging When turned on, the ranging function will start to run. UWB Tag will periodically try to measure the distance between itself and other UWB TAGs within a certain range. The general ranging period is once per second. In LOS environment, the effective ranging range of UWB Tag is about 5m. In the NLOS environment, due to the influence of occlusion, UWB tags may not be able to complete the ranging process, and the ranging error will increase. Please note that when the UWB tag is newly added to a ranging network, there is a ranging initialization recognition time. This length of time is generally 5 seconds (assuming that ranging frequency of the UWB TAG is 1Hz), and will vary with the scale of the ranging network. Alarming The default alarm distance of UWB Tag is 2m. Once UWB Tag detects that the distance between itself and any other UWB Tag is less than the preset alarm distance, it will warn the wearer by vibrating, buzzing and LED flashing. Temporary mute function can be achieved by pressing the button on the UWB Tag. After a short press of the button, UWB Tag will pause vibration, Operation Conditions Exposure to liquid Tb1000-g UWB Tag is not water resistant. Always avoid exposing Tb1000-g to liquids and moisture. Cleaning and care Keep UWB Tag clean and dry, but avoid damaging UWB Tag. Observe the following: Don’t clean UWB Tag while it’s charging. Don’t dry UWB Tag using any external heat source (for example, a hair dryer). Don’t use cleaning products, ultrasonic cleaners, or compressed air when cleaning your UWB Tag. IDisinfection The following situations should be strictly avoided when disinfecting parts such as areas around the button and charging interfaces: Spray or wipe the UWB Tag directly with disinfectant liquid (such as diethyl ether, alcohol, chlorine-containing disinfectant, peracetic acid etc.). Carry out fire, boiling, flowing steam, high heat steam, dry heat sterilization etc. on UWB Tags and accessories. Place the UWB Tag under ultraviolet light. Any other disinfection practices that may cause damage or safety issues. Trouble Shooting The UWB Tag will fla…
