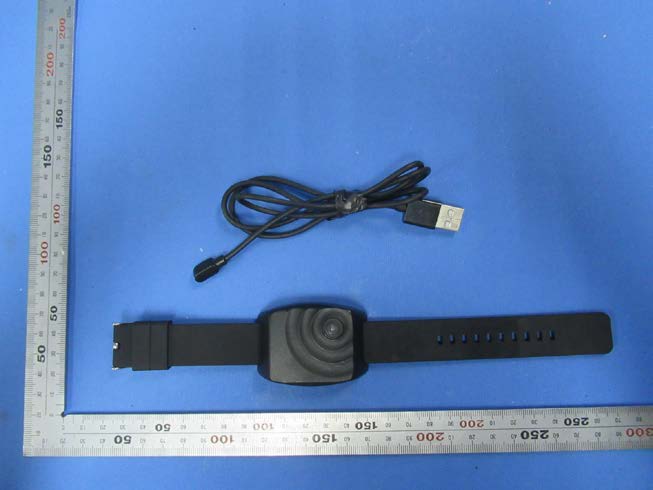

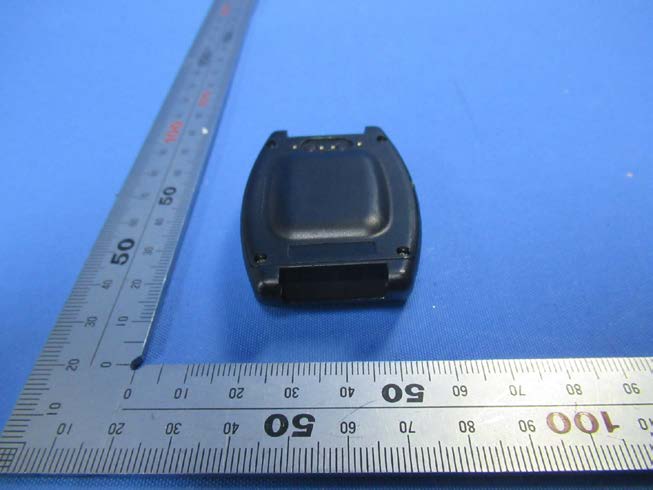

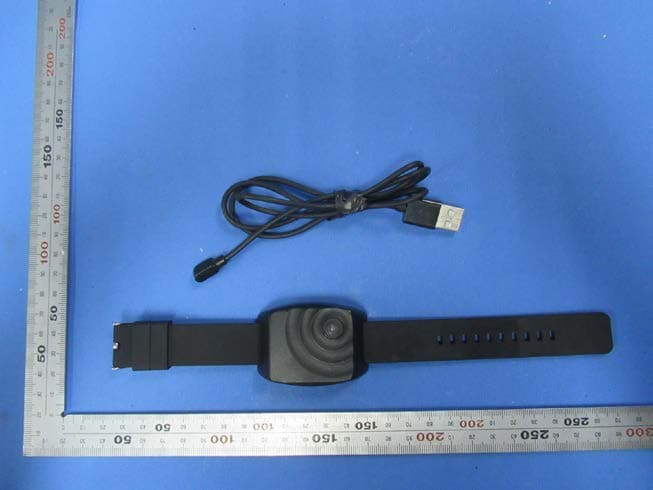

2AWDCTB1000-WUWB Tag

Product Introduction General Tb1000-w UWB Tag has the function of detecting the distance between each other. When it detects that the distance between itself and any other UWB Tag is less than the preset distance, it will record this event and alarm. Typical application scenario is shown in the figure below. Attention: data collection or upload is only possible when corresponding gateway (a separate product from TSINGOAL) is used and it is uploaded to the user’s own designated server. For details, please refer to user manual of the gateway (if also purchased). Spray or wipe the UWB Tag directly with disinfectant liquid (such as diethyl ether, alcohol, chlorine-containing disinfectant, peracetic acid etc.). Carry out fire, boiling, flowing steam, high heat steam, dry heat sterilization etc. on UWB Tags and accessories. Place the UWB Tag under ultraviolet light. Any other disinfection practices that may cause damage or safety issues. Use buttons Do not press the button on the UWB Tag hard or crack it violently. Charging cable If the cable is bent repeatedly in the same area, it could become hard and brittle. Please roll up the electric wire into downy curve. Please check the cables and connectors regularly to prevent them from knotting, breaking, bending or other damages. If any damage is found, do not continue to use the cable. Operating temperature UWB Tag is designed to work best in ambient temperatures between -10°C (14°F) and +60 °C (140°F) and be stored in temperatures between -20°C (-4°F) and +70°Cand (158°F). UWB Tag can be damaged and battery life could be shortened if stored or operated outside of these temperature ranges. Avoid exposing UWB Tag to dramatic changes in temperature or humidity. Magnets Keep key cards and credit cards (any cards containing magnet) away from UWB Tag and the UWB Tag charging cable. Get Started Turn On UWB Tag To use UWB Tag for the first time, press the front button for more than After turning on, UWB Tag will remain in a working state, and the user cannot turn it off autonomously. If you need to turn off UWB Tag, please contact the system administrator to achieve it with the help of UWB Gateway and related software. Wearing Please refer to the figure: attach the bottom of the UWB Tag to the wrist to maintain a comfortable and fitting wearing status. In order to ensure comfort, please wear your watch normally, avoid joints, not too loose nor too tight. Panels The front panel of the UWB Tag is shown in the following figure with descriptions in the table. In addition, with the help of UWB Gateway, UWB Tag can upload this alarm record. The bottom panel of the UWB Tag contains the charging port, as shown in the following figure. Description 3 1Status Indicator Description 1Charging PortFor 5V1A microUSB charging. 2ID AreaArea that shows ID number. 4Beep HoleBeeping when in alarm status. Charging status: --Blue and green flashing: Charging; --Green always on: Battery charged full. Working status: -- Green flashing: full battery; -- Red flashing: low battery. Alarm status: --Red light flashing: Alarm. 3Button Used to temporarily mute the alert function. USER MANUAL UWB TAG Tb1000-w CONTENTS Trouble Shooting Operation Conditions Product Parameters Safety Instructions Disposal and Recycling Information Statement Of Conformity Limited Warranty Statement On Intellectual Property Rights Responsibility Statement PRODUCT INFORMATION General Panels 1 1 2 3 3 5 6 6 6 7 4 Get Started Turn On UWB Tag wearing Charging Basics Ranging Alarming Recording Uploading Data Privacy Consideration Tag to tag distance Vibration / alarm < 6 ft Basics UWB TAG has four basic functions: ranging, alarming, recording and uploading. Ranging When turned on, the ranging function will start to run. UWB Tag will periodically try to measure the distance between itself and other UWB TAGs within a certain range. The general ranging period is once per second. In LOS environment, the effective ranging range of UWB Tag is about 5m. In the NLOS environment, due to the influence of occlusion, UWB tags may not be able to complete the ranging process, and the ranging error will increase. Please note that when the UWB tag is newly added to a ranging network, there is a ranging initialization recognition time. This length of time is generally 5 seconds (assuming that ranging frequency of the UWB TAG is 1Hz), and will vary with the scale of the ranging network. Alarming The default alarm distance of UWB Tag is 2m. Once UWB Tag detects that the distance between itself and any other UWB Tag is less than the preset alarm distance, it will warn the wearer by vibrating, buzzing and LED flashing. Temporary mute function can be achieved by pressing the button on the UWB Tag. After a short press of the button, UWB Tag will pause vibration, Operation Conditions Exposure to liquid UWB Tag is water-resistant with IP65*. You may, for example, wear and use UWB Tag during exercise, in the rain, and while washing your hands. Please read carefully the instructions below in “Cleaning and care” section in case the above-mentioned situation happens. *UWB Tag have a water resistance rating of IP65 under China standard BG/T4208-2008. UWB Tag is water resistant, but submerging UWB Tag is not recommended. UWB Tag should not be used for scuba diving, water skiing, or other activities involving high velocity water or submersion below shallow depth. Water resistance is not a permanent condition and may diminish over time. UWB Tag cannot be rechecked or resealed for water resistance. T he following may affect the water resistance performance of UWB Tag and should be avoided: Dropping UWB Tag or subjecting it to other impacts. Exposing UWB Tag to soap or soapy water, for example while showering or bathing. Trouble Shooting The UWB Tag will flash the status light once every 3 seconds. If the status light does not flash for a long time, please press the button and Product Parameters beep and LED flashing for 10 seconds. But only the…
