2AWF6-SH3320LTE Flip Feature Phone

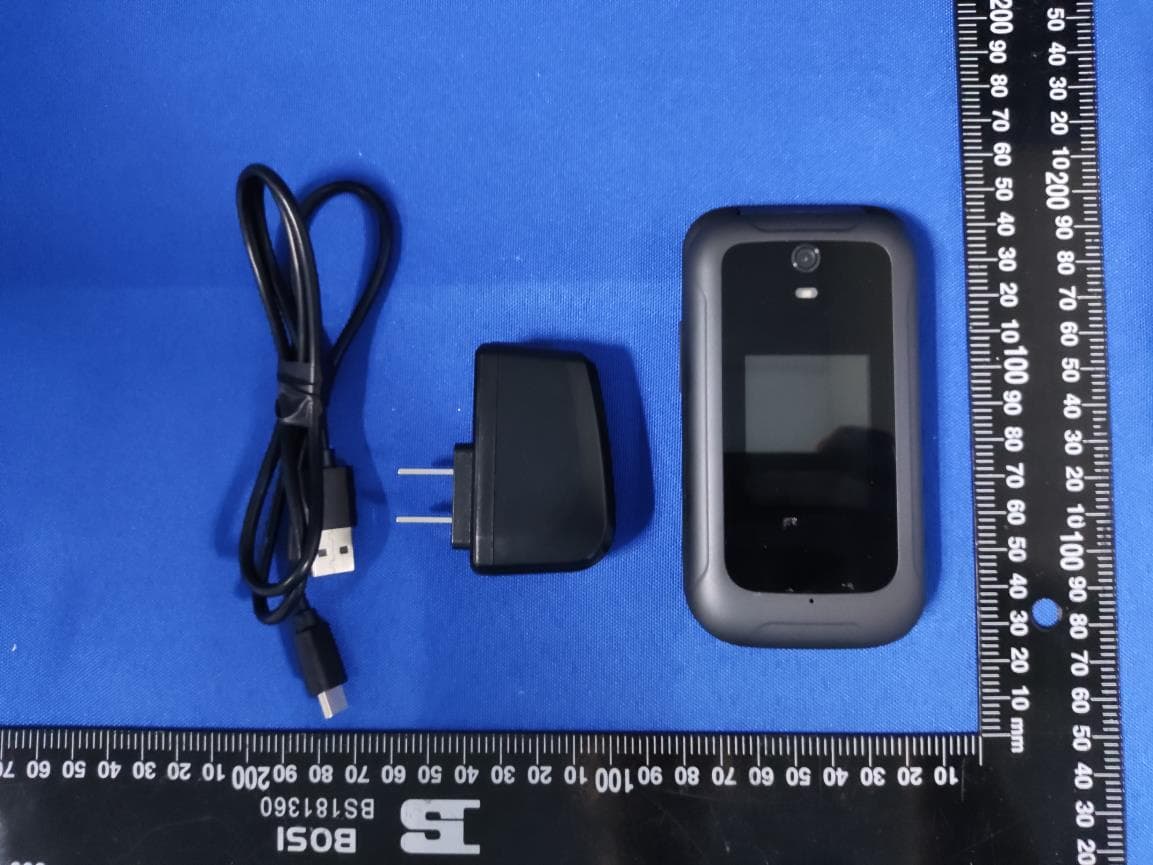

1 IRIS Flip Quick Start Guide 2 WHAT’S IN THE BOX When you open the package, the box contains the following items: • IRIS Flip • USB-C data cable • Power adapter • Documentation 3 GETTING TO KNOW YOUR PHOHE Update image with IRIS Flip logo 4 GETTING STARTED Phone Setup (First time) Before using your phone for the first time, it needs to be set up. The Setup Wizard built into your phone will help guide you through this process. NOTE: Your setup may be different than the instructions in this Quick Start Guide because of software updates or if you choose different options. If the steps are different, just follow your phone's on-screen instructions for setup. 5 Open the back cover 1. Put your fingernail in the small slot at the bottom of the phone, lift and remove the cover. 2. If the battery is in the phone, lift it out. 6 Installing a memory Card (Not Included) 1. Slide the memory card holder to the left and open it up. 2. Place the memory card in the slot face down. 3. Close down the holder and slide it to the right to lock it in place. 4. Put back the battery. 5. Put back the back cover. NOTE: Use a microSD memory card (up to 32 GB). 3. Close down the holder and slide it to the 7 Charging the Phone Your phone’s battery should have enough power for the phone to through initial startup and make calls. You should fully charge the battery as soon as possible. Important! Use only approved chargers and USB cables. 8 KEYPAD Use the phone keys • To open the apps list, press the navigation key. • To open an app or select a feature, press the scroll key right, left, up, or down to scroll to the app or feature, and press the scroll key to select OK button. • To go back to the previous view, press the back key. • To go back to the home screen, press the power/end key once quickly. Lock the keypad To lock your keys, press the navigation key and select Screen lock, or close the fold. Inputting with the keypad Typing text  Press a key repeatedly until the letter is shown. For example: To type the letter “c” press the 3 button 3 times to see the letter “c”.  To type in a space, press 0 button..  To type in a special character or punctuation mark, press * button and choose the special character or punctuation mark.  To switch between lower & upper case, press # button and choose the case you want. 9  To type in a number, press and hold that number key for 2 seconds. INTERNET AND CONNECTIONS Connect to the internet 1. Press down on the navigation key to open the menu and select Internet. 2. Select to search the Internet. 3. Write a web address, and select Go. 4. Use the scroll key to move the mouse cursor in the browser. Switch on Bluetooth 1. Press down on the navigation key to open the menu and select Settings > Network& Connectivity > Bluetooth. 2. Turn Bluetooth to On. 3. Select Nearby devices to find a new device or Paired devices to find a device you have paired your phone with previously. Switch on Wi-Fi 1. Press down on the navigation key to open the menu and select Settings > Network& Connectivity > Wi-Fi. 2. Switch Wi-Fi to On. 3. Select Available networks and the network you want, enter a password if needed, and select Connect. 10 PHONE CALLS Make a call Learn how to make a call with your new phone. 1. Type in the phone number. To type in the + character, used for international calls, and press * button twice. 2. Press CALL. 3. To end the call, press PWR END. Answering a call When you receive a phone call, press CALL or the Left Navigation Key to answer the call. Reject a Call When you receive a phone call, press PWR END or the Right Navigation Key to reject the call. Press the navigation key and select options to reject the call and send a text message to the caller. 11 CONTACTS Add a contact 1. Press down on the navigation key to open the menu and select Contacts. 2. Select New. 3. Enter the contact details. 4. Select SAVE. 5. Press to add your favorite contacts. Transfer contacts from your old phone To add contacts from your Gmail or Outlook account or your memory card to your new phone, select Contacts > Options > Settings > Import Contacts and the relevant option. To add contacts from your old phone using Bluetooth: 1. On your new phone, select Settings > Network & Connectivity > Bluetooth > On. 2. Switch on Bluetooth on your old phone and send the needed contacts to your new phone using Bluetooth. 3. On your new phone, accept the transfer request. 4. On the home screen, select Notices > Files received > Import. Call a contact You can call a contact directly from the contacts list. 1. Press the scroll key, and select Contacts . 12 2. Scroll to a contact and press CALL. SEND MESSAGES Write and send messages 1. Press the scroll key, and select Messages > New. 2. In the To field, press # button until you are able to enter numbers and then type in a phone number, or select Contacts to add a contact from your contacts list. 3. Write your message. If you need to remove a character, press the back key. 4. Select SEND. SEND MAIL Add an email account When you use the Email app for the first time, you will be asked to set up your email account. 1. Press the scroll key and select E-mail. 2. Select Next and then type in your name and email address. 3. Select Next and type in your password. Write an email 1. Press the scroll key and select E-mail. 2. Select Compose. 3. In the To field, type in an email address. 13 4. Type in the message subject and then compose your email. 5. Select Send. PHOTOS AND VIDEOS Take a photo 1. To switch on the camera, press down on the navigation key to open the menu, and select Camera. 2. To take a photo, press the scroll key. To view the photo right after taking it, select Preview. To view the photo later, on the home screen, press the scroll key, and select Gallery. Record a video 1. Press down on the navigation key to open the menu, and select Camera. 2. To start recording, scroll right and press the scroll key. 3. To stop recording, press the scroll key. To view t…

Text truncated - open the document above for the full version.

START USA, INC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06/15/2023 Company name: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Product Name: LTE Flip Feature Phone FCC ID: 2AWF6-SH3320 Model(s): SH3320 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing We, START USA, INC. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Yours Sincerely, Signature of applicant: Name: Tony Lin Title: CEO

START USA, INC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06/15/2023 Company name: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Product Name: LTE Flip Feature Phone FCC ID: 2AWF6-SH3320 Model(s): SH3320 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing We, START USA, INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Yours Sincerely, Signature of applicant: Name: Tony Lin Title: CEO

START USA, INC. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06/15/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing We, START USA, INC. (“the applicant”) certifies that, as of the date of the filing of the application, designate our self as U.S. agent for service of process. Designated U.S. Agent Information: Name: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Contact Person: Tony Lin Tel.: (+1)972 -688- 6888 Email: [email protected] FRN: 0029586336 Sincerely, Applicant signature: Applicant printed name: Tony Lin Name: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Email: [email protected]

FCC Letter of Authorization Company: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Product Name: LTE Flip Feature Phone Model Number: SH3320 FCC ID: 2AWF6-SH3320 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Tony Lin Date: 2023/06/15 Title: CEO Signature of applicant:

START USA, INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 06/15/2023 Subject; Request for Confidentiality FCC ID: 2AWF6-SH3320 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM List Tune up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s) ; External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tony Lin

Difference Declaration Letter To who concern In addition to RF module, MCU and other key parts of the sample, similar to the camera, LED flash, speaker, receiver, FPC and the following materials has two manufacturers (the component parameters of the two manufacturers are the same, do not affect the RF test results). 1. QM215-1-720BNSP-TR-00-1-AA, Qualcomm QM215-0-720BNSP-TR-00-0-AA, Qualcomm QM215-3-BNSP720-TR-00-0-AB, Qualcomm 2. 8GB EMMC+8Gb LPDDR3, SAMSUNG 8GB EMMC+8Gb LPDDR3, HYNIX 3. LDO,IC,output 1.8V IC,1.4-5.5V,300mA,78dB@f=1KHz,DFN1x1-4L, Willsemi LDO,IC,output 1.8V IC,2.3-5.5V,300mA,78dB@f=1KHz,DFN1x1-4L, Boardchip 4. LDO,IC,output 1.2V IC,1.4-5.5V,300mA,78dB@f=1KHz,DFN1x1-4L,Willsemi LDO,IC,output 1.2V IC,1.4-5.5V,300mA,78dB@f=1KHz,DFN1x1-4L, Boardchip 5. LDO,IC,output 3.0V IC,2.5-5.5V,500mA/1000mA,60dB@f=1KHz,DFN1612-8L, willsemi LDO output=3.0V, 750mA,82db@f=1khz,WBDFN1.6mm*1.2mm*0.37mm-8L, AWINIC 6. Bi-directional, TVS,±30kV,VRWM=4.5 V,2400W,2.3*1.1*0.8MM, Prisemi Bi-directional, TVS,±30kV,VRWM=4.5 V,2400W,2.3*1.1*0.8MM, WillSemi 7. Schottky Barrier Diode,200mA, 0.6V ,LRB520S-30T1G, LRC DIODE,SOD523,RB520S30-2/TR,WILL 8. 1A Buck/Boost charge pump LED driver,TDFN, BROADCHIP 700mA Buck/Boost charge pump LED driver, SGMICRO 9. Low Power LDO 3.3V ,1*1*0.5mm, UTDFN-1×1-4L, Broadchip 10. MOSFET NMOS,20V,1A,SOT-523, prisemi MOSFET,Small Single N-Channel,20V,0.88A,SOT-523, WILL 11. Hall IC, ROHM Hall IC, ORIENT-CH 12. Analog MEMS Microphone, MEMSENSING Analog MEMS Microphone, MEMSENSING 13. 19.2MHz;CL=7pF;100k,±10ppm,-30°C~105°C, 2.5*2.0*1.0mm(max), SIWARD 19.2MHz;CL=7pF;100k,±10ppm,-30°C~105°C, 2.5*2.0*1.0mm(max), Hosonic 14. Flash SMD LED, Lattice Power Flash SMD LED, Amicc 15. Side key FPC, Hai Ling Ke Side key FPC, Yi Xun 16. Main FPC, Hai Ling Ke Main FPC, Yi Xun 17. Camera, Shi Jia Camera, Wei Xun 18. Speaker, Hong Shen Te Speaker, Peng Chuang 19. Receiver, Hong Shen Te Receiver, Peng Chuang 20. 25Pin ZIF connect, HRS 25Pin ZIF connect, Ya Qi Signature: Contact Person: Tony Lin Title: CEO Company: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Tel: (+1)972-688-6888 E-Mail: [email protected] 2023/05/10

MAIN ANT DIV ANT WIFI/BT ANT

Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) Page 1 of 73 SAR TEST REPORT Report No.： 20230417G03299X-W2 Product Name： LTE Flip Feature Phone Model Name： SH3320 Marketing Name： Cactus Trade Name： START, Consumer Cellular, Verve, IRIS Brand Name： START, Consumer Cellular, Verve, IRIS FCC ID： 2AWF6-SH3320 Applicant： START USA, INC. Address： 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Test Date： 2023/05/30~2023/06/18 Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website http://www.ccic-set.com This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) Page 2 of 73 Test Report Applicant: START USA, INC. Applicant Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Manufacturer: THINKSTART ELECTRONIC TECHNOLOGY CO., LTD. Manufacturer Address: Unit A1-403, Kexing Science Park, 15 Keyuan Road, Nanshan District, Shenzhen, CHINA Test Standards: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result: Pass Tested by: Carl Wei, Test Engineer 2023-06-21 Reviewed by: Chris You, Senior Engineer 2023-06-21 Approved by: Yang Fan, Manager 2023-06-21 Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) Page 3 of 73 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 6 4. Specific Absorption Rate (SAR)................................................................................................ 8 5. Tissue check and recommend Dielectric Parameters ........................................................... 12 6. SAR measurement procedure ................................................................................................. 17 7. Power Reduction Configuration ............................................................................................. 18 8. Conducted RF Output Power ................................................................................................. 21 9. Antenna Location:.................................................................................................................... 47 10. Scaling Factor calculation ....................................................................................................... 49 11. Test Results ............................................................................................................................... 51 12. Simultaneous Transmissions Analysis .................................................................................... 64 13. Measurement Uncertainty ....................................................................................................... 68 14. Equipment List ......................................................................................................................... 72 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 73 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 73 ANNEX C: Appendix C: Calibration reports .................................................................................... 73 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 73 Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) Page 4 of 73 1. Administrative Data 1.1 Testing Laboratory Test Site: CCIC Southern Testing Co., Ltd. Address: Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China A2LA Lab Code: CCIC-SET is a third party testing organization accredited by A2LA according to ISO/IEC 17025:2017. The accreditation certificate number is 5721.01 FCC Registration: CCIC Southern Testing Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN1283, valid time is until June 30th, 2023. ISED Registration: CCIC Southern Testing Co., Ltd. EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for the performance of radiated measurements with Registration No. 11185A-1 on Aug. 04, 2016, valid time is until June 30th, 2023. Test Environment Condition: Temperature (°C): 18°C ~25°C Relative Humidity (%): 35%~75% RH Atmospheric P…

Text truncated - open the document above for the full version.

Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 6 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Head 750 2023/05/30 System Check Head 835 2023/06/08 System Check Head 1800 2023/06/18 System Check Head 1900 2023/06/17 System Check Head 2450 2023/06/11 Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 6 System Performance Check (750MHz) Type: Validation measurement Date of measurement: 05/30/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 750MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 750 Relative permittivity (real part) 41.76 Conductivity (S/m) 0.89 Variation (%) -0.41 Maximum location: X=1.00, Y=-5.00 SAR Peak: 0.12 W/kg SAR 10g (W/Kg) 0.059010 SAR 1g (W/Kg) 0.087295 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 3 / 6 System Performance Check (835MHz) Type: Validation measurement Date of measurement: 06/08/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 835MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 835 Relative permittivity (real part) 41.36 Conductivity (S/m) 0.92 Variation (%) -0.34 Maximum location: X=0.00, Y=-9.00 SAR Peak: 0.12 W/kg SAR 10g (W/Kg) 0.059622 SAR 1g (W/Kg) 0.087127 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 4 / 6 System Performance Check (1800MHz) Type: Validation measurement Date of measurement: 06/18/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 1800MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1800 Relative permittivity (real part) 39.59 Conductivity (S/m) 1.38 Variation (%) -1.00 Maximum location: X=0.00, Y=0.00 SAR Peak: 0.61 W/kg SAR 10g (W/Kg) 0.196874 SAR 1g (W/Kg) 0.365766 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 5 / 6 System Performance Check (1900MHz) Type: Validation measurement Date of measurement: 06/17/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=8mm dy=8mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band 1900MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1900 Relative permittivity (real part) 38.96 Conductivity (S/m) 1.43 Variation (%) 0.61 Maximum location: X=1.00, Y=-1.00 SAR Peak: 0.68 W/kg SAR 10g (W/Kg) 0.207012 SAR 1g (W/Kg) 0.408135 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 6 / 6 System Performance Check (2450MHz) Type: Validation measurement Date of measurement: 06/11/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=8mm dy=8mm Zoom Scan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Dipole Band 2450MHz Channels Middle Signal CW(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 2450 Relative permittivity (real part) 38.64 Conductivity (S/m) 1.79 Variation (%) -0.23 Maximum location: X=2.00, Y=-5.00 SAR Peak: 0.93 W/kg SAR 10g (W/Kg) 0.235311 SAR 1g (W/Kg) 0.508647 SURFACE SAR VOLUME SAR Z Axis Scan

Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 1 / 21 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 WCDMA 850 ANT3 Left Cheek Middle 2023/06/08 2 WCDMA 850 ANT3 Body Back, Middle ,10mm 2023/06/08 3 WCDMA 1700 ANT3 Left Cheek Middle 2023/06/18 4 WCDMA 1700 ANT3 Body Back, Middle ,10mm 2023/06/18 5 WCDMA 1900 ANT3 Left Cheek Middle 2023/06/17 6 WCDMA 1900 ANT3 Body Back, Low ,10mm 2023/06/17 7 LTE Band 2 ANT3 Left Cheek Middle 2023/06/17 8 LTE Band 2 ANT3 Body Back, Middle ,10mm 2023/06/17 9 LTE Band 4 ANT3 Left Cheek Middle 2023/06/18 10 LTE Band 4 ANT3 Body Back, Middle ,10mm 2023/06/18 11 LTE Band 5 ANT3 Left Cheek Middle 2023/06/08 12 LTE Band 5 ANT3 Body Back, Middle ,10mm 2023/06/08 13 LTE Band 12 ANT3 Left Cheek Middle 2023/05/30 14 LTE Band 12 ANT3 Body Back, Middle ,10mm 2023/05/30 15 LTE Band 66 ANT3 Left Cheek Middle 2023/06/18 16 LTE Band 66 ANT3 Body Back, Middle ,10mm 2023/06/18 17 WI-FI 2.4G 802.11b ANT 2 Left Cheek Middle 2023/06/11 18 WI-FI 2.4G 802.11b ANT 2 Body Back, Middle ,10mm 2023/06/11 19 Bluetooth ANT 2 Left Cheek Middle 2023/06/11 20 Bluetooth ANT 2 Body Back, Middle ,10mm 2023/06/11 Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 2 / 21 Testing result (WDCMA 850, Left Cheek, Middle, 0mm) Type: phone measurement Date of measurement: 06/08/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left Head Device Position Cheek Band WCDMA850 Channels Middle Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 836.6 Relative permittivity (real part) 41.36 Conductivity (S/m) 0.92 Variation (%) -0.79 Maximum location: X=-75.00, Y=-35.00 SAR Peak: 0.62 W/kg SAR 10g (W/Kg) 0.321714 SAR 1g (W/Kg) 0.452916 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 3 / 21 Testing result (WCDMA 850, Back, Middle, 10mm) Type: phone measurement Date of measurement: 06/08/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band WCDMA850 Channels Middle Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 836.6 Relative permittivity (real part) 41.36 Conductivity (S/m) 0.92 Variation (%) -2.06 Maximum location: X=5.00, Y=-25.00 SAR Peak: 1.33 W/kg SAR 10g (W/Kg) 0.567217 SAR 1g (W/Kg) 0.898993 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 4 / 21 Testing result (WDCMA 1700, Left Cheek, Middle, 0mm) Type: phone measurement Date of measurement: 06/18/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Right Head Device Position Cheek Band WCDMA1700 Channels Middle Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1732.6 Relative permittivity (real part) 39.75 Conductivity (S/m) 1.33 Variation (%) 2.21 Maximum location: X=-54.00, Y=-47.00 SAR Peak: 0.79 W/kg SAR 10g (W/Kg) 0.276055 SAR 1g (W/Kg) 0.474319 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 5 / 21 Testing result (WCDMA 1700, Back, Middle, 10mm) Type: phone measurement Date of measurement: 06/18/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band WCDMA1700 Channels Middle Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1732.6 Relative permittivity (real part) 39.75 Conductivity (S/m) 1.33 Variation (%) -1.77 Maximum location: X=-5.00, Y=-11.00 SAR Peak: 1.42 W/kg SAR 10g (W/Kg) 0.513743 SAR 1g (W/Kg) 0.901830 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 6 / 21 Testing result (WDCMA 1900, Left Cheek, Middle, 0mm) Type: phone measurement Date of measurement: 06/17/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left Head Device Position Cheek Band WCDMA1900 Channels Middle Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1880.0 Relative permittivity (real part) 39.08 Conductivity (S/m) 1.41 Variation (%) 0.12 Maximum location: X=-66.00, Y=-51.00 SAR Peak: 0.52 W/kg SAR 10g (W/Kg) 0.199934 SAR 1g (W/Kg) 0.342183 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 7 / 21 Testing result (WCDMA1900, Back, Low, 5mm) Type: phone measurement Date of measurement: 06/17/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band WCDMA1900 Channels Low Signal WCDMA(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1852.4 Relative permittivity (real part) 39.15 Conductivity (S/m) 1.39 Variation (%) 0.79 Maximum location: X=1.00, Y=3.00 SAR Peak: 1.36 W/kg SAR 10g (W/Kg) 0.502522 SAR 1g (W/Kg) 0.866558 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11) 8 / 21 Testing result (LTE Band 2, Left Cheek, Middle, 0mm) Type: phone measurement Date of measurement: 06/17/2023 A. Experimental conditions. E-Field Probe SATIMO SN 32/22 EPGO383 Area Scan dx=15mm dy=15mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left Head Device Position Cheek Band LTE Band 2 Channels Middle Signal LTE(Crest factor: 1.0) B. SAR Measurement Results Frequency (MHz) 1880.0 Relative permittivity (real part) 39.08 Conductivity (S/m) 1.41 Variation (%) -0.65 Maximum location: X=-66.00, Y=-51.00 SAR Peak: 0.33 W/kg SAR 10g (W/Kg) 0.127023 SAR 1g (W/Kg) 0.214319 SURFACE SAR VOLUME SAR Z Axis Scan Report No. 20230417G03299X-W2 CCIC-SET/TRF:ISAR(2021-05-11…

Text truncated - open the document above for the full version.

Report No.: 20230417G03299X-W5 CCIC-SET/ TRF:IRF(2019-05-23) Page 1 of 58 RF TEST REPORT Report No.: 20230417G03299X-W5 Product Name: LTE Flip Feature Phone Model No.: SH3320 FCC ID: 2AWF6-SH3320 Applicant: START USA, INC. Address: 6860 Dallas Parkway, Suite 200, Plano, TX 75024, USA Dates of Testing: 04/19/2023 - 06/16/2023 Issued by: CCIC Southern Testing Co., Ltd. Lab Location: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel：86 755 26627338 Fax：86 755 26627238 This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: 20230417G03299X-W5 CCIC-SET/ TRF:IRF(2019-05-23) Page 2 of 58 Test Report Product ................................. : LTE Flip Feature Phone Brand Name .......................... : START, Consumer Cellular, Verve, IRIS Trade Name ......................... : START, Consumer Cellular, Verve, IRIS Marketing Name .................. : Cactus Applicant ............................... : START USA,…

Text truncated - open the document above for the full version.
