2AWG9-DENALIHigh Power Wireless Router/AP

WiFiRanger, A LinOra Company Denali Ver1.0 1 High Power Wireless Router/AP Model：Denali Ver1.0 Description: Denali Ver1.0 is a wireless enterprise router AP. It has built-in Qualcomm enterprise QCA9531 CPU, large flash and high speed memory, strong data processing capability and support dual frequency concurrency, it is a reliable and flexible networking device providing security, and speed for enterprises.. Features: 1. Using Qualcomm QCA9531 cpu frequency 600Mhz 2. Large memory and large storage design to meet different needs 3. Meet the standard of IEEE 802.11n, IEEE 802.11g/b/, 4. One WAN / LAN 100M port supports POE power (24V) 5. Support PPPoE, dynamic IP, static IP and other broadband access methods 6. Support 2.0 USB interface for fast shared mobile storage network,or 4G access to it 7. Industrial grade design, the power supply and network port are support surge 4KV, and electrostatic 8KV which tested in lab 8. Hardware watchdog design, working unobstructed in a whole day 9. Support Open-Wrt system, which is convenient for customers to develop by themselves WiFiRanger, A LinOra Company Denali Ver1.0 2 Specification Protocol IEEE802.11N/G/B Chipset QCA9531 ,CPU main frequency is 600Mhz RAM Defualt DDR2:128MB FLASH Defualt 16MB Wireless Speed Rate 2.4G:2T2R:300Mbps Working Frequency 2.4Ghz Interface Supports 1 10/100M self-adaption LAN/WAN with auto flip (Auto MDI/MDIX)(24V POE) Support 1 2.0 USB Support 1 MINI PCIE (usb 2.0)usd for 4G modem Support micro SD card Support 4G mini pcie Support more GPIO application interface Max. Power Consumption <15W Dimension 107X90X19MM(LXWXH) Working Environment Working Temperature: -10 ° C to 75 ° C Storage Temperature: -40 ° C to 100 ° C Working Humidity: 10% to 90% RH does not condense Storage Humidity: 5% to 90% RH does not condense RF(Typical) G HT20 HT40 OFDM 6M 16dB±2dB MCS0/8 15dB±2dB MCS0/8 14dB±2dB OFDM 9M 16dB±2dB MCS1/9 15dB±2dB MCS1/9 14dB±2dB OFDM 12M 16dB±2dB MCS2/10 15dB±2dB MCS2/10 14dB± 2dB OFDM 18M 16dB±2dB MCS3/11 15dB±2dB MCS3/11 14dB± 2dB OFDM 24M 16dB±2dB MCS4/12 15dB±2dB MCS4/12 14dB± 2dB OFDM 36M 16dB±2dB MCS5/13 15dB±2dB MCS5/13 14dB± 2dB OFDM 48M 16dB±2dB MCS6/14 15dB±2dB MCS6/14 14dB± 2dB OFDM 54M 16dB±2dB MCS7/15 15dB±2dB MCS7/15 14dB± 2dB Sensitivity G HT20 HT40 OFDM 6Mbps≤-89 MCS0/8≤-83 MCS0/8≤-80 OFDM 9Mbps≤-88 MCS1/9≤-80 MCS1/9≤-77 OFDM 12Mbps≤-85 MCS2/10≤-78 MCS2/10≤-75 WiFiRanger, A LinOra Company Denali Ver1.0 3 OFDM 18Mbps≤-83 MCS3/11≤-75 MCS3/11≤-72 OFDM 24Mbps≤-80 MCS4/12≤-71 MCS4/12≤-68 OFDM 36Mbps≤-75 MCS5/13≤-67 MCS5/13≤-64 OFDM 48Mbps≤-71 MCS6/14≤-66 MCS6/14≤-63 OFDM 54Mbps≤-70 MCS7/15≤-65 MCS7/15≤-62 Wireless Security Wireless security function switch; 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism; WPS fast security settings Software Features Support AP, router, relay, 4G function, etc. Support VPN security tunneling function, Support dynamic routing and static routing Convenient WEB configuration Wireless settings and encryption Support telnet management, easy to use console shell interactive environment Support multiple dialing methods: automatic allocation, specify IP, specify local peer IP, ppoe Support local software upgrade; support configuration export import, and web online update firmware Support operating system Windows XP/7/8/9/10/Linux Product Application: Intelligent Transportation: 1. HD electronic bayonet application 2. HD electronic police application 3. Road wireless video Surveillance Vehicle monitoring: 1. Bus wireless video surveillance 2. Taxi video surveillance 3. Bus video surveillance Security monitoring: 1. Security wireless mobile detection system 2. Security wireless video surveillance WiFiRanger, A LinOra Company Denali Ver1.0 4 Industrial monitoring: 1. Site wireless video surveillance 2. Industrial big data transmission 3 Remote crane monitoring and management 4. Elevator remote monitoring Financial industry: 1. Wireless ATM self-service terminal 2. Coal mine tax monitoring system 3. Wireless POS application Power industry: 1. Substation 3G video surveillance 2. Transformer remote monitoring management 3. Power line video surveillance Environmental protection industry: 1.3G noise monitoring system 2. Wireless monitoring system for pollution sources 3. Wireless environmental monitoring system Water conservancy industry: 1. Reservoir remote monitoring system 2. Water environment comp rehensive monitoring system Other industries: 1. Municipal engineering 2. Petroleum monitoring 3. Agricultural applications 4. Wireless WIFI applications WiFiRanger, A LinOra Company Denali Ver1.0 5 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio …

Text truncated - open the document above for the full version.

WiFiRanger, A LinOra Company 2021.03.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: High Power Wireless Router/AP Trademark: N/A Model : Denali FCC ID: 2AWG9-DENALI To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Kelly Hogan / Engineer Contact information / address: 943 W Overland Road, Meridian Idaho 83642 United States

WiFiRanger, A LinOra Company 2021.03.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Kelly Hogan / Engineer Contact information / address: 943 W Overland Road, Meridian Idaho 83642 United States

WiFiRanger, A LinOra Company FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021.3.30 Subject; Modular Transmitter Application Company name: WiFiRanger, A LinOra Company FCC ID: 2AWG9-DENALI Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2AWG9-DENALI has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes,This module meets the requirements of FCC part 15C(15.247).it specifically establish the 6dB Bandwidth, 26 dB and 99% Emission Bandwidth, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) The module must contain power supply regulation on the module. Yes,The module is a limited module The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The EUT has two External Antenna, The antenna can be replaced by other antennas, and the gain of each replacement antenna is no more than 5dBi The module must demonstrate compliance in a stand-alone configuration. Yes,The module is a limited module The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The host system using this module, should have label in a visible area indicated the following texts: "Contains FCC ID: 2AWG9- DENALI WiFiRanger, A LinOra Company FCC Modular Approval Request Rev 3.0 The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, The module with trace antenna designs, and This manual has been shown the layout of trace design,, antenna, connectors, and isolation requirements. The module must comply with RF exposure requirements This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID is: 2AWG9-DENALI. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist.Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 7 2.3 Summarize the specif ic operational use conditions Page 7 2.4 Limited module procedures Page 7 2.5 Trace antenna designs Page 8 2.6 RF exposure considerations Page 8 2.7 Antennas Page 9 2.8 Label and compliance inf ormation Page 9 2.9 Inf ormation on test modes and additional testing requirements Page 9 2.10 Additional testing, Part 15 Subpart B disclaimer Page 9 Name: Kelly Hogan Date: 2021.3.30 Title: Manager Signature of applicant:

External Photos Antenna A Antenna B

Size:30*15mm High Power Wireless Router/AP Model: Denali FCC ID: 2AWG9-DENALI IC: 26122-DENALI Label Location

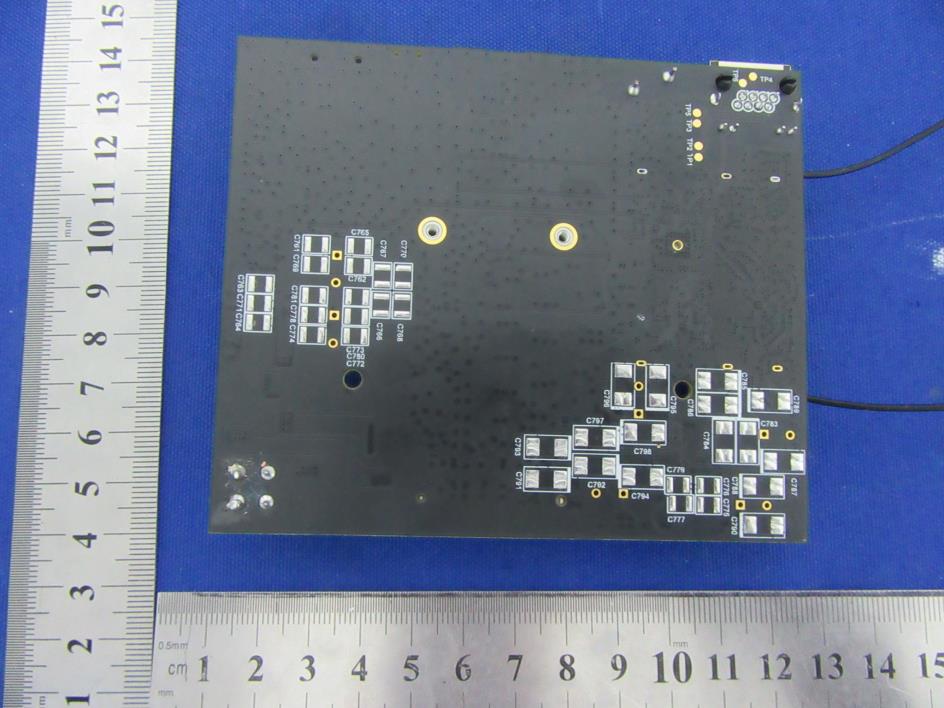

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AWG9-DENALI Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m RESULTS For 11n20/n40(MIMO),Directional gain= GANT + 10 log(NANT/NSS) dBi=5+10*log(2/1)=8.01dBi Worst mode Tune up Produ ce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result 802.11 b Ant A 18±1 19 79.43 3.16 (5dBi) 0.04994 1 Pass 802.11 b Ant B 18±1 19 79.43 3.16 (5dBi) 0.04994 Pass 802.11 N20 Ant A 15±1 16 39.81 6.32 (8.01dBi) 0.10012 Pass 802.11 N20 Ant B 15±1 16 39.81 Pass

No.：BCTC/RF-EMC-005 Page: 1 of 69 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2103724815E Applicant: WiFiRanger, A LinOra Company Product Name: High Power Wireless Router/AP Model/Type Ref.: Denali Tested Date: 2021-03-09 to 2021-03-16 Issued Date: 2021-03-17 Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 2 of 69 Edition：A.3 FCC ID: 2AWG9-DENALI The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: High Power Wireless Router/AP Trademark: N/A Model/Type Ref.: Denali Prepared For: WiFiRanger, A LinOra Company Address: 943 W Overland Road, Meridian Idaho 83642 United States Manufacturer: Shenzhen Yinuo-Link Technology Co., Ltd Address: 301, Bldg 6, Gaoxinjian Industrial Park, Fuyuan 1st Road, Heping, Fuhai, Bao'an, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2021-03-05 Sample tested Date: 2021-03-09 to 2021-03-16 Issue Date: 2021-03-17 Report No.: BCTC2103724815E Test Standards FCC Part15.247 ANSI C63.10:2013 KDB 662911 D01 v02r01 558074 D01 15.247 Meas Guidance v05r02 Test Results PASS Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 3 of 69 Edition：A.3 Table of Contents Page 1 .VERSION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 3.5 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3.6.1TEST FACILITY 12 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 TEST PROCEDURE 19 4.2.3 DEVIATION FROM TEST STANDARD 19 4.2.4 TEST SETUP 20 4.2.5 EUT OPERATING CONDITIONS 21 4.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 22 4.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 23 4.2.8 TEST RESULTS 25 4.3 RADIATED BAND EMISSION MEASUREMENT 29 4.3.1 TEST REQUIREMENT 29 4.3.2 TEST PROCEDURE 29 4.3.3 DEVIATION FROM TEST STANDARD 30 4.3.4 TEST SETUP 30 4.3.5 EUT OPERATING CONDITIONS 30 Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 4 of 69 Edition：A.3 Table of Contents Page 5 . POWER SPECTRAL DENSITY TEST 33 5.1 APPLIED PROCEDURES / LIMIT 33 5.1.1 TEST PROCEDURE 33 5.1.2 DEVIATION FROM STANDARD 33 5.1.3 TEST SETUP 33 5.1.4 EUT OPERATION CONDITIONS 33 5.1.5 TEST RESULTS 34 6 . BANDWIDTH TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 TEST PROCEDURE 42 6.1.2 DEVIATION FROM STANDARD 42 6.1.3 TEST SETUP 42 6.1.4 EUT OPERATION CONDITIONS 42 6.1.5 TEST RESULTS 43 7 . PEAK OUTPUT POWER TEST 51 7.1 APPLIED PROCEDURES/LIMIT 51 7.1.1 TEST PROCEDURE 51 7.1.2 DEVIATION FROM STANDARD 51 7.1.3 TEST SETUP 51 7.1.4 EUT OPERATION CONDITIONS 51 7.1.5 TEST RESULTS 52 8 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 53 8.1 APPLICABLE STANDARD 53 8.2 TEST PROCEDURE 53 8.3 DEVIATION FROM STANDARD 53 8.4 TEST SETUP 53 8.5 EUT OPERATION CONDITIONS 53 9 . DUTY CYCLE OF TEST SIGNAL 62 9.1 STANDARD REQUIREMENT 62 9.2 FORMULA: 62 10 . ANTENNA REQUIREMENT 65 10.1 STANDARD REQUIREMENT 65 10.2 EUT ANTENNA 65 Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 5 of 69 Edition：A.3 Table of Contents Page 11 . EUT TEST PHOTO 66 12 . EUT PHOTO 68 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 6 of 69 Edition：A.3 1.VERSION Report No. Issue Date Description Approved BCTC2103724815E 2021-03-17 Original Valid Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 7 of 69 Edition：A.3 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d) Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247 (d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 8 of 69 Edition：A.3 2.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 3 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 4 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 5 Conducted Adjacent channel power U=1.38dB 6 Conducted output power uncertainty Above 1G U=1.576dB 7 Conducted output power uncertainty below 1G U=1.28dB 8 humidity uncertainty U=5.3% 9 Temperature uncertainty U=0.59°C Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 9 of 69 Edition：A.3 3. GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT Model/Type Ref.: Denali Model differences: N/A Hardware Version: Denali ver1.0 Software Version: A1.0 Operation Frequency: 802.11b/g/n20MHz:2412~2462 MHz 802.11n40MHz:2422~2452 MHz Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n Up to 300Mbps Type of Modulation: WIFI…

Text truncated - open the document above for the full version.

Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 58 of 69 Edition：A.3 CONDUCTED EMISSION MEASUREMENT Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A ,only shown Antenna A Plot. 802.11b Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 59 of 69 Edition：A.3 802.11g Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 60 of 69 Edition：A.3 802.11n20 Low Channel 2412MHz Middle Channel 2437MHz High Channel 2462MHz Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 61 of 69 Edition：A.3 802.11n40 Low Channel 2422MHz Middle Channel 2437MHz High Channel 2452MHz Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 62 of 69 Edition：A.3 9. DUTY CYCLE OF TEST SIGNAL 9.1 STANDARD REQUIREMENT Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 9.2 FORMULA: Duty Cycle = Ton / (Ton+Toff) Measurement Procedure: 1. Set span = Zero 2. RBW = 8MHz 3. VBW = 8MHz, 4. Detector = Peak Duty Cycle: Duty Cycle Duty Fator (dB) 802.11b 1 0 802.11g 1 0 802.11n(HT20) 1 0 802.11n(HT40) 1 0 Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A ,only shown Antenna A Plot. Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 63 of 69 Edition：A.3 802.11b 802.11g Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 64 of 69 Edition：A.3 802.11n(HT20) 802.11n(HT40) Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 65 of 69 Edition：A.3 10. ANTENNA REQUIREMENT 10.1 STANDARD REQUIREMENT 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 10.2 EUT ANTENNA The EUT antenna is External antenna, antenna(A) Gain 5dBi, antenna(B) Gain 5dBi, impedance 50Ω. It comply with the standard requirement. Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 66 of 69 Edition：A.3 11. EUT TEST PHOTO Conducted Measurement Photos Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 67 of 69 Edition：A.3 Radiated Measurement Photos Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 68 of 69 Edition：A.3 12. EUT PHOTO EUT Photo 1 EUT Photo 2 Report No.: BCTC2103724815E No.：BCTC/RF-EMC-005 Page: 69 of 69 Edition：A.3 STATEMENT 1.The equipment lists are traceable to the national reference standards. 2.The test report can not be partially copied unless prior written approval is issued from our lab. 3.The test report is invalid without stamp of laboratory. 4.The test report is invalid without signature of person(s) testing and authorizing. 5.The test process and test result is only related to the Unit Under Test. 6.The quality system of our laboratory is in accordance with ISO/IEC17025. 7.If there is any objection to report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL：400-788-9558 P. C.: 518103 FAX：0755-33229357 Website：http://www.bctc-lab.com E-Mail：[email protected] ※※※※※ END ※※※※※
