2AWG9-TETONHigh Power Wireless Router/AP

WiFiRanger, A LinOra Company Teton V3.0 1 High Power Wireless Router/AP Model：Teton V3.0 Description: Teton V3.0 is a wireless enterprise routerAP. It has built-in Qualcomm enterprise QCA9531 CPU, large flash and high speed memory, strong data processing capability and support dual frequency concurrency,it is a reliable and flexiblenetworking deviceproviding security, and speed for enterprises.. Features: 1. Using Qualcomm QCA9531 cpu frequency 600Mhz 2. Large memory and large storage design to meet different needs 3. Meet the standard of IEEE 802.11n, IEEE 802.11g/b/, 4. Support PPPoE, dynamic IP, static IP and other broadband access methods 5. Support 2.0 USB interface for fast shared mobile storage network,or 4G access to it 6. Industrial grade design, the power supply and network port are support surge 4KV, and electrostatic 8KV which tested in lab 7. Hardware watchdog design, working unobstructed in a whole day 8. Support Open-Wrt system, which is convenient for customers to develop by themselves WiFiRanger, A LinOra Company Teton V3.0 2 Specification Protocol IEEE802.11N/G/B Chipset QCA9531 ,CPU main frequency is 600Mhz RAM Defualt DDR2:128MB FLASH Defualt 16MB Wireless Speed Rate 2.4G:2T2R:300Mbps Working Frequency 2.4Ghz Interface Supports 1 10/100M self-adaption LAN/WAN with auto flip (Auto MDI/MDIX)(24V POE) Support 1 2.0 USB Support 2 MINI PCIE (usb 2.0) Support micro SD card Support 4G mini pcie Support more GPIO application interface Max. Power Consumption <15W Dimension 107X90 X19MM(LXWXH) Working Environment Working Temperature: -10 ° C to 75 ° C Storage Temperature: -40 ° C to 100 ° C Working Humidity: 10% to 90% RH does not condense Storage Humidity: 5% to 90% RH does not condense RF(Typical) G HT20 HT40 OFDM 6M 23dB±2dB MCS0/8 23dB±2dB MCS0/8 23dB±2dB OFDM 9M 23dB±2dB MCS1/9 23dB±2dB MCS1/9 23dB±2dB OFDM 12M 23dB±2dB MCS2/10 23dB±2dB MCS2/10 23dB±2dB OFDM 18M22dB±2dB MCS3/11 22dB±2dB MCS3/11 22dB±2dB OFDM 24M 22dB±2dB MCS4/12 22dB±2dB MCS4/12 22dB±2dB OFDM 36M 22dB±2dB MCS5/13 22dB±2dB MCS5/13 22dB±2dB OFDM 48M 21dB±2dB MCS6/14 21dB±2dB MCS6/14 21dB±2dB OFDM 54M 20dB±2dB MCS7/15 20dB±2dB MCS7/15 20dB±2dB Sensitivity G HT20 HT40 OFDM 6Mbps≤-89 MCS0/8≤-83 MCS0/8≤-80 OFDM 9Mbps≤-88 MCS1/9≤-80 MCS1/9≤-77 OFDM 12Mbps≤-85 MCS2/10≤-78 MCS2/10≤-75 OFDM 18Mbps≤-83 MCS3/11≤-75 MCS3/11≤-72 OFDM 24Mbps≤-80 MCS4/12≤-71 MCS4/12≤-68 OFDM 36Mbps≤-75 MCS5/13≤-67 MCS5/13≤-64 OFDM 48Mbps≤-71 MCS6/14≤-66 MCS6/14≤-63 WiFiRanger, A LinOra Company Teton V3.0 3 OFDM 54Mbps≤-70 MCS7/15≤-65 MCS7/15≤-62 Wireless Security Wireless security function switch; 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism; WPS fast security settings Software Features Support AP, router, relay, 4G function, etc. Support VPN security tunneling function, Support dynamic routing and static routing Convenient WEB configuration Wireless settings and encryption Support telnet management, easy to use console shell interactive environment Support multiple dialing methods: automatic allocation, specify IP, specify local peer IP, ppoe Support local software upgrade; support configuration export import, and web online update firmware Support operating system Windows XP/7/8/9/10/Linux WiFiRanger, A LinOra Company Teton V3.0 4 Product Application: Intelligent Transportation: 1. HD electronic bayonet application 2. HD electronic police application 3. Road wireless video SurveillanceVehicle monitoring: 1. Bus wireless video surveillance 2. Taxi video surveillance 3. Bus video surveillance Security monitoring: 1. Security wireless mobile detection system 2. Security wireless video surveillance Industrial monitoring: 1. Site wireless video surveillance 2. Industrial big data transmission 3 Remote crane monitoring and management 4. Elevator remote monitoring Financial industry: 1. Wireless ATM self-service terminal 2. Coal mine tax monitoring system 3. Wireless POS application Power industry: 1. Substation 3G video surveillance 2. Transformer remote monitoring management 3. Power line video surveillance Environmental protection industry: 1.3G noise monitoring system 2. Wireless monitoring system for pollution sources 3. Wireless environmental monitoring system Water conservancy industry: 1. Reservoir remote monitoring system 2. Water environment comprehensive monitoring system Other industries: 1. Municipal engineering 2. Petroleum monitoring 3. Agricultural applications 4. Wireless WIFI applications WiFiRanger, A LinOra Company Teton V3.0 5 FCC WARNING FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the…

Text truncated - open the document above for the full version.

WiFiRanger, A LinOra Company Agent Authorization Company:WiFiRanger, A LinOra Company Address: 943 W Overland Road, Meridian, ID 83642 USA Product Name: High Power Wireless Router/AP Model Number(s): Teton V3 Product Description: High Power Wireless Router/AP We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/06/05 Name: Kelly Hogan Title: Manager Company: WiFiRanger, A LinOra Company

WiFiRanger, A LinOra Company Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06/05/2020 Subject; Modular Transmitter Application Company name: WiFiRanger, A LinOra Company FCC ID: 2AWG9-TETON Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2AWG9-TETON has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, The modular data inputs are buffered through log or microcontroller connections. All modulation and data inputs are buffered by circuitry on the transmitter chip. The module must contain power supply regulation on the module. Yes, Power supply regulation is provided by circuitry on the CPU chip. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The EUT meet the FCC antenna requirements, the modular with a special joint antenna connector. The module must demonstrate compliance in a stand-alone configuration. Yes, The EUT is can transmitting Stand-alone, please refer the test setup photos. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The module is labeled with its permanently affixed FCC ID label. The label position is clearly indicated. Please refer to label & label location information. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, The EUT is full compliant with FCC rules, please refer the details in user manual. FCC Modular Approval Request Rev 3.0 WiFiRanger, A LinOra Company The module must comply with RF exposure requirements This module is complies with FCC CFR 47 part 2.1091 and FCC KDB 447498 D01 General RF Exposure Guidance v06 limit , Please refer RF exposure report. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 6 2.3 Summarize the specific operational use conditions Page 6 2.4 Limited module procedures Page 6 2.6 RF exposure considerations Page 7 2.7 Antennas Page 7 2.8 Label and compliance information Page 7 2.9 Information on test modes and additional testing requirements Page 7 2.10 Additional testing, Part 15 Subpart B disclaimer Page 8 Name: Kelly Hogan Date: 06/05/2020 Title: Manager Signature of applicant: FCC Modular Approval Request Rev 3.0

WiFiRanger, A LinOra Company Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/06/05 Subject; Request for Confidentiality FCC ID: 2AWG9-TETON To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kelly Hogan Title: Manager

WiFiRanger, A LinOra Company Model Difference Product description: High Power Wireless Router/AP Model name: TETON V3 YN-Teton Trade Name: N/A FCC ID: 2AWG9-TETON All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Kelly Hogan / Manager Contact information / address: 943 W Overland Road, Meridian, ID 83642 USA

External Photos ANT

Label & label location Model: Teton V3 FCC ID: 2AWG9-TETON IC: 26112-TETON

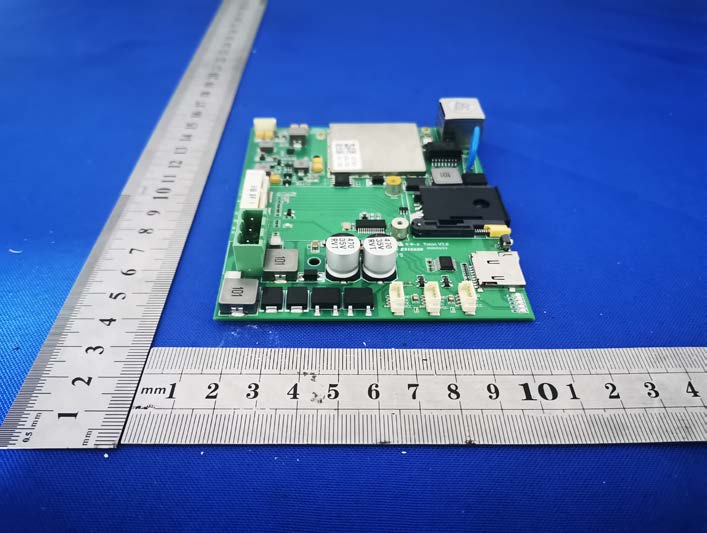

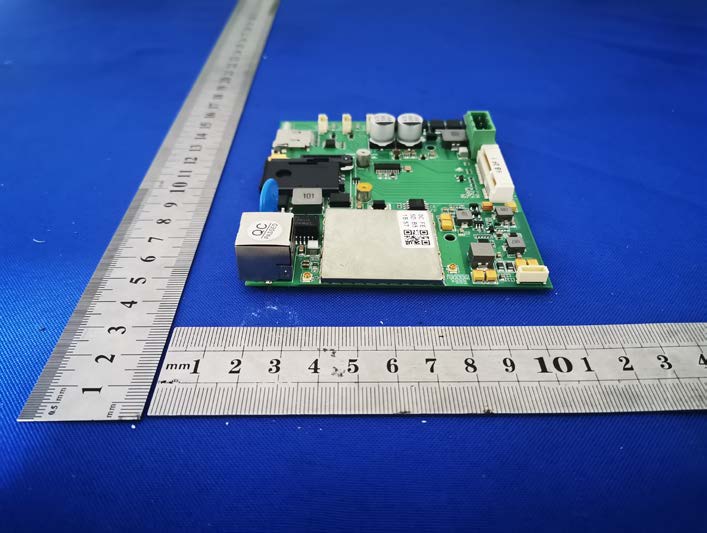

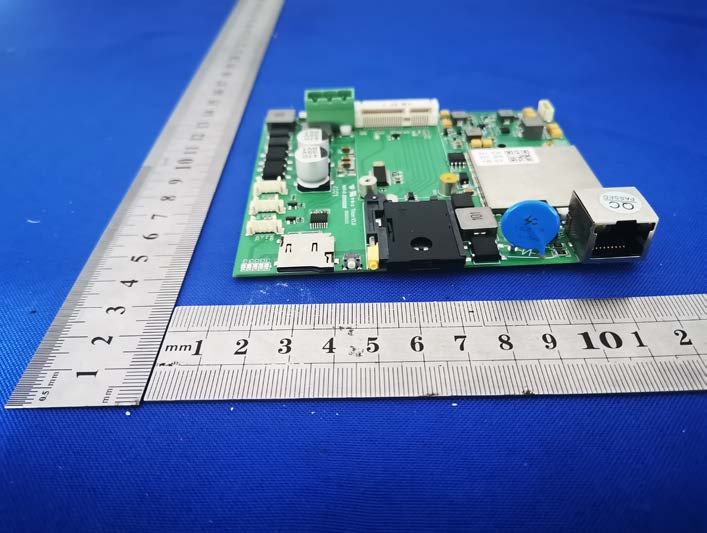

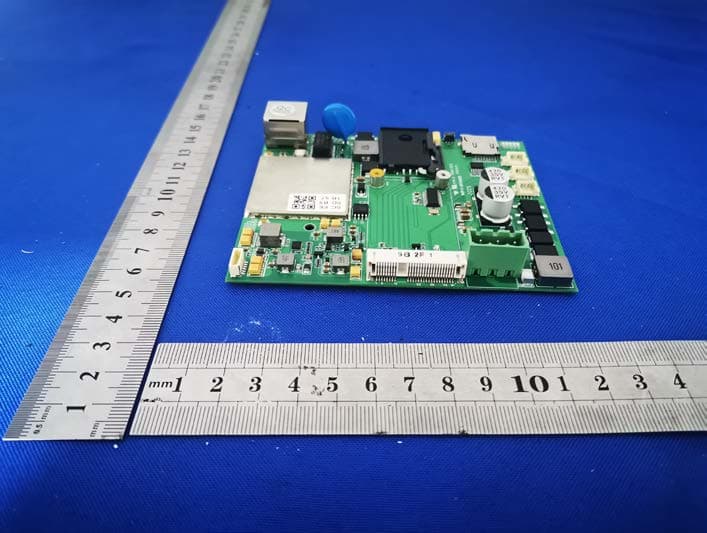

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AWG9-TETON Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result 802.11 B/G/N 21±1 22 158.489 3.162 (5dBi) 0.0997 1 Pass

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E FCC Part 15C Test Report FCC ID: 2AWG9-TETON Product Name: High Power Wireless Router/AP Trademark: N/A Model Name : Teton V3 YN-Teton Prepared For : WiFiRanger, A LinOra Company Address : 943 W Overland Road, Meridian, ID 83642 USA Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: May 14, 2020 – May 28, 2020 Date of Report : May 28, 2020 Report No.: BCTC2005000813E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E TEST RESULT CERTIFICATION Applicant’s name ................. : WiFiRanger, A LinOra Company Address ................................. : 943 W Overland Road, Meridian, ID 83642 USA Manufacture's Name ............ : Shenzhen Yinuo-Link Technology Co., Ltd Address ................................. : A201, 2/F, Xinfa East Road No. 12, Xinqiao, Baoan, Shenzhen, China Product description Product name ........................... : High Power Wireless Router/AP Trademark ................................. : N/A Model and/or type reference : Teton V3 YN-Teton Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB 662911 D01 v02r01 558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Bin Mei Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 13 3.1.3 DEVIATION FROM TEST STANDARD 13 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.2.8 TEST RESULTS (1GHZ~25GHZ) 23 3.3 RADIATED BAND EMISSION MEASUREMENT 27 3.3.1 TEST REQUIREMENT: 27 3.3.2 TEST PROCEDURE 27 3.3.3 DEVIATION FROM TEST STANDARD 28 3.3.4 TEST SETUP 28 3.3.5 EUT OPERATING CONDITIONS 28 4 . POWER SPECTRAL DENSITY TEST 30 Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E Table of Contents Page 4.1 APPLIED PROCEDURES / LIMIT 30 4.1.1 TEST PROCEDURE 30 4.1.2 DEVIATION FROM STANDARD 30 4.1.3 TEST SETUP 30 4.1.4 EUT OPERATION CONDITIONS 30 4.1.5 TEST RESULTS 31 5 . BANDWIDTH TEST 39 5.1 APPLIED PROCEDURES / LIMIT 39 5.1.1 TEST PROCEDURE 39 5.1.2 DEVIATION FROM STANDARD 39 5.1.3 TEST SETUP 39 5.1.4 EUT OPERATION CONDITIONS 39 5.1.5 TEST RESULTS 40 6 . PEAK OUTPUT POWER TEST 48 6.1 APPLIED PROCEDURES/LIMIT 48 6.1.1 TEST PROCEDURE 48 6.1.2 DEVIATION FROM STANDARD 48 6.1.3 TEST SETUP 48 6.1.4 EUT OPERATION CONDITIONS 48 6.1.5 TEST RESULTS 49 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 50 7.1 APPLICABLE STANDARD 50 7.2 TEST PROCEDURE 50 7.3 DEVIATION FROM STANDARD 50 7.4 TEST SETUP 50 7.5 EUT OPERATION CONDITIONS 50 7.6 TEST RESULTS 50 8 . DUTY CYCLE OF TEST SIGNAL 59 8.1 STANDARD REQUIREMENT 59 8.2 FORMULA: 59 9 . ANTENNA REQUIREMENT 62 9.1 STANDARD REQUIREMENT 62 9.2 EUT ANTENNA 62 10 . EUT TEST PHOTO 64 Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E Table of Contents Page 11 . EUT PHOTO 66 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d) Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247 (d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 67 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005000813E 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add. : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Te s t Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radia…
